Device

Onkyo MD-110M

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2026-08-23

Manufacturer
Onkyo
Model / source grouping
MD-110M
Device type
deck
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Onkyo MD-110M”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

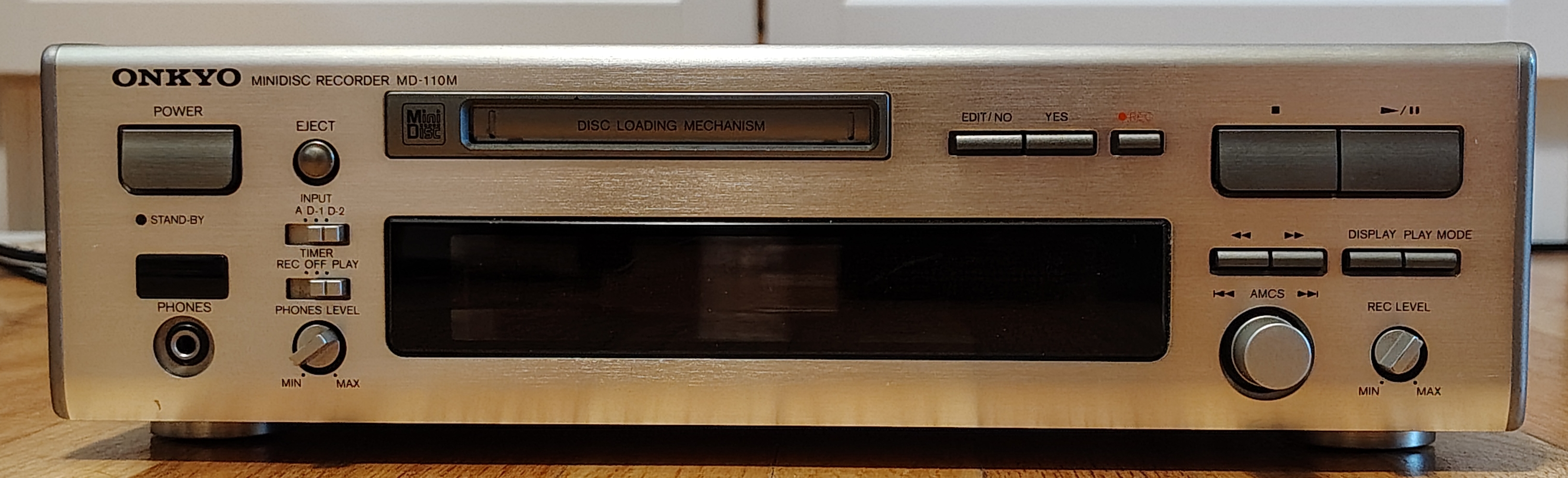

equipment_onkyo_decks_imgrc0068975011_1_.jpg — image unavailable in this snapshot

Name MD-110M
Manufacturer Onkyo
Released 1995/05
Device type deck
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 275Wx79Hx311Dmm
Weight 3.3Kg
ATRAC ver 3.5
Power cable AC
Price (launch) Not recorded
¥76 000
-

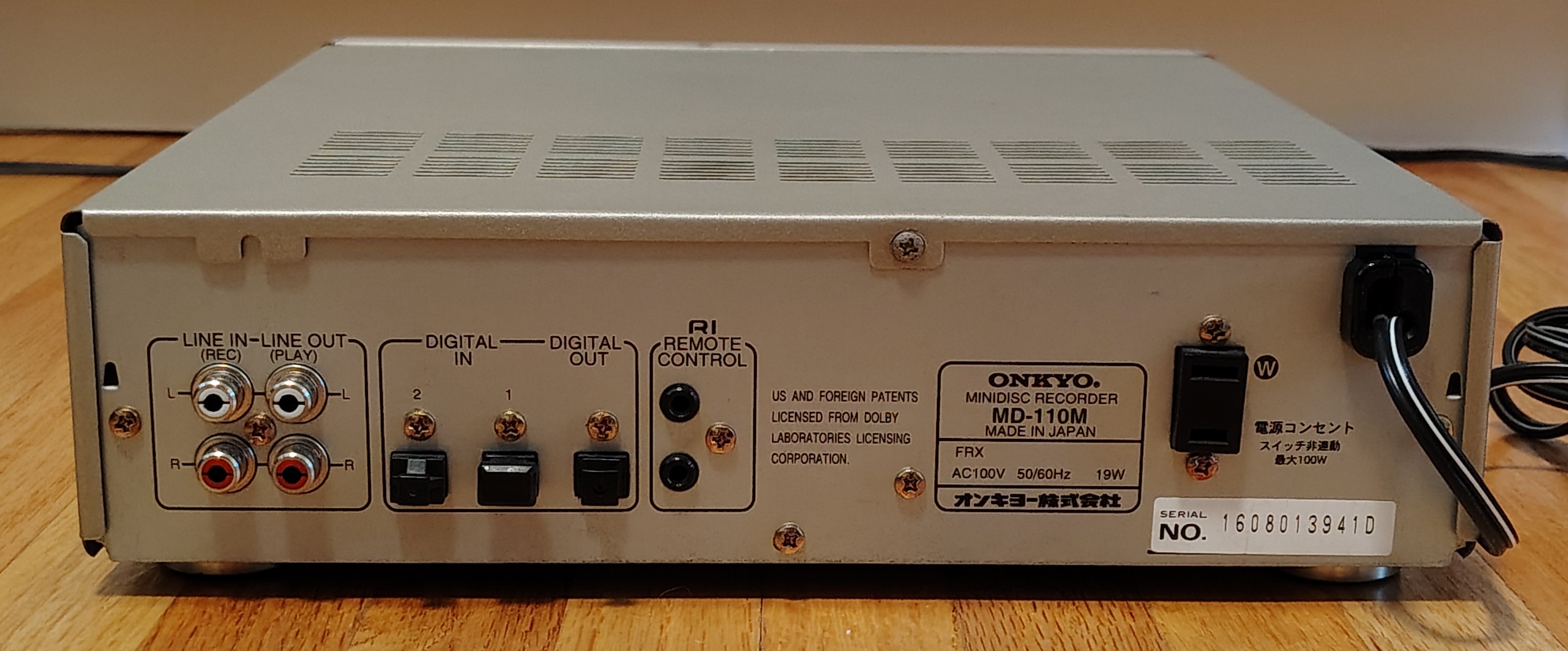

Inputs RCA in, Digital optical (TOSLINK)
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control 3.5mm control

Features: Synchro recording.

  • 48kHz/32kHz sampling rates are automatically converted to 44.1kHz with on-board sampling rate converter. Direct digital recording from CS-PCM or BS (Broadcast Satellite) is possible.
  • Optical Digital/Analog output.
  • Optical Digital (2) / Analog input.
  • Alphabet as well as Katakana input using "Dial Input Function".
  • Edit Functions (Divide/Move/Combine/Erase).
  • Direct track select / program play / music scan / random play / repeat.
  • Many functions are easily usable with AMCS dial.
  • Level meter.
  • Easy to use remote.
  • R-810M Remote / Program Timer connection.
  • Series CD player / CD Changer synchro recording possible (Digital/Analog).

Infrared remote included: Onkyo RC-301MD

The deck can also be controlled through the RI jack, allowing integration with other Onkyo stereo components.

Specifications

  • Frequency Response: 15-20,000Hz +/- 0.5dB
  • SN ratio: over 98dB (playback)
  • Wow and flutter: unmeasureable
  • Power consumption:19W
  • Dimensions 275Wx79Hx311Dmm
  • Weight 3.3kg

Content adapted from: Minidisc.org Page

Manuals

None found

Repair

(repair links go here)

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
RecorderRecorder
Battery Page
SidecarNo
Voltage
Remote Page
Atrac IcCXD2536AR
Manual
RegionJapan
