| Name | MD-122MX |
|---|---|
| Manufacturer | Onkyo |
| Released | 1996/05 |
| Device type | bookshelf |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 275 x 118 x 313mm |
| Weight | 4 kg |
| ATRAC ver | Not recorded |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥59 000 | |
| - | |

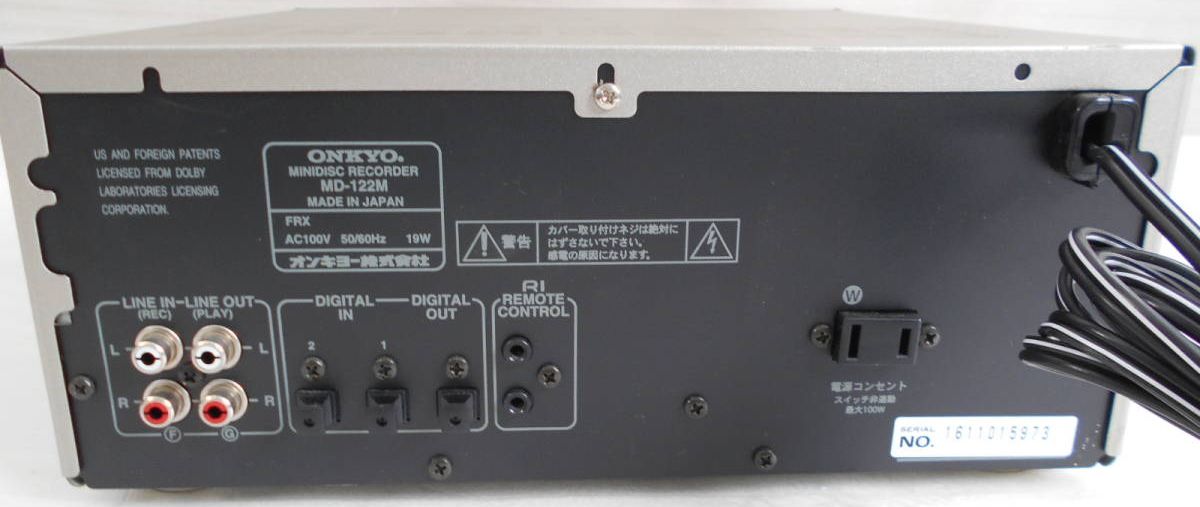

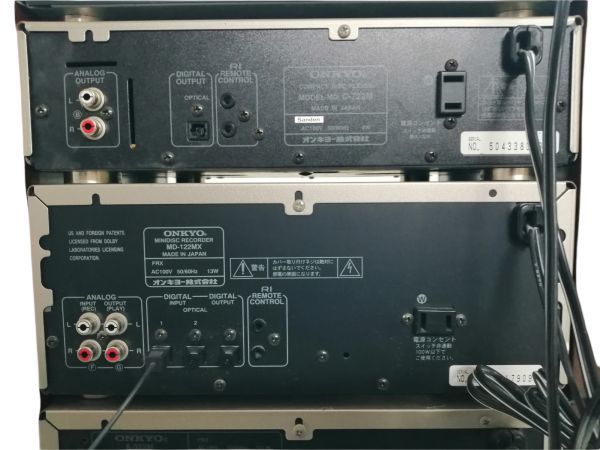

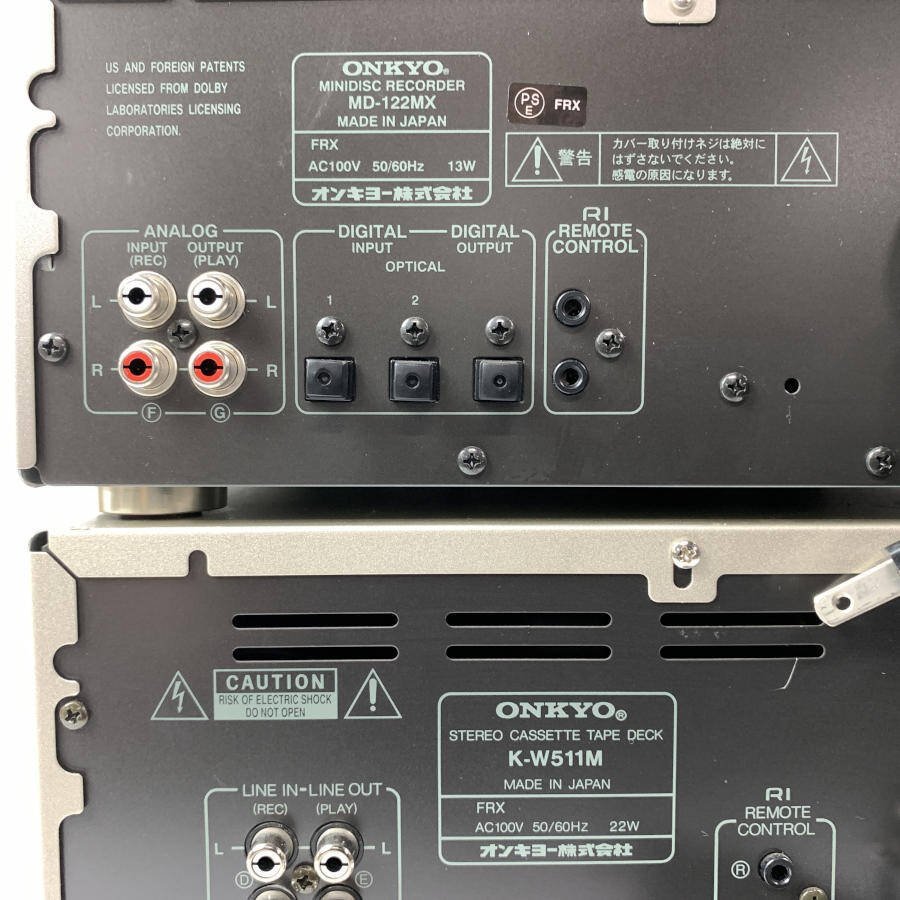

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

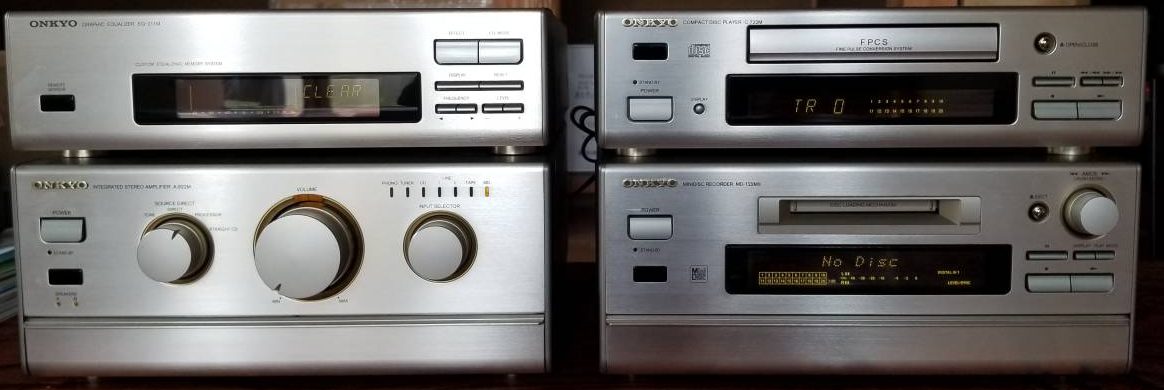

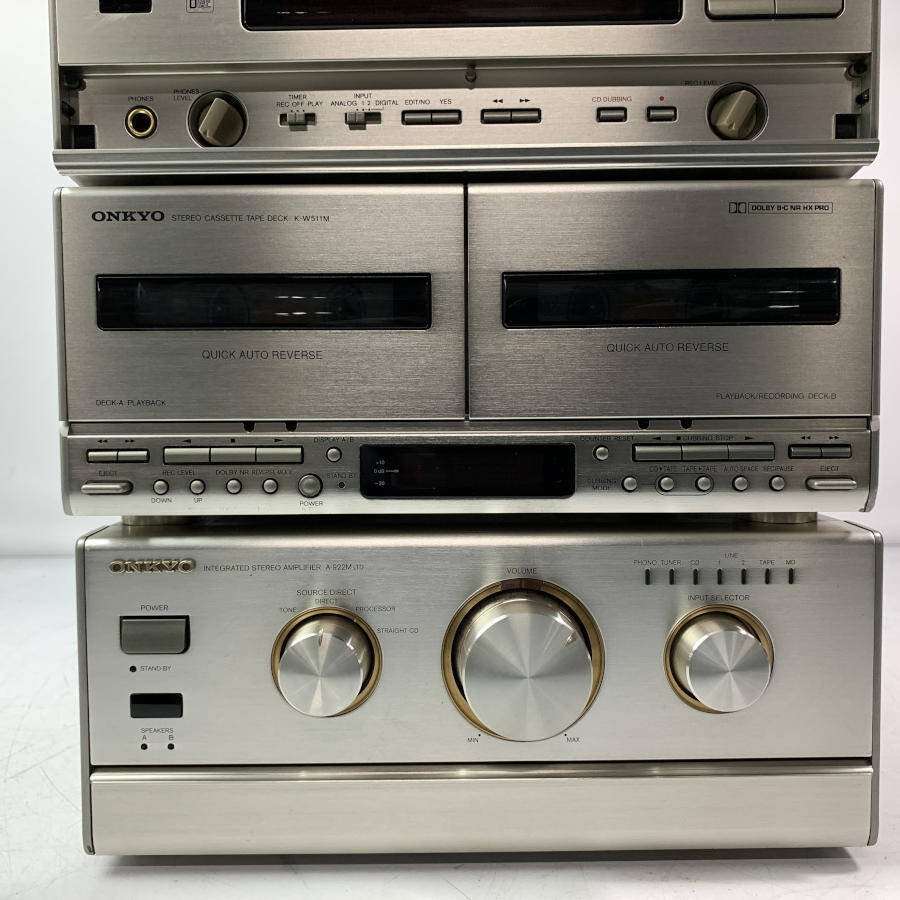

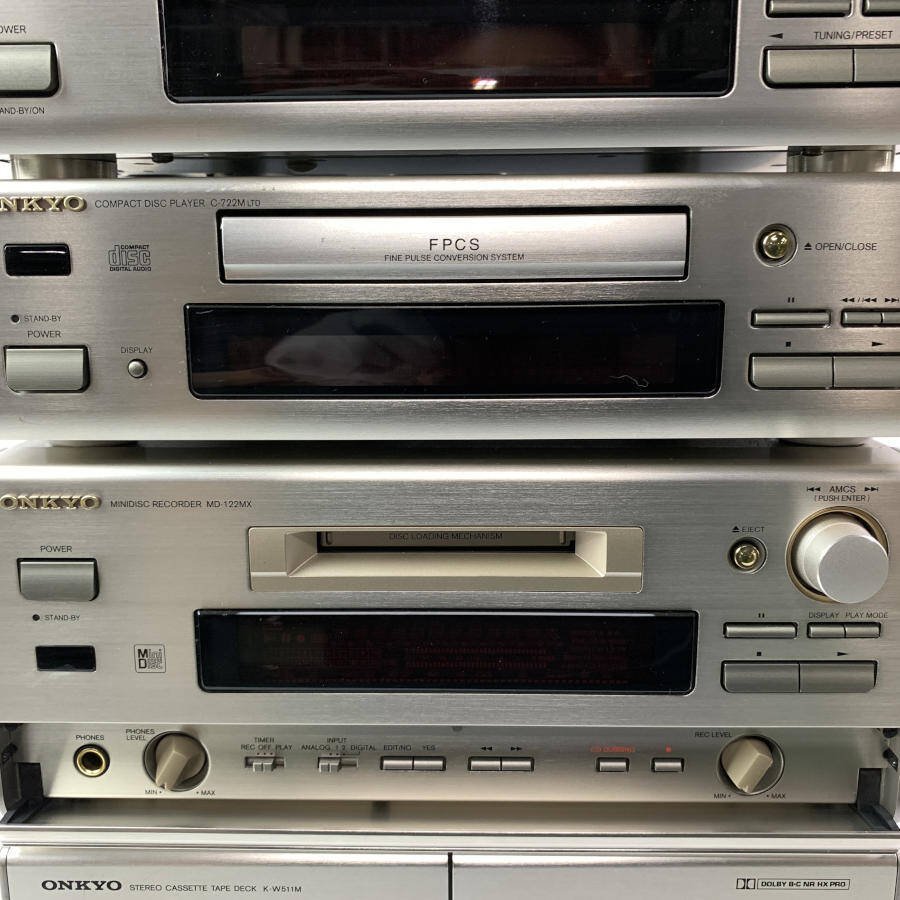

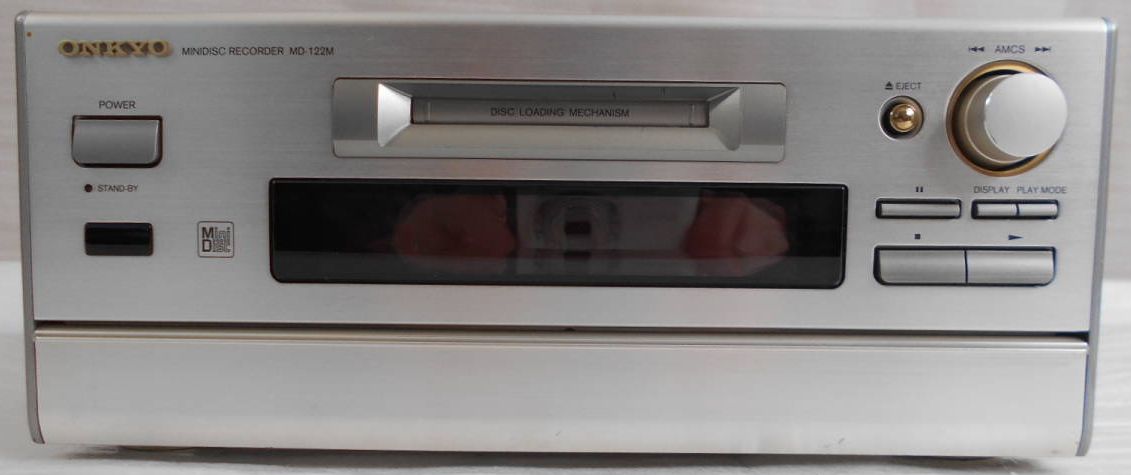

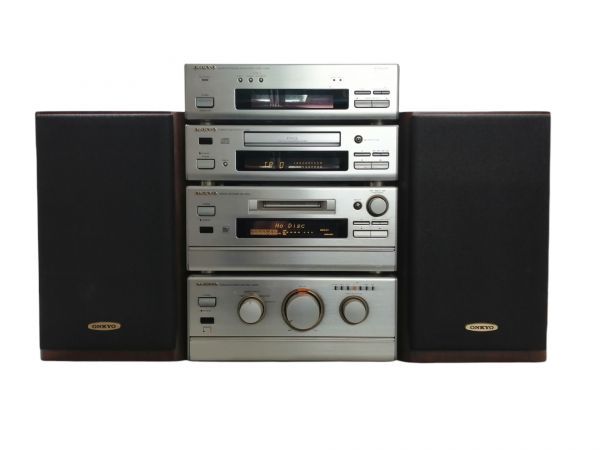

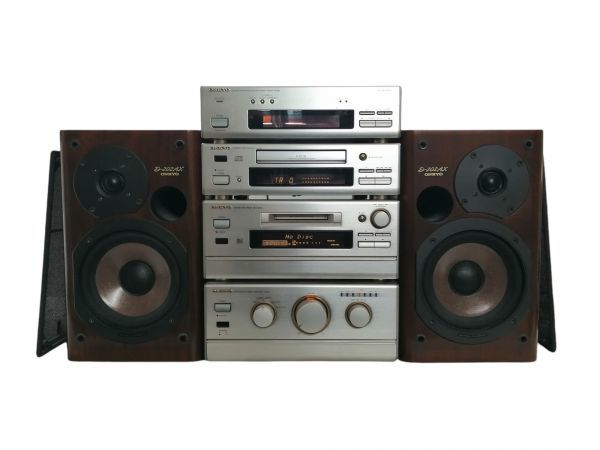

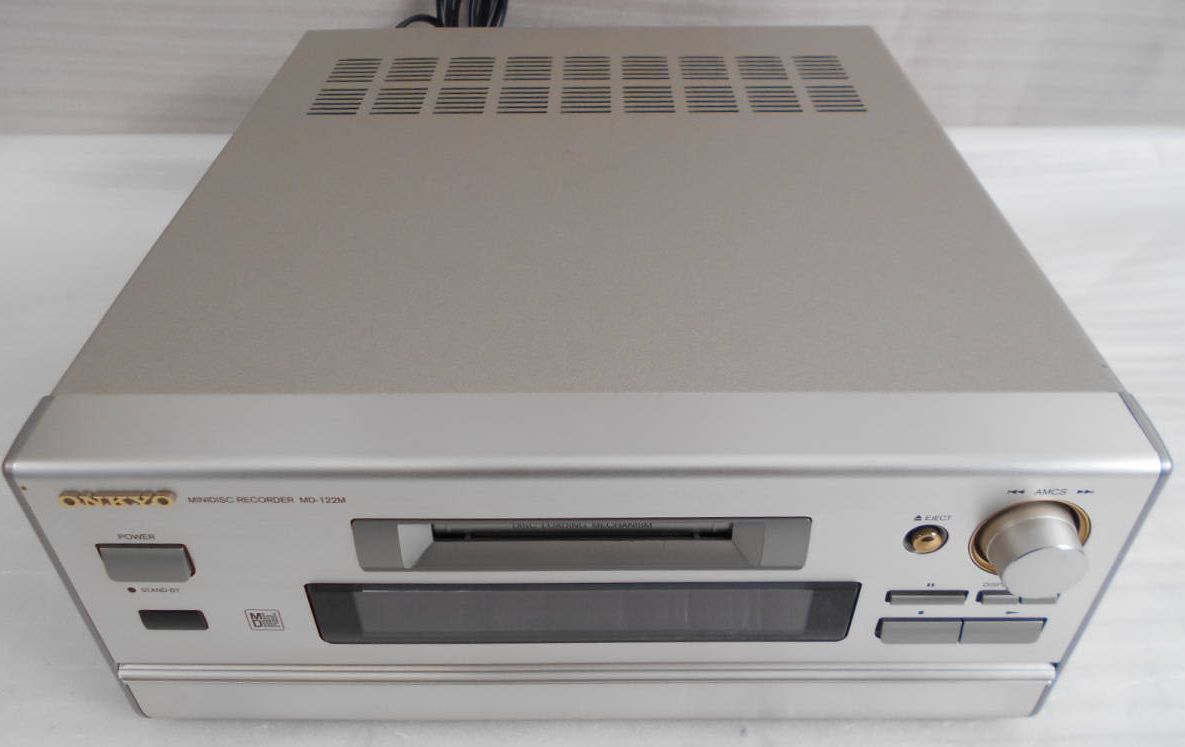

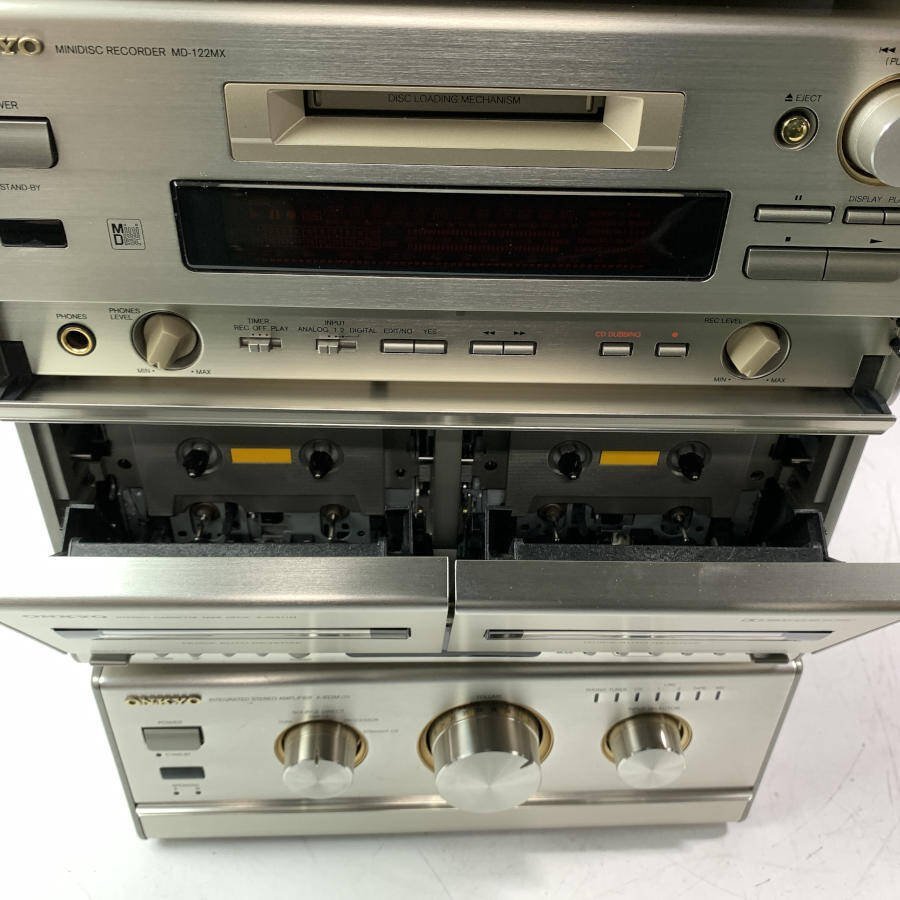

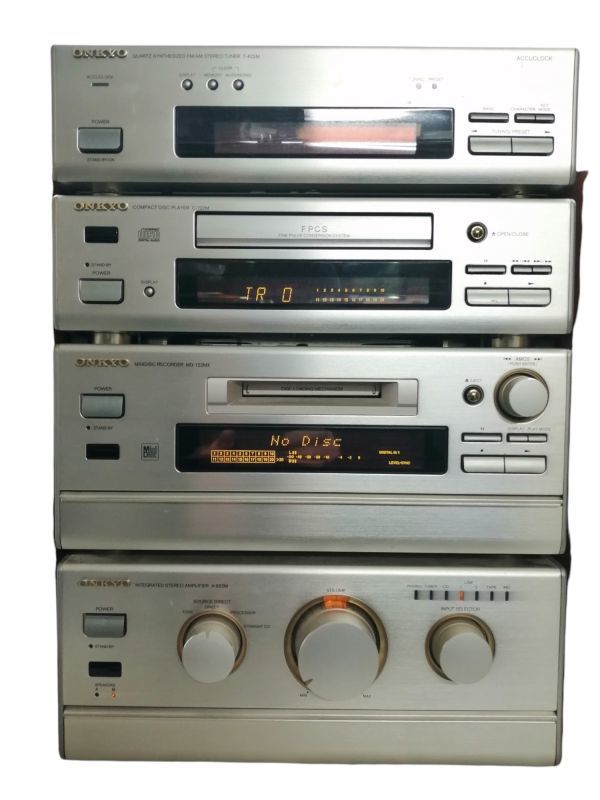

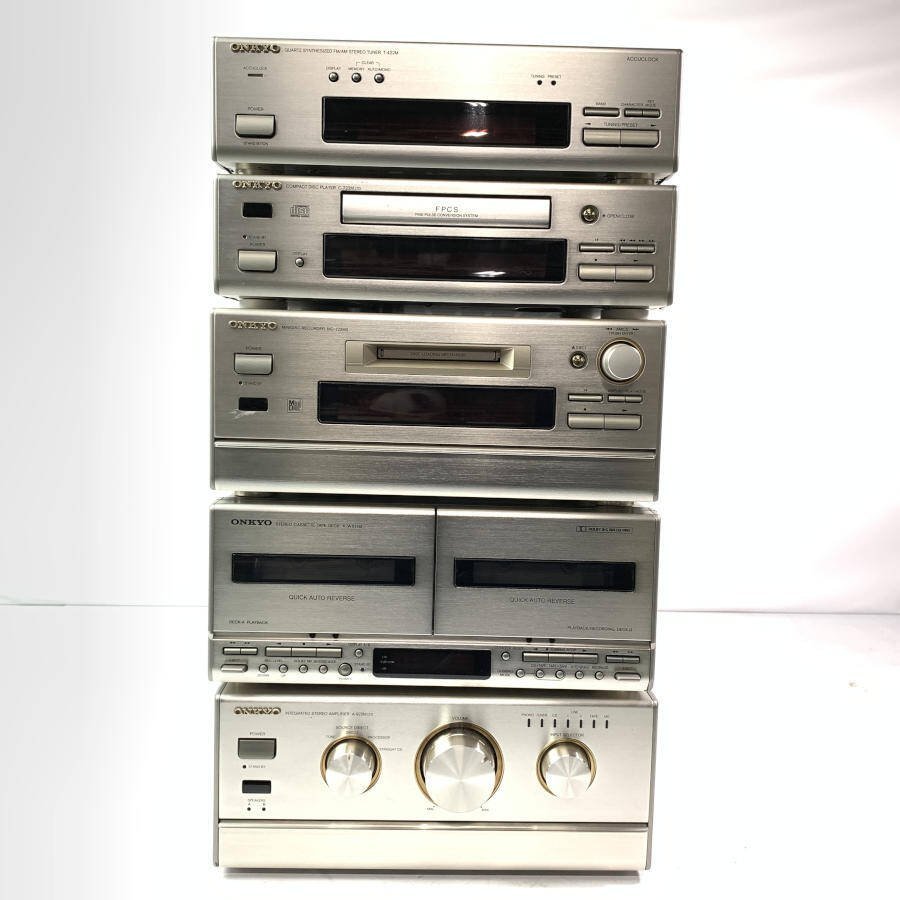

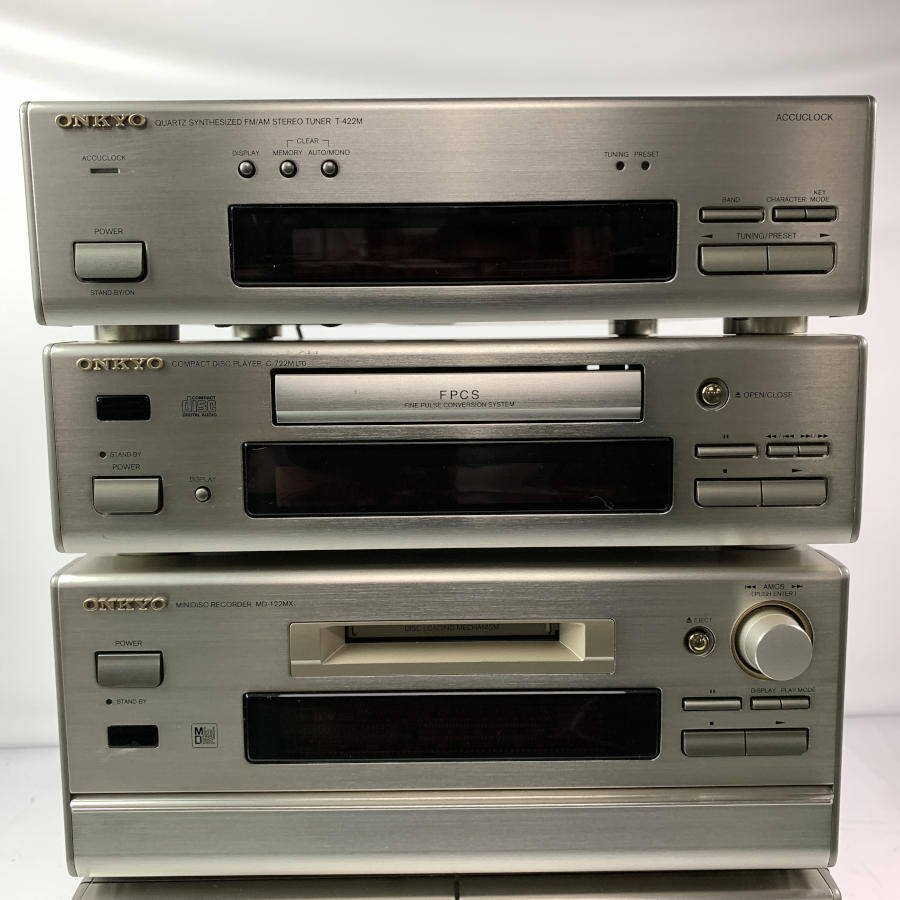

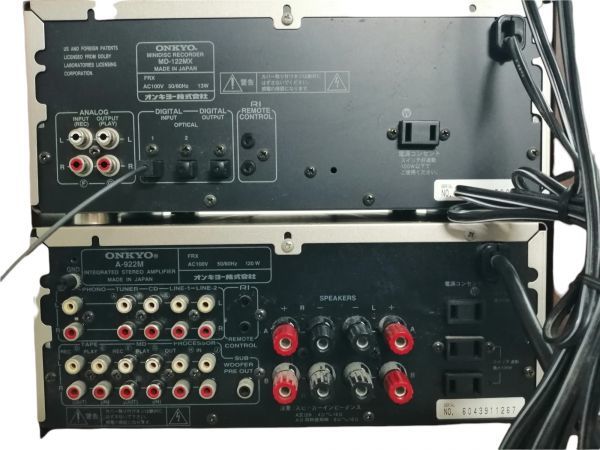

Onkyo MD-122MX - Part of the A-922M LTD set. Also part of the INTEC 275 component series. Used as the MD component of the M9MDX / M7MDX systems.
- Equipped with "20-bit processing" that realizes high-quality recording / playback ● Equipped with a "sampling rate converter" that automatically converts the sampling frequency of 48kHz / 32kHz to 44.1kHz. Digital direct recording from CS-PCM or BS is possible.
- 2 digital inputs (3 digital inputs, Digital-1, Digital-2, Analog)
- Optical digital output / analog output
- “Title input function” that supports katakana input in addition to alphabets
- Edit function (Divide / Move) / Combine / Erase)
- Direct song selection / program play / music scan / random play / repeat
- CD → MD dubbing command function (only when combined with C-722M)
- Detects and records signals from devices other than the INTEC 275 series "Signal sync recording" that allows you to start / stop
- AMCS dial that allows you to easily use multiple functions
- Level meter
- Single remote control sold separately (RC-339MD)

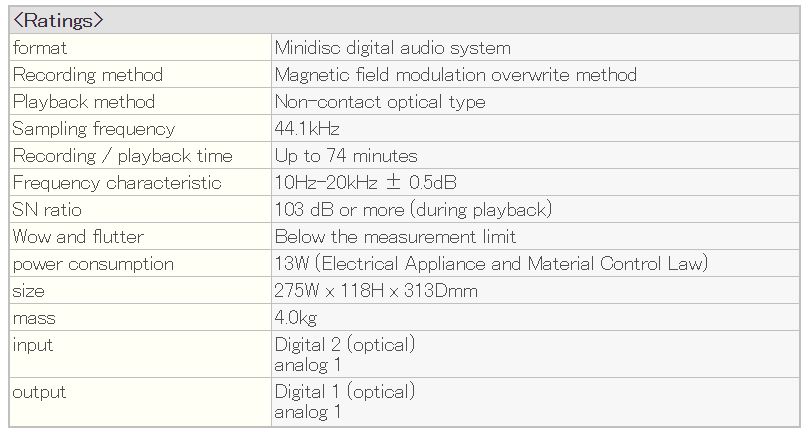

- SN ratio: 103dB or more (at the time of playback)
- Frequency response: 10Hz to 20,000Hz ±0.5dB
