| Name | MD-133 |
|---|---|
| Manufacturer | Onkyo |
| Released | 2005/04 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | Yes |
| Radio | No |
| Dimensions | 275 x 78 x 310 mm |
| Weight | 3.8kg |
| ATRAC ver | Hi-MD |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |

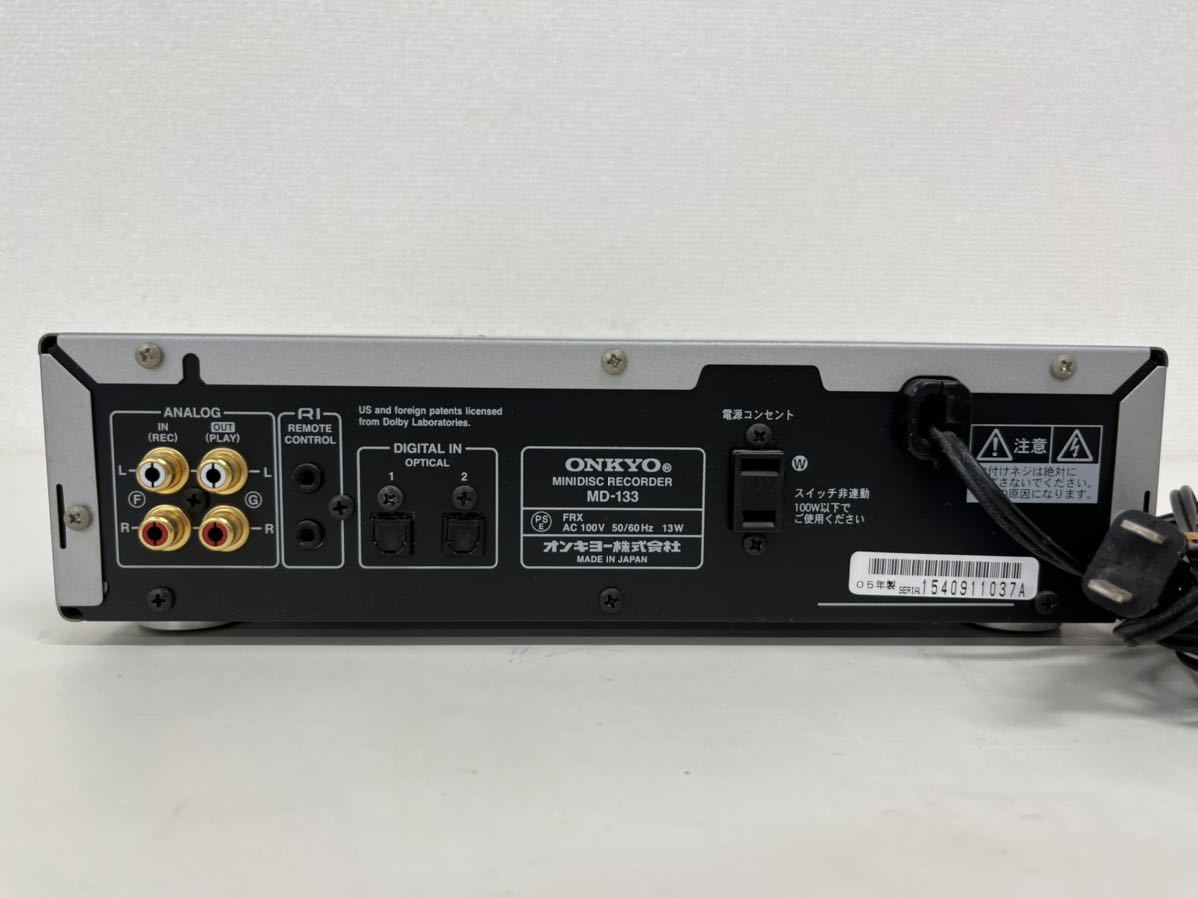

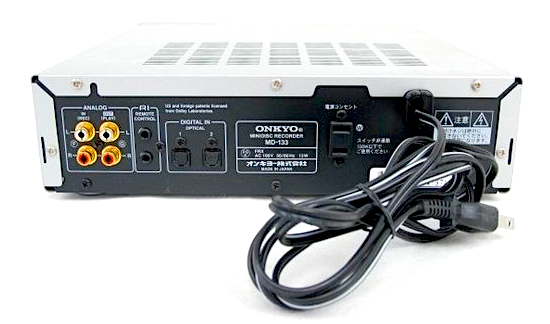

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out |
| Control | Remote (Sony), 3.5mm control |

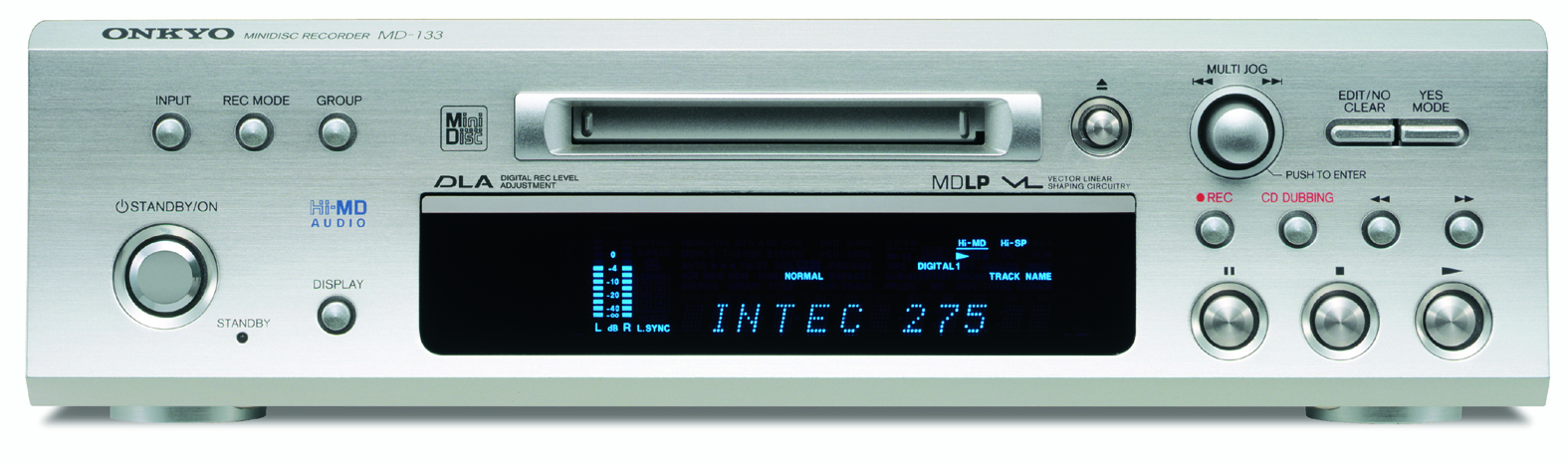

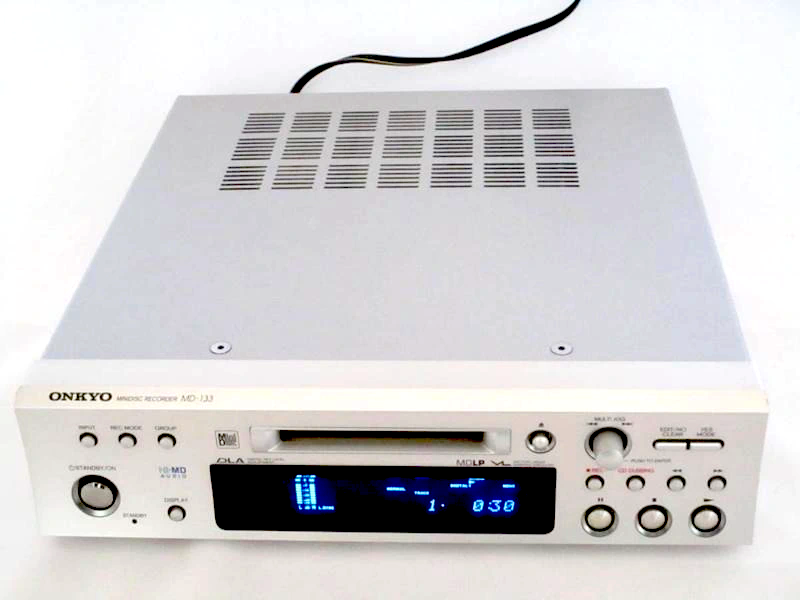

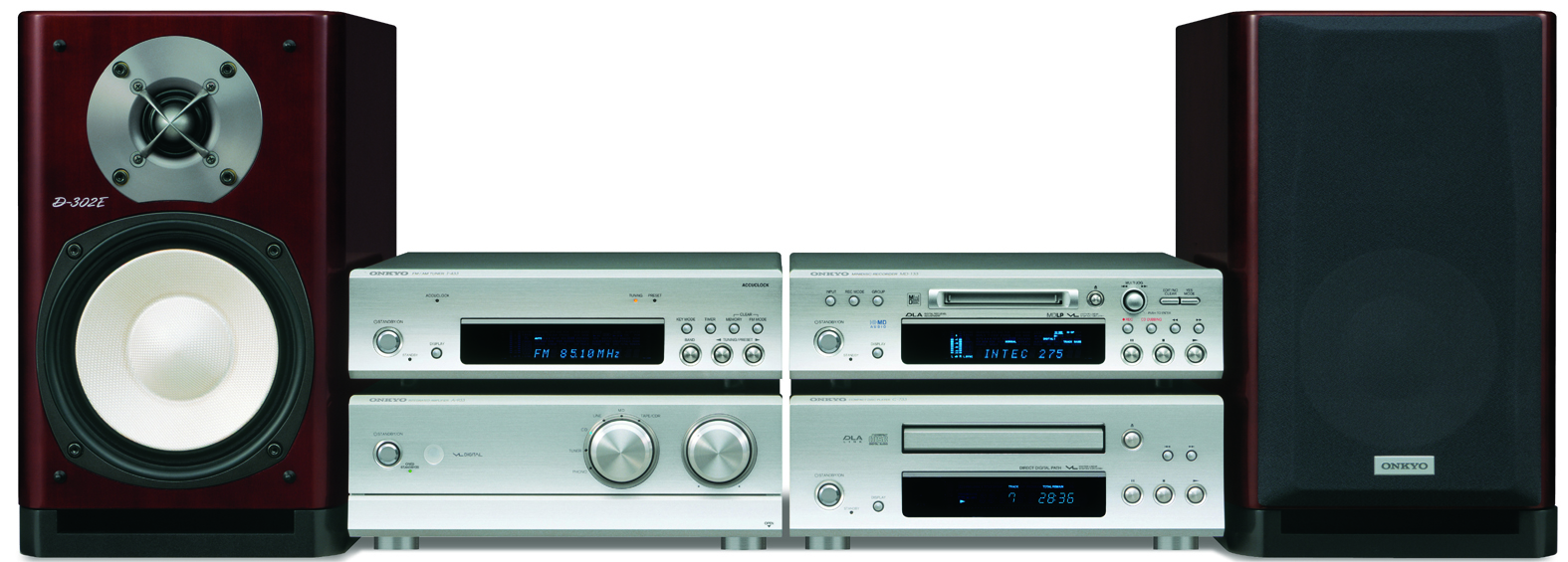

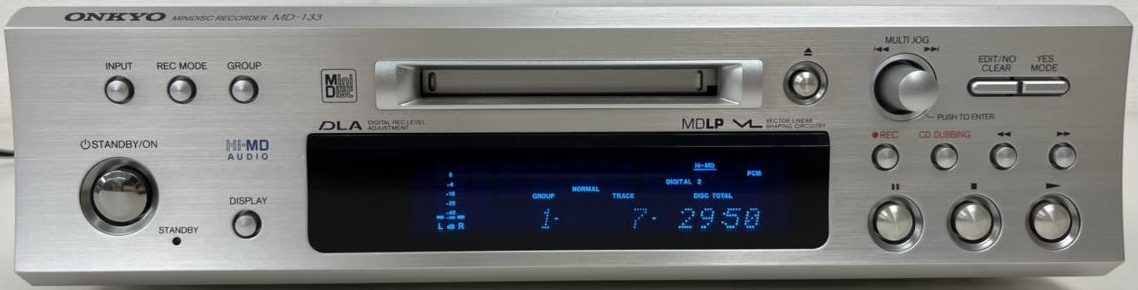

The Onkyo MD-133 has the unusual honour of being the first Hi-MD component ever released. Part of Onkyo’s INTEC 275 range, it combines gracefully with Onkyo’s other INTEC 275 components to form a mini component Hi-Fi system, integration with RI serial interface. Manufactured since 2005 to 2011 at least.
Characteristics
- Digital Rec Level Adjustment (DLA)
- Vector Linear Shaping Circuitry (VL)
- Signal Synchro Recording
- MD MECHANISM: KMK-400AAA, MZD-DRV1N (after 2006)
- ATRAC IC: CXD2686-223GG, CXD2687-001GG (after 2006)
- LASER UNIT: KMS260B-?? with 25pin custom connector, ABX-U2, UM, U
Content adapted from: Onkyo Press Release Onkyo Press Release (MiniDisc Wiki mirror) Minidisc.org MD-133 Page Onkyo discontinued product page Archived Onkyo Product Page Archived Onkyo Product Page (MiniDisc Wiki mirror) Intec 275 Page Intec 275 Page (MiniDisc Wiki mirror) av.watch
Manuals
Onkyo MD-133 User manual ENG (scan)
DSP is Sony CXD2687-001GG (combined ATRAC/servo and microcontroller) for models after 2006/2007, and Sony CXD2686-223GG for early issued.
Details of the pins and connections on CXD2687-001GG DSP by looking at the Sony Service Manual for the MZ-RH1.
Onkyo RI interface two connectors.

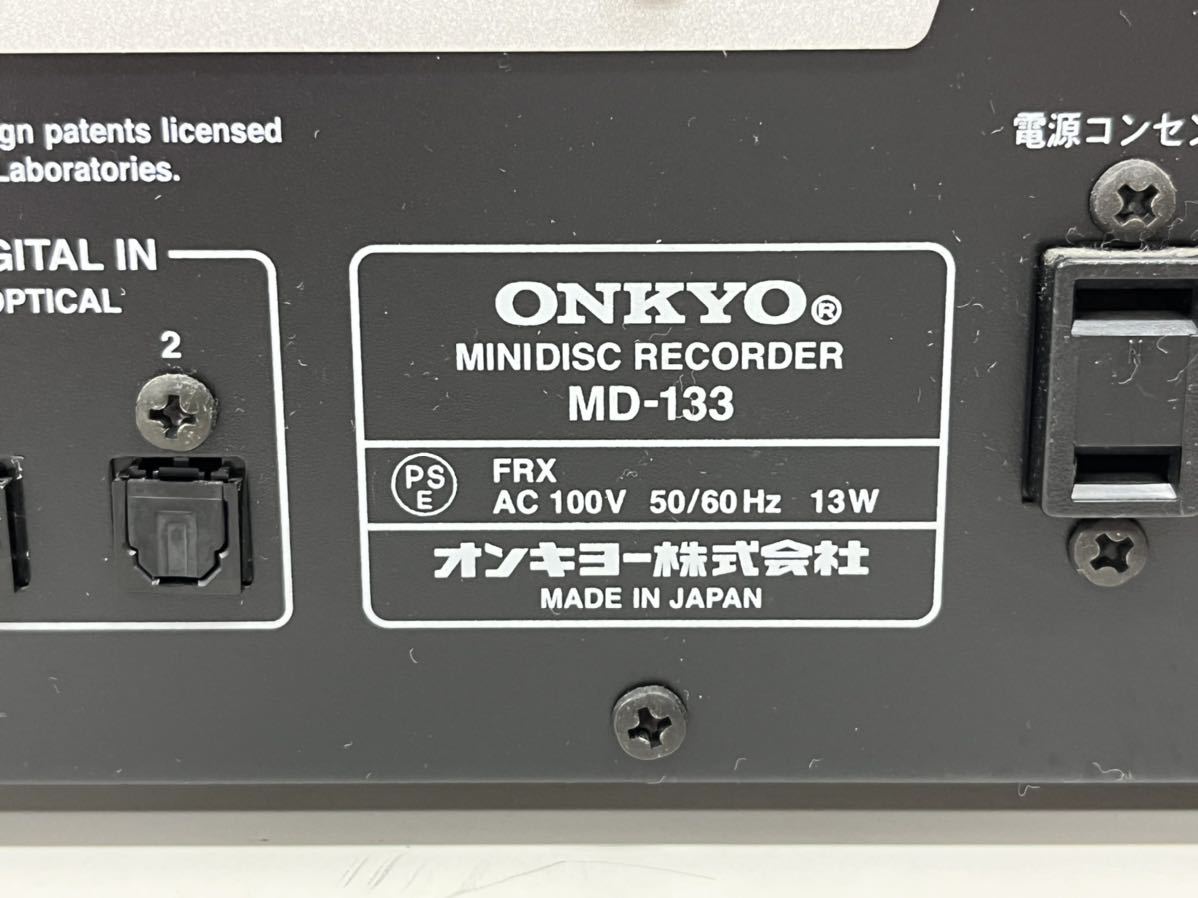

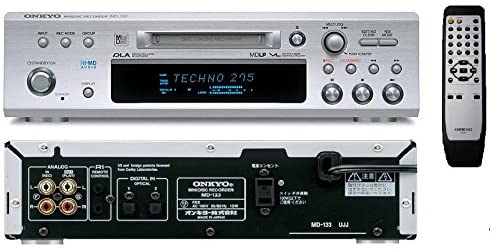

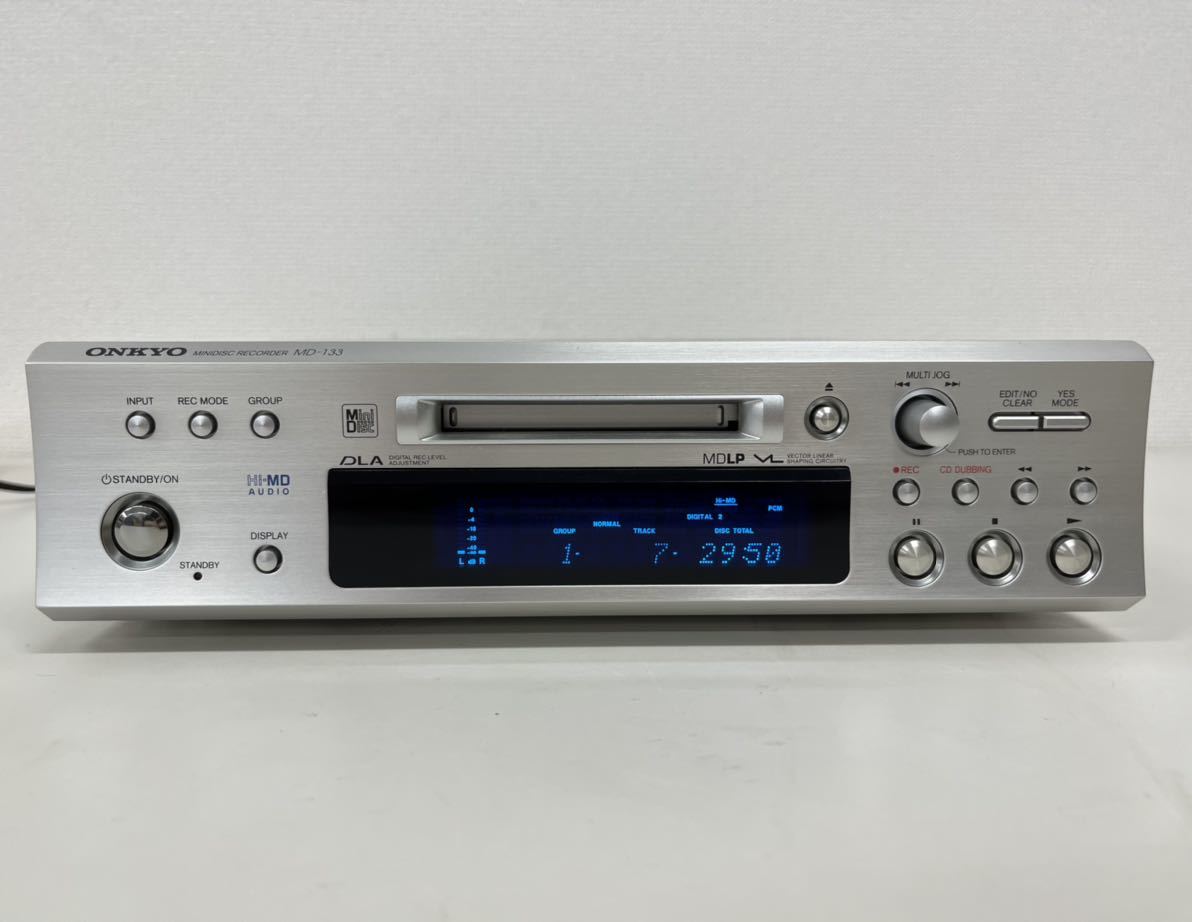

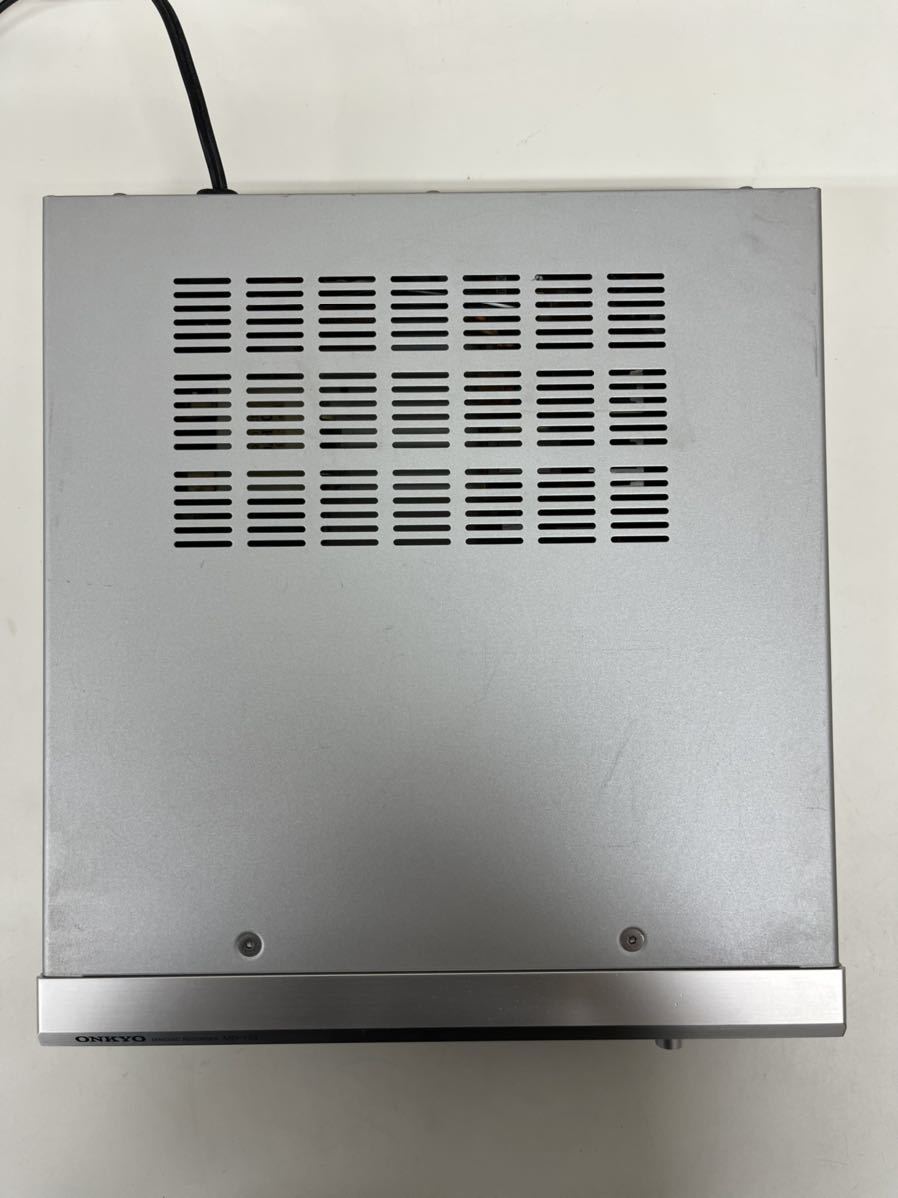

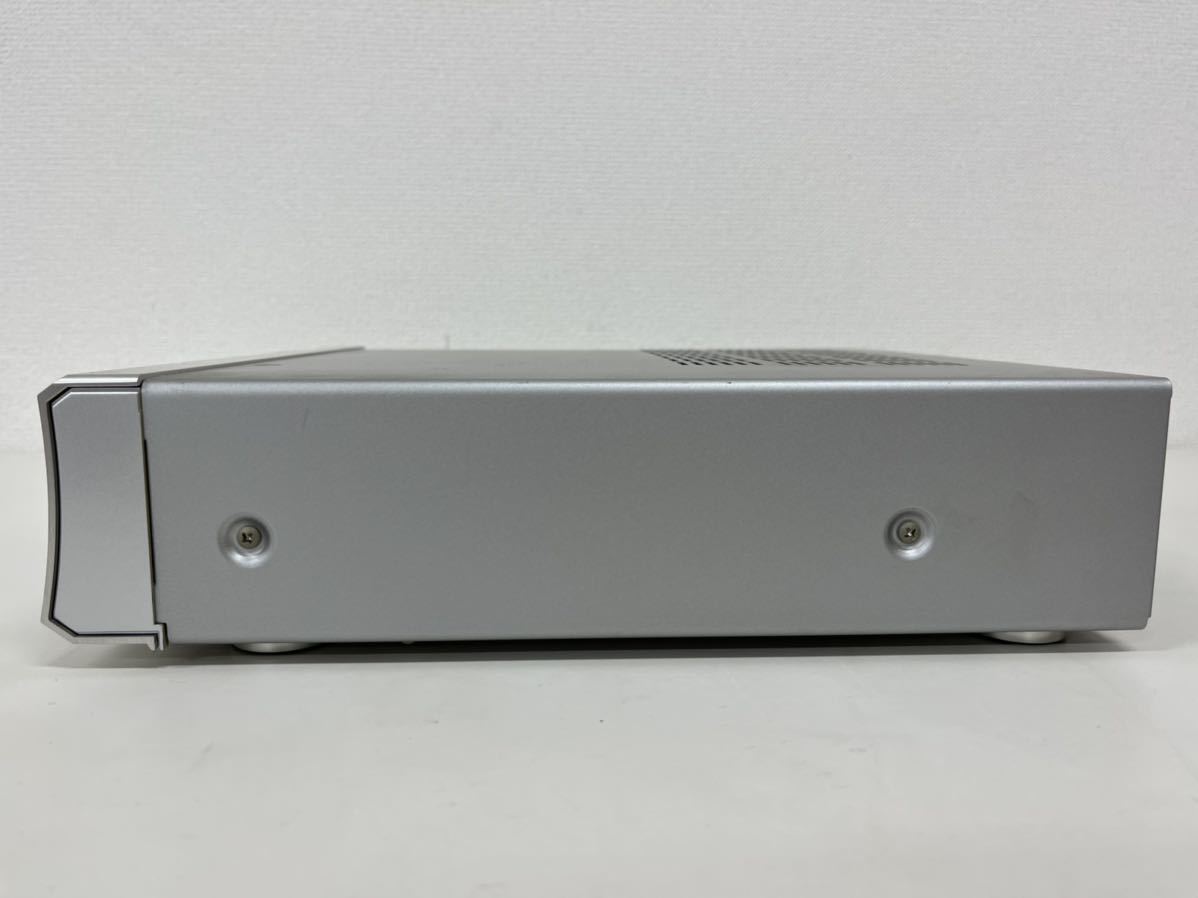

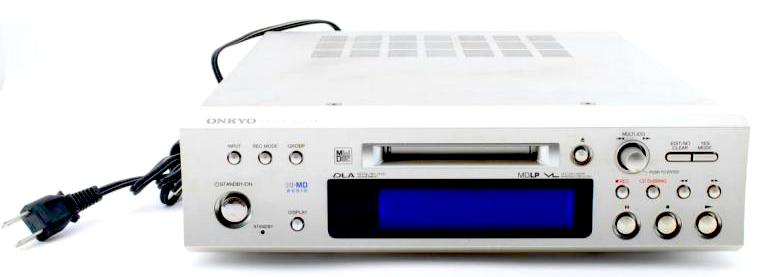

Photos
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Web Md | No (not NetMD) |
| Battery Page | |
| Sidecar | No |
| Voltage | 100 |
| Remote Page | |
| Mechanism | kmk-400aaa_or_mzd-drv_1n_m |
| Pickup | m |
| Atrac Ic | cxd2686-223gg_or_cxd2687-001gg |
| Manual | User manual |
| Region | Japan |
