Onkyo MD-P30

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Onkyo
Model / source grouping
MD-P30
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Onkyo MD-P30”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MD-P30
Manufacturer Onkyo
Released 1999/10
Device type portable
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions Width 79.5 x H 14.2 x D 71.7mm
Weight 115g with batt.
ATRAC ver Not recorded
Battery Not recorded BT-T51
Battery notes Not recorded
Sidecar (depr) 1xAA

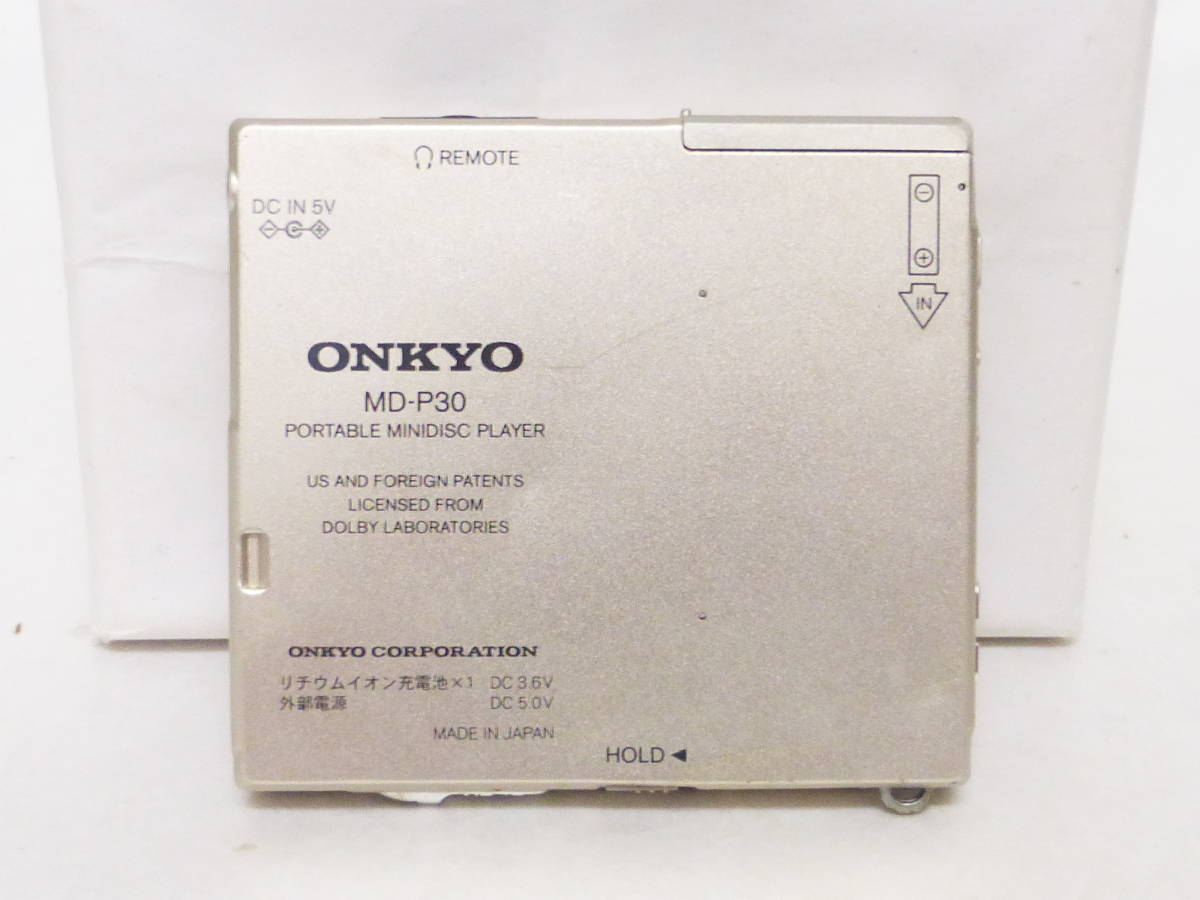

Voltage 3.6, 5
Power cable Not recorded
Price (launch) Not recorded
¥34 000
-
Inputs Not recorded

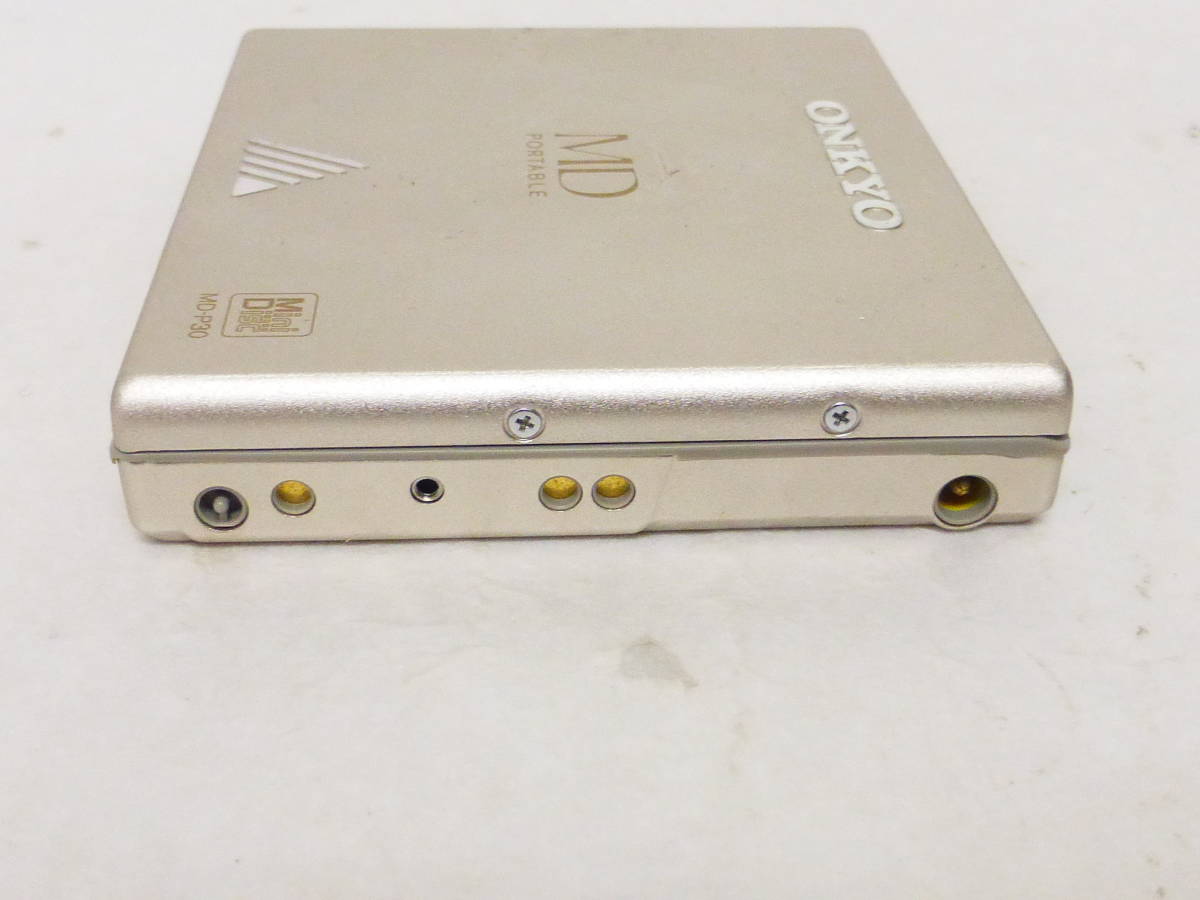

Outputs 3.5mm headphone
Control Not recorded

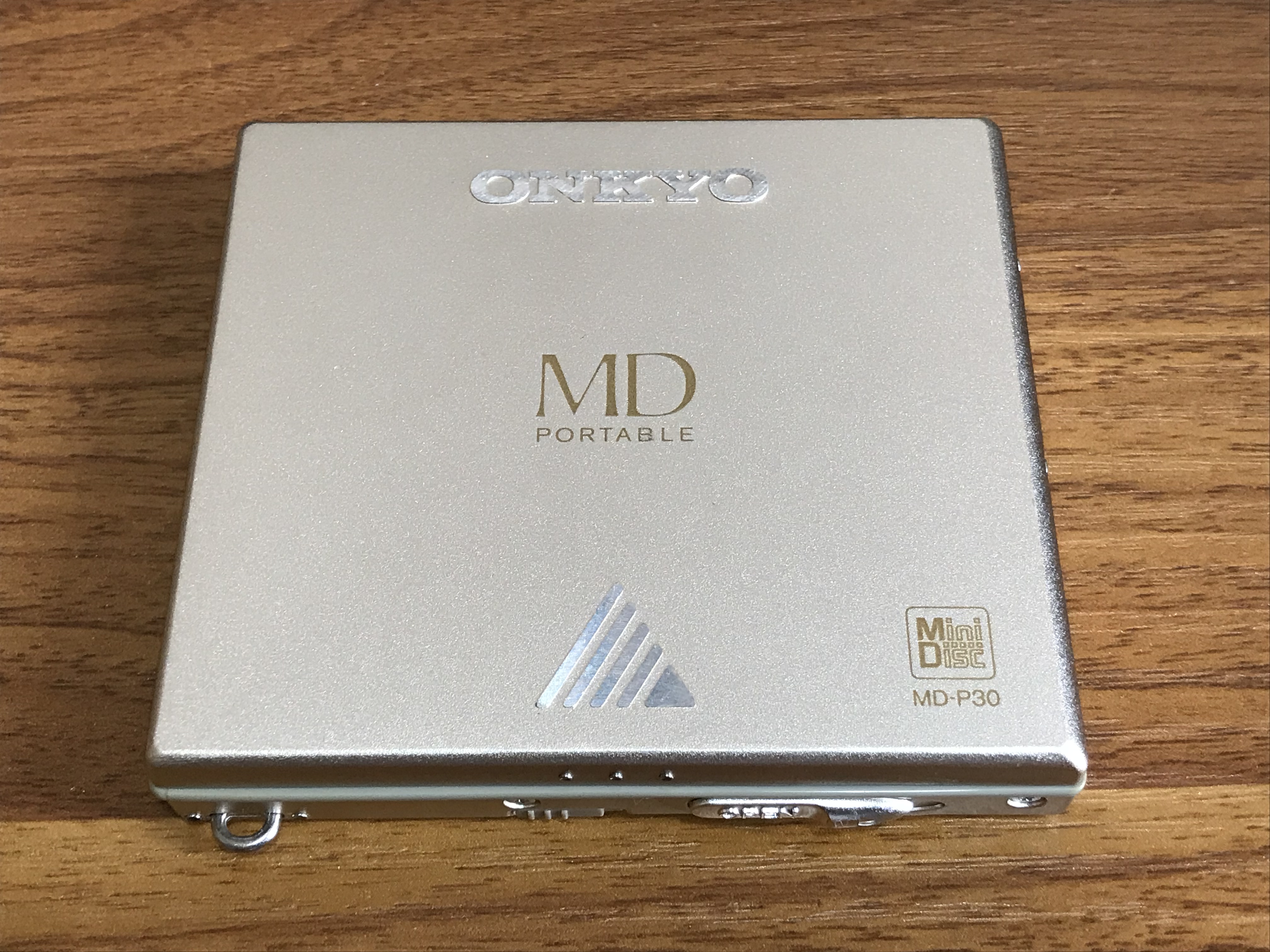

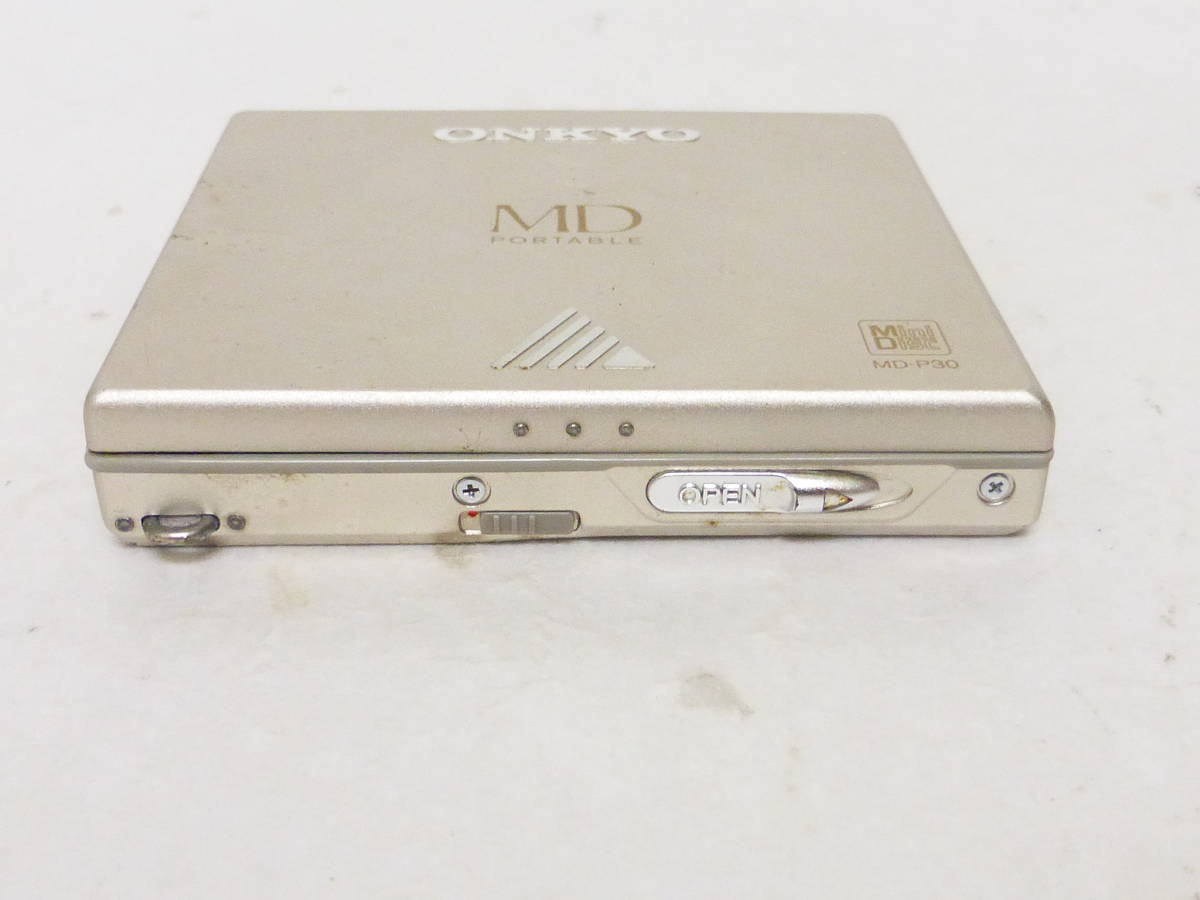

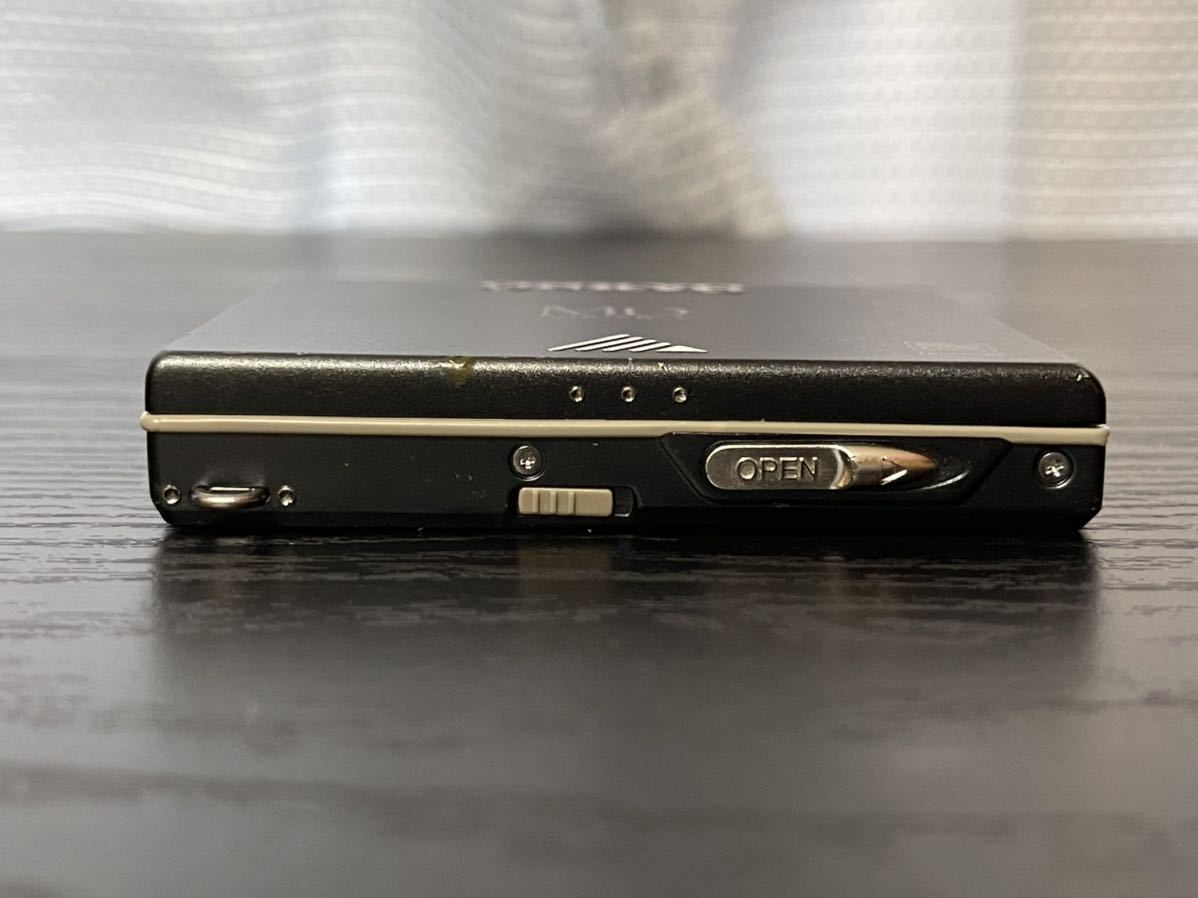

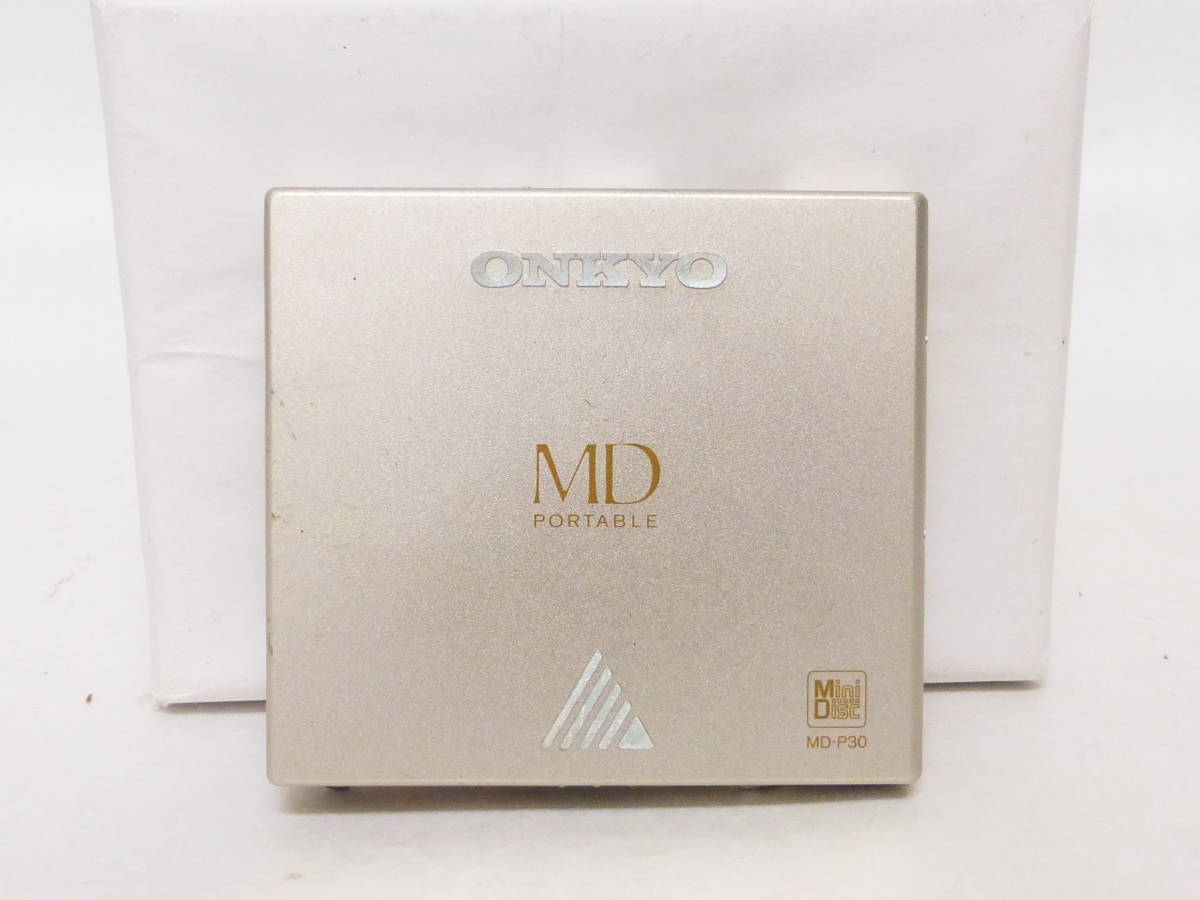

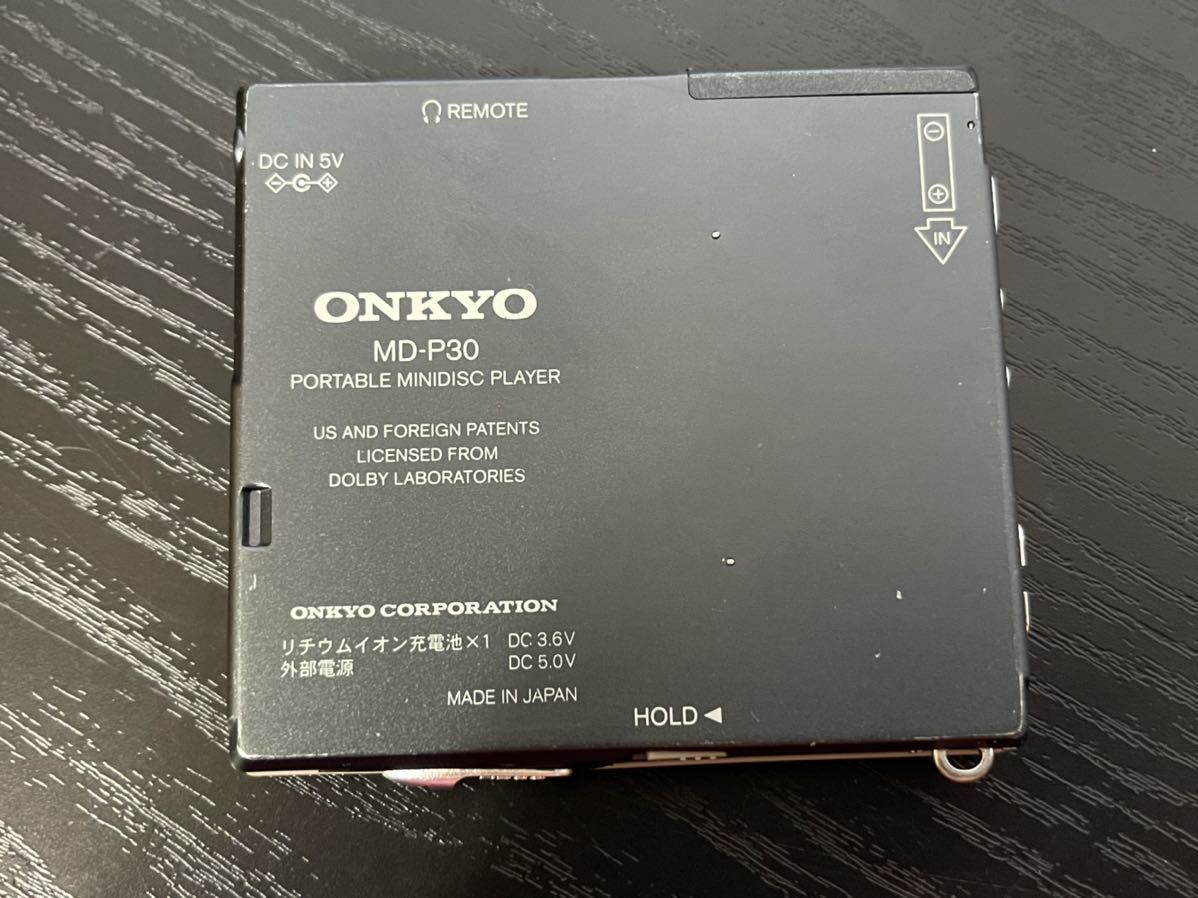

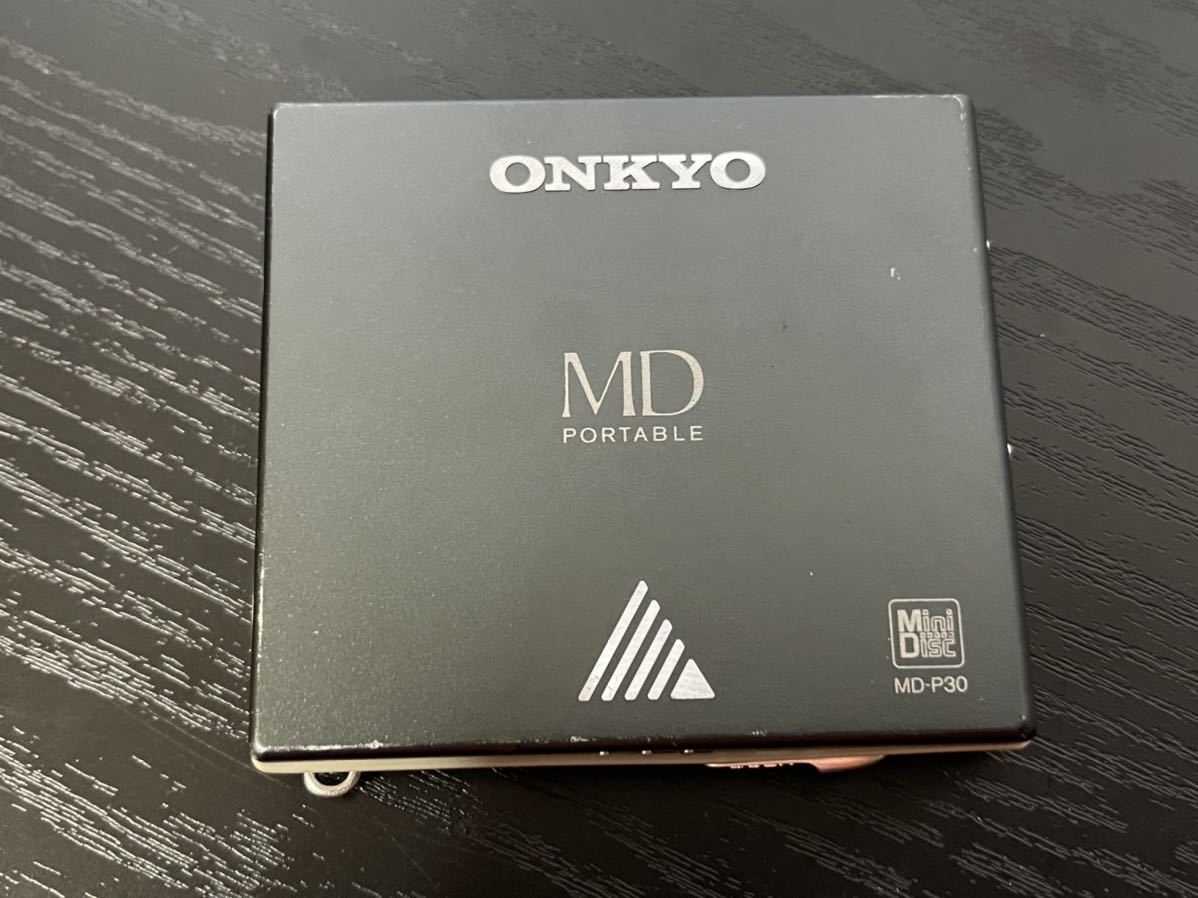

The third and last Onkyo portable MD device. Offered in simple "silver", vivid "blue", and chic "black" color variations.

  • 40 second anti-skip.
  • 3 stage Bass boost.
  • Supports mono playback
  • Auto play function
  • It is equipped with the 6th generation ATRAC 24bit and 1 bit D/A conversion.

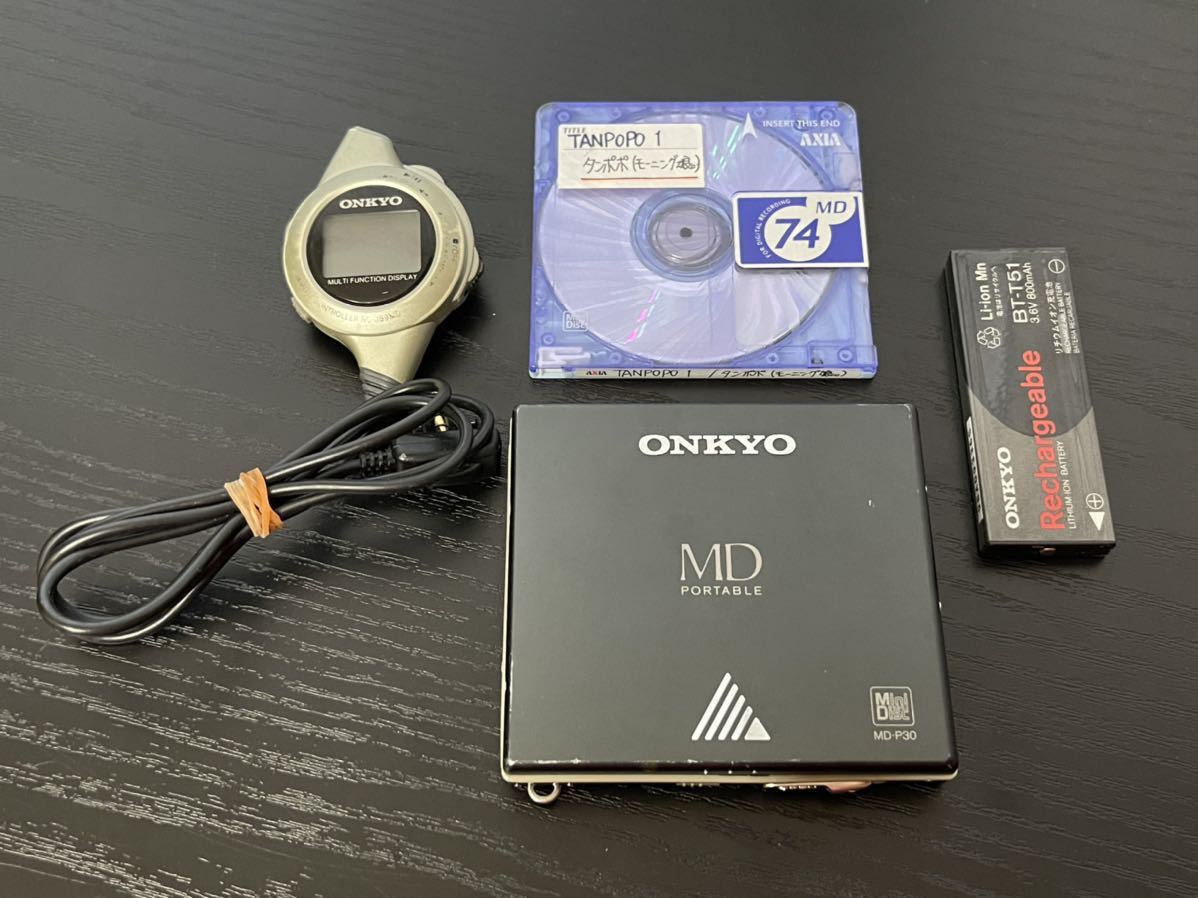

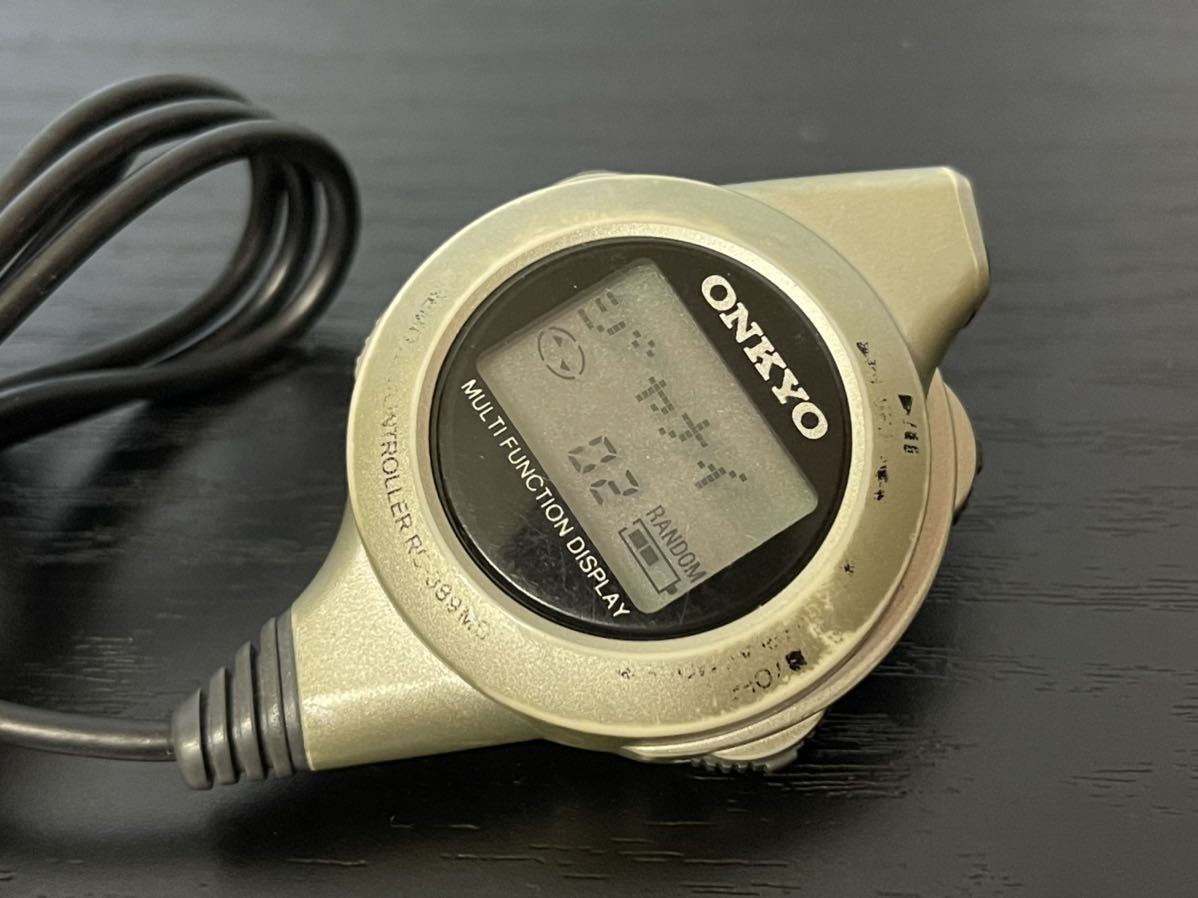

The remote control is the same used in the previous model MD-P20 with a three-way jog dial for volume, control, and sound quality adjustment. Backlit display.

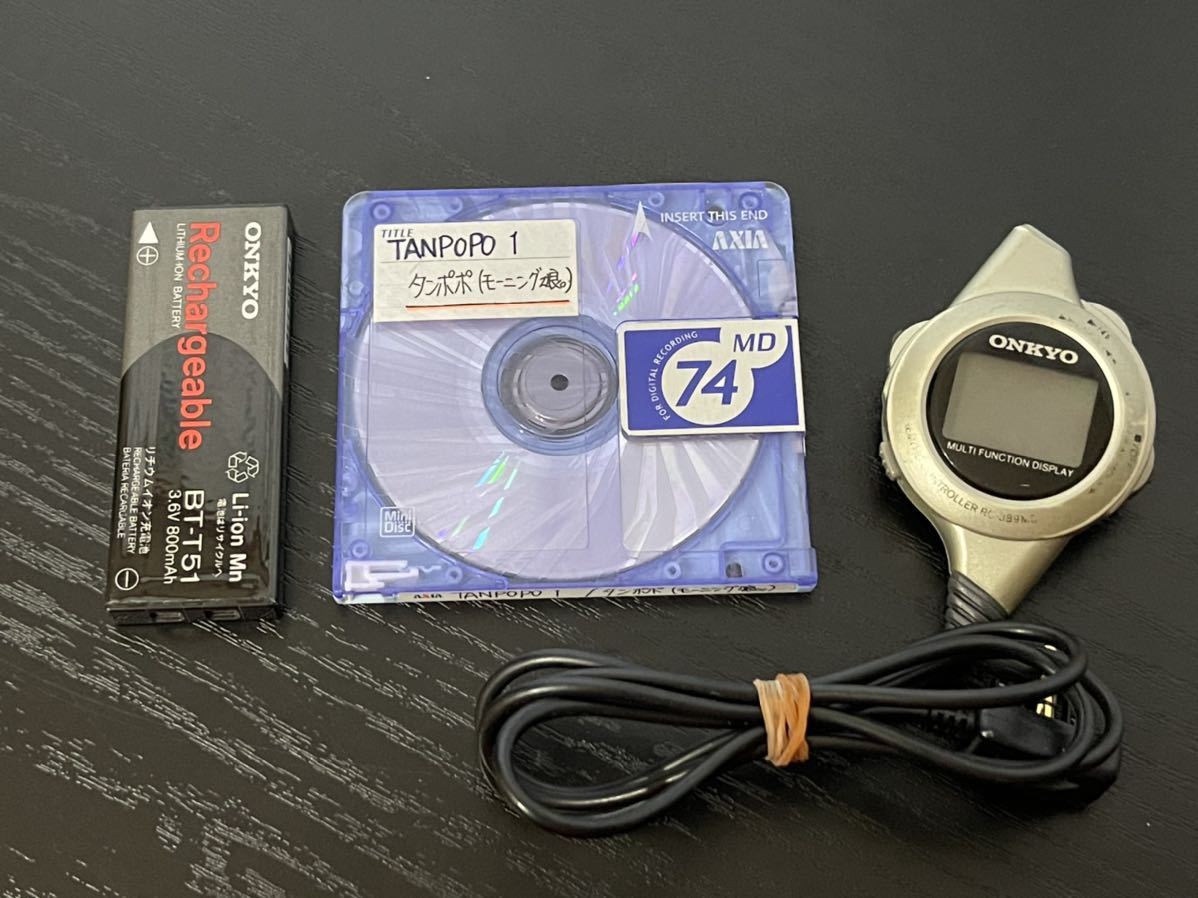

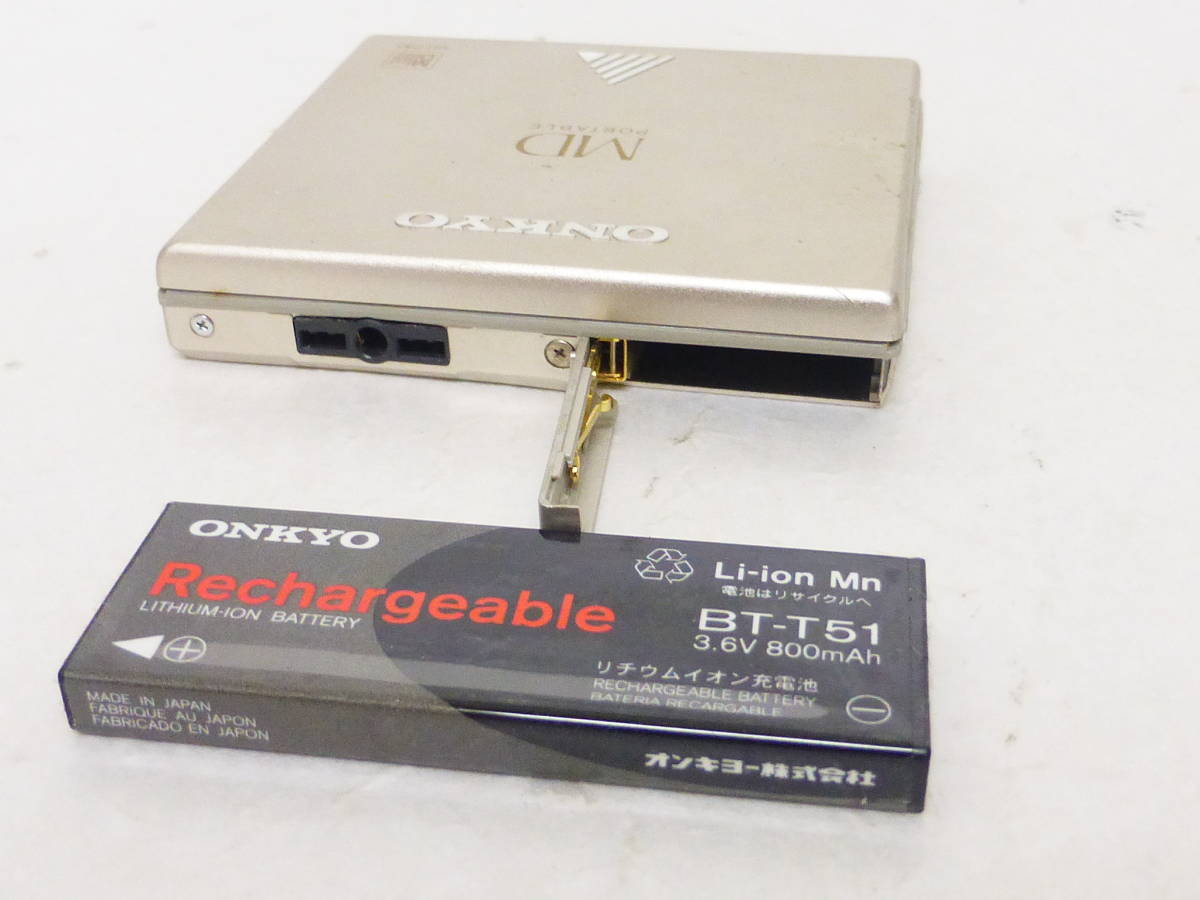

battery: BT-T51 3.6v 800mAh (3h 30min charging time) - claimed 26 hour battery life. 50 Hours when adding the AA dry battery sidecar.

Maximum practical output: 5mW + 5mW (16Ω) Frequency response: 20 to 20,000Hz (±3dB) (±0.001%W.PEAK) or less

Content adapted from: MD543 Onkyo Product Page (under "Others") Onkyo Product Page (under "Others") (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
RegionJapan
