| Name | CQ-VX3000D |
|---|---|
| Manufacturer | Panasonic |
| Released | Not recorded |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178 x 100 x 160mm |
| Weight | 2300 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |

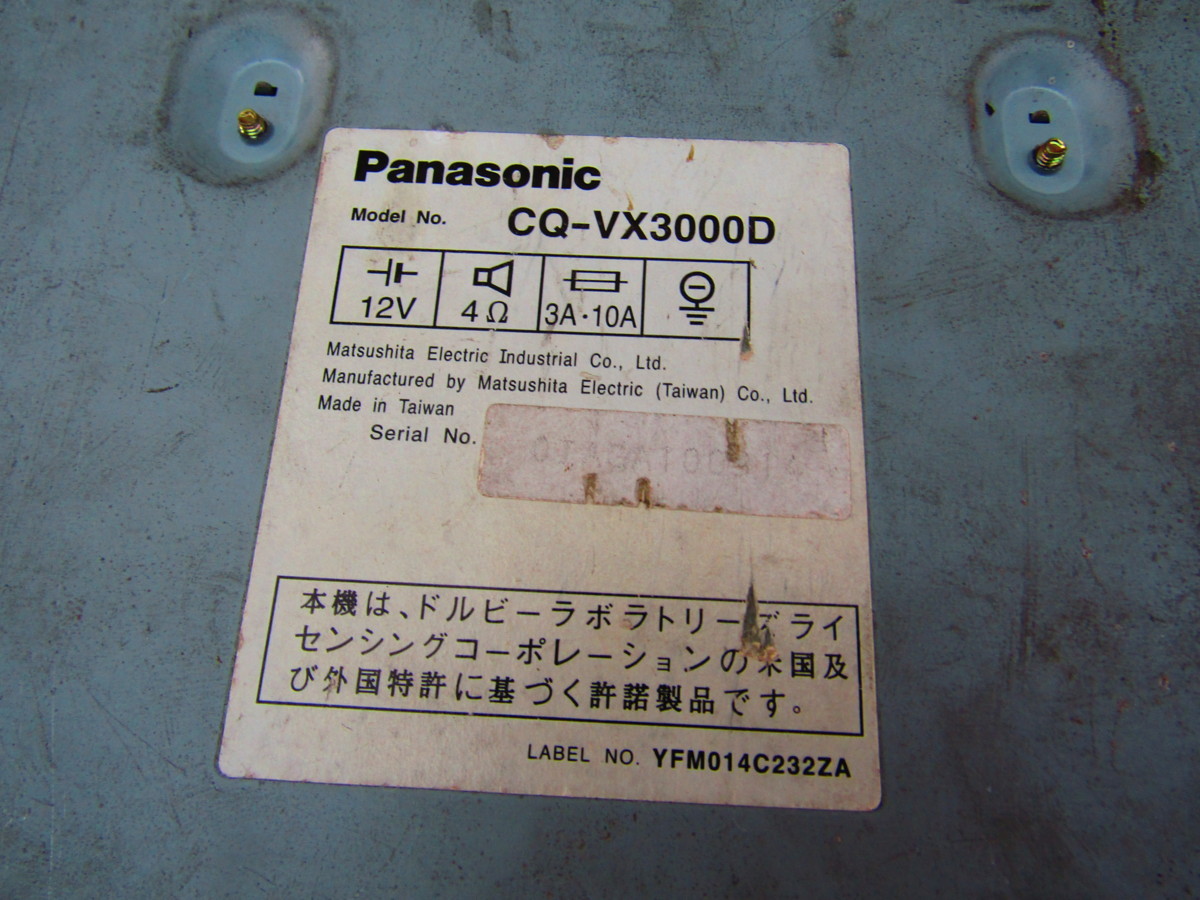

| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

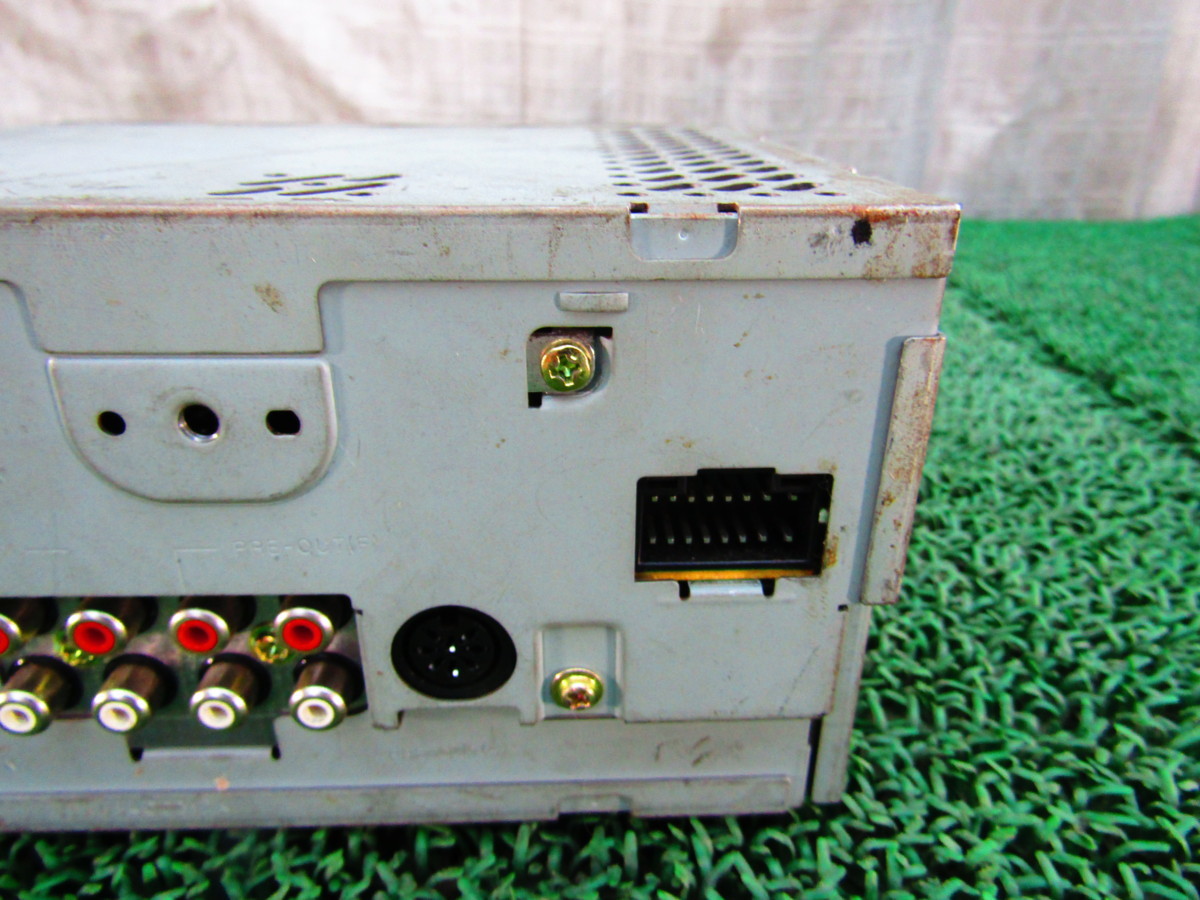

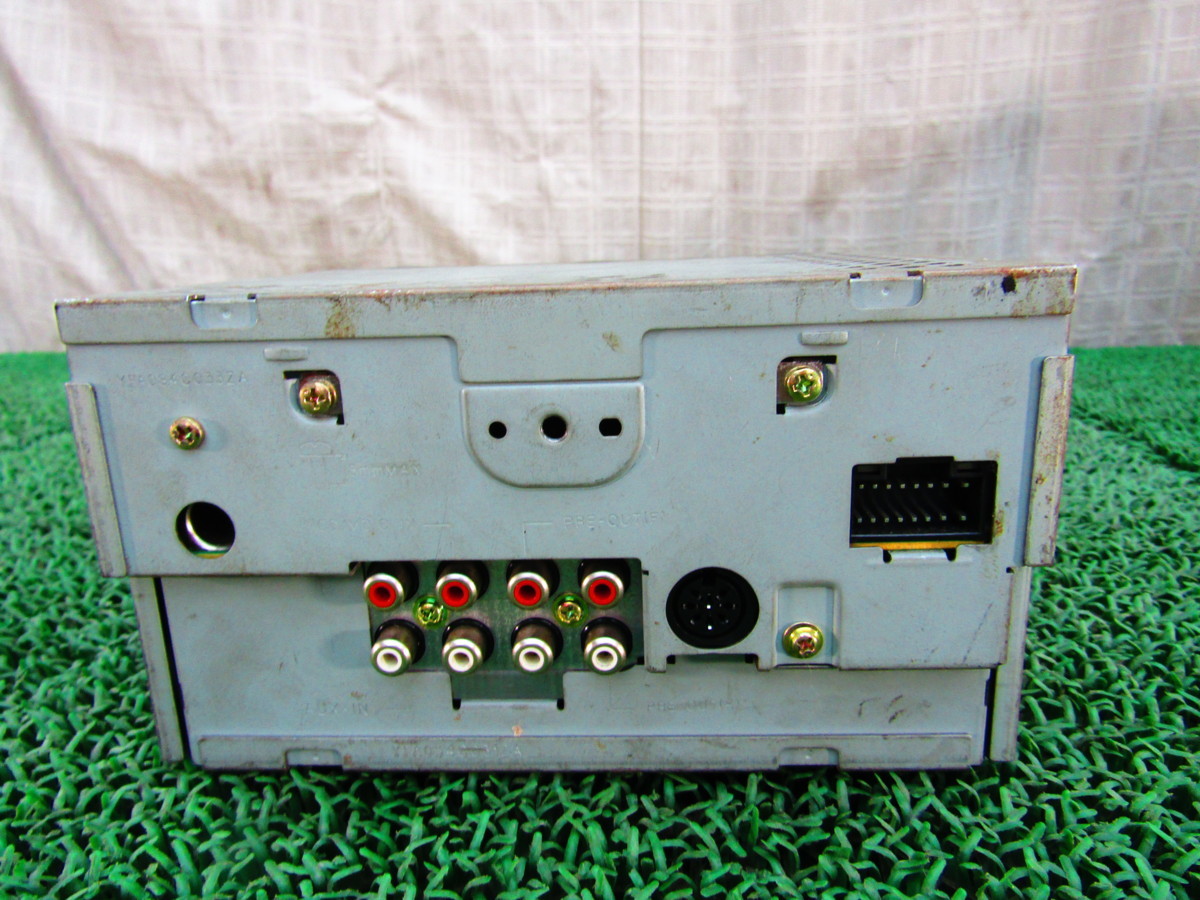

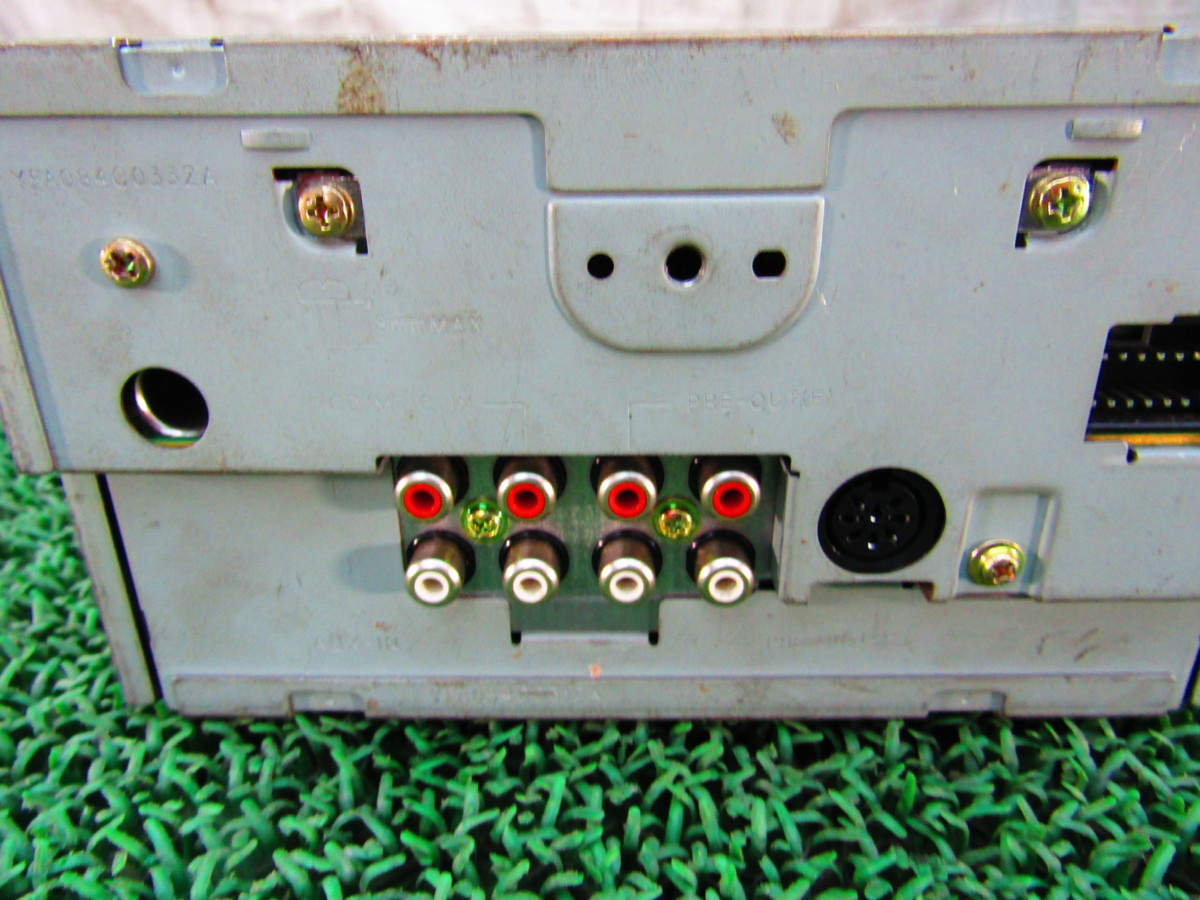

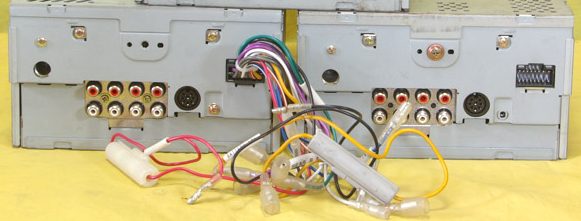

| Inputs | RCA in, CD |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

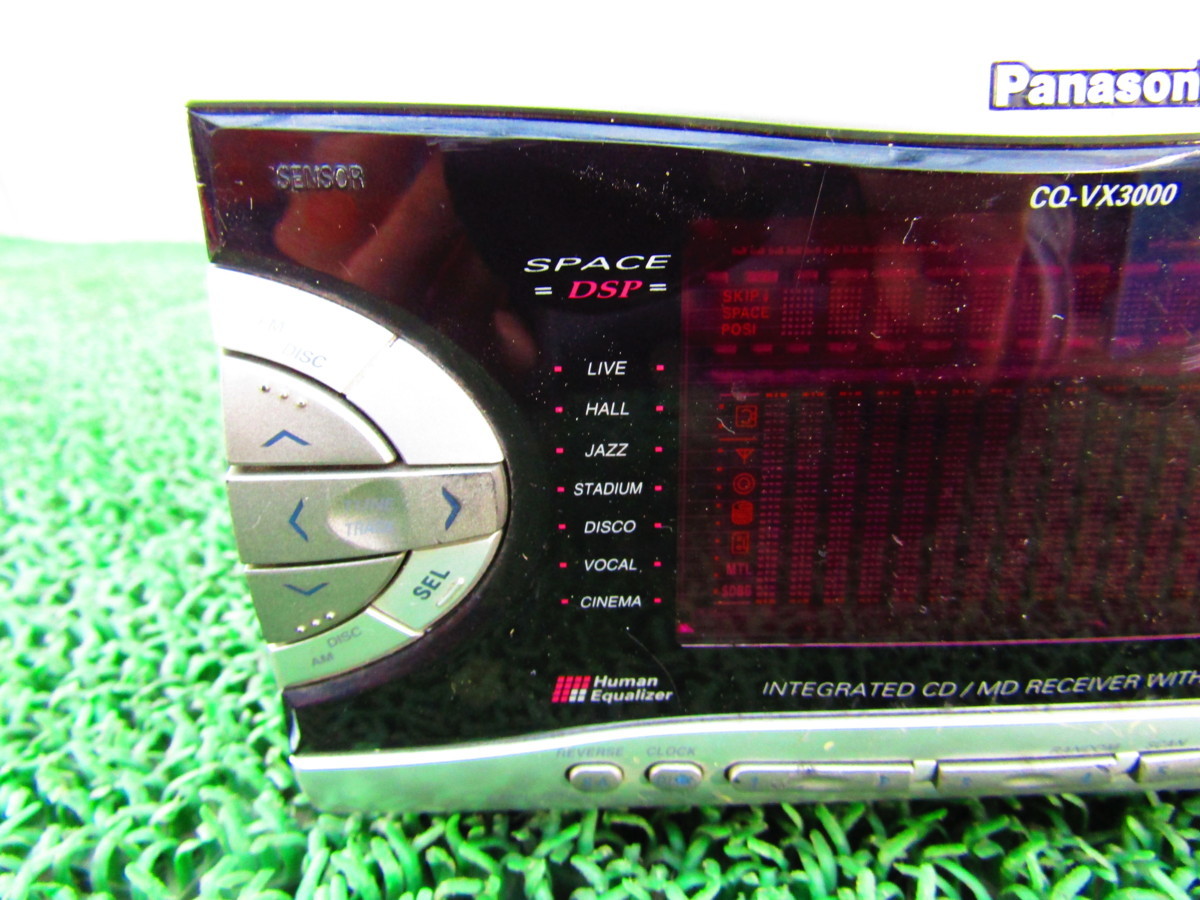

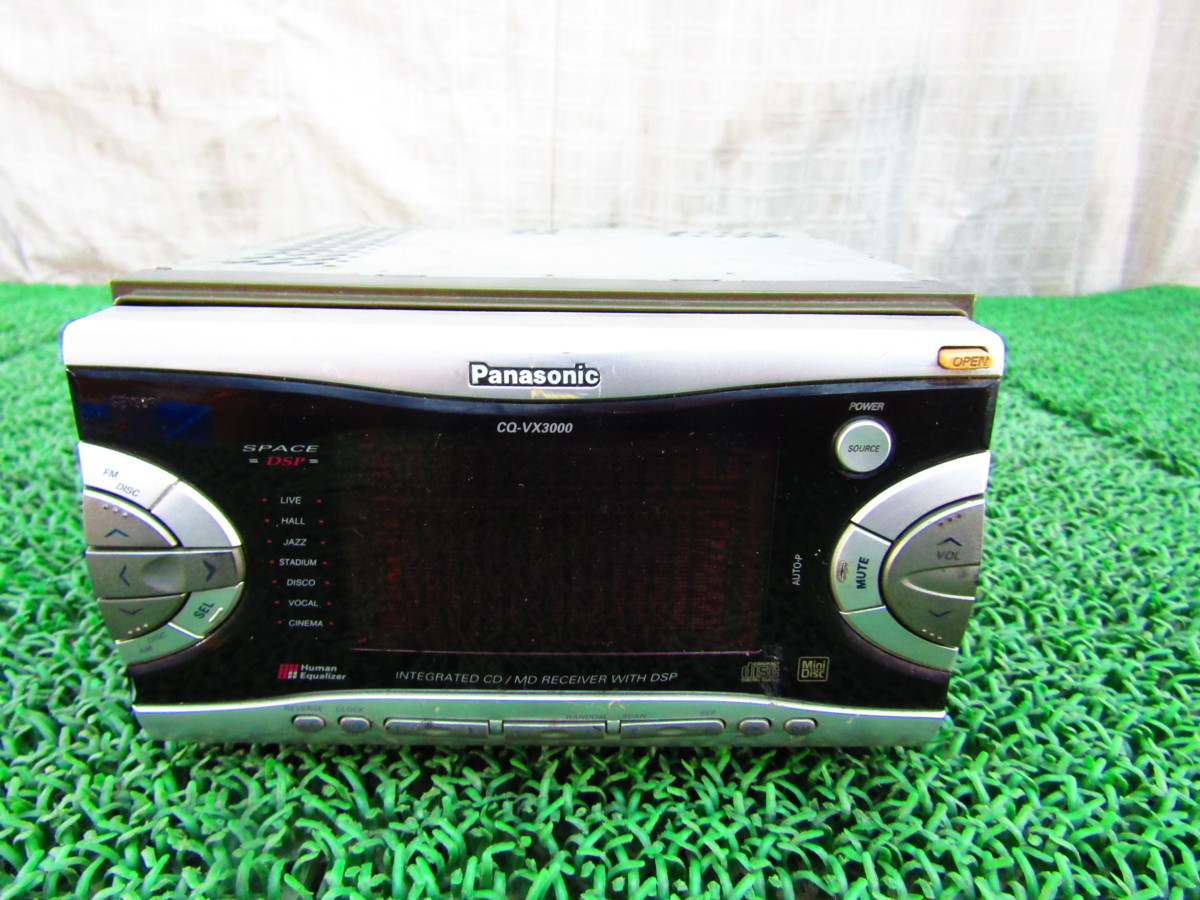

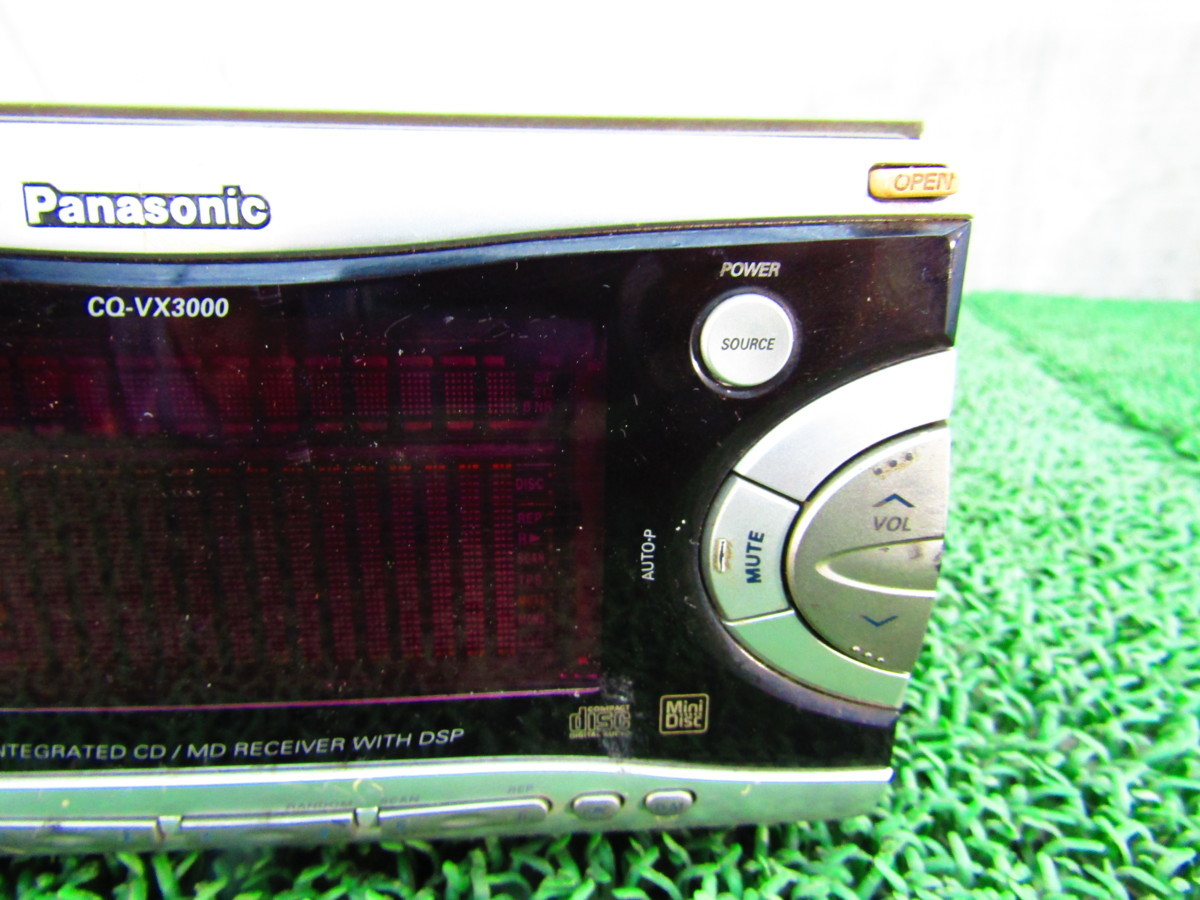

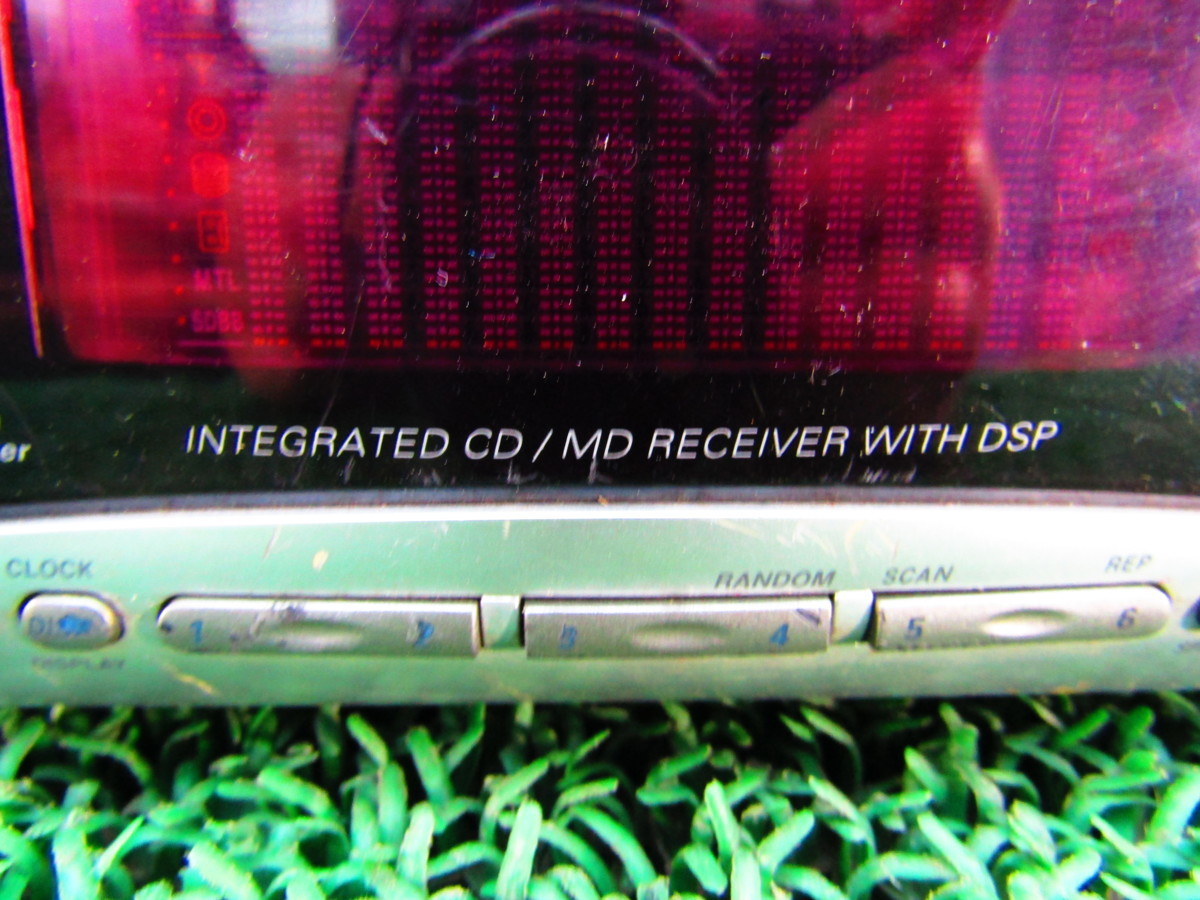

Panasonic CQ-VX3000D. The display supports alphanumeric characters and katakana. (Maximum display 60 characters when scrolling).
The unit supports as inputs: CD, MD, AM/FM, CD/MD Changer, Aux in.
Rated output: 16 W × 4 CH (1 kHz, 1%, 4 Ω)
Maximum output: 37 W × 4 CH
Compatible speaker impedance: 4 Ω
CD Frequency characteristics: 5 Hz to 20 kHz, Signal-to-noise ratio: 90 dB (IHF, A)
MD Frequency characteristics: 5 Hz to 20 kHz, Signal-to-noise ratio: 90 dB (IHF,A)
aux input sensitivity: 700 mV
Pre-out output voltage: 600 mV, Pre-out output impedance: 600 Ω
remote: CA-RC55D (cr2025 battery)
