Panasonic CQ-VX4030D

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
CQ-VX4030D
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic CQ-VX4030D”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CQ-VX4030D
Manufacturer Panasonic
Released 2003/06
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din W 178 × H 100 × D 160mm
Weight 2700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

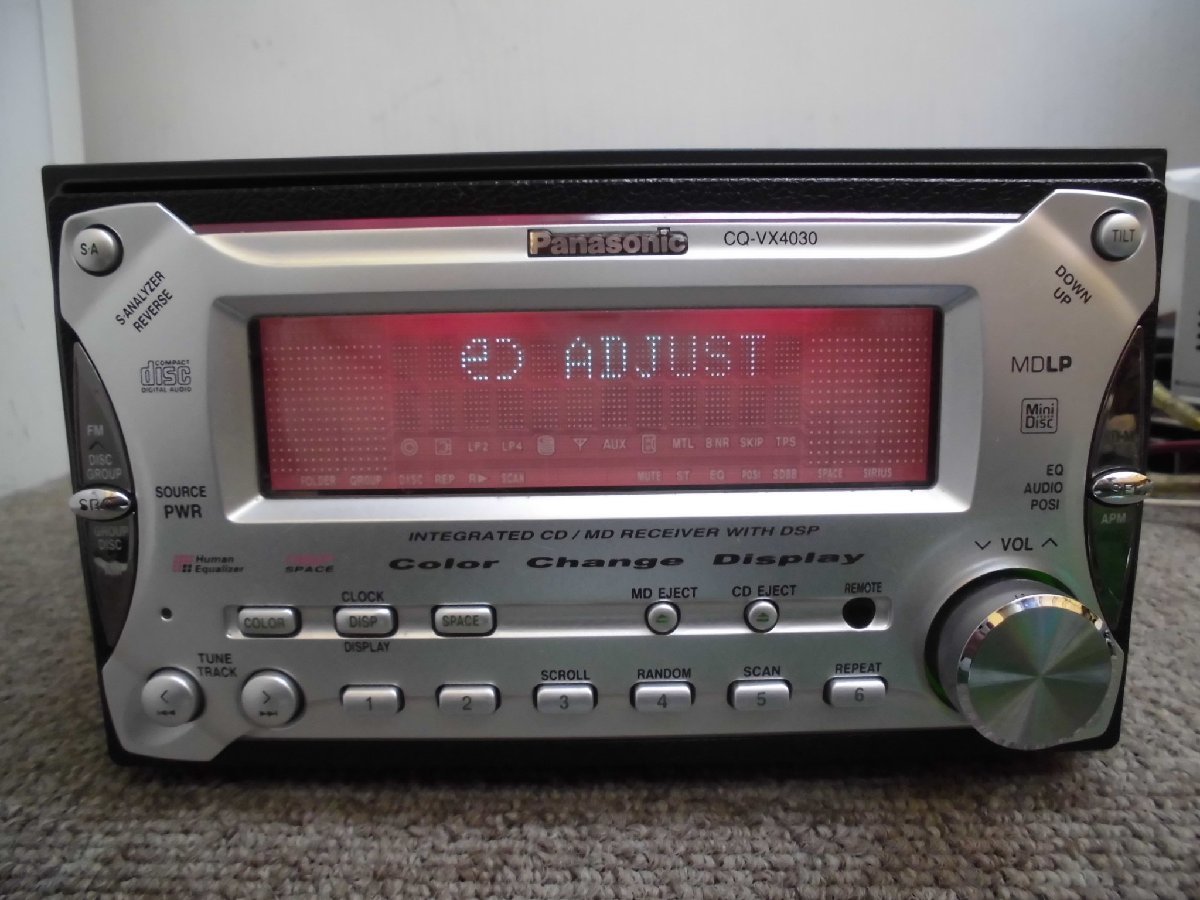

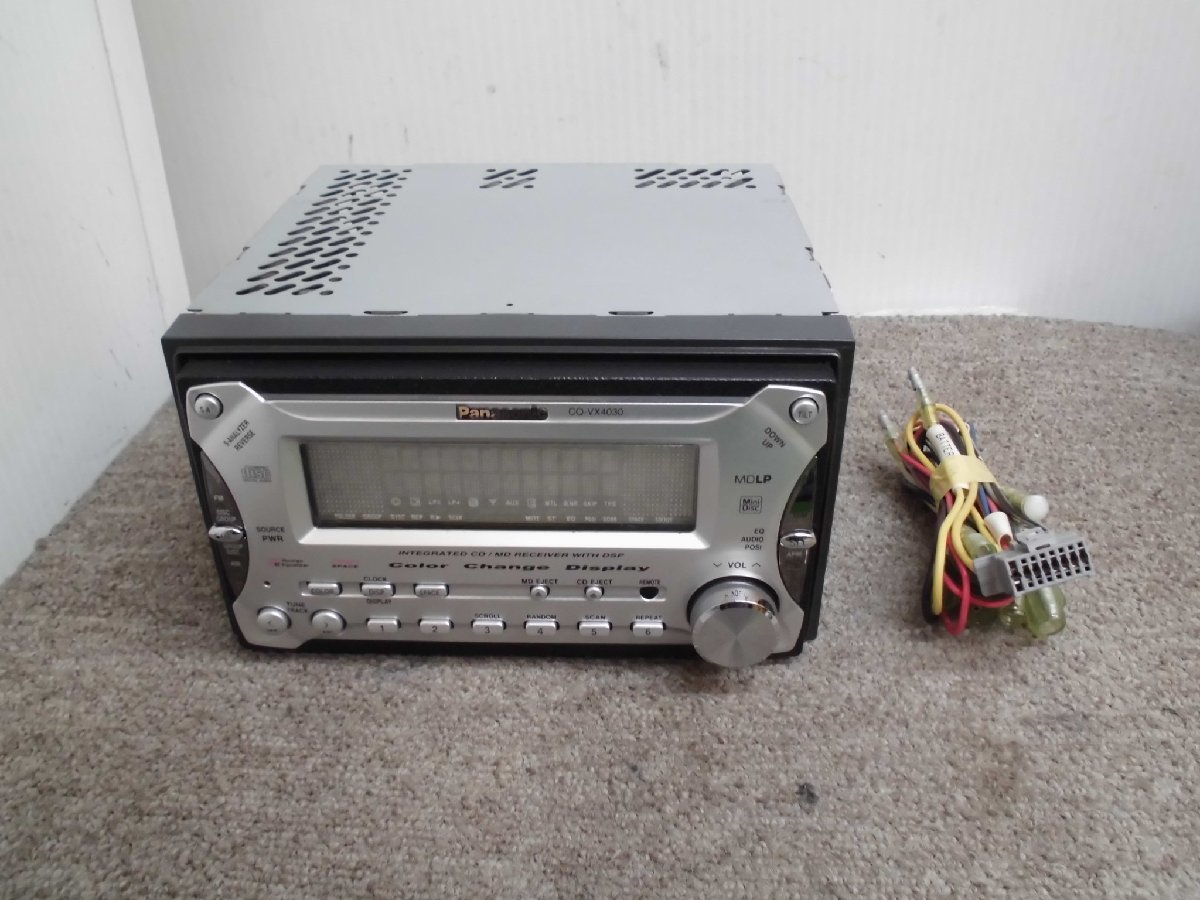

Panasonic CQ-VX4030D.

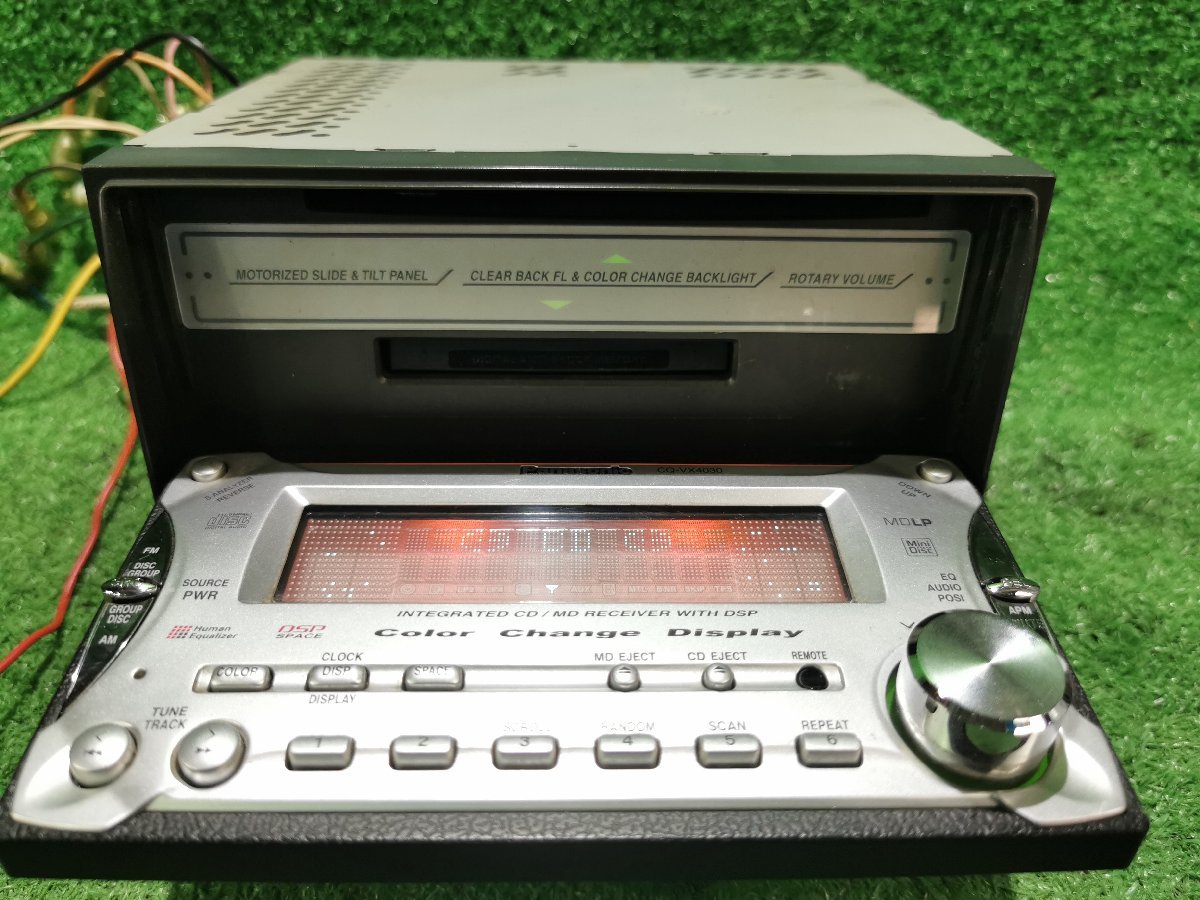

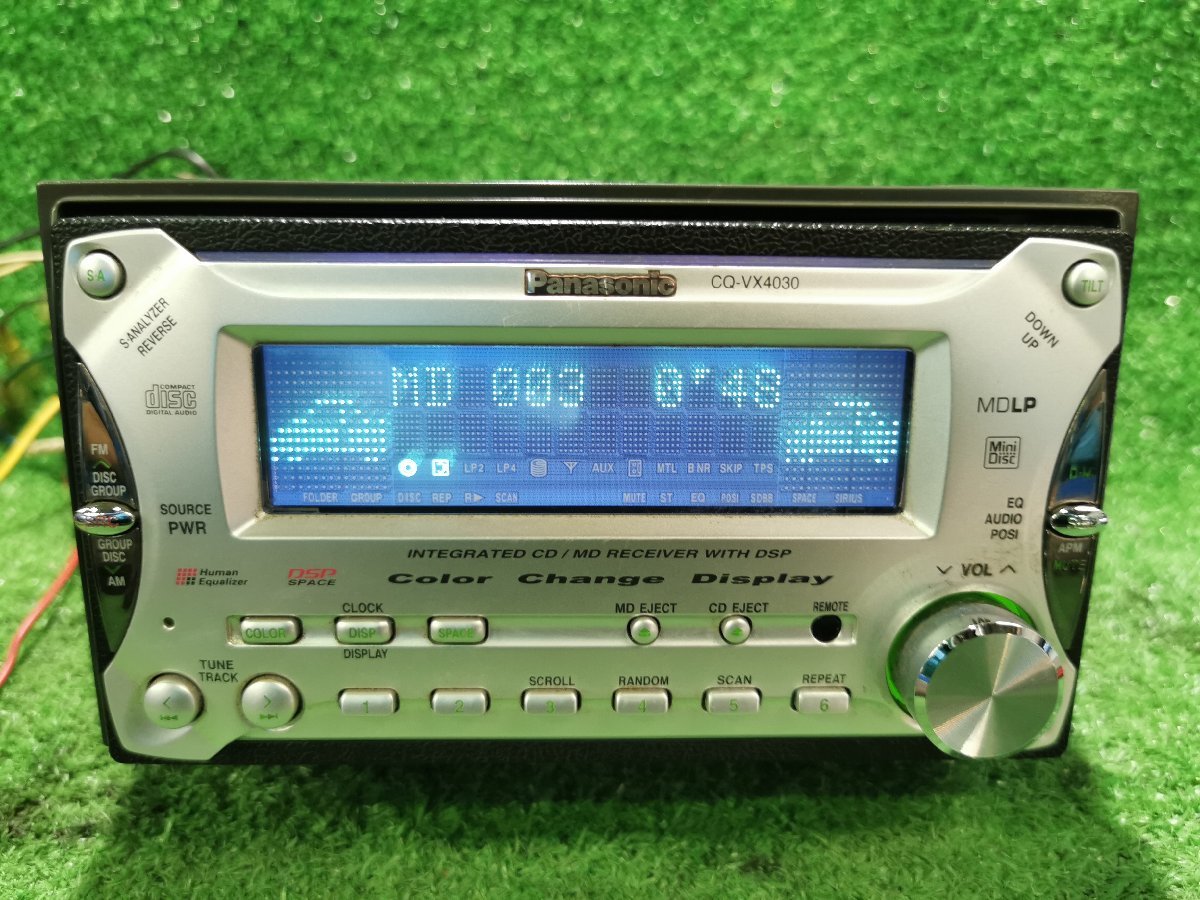

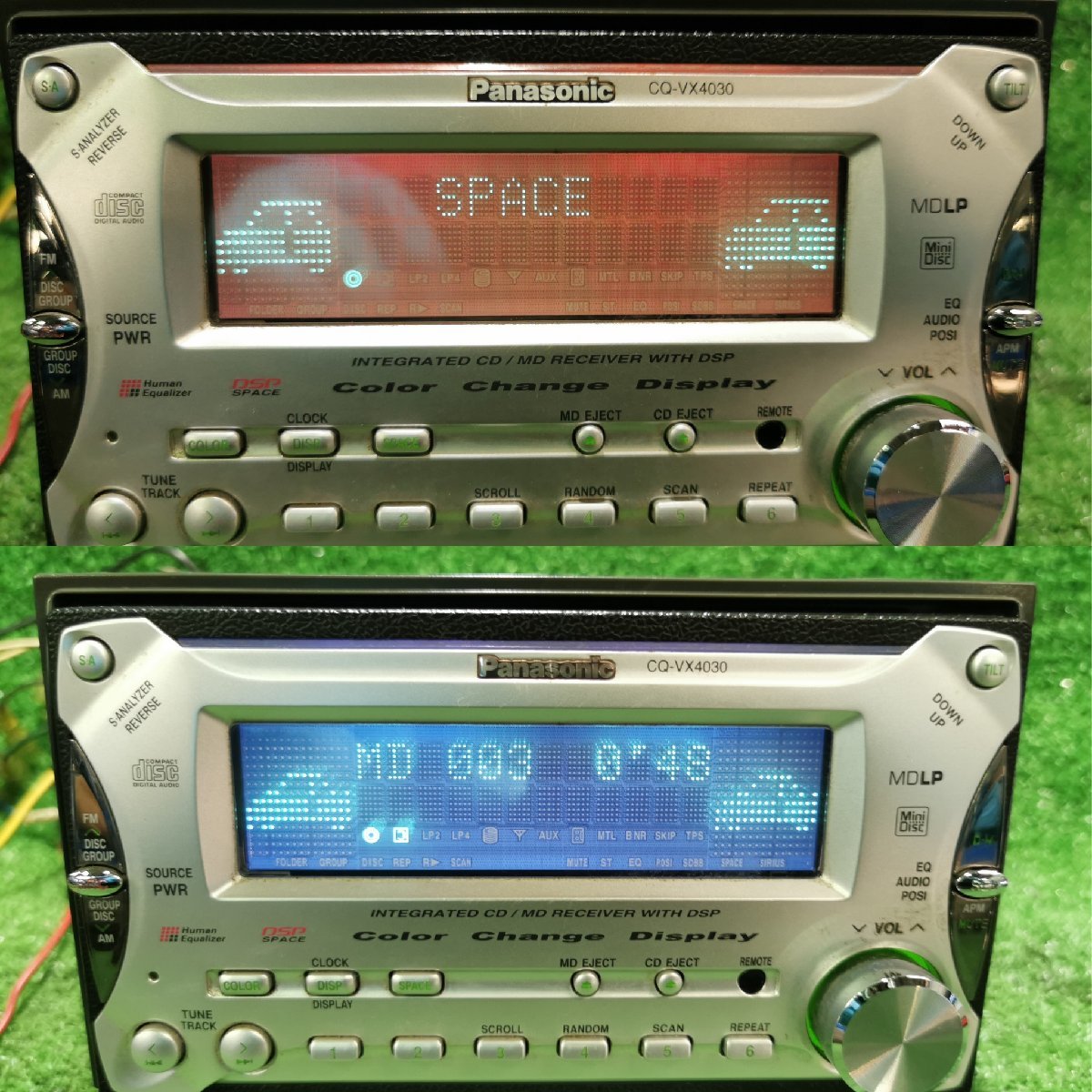

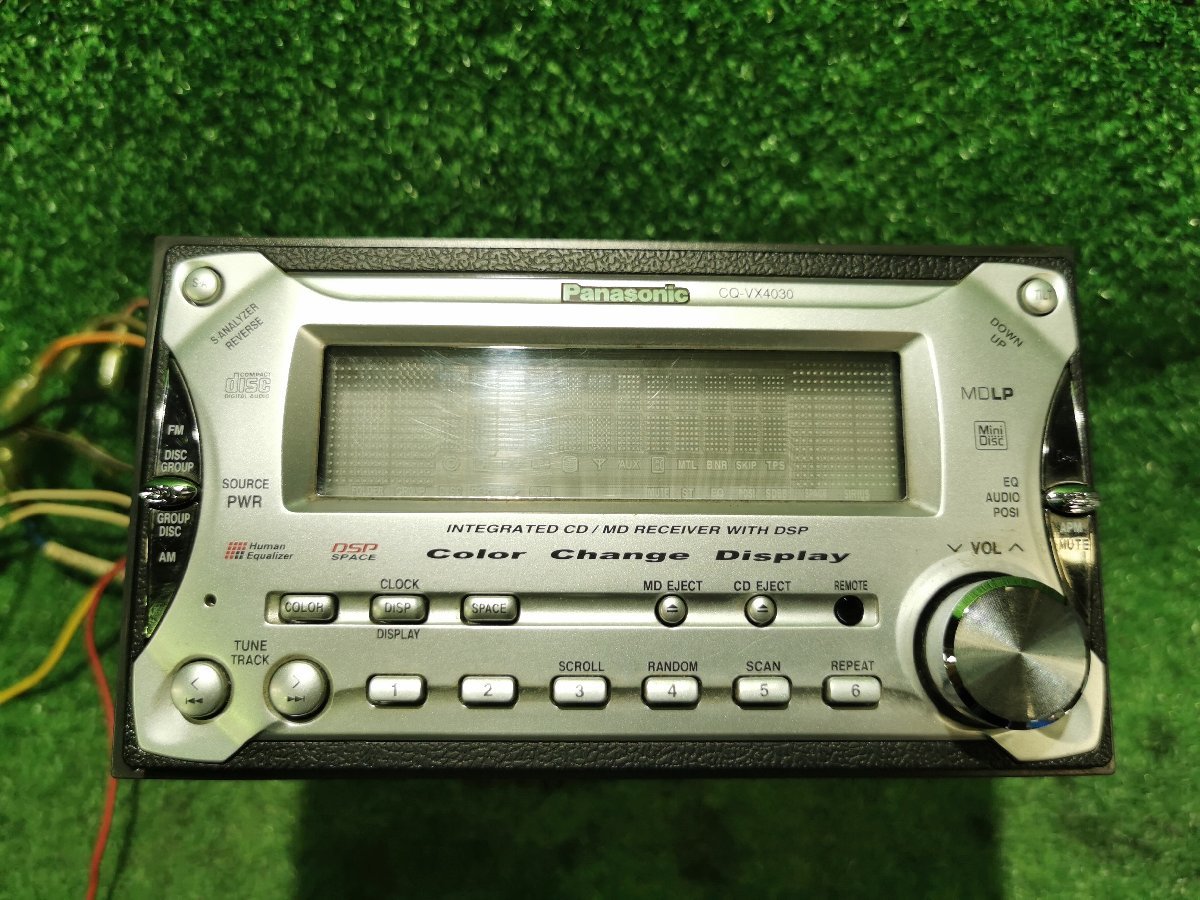

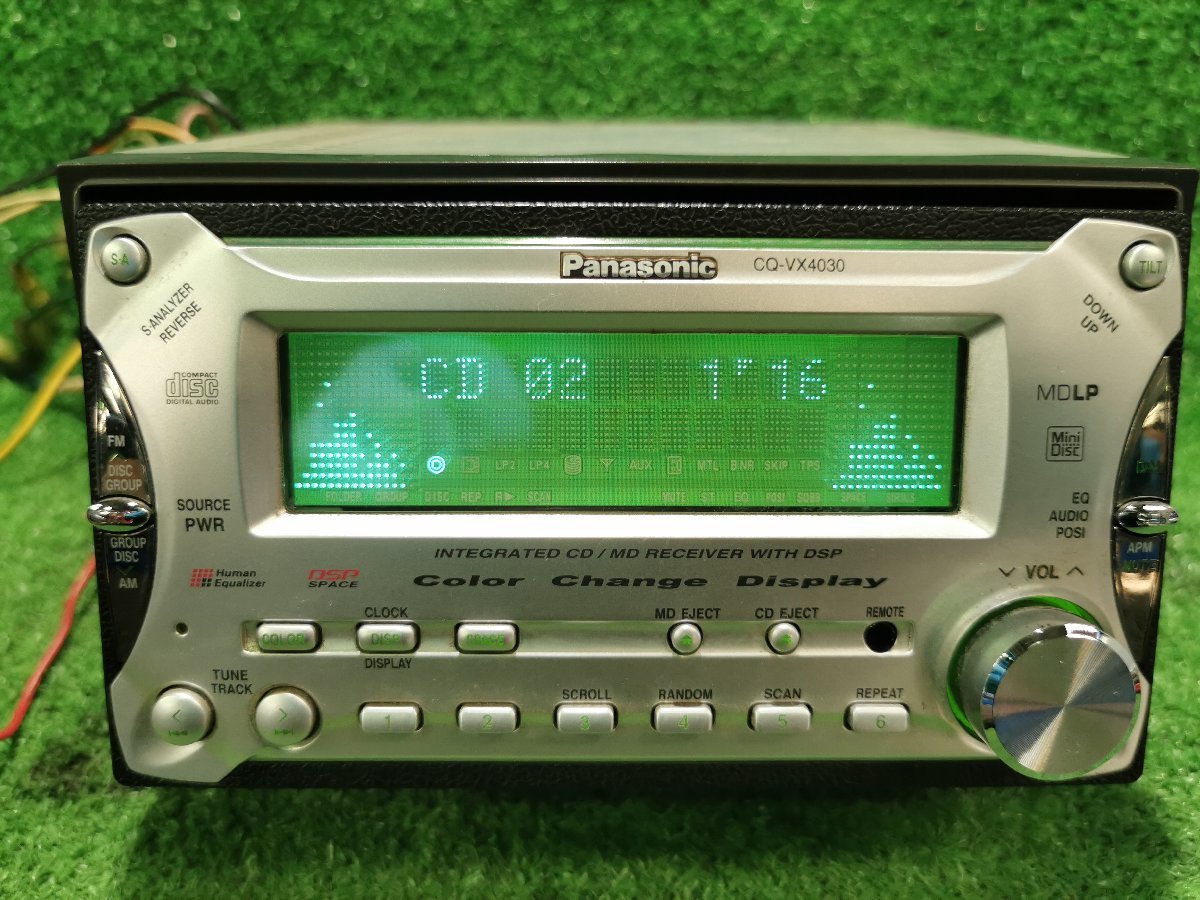

"VX4030D" is a receiver equipped with a full-face electric panel. Adopts a "spectrum color display" that allows you to change the color of the display according to the song you are playing or your mood. In addition to being able to select your favorite color from 11 basic patterns, there is also a CUSTOM mode that allows users to set RGB values ​​and create their favorite color tone.

Built-in AM/FM tuner, maximum output 50W x 4ch, rated output 18W x 4ch. Equipped with 7 DSP modes. The frequency response is 5Hz to 20kHz (CD/MD), and the SN ratio is 90dB (CD/MD). In addition to supporting MDLP, it is equipped with "24bit ATRAC MD" that decodes MD at 24bit and reproduces it with higher sound quality. It also has a heavy bass playback function "SDBB"

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) av.watch

Manuals

Panasonic Manual Page

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
