Device

Panasonic CQ-VX4200D

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-11-26

Manufacturer
Panasonic
Model / source grouping
CQ-VX4200D
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic CQ-VX4200D”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CQ-VX4200D
Manufacturer Panasonic
Released 2002/07
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178 x 100 x 160mm
Weight 2400
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-

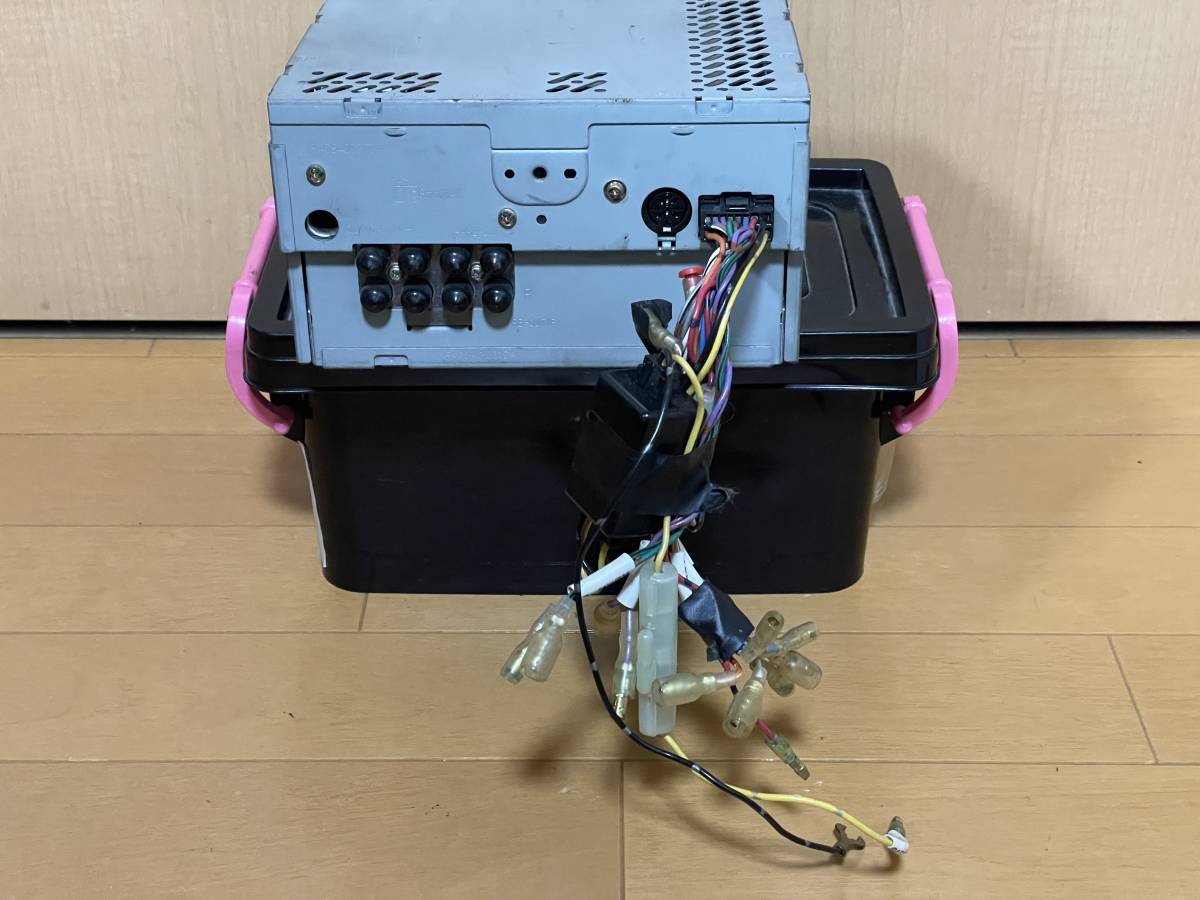

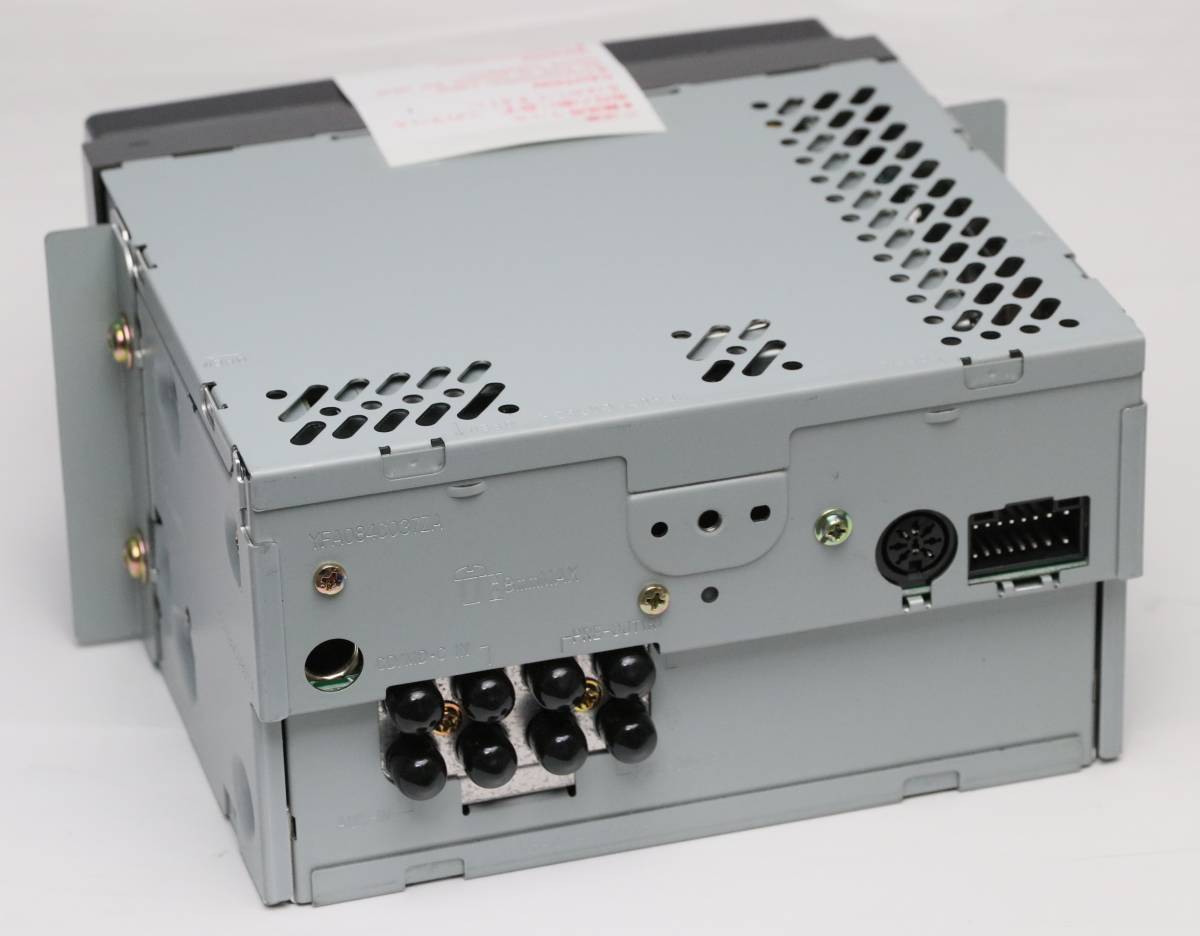

Inputs RCA in, CD
Outputs Speaker amplifier
Control Not recorded

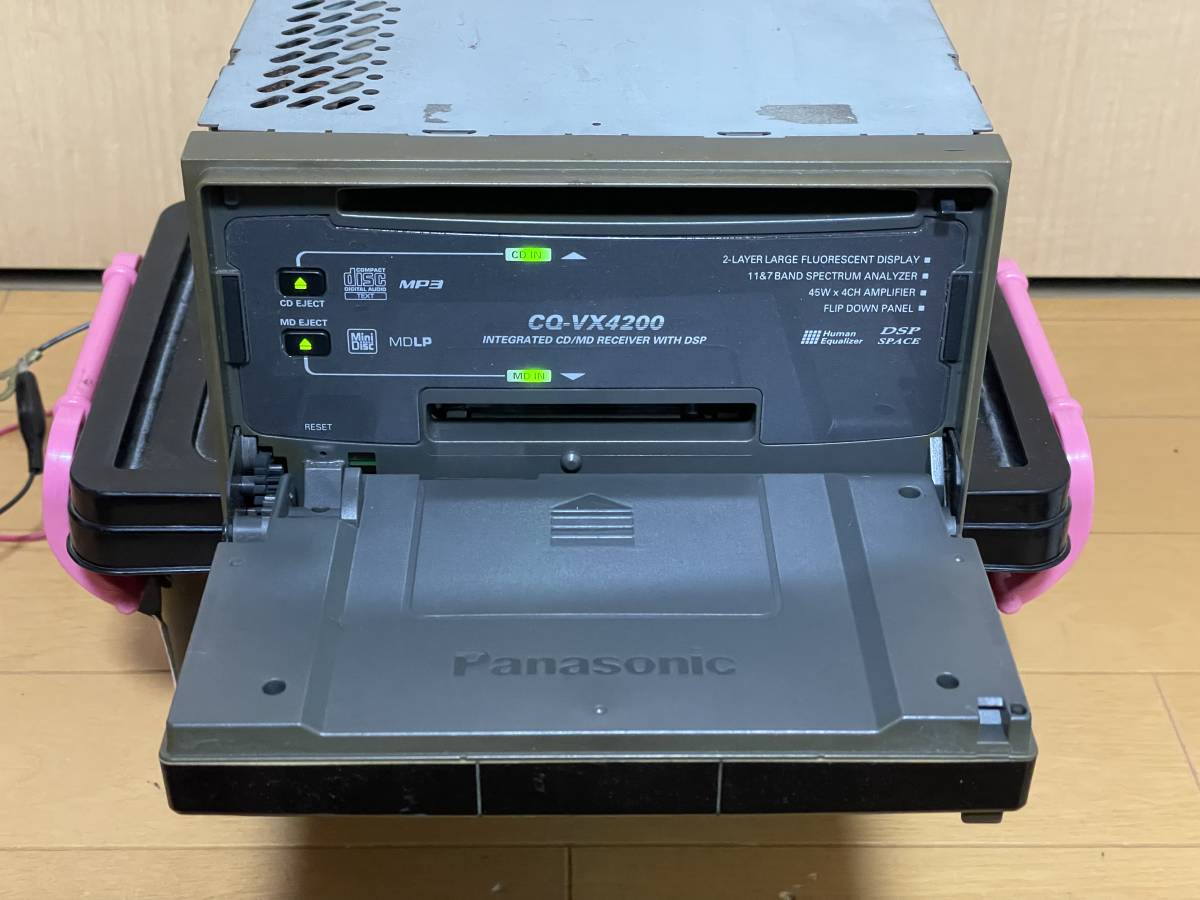

CD player, MD player, AM/FM tuner, 4ch amplifier, and DSP in a 2DIN size. The MD part of all models supports MDLP, and the group function can also be used. In addition, since ATRAC decoding is performed at 24 bits, it is said that "even the subtle nuances closer to the original sound are reproduced".

The CD section supports playback of CD-R/RW and MP3 files, and supports display of ID3 tags.

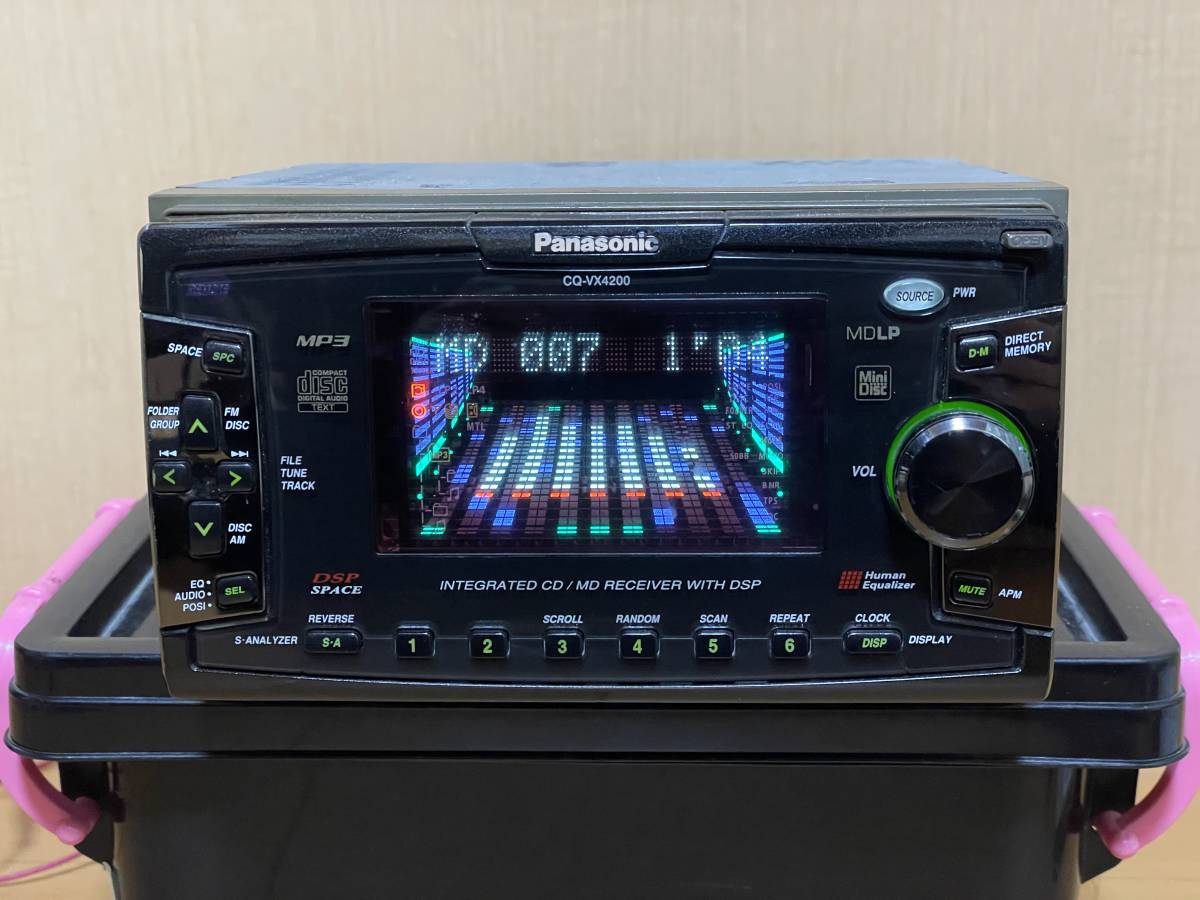

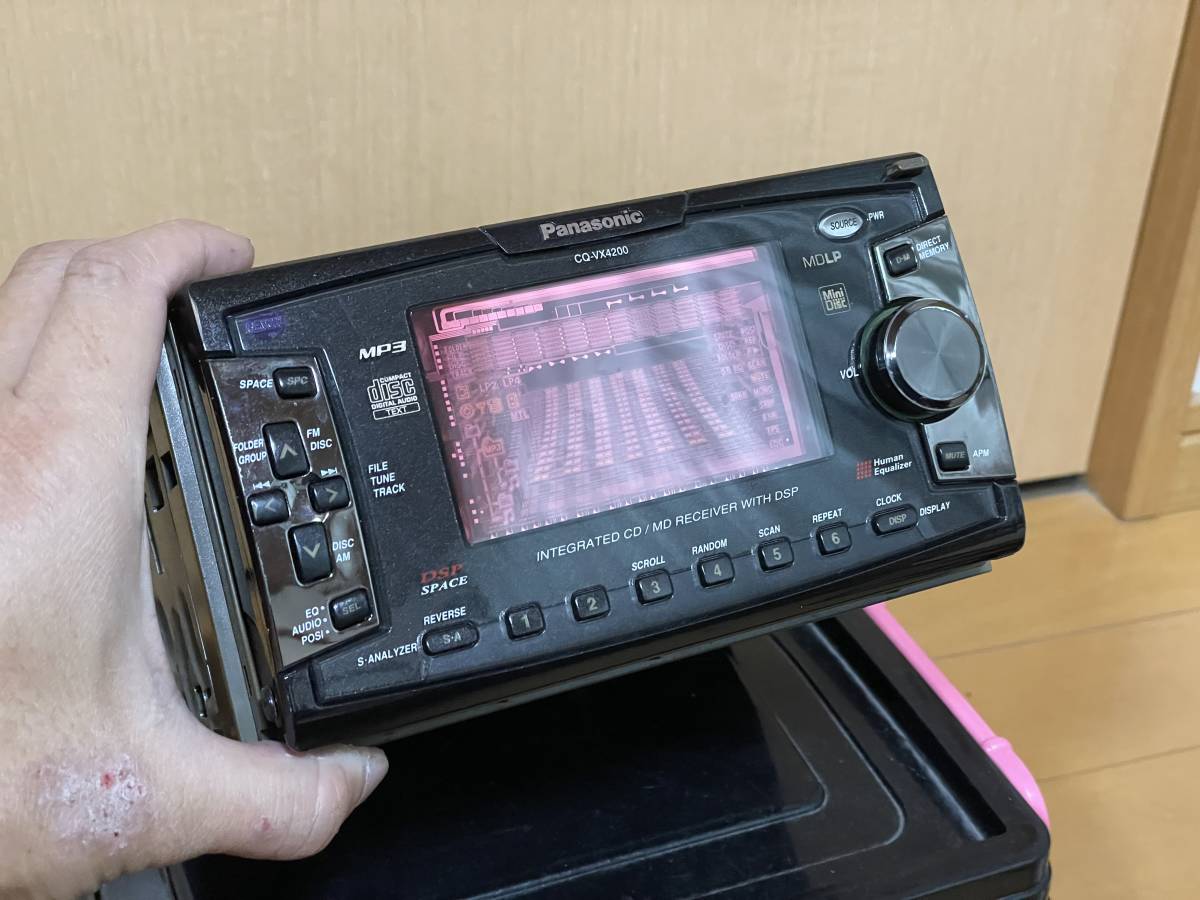

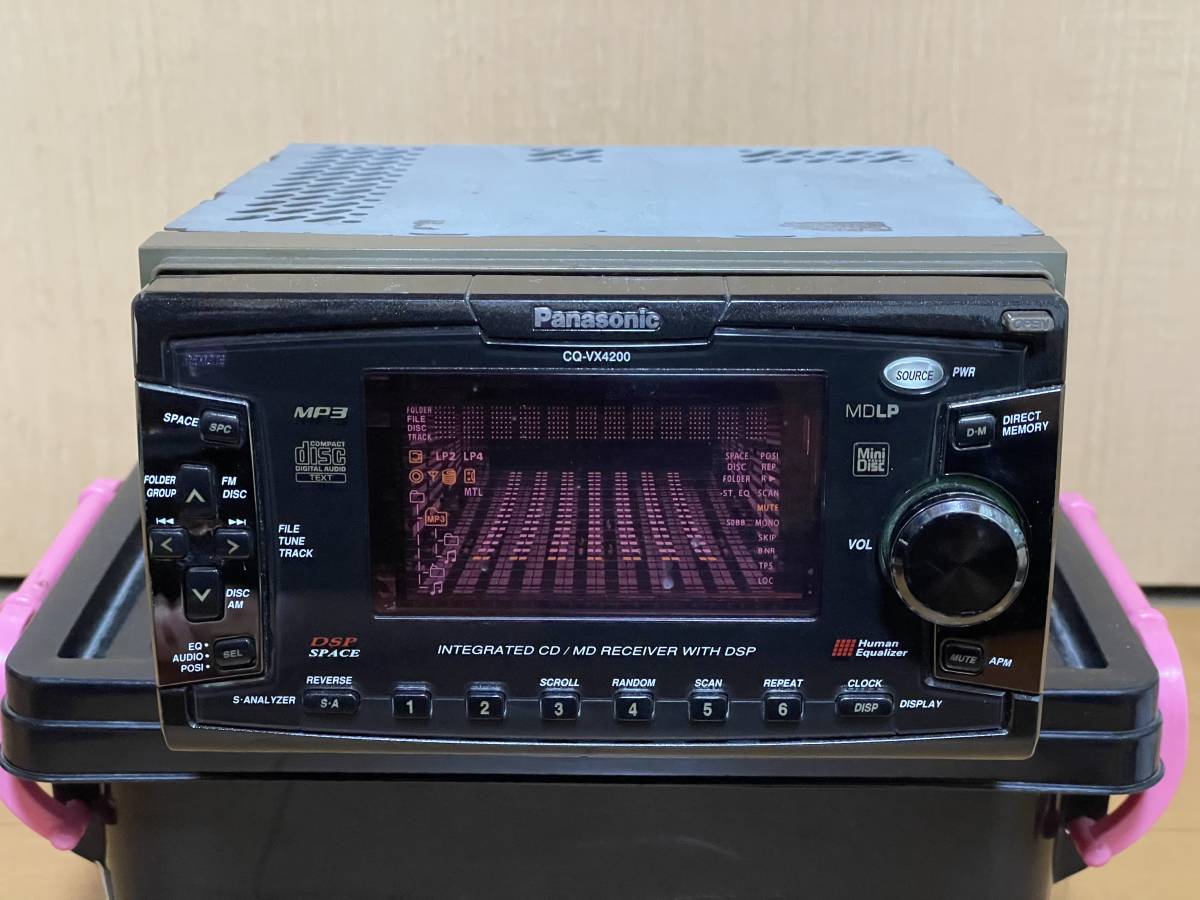

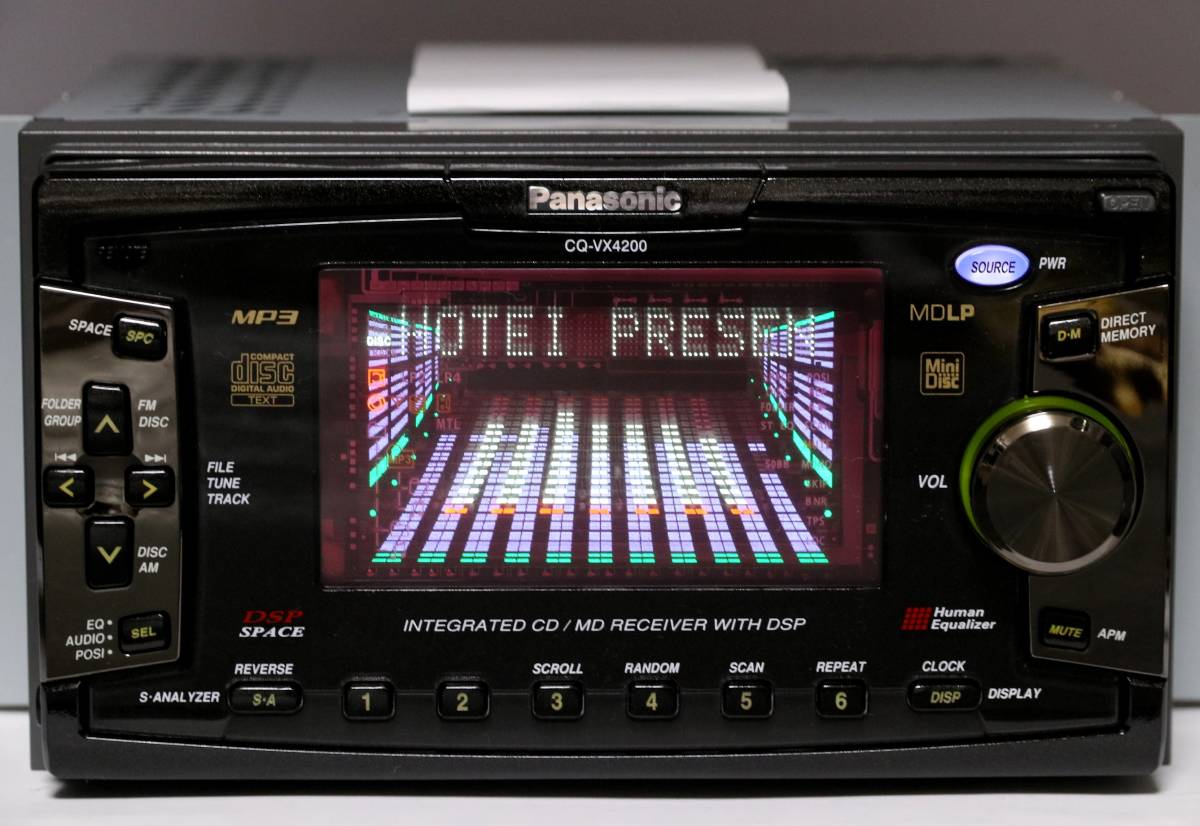

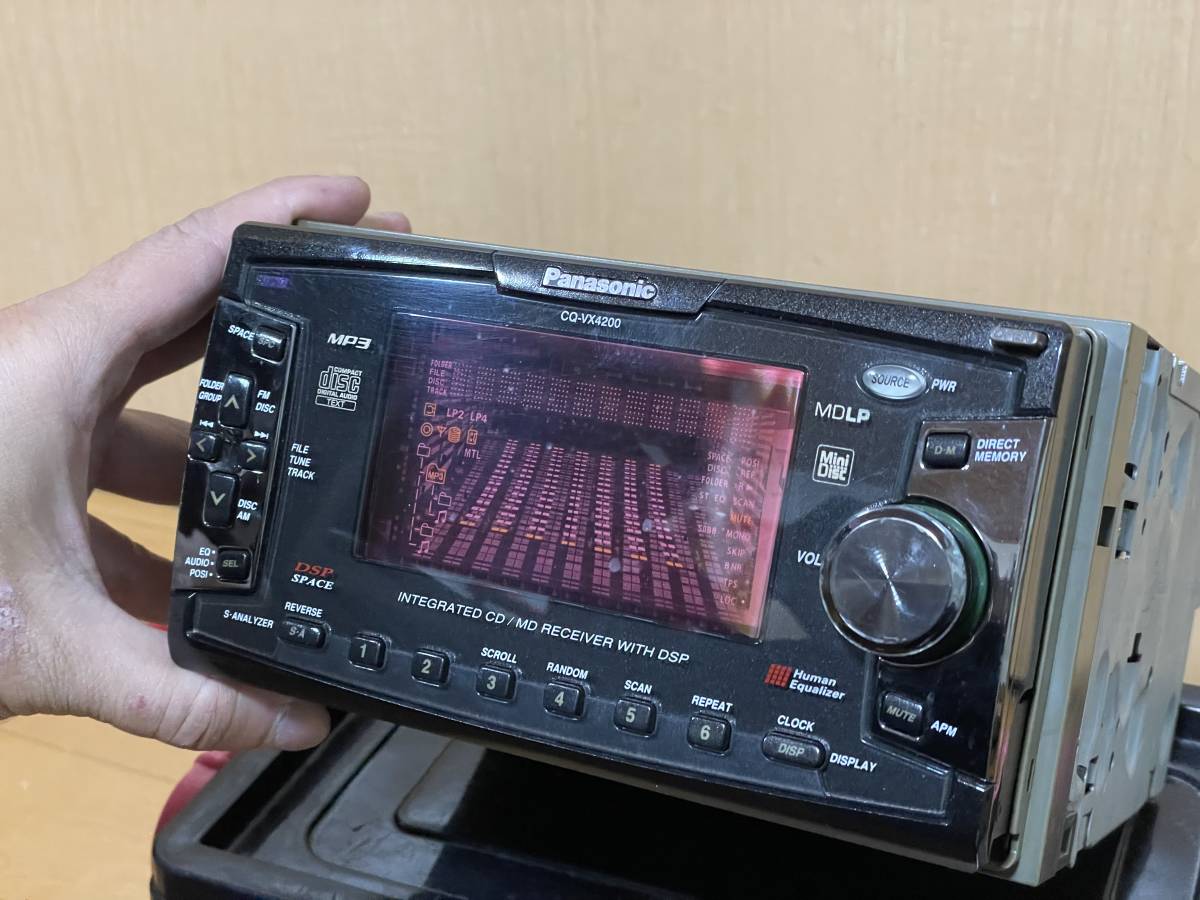

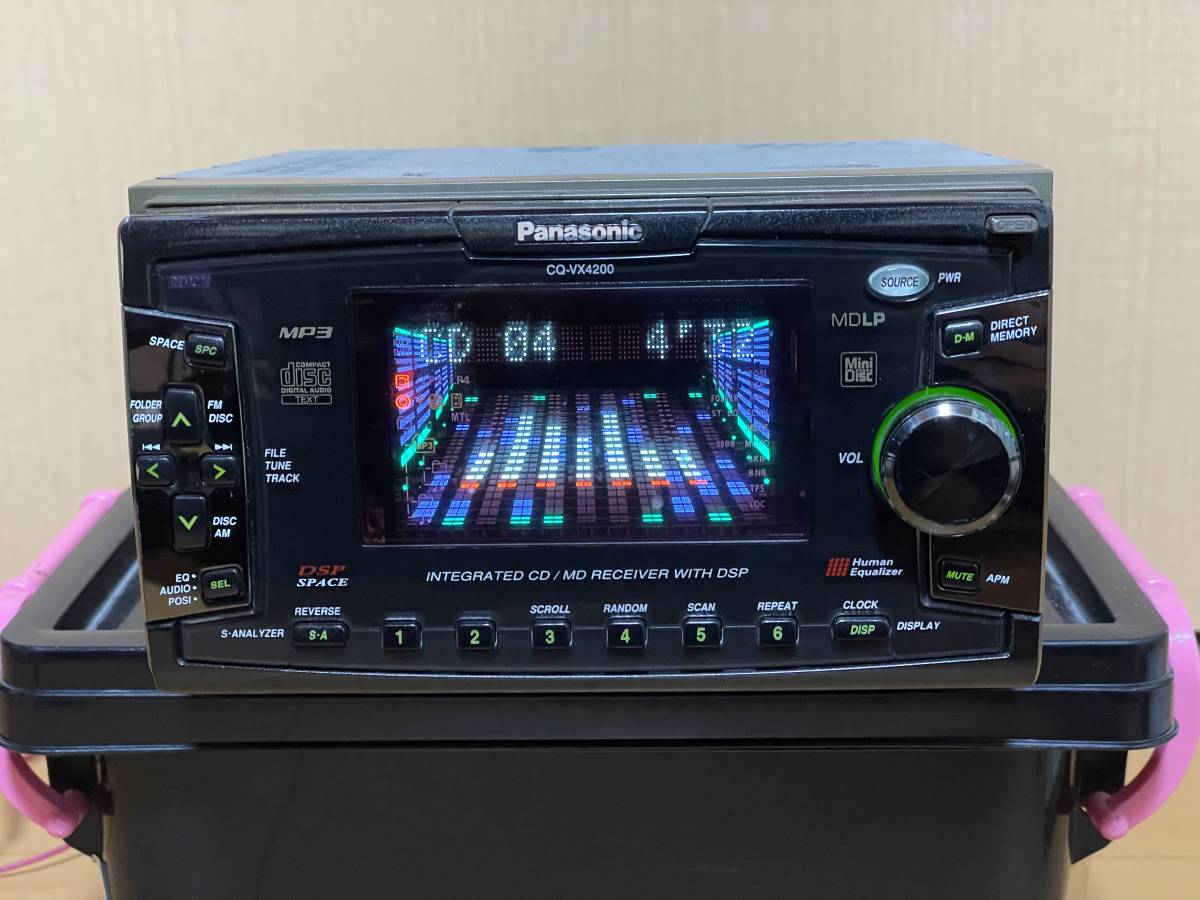

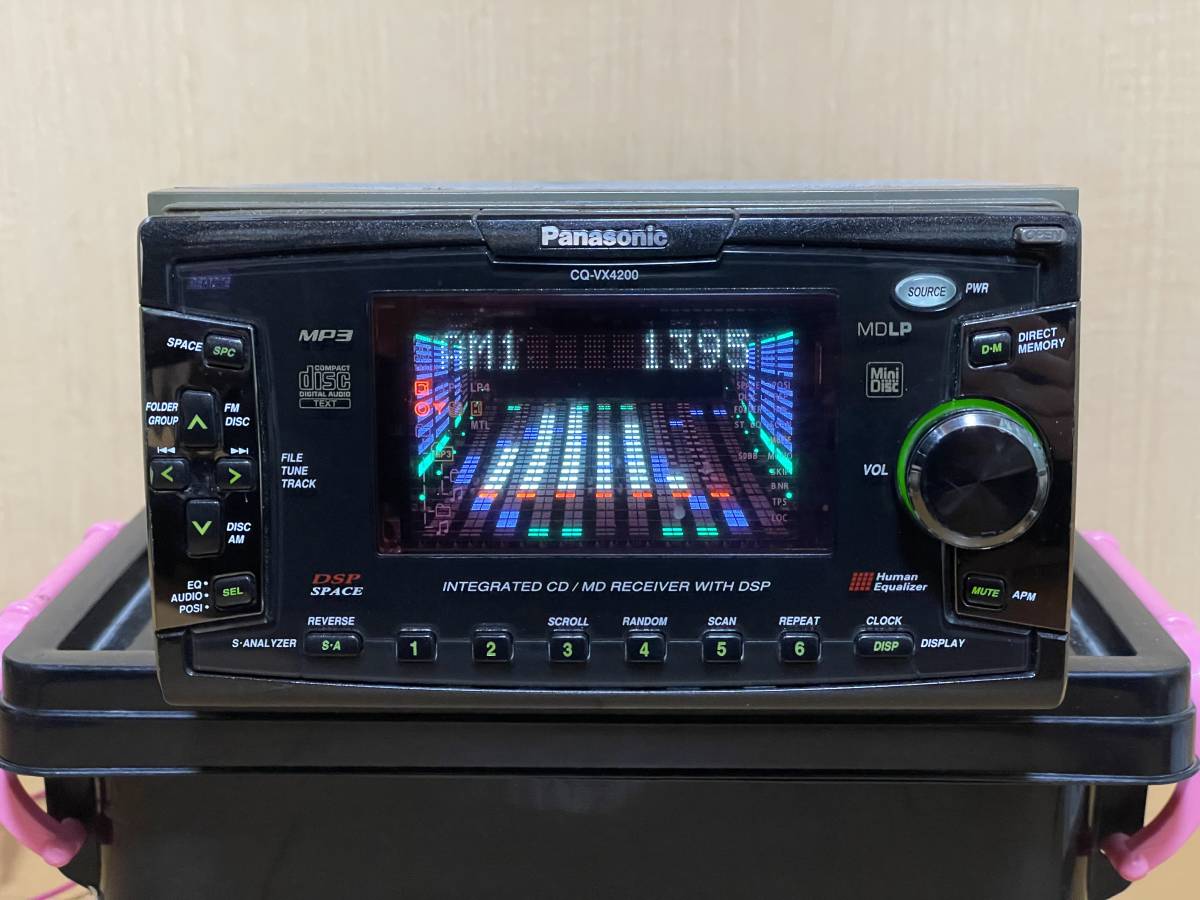

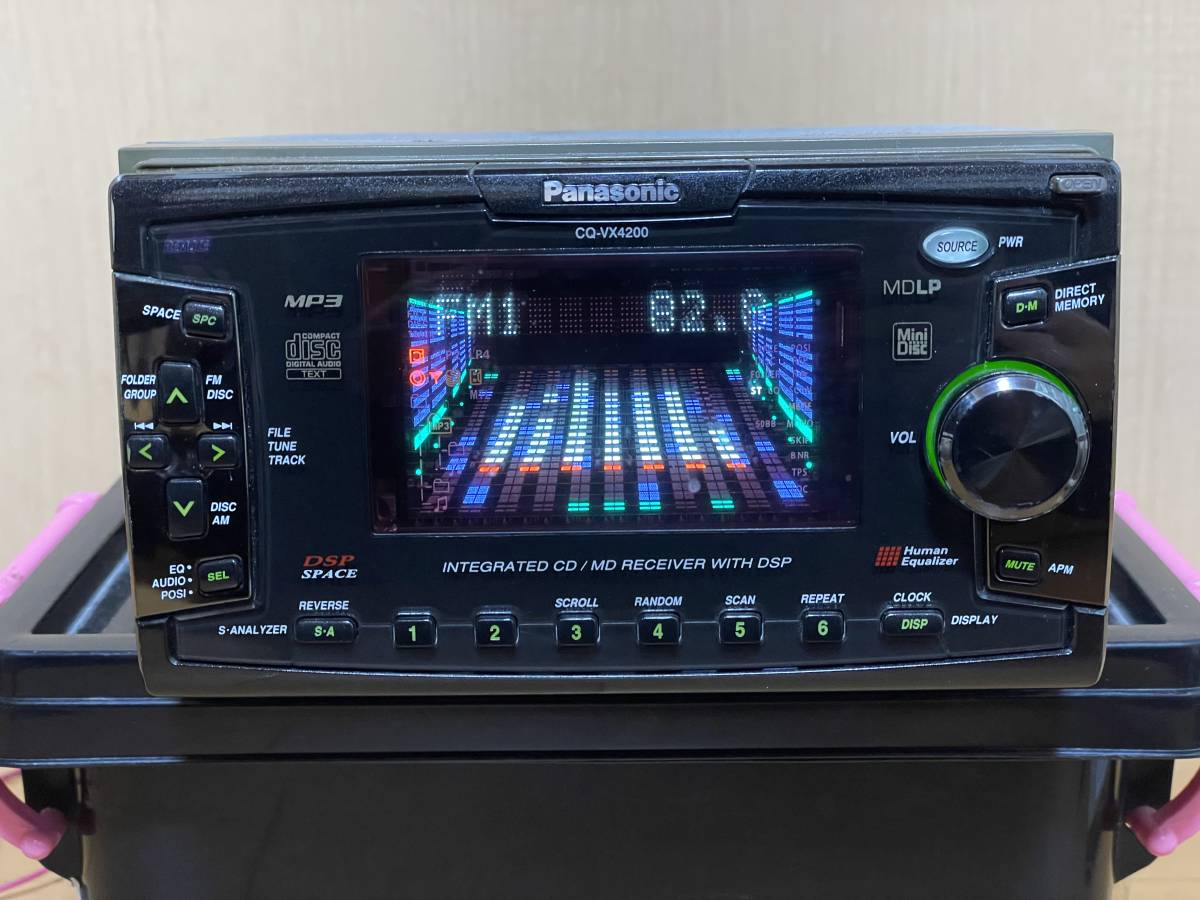

The CQ-VX4200D is a high-end model equipped with an amplifier with a maximum output of 45W x 4ch. The display panel is equipped with a "2-layer FL display" that provides a sense of depth and displays in three dimensions.

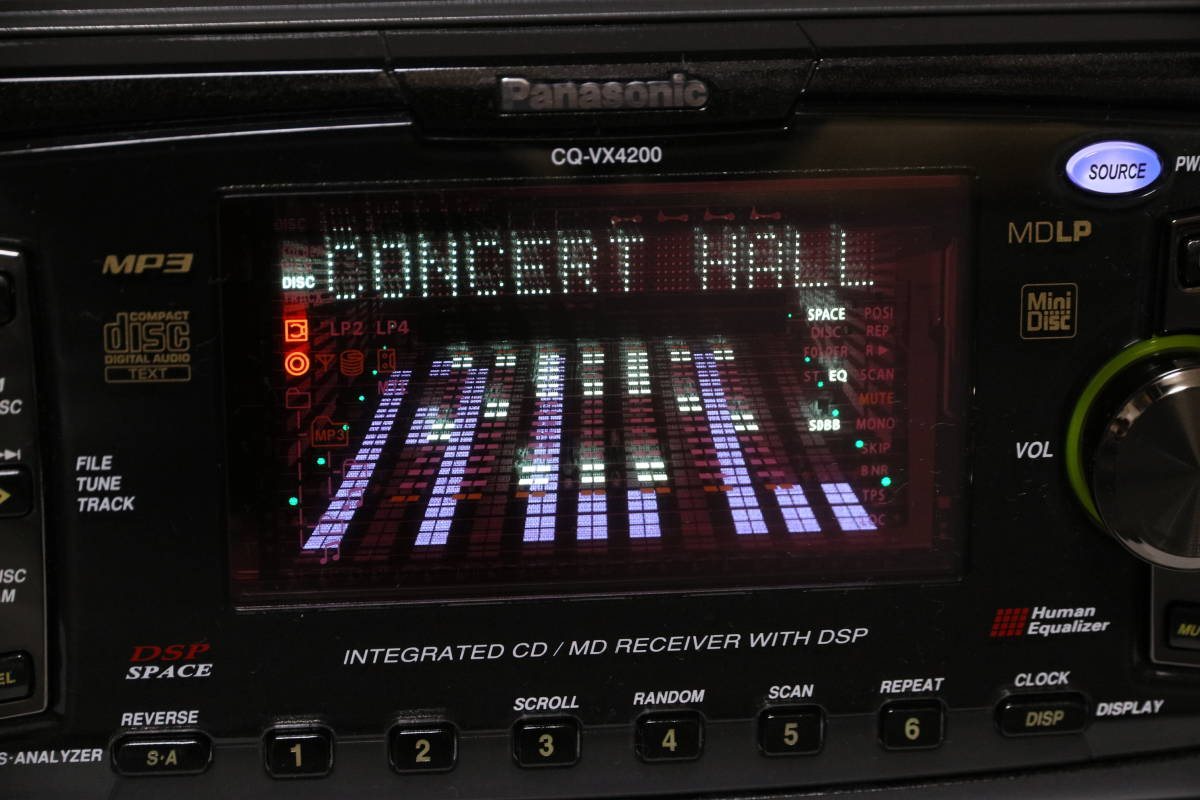

The DSP section can select 7 modes: "live house", "concert hall", "jazz club", "stadium", "disco", "vocal", and "cinema". You can also use the "Super Dynamic Bass Boost (SDBB)" that allows you to enjoy deep bass without a subwoofer, and the "Super Bass Control Subwoofer (SBC/SW)" that uses the rear speakers as a subwoofer. .

Content adapted from: Matsushita Press Release Matsushita Press Release (MiniDisc Wiki mirror) AV.Watch

Manuals

Panasonic Manual Page

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references

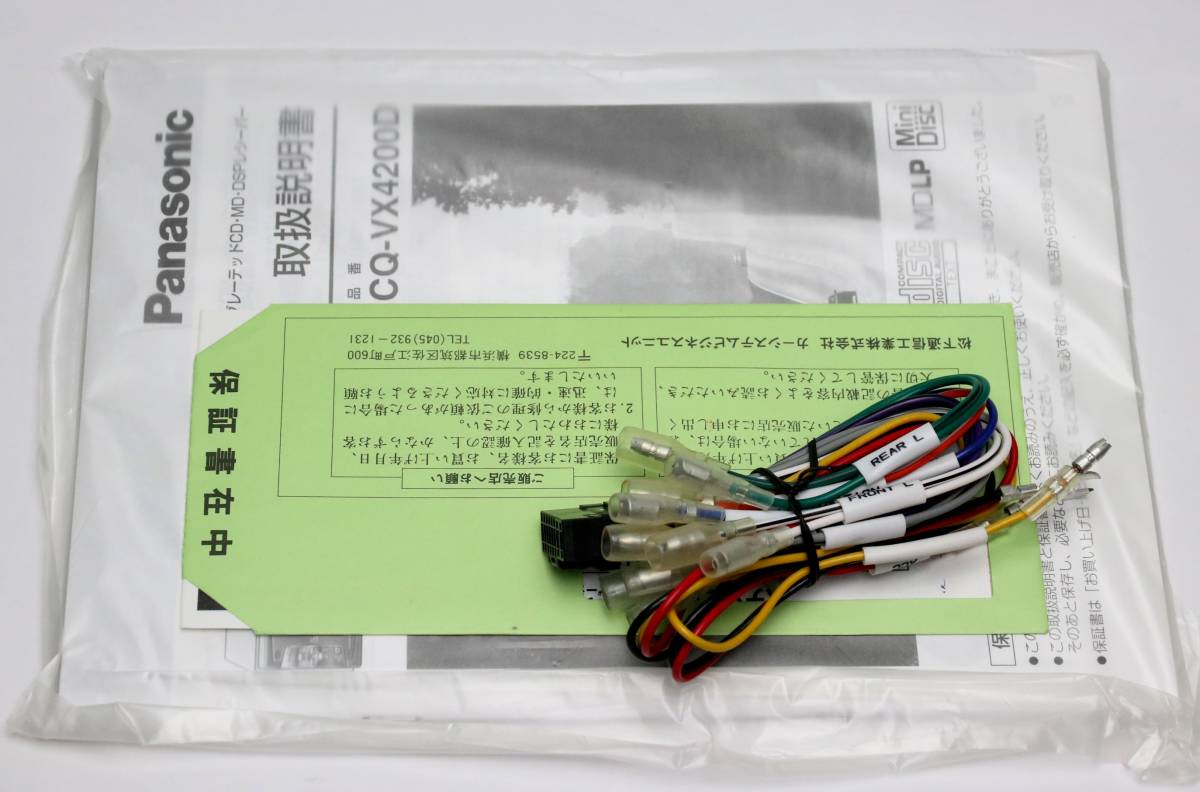

ManualUser manual
RegionJapan
