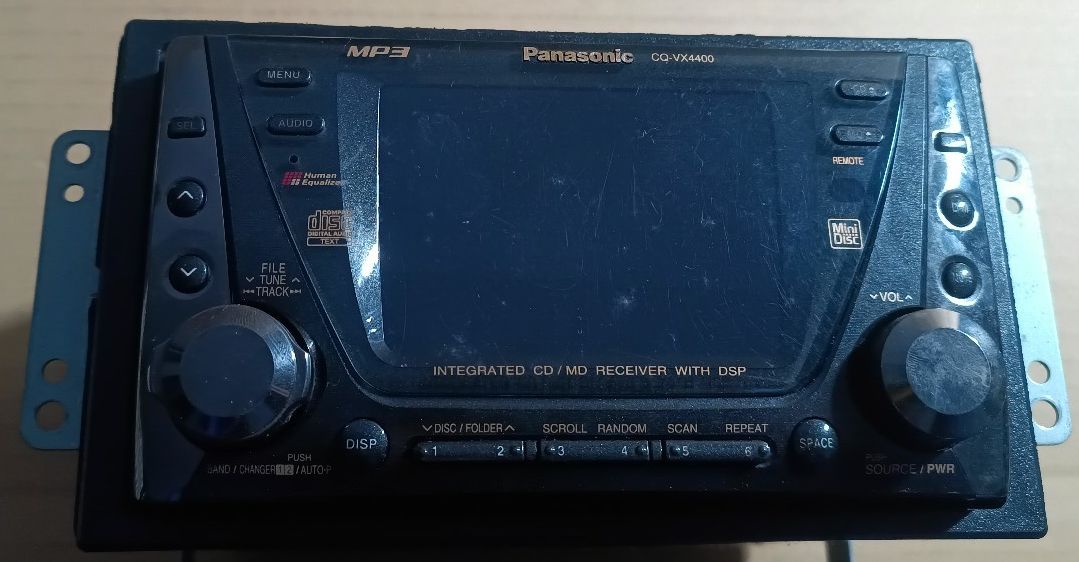

| Name | CQ-VX4400D |
|---|---|
| Manufacturer | Panasonic |
| Released | 2001/07 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-DIN W 178× H 100 × D 160mm |
| Weight | 2800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥84 000 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |
The CD section supports playback of CD-DA and MP3 recorded on CD-R/RW. Hierarchical display is used for MP3 file display, and "the location of the file can be confirmed at a glance". Katakana display is possible, but ID3 tags are not supported. After the input signal is processed by 24bit, the sound quality and volume are adjusted by DSP.
15-band spectrum analyzer and 7 DSP modes
Equipped with "SDBB (Super Dynamic Boost)" function that replaces the rear speaker with a subwoofer, and "DDBC (Digital Dynamic Bass Control)" function that can operate a subwoofer connected to an external amplifier. . In addition, the DSP, which tends to be a noise source, is isolated from the board, and is further shielded with a shield case.
Supports the CX-MD6D MD changer.
Rated output: 16 W × 4 CH (1 kHz, 1%, 4 Ω)
Maximum output: 45 W × 4 CH
Audio input impedance: 10 kΩ (AUX IN)
Audio input sensitivity: 2 Vrms (AUX IN)
Pre-out output voltage: 1.8 Vrms (CD)
CD Signal-to-noise ratio: 85 dB (IHF, A)
MD Signal-to-noise ratio: 85 dB (IHF, A)
Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) av.watch
Manuals
Repair

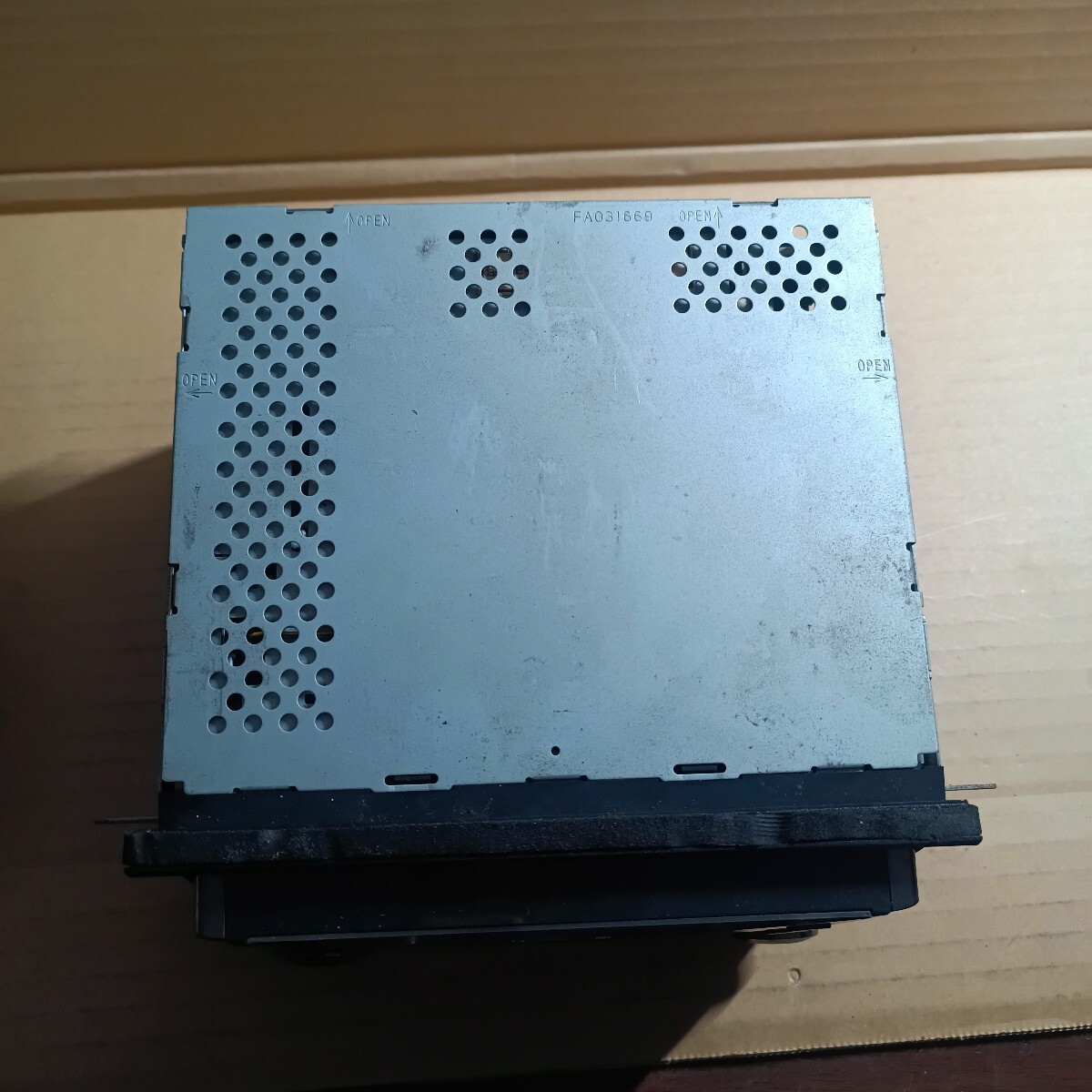

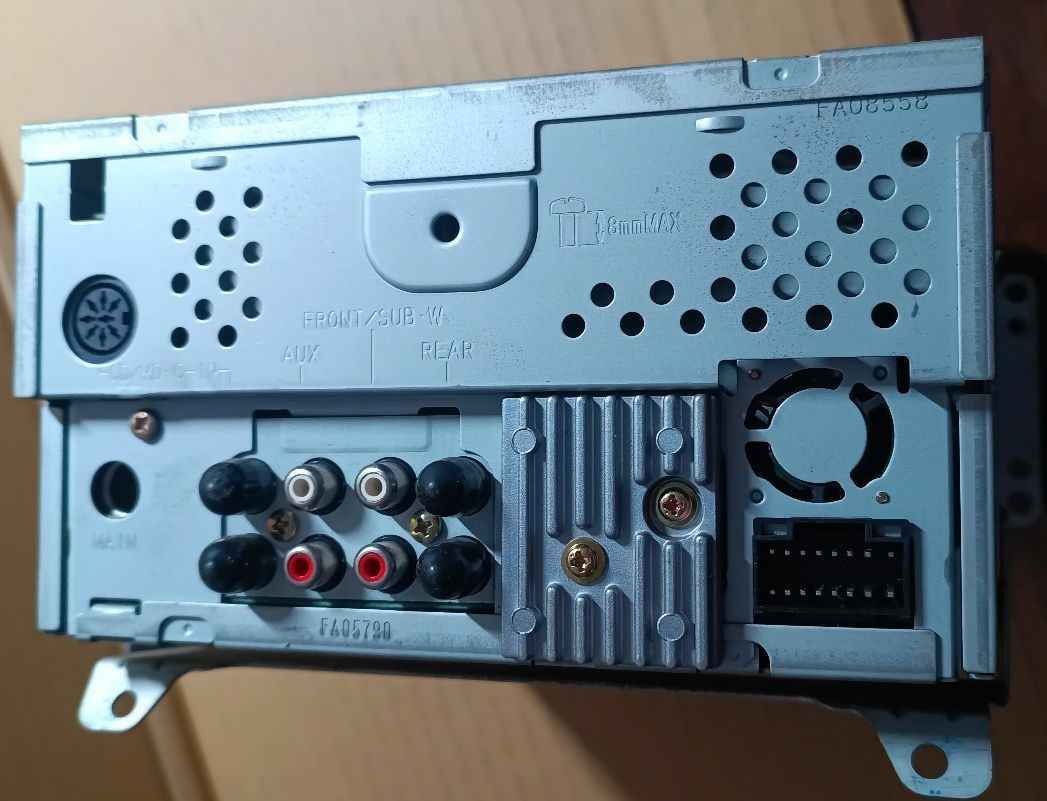

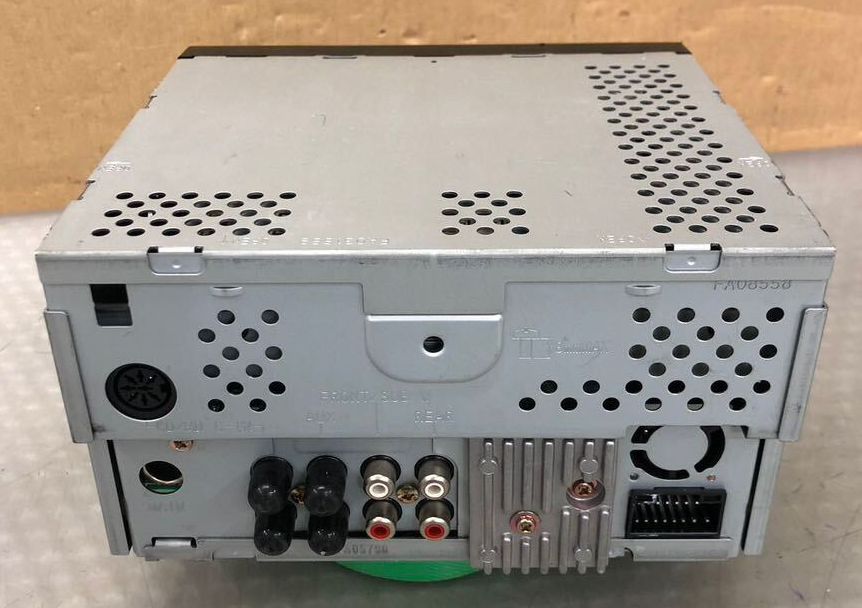

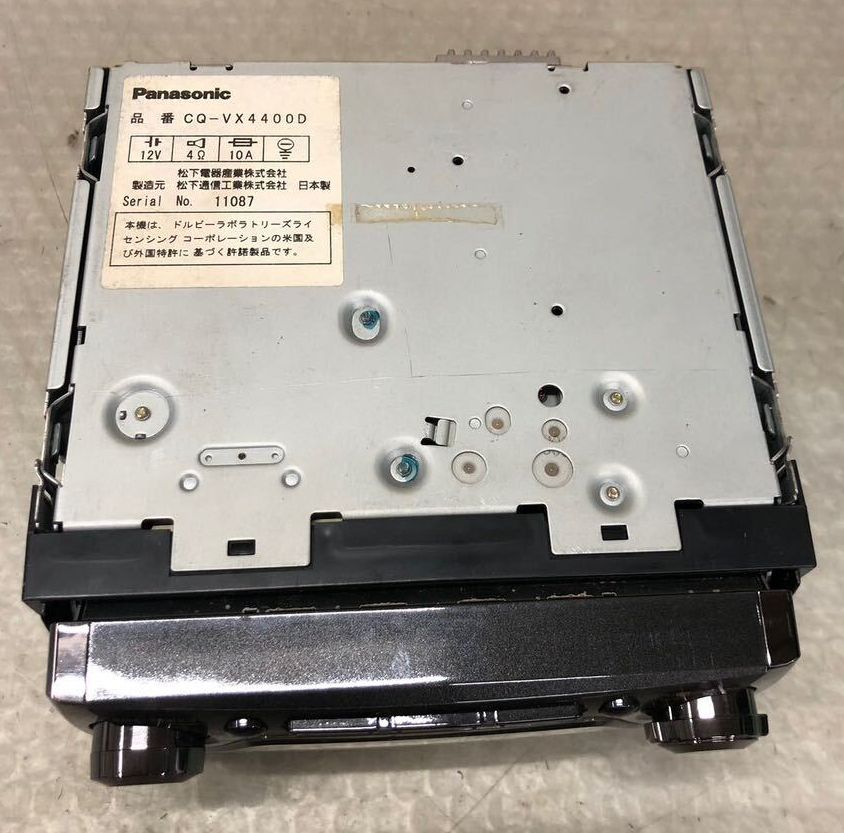

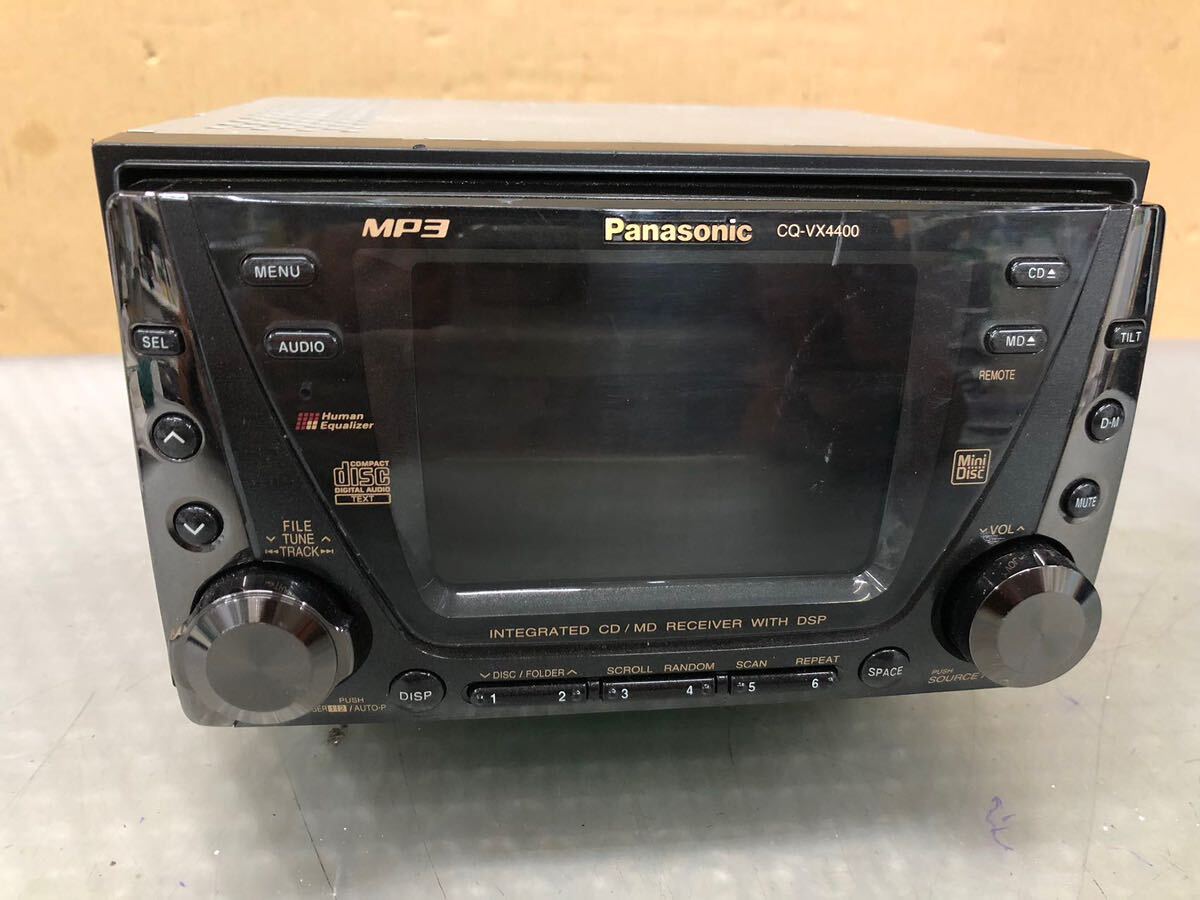

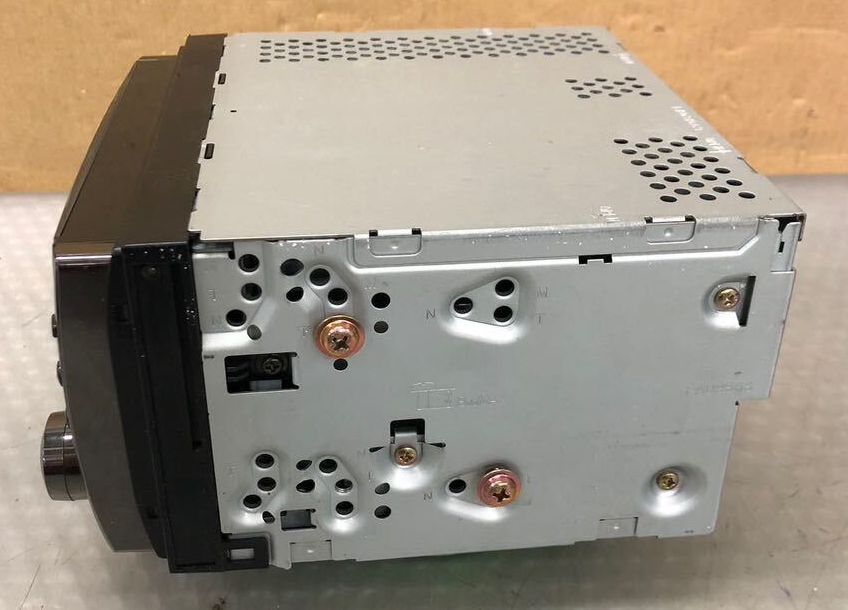

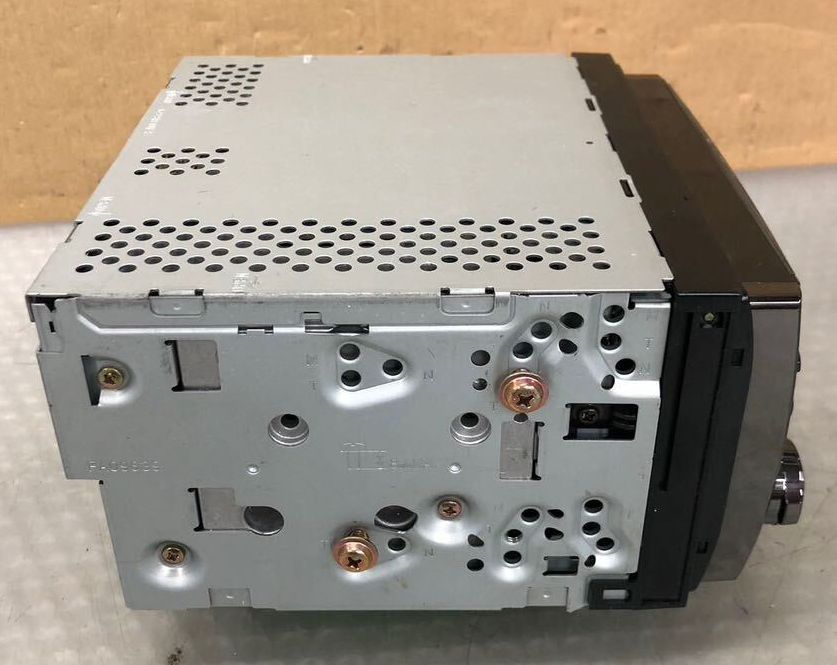

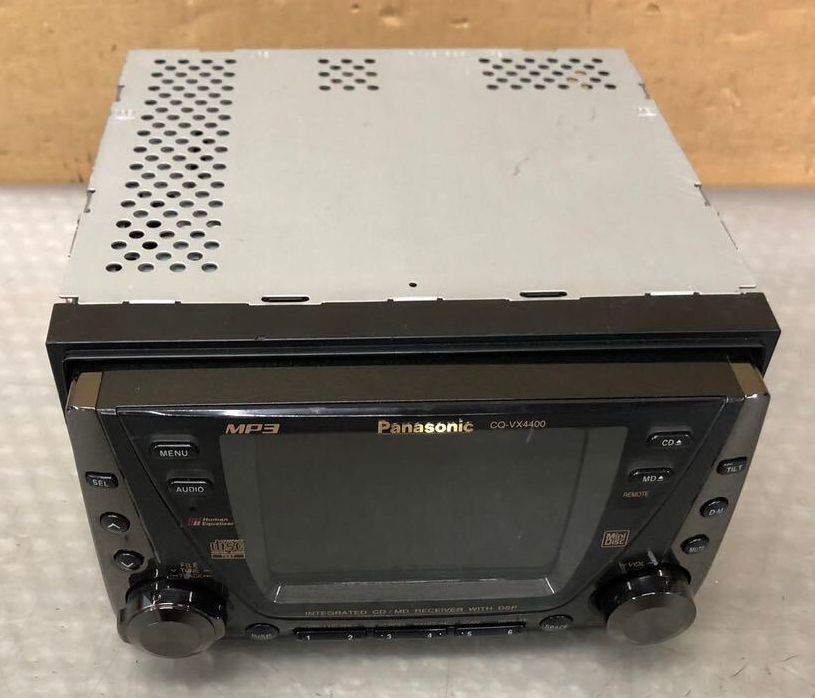

Photos
