| Name | SC-DT200 |
|---|---|
| Manufacturer | Panasonic |
| Released | 2001/12 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 190 x 335 x 73 mm |
| Weight | 1800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥80 000 | |
| - | |

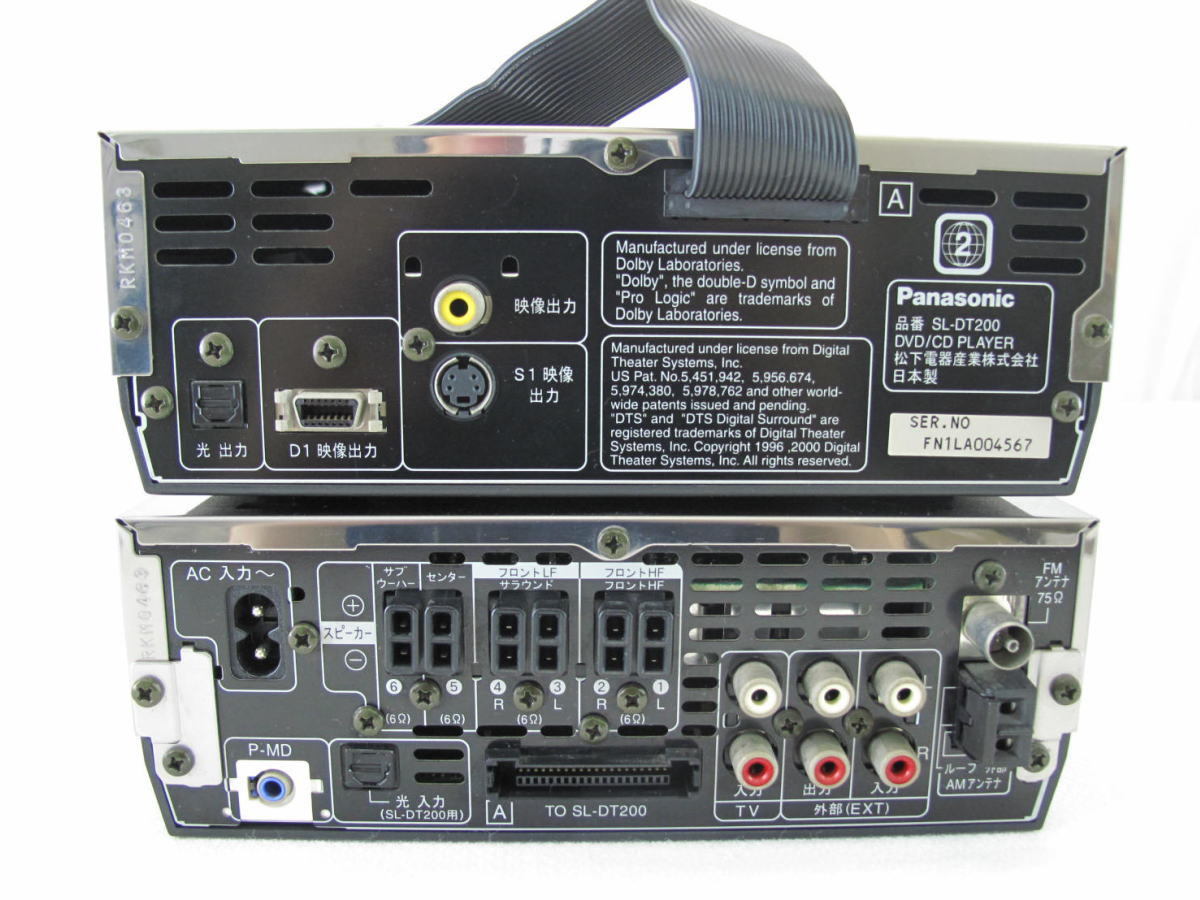

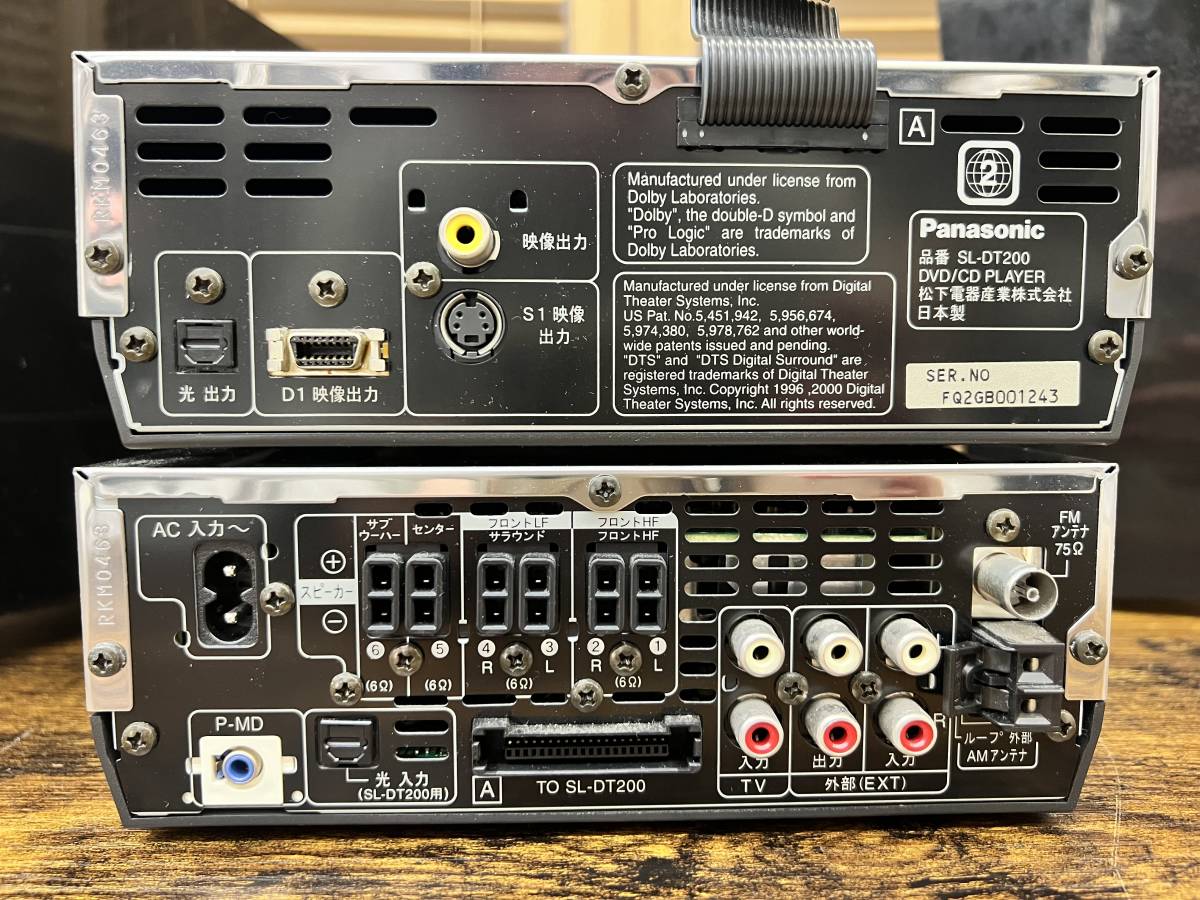

| Inputs | 3.5mm line in (analog-only), Digital optical (TOSLINK), CD |
| Outputs | 3.5mm line out (analog-only), Digital optical (TOSLINK) |
| Control | Not recorded |

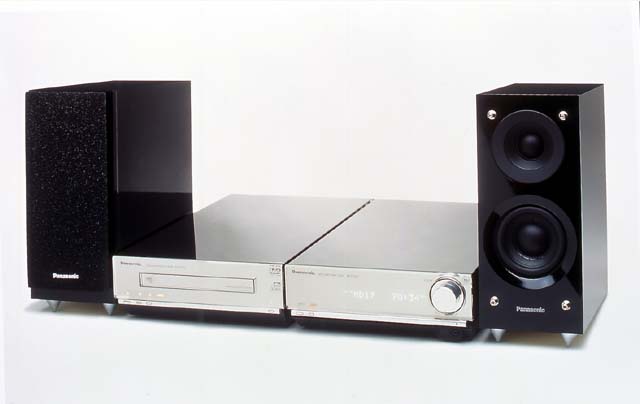

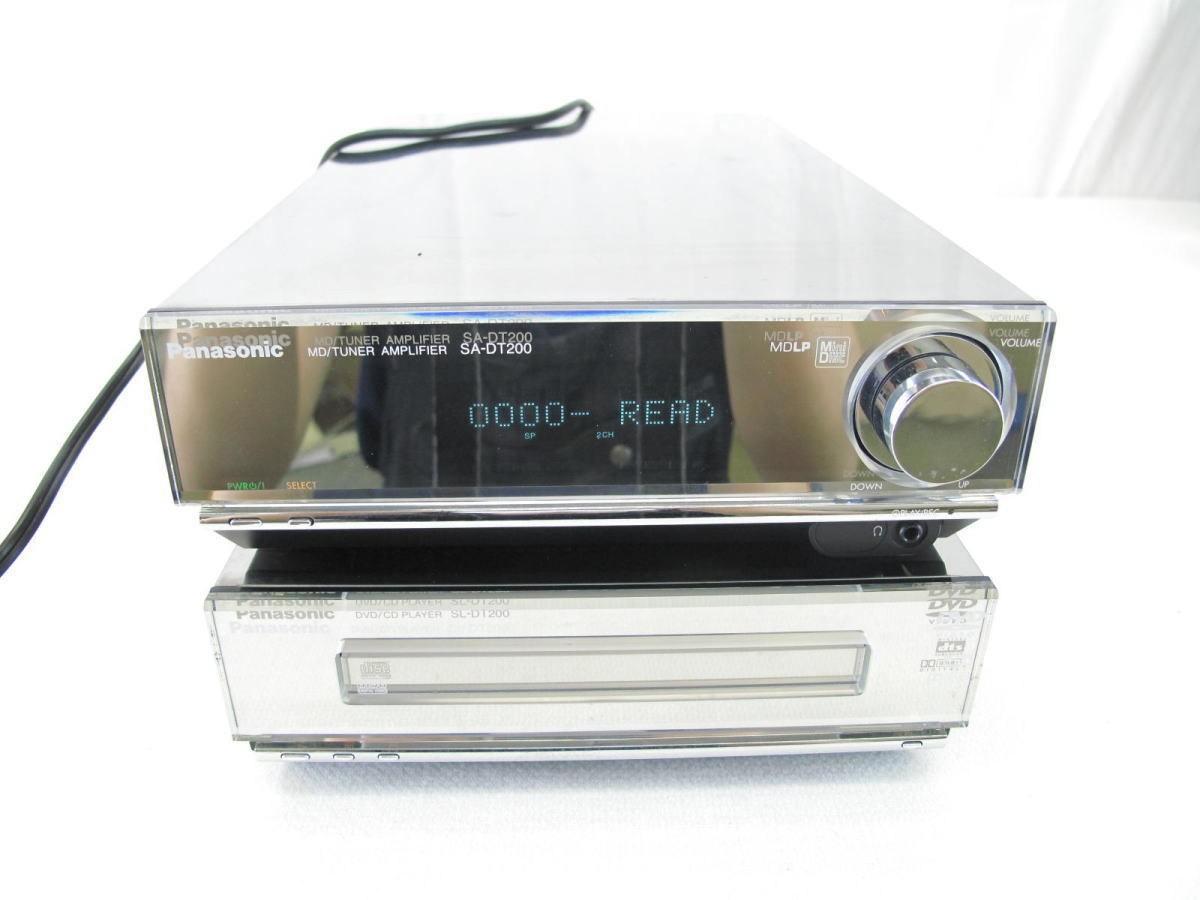

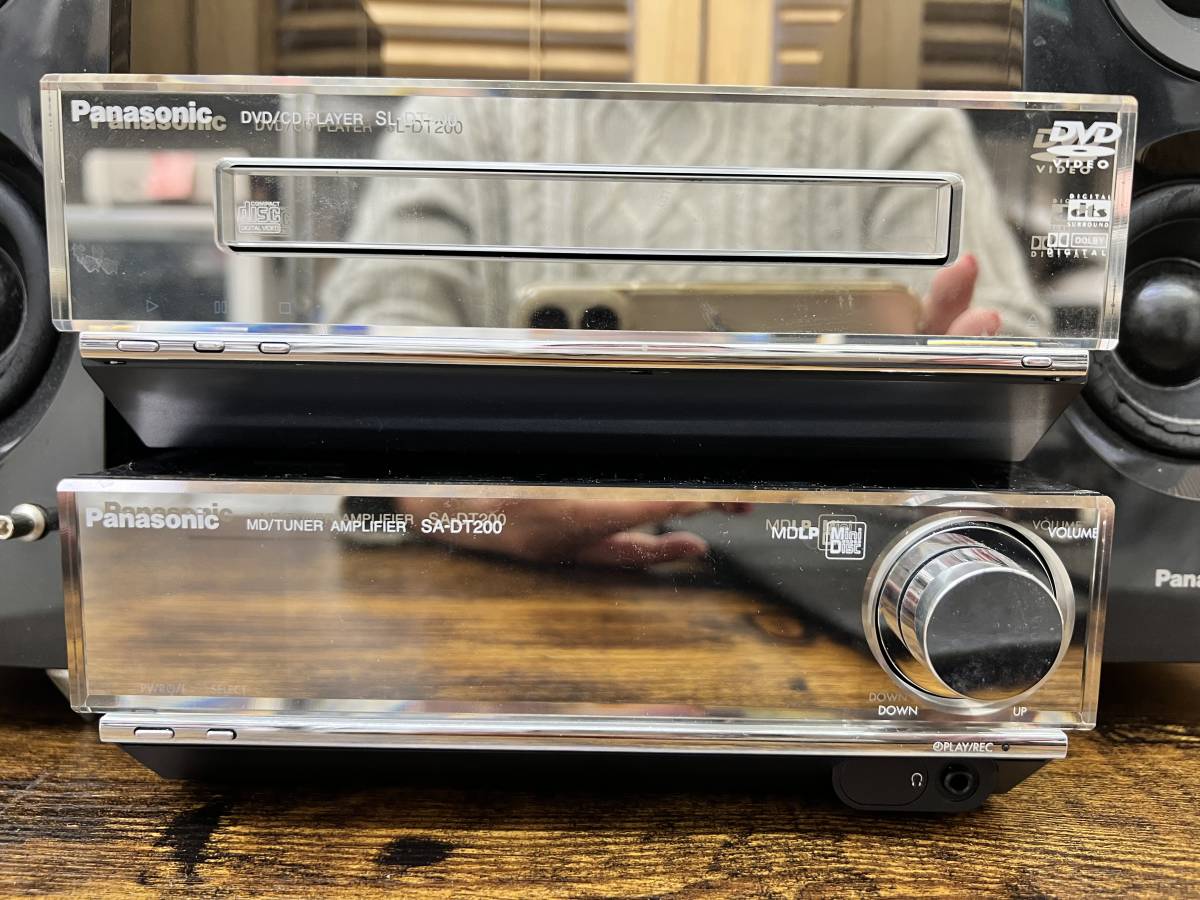

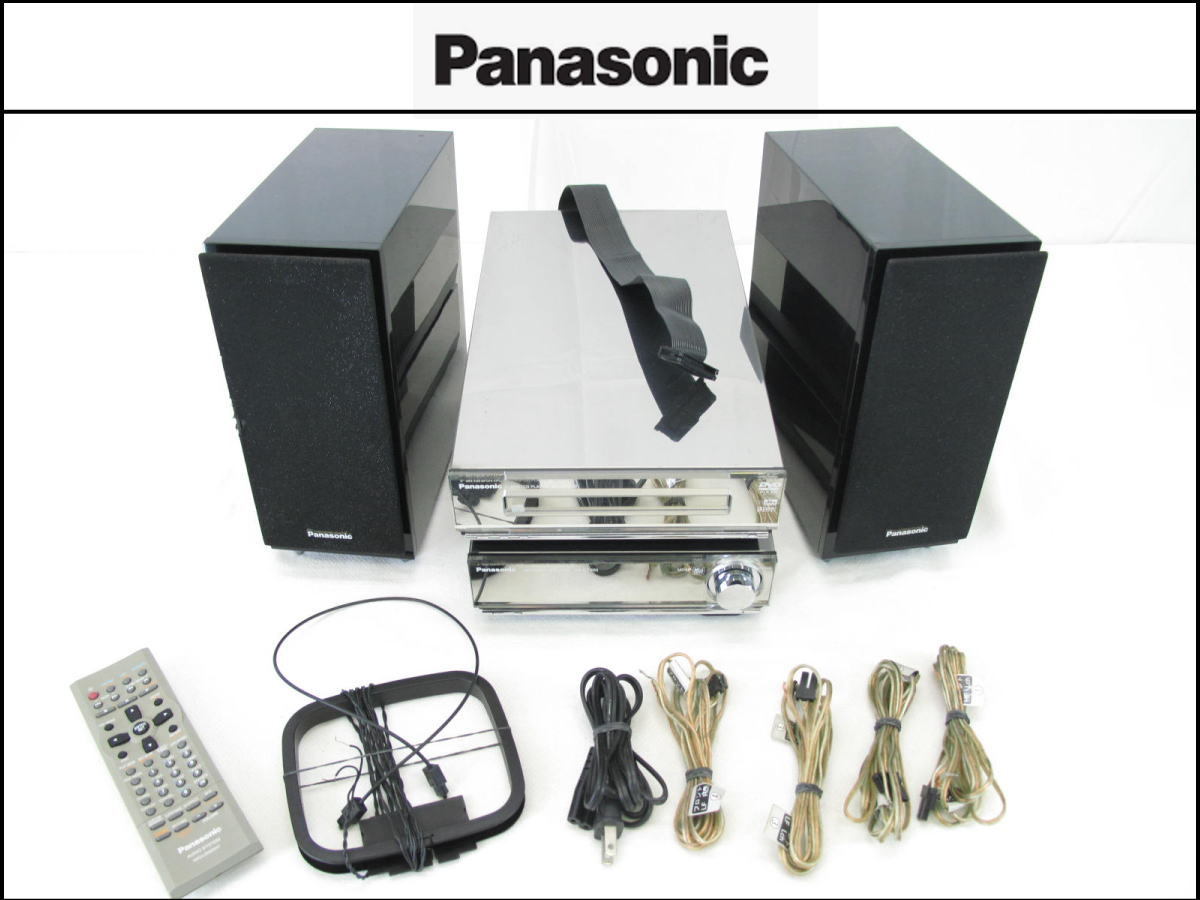

The "SC-DT200" is a mini component system equipped with a DVD / CD player, MD deck, and FM / AM tuner. It has a two-piece configuration consisting of an amplifier and a deck, and uses a cabinet with external dimensions of 190 x 356 x 73 mm (width x depth x height, depth of the CD / DVD section is 335 mm) and a width of 190 mm, which is the same as the DVD jacket. .. The DVD / CD player also supports CD-R / RW and can play MP3s. MD deck supports MDLP.
The amplifier section has a built-in 35W x 6ch digital amplifier, and the DSP is equipped with a 98MHz drive. "Compared to other digital amplifiers, the SN ratio is much better and the energy efficiency is as high as 90% or more. Therefore, heat loss is small and a 6ch amplifier can be built into a small body," the company said. In addition, the power supply unit is equipped with a large "high-quality bamboo capacitor" that is used in the company's single amplifier.
A 5.1ch system can be constructed by adding a DTS / Dolby Digital compatible decoder and an optional speaker system, and bi-wiring / bi-amp drive is also supported when using 2 speakers. It also has a 2ch virtual surround function "advanced surround circuit".
Supports P-MD link
Content adapted from: Matsushita Press Release Matsushita Press Release (MiniDisc Wiki mirror) av.watch Panasonic Page Other Panasonic Page Other Panasonic Page (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
