Panasonic SC-NS77MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-05-09

Manufacturer
Panasonic
Model / source grouping
SC-NS77MD
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SC-NS77MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SC-NS77MD
Manufacturer Panasonic
Released 2001/11
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 210 x 330 x 257mm
Weight 3.0kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-

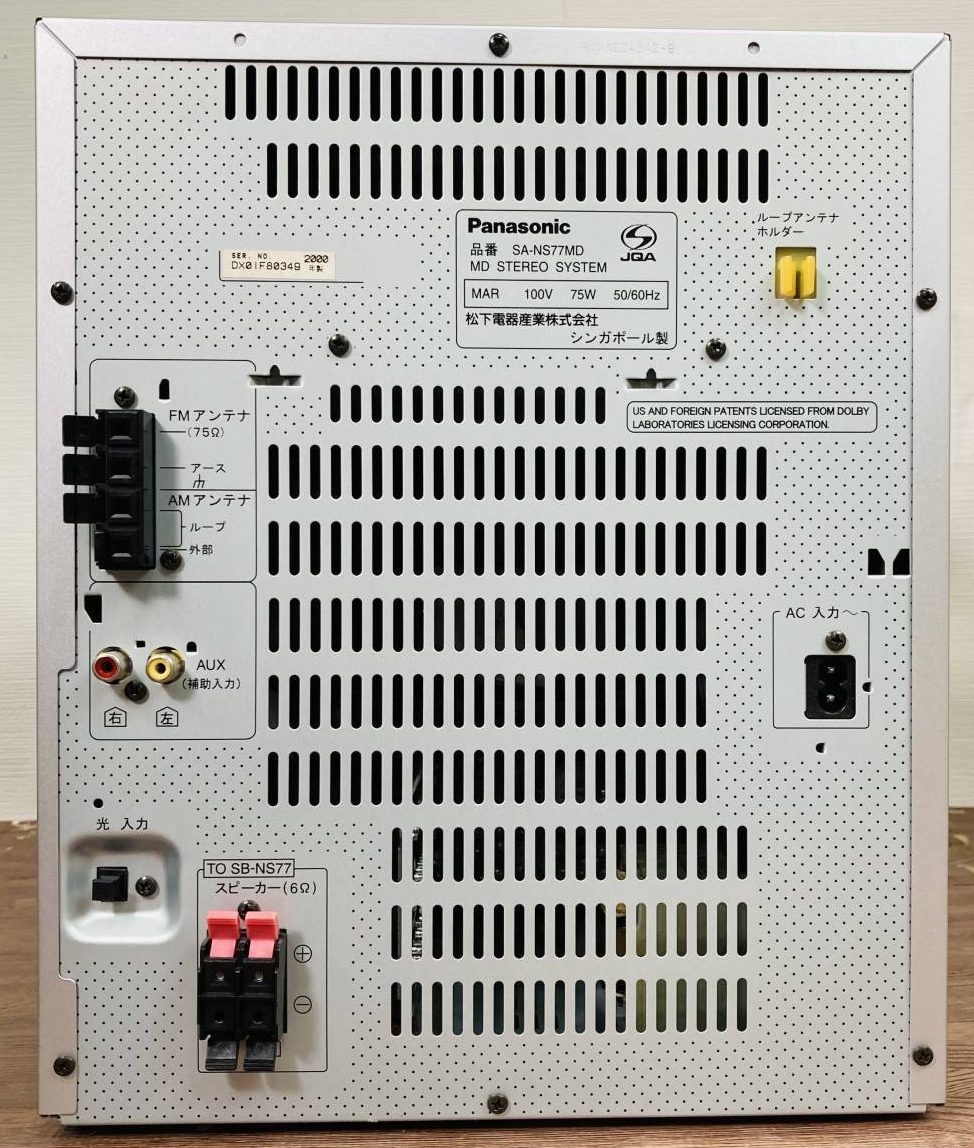

Inputs 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Tape deck
Outputs RCA out
Control Not recorded

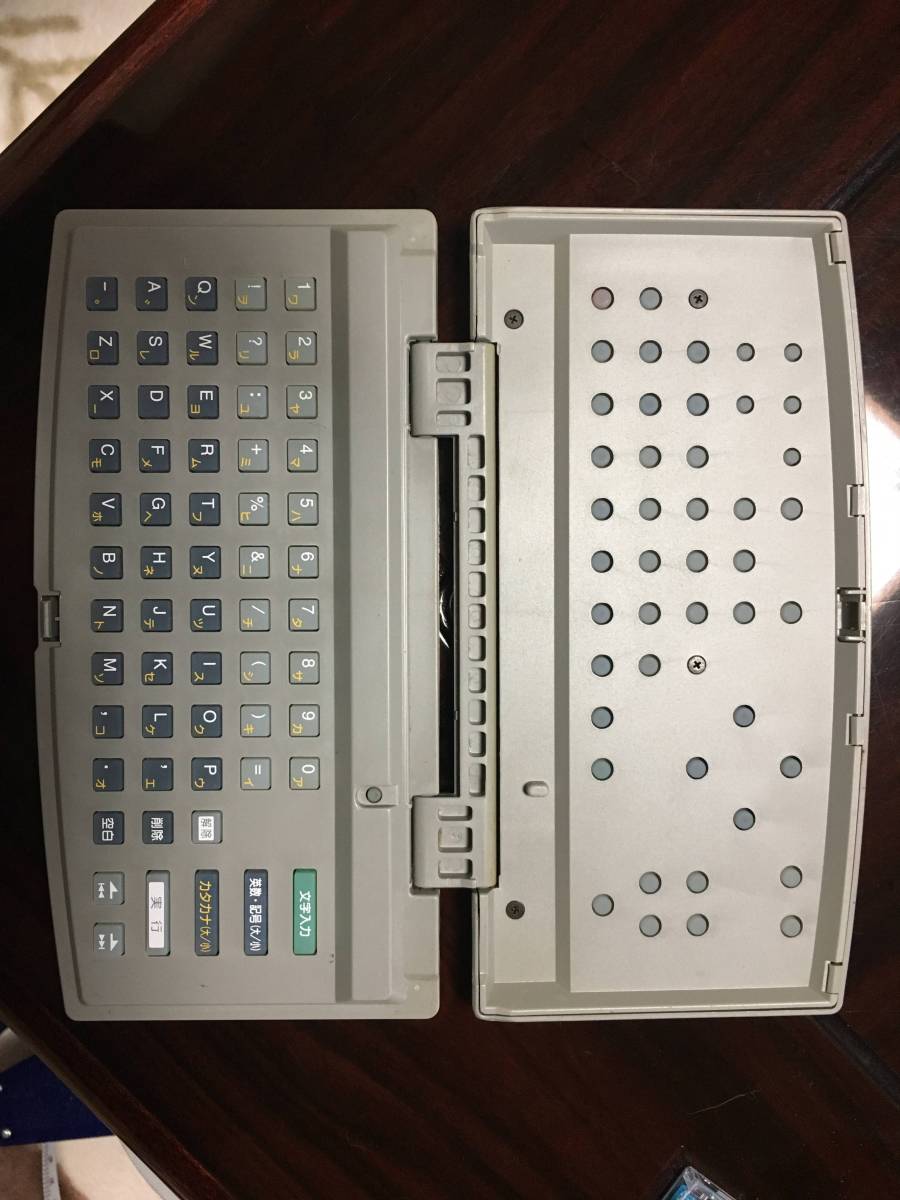

The SC-NS77MD is a MD, 5CD changer, and cassette bookshelf unit. It comes with a full QUERTY JIS keyboard to edit track titles. It also states that it's "MD network" compatible, however this does not appear to be NetMD. Rather, it is able to connect to a portable MD, however it is unclear how that functionality works.

  • Equipped with 3D acoustic image equalizer
  • "24bit calculation ATRAC DSP" that calculates digital data with high precision of 24bit and faithfully reproduces even the details of sound.
  • Equipped with high-quality audio compression technology "H.D.E.S (High Density Encoding System)"
  • Our original audio compression technology that conforms to ATRAC achieves rich sound field reproduction by reproducing fine nuances.
  • Energy- saving design that reduces standby power by 96% (10.5 → 0.4 W)　　Compared to SC-NS70MD, our undeveloped model with the same technology
  • Maximum output 30W+30W
  • Equipped with a sampling rate converter that can record digital media such as CS and BS to MD as digital signals
  • Equipped with optical input terminal x 1, analog input terminal x 2 (pin plug x 1, P-MD terminal x 1), headphone terminal (3.5 φ) x 1
  • MD long time monaural recording mode
  • FM (TV 1-3ch audio)/AM tuner installed
  • Uses an area bank function that stores radio stations in 41 regions nationwide.

Content adapted from: Panasonic News Release Panasonic News Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror)

Manuals

SC-NS77MD User Manual JP

Repair

Photos

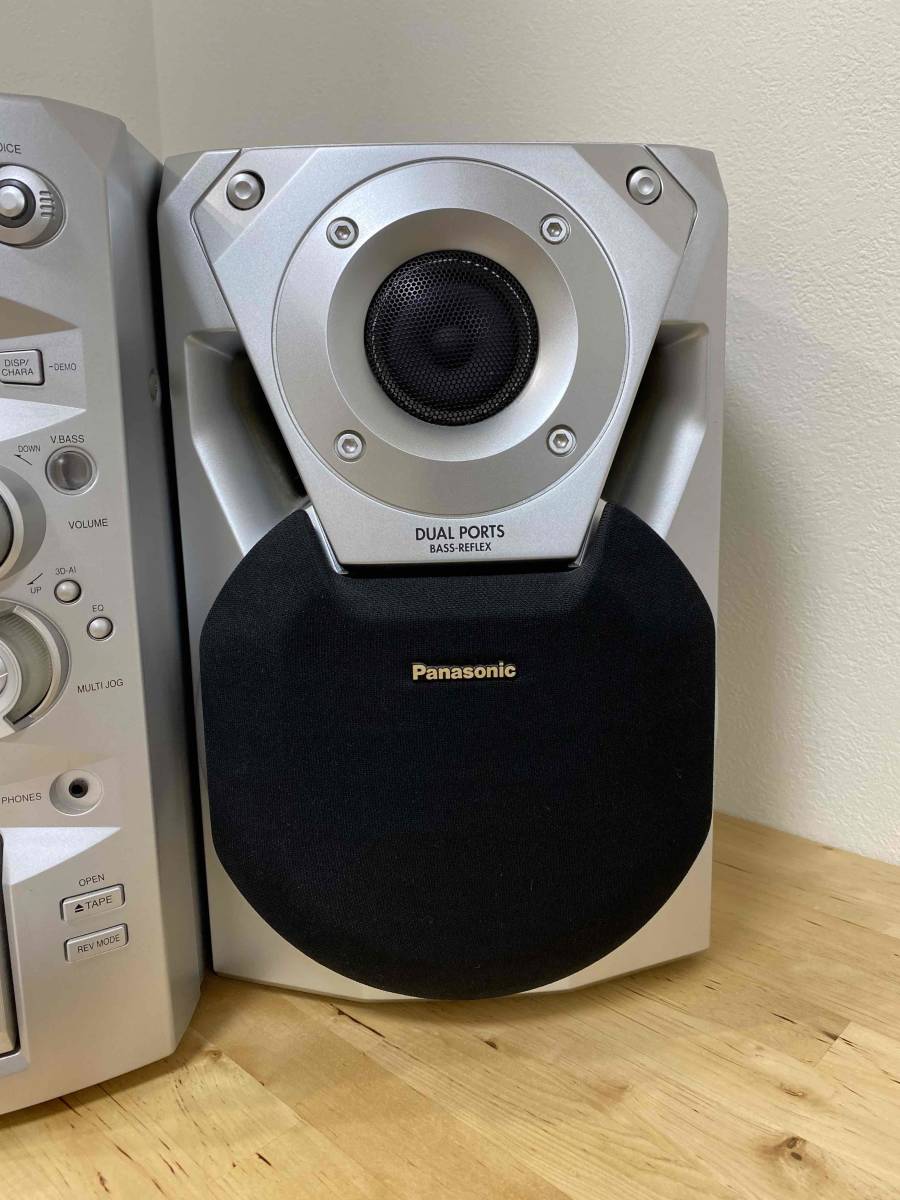

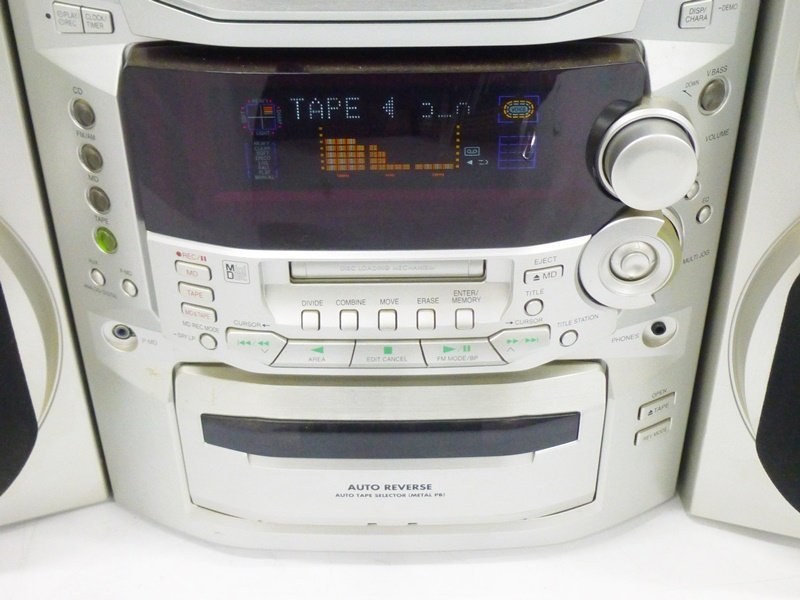

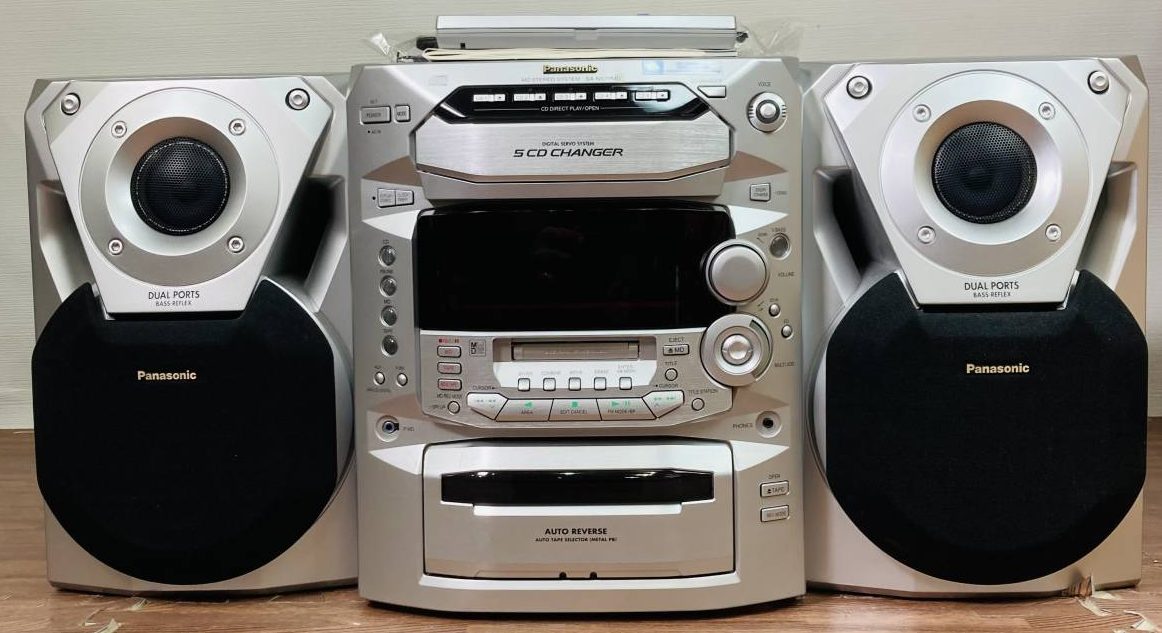

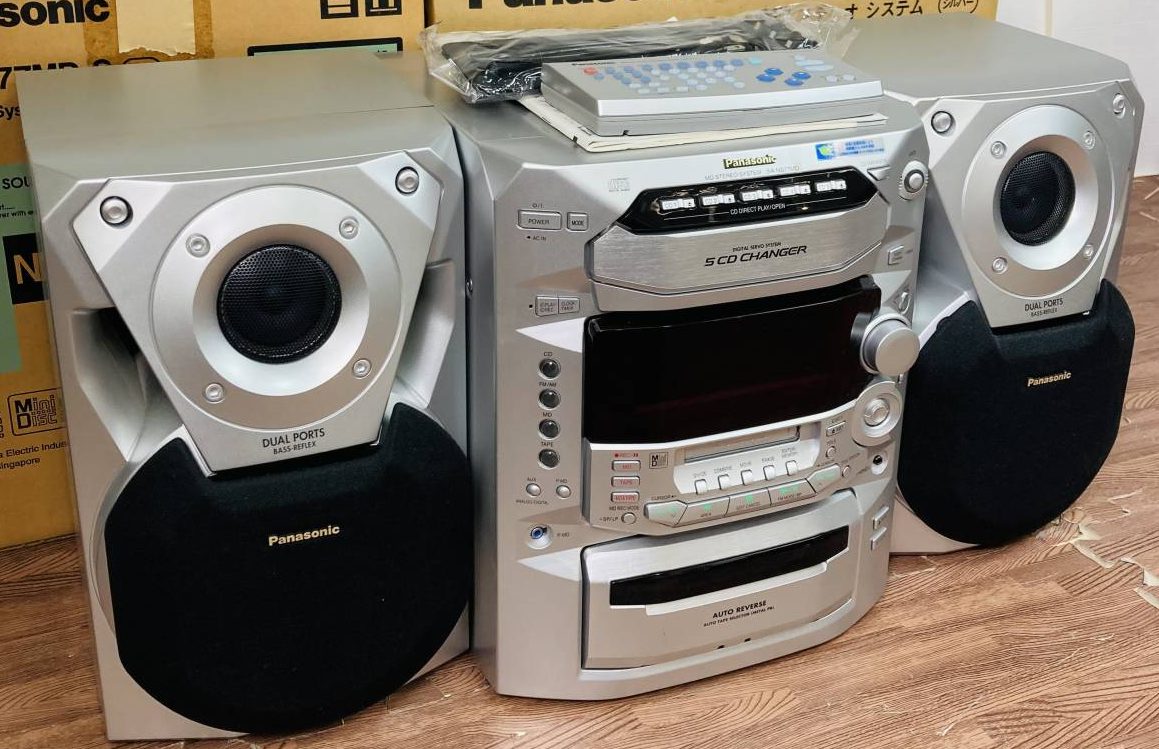

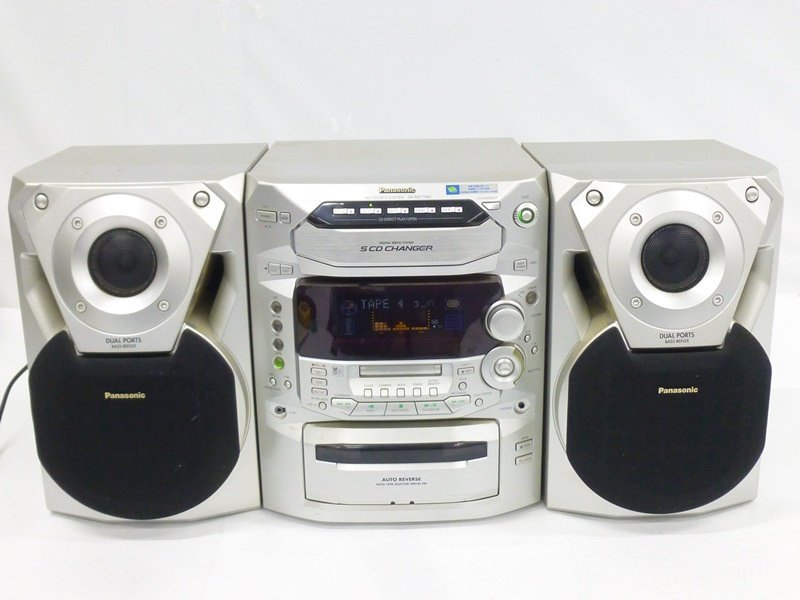

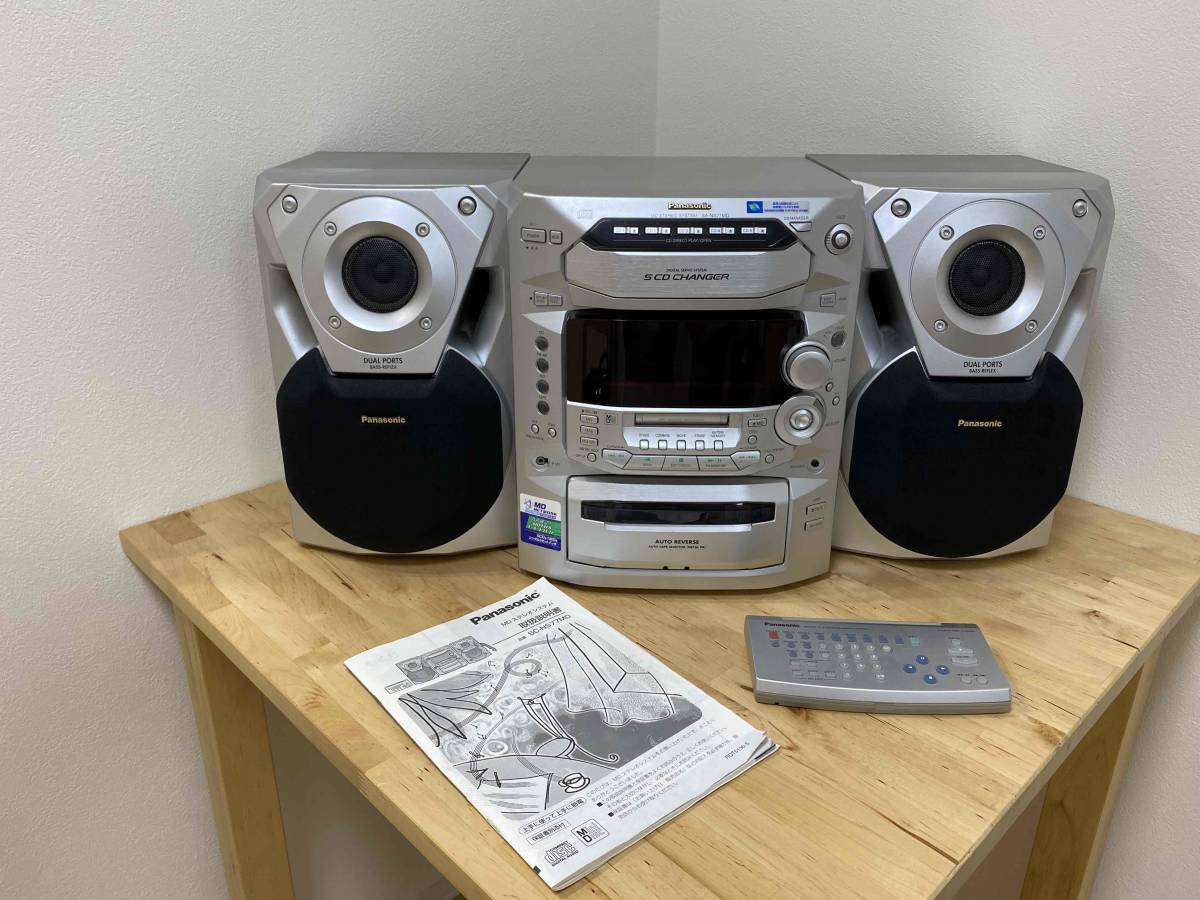

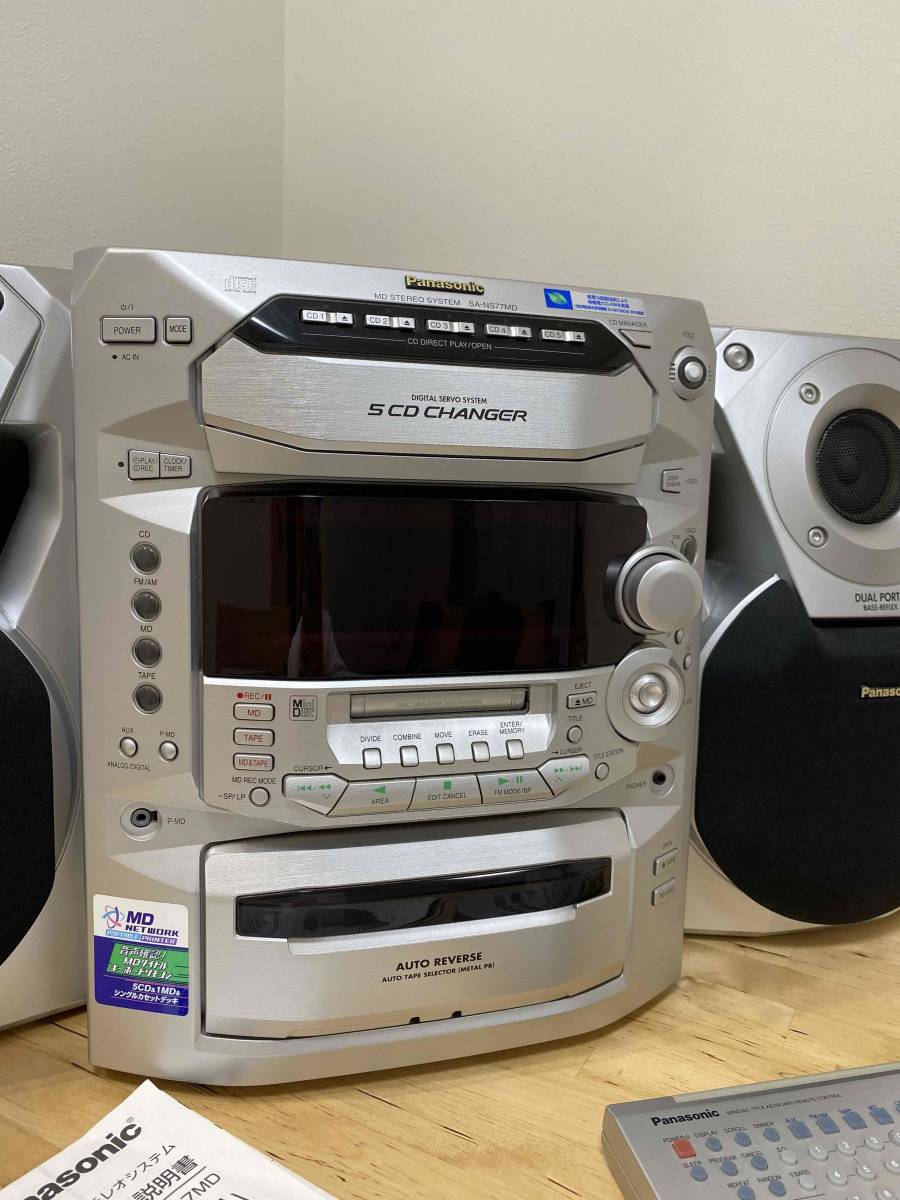

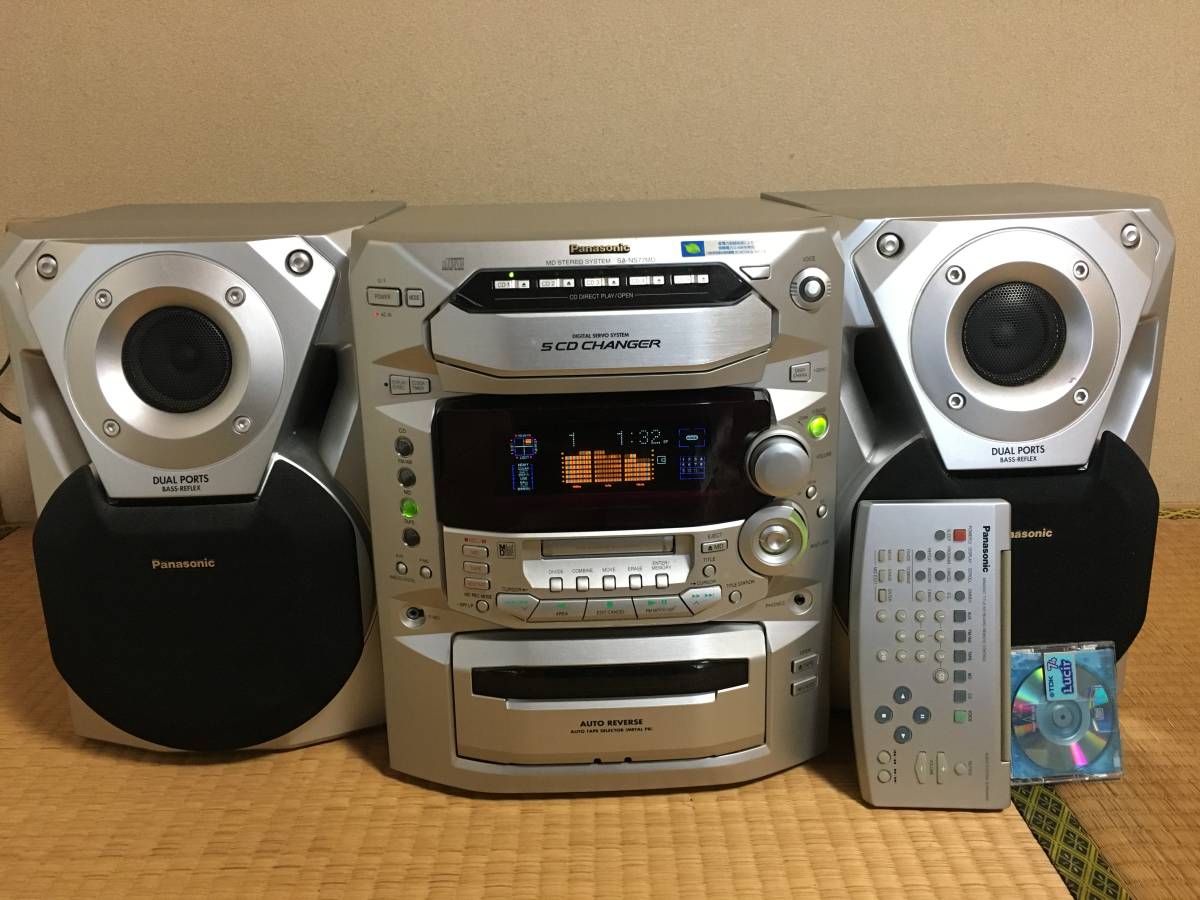

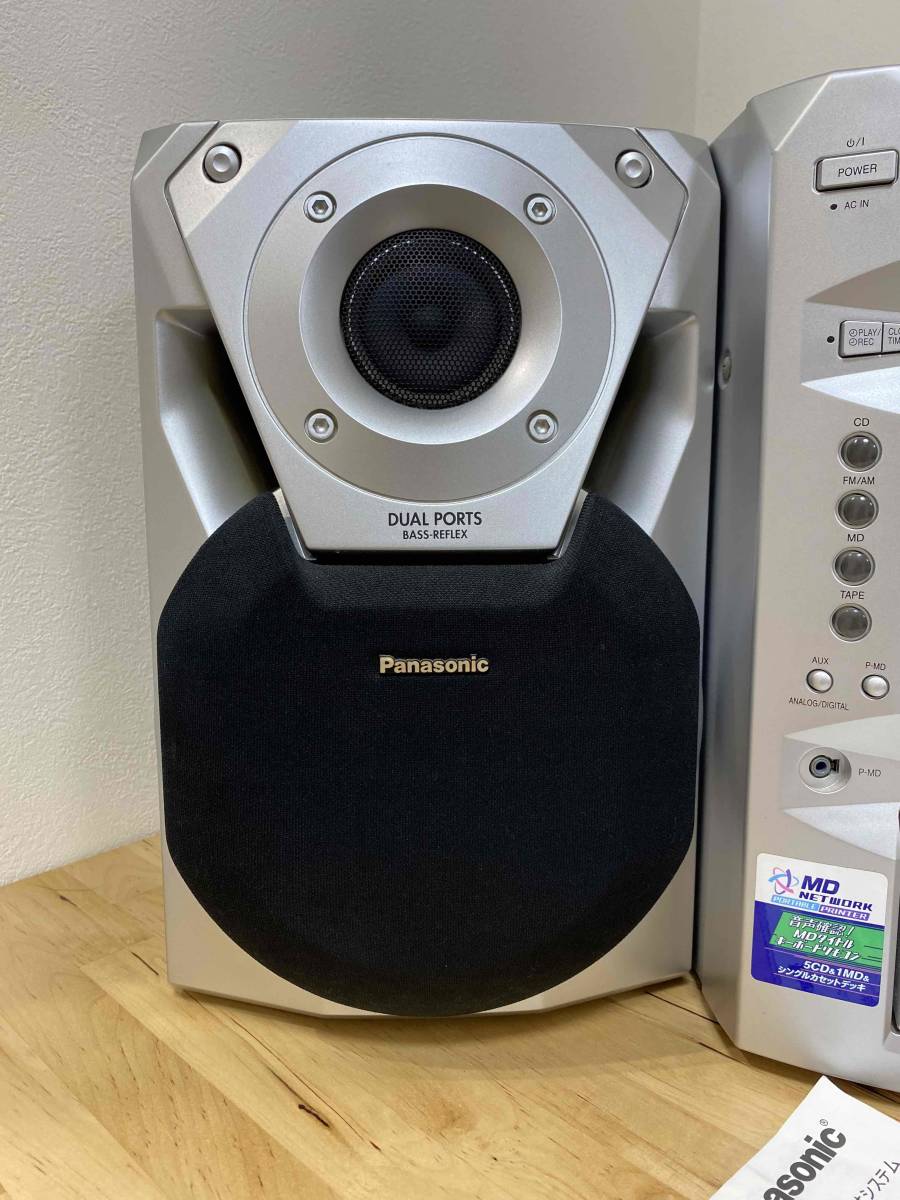

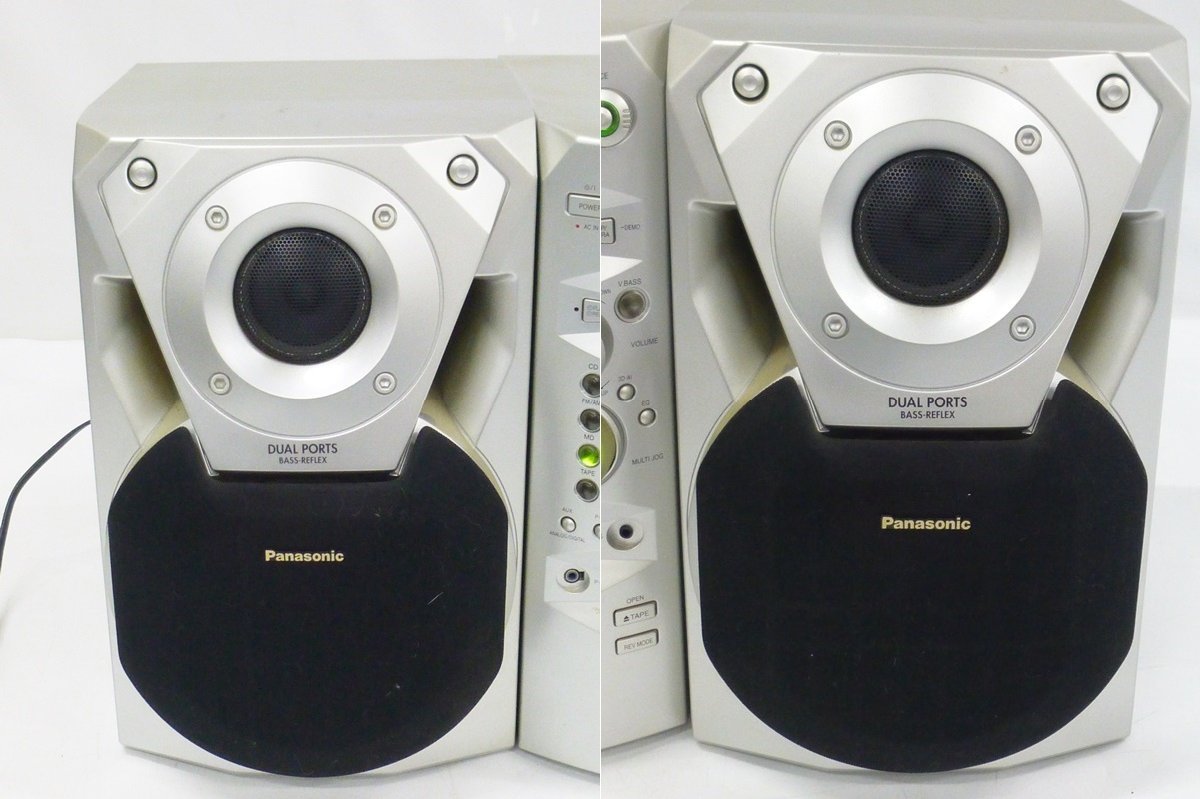

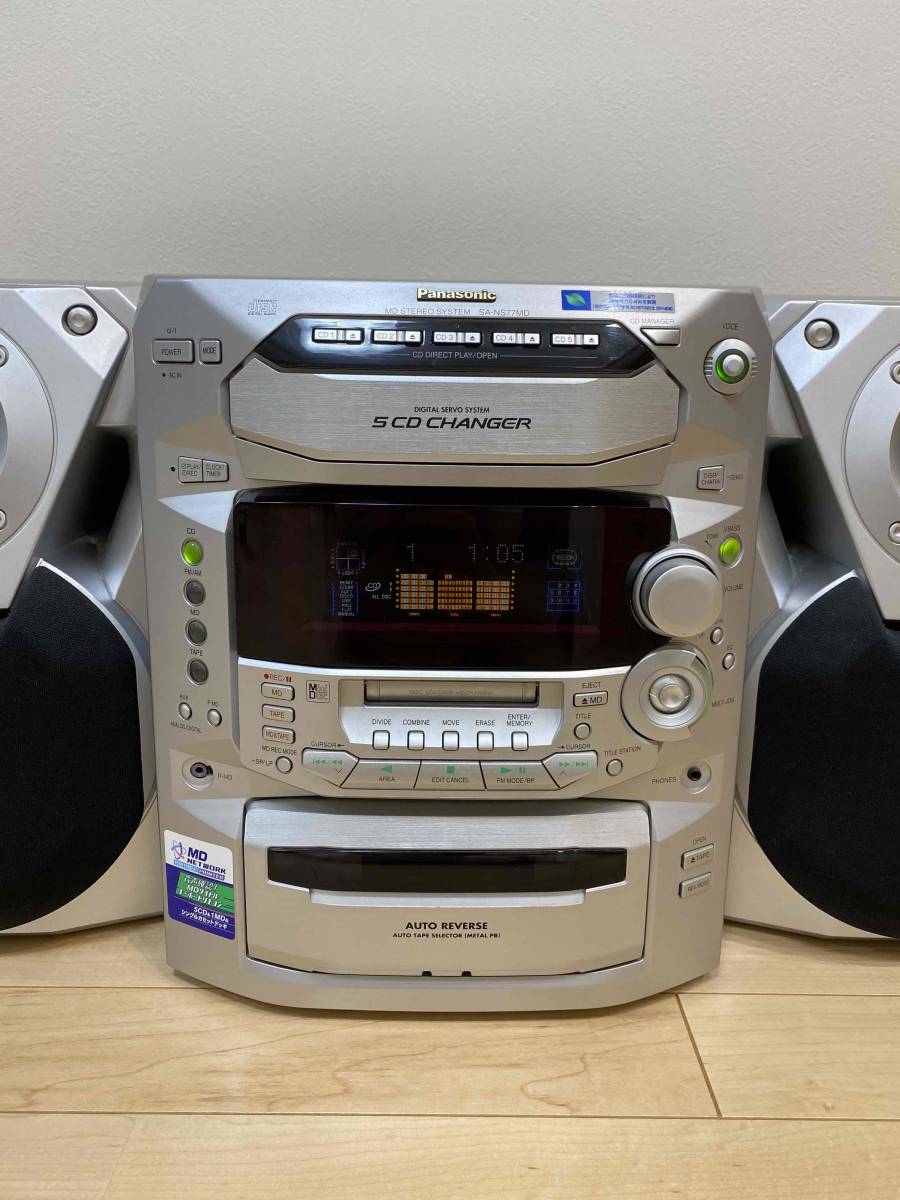

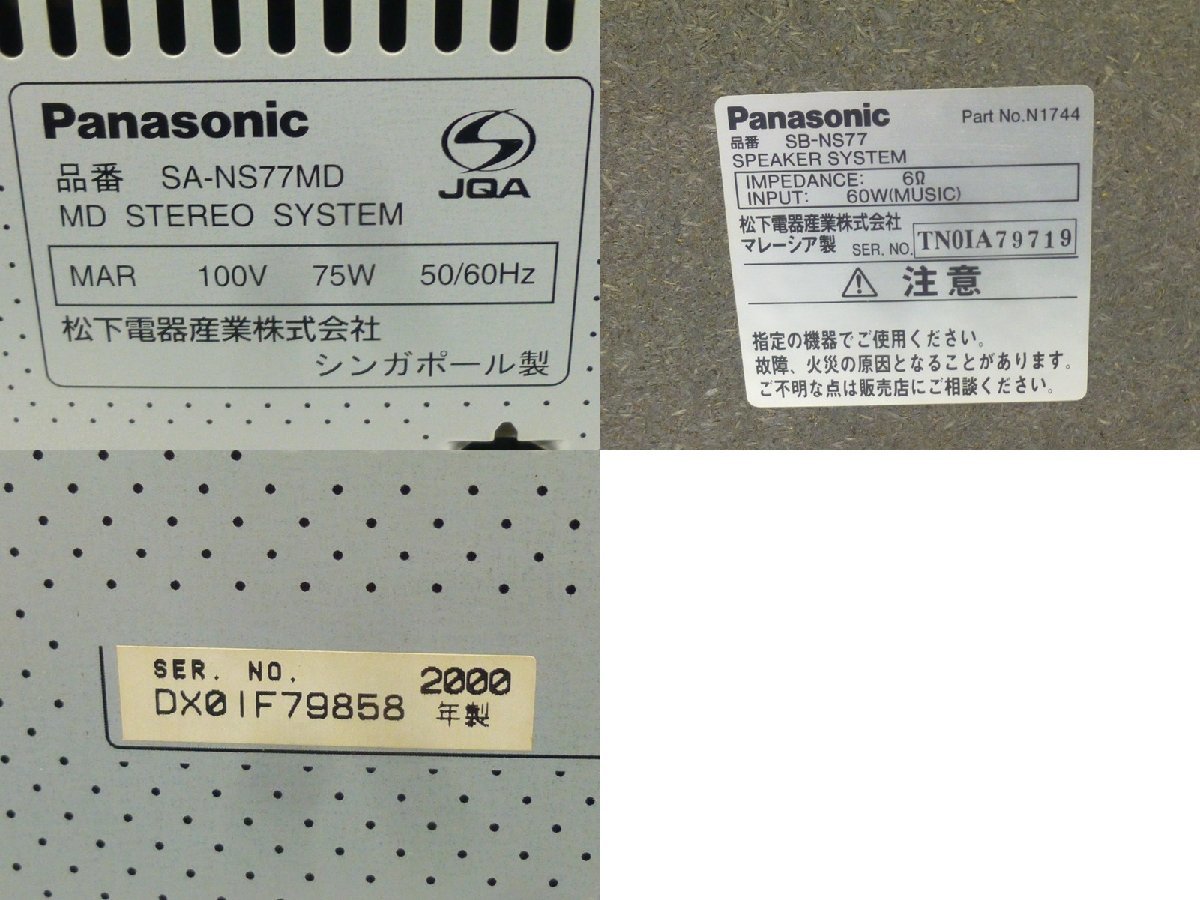

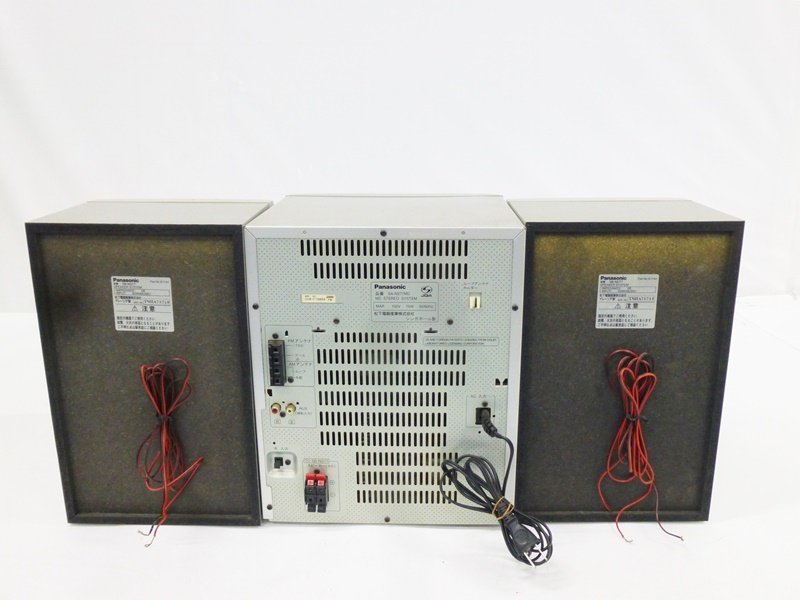

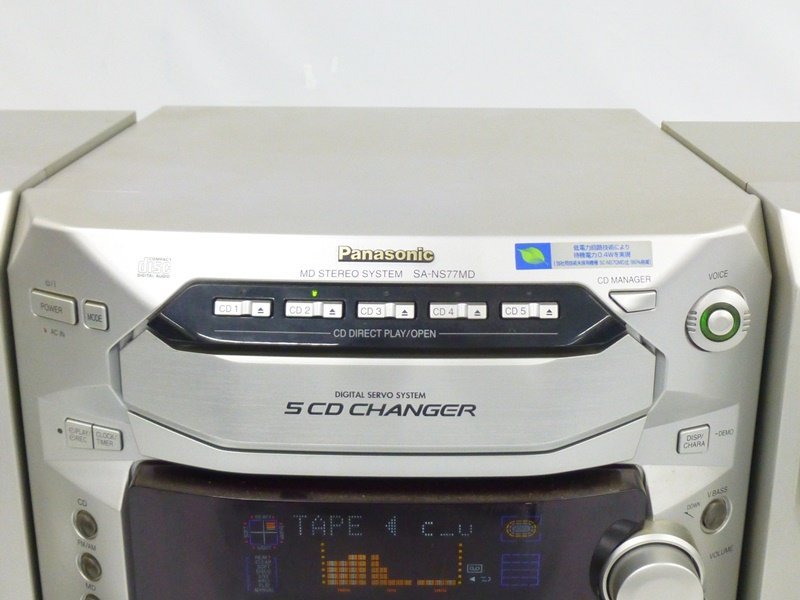

SA-NS77MD:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ExportNo
ManualUser manual
RegionJapan
