Panasonic SC-PM30MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-08

Manufacturer
Panasonic
Model / source grouping
SC-PM30MD
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SC-PM30MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SC-PM30MD
Manufacturer Panasonic
Released 2000/10
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 195 x 288 x 292 mm
Weight 5.6kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥62 000
-

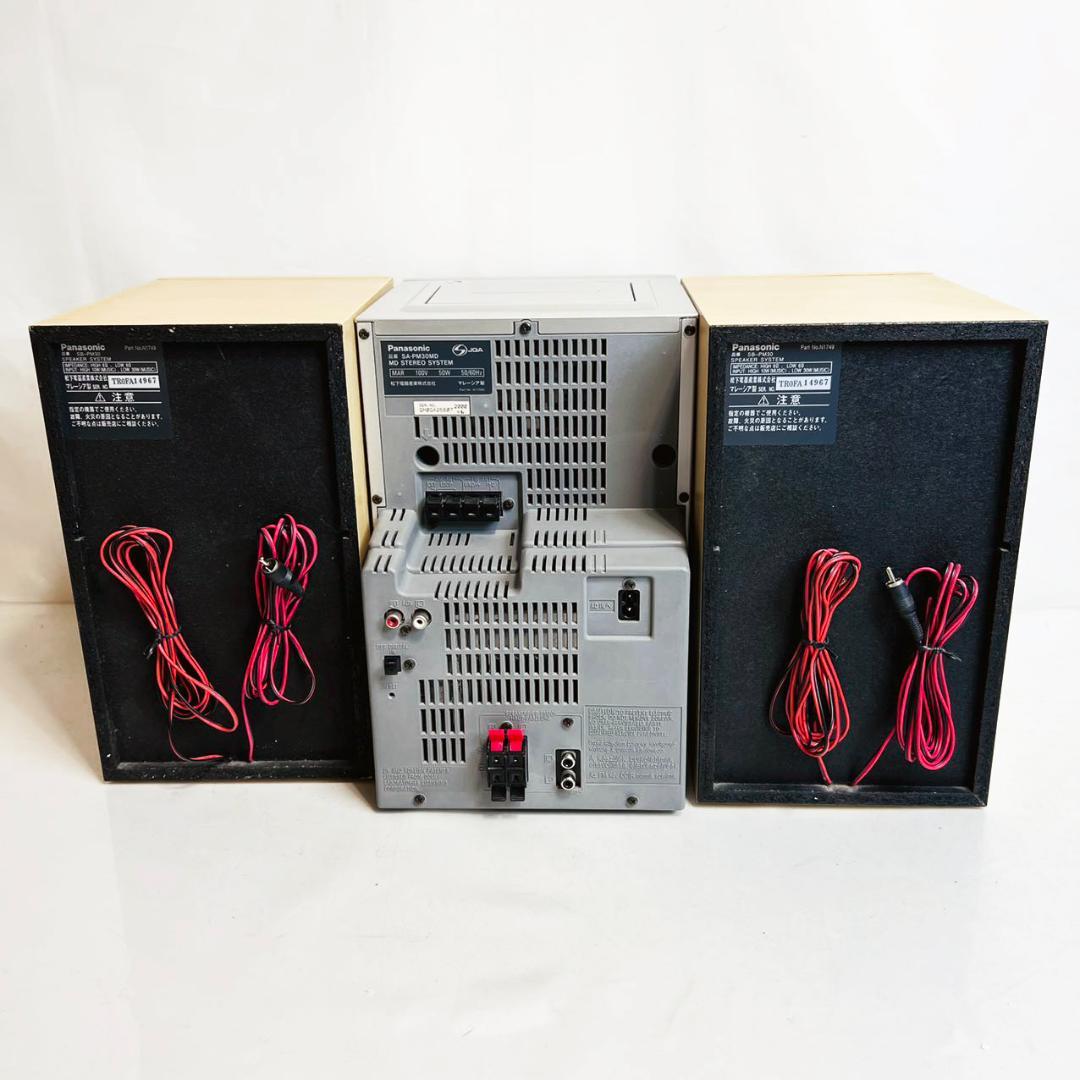

Inputs Digital optical (TOSLINK), CD, Tape deck
Outputs 3.5mm headphone
Control Not recorded

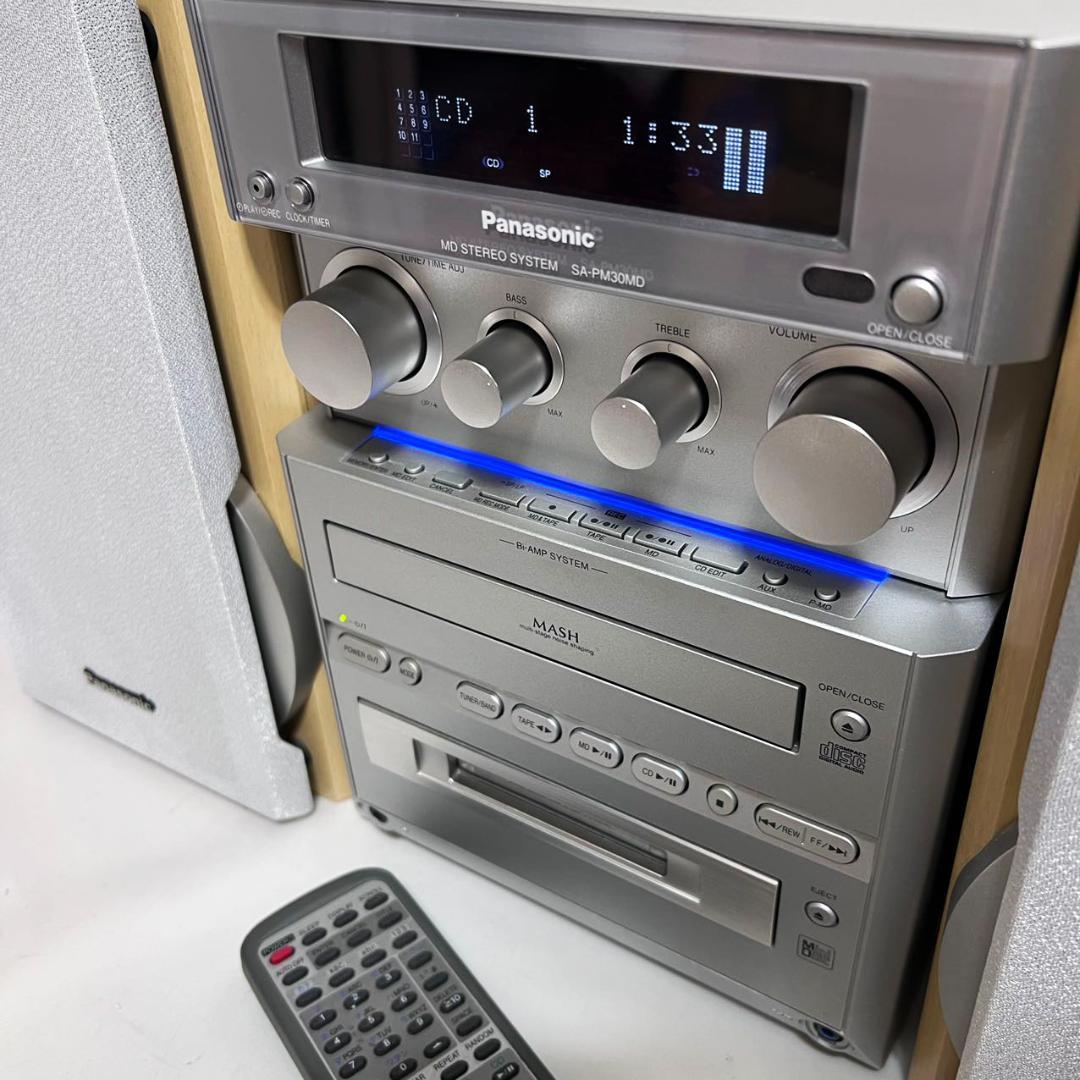

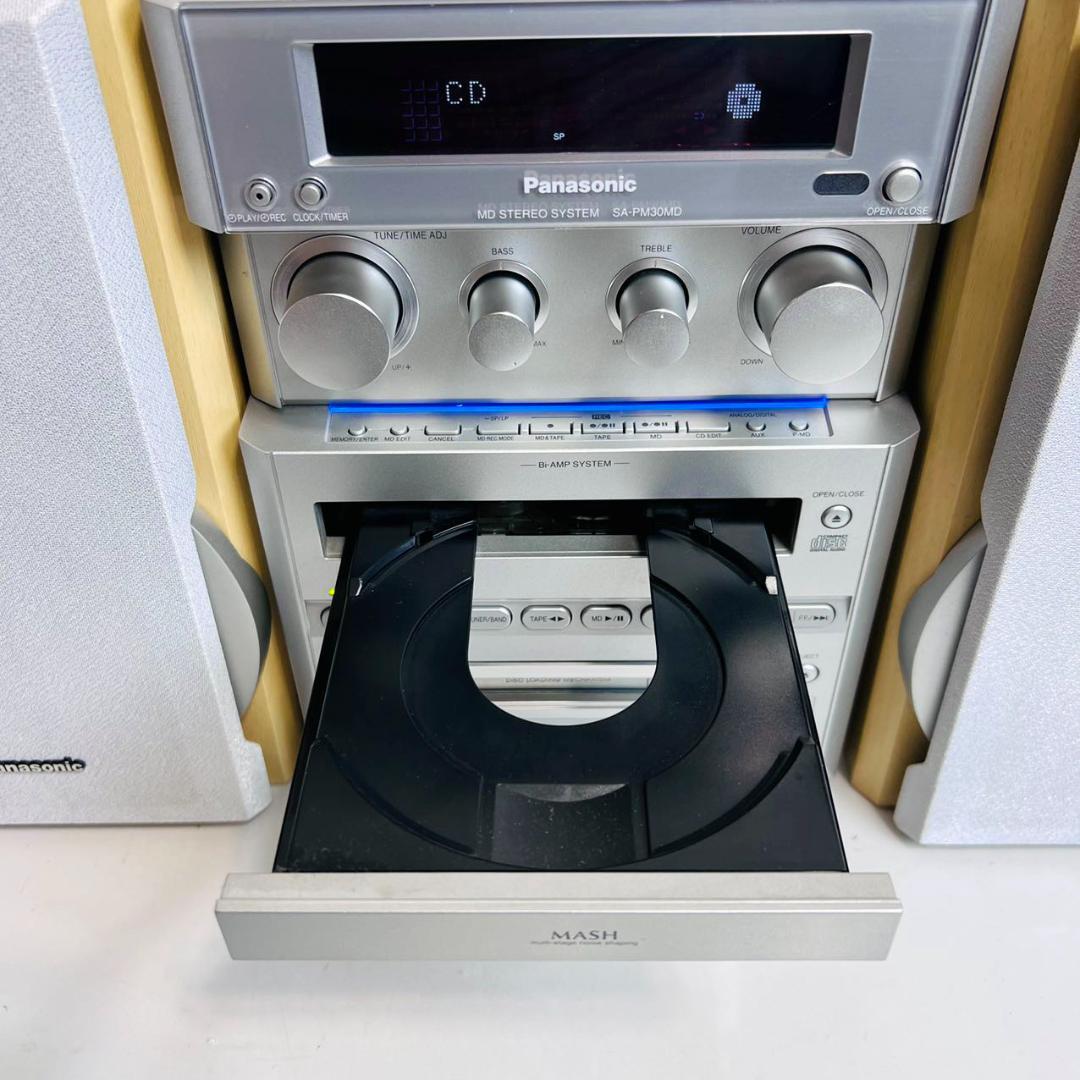

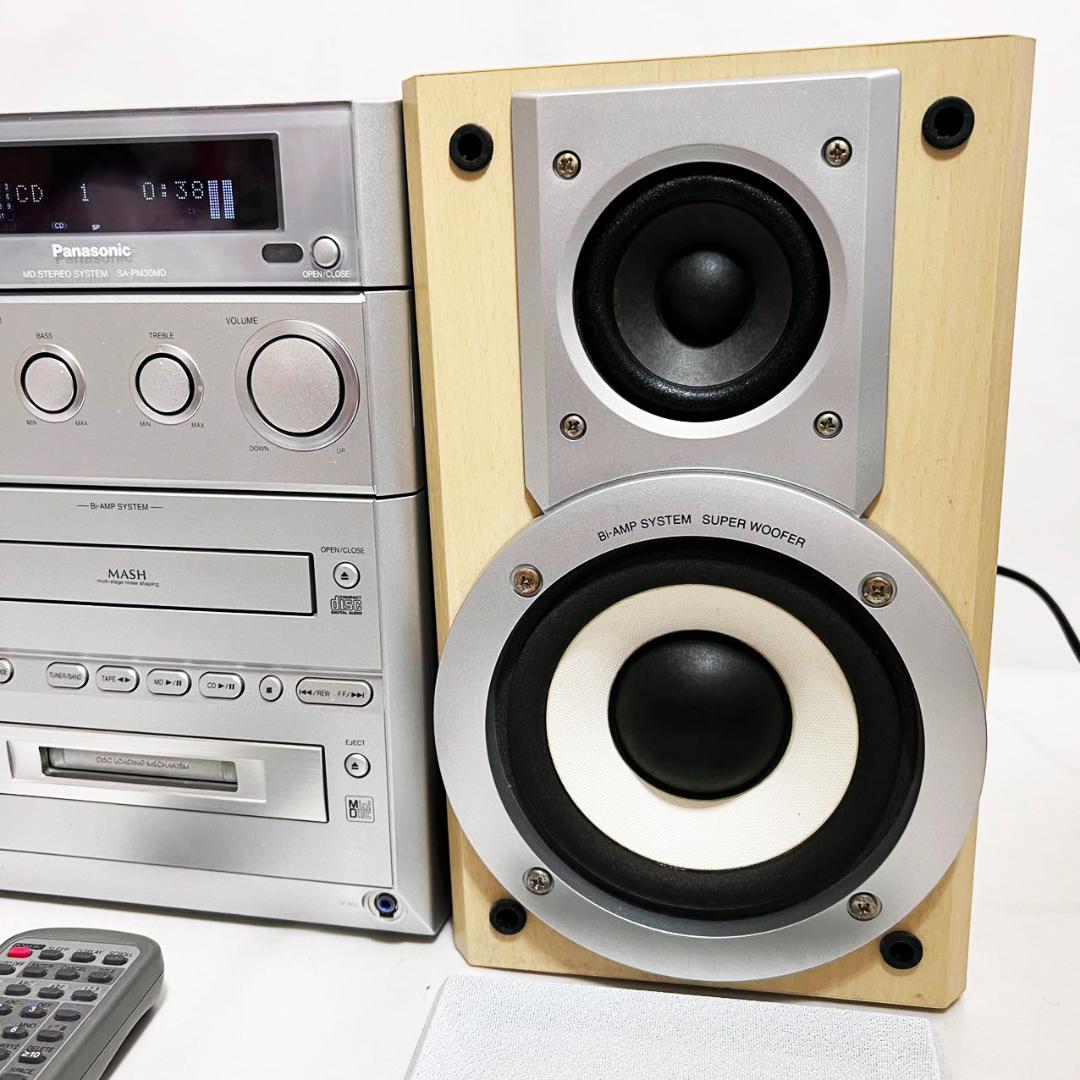

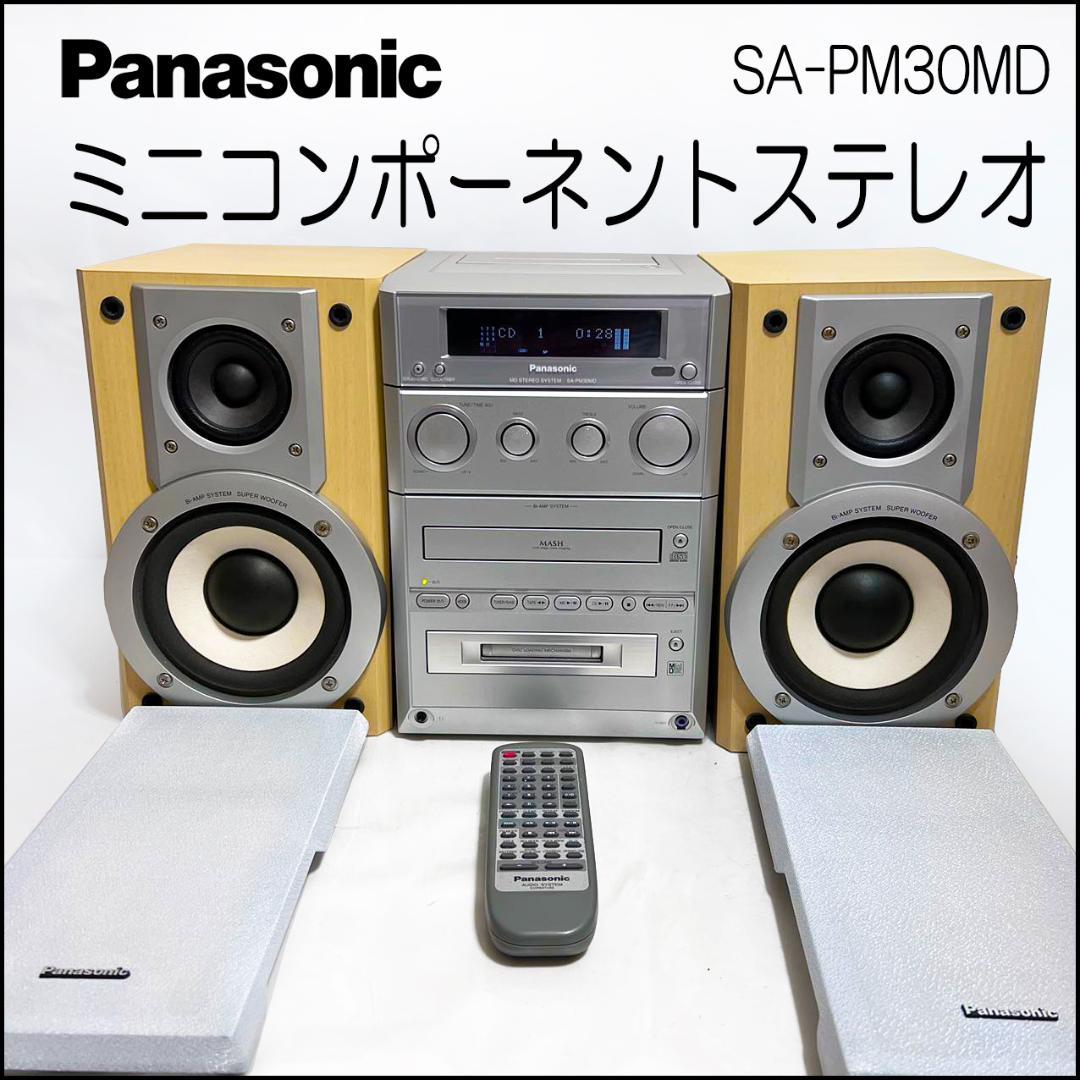

Features: MD/CD/Cassette/Radio. Not MDLP capable, can record to MD and cassette at the same time, "MD Network" support, remote has character layout similar to portable telephones, allowing full remote titling of MD tracks.

Specs: 20W per channel output. Panasonic's Spec page comes with a warning that the amp cannot reproduce deep bass

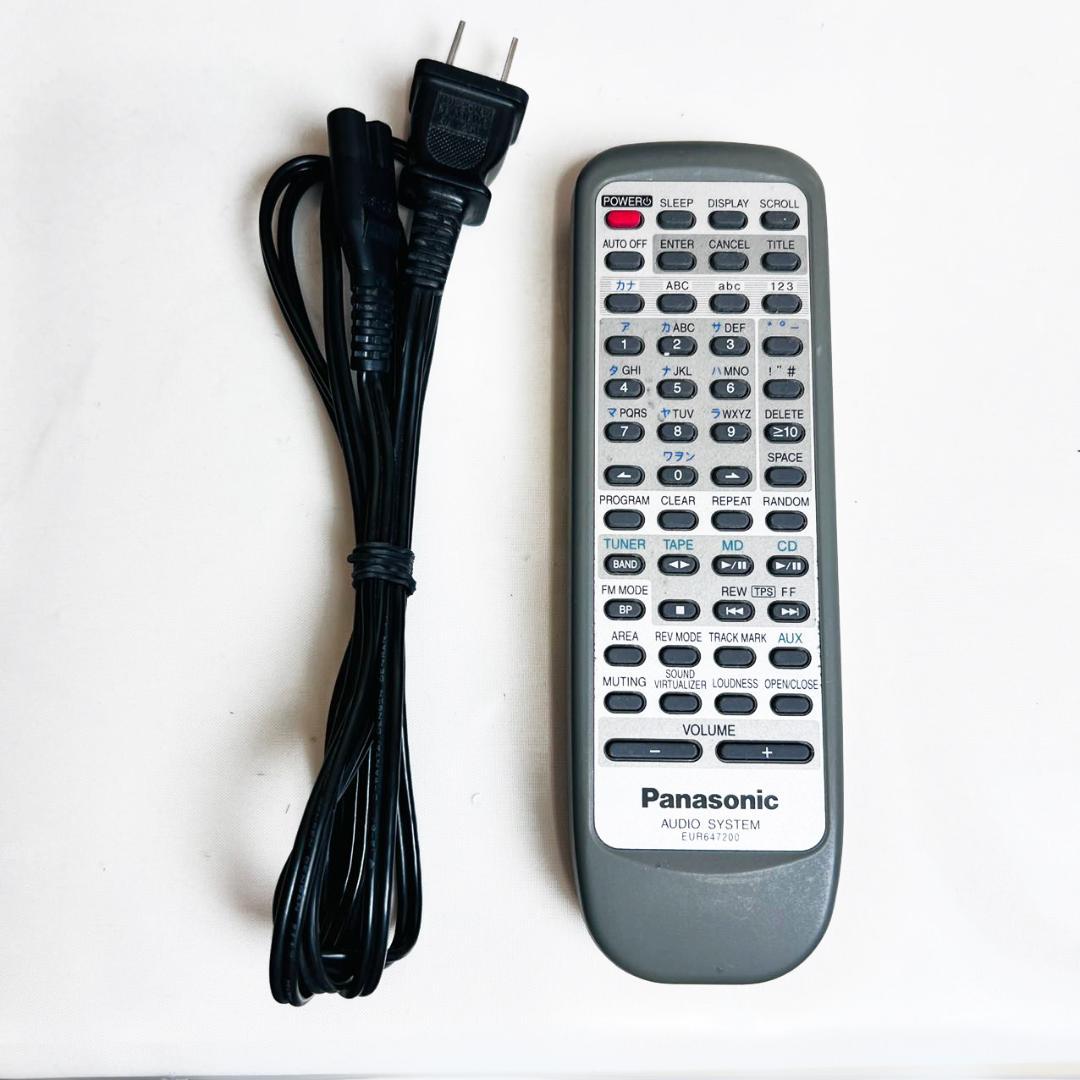

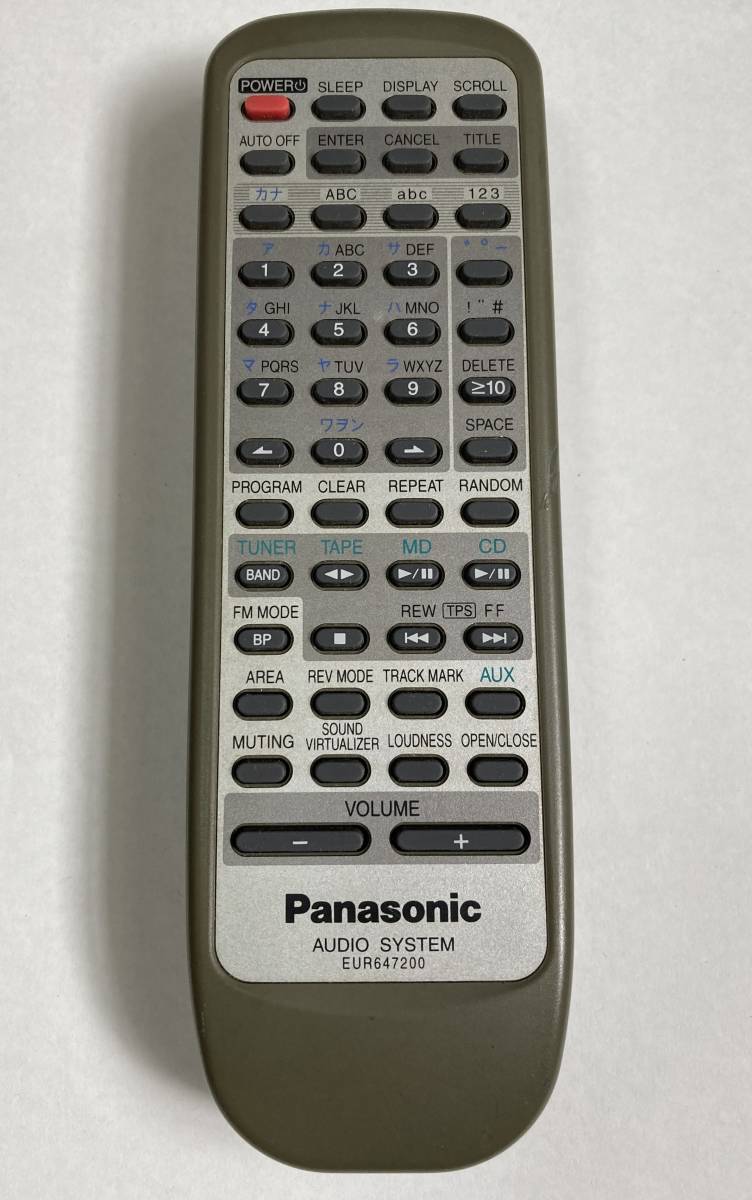

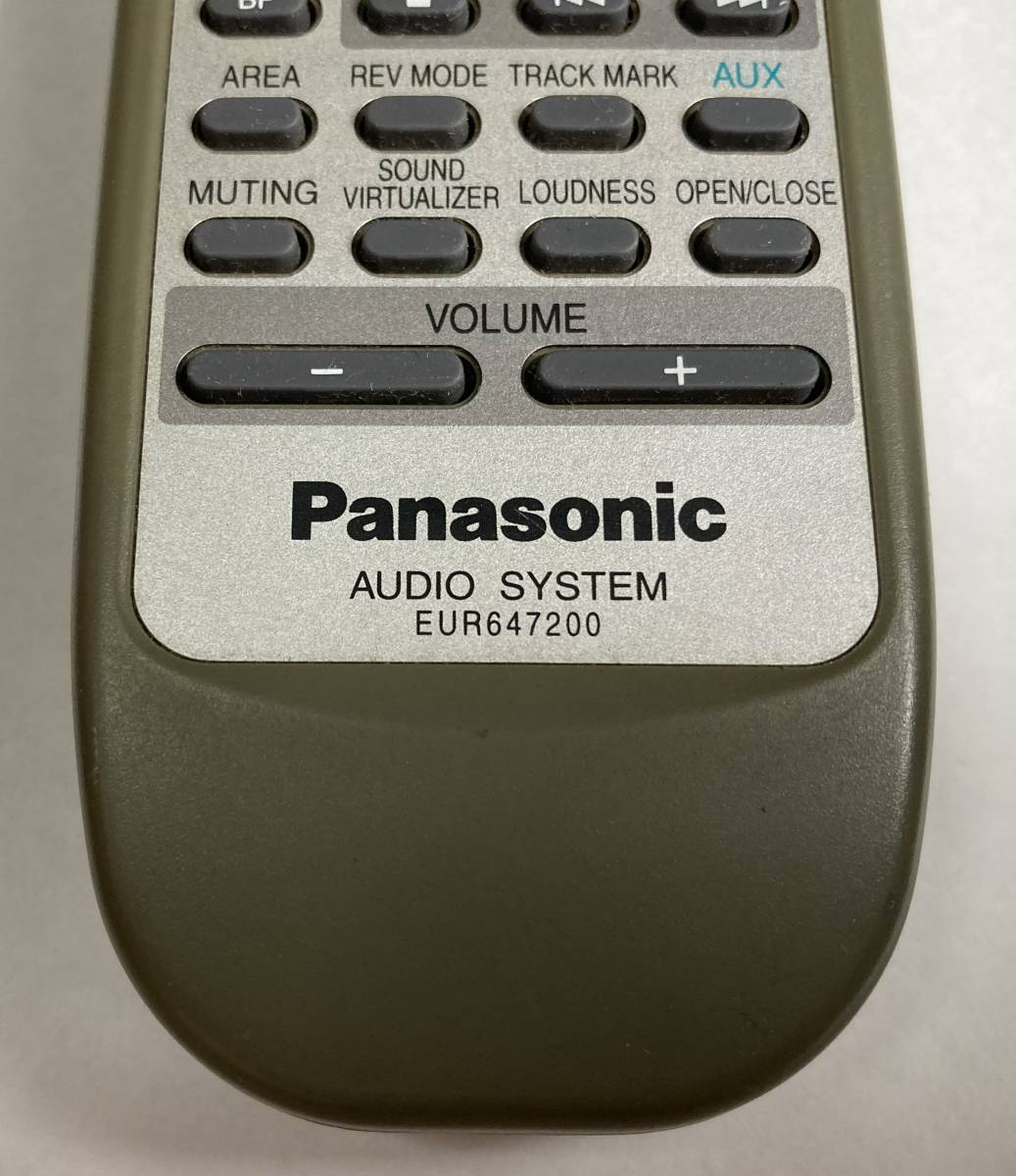

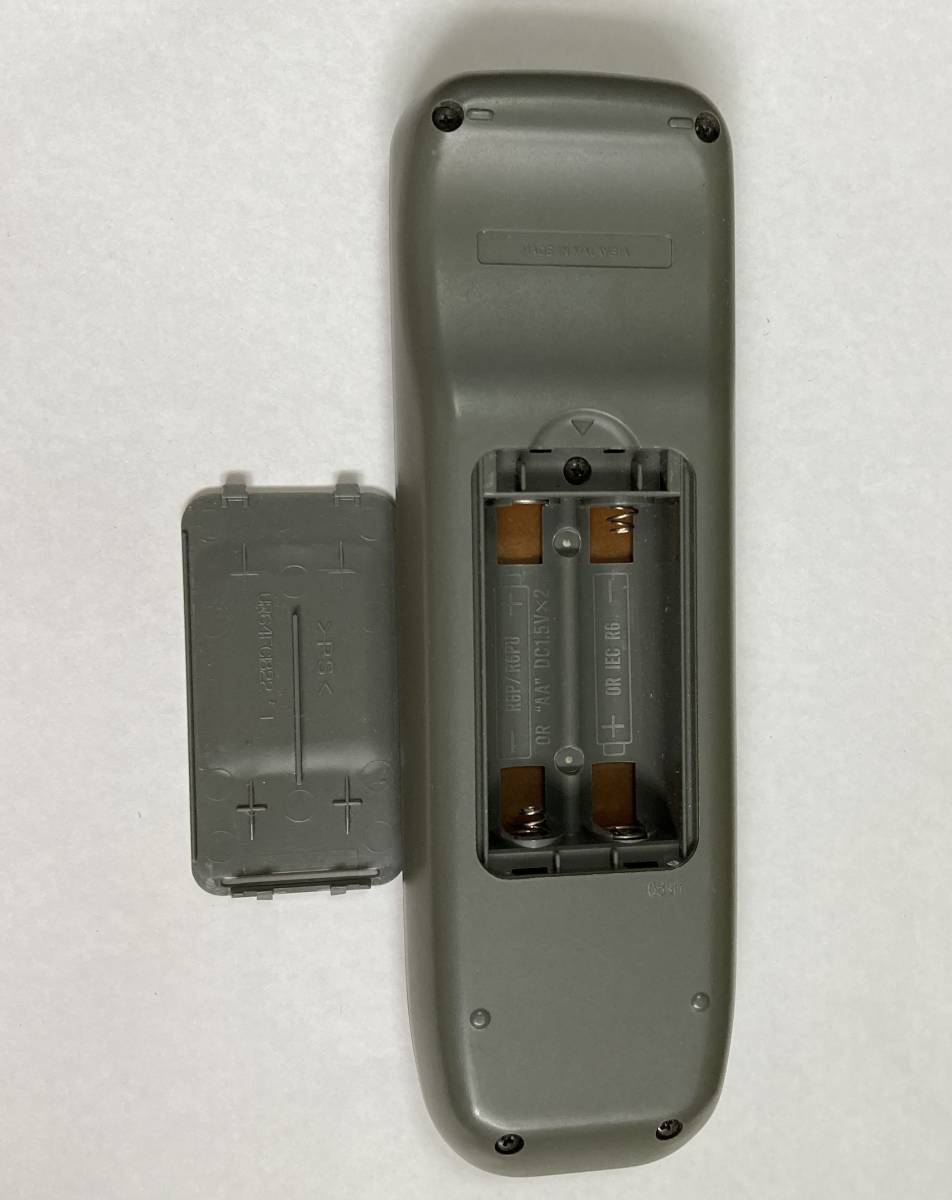

Remote part# EUR647200

Content adapted from: Minidisc.org page Panasonic Product Page Panasonic Product Page (MiniDisc Wiki mirror) radiomuseum.org Won a good product design award yodobashi.com

Manuals

Panasonic SC-PM30MD User manual (Japanese)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
