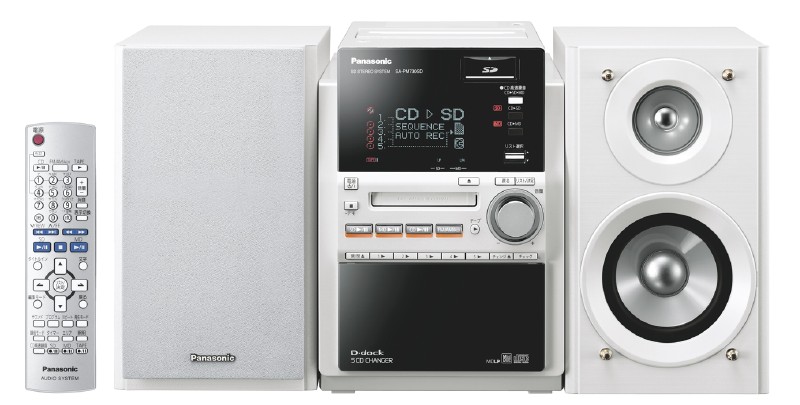

Panasonic SC-PM730SD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-03

Manufacturer
Panasonic
Model / source grouping
SC-PM730SD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SC-PM730SD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SC-PM730SD
Manufacturer Panasonic
Released 2006/04
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 175 × 247 × 344 mm (main unit)
Weight 5.7kg (main unit)
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥45 000
-

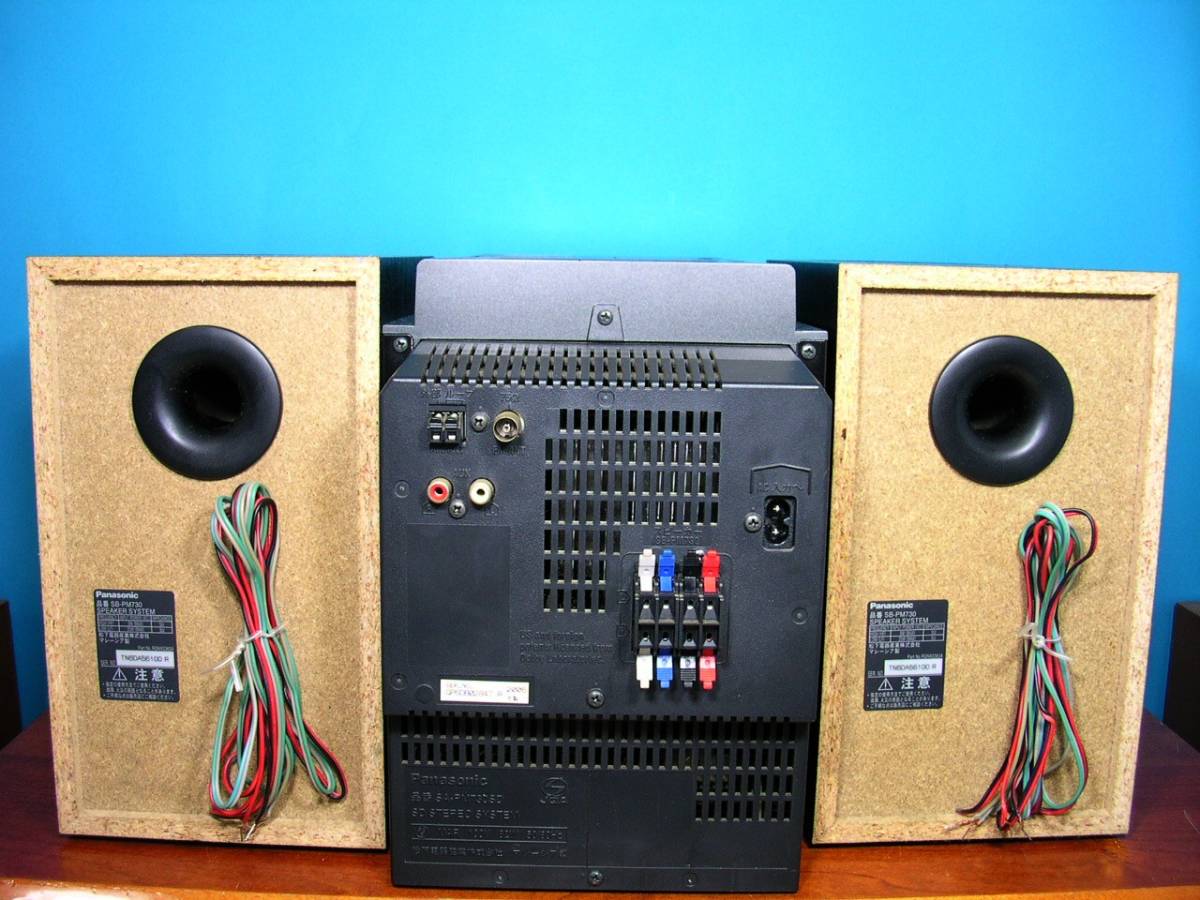

Inputs RCA in, CD, Radio recording, Tape deck
Outputs 3.5mm headphone, Speaker amplifier, Tape deck, SD card
Control Not recorded

5 CD changer, SD card slot, Cassette deck.

7x CD → MD recording.

SD card support is limited to non-SDHC/SDXC cards, with the biggest supported capacity being 2GB.
Requires the SD card to be formatted with FAT16.

Supports copying MD to SD (manual pg 40).
Supports high speed ripping all loaded in CDs to SD with one button press.
Supports high speed ripping CDs to MDs in SP, LP2 and LP4.

Supported quality levels on SD:

  • XP - 128kbps MP3
  • SP - 96kbps MP3
  • LP - 64 kbps MP3

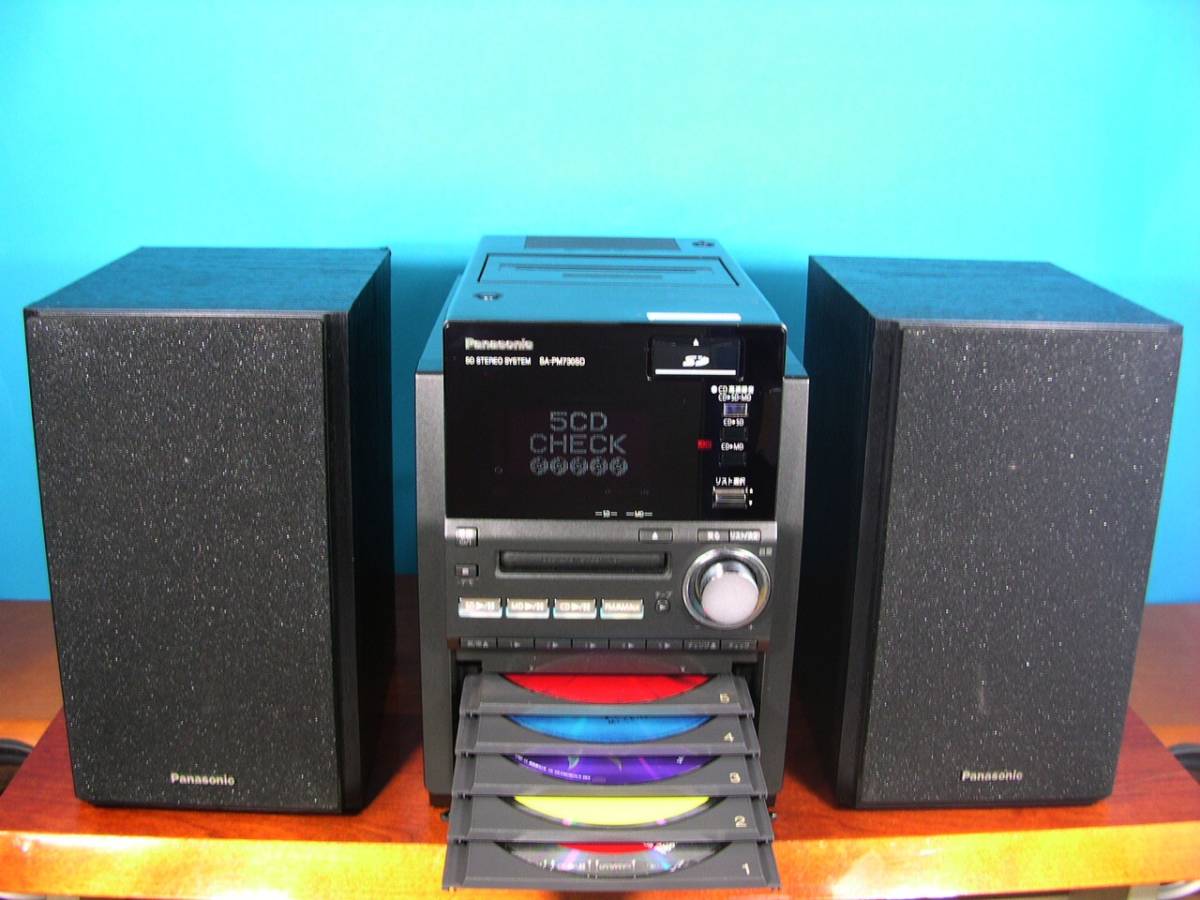

Has a flashy "5CD Check" mode with a dedicated button that opens up all 5 CD changer trays into a stepped stack for checking the contents of the trays.

The main body is part# SA-PM730SD

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Panasonic product page av.watch phileweb

Manuals

User manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)
ExportYes
ManualUser manual
RegionJapan
