Device

Panasonic SC-PM770SD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-19

Manufacturer
Panasonic
Model / source grouping
SC-PM770SD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SC-PM770SD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SC-PM770SD
Manufacturer Panasonic
Released 2007/05
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions Width 175 x Height 237 x Depth 319mm
Weight 8900
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), CD, Radio recording
Outputs 3.5mm headphone, SD card
Control Not recorded

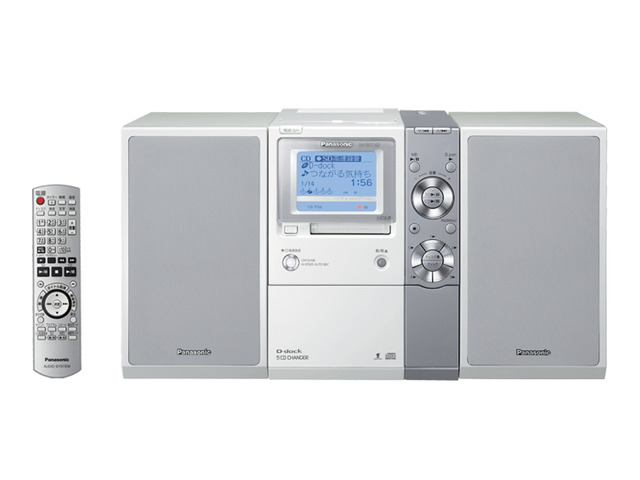

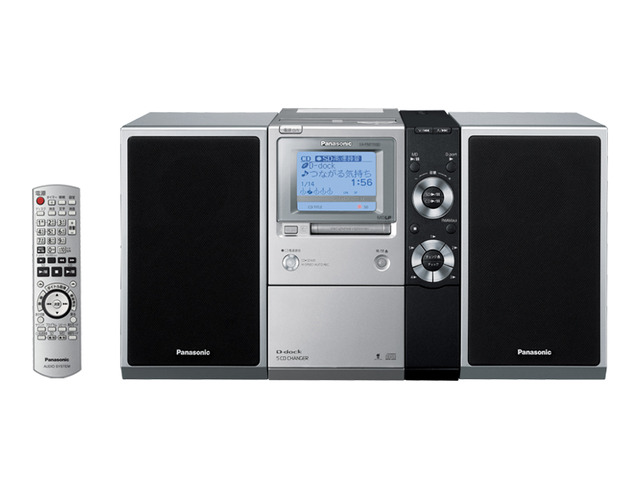

Available in SC-PM770SD-S (Silver w/ black trim), SC-PM770SD-W (White) and SC-PM770SD-T (Brown)

7x CD → MD

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Panasonic Details Page av.watch av.watch 2

Manuals

Panasonic SC-PM770SD User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
