Device

Panasonic RX-MDX60

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-19

Manufacturer
Panasonic
Model / source grouping
RX-MDX60
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic RX-MDX60”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name RX-MDX60
Manufacturer Panasonic
Released 2002/08
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 405 x 170 x 260mm
Weight 3.8kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), CD, Radio recording, Tape deck
Outputs 3.5mm headphone, Speaker amplifier, Tape deck, Built-in speaker
Control Not recorded

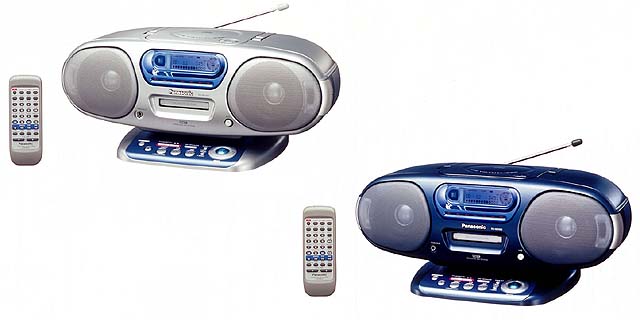

Offered in RX-MDX60-S Silver and RX-MDX60-A Blue

Features: CD/MDLP boombox. Operation keys grouped together and set in base for ease of use. Main body tilts up vertically from 0 to 15 degrees. 4X CD→MD copying (1-track/all). MD group mode functions. Backlit LCD indicator panel. MD play modes: program play (24 track), repeat (1 track/all track/program/group), random play, 1 group play. CD play modes: program play (24 track), repeat (1 track/all track/program), random play. Tuner displays station names. Clock/timer modes: wakeup timer, sleep timer, timer fader (fade-in only), timer recording, alarm timer/countdown timer. Auto-off function. IR remote. Couples with Panasonic "MD Network" components for label printing and [analog] audio copying.

Specs: Amp: 3W+3W, FM band: 76-90MHz, TV ch. 1, 2, 3, AM: 522-1629kHz, Speaker: 7cm x 2

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Minidisc.org page Panasonic Product Page av.watch

Manuals

User manual (Japanese)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
