Panasonic RX-MDX61

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
RX-MDX61
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic RX-MDX61”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name RX-MDX61
Manufacturer Panasonic
Released 2003/06
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 403x270x175mm
Weight 4.0kg
ATRAC ver Not recorded
Battery Not recorded AA
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥28 000
-
Inputs 3.5mm microphone, CD, Radio recording, Tape deck, Built-in mic
Outputs 3.5mm line out (analog-only), 3.5mm headphone, Tape deck, Built-in speaker
Control Not recorded

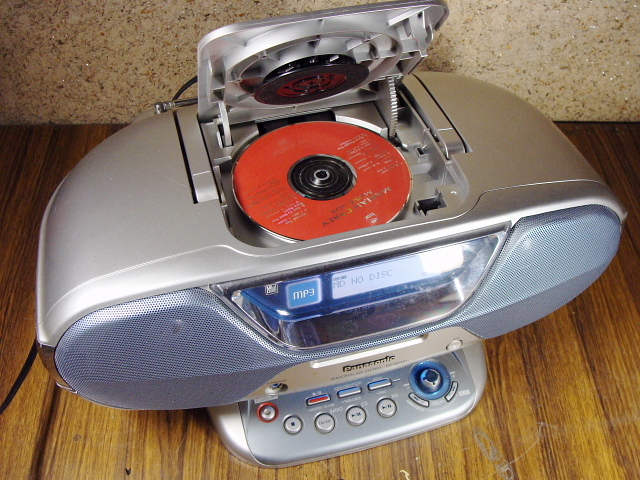

Panasonic RX-MD61, offered in RX-MDX61-S silver and RX-MDX61-W white

CD → MD 4x high speed recording

Features:

  • Will play MP3 CDs and display ID3 tags in display
  • "Pop up operation stand" concept – control buttons on base and large LCD on main body.
  • Multi-jog dial for navigating menus and controlling volume.
  • Body position adjustable through 15°.

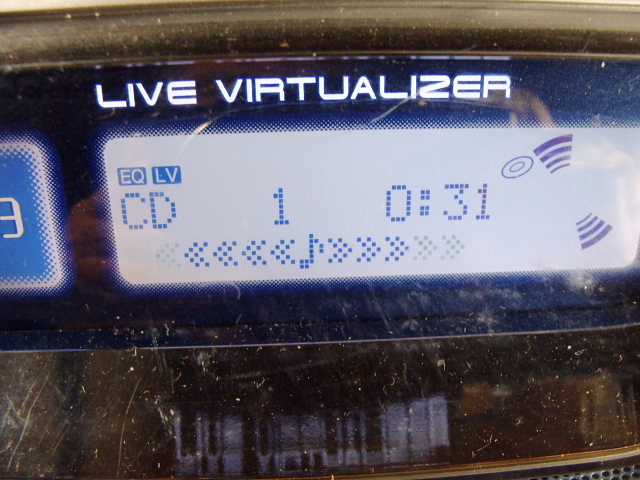

  • "Live virtualizer" (DSP?) "clearly reproduces vocal sound".

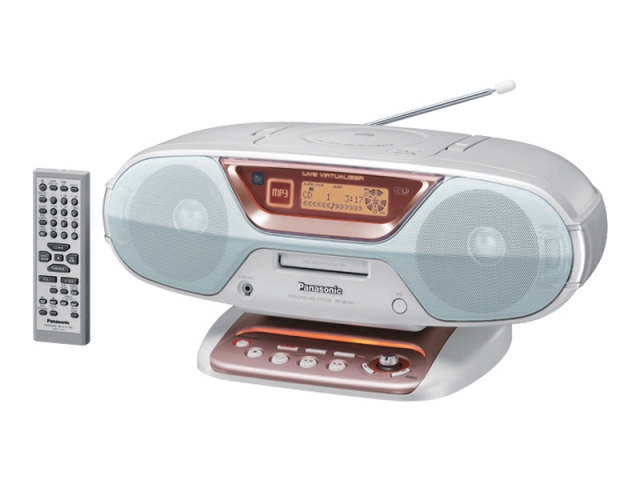

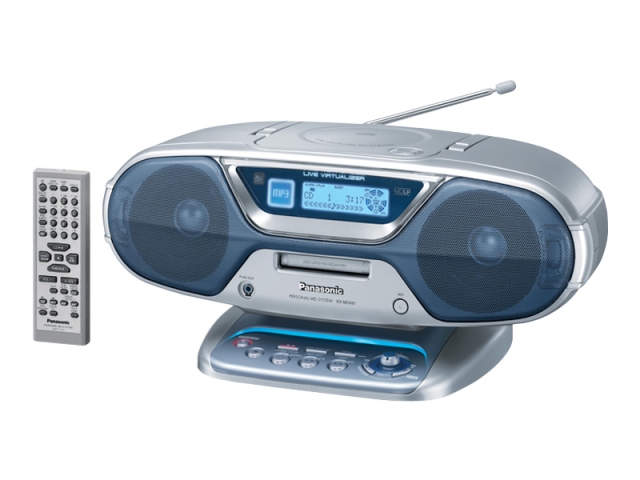

  • Available in silver or white.
  • Accessories: remote, remote batteries, AC cord, AM loop antenna

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Minidisc.org page, T-Station page Panasonic product page av.watch

Manuals

Panasonic RX-MD61 User Manual JP

User manual (Japanese) (9.4mb)

User manual (Machine English)

Repair

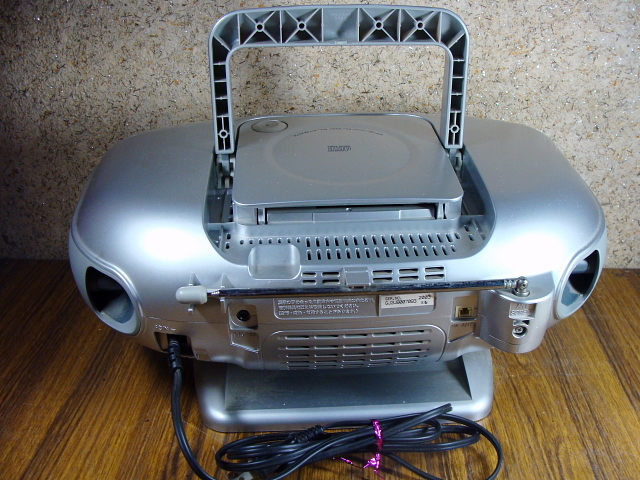

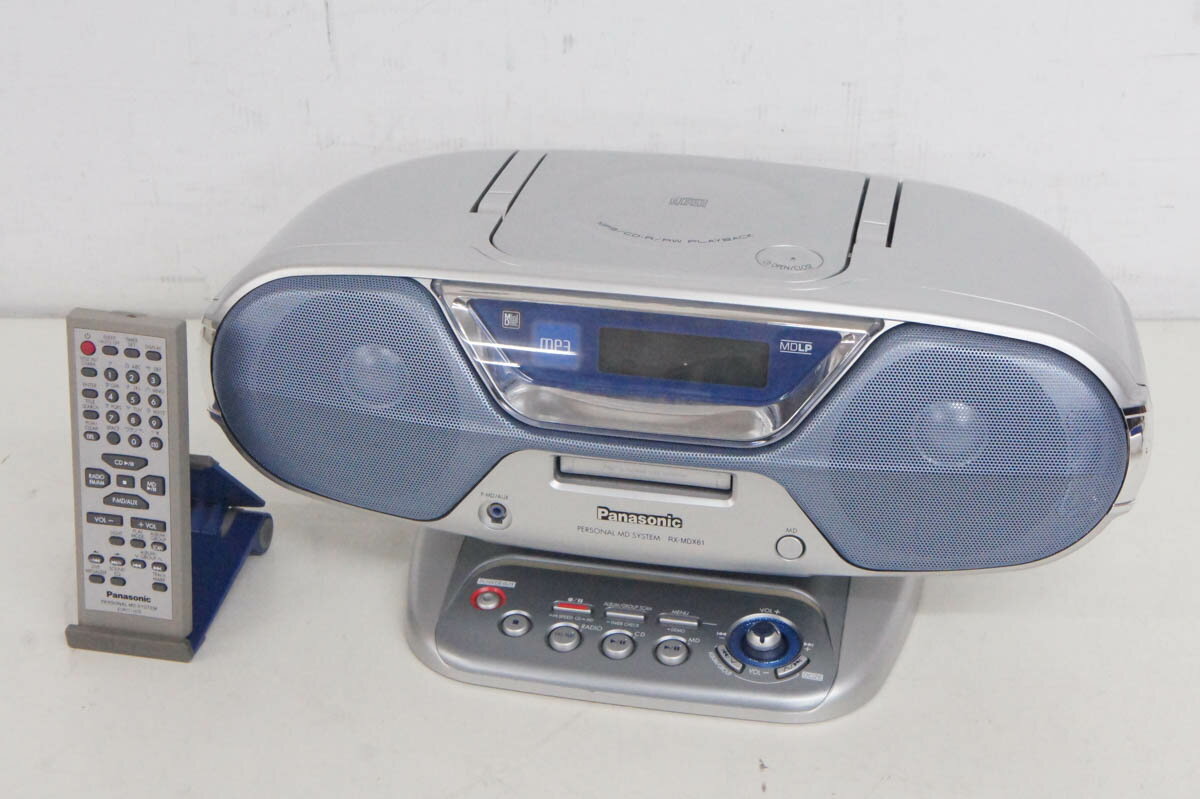

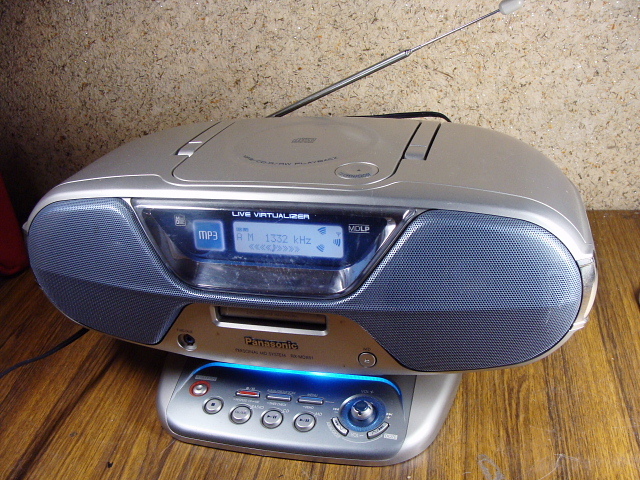

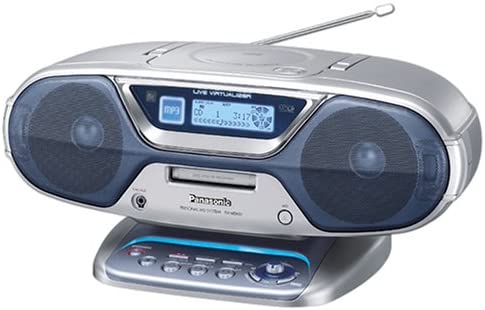

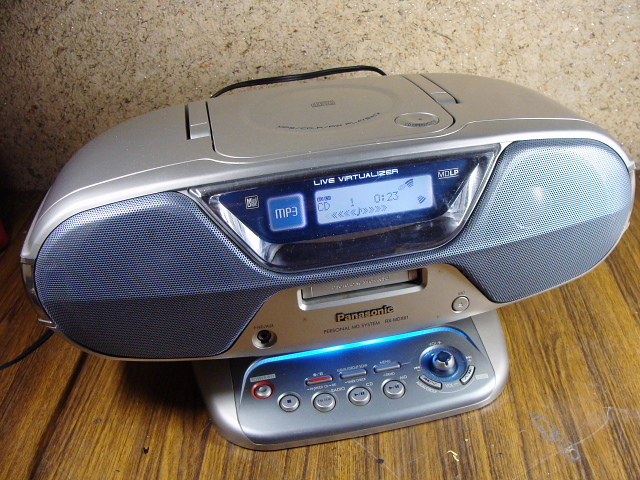

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
