Panasonic RX-MDX7

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-10-28

Manufacturer
Panasonic
Model / source grouping
RX-MDX7
Device type
boombox
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic RX-MDX7”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name RX-MDX7
Manufacturer Panasonic
Released 1999/02
Device type boombox
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 560 (W) x 150 (H) x 310 (D)
Weight 6100
ATRAC ver Panasonic H.D.E.S
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥54 000
-

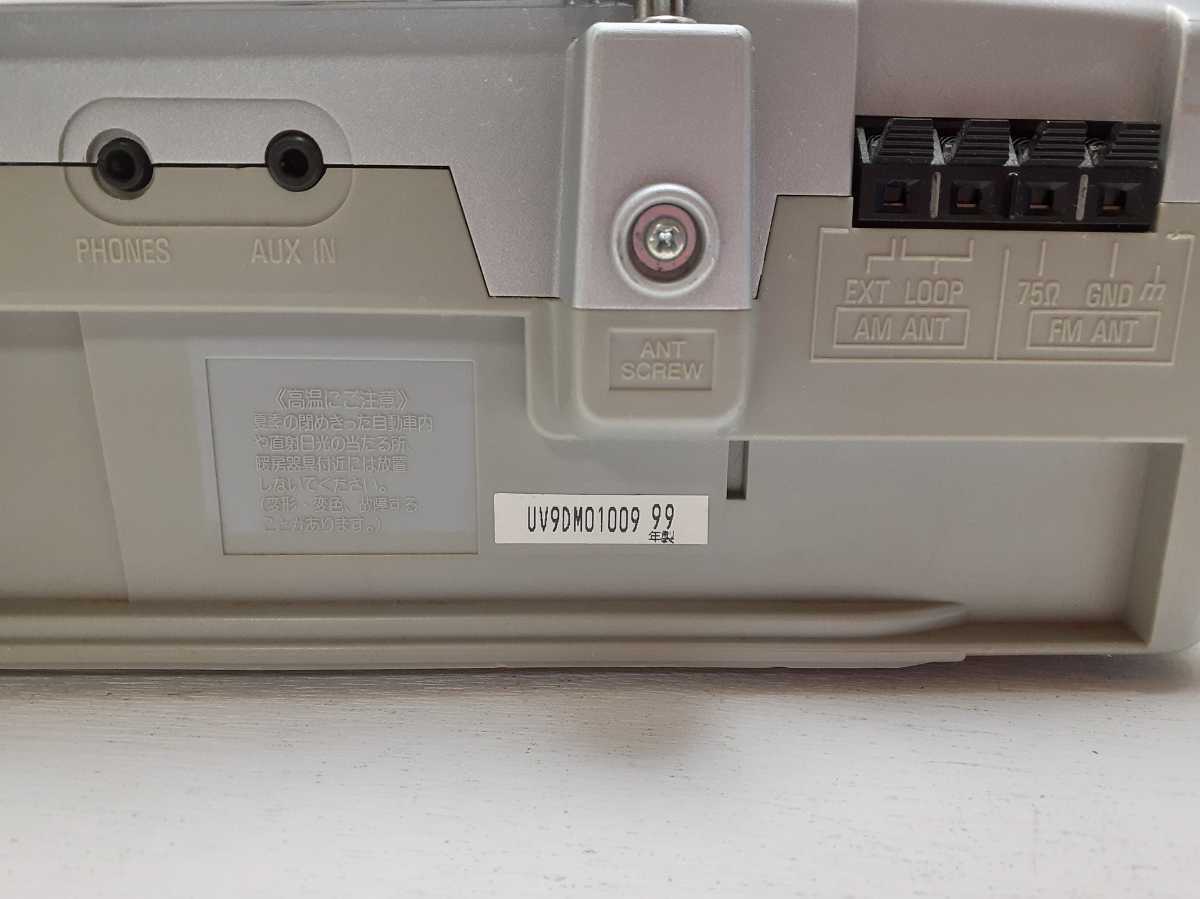

Inputs 3.5mm line in (analog-only), Digital optical (TOSLINK), CD
Outputs 3.5mm headphone
Control Not recorded

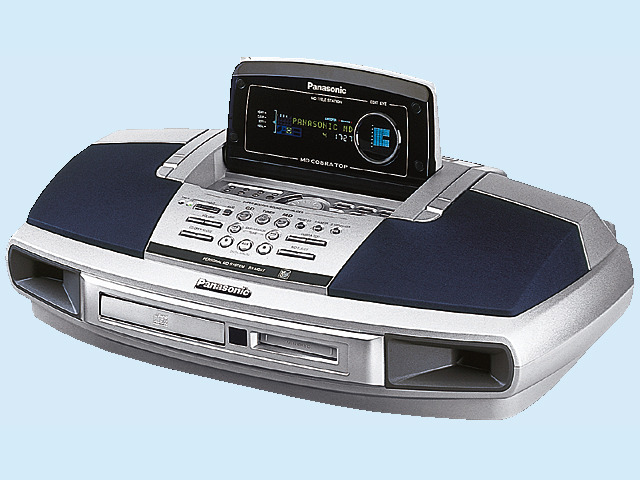

Panasonic RX-MDX7

  • Equipped with an optical input terminal equipped with a "sampling rate converter"
  • Monaural long-time recording function

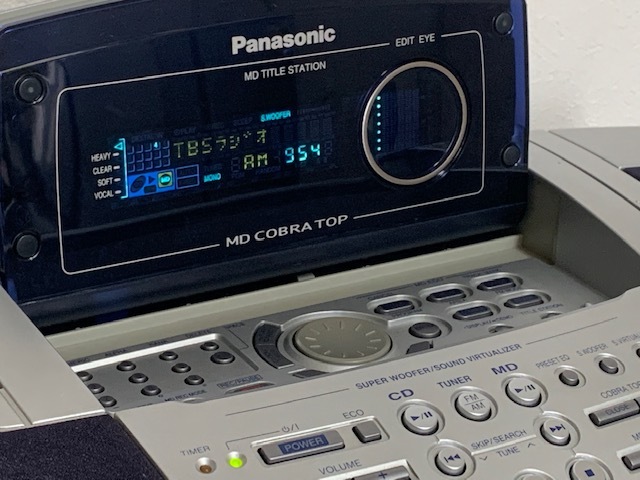

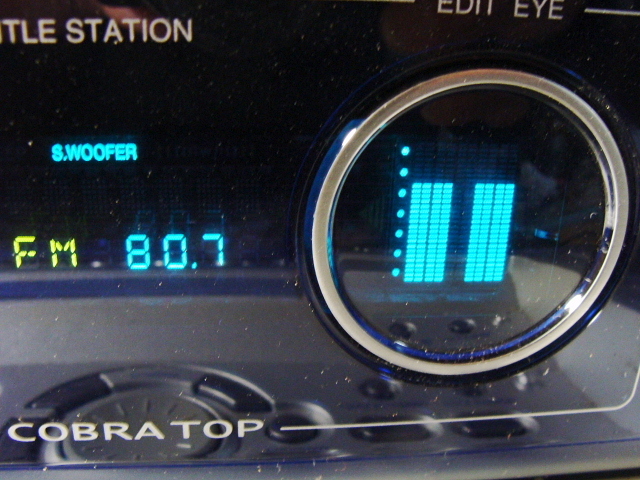

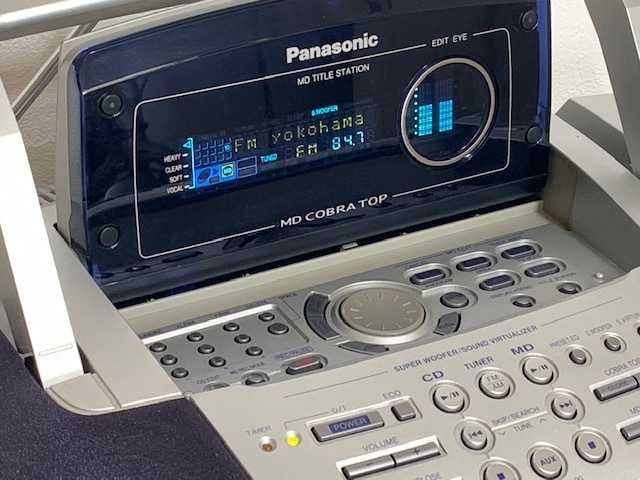

  • Equipped with area bank tuner with broadcasting station name display function

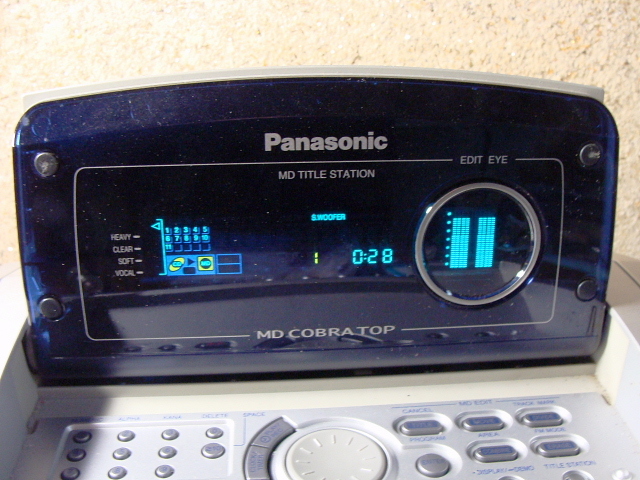

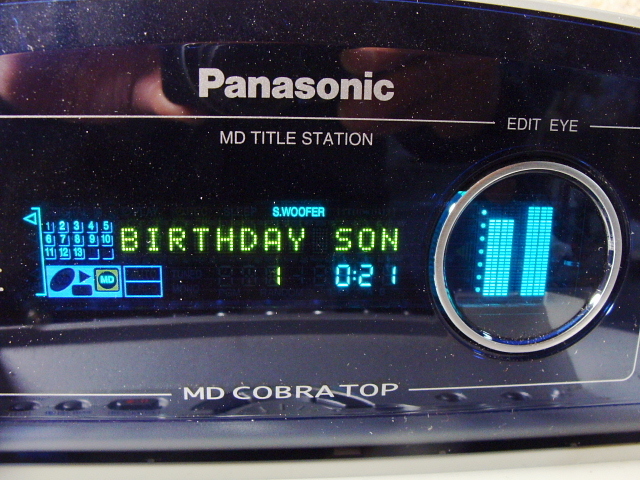

  • Convenient MD title station function for copying character titles from MD to MD
  • Equipped with an analog input/output terminal that allows MD recording from an external analog device
  • Timer play/timer rec/sleep function
  • Approximately 89% reduction in standby power compared to the conventional model (MDX3) (standby power
  • consumption in eco mode: 0.9W, MDX3: 8.3W)

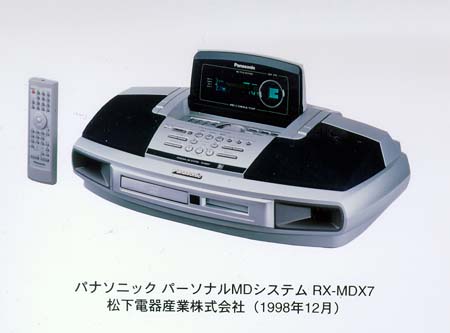

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Product Page

Manuals

Panasonic RX-MDX7 User Manual JP

Repair

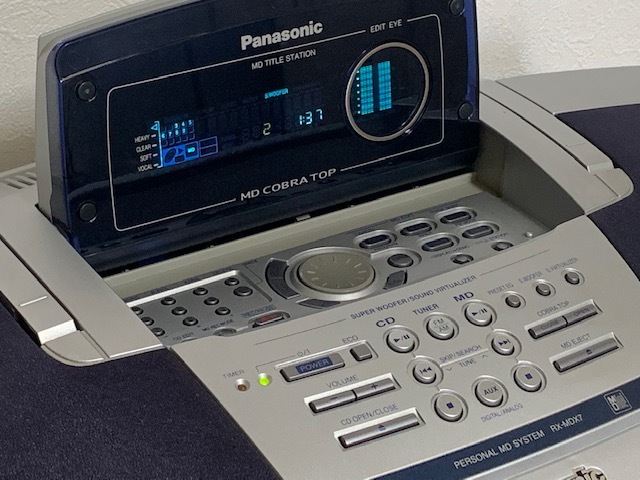

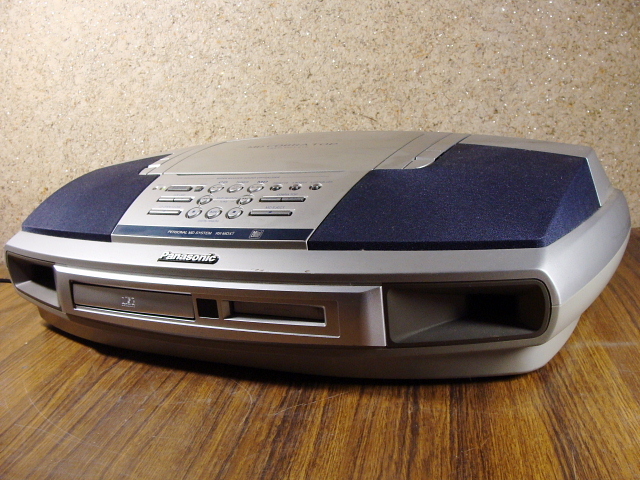

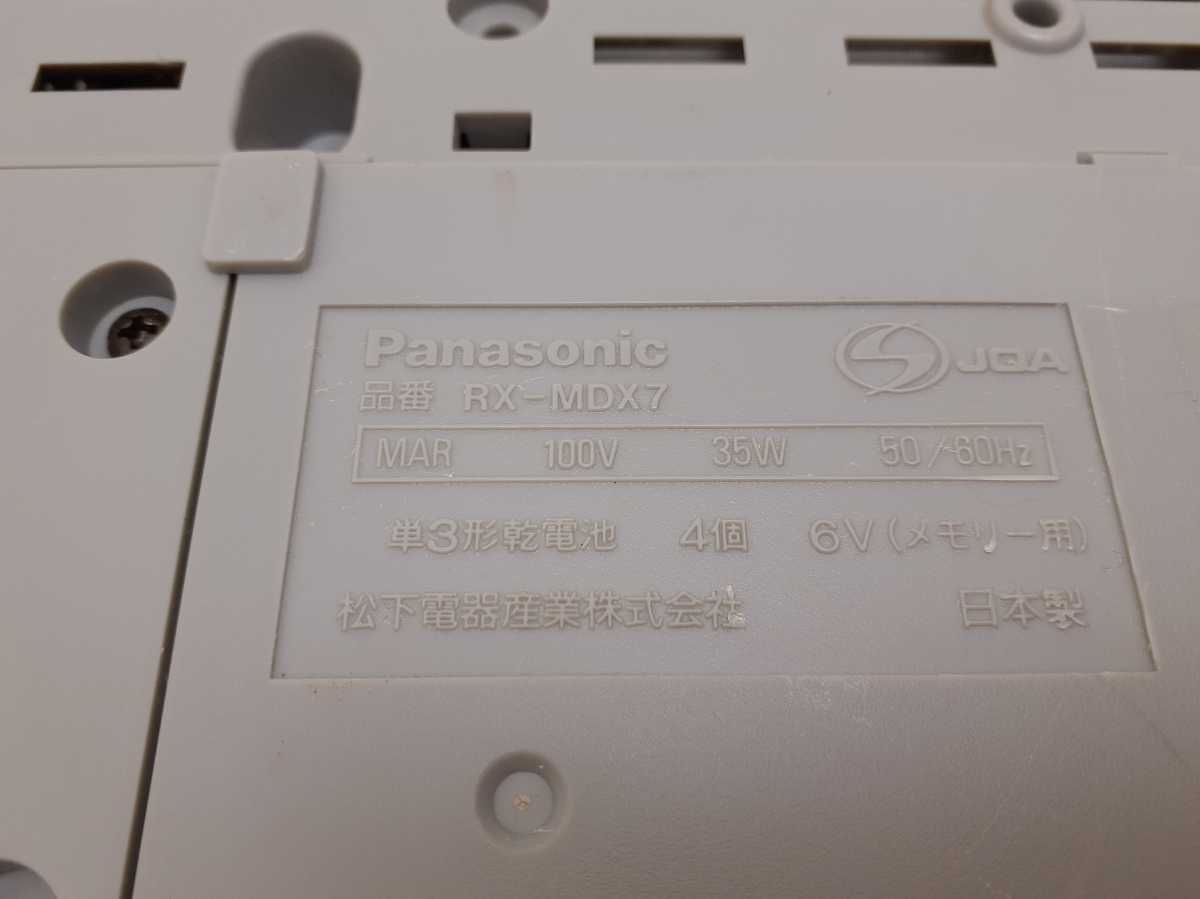

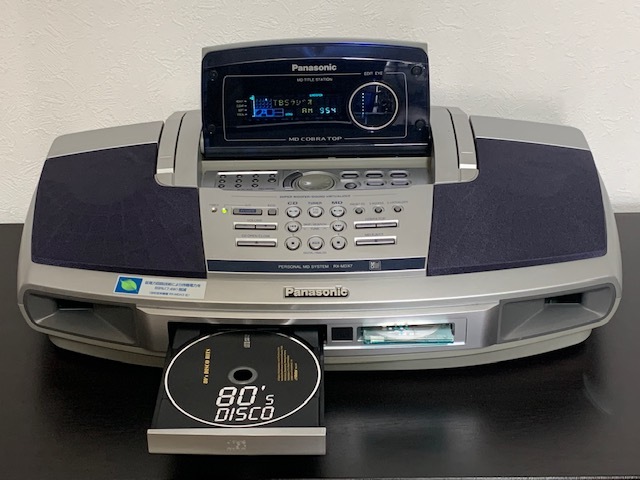

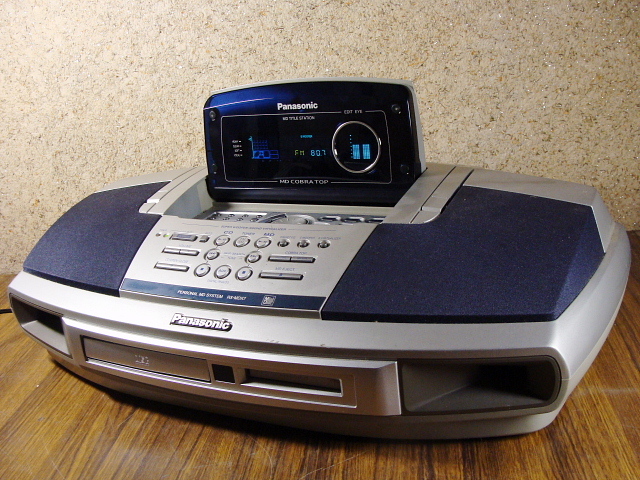

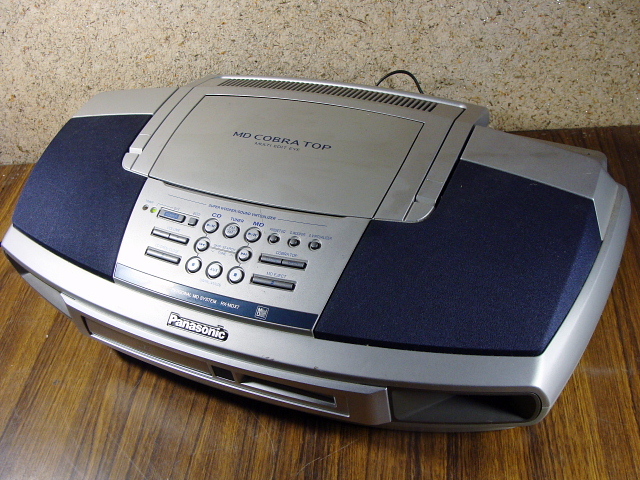

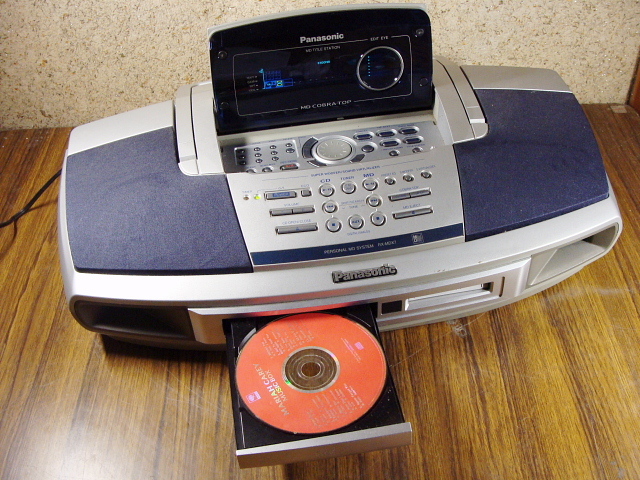

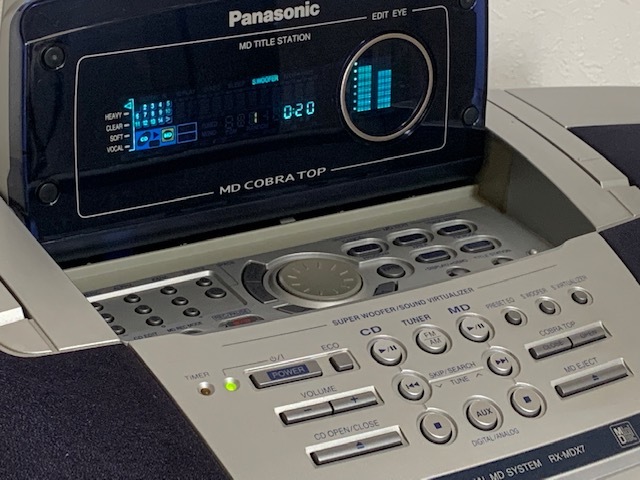

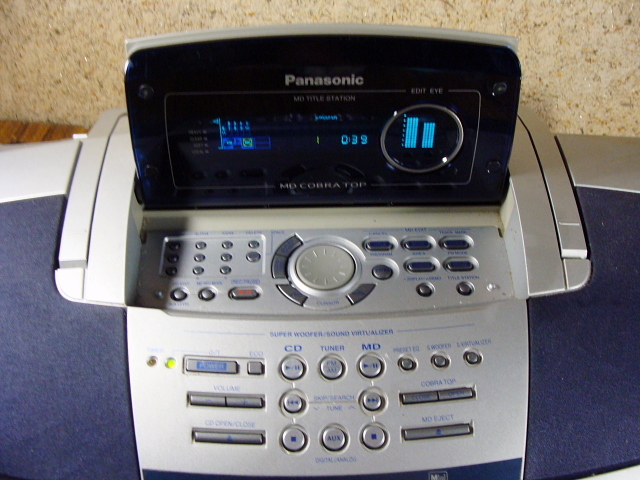

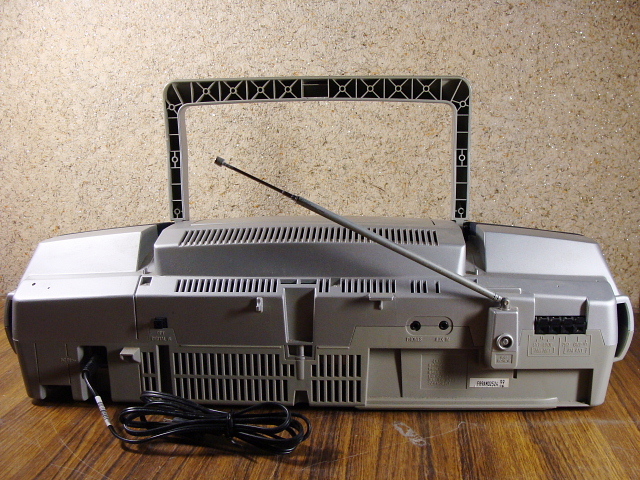

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Remote Page
Mechanism9333acz
Atrac Icmn66616ra1
ManualUser manual
RegionJapan
