Device

Panasonic RX-MDX77

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-05-22

Manufacturer
Panasonic
Model / source grouping
RX-MDX77
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic RX-MDX77”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name RX-MDX77
Manufacturer Panasonic
Released 2001/12
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 448x163x221mm
Weight 4.0kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs CD, Radio recording
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

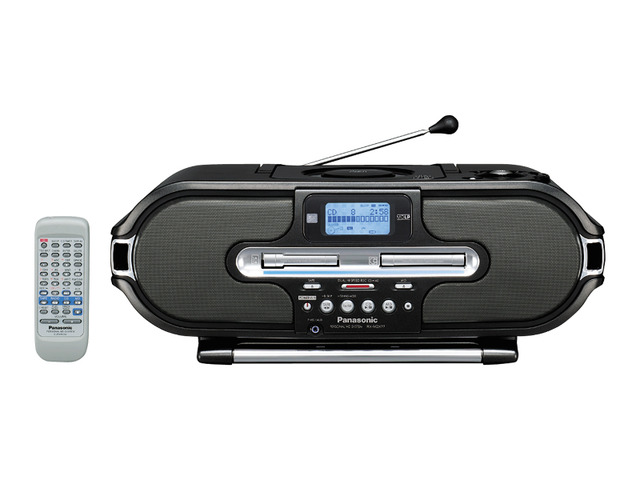

Offered in RX-MDX77-S (Silver), RX-MDX77-K (Black)

Features:

  • MDLP modes
  • CD→MD copying at up to 4X speed.
  • Other record modes: 1-track CD→MD recording, "turn back" recording(?), synchro-recording.
  • Play, sleep, record timer.
  • Play modes: random, repeat (1, all, program), 24 track program.

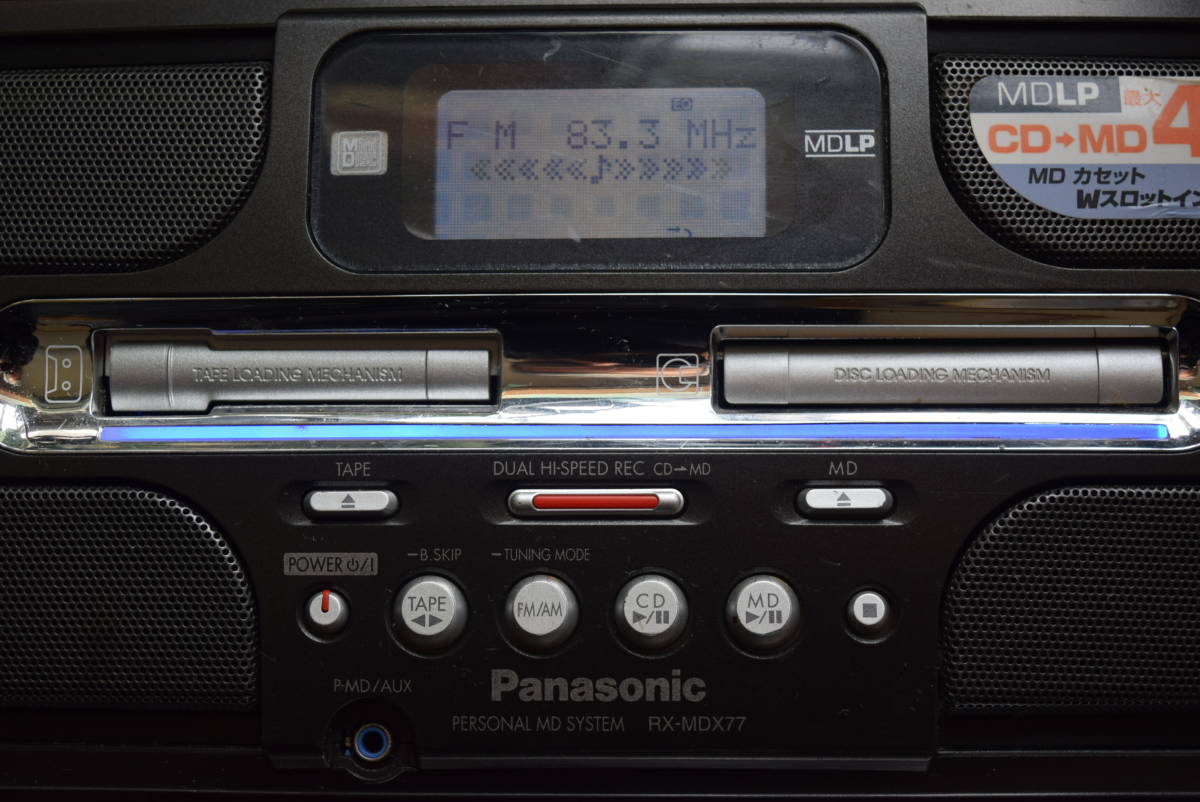

  • Backlit LCD panel.

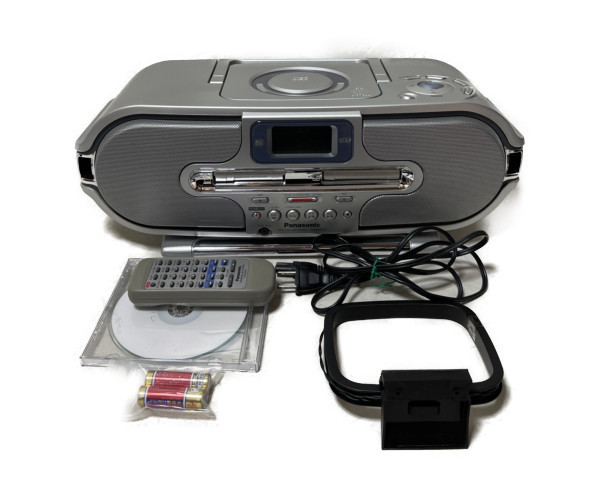

Accessories: Remote, AC cord, AM loop antenna

Specs: amp: 3Wx2, FM: 76-90MHz

Content adapted from: Minidisc.org page Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror) Page 3 Page 3 (MiniDisc Wiki mirror) Panasonic Product Page av.watch

Manuals

Panasonic RX-MDX77 User manual (Japanese)

Repair

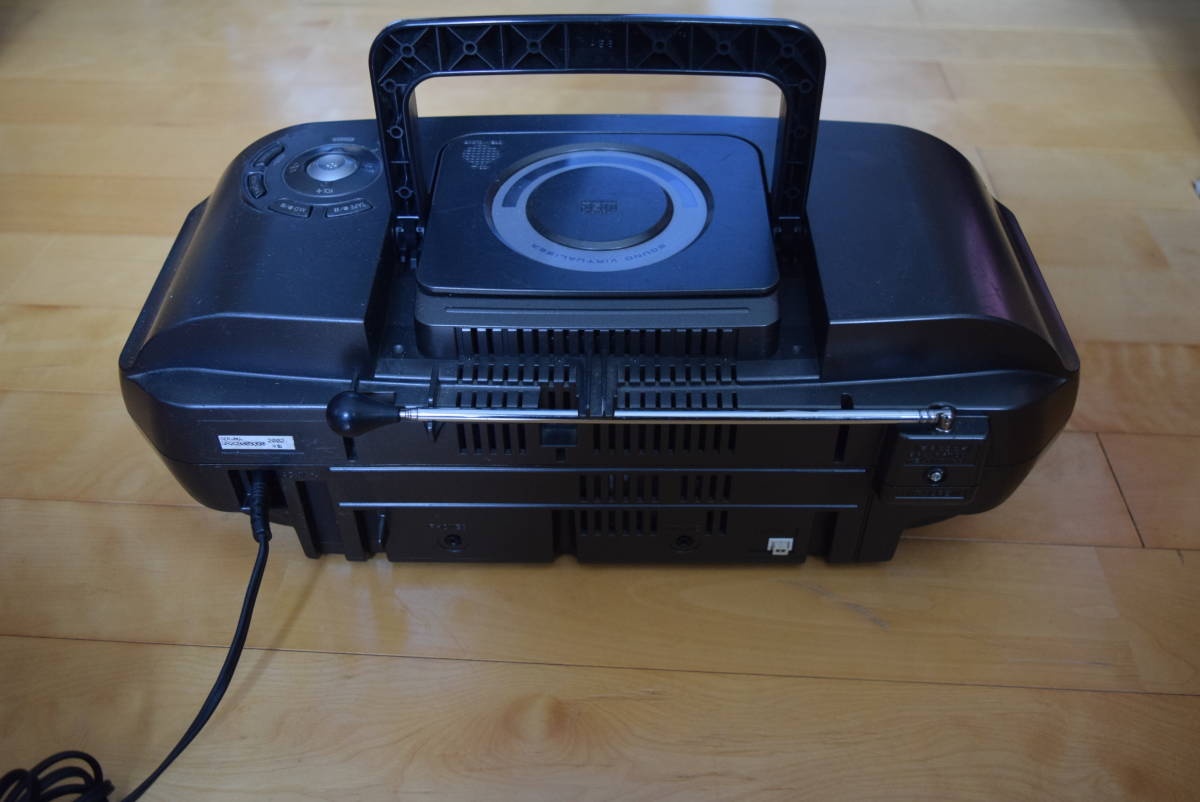

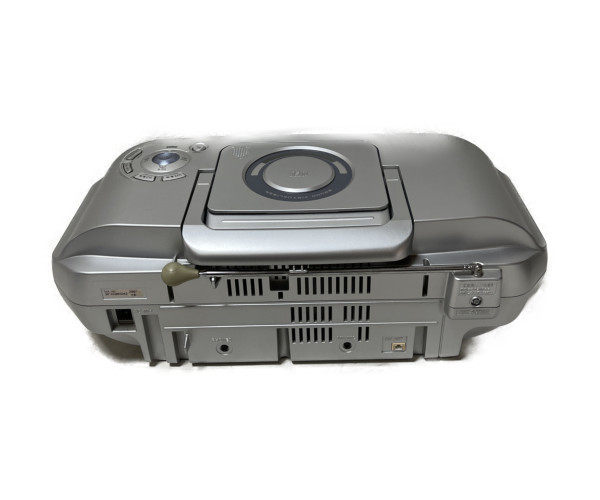

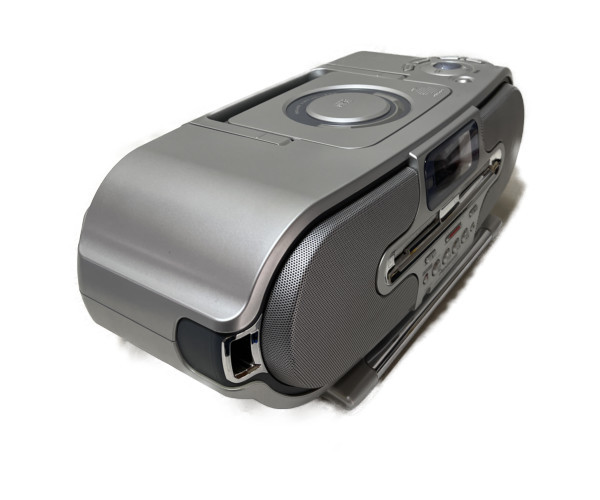

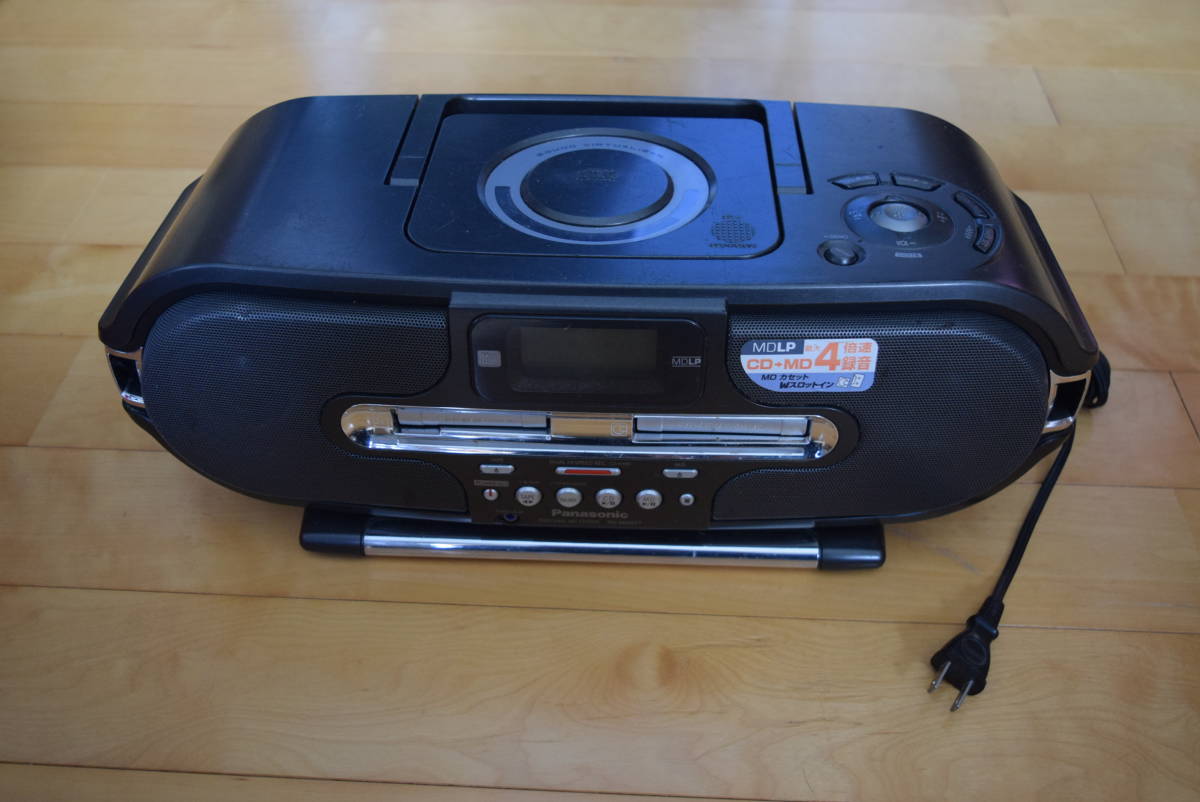

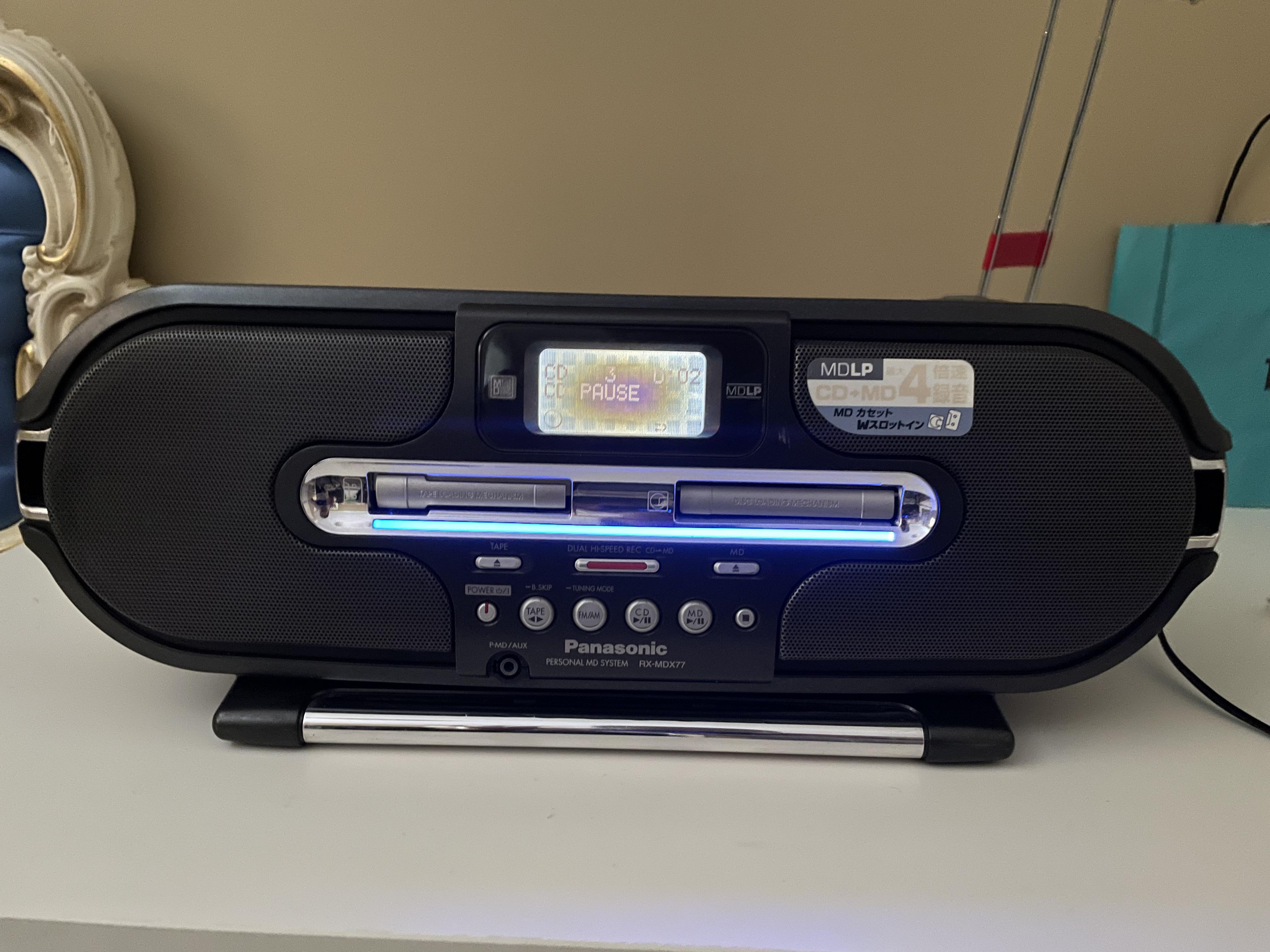

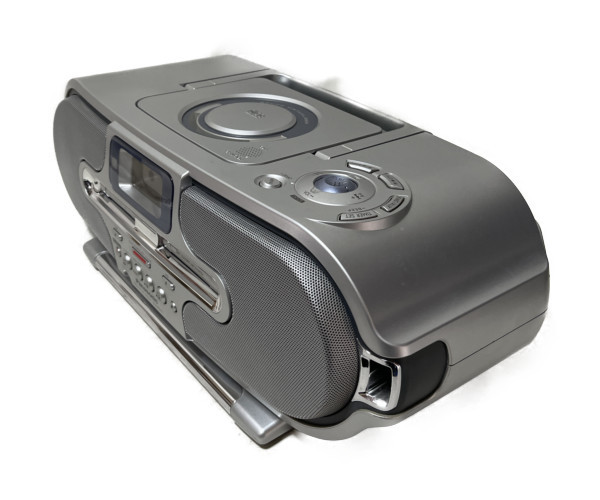

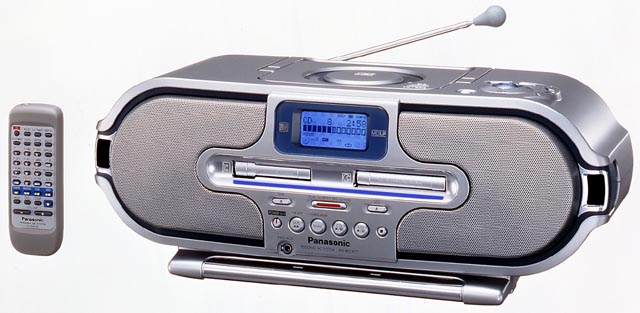

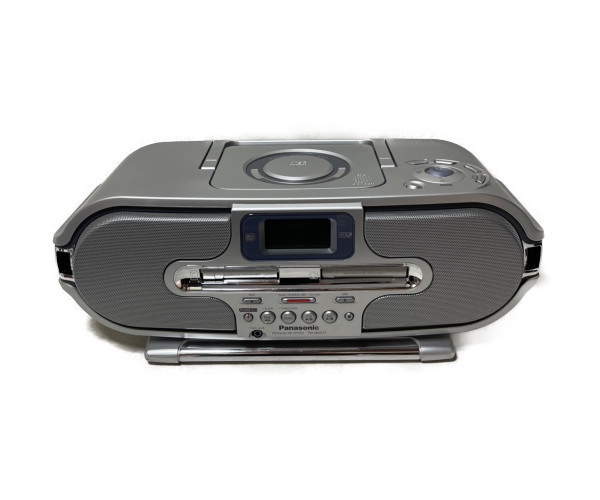

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
