Panasonic SJ-MJ70

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
SJ-MJ70
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-MJ70”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SJ-MJ70
Manufacturer Panasonic
Released 1999/01
Device type portable
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 71.7 x 79.7 x 14.5mm
Weight 69g
ATRAC ver Not recorded
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 1.5
Power cable Center positive
Price (launch) Not recorded
¥37 000
-
Inputs Not recorded
Outputs 3.5mm headphone
Control Remote (Panasonic)

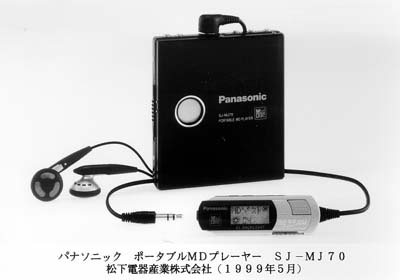

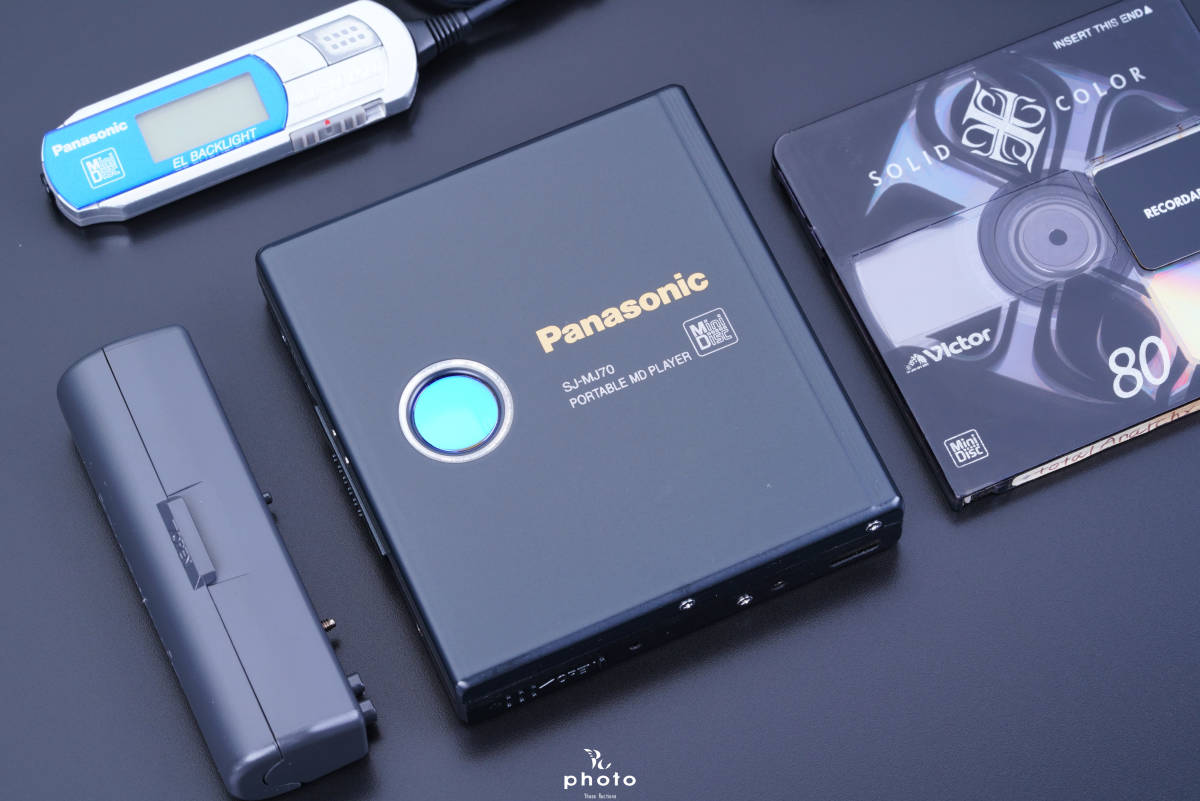

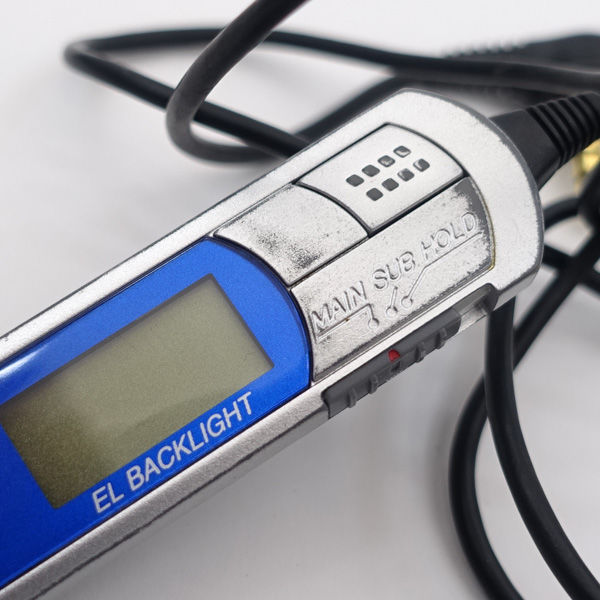

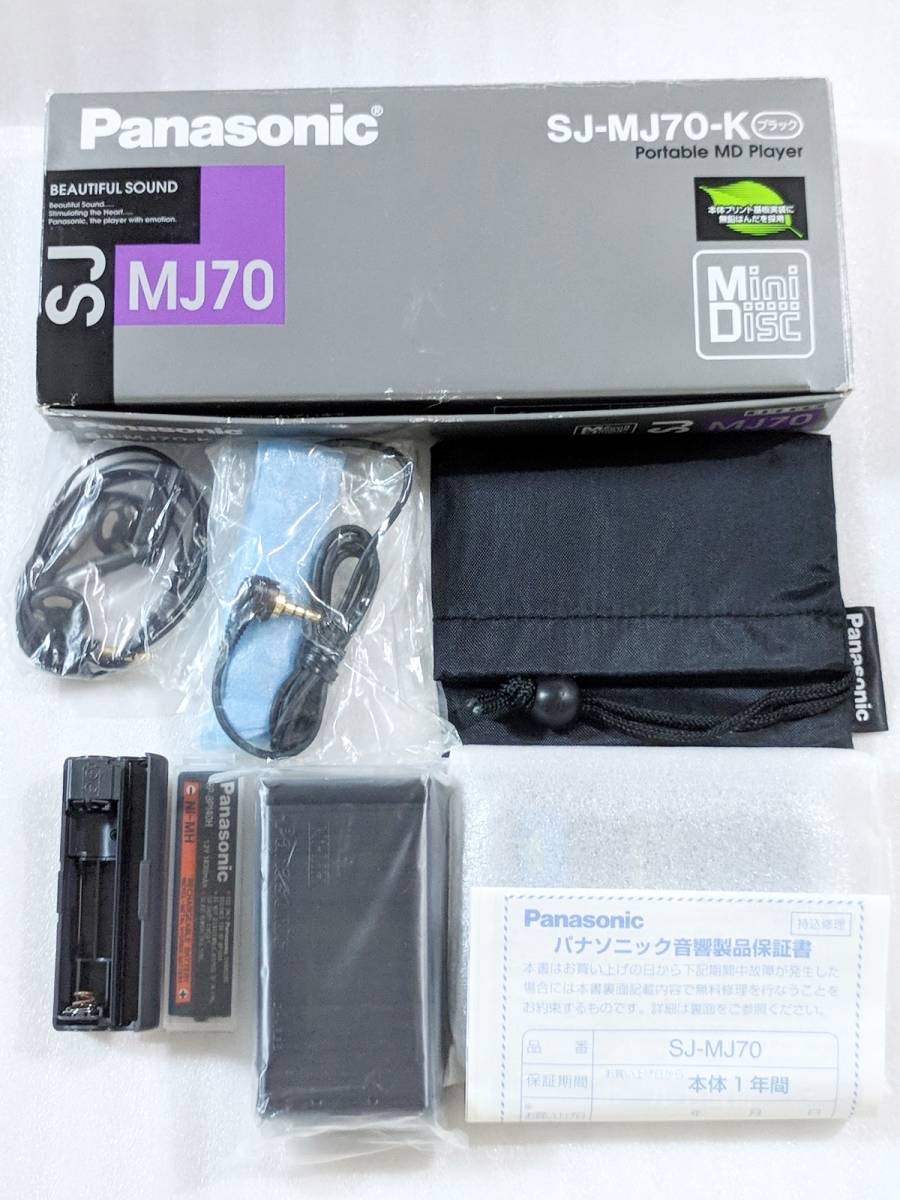

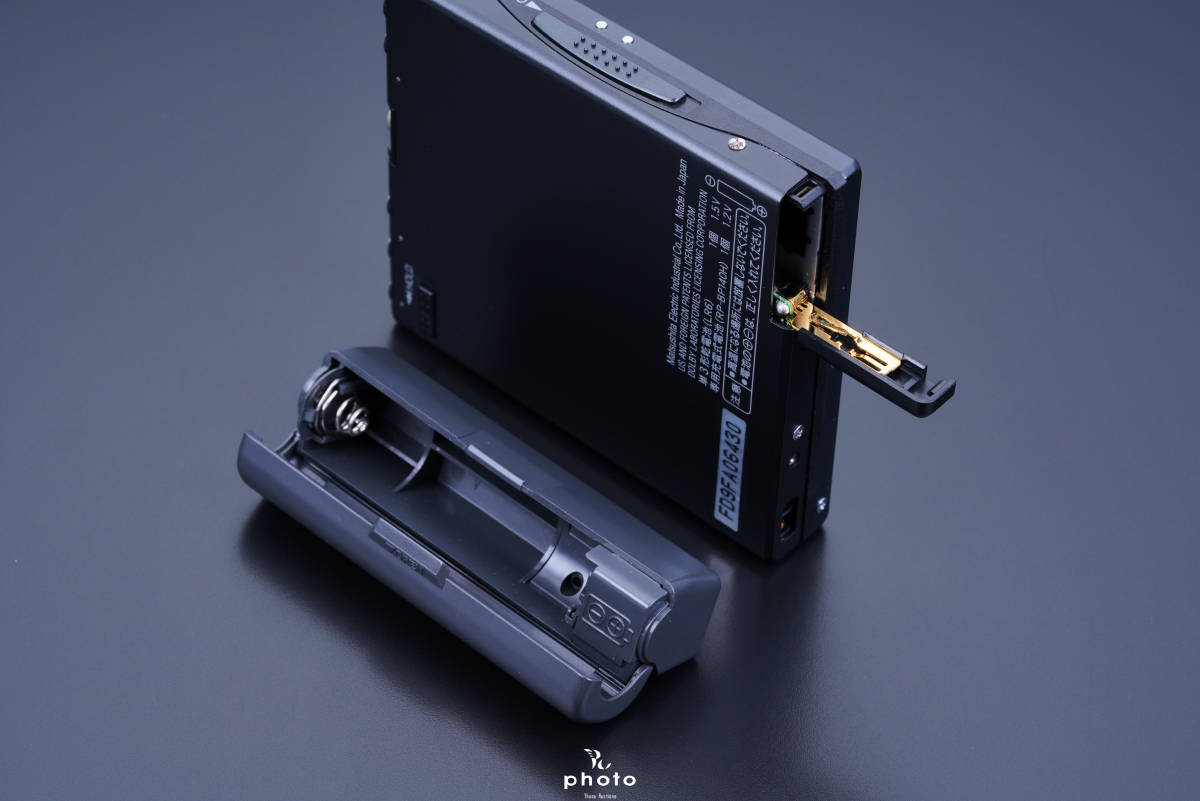

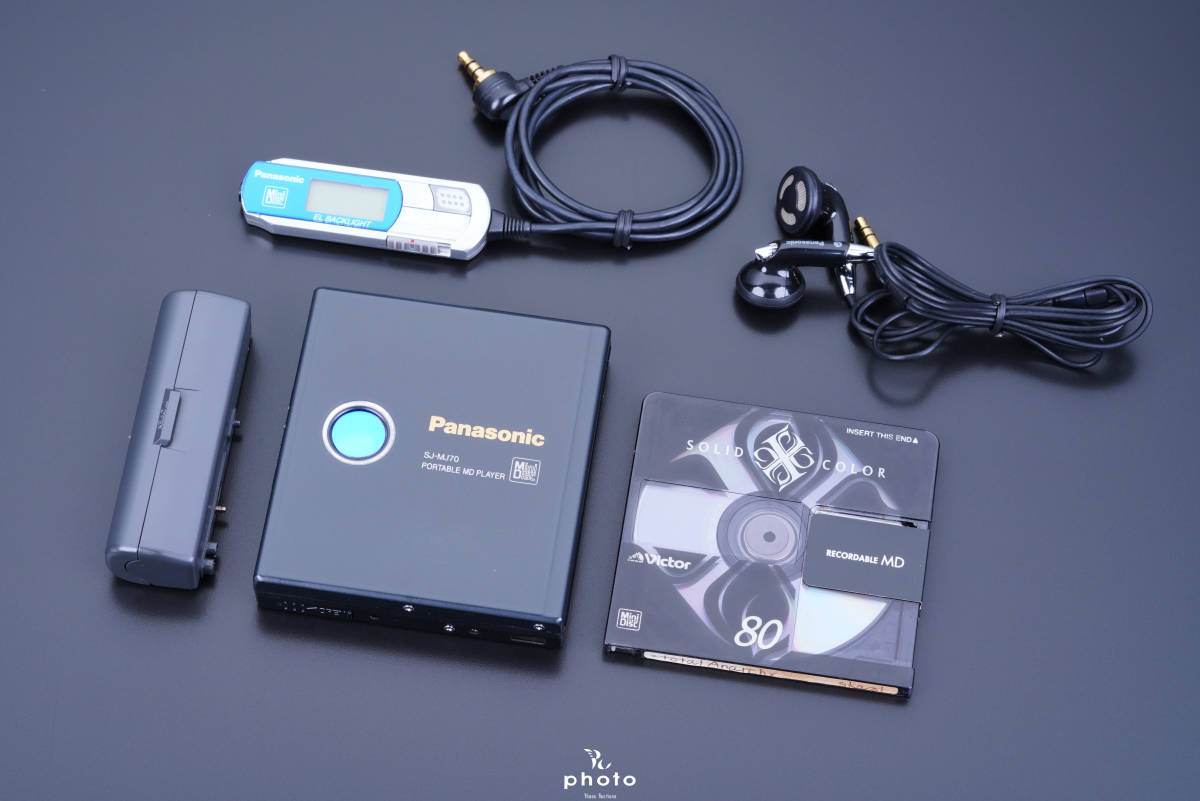

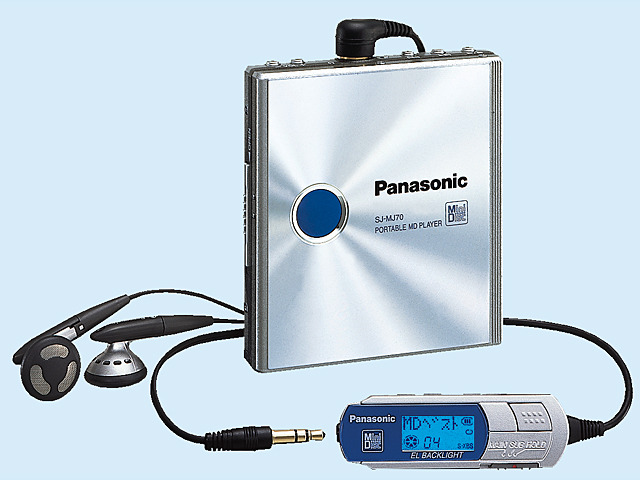

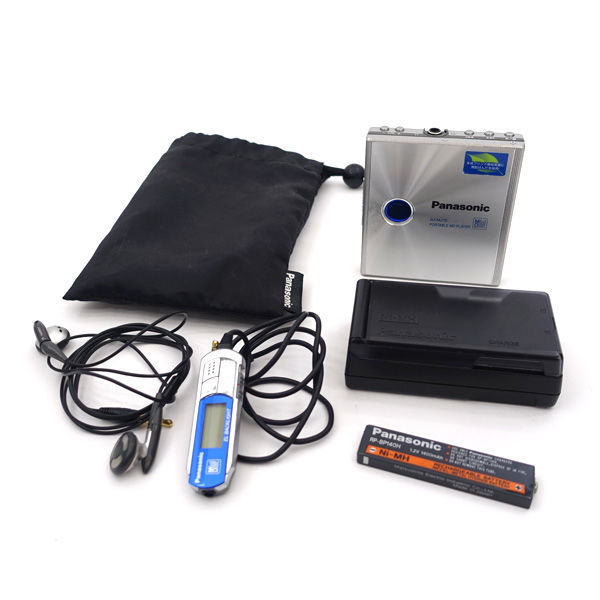

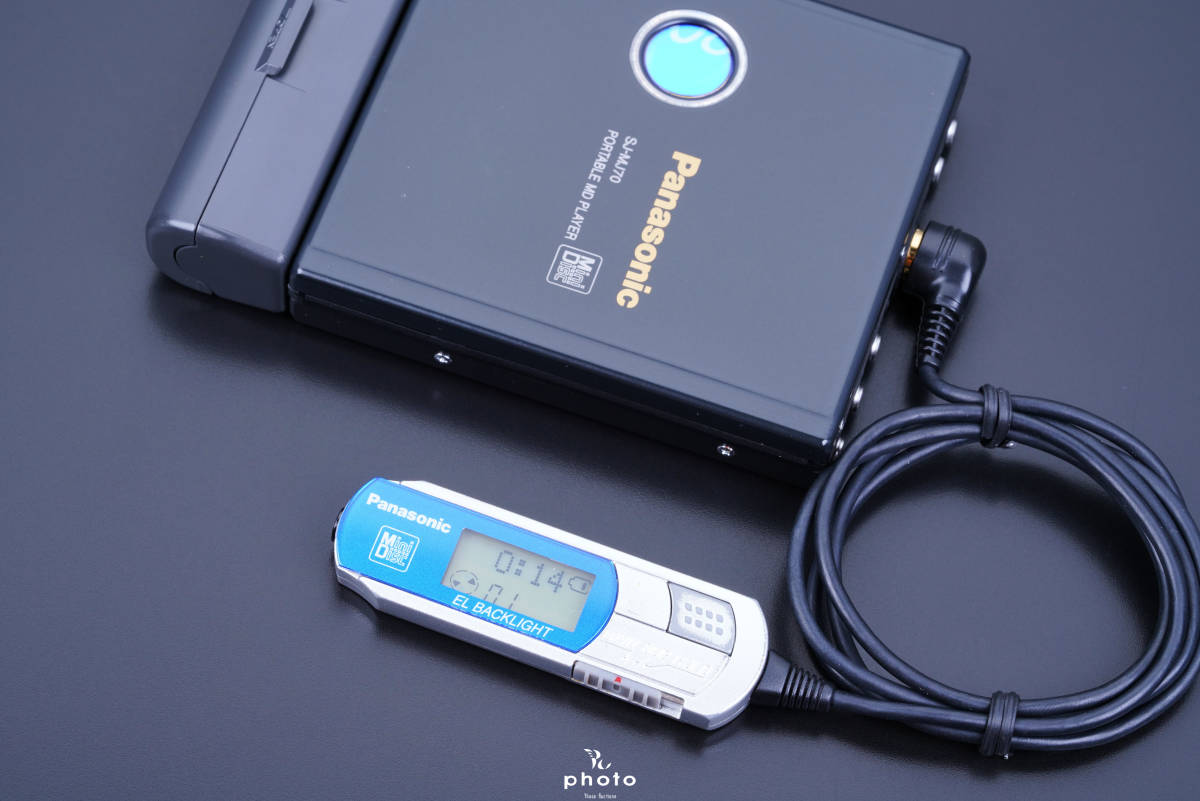

Slim portable player aimed at "people in their 20s and trend setters." Came bundled with a backlit remote (RFEV020P-SM) and AA sidecar.

  • By adopting low-power LSI, integrating driver ICs (3 ICs to 1 IC), and developing a low-power spindle motor, we have succeeded in significantly reducing power consumption. Realized time continuous playback.

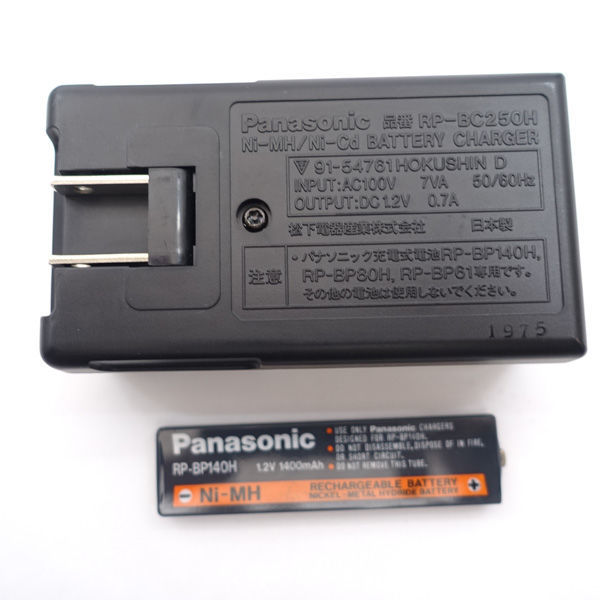

  • In addition, it is possible to play continuously for about 16 hours with just one rechargeable battery that can be built into the main unit. 40 hours with sidecar
  • 40-second memory vibration resistance to protect sound from shock
  • Practical maximum output (EIAJ): ６mW ＋ ６mW

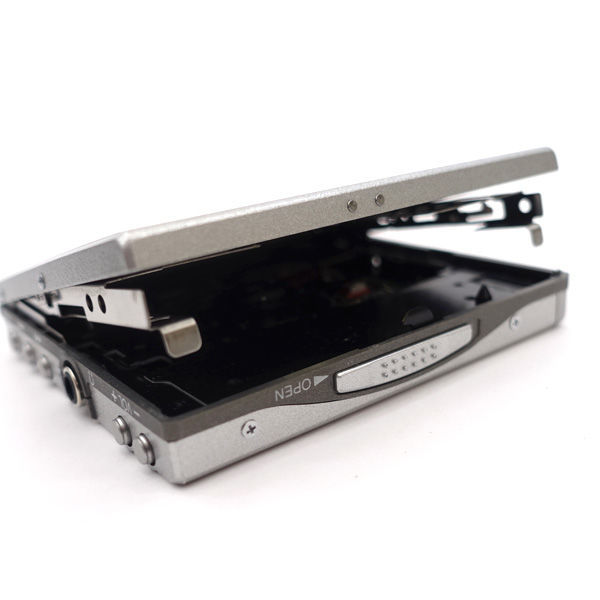

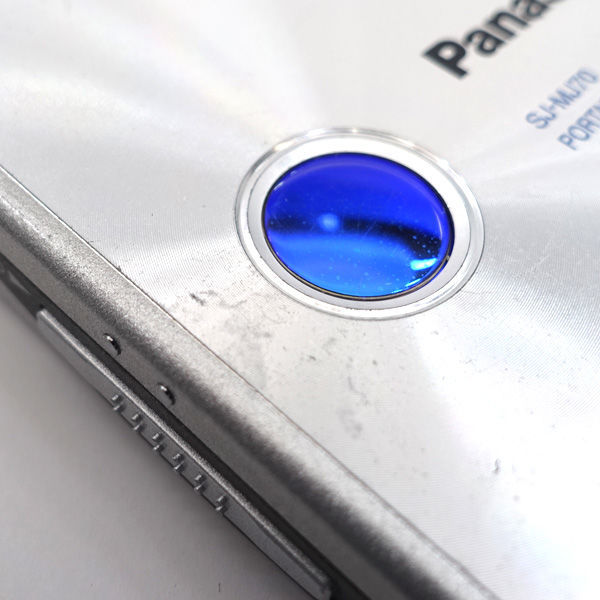

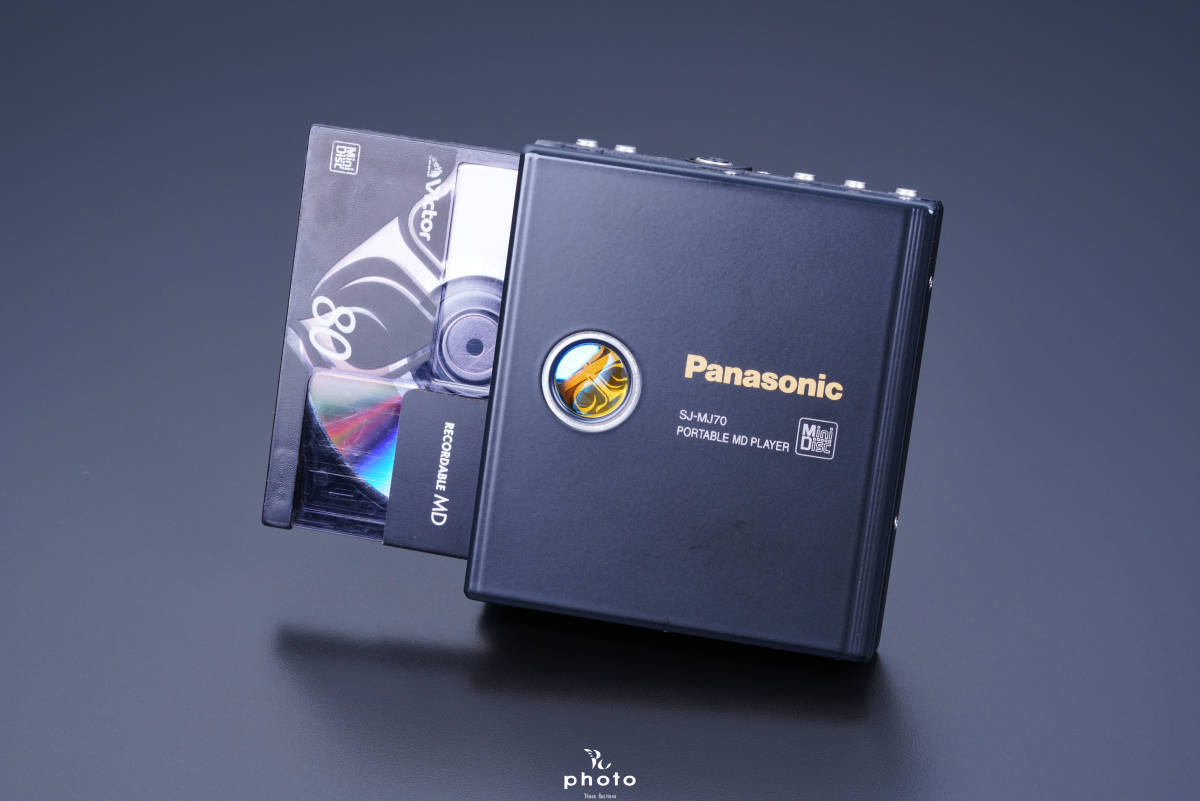

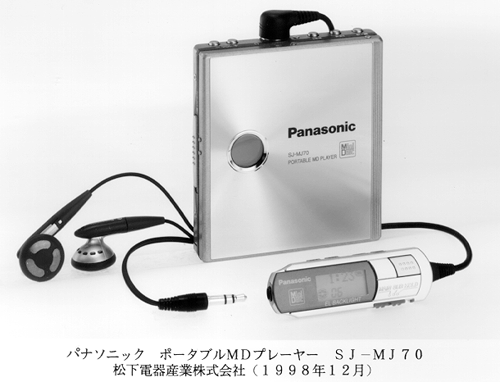

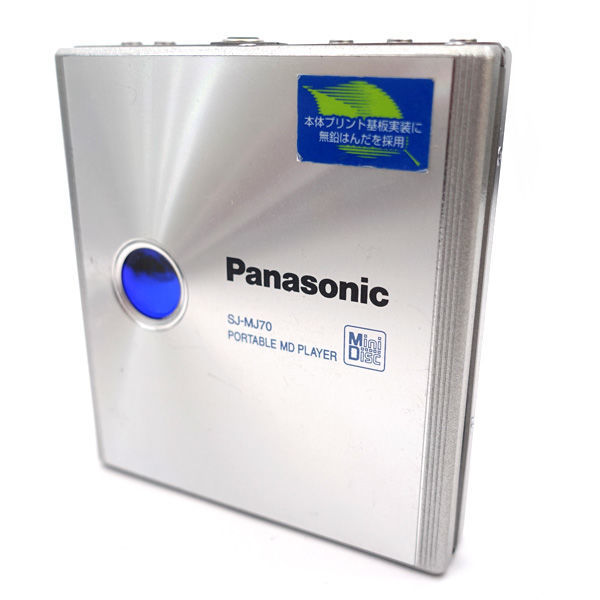

From the press release: "The lid is machined to a micron level and has a shiny design that resembles an optical disc. When the disc is empty, the inside cannot be seen, and it reflects light and shines blue. A magic mirror system has been adopted, which allows the disc to be seen through when the disc is inserted."

Does not have AC adapter plug on device. It needs a DC in adapter (RP-WA10) in order to use the AC Adapter (RP-AC11D or RP-AK15, both are center positive 1.5v adapters).

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror) Panasonic Product Page Press Release of black model (released June-01-1999) Press Release of black model (released June-01-1999) (MiniDisc Wiki mirror) Details Page Details Page (MiniDisc Wiki mirror)

Manuals

Panasonic SJ-MJ70 User Manual (Japanese)

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
