Panasonic SJ-MJ75

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
SJ-MJ75
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Related guides & software

Source links; check each guide’s applicability.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-MJ75”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SJ-MJ75
Manufacturer Panasonic
Released 1999/10
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 71.5 x 78.5 x 13.9mm
Weight 86g
ATRAC ver Not recorded
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 1.5
Power cable Center positive
Price (launch) Not recorded
¥34 000
-
Inputs Not recorded
Outputs 3.5mm headphone
Control Remote (Panasonic)

Compact design with a magnesium body. 21 hour playback off a single gumstick.

Can link with MD components using the Matsushita "MD Network" system.

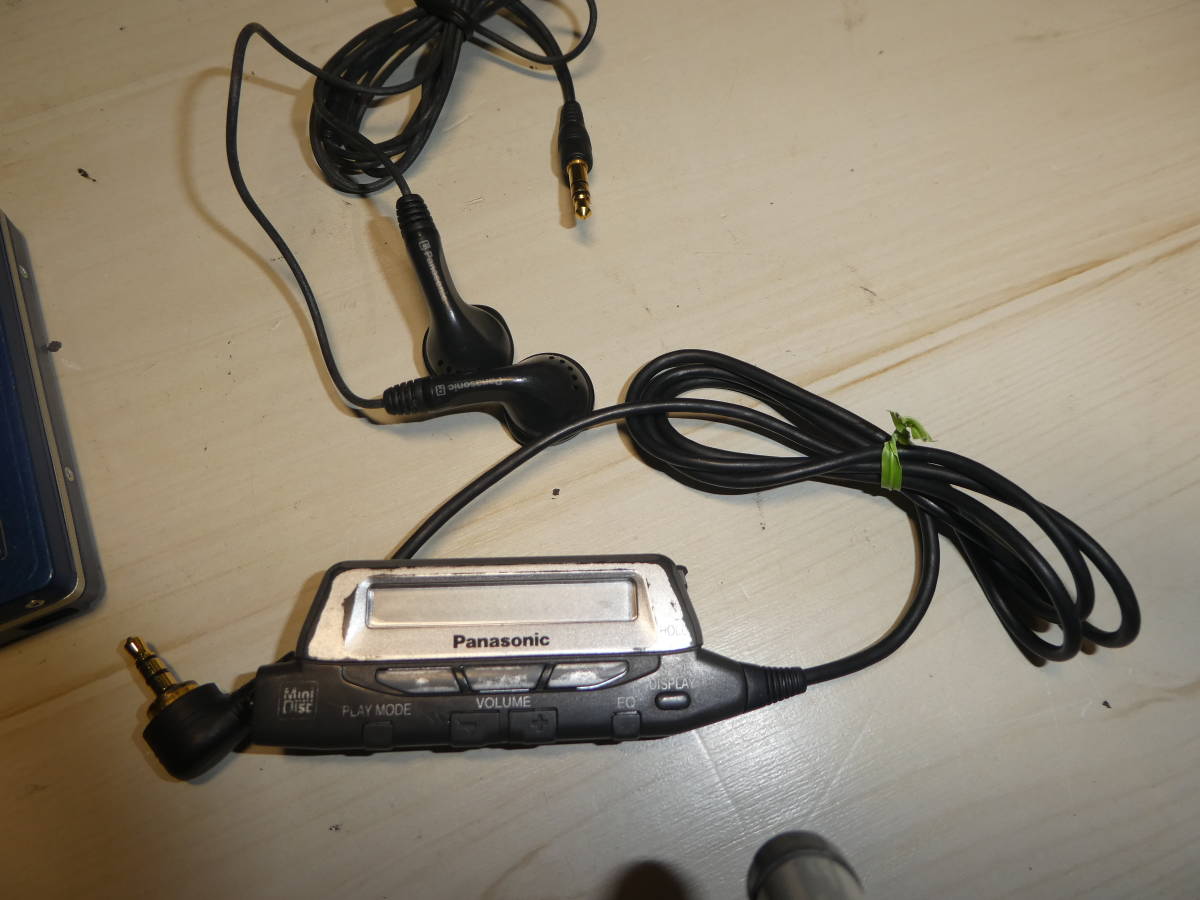

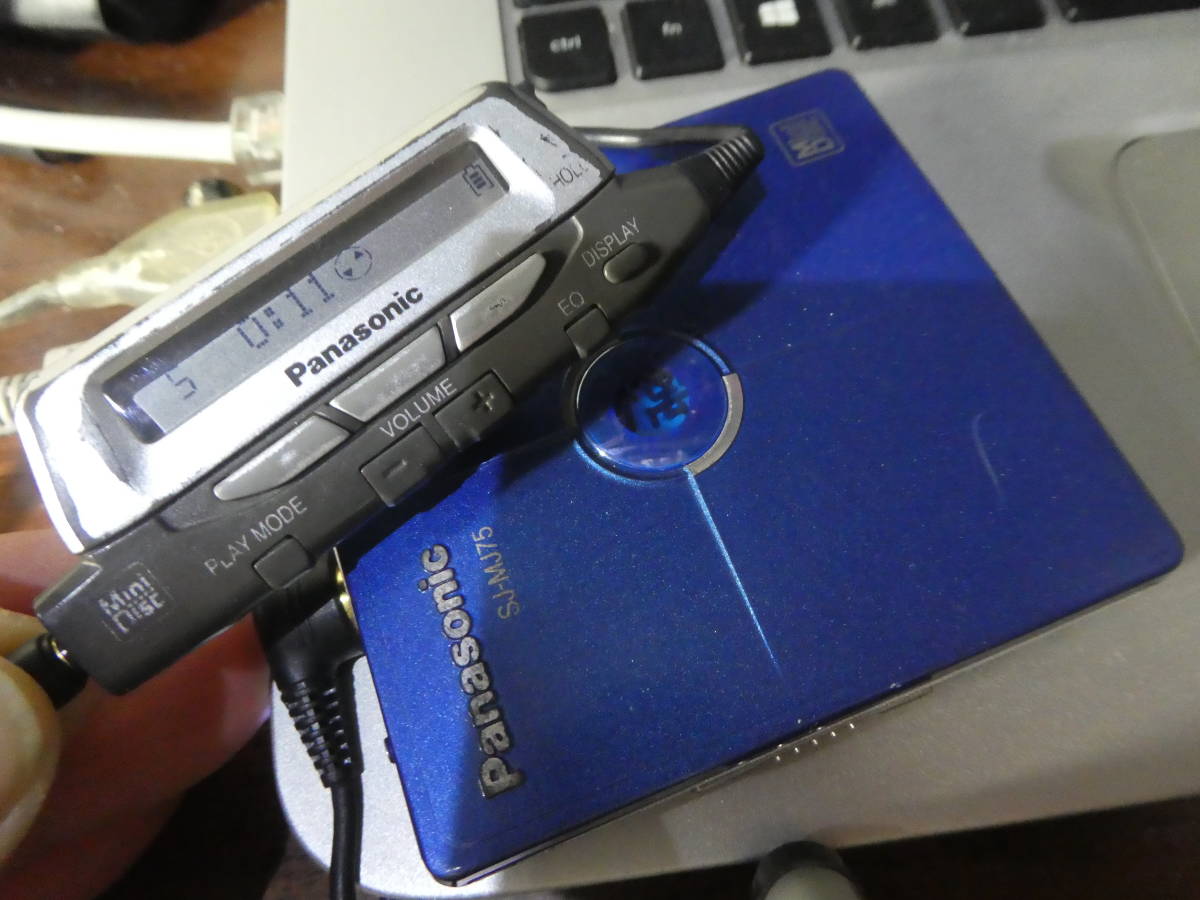

Came bundled with a backlit remote (RFEV025P-SM) and AA sidecar(RFA1136-H).

Does not have AC adapter plug on device. It needs a DC in adapter (RP-WA10) in order to use the AC Adapter (RP-AC11D or RP-AK15, both are center positive 1.5v adapters).

  • MD network compatible
  • By connecting to our MD network compatible MD mini component, you can easily edit from MD to MD including title data. Also, if you connect it to a visual/title printer, you can easily create an original label with an image that prints the title of the MD.
  • 20-second memory vibration resistance to protect sound from shock
  • Deep bass circuit S-XBS, equipped with "train position" that suppresses sound leakage of headphones
  • Joint phone compatible remote control ・Battery level display (remote control part)
  • Newly equipped earphones (antibacterial material/anti-tangle headphone cord)
  • Supports monaural long playback mode
  • Environmentally friendly lead-free solder is used for the printed circuit board of the main unit.

Content adapted from: Archived Press Release Archived Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror)

Manuals

SJ-MJ75 User Manual

SJ-MJ75 User Manual (Japanese)

Service Manual

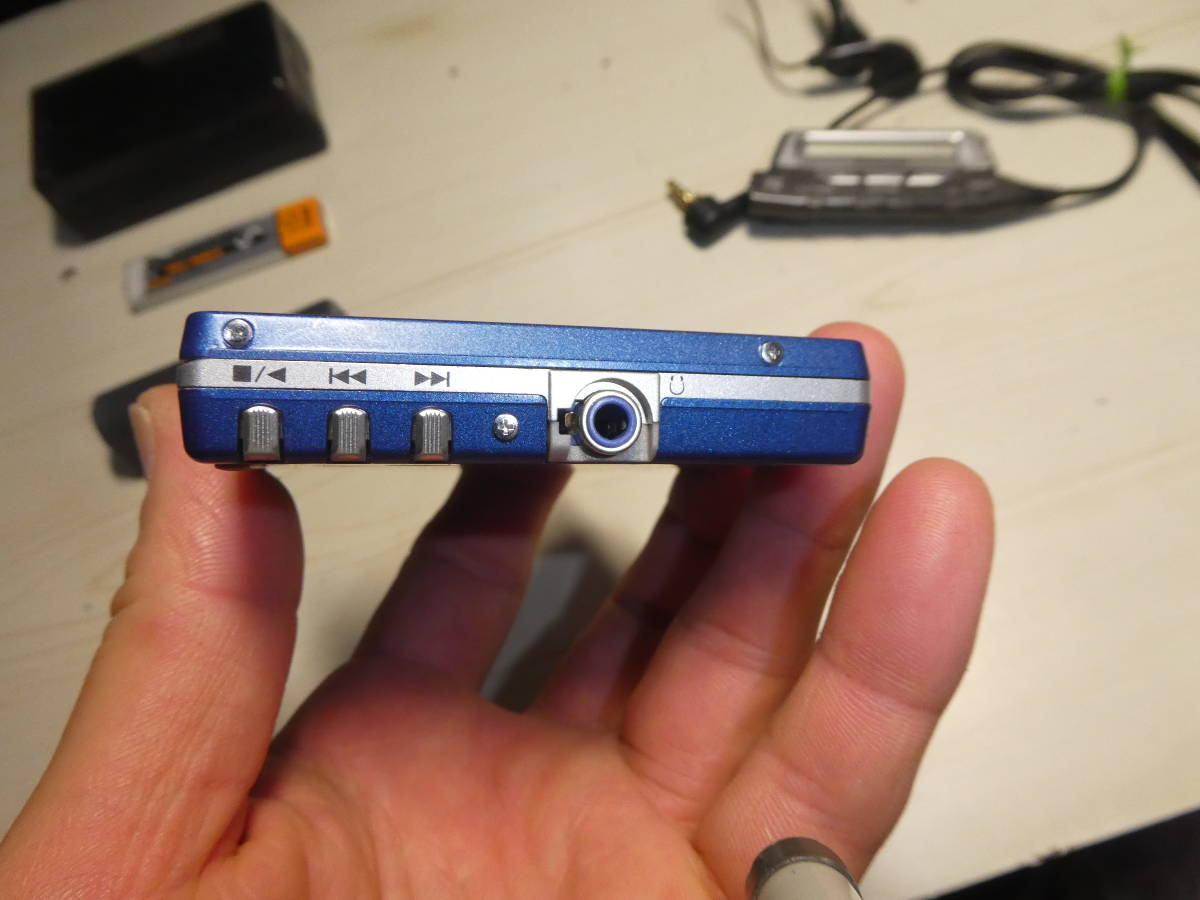

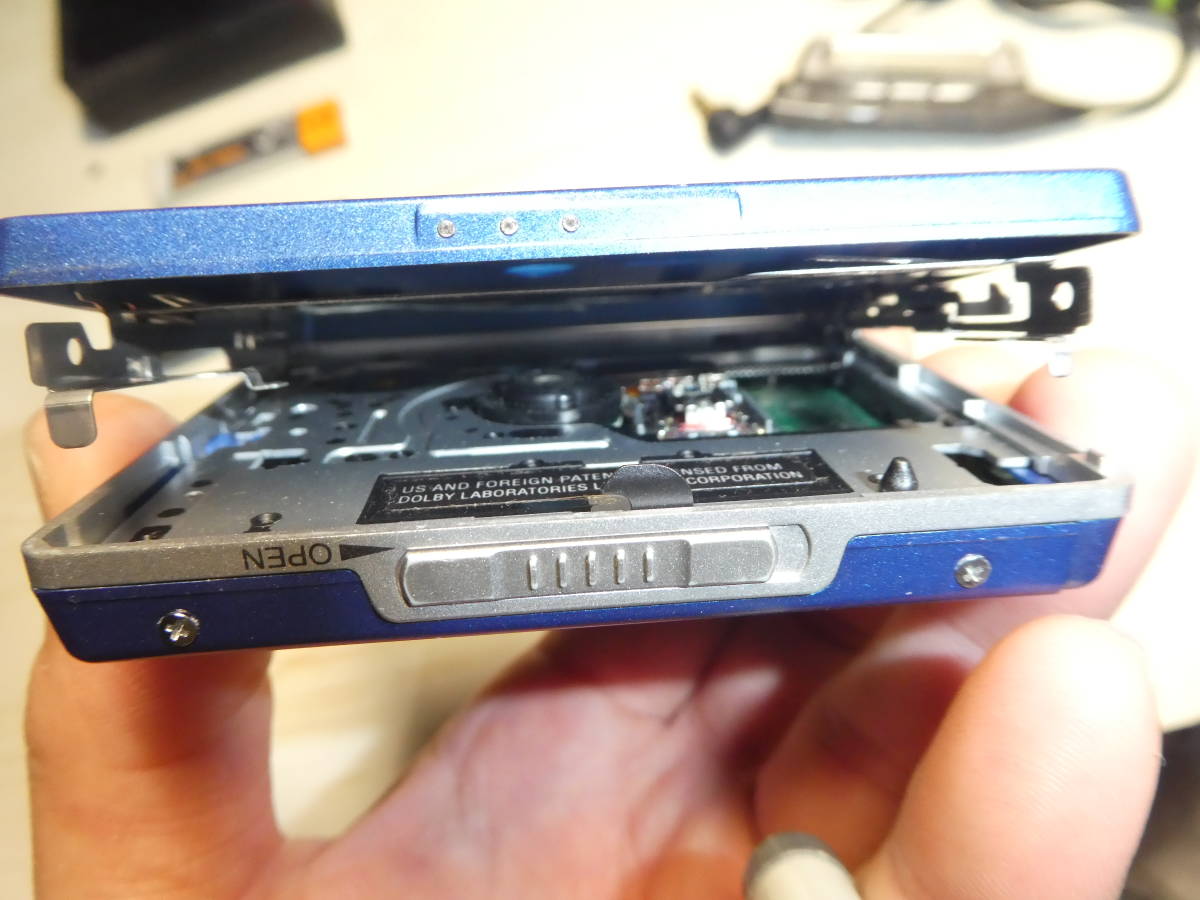

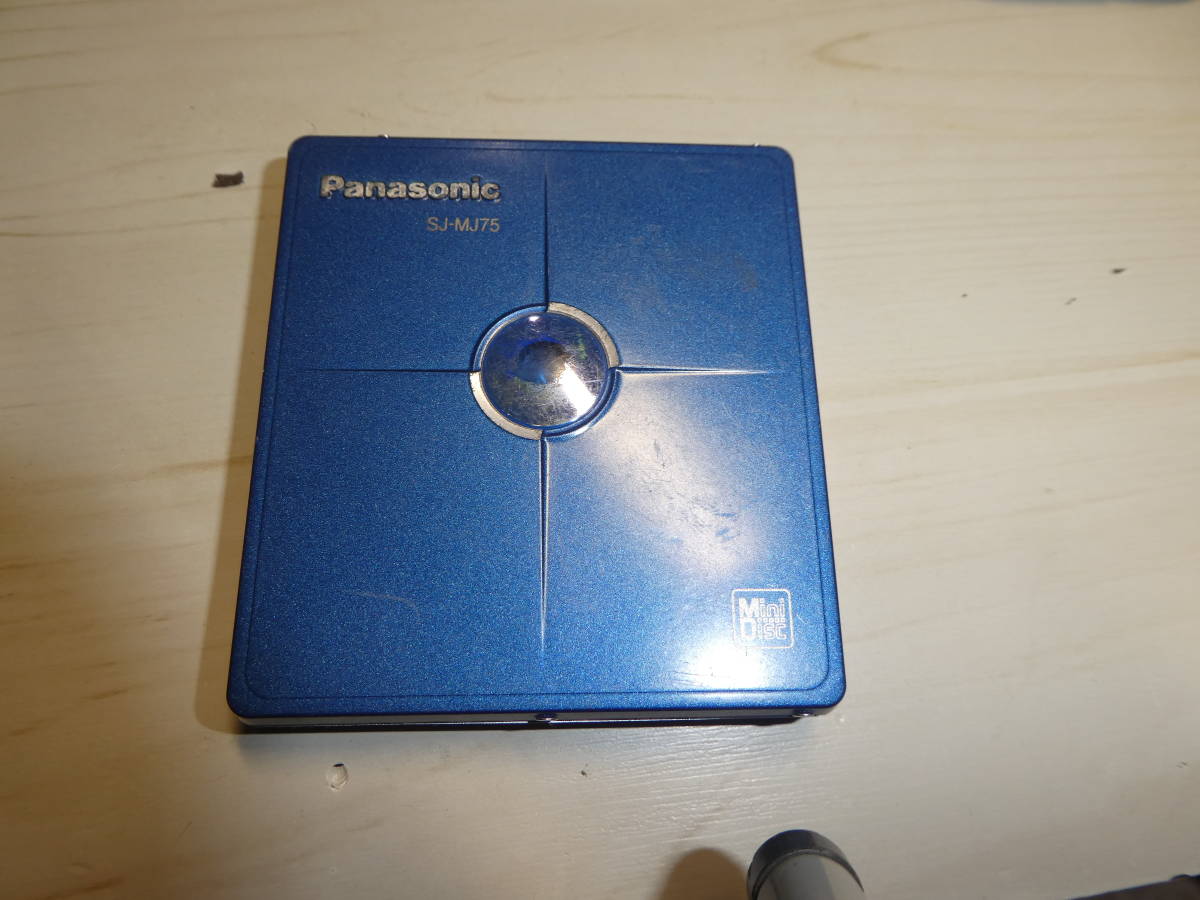

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual, Service manual
RegionJapan
