Panasonic SJ-MR200

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
Panasonic
Model / source grouping
SJ-MR200
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Related guides & software

Source links; check each guide’s applicability.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-MR200”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Panasonic SJ-MR200


Name SJ-MR200
Manufacturer Panasonic
Released 2000/08
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 78.2x71.6x16.8mm
Weight 94g (120g w/batt)
ATRAC ver Panasonic H.D.E.S
Battery Not recorded "Gumstick"
Battery notes Not recorded

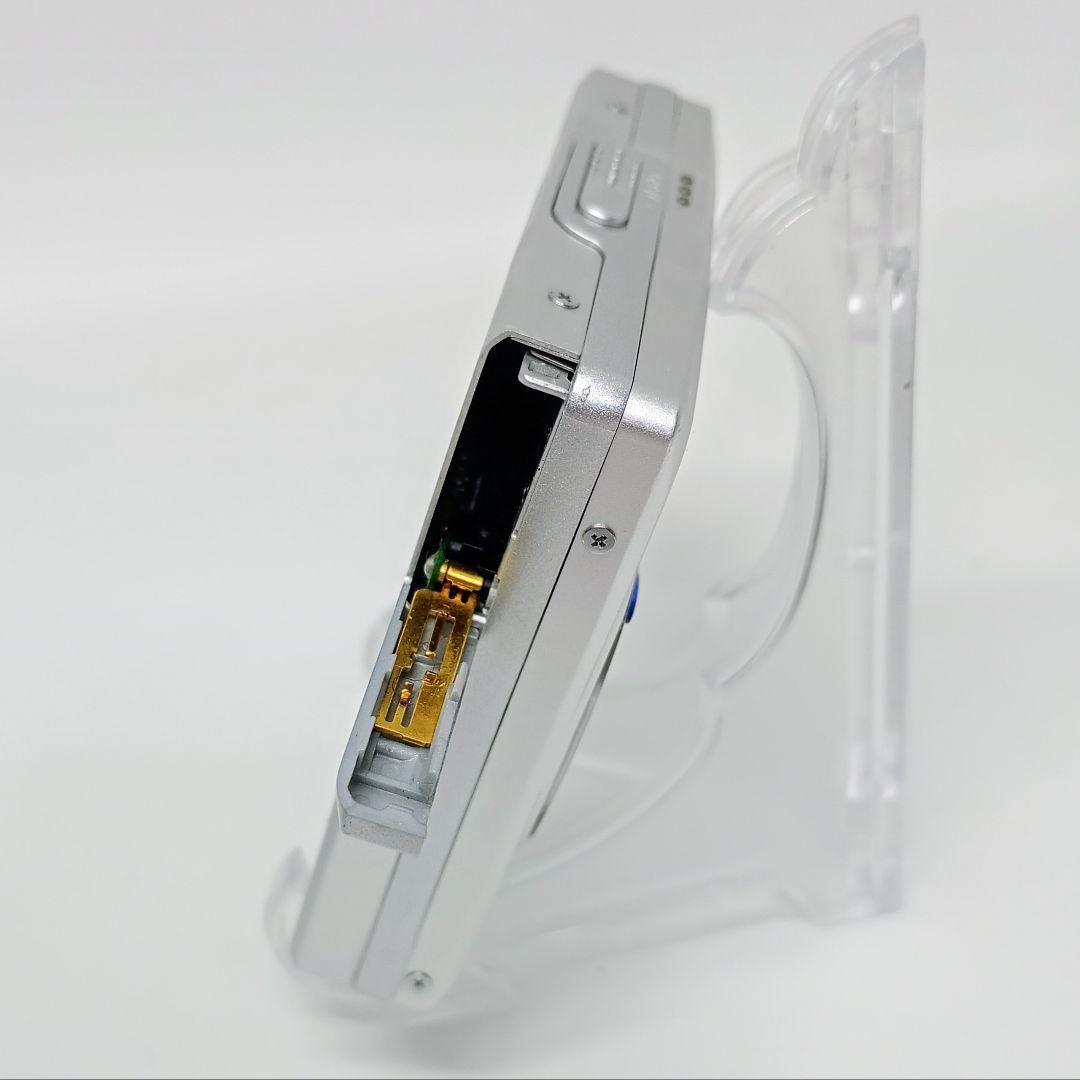

Sidecar (depr) 1xAA

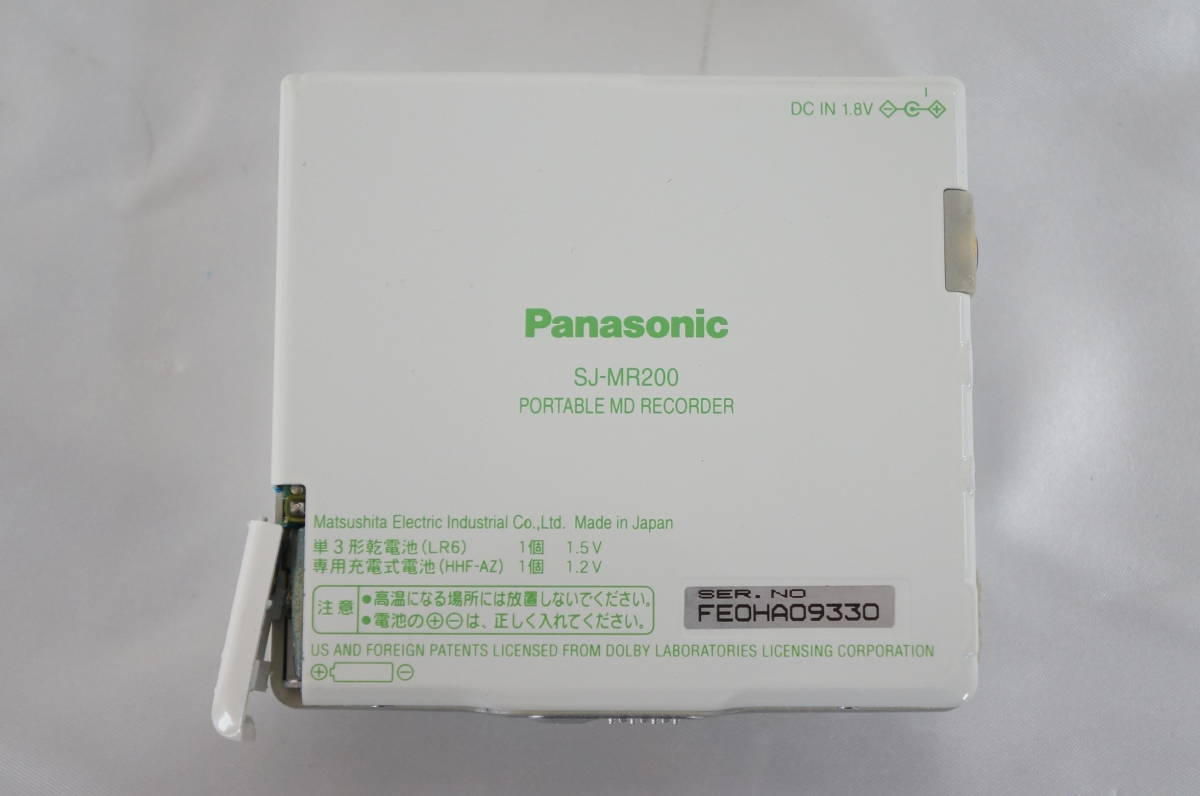

Voltage 1.2, 1.5, 1.8
Power cable Not recorded
Price (launch) Not recorded
¥42 800
-

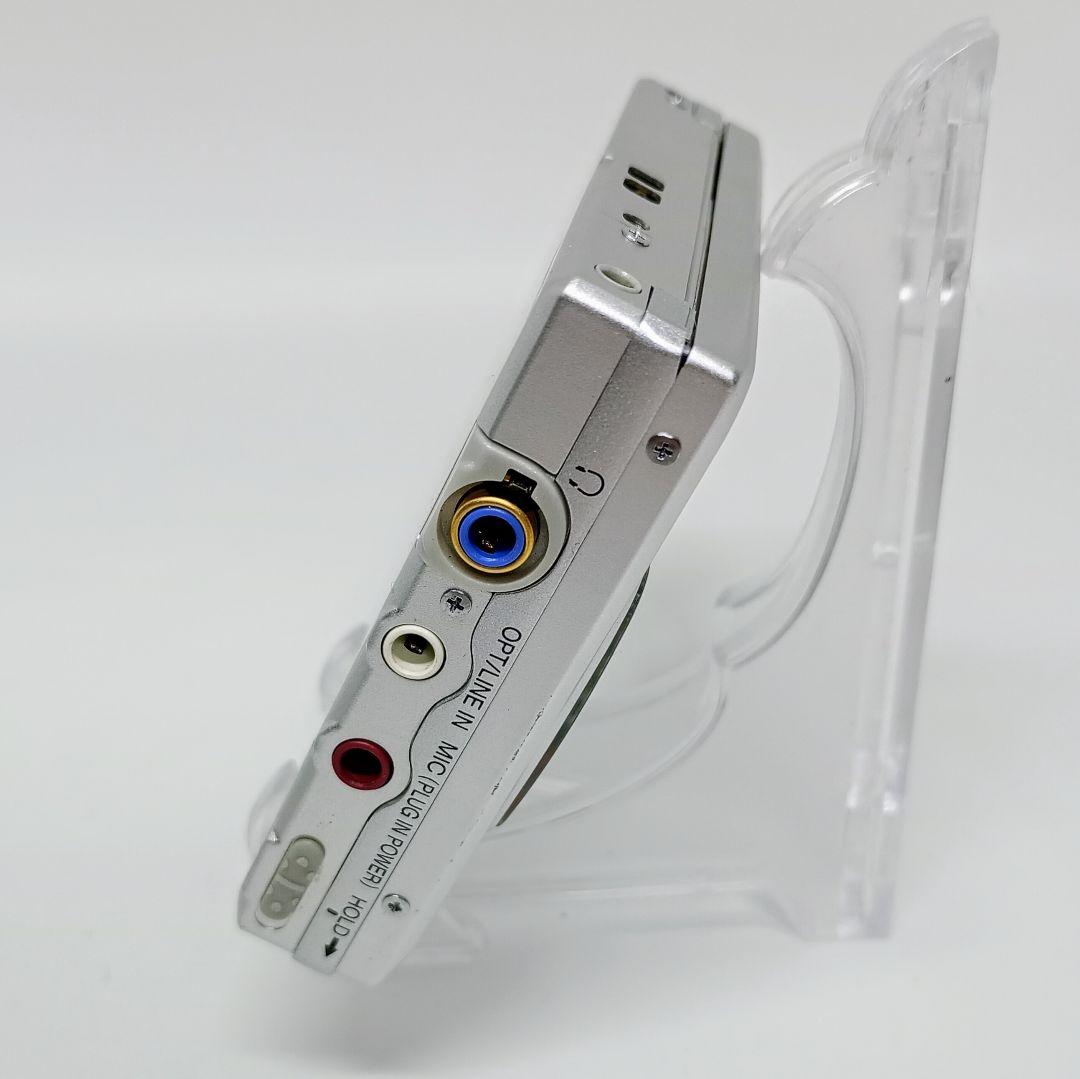

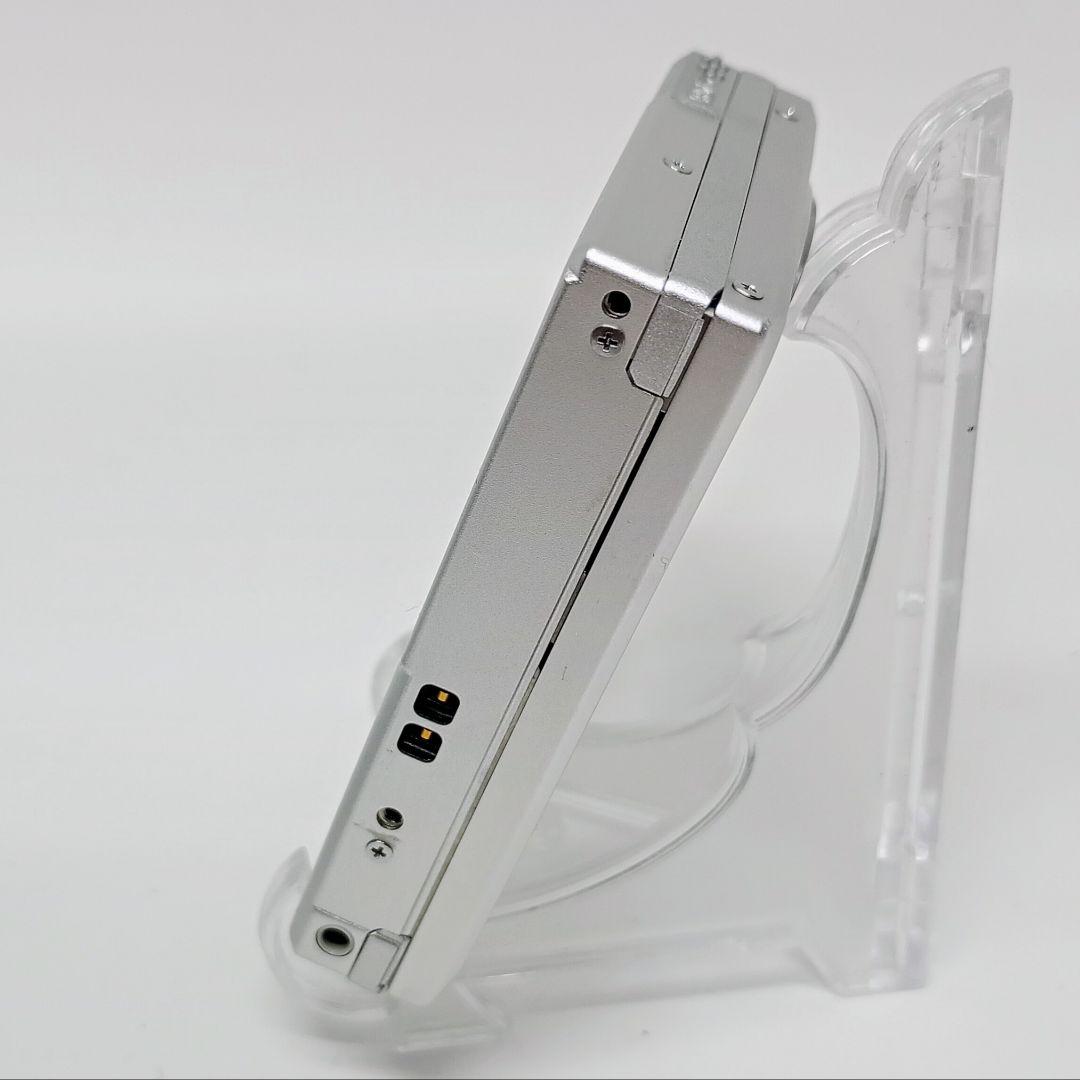

Inputs 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Not recorded

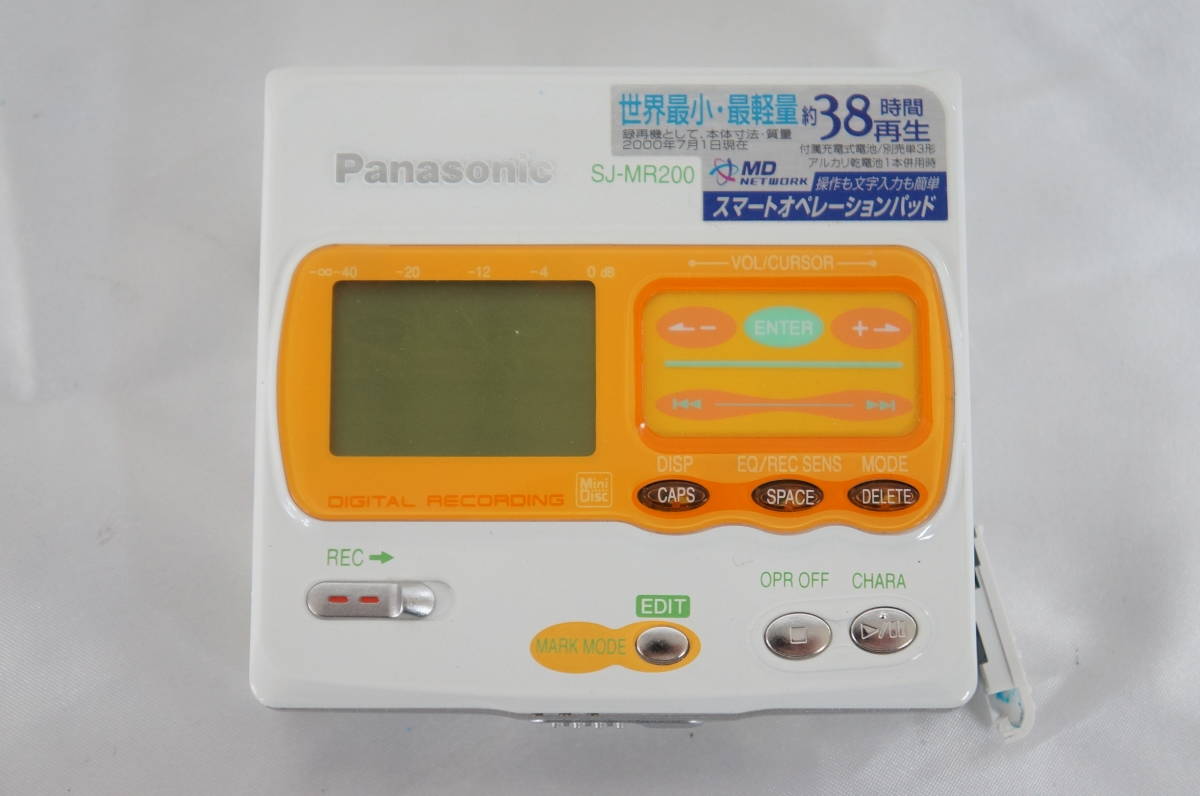

Offered in SJ-MR200-W (White), SJ-MR200-S (Silver), SJ-MR200-A (Blue)

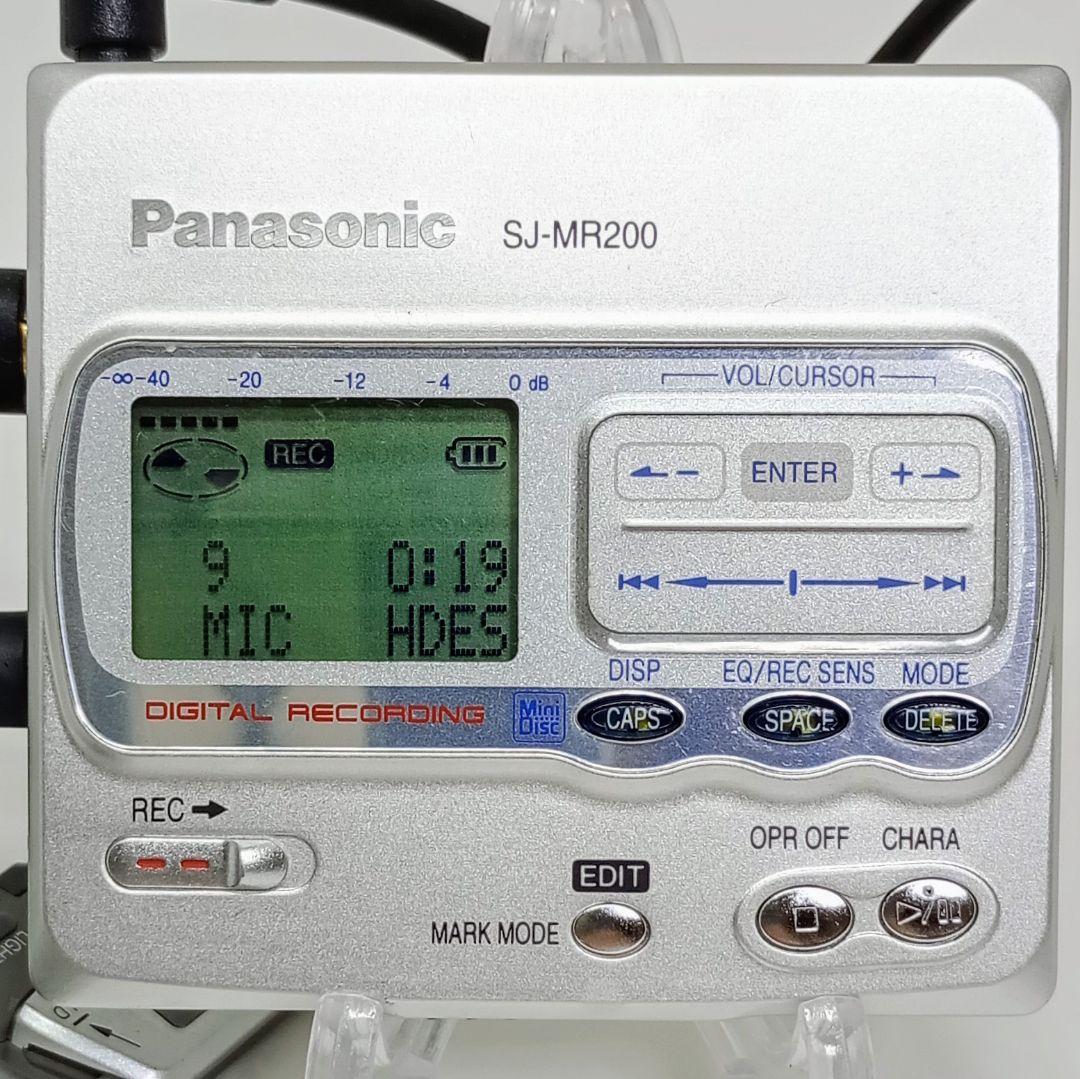

Features: Unit is world's smallest and lightest portable MD recorder (as of July 2000). Divide rehearsal mode in 60ms steps. Compatible with Panasonic's "MD Network" to interface with other audio devices. 40 second anti-skip shock protection, tone quality switch (S-XBS/train position), two line display and "Smart Operation Pad" (provides soft-touch buttonpads for the usual portable MD button functions and for titling). Panasonic's "H.D.E.S" audio compression.

Specs: Headphone amp: 3.5mW+3.5mW at 22 ohms. 20-20kHz +0/-6dB

Uses Panasonic's HDES ATRAC. ATRAC Chip: MN66616RB2

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror)

Manuals

SJ-MR200 User Manual ENG / ESP / SWE / DEU / ITA / FRA / NLD / DAN (scan)

Service manual (minidisc.org)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)

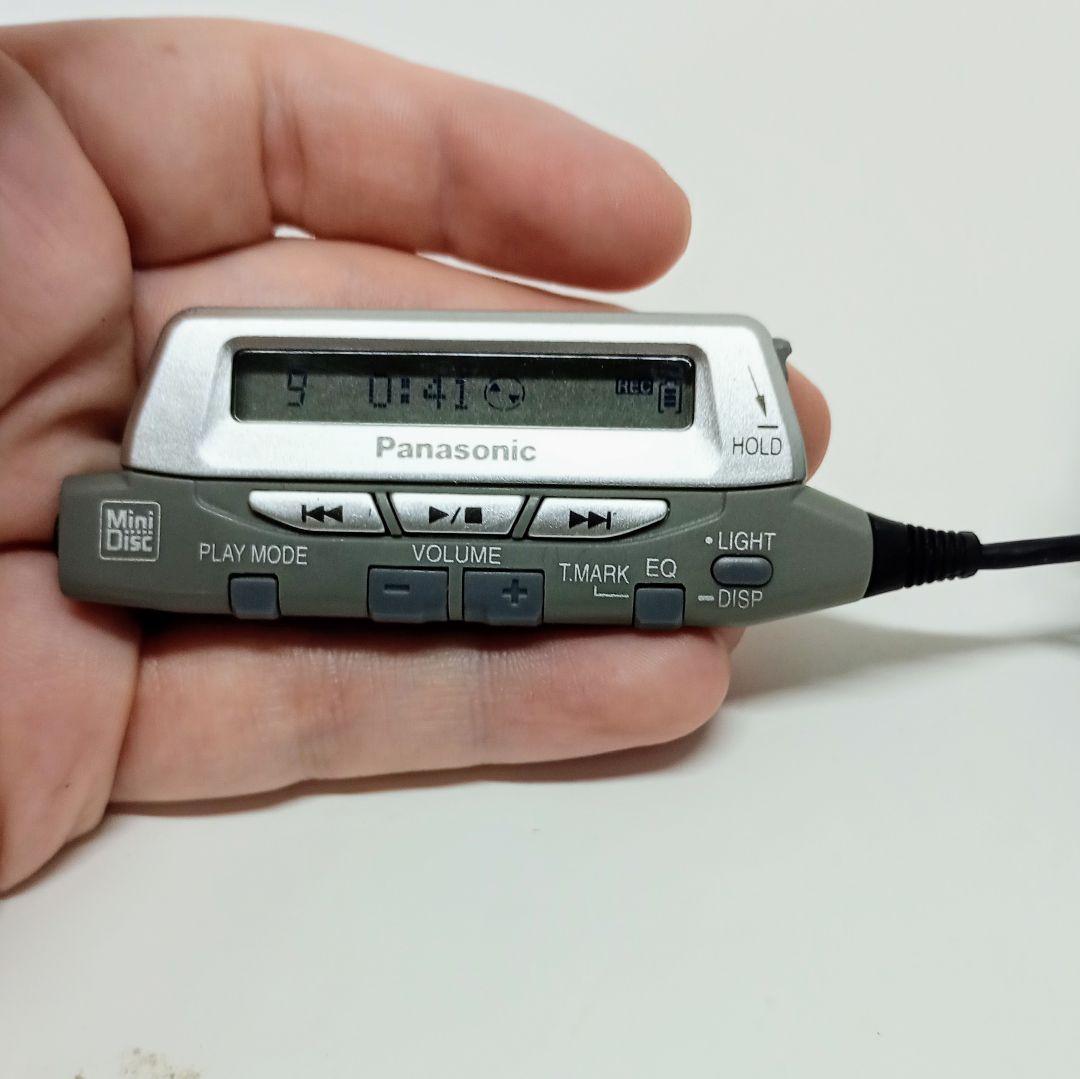

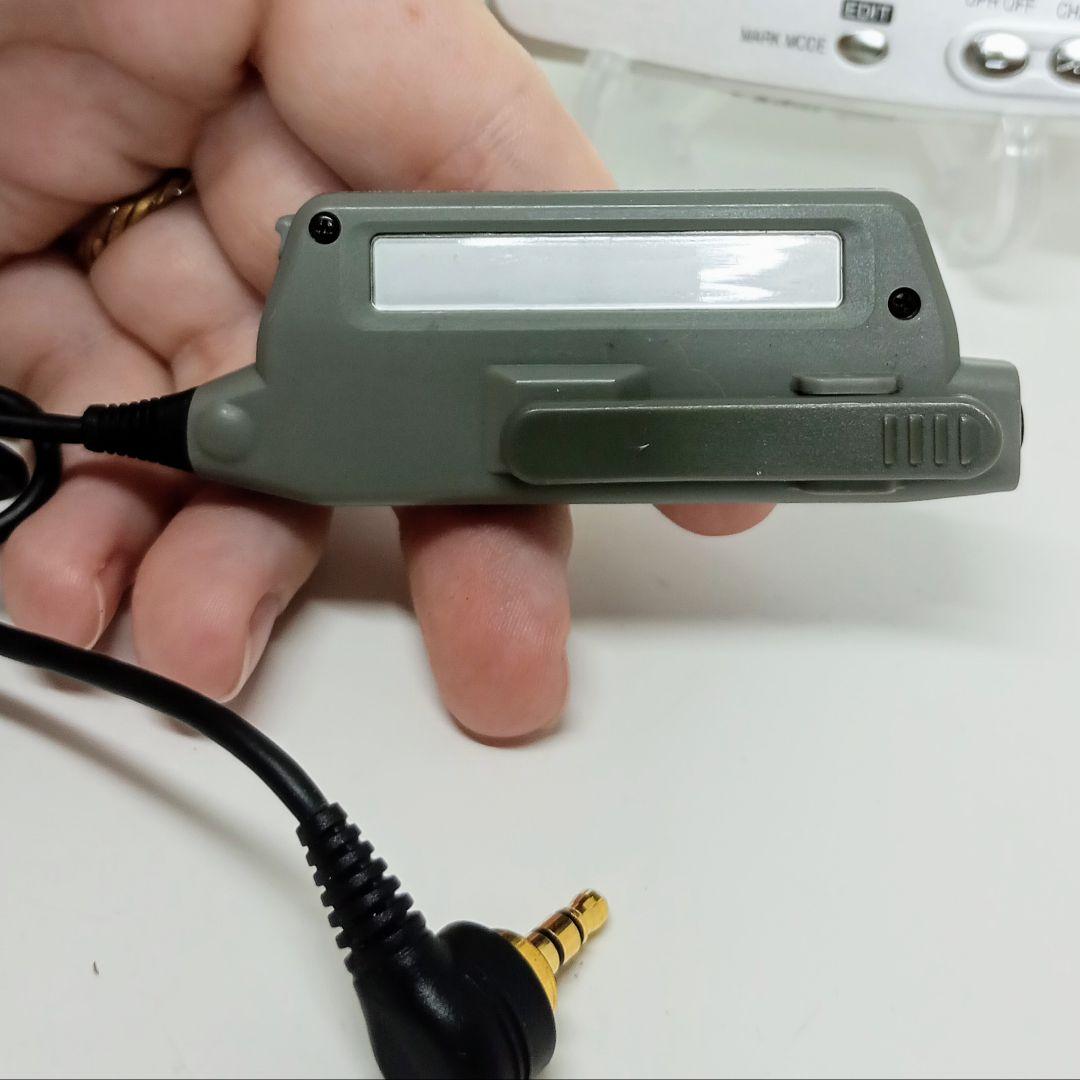

Remote Page
Atrac IcMN66616RB2 (Panasonic)
ManualUser manual, Service manual
RegionJapan
