Device

Panasonic SJ-MR220

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
SJ-MR220
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Related guides & software

Source links; check each guide’s applicability.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-MR220”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

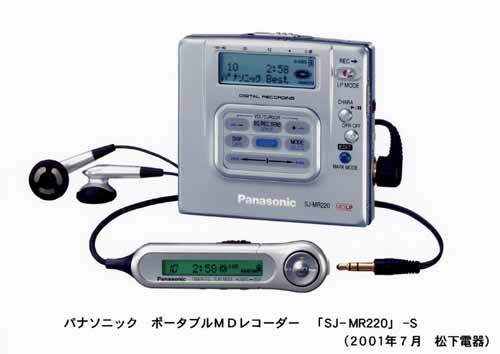

Panasonic SJ-MR220


Name SJ-MR220
Manufacturer Panasonic
Released 2001/07
Device type portable
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 78.2 x 71.6 x 16.0mm
Weight 88g (body only), 115g (w/batt)
ATRAC ver Panasonic H.D.E.S
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 1.2, 1.5, 1.8
Power cable Not recorded
Price (launch) Not recorded
¥33 000
-
Inputs 3.5mm line in (optical multi)
Outputs 3.5mm headphone
Control Not recorded

Available in SJ-MR220-S (Silver), SJ-MR220-A (Blue), SJ-MR220-W (White)

Features: Portable MDLP recorder. World's smallest, thinnest and lightest as of 6/2001. "Smart operation pad" (touchpad) for control and titling functions. First recorder with group function support. Divide rehearsal mode in 60ms steps. Backlit remote. 12 character 2 line display on main unit. "One time record" function pauses unit after recording one CD track. Titling possible during playback. Auto-time-mark places track marks every 3, 5 or 10 minutes. Panasonic's "H.D.E.S" audio compression. Apparently has two fixed recording levels: "high" and "low" (or perhaps AGC, with two sensitivity settings). Available in silver, blue and white

Included Accessories: LCD remote, stereo "inside phones", AC adapter, gum-pack NiMH rechargeable cell, AA Alkaline cell external case, rechargeable cell case, carrying pouch

Specs: Headphone amp: 3.5mW+3.5mW, Frequency response: 20-20kHz (+0/-8(!)dB)

Open price but expected street price of 33,000 yen

Content adapted from: Minidisc.org Page Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Page 2 Page 2 (MiniDisc Wiki mirror) Page 3 Page 3 (MiniDisc Wiki mirror) phileweb.com Av.watch

Manuals

User manual

User manual (Japanese)

Service manual (minidisc.org)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual, Service manual
RegionJapan
