Panasonic SJ-MR270

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
SJ-MR270
Device type
portable
MDLP modes
Yes
NetMD interface
Yes
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Related guides & software

Source links; check each guide’s applicability.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-MR270”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SJ-MR270
Manufacturer Panasonic
Released 2004/02
Device type portable
Recorder Recorder
MDLP Yes
NetMD Yes
Hi-MD No
Radio No
Dimensions 77.8 x 74.8 x 13.9mm
Weight 86g (113g w/batt)
ATRAC ver Panasonic H.D.E.S

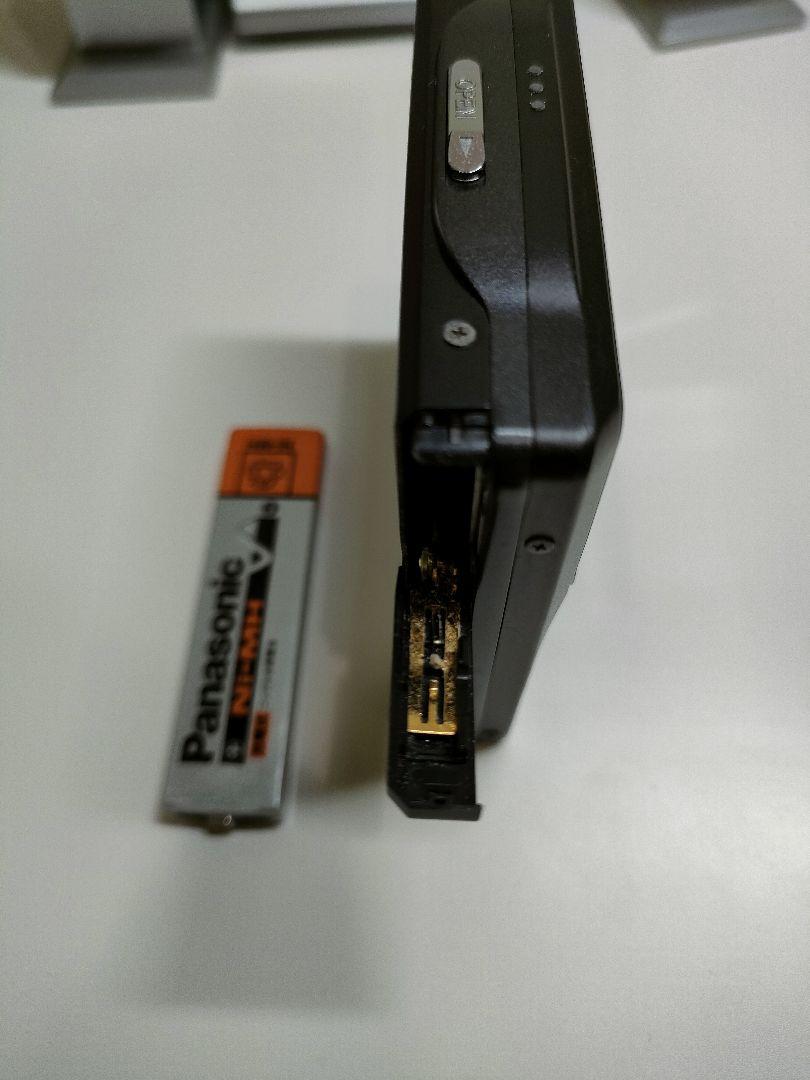

Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 1.2, 1.5, 5
Power cable Not recorded
Price (launch) Not recorded
¥40 000
-

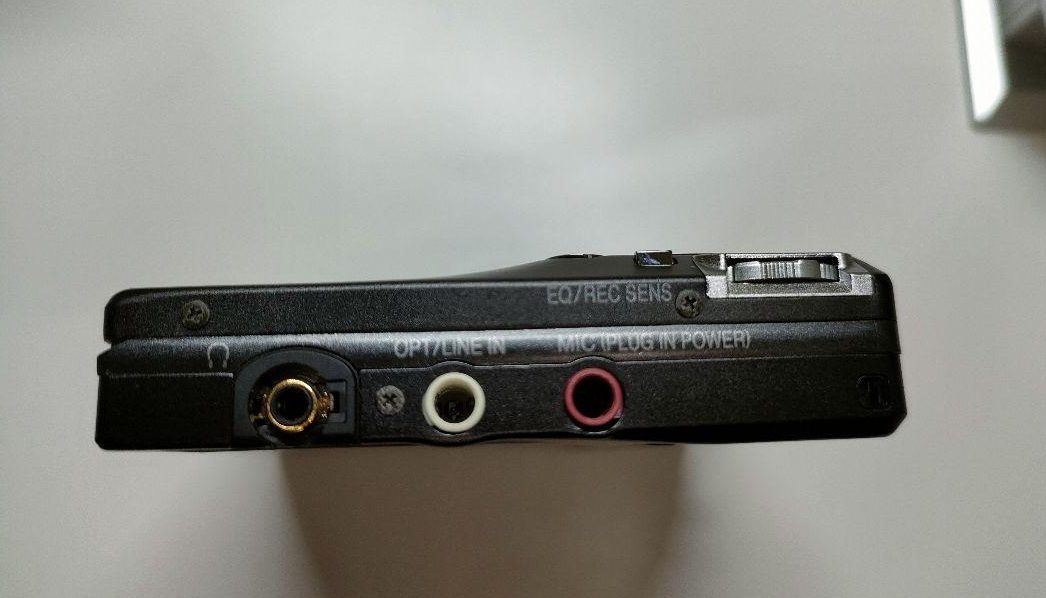

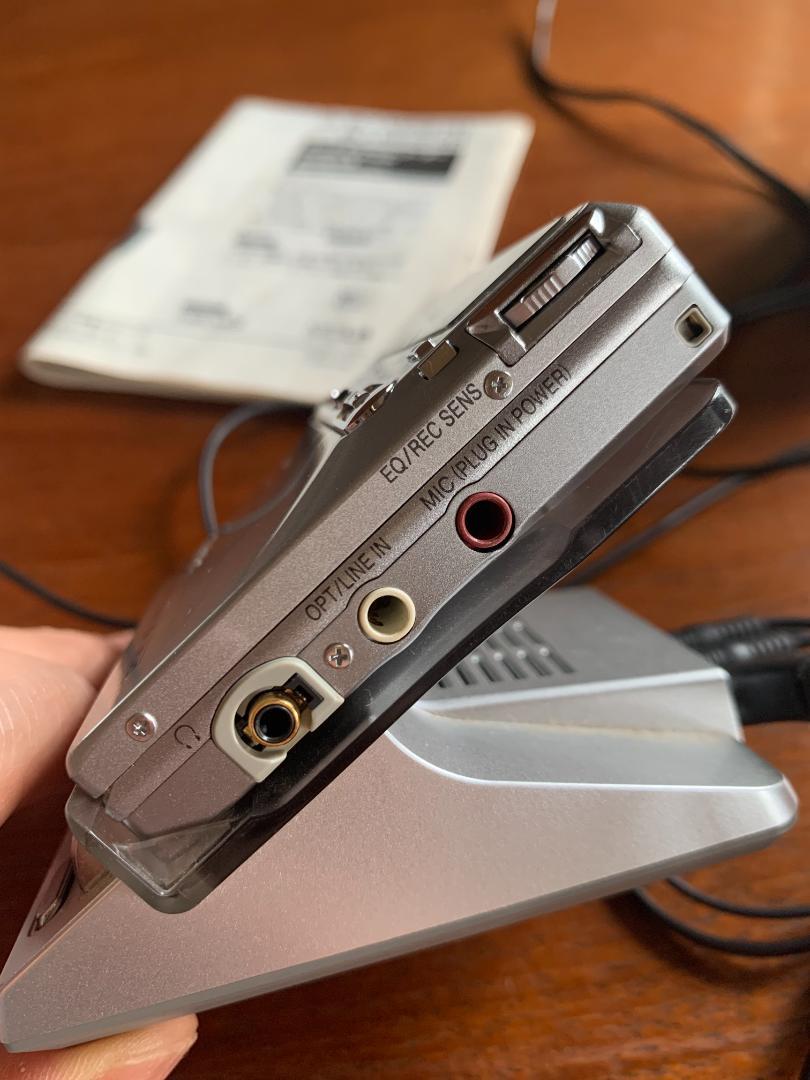

Inputs 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Remote (Panasonic)

Offered in SJ-MR270-S (Silver) and SJ-MR270-K (Black). Open price but rough selling price of 40,000 yen.

Features:

  • NetMD downloading with Beat Jam software.
  • World record breaking 130 hour battery life (as of 1/14/2004).

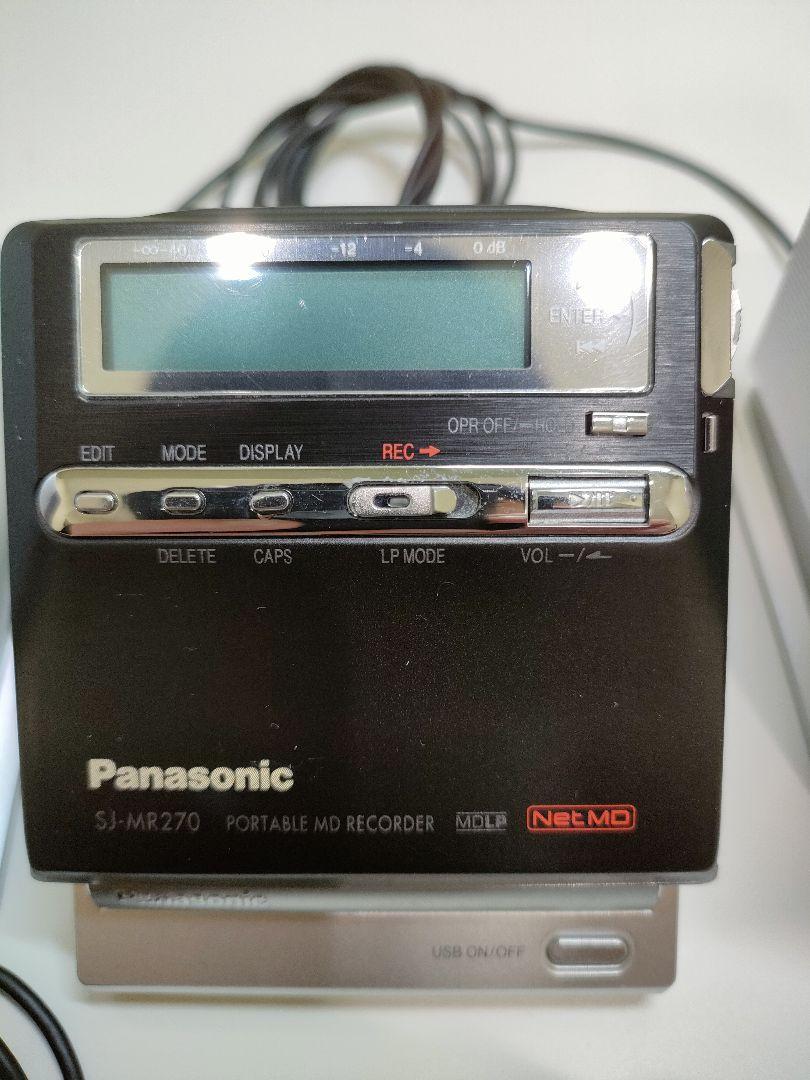

  • Large style 3-Line LCD on main body displays 2 lines of Kanji/Hiragana.

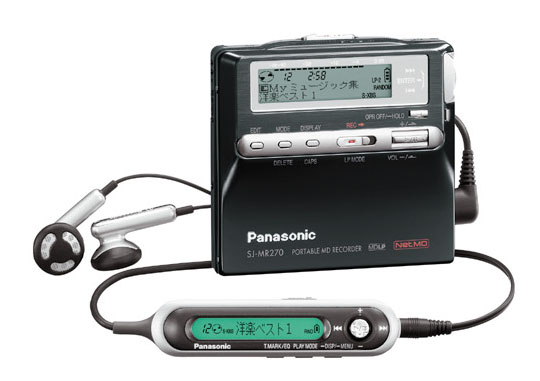

  • Kanji displaying LCD remote with ability to control recording.
  • H.D.E.S. (Panasonic's "special" SP-mode ATRAC tweak)
  • Has a CD 1-track recording mode, enters pause mode after recording one track.
  • Jog dial.
  • X-Bass.

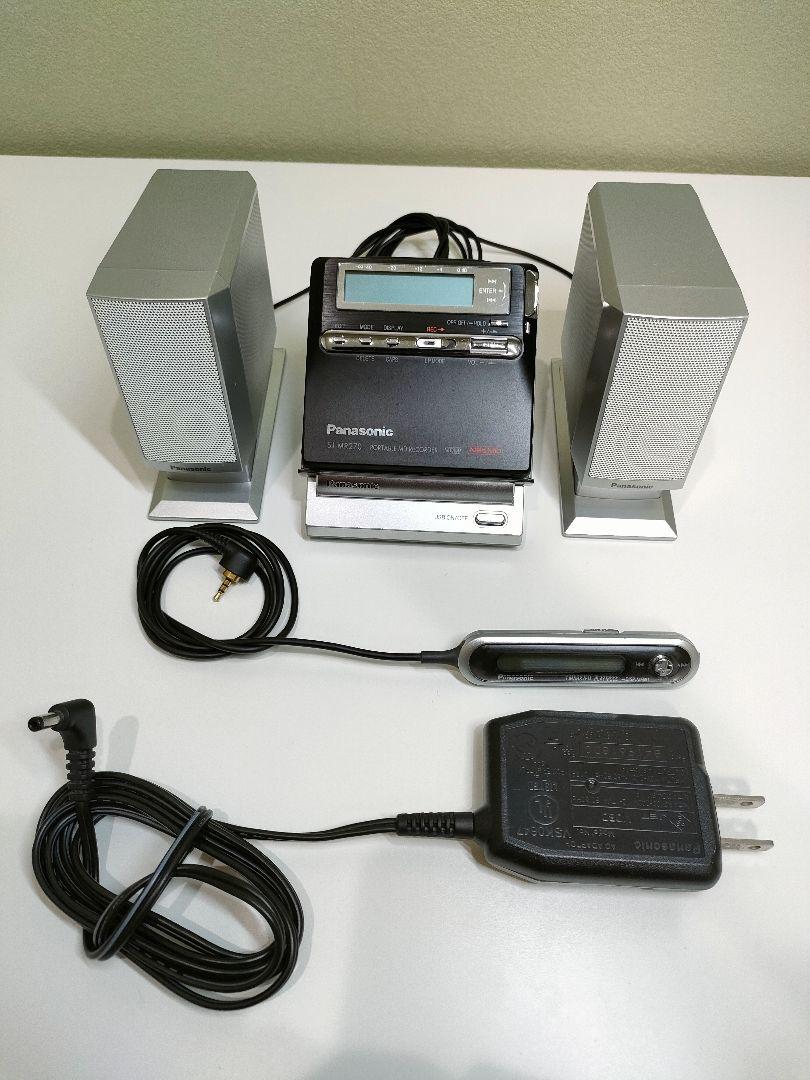

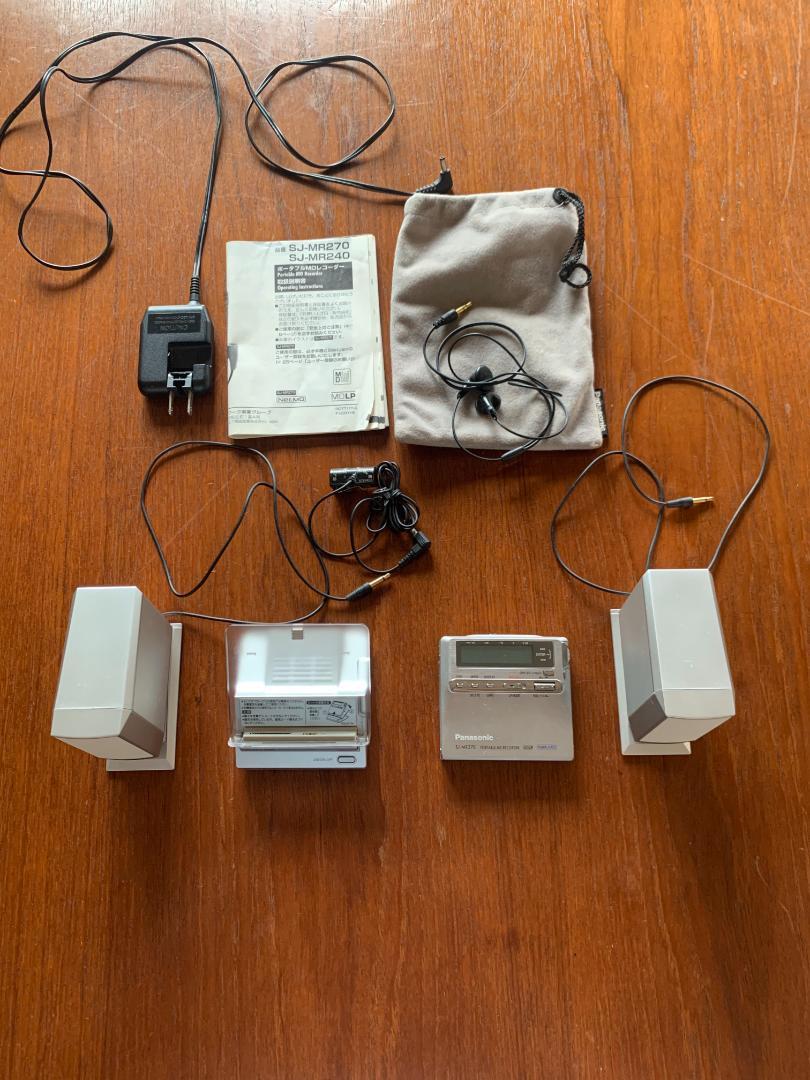

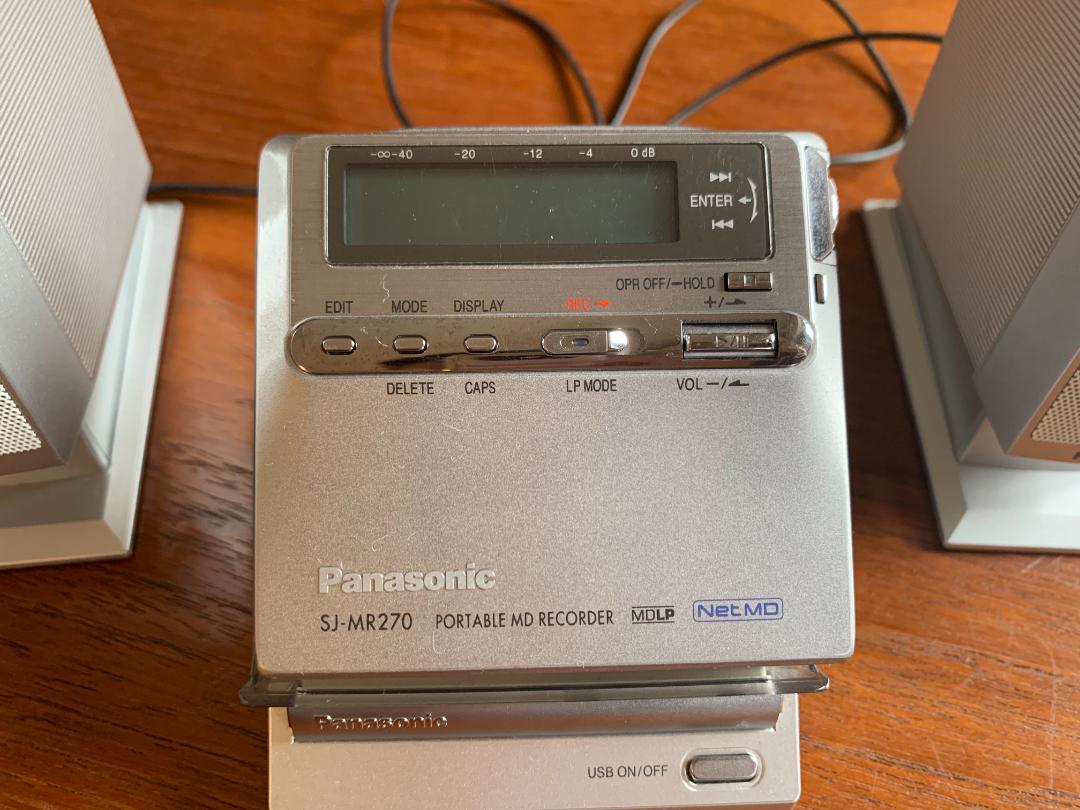

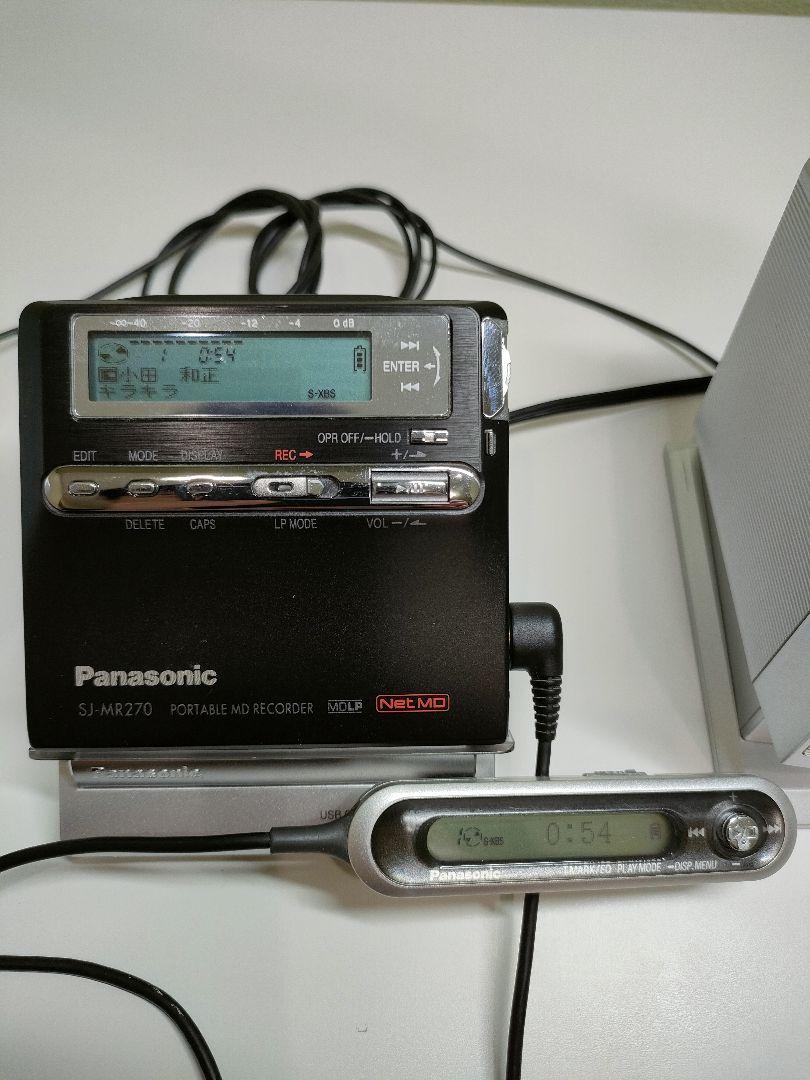

  • Docking cradle with separate speakers.

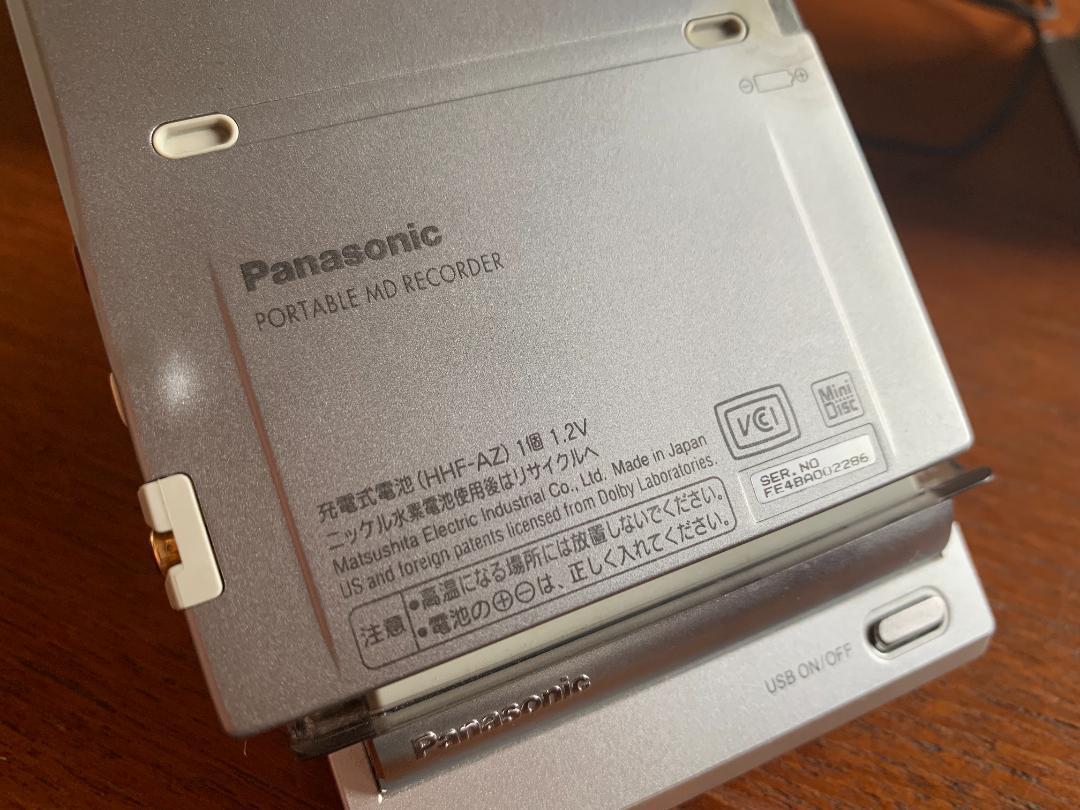

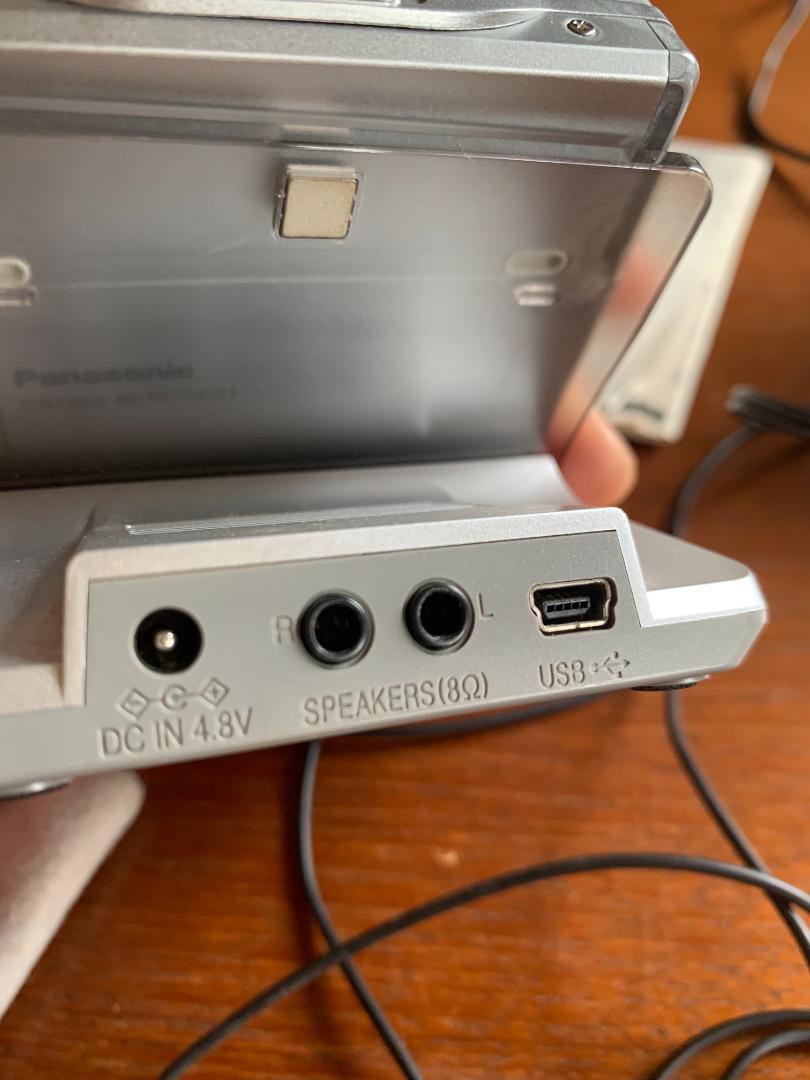

USB Mini-B port is provided via dock.

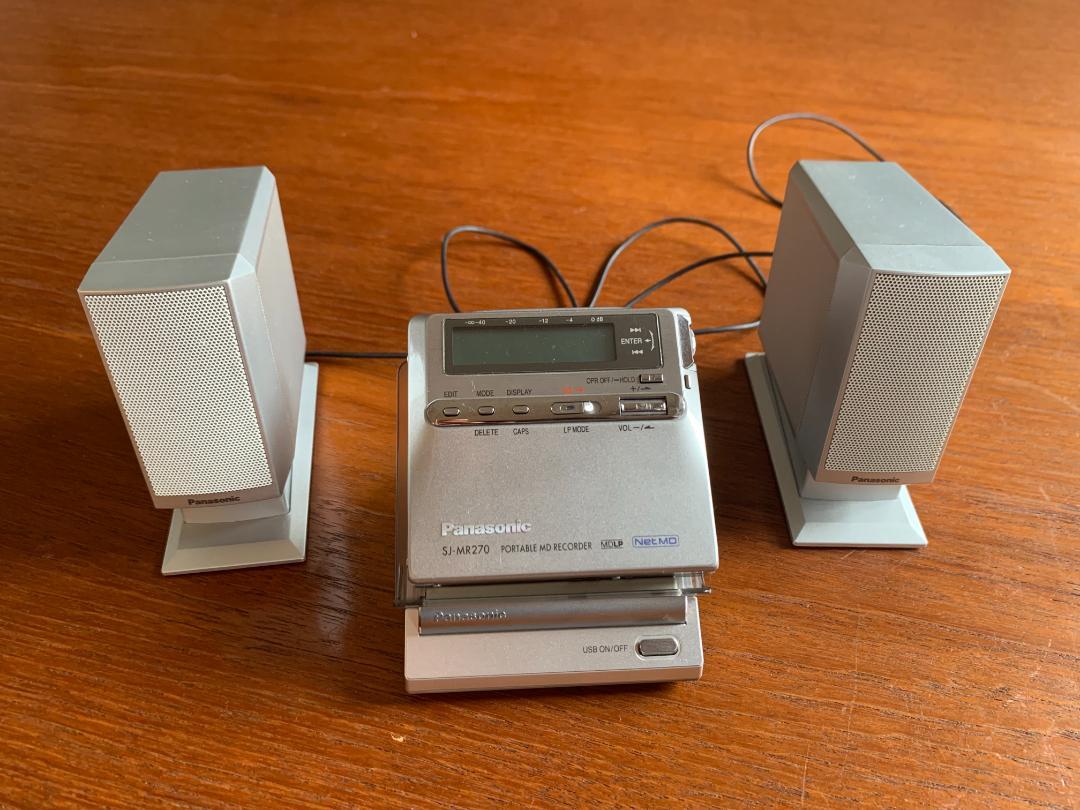

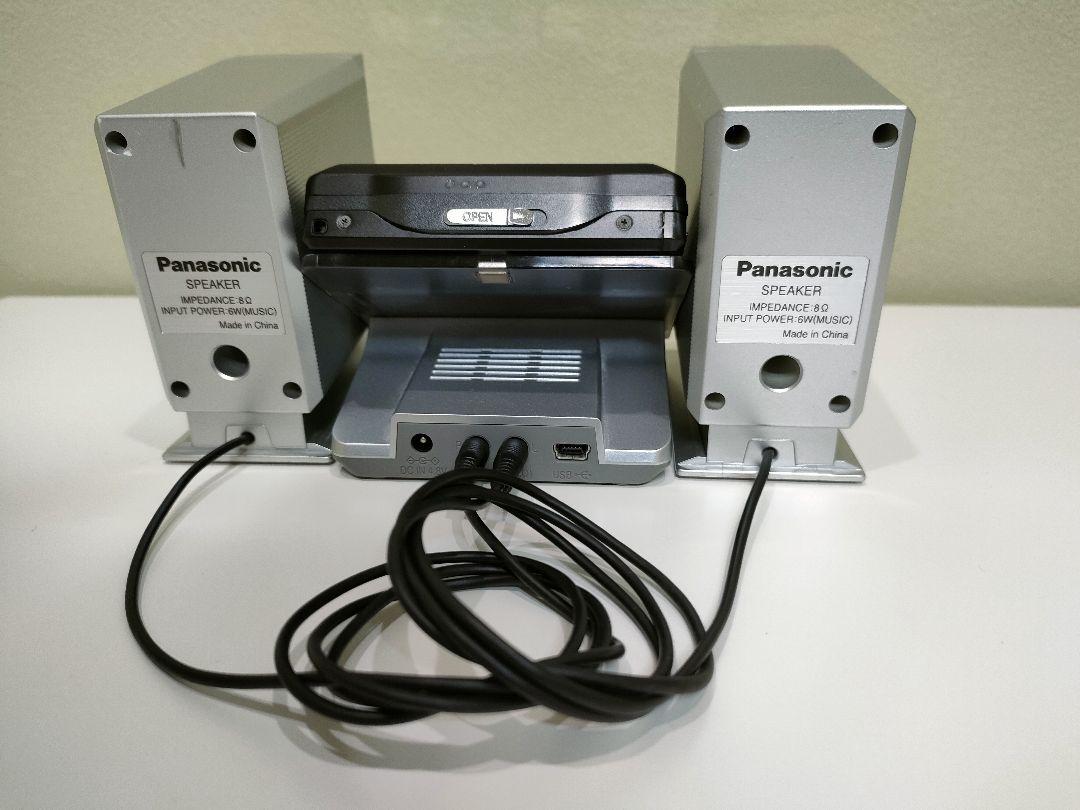

The Multi Cradle comes with a small active stereo speaker. The MR270 also supports USB audio, and the speaker can also be used as a PC speaker. The unit is made of titanium cone, and neodymium magnet is used for the driver. The output of the amplifier is 0.9W x 2ch.

Hiragana/Kanji input is not possible with this machine.

Specs: Headphone amp: 2.8mW+2.8mW, Speaker amp: 900mW+900mW, JEITA, 20-20kHz +0/-6dB. Line in: 33Kohm, Mic in: 600 ohm, Headphone out: 50 ohm

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Panasonic Product Page Panasonic Product Page (MiniDisc Wiki mirror) Minidisc.org page av.watch phileweb.com - Was still for sale in 2007

Manuals

SJ-MR270 User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdSuspected supported
ManualUser manual
RegionJapan
