Panasonic SJ-SW90MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Panasonic
Model / source grouping
SJ-SW90MD
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SJ-SW90MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name SJ-SW90MD
Manufacturer Panasonic
Released 1999/06
Device type portable
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 82.6 x 90.5 x 20.6mm
Weight 118g (143g w/batt)
ATRAC ver Not recorded
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 1.5
Power cable Center positive
Price (launch) Not recorded
¥39 800
-
Inputs N/A
Outputs 3.5mm headphone
Control Remote (Panasonic)

Available in SJ-SW90MD-S (silver) and SJ-SW90MD-K (black). Updated revision of the "Shockwave" series of players (The previous was the SJ-SW9MD. Came with clip on headphones.

Body is made of pure titanium, and is about 15% thinner and 20% lighter than similar devices.

  • "Flat remote control" with glowing liquid crystal (joint phone compatible) with clip
  • 40-second memory vibration resistance to protect sound from shock
  • Comes with a new belt clip that allows you to clip the main unit to your bag or pocket
  • Environmentally friendly lead-free solder is used for the printed circuit board of the main unit.
  • Sound quality switching (VMSS1/VMSS2/Train position)
  • Strap attachment hole for attaching a mobile phone strap, etc.
  • Battery level display (remote controller)
  • Uses a headphone cord that is hard to tangle
  • All song repeat / 1 song repeat / random play supported
  • Supports monaural long playback mode

Content adapted from: Panasonic Press Release Panasonic Press Release (MiniDisc Wiki mirror) Spec Page Spec Page (MiniDisc Wiki mirror) Minidisc.org Page, MD543 page

Manuals

User manual (Japanese)

Repair

(repair links go here)

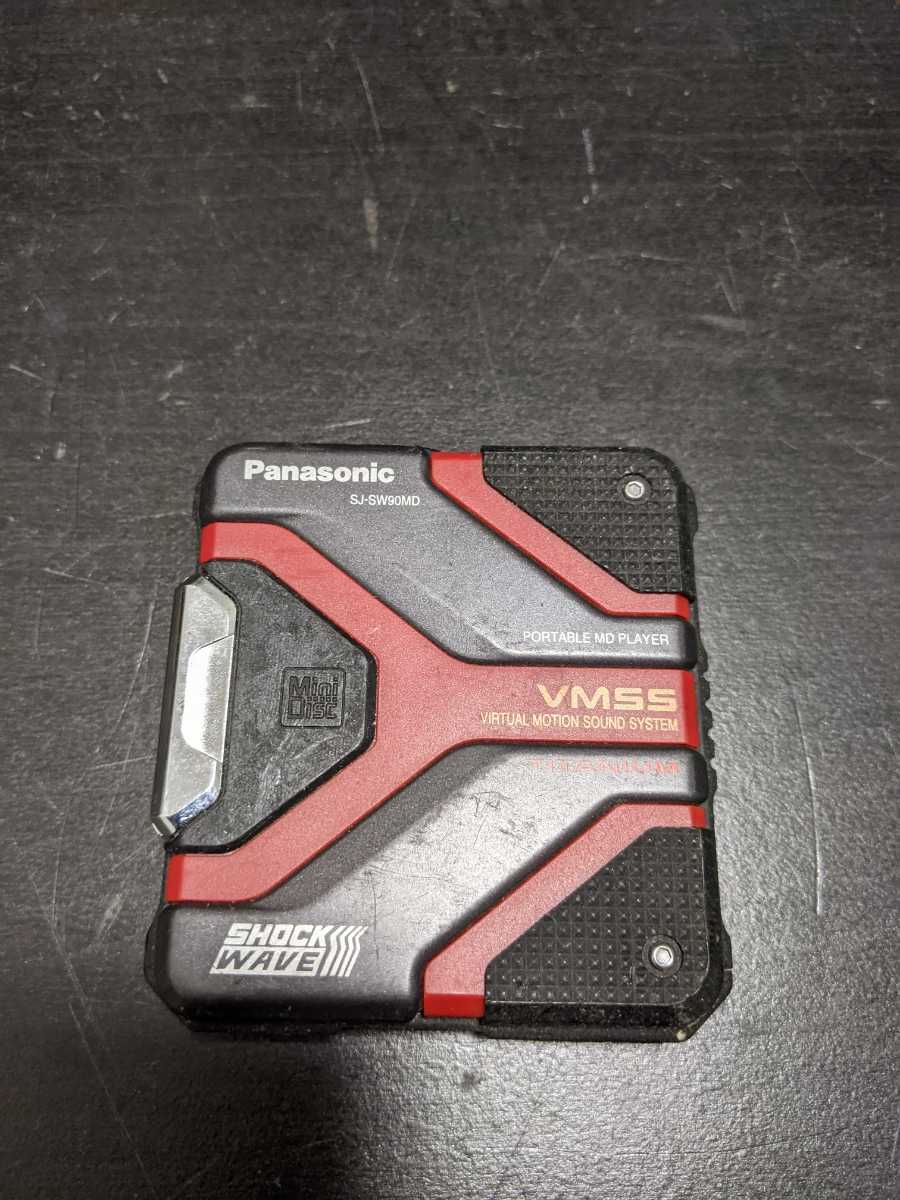

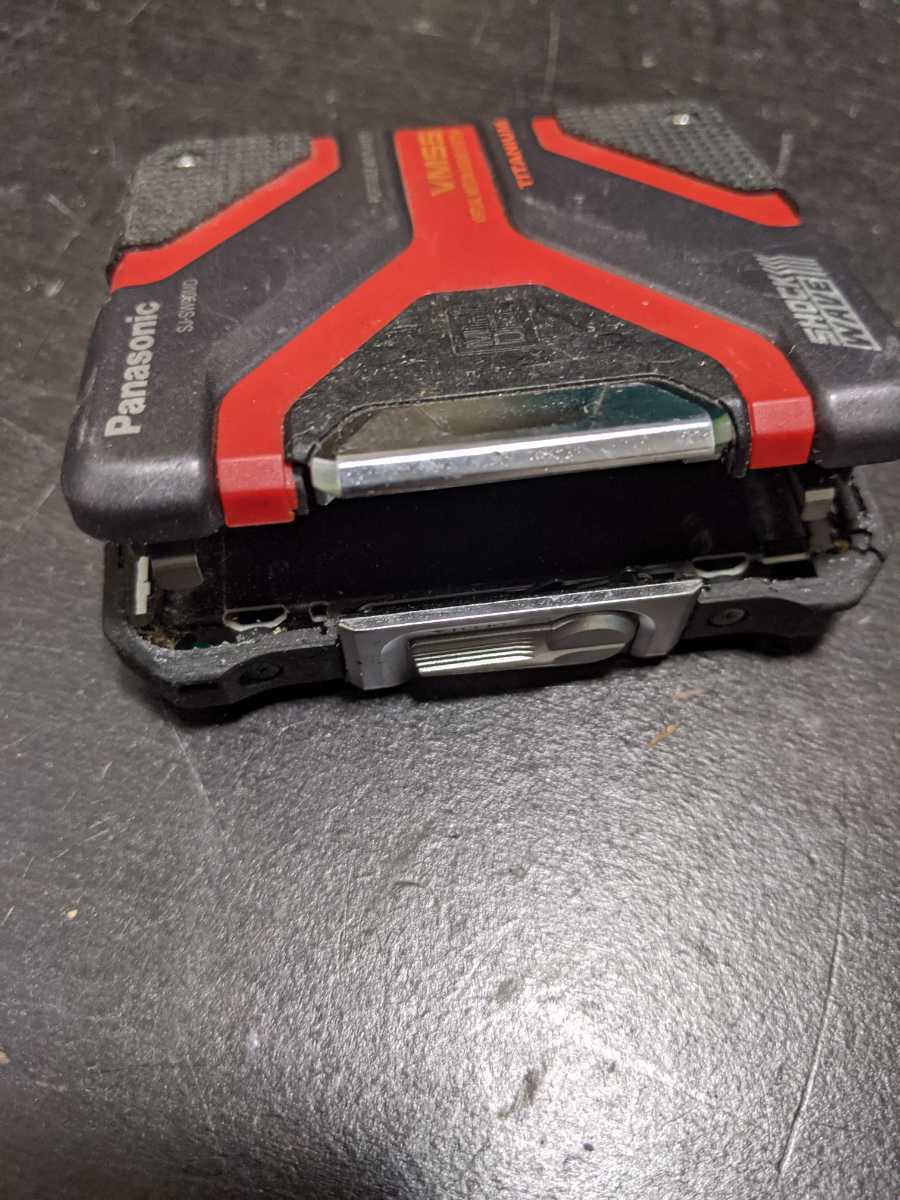

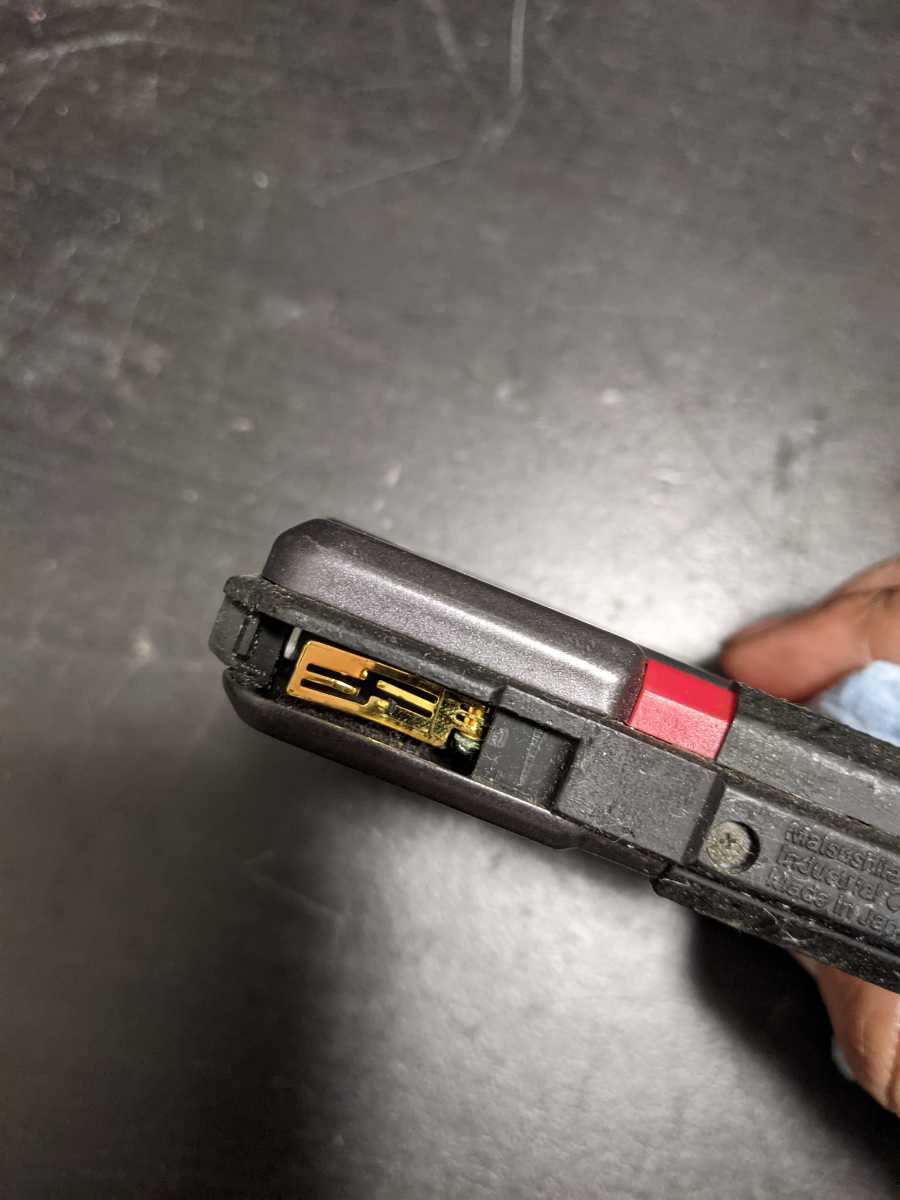

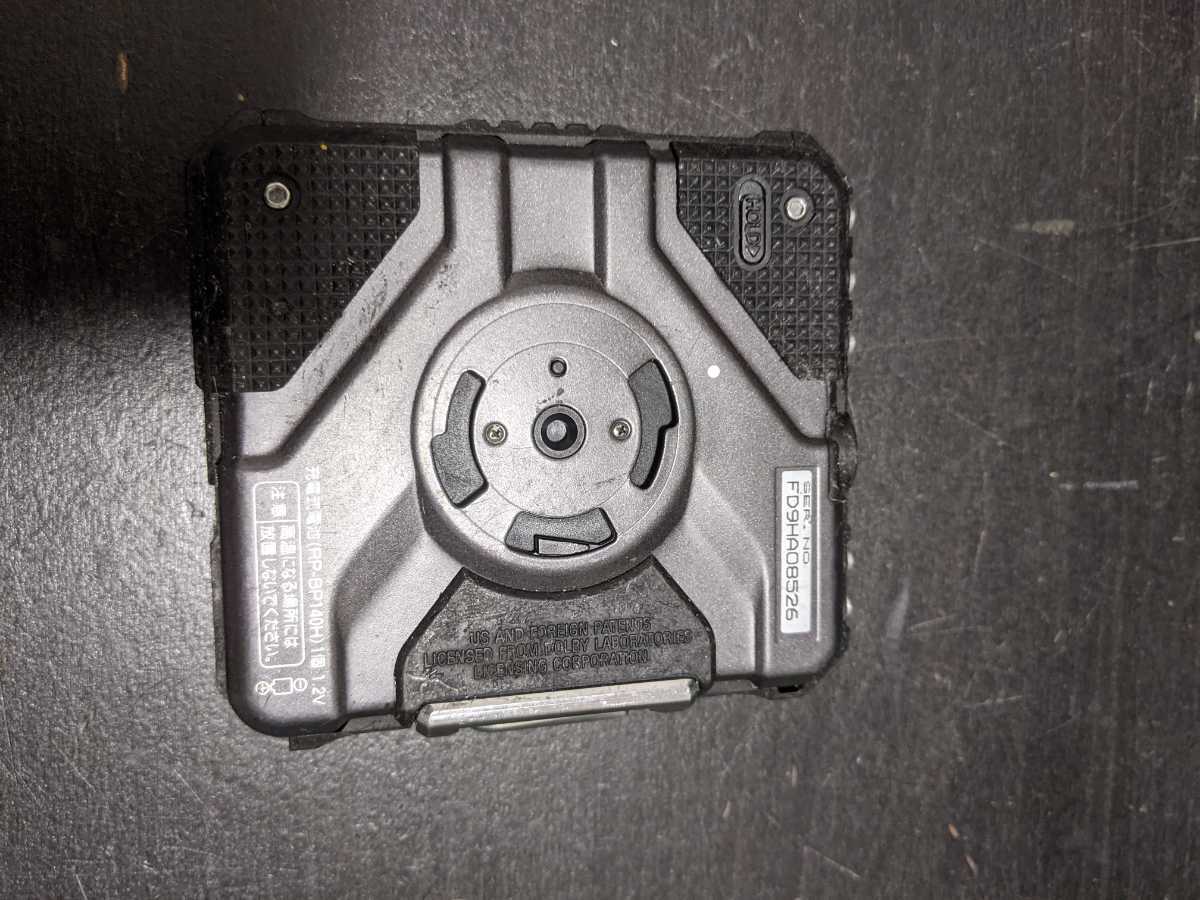

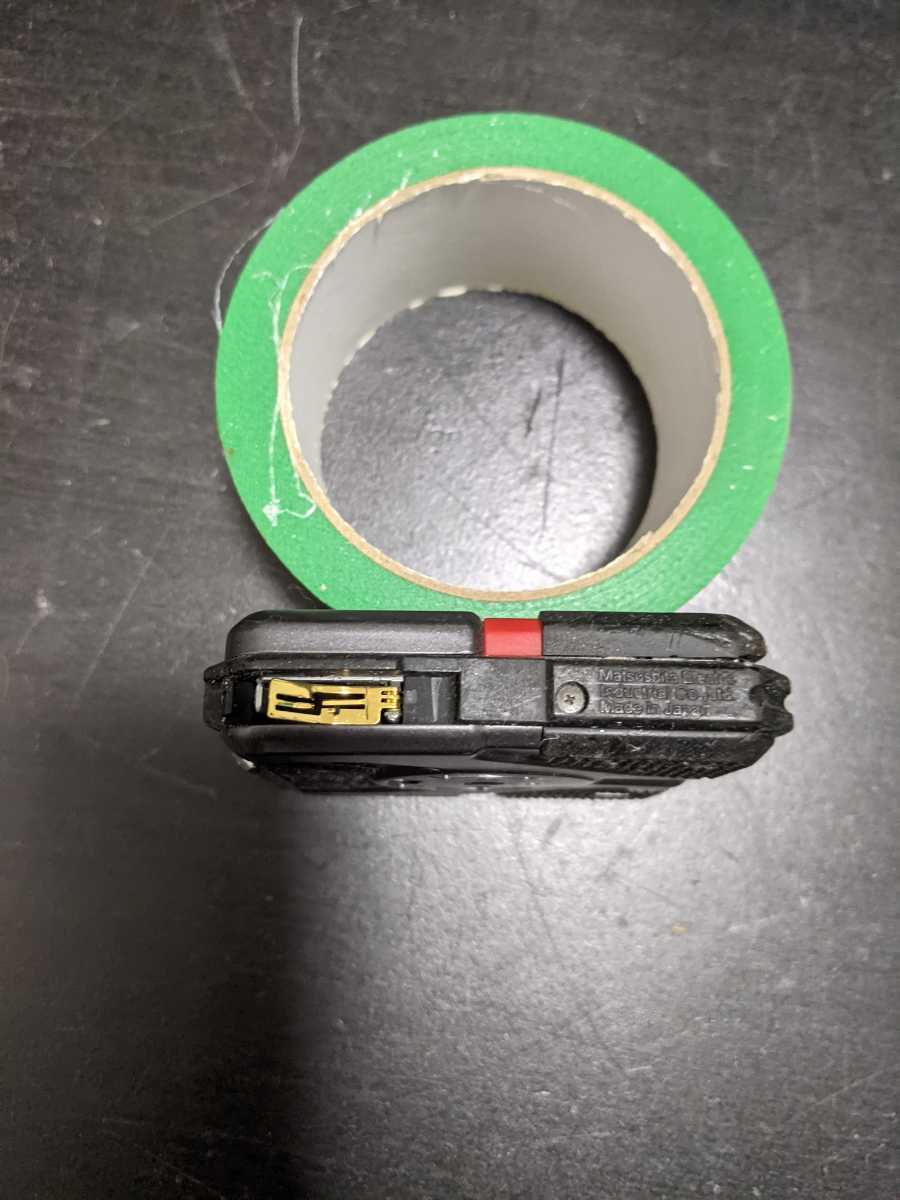

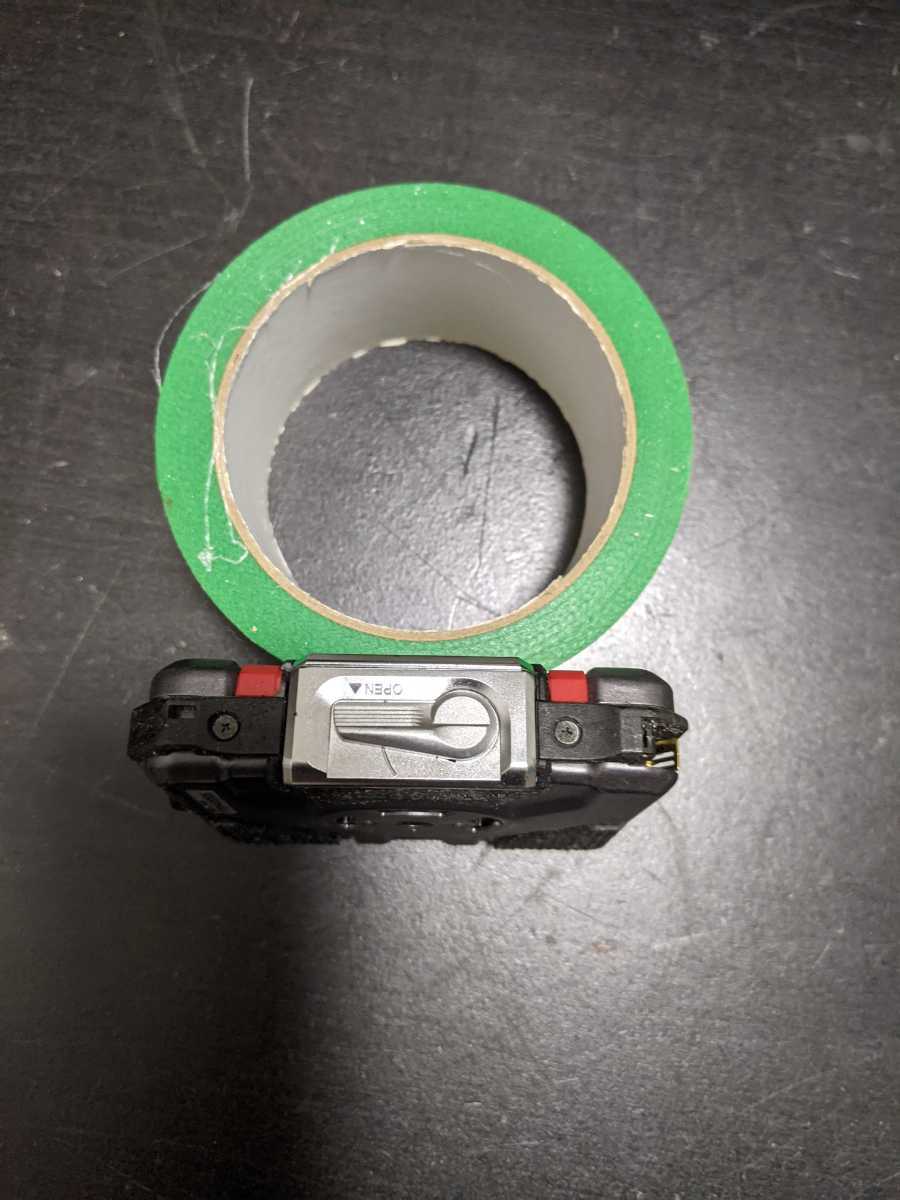

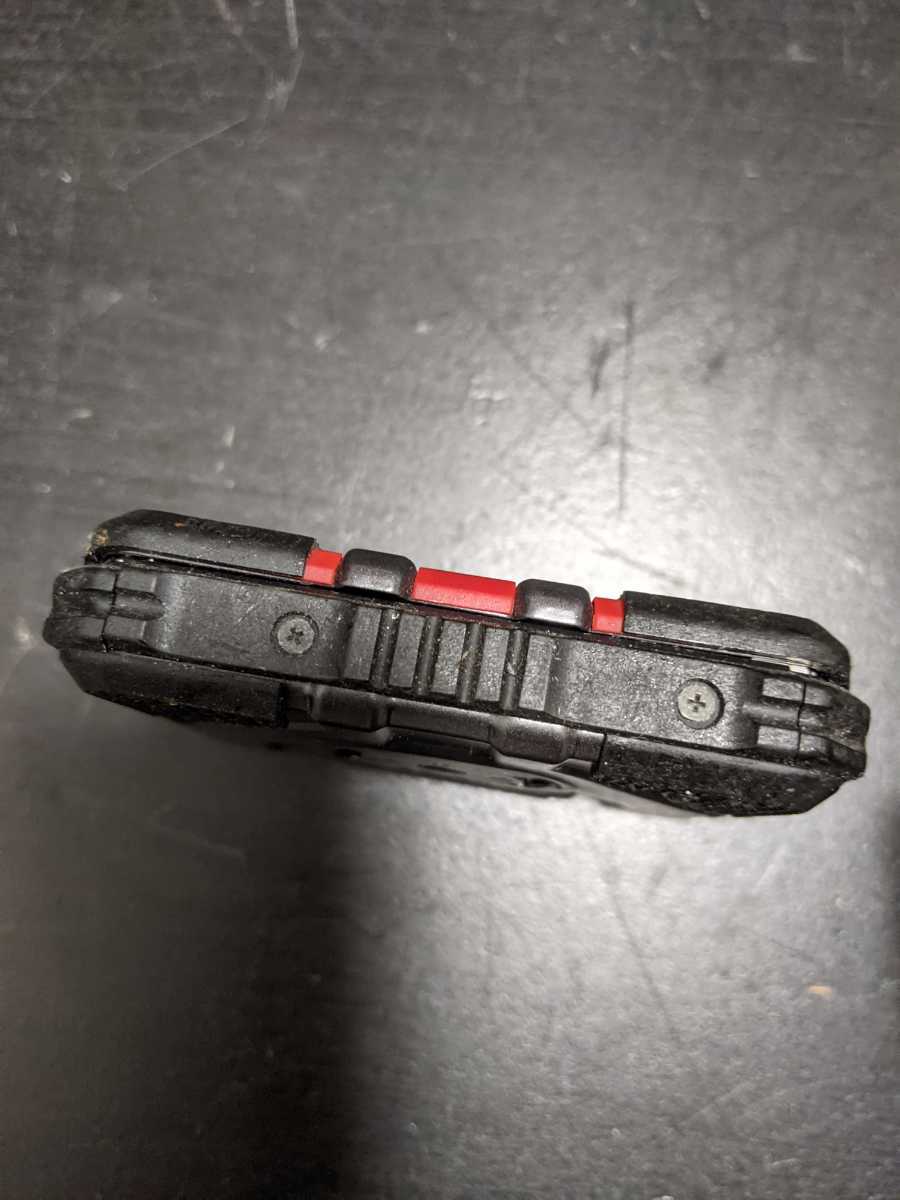

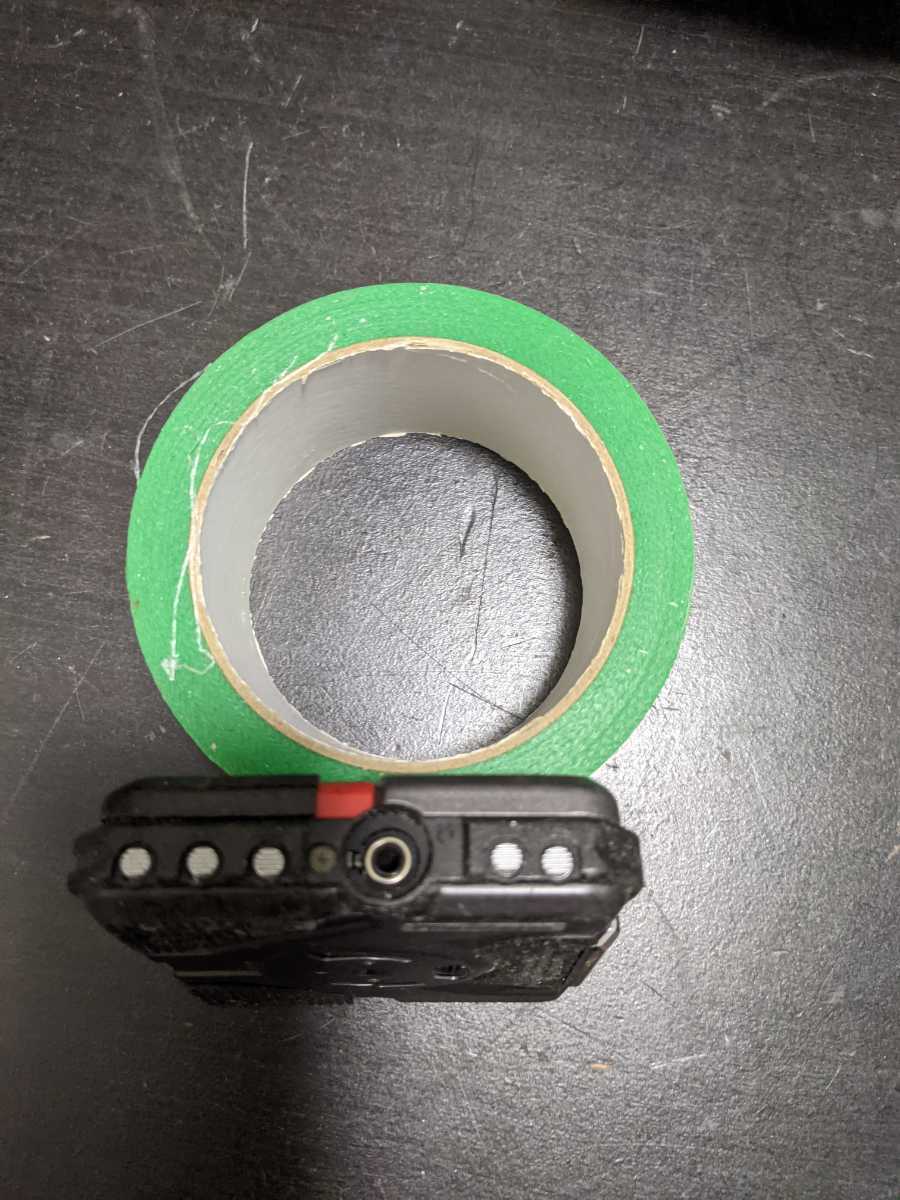

Photos

    Previous Next

    Have photos or data to add? Edit the page! We do not accept contributions via email..

    Additional specifications and references
    ManualUser manual
    RegionJapan
