Panasonic SL-MR10

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-16

Manufacturer
Panasonic
Model / source grouping
SL-MR10
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Panasonic SL-MR10”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SL-MR10
Manufacturer Panasonic
Released 1995/08
Device type portable
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio No
Dimensions 84.7x31.1x109.5mm
Weight 300g w/bat
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 6
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-

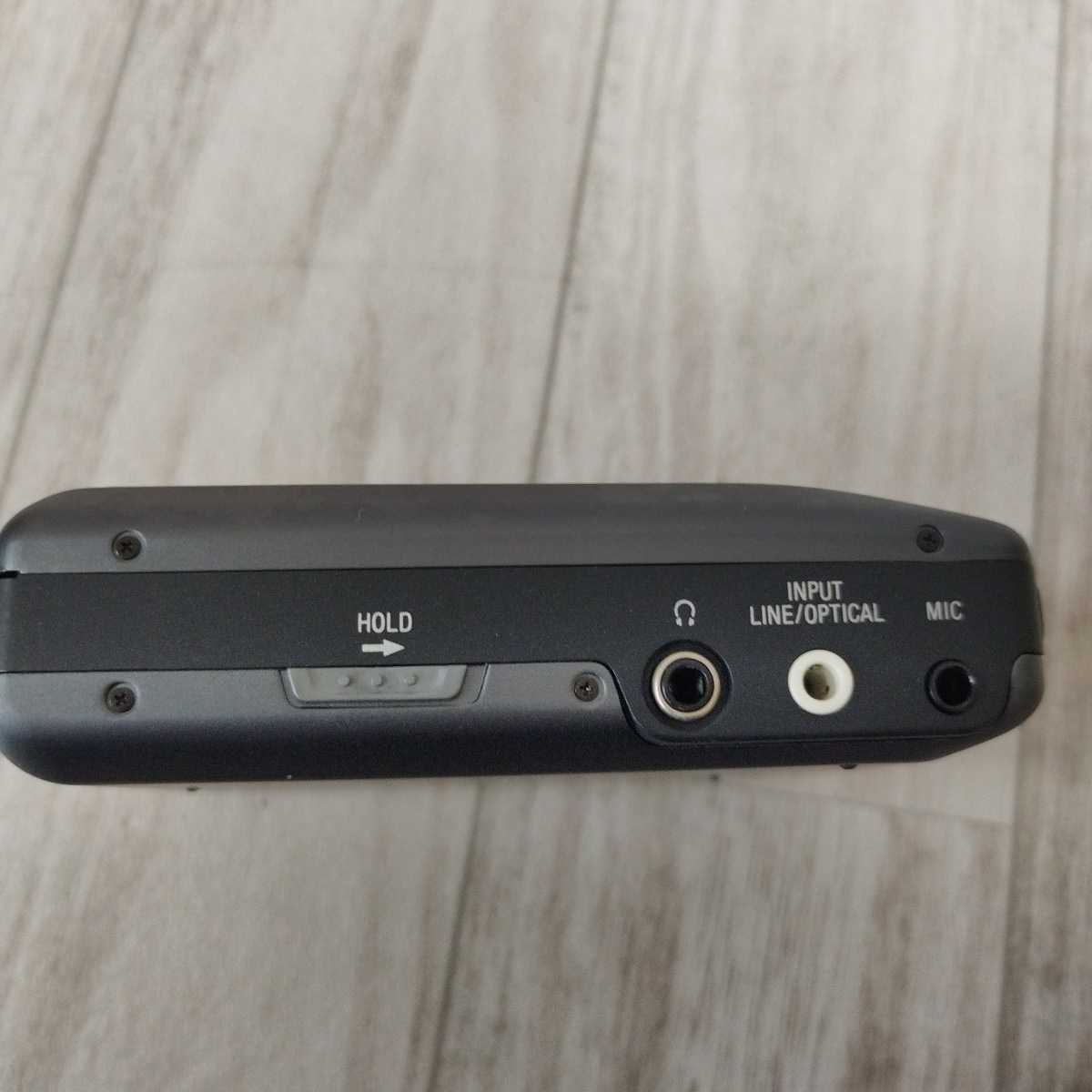

Inputs 3.5mm line in (optical multi), 3.5mm microphone
Outputs 3.5mm headphone
Control Not recorded

See also: Victor XM-R1

Features: 12 character LCD on main unit. Track/disc titling. Track erase, move, join, divide, all erase. Recording: agc, st/mono. Play: repeat, random, program. LCD remote with track, time, operating mode and battery level display. Selectable "SLC" (sound leakage circuit) modifies sound to avoid disturbing others nearby. Bass boost.

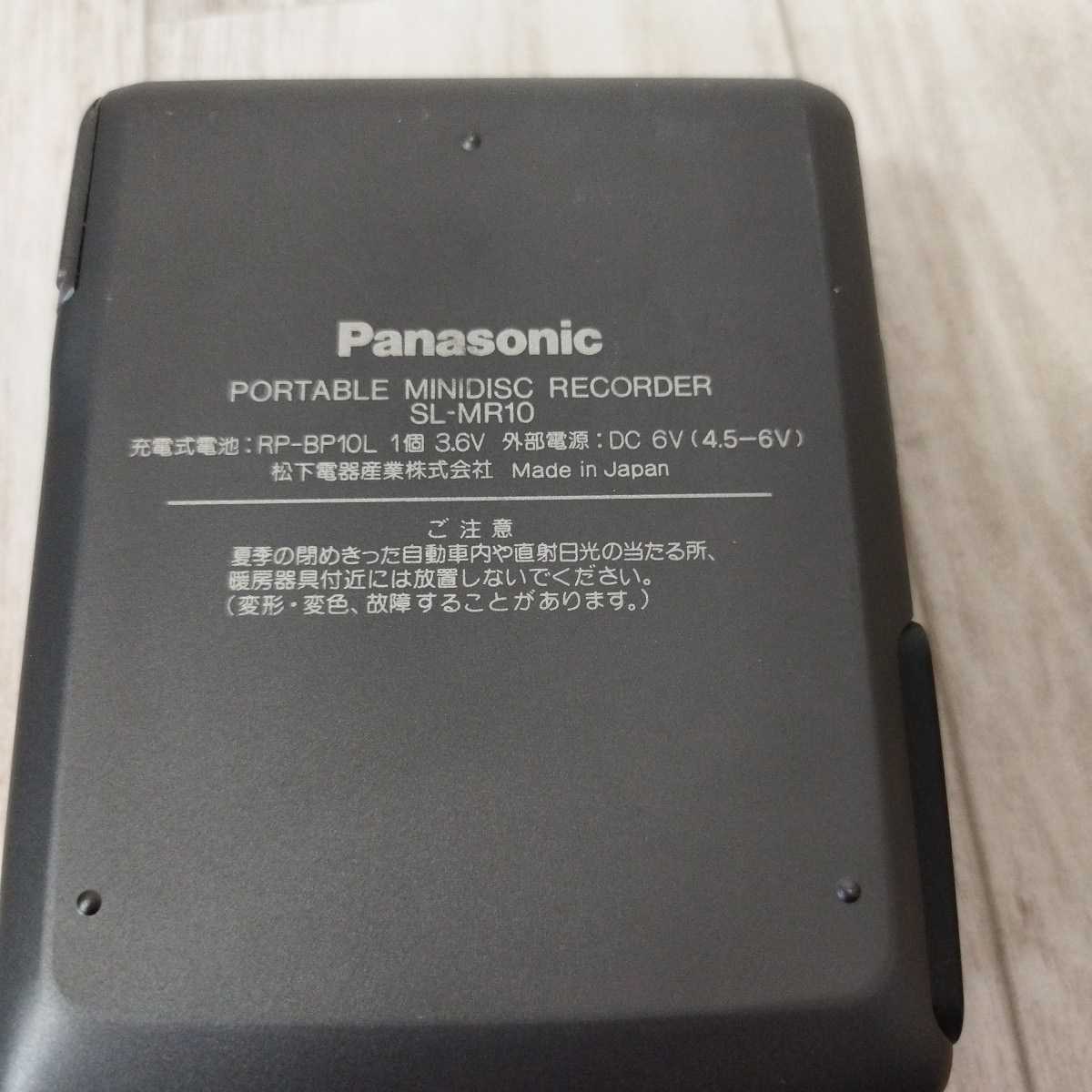

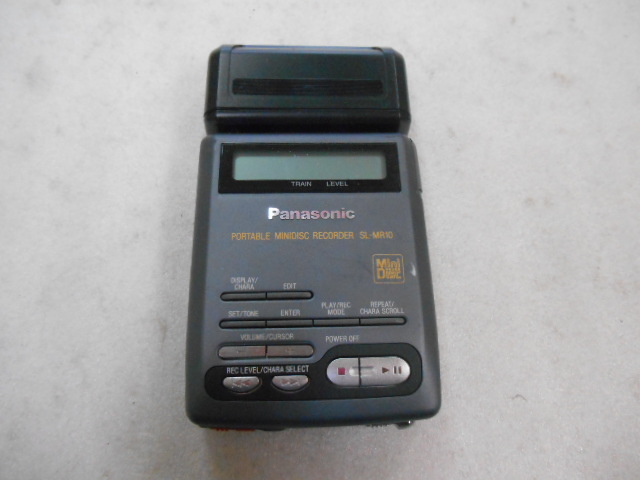

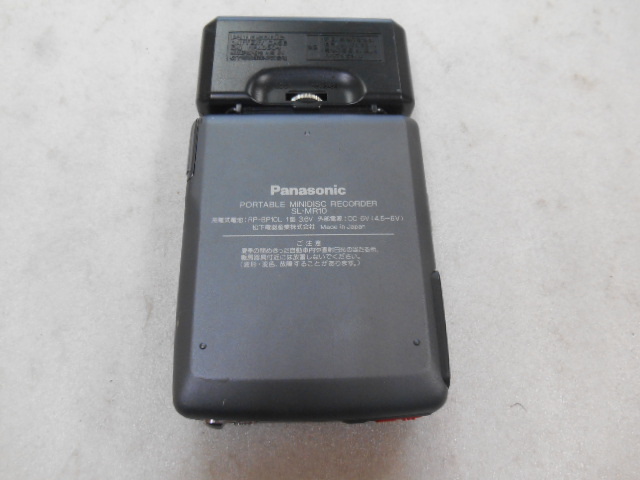

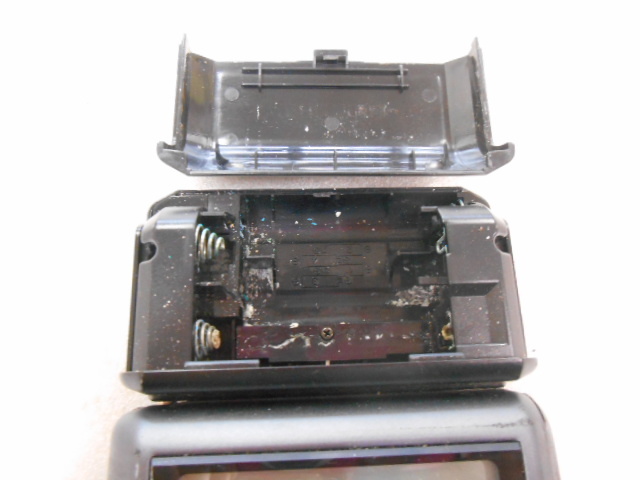

Battery: RP-BP10LSY, Sidecar: RFA0604-K (4xAA)

Content adapted from: Minidisc.org page

Manuals

User manual

Repair

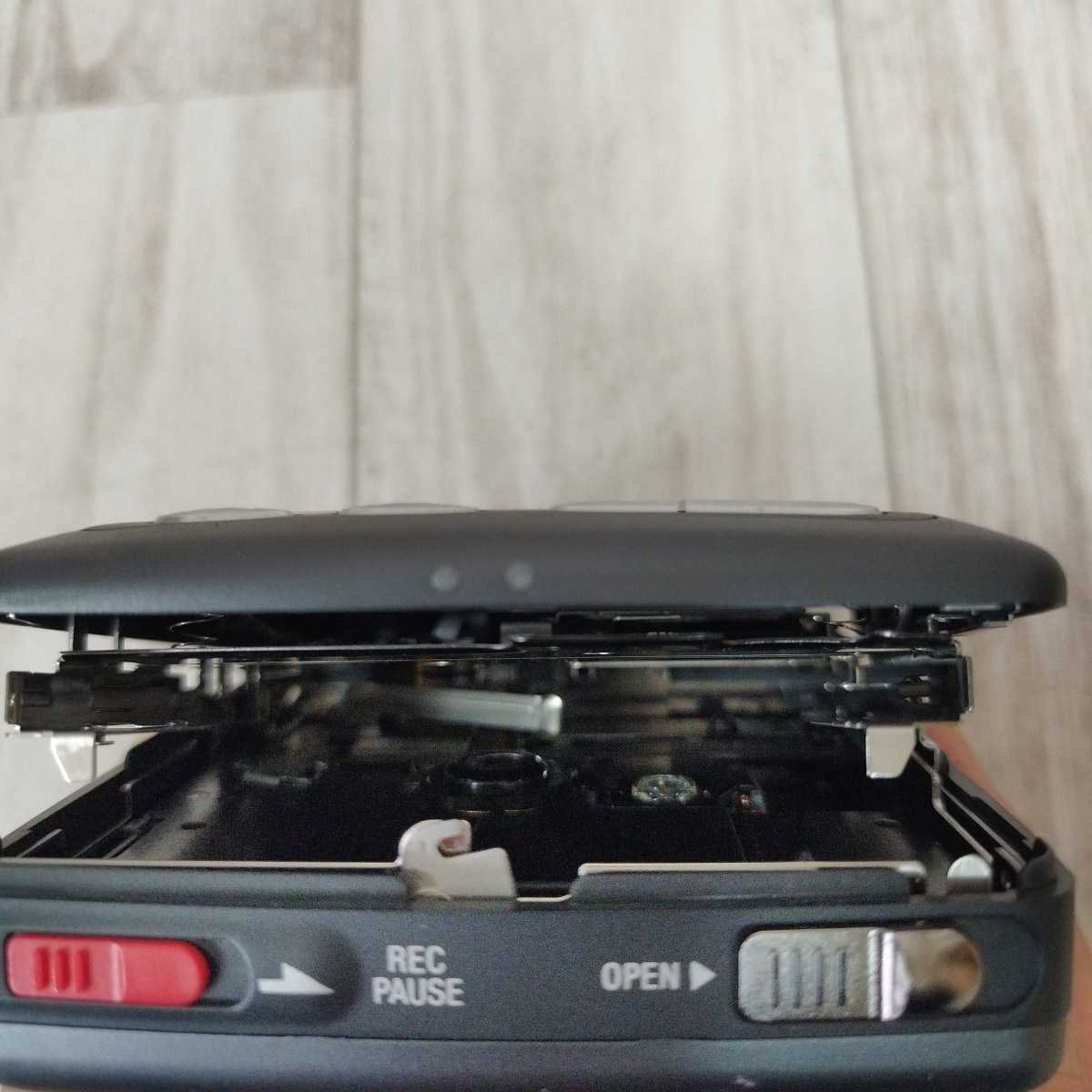

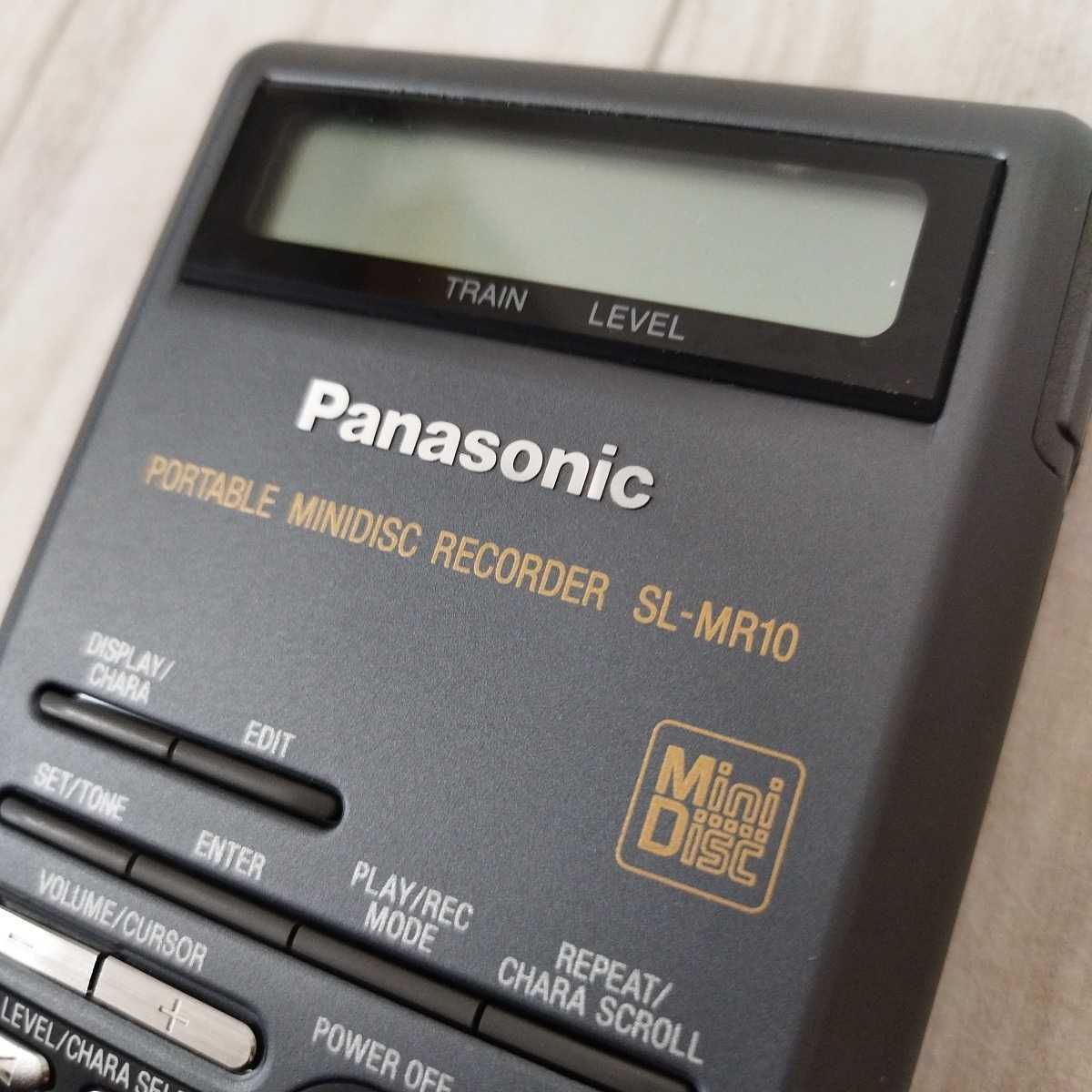

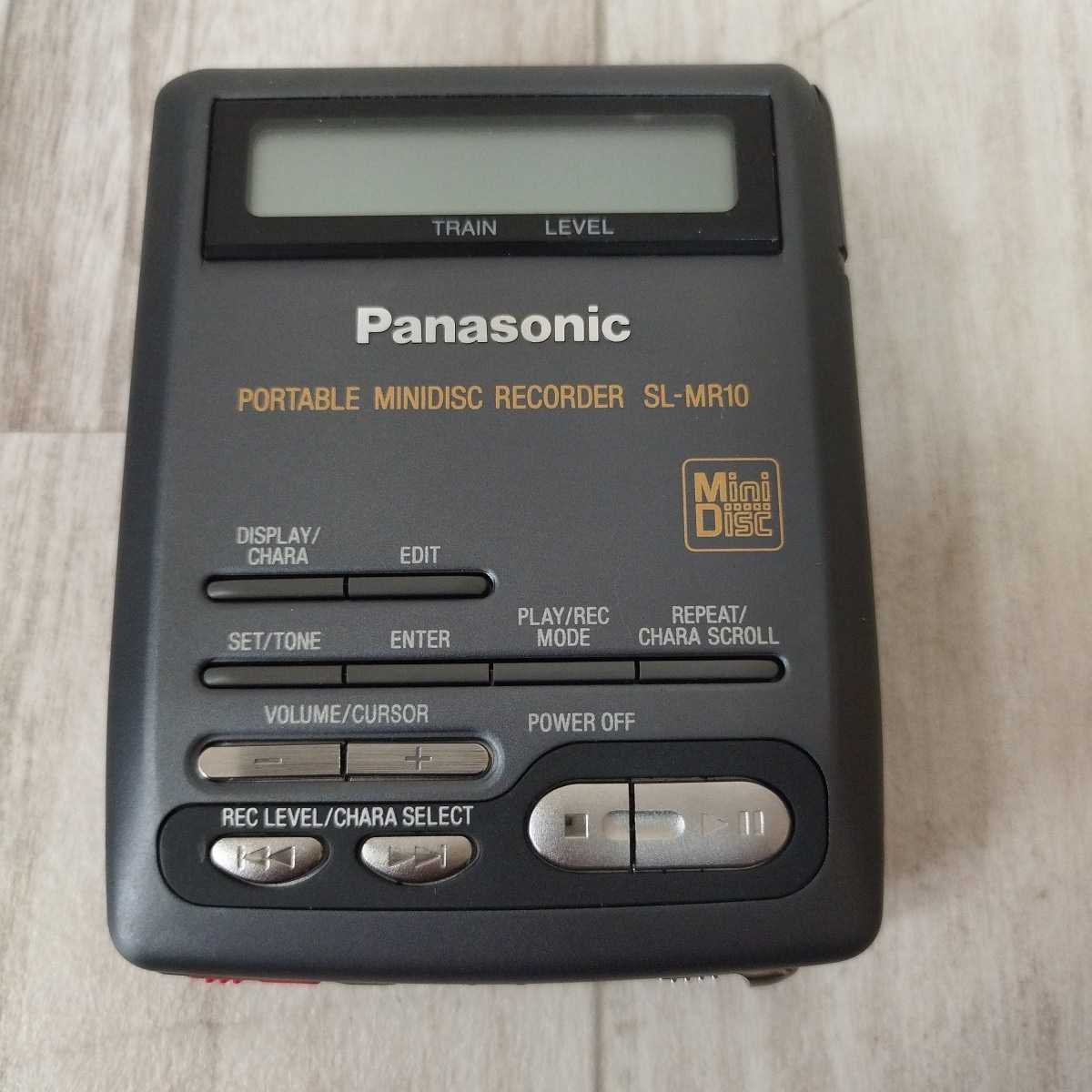

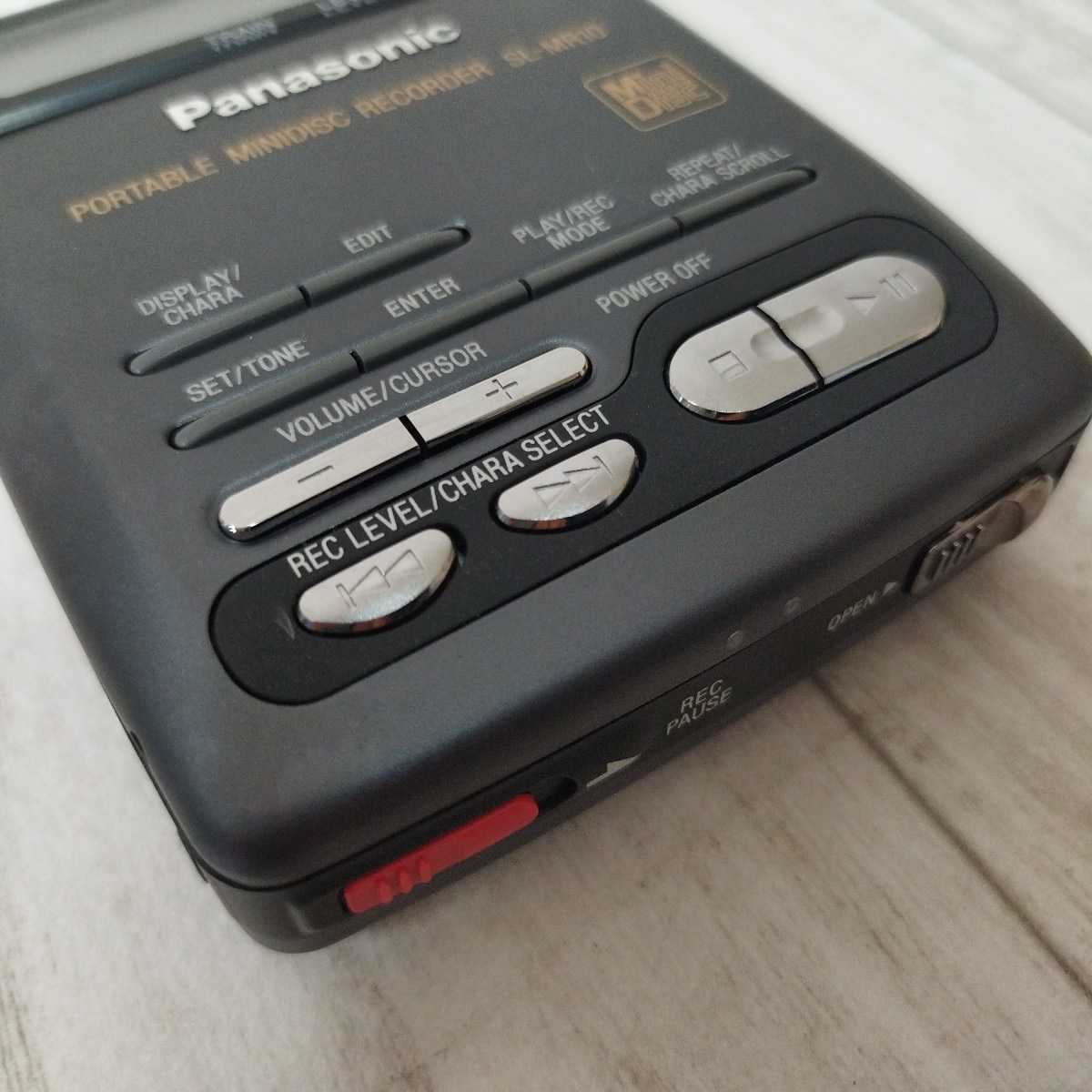

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
