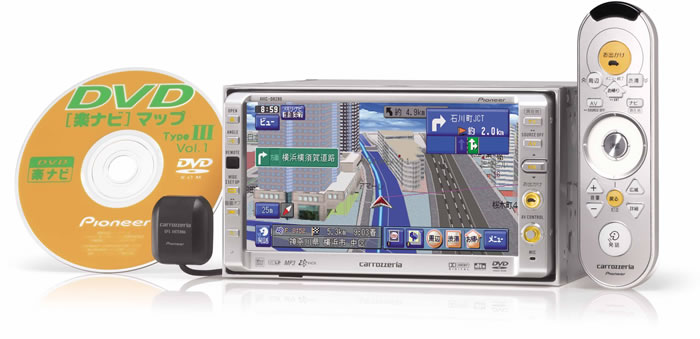

| Name | AVIC-DRZ80 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2004/11 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178 (W) x 100 (H) x 165 (D) mm |
| Weight | 3.0kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥180 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |
Common part Maximum current consumption : 10A Navigation body (GPS section) Reception method : 8-channel multi-channel Amplifier / audio section Maximum output : 50W x 4 equalizer (13 bands) Frequency: 50/80/125/200/315/500 / 800Hz, 1.25k / 2k // 3.15k / 5k / 8k / 12.5kHz Adjustment range: ± 6dB FM tuner section Reception frequency band : 76.1-89.9MHz AM tuner section Reception frequency band : 522 to 1629kHz TV tuner section Receiving channel : VHF1-12ch / UHF13-62ch (sound multiplex support) TV monitor section Screen size : TFT 6.5 inch wide (display area size: 144.7 x 77.1 mm) Number of pixels : 336.960 pixels (1440 x 234) Operating temperature range : -10 to + 50 ° C Storage temperature range : -20 to + 80 ° C Number of slide angle adjustment steps : 7 stages GPS antenna Antenna cable length : 5.0m Film antenna Output terminal : 3.5 mini plug x 3, JASO x 1 Antenna cable length : L side 3.0m, R side 4.5m External dimensions Mounting dimensions : 178 (W) x 100 (H) x 165 (D) mm Nose dimensions : 170 (W) x 93 (H) x 13 (D) mm GPS antenna : 36 (W) x 14 (H) x 33 (D) mm Film antenna : 104 (W) x 362 (H) x 0.4 (D) mm (including separator) Film antenna Booster amplifier : 40 (W) x 20 (H) x 9 (D) mm Remote control : 42 ( W) x 148 (H) x 22 (D) mm mass Body : 3.0kg GPS antenna : 105g (including cord) Film antenna : 240g (including film, cable, booster amplifier) Remote control : 84g (including batteries)
Content adapted from: Pioneer Press Release Pioneer Press Release (MiniDisc Wiki mirror) av.watch Pioneer Product Page
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
