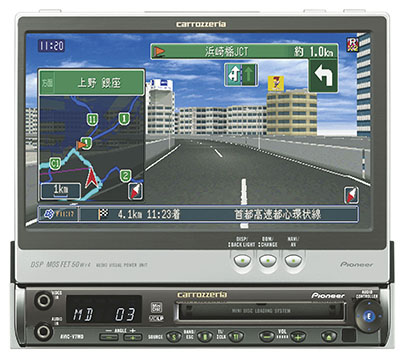

| Name | AVIC-V7MD |
|---|---|
| Manufacturer | Pioneer |
| Released | 2003/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 50 (H) x 165 (D) mm |
| Weight | 2100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥155 000 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |
TV monitor Screen size 7 inch wide
- (effective display area: 87.1 x 154.1 mm)
- Number of pixels 336,960 pixels (234 x 1,440)
- TFT active matrix method, transparent type
Amplifier / audio section
- Maximum output 50W x 4
- Rated output 22W x 4
- Load impedance 4Ω (4-8Ω can be used)
MD player part
- Sampling frequency 44.1kHz
- Frequency characteristic 20-20kHz (± 2dB)
- S / N 88dB or more (1kHz IHF-A network speaker OUT)
- Dynamic range 80dB or more (1kHz IHF-A network speaker OUT)
Content adapted from: av.watch
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual |
| Region | Japan |
