| Name | AVIC-VH009MD |
|---|---|
| Manufacturer | Pioneer |
| Released | 2006/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 mm (W) x 50 mm (H) x 166 mm ( D) |
| Weight | 3600 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥357 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, CD |
| Outputs | Not recorded |
| Control | Not recorded |

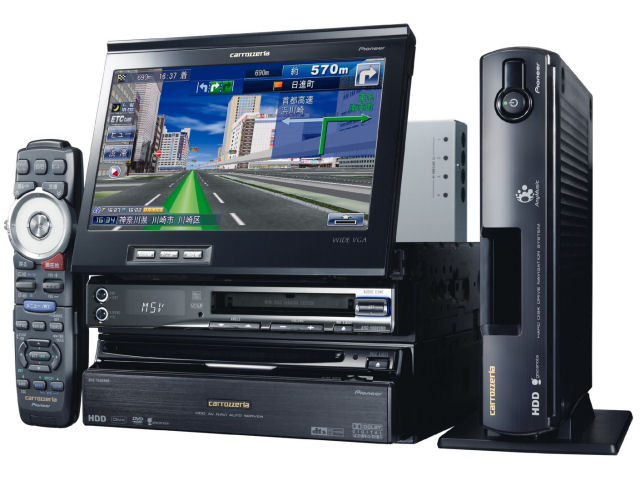

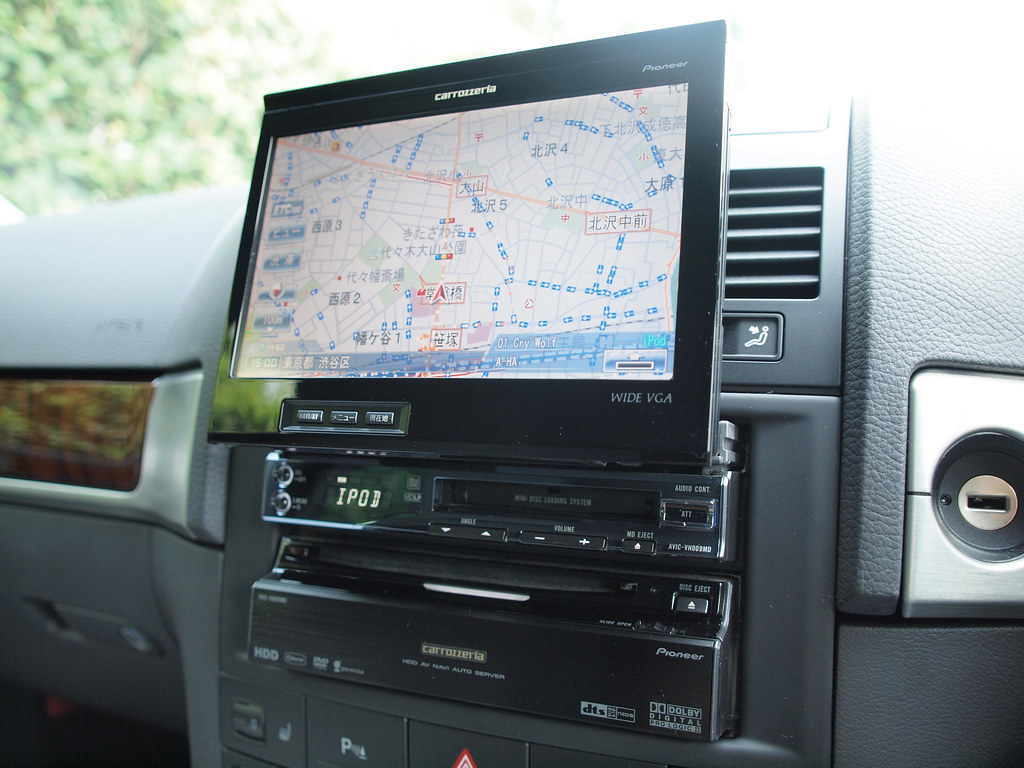

Pioneer AVIC-VH009MD
Can transfer ATRAC using "BeatJam". Supported music services: "Any Music", Mora and Yahoo! Music Download.
Navi Studio Ver.2 supports transferring MP3 / WMA.
- 40GB removable HDD "Brain Unit"

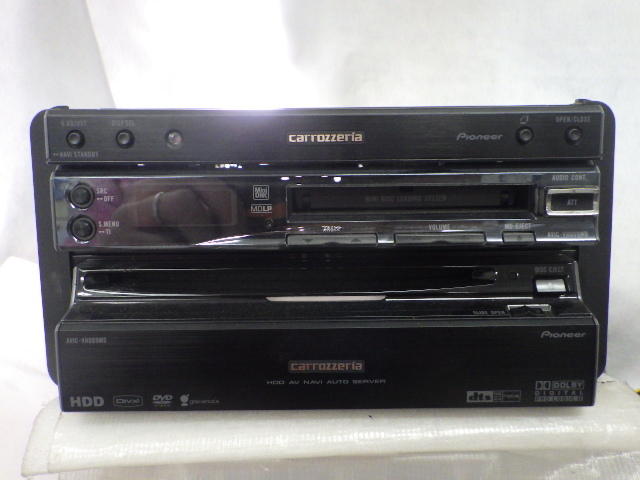

- MD / MDLP playback compatible 1D + 1D main unit type that can support various mounting methods
- Brain unit and living kit that can fully utilize the information network are included
- "7.0-inch wide VGA" that is extremely easy to see and use Adopting "touch panel monitor"
- Equipped with 5.1 multi-channel processor that enables surround playback
- * New proposal "Map Equalizer" for map display that makes full use of VGA high definition
- Always proposes the optimum route by standardizing consideration of congestion prediction
- IQ "Auto parking memory" that accurately guides you to the parking lot using high accuracy
- Equipped with "Auto time alignment & auto equalizer" that supports both 2ch / 5.1ch
- Music distribution service, DivX, WMA / MP3 / AAC, etc. Full AV functions that support a wide range of compression formats
Maximum current consumption: 10 A
[Decoder] Linear PCM, Dolby Digital, Dolby Pro Logic II, DTS, DTS-CD, DTS 96/24, DTS Neo: 6, MPEG-2 AAC
[Amplifier / Audio]
- Maximum Output: 50 W x 4
[MD player]
- Frequency characteristics: 20 Hz to 20 000 Hz (± 1 dB)
- SN ratio: 93 dB (1 kHz) (IHF-A network)
- Dynamic range: 91 dB (1 kHz)
Content adapted from: Pioneer Press Release Press Release 2 av.watch
Manuals
Videos
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual |
| Region | Japan |
