Pioneer FH-P050MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-01-10

Manufacturer
Pioneer
Model / source grouping
FH-P050MD
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P050MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P050MD
Manufacturer Pioneer
Released 2005/02
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 161 (D) mm
Weight 1800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥42 000
-
Inputs CD
Outputs RCA out, Speaker amplifier
Control Not recorded

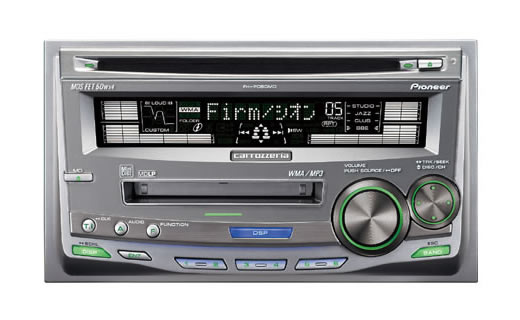

The Pioneer Carrozzeria FH-P050MD is a double DIN sized MD/CD player that was released for the Japanese domestic market. The MD function supports MDLP while with the CD function supports normal audio CD's, CD-R and CD-RW including .WAV, .MP3 and .WMA media files. The unit also has an IP Bus input on the rear.

Specifications

[Amplifier]

  • Maximum output: 50W x 4

[Audio]

  • Subwoofer output: <Cutoff Frequency> 50/63/80/100 / 125Hz <Cutoff slope> -18dB, -12dB / oct. <Adjustment width> + 6 to -24dB <Phase> NOR / REV
  • High pass filter (F / R independent): <Cut Off frequency>
  • 50/63/80/100 / 125Hz <Cutoff slope> -12dB, -6dB / oct.
  • 9-band graphic equalizer: <Frequency> 50/100/200/400/800 / 1.6k / 3.15k / 6.3k / 12.5kHz <Adjustment range> ± 12dB
  • Loudness (volume: -30dB): 10dB (100Hz), 7dB (10kHz)
  • Pre-out maximum output level: 1.8V / 1kΩ

[CD player section]

  • Frequency characteristics: 5 ~ 20,000Hz (± 1dB)
  • SN ratio: 94dB (1kHz) (IHF-A network)
  • Dynamic range: 92dB
  • MP3 decoding format: MPEG-1 & 2 AUDIO LAYER-3 (Does not support m3u playlists)
  • WMA decoding format: Ver.7, 7.1, 8 & 9
  • WAV signal format: Linear-PCM, MS ADPCM

[MD player section]

  • Frequency characteristics: 20 to 20,000Hz (± 1dB)
  • SN ratio: 90dB (1kHz) (IHF-A network)
  • Dynamic range: 90dB

[Tuner section]

  • FM / AM (Japanese band range)
  • Practical sensitivity: FM / 8dBf (0.7μV / 75Ω, mono, SN ratio: 30dB) ・ AM / 18μV (SN ratio: 20dB)
  • Maximum current consumption: 10.0A
  • Mounting dimensions: 178 (W) x 100 (H) x 161 (D) mm
  • Weight: 1.8Kg

[Optional Remote]

  • CD-R660

Content adapted from: Pioneer Press Release Pioneer Press Release (MiniDisc Wiki mirror) av.watch Official Pioneer Archives

Manuals

FH-P050MD User Manual JP

FH-P050MD Install Guide JP

Repair

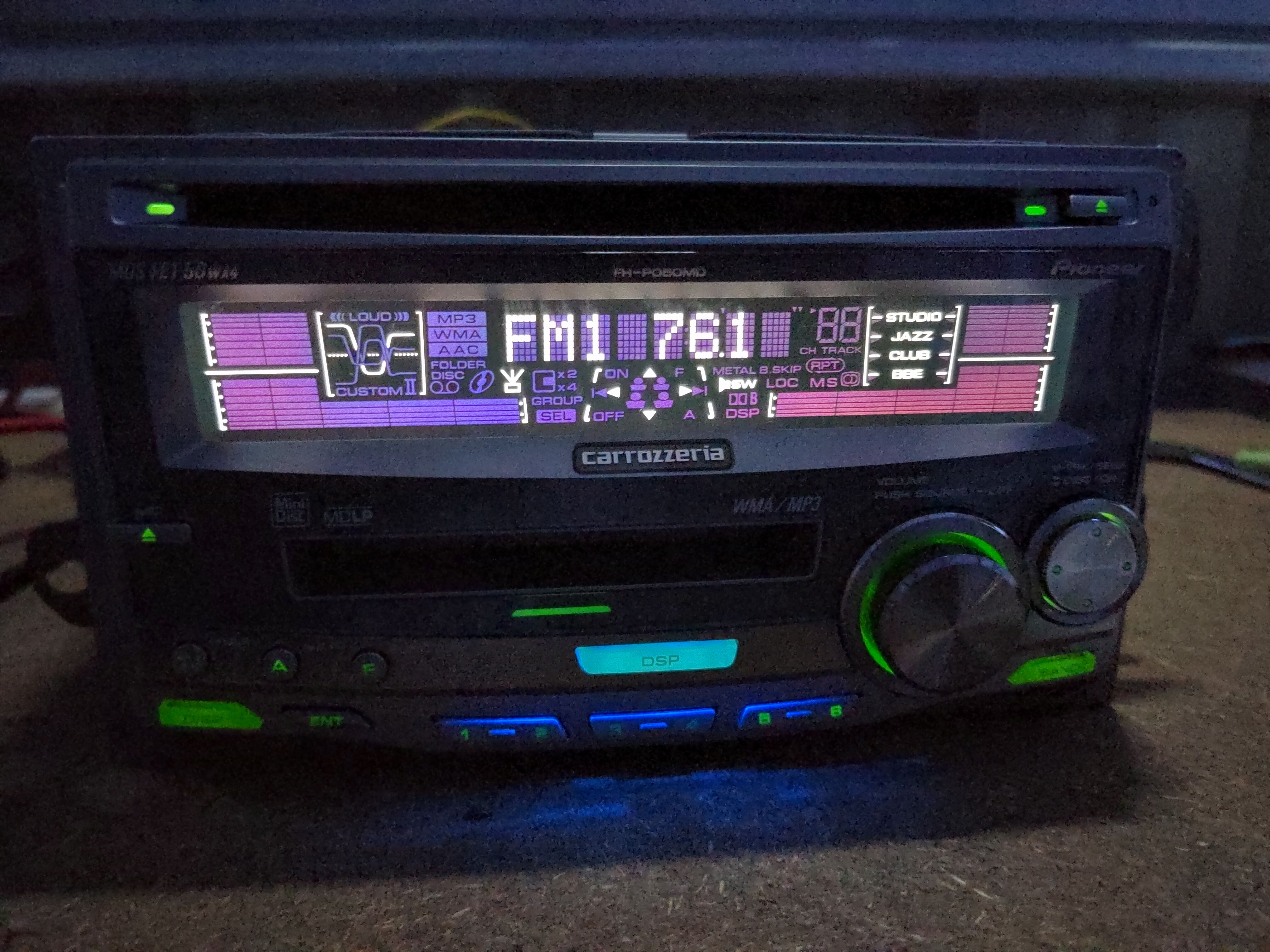

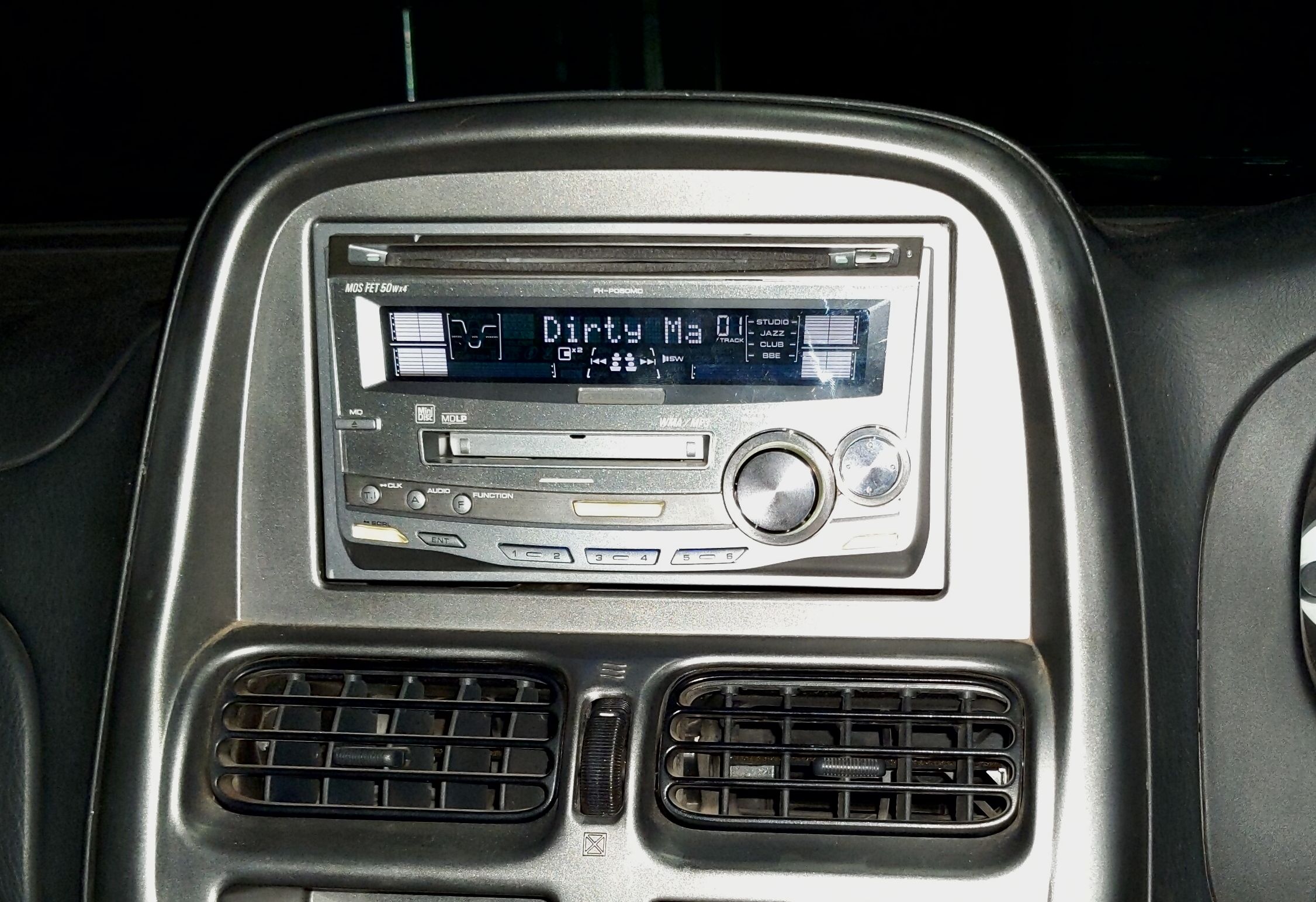

Photos
