Pioneer FH-P077MD

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P077MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

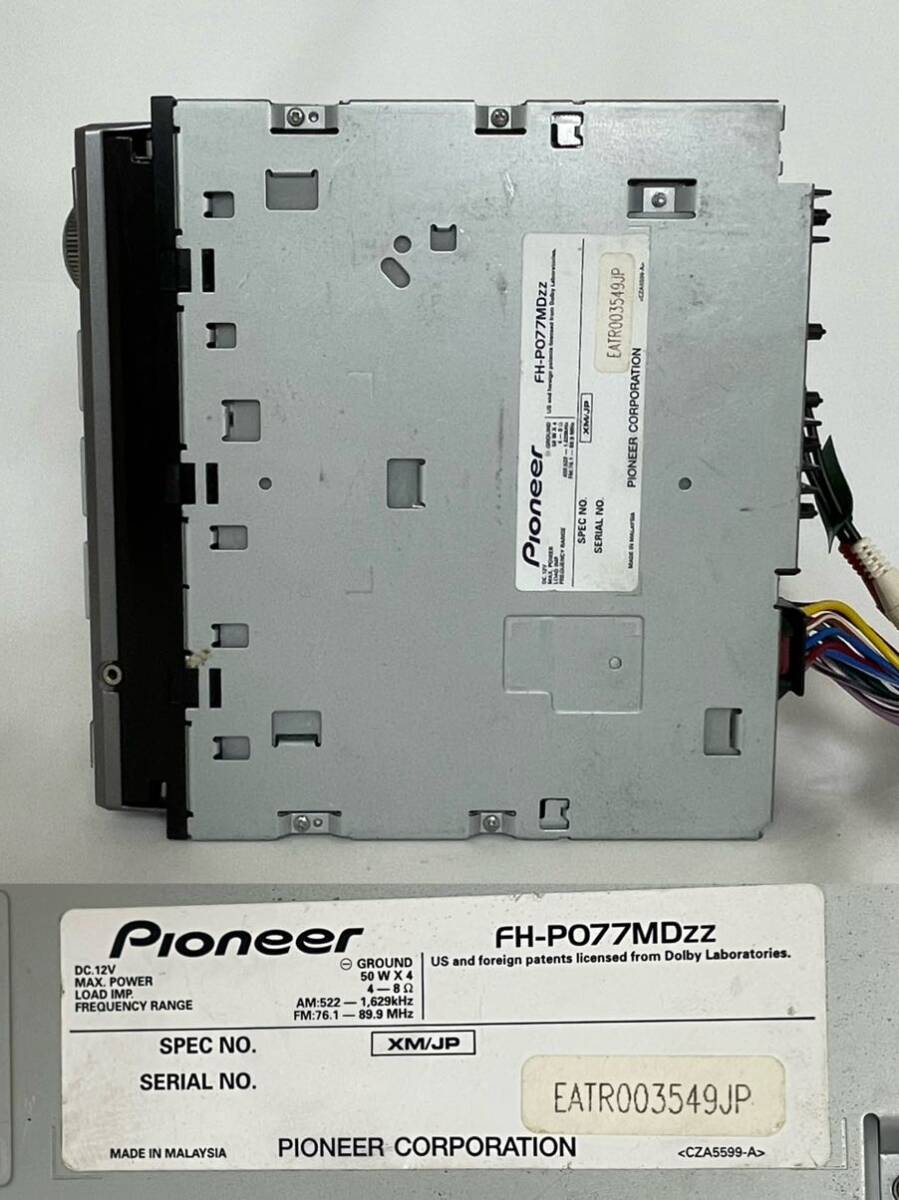

Name	FH-P077MD / FH-P077MDzz
Manufacturer	Pioneer
Released	2004/02
Device type	auto
Recorder	Player
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Yes - 76-90Mhz
Dimensions	178（W）×100（H）×161（D）mm
Weight	2.2kg
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No
Voltage	12
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥68 250
-
Inputs	CD
Outputs	Speaker amplifier, other
Control	Not recorded

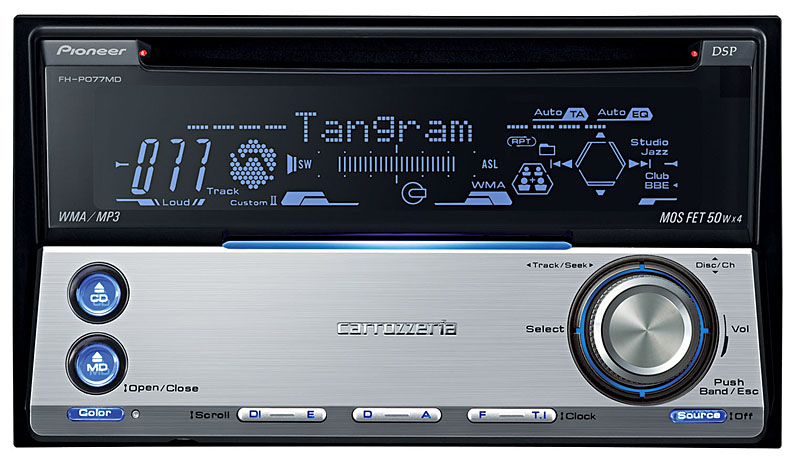

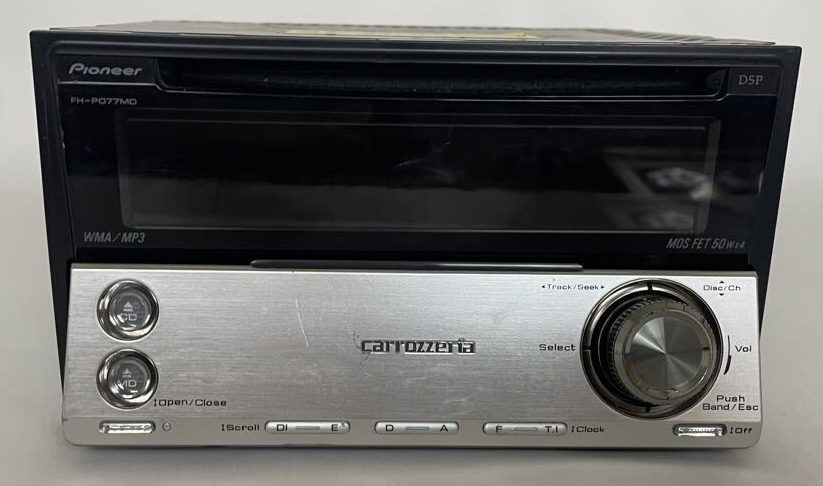

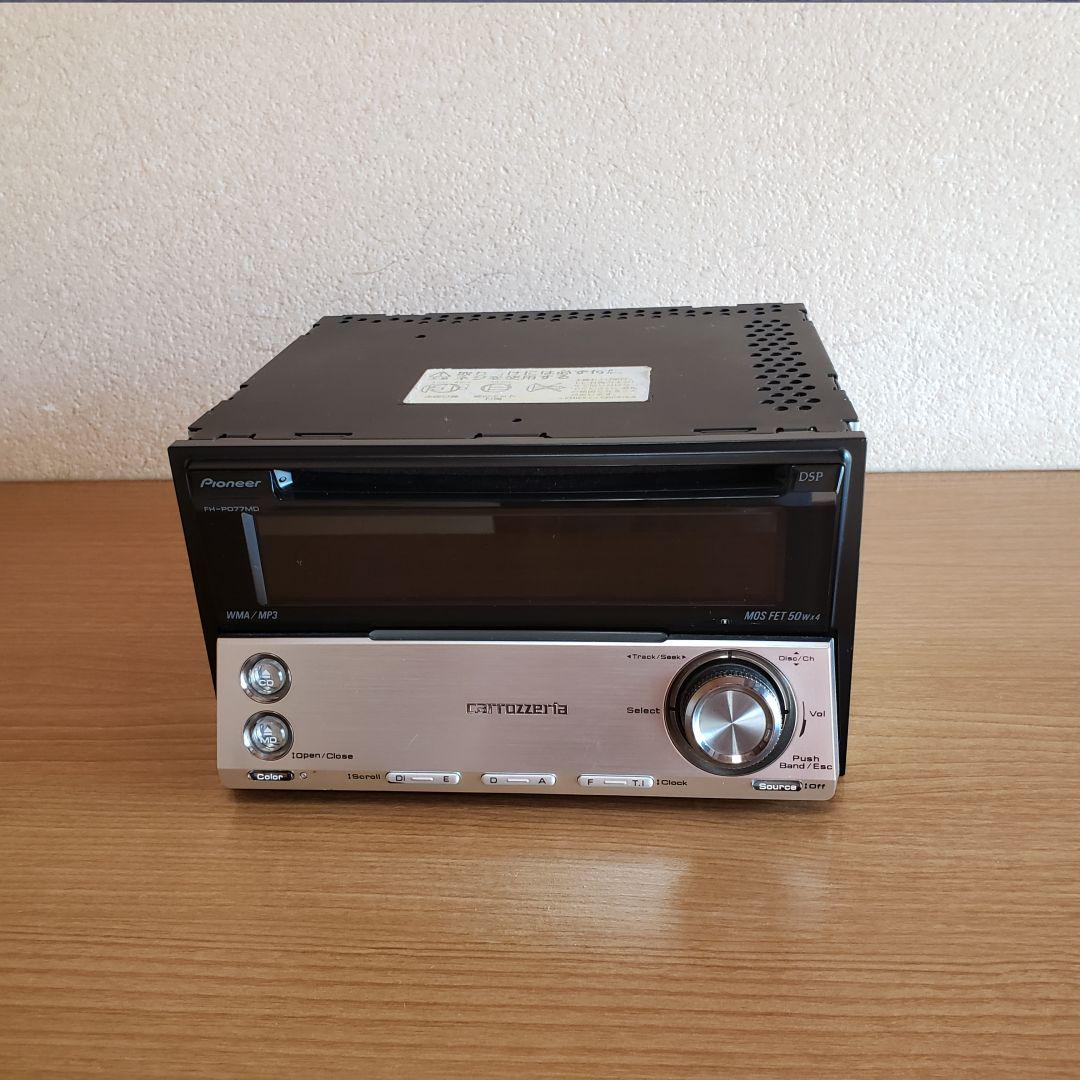

Pioneer's Carozzeria FH-P077MD / FH-P077MDzz is a double height DIN combined CD and Minidisc player.

The Silver section folds down when you press the eject button, and you can pop the minidisc in. This video displays that in action: YouTube of Pioneer FH-P077MD working

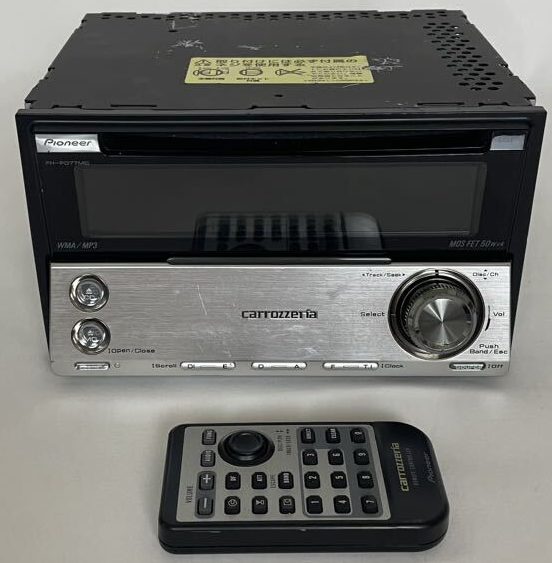

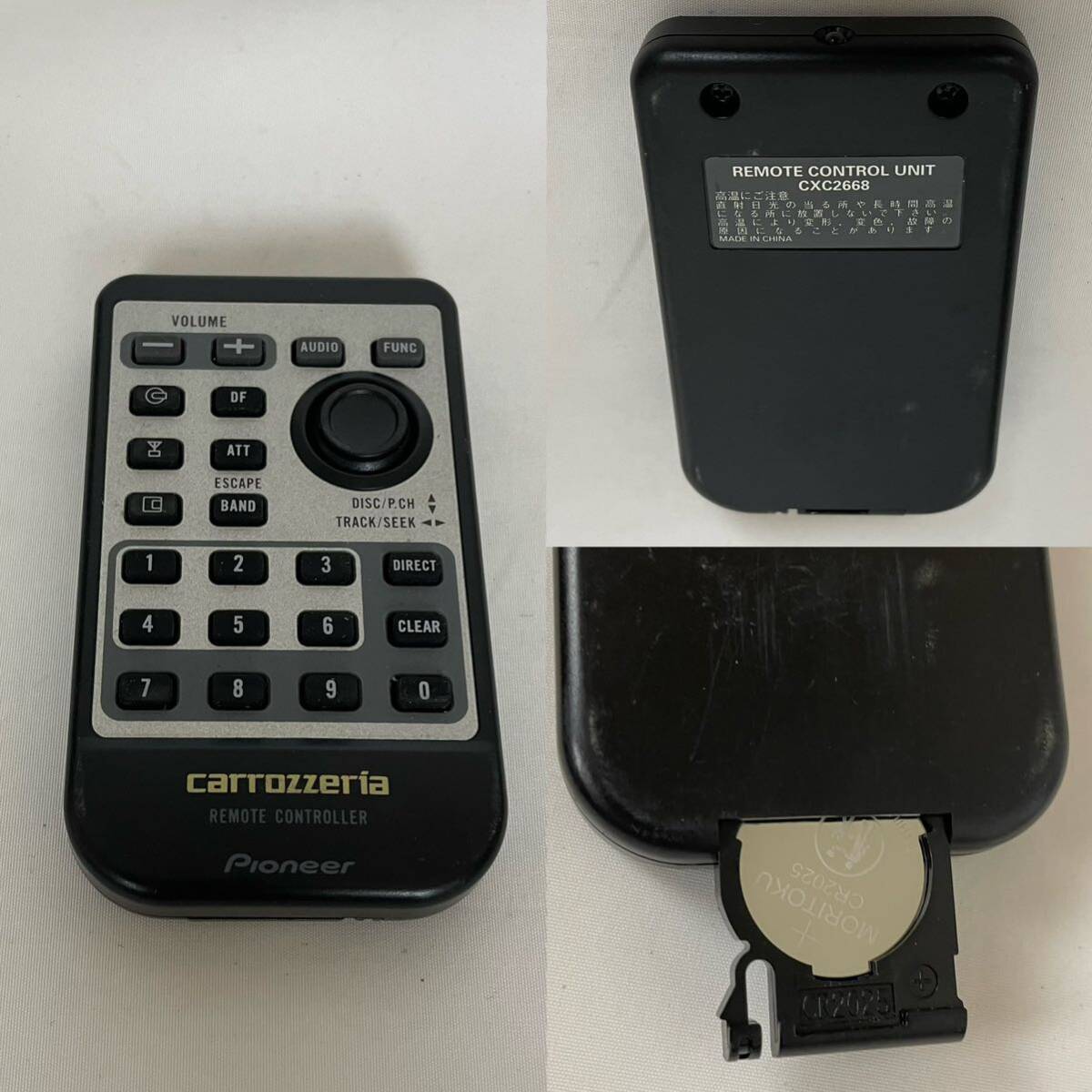

It also supports MP3, WMA, WAV and is also an FM and AM radio, and has a remote (as displayed in the picture).

The player also comes with a microphone, with which to better tune the sounds to meet the acoustics of the car!

From the press release: "Auto Integral Sound System", Bar Brown "ΔΣ 1bit D / A Converter", "Bit Metrics", "BBE Digital", "Subwoofer Control", "Front / Rear Independent High Pass Filter", "f Special Correction Type" "Real-time ASL", "Digital direct transmission (music CD / WMA / MP3 / WAV)", "Power MOS FET 50W x 4ch"

Remote: CXC2668
