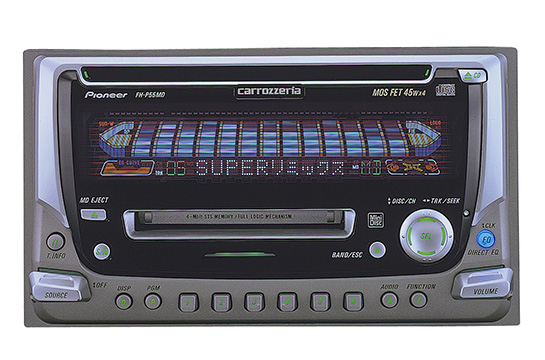

Pioneer FH-P55MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-02-27

Manufacturer
Pioneer
Model / source grouping
FH-P55MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P55MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P55MD
Manufacturer Pioneer
Released 2000/04
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 155 (D) mm
Weight 2300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥6 300
-
Inputs CD
Outputs Not recorded
Control Not recorded

Power MOS FET 45W x 4ch High power amplifier installed MOS FET (metal oxide semiconductor field effect transistor), which has been mainly installed in household high-quality sound amplifiers, has been adopted due to the difficulty of miniaturization. It has a linear operation curve and features such as less switching distortion, so you can enjoy clear high-quality sound reproduction.

We have installed it in car audio since last year and have been well received. Equipped with a direct equalizer that allows you to select your favorite sound quality with a simple operation High-performance MD player section that uses an all 20-bit circuit that maximizes the potential. (Installed only on "FH-P55MD")

CD player section

  • Frequency characteristics 5 to 20,000Hz (± 1dB)
  • S / N 92dB (1kHz) (IHF-A network)
  • Dynamic range 91dB (1kHz)

MD player part (FH-P55MD)

  • Frequency characteristics 20-20,000Hz (± 1dB)
  • S / N 90dB (1kHz) (IHF-A network)
  • Dynamic range 90dB (1kHz)

Content adapted from: Pioneer Press Release

Manuals

Pioneer FH-P55MD

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
