Pioneer FH-P66MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-06-29

Manufacturer
Pioneer
Model / source grouping
FH-P66MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P66MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P66MD
Manufacturer Pioneer
Released 2000/05
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 160 (D) mm
Weight 3000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

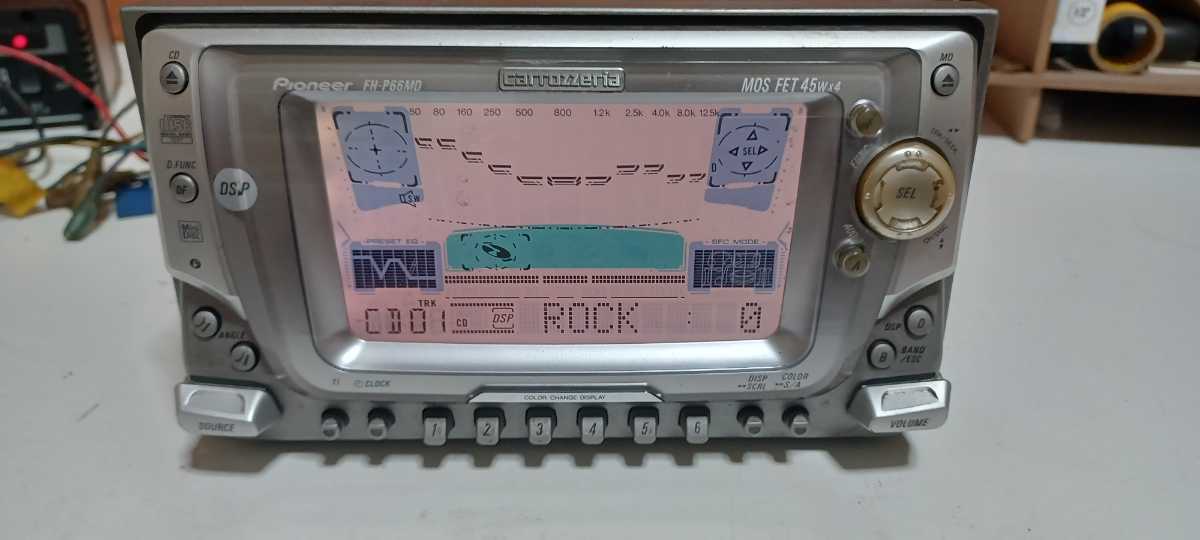

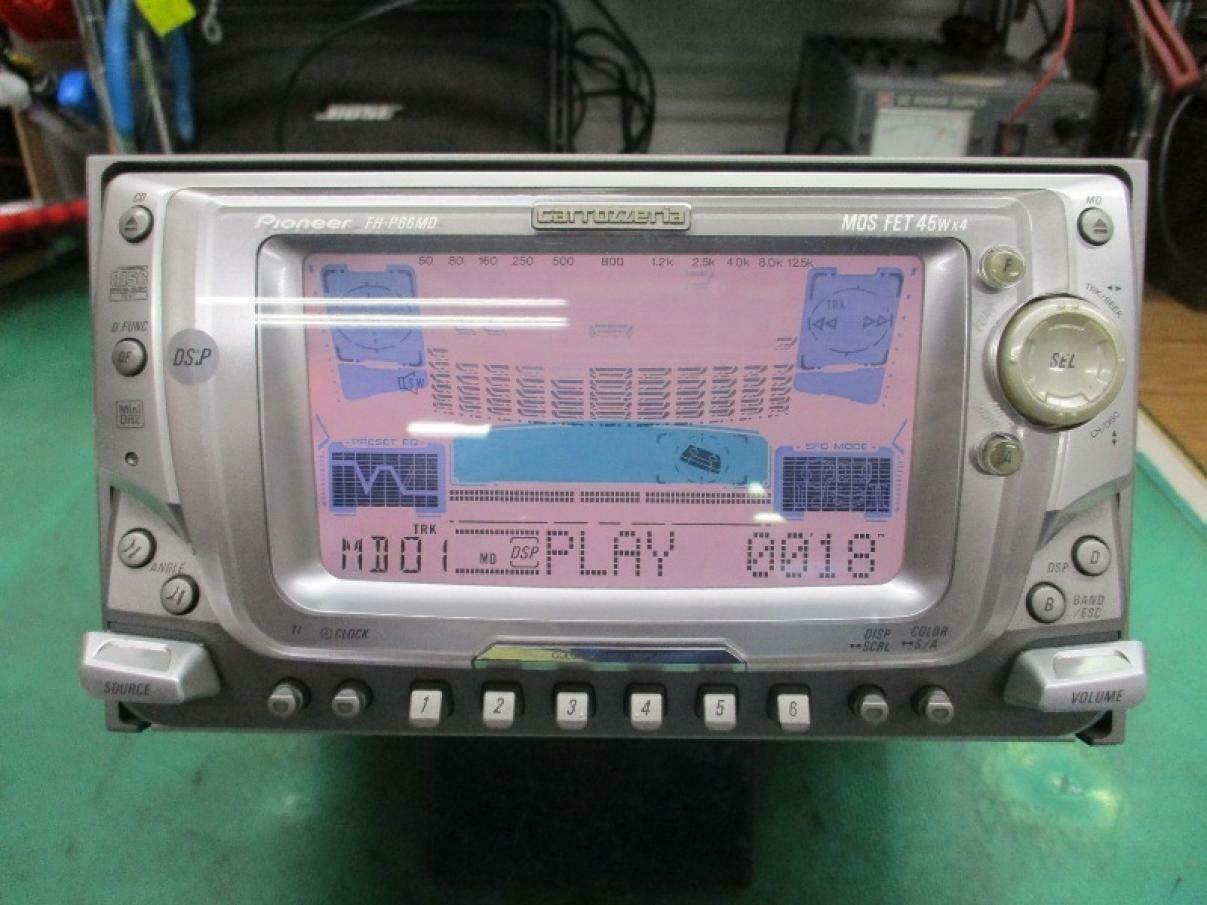

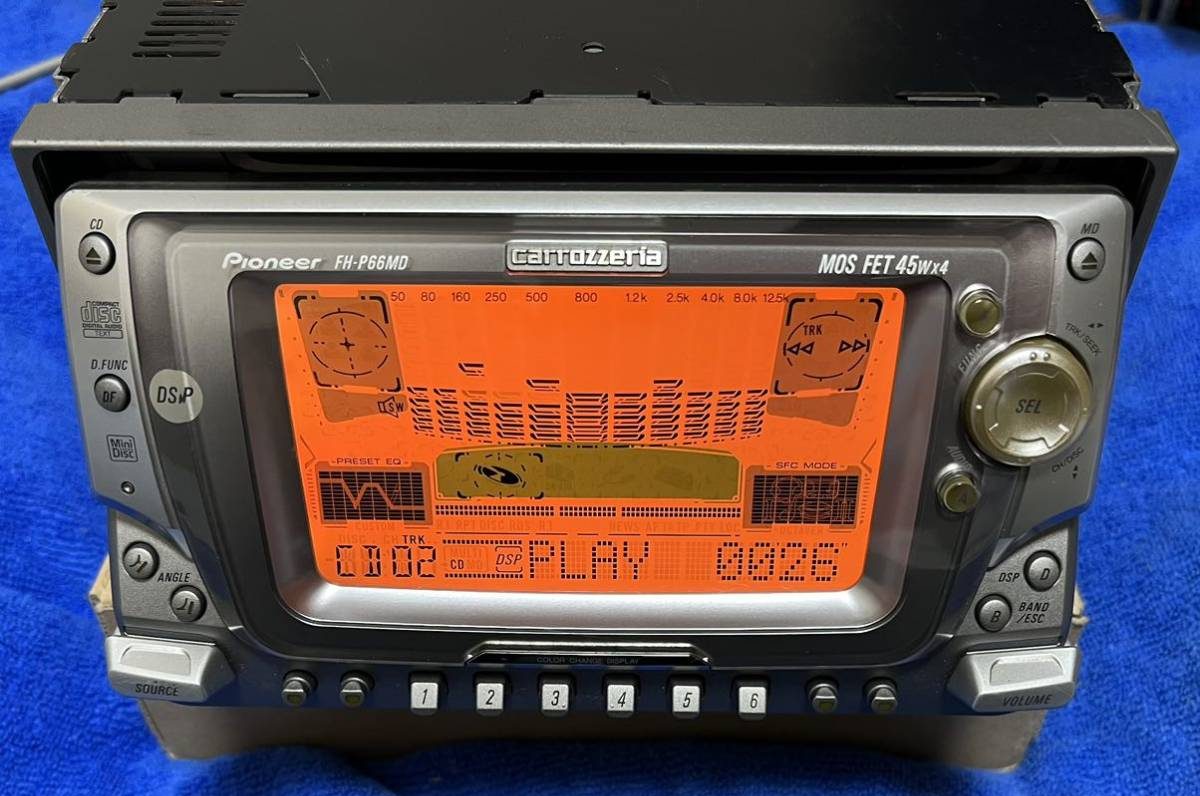

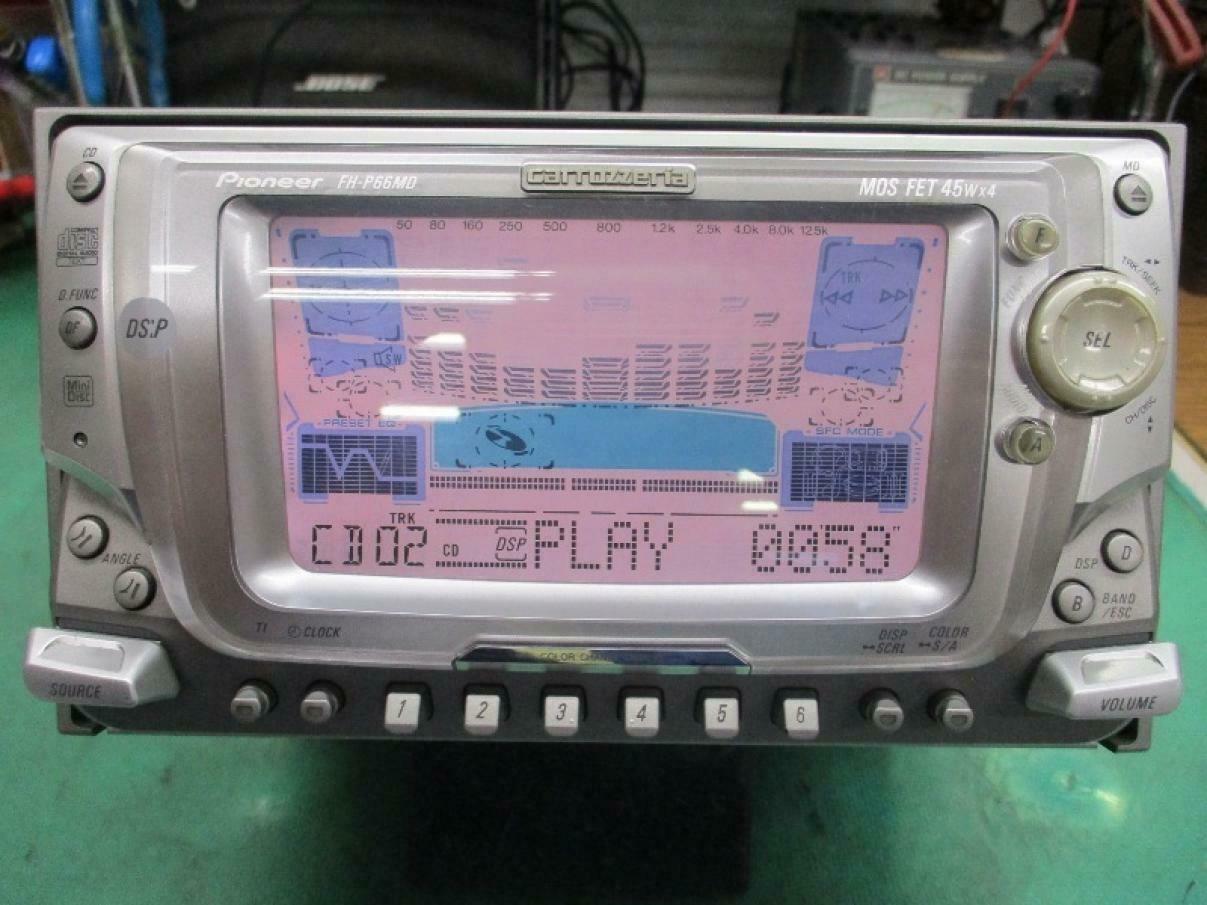

Equipped with the industry's first color change function that changes the color of the display to 10 colors using the RGB LED backlight. You can select the color you like and the color that matches the interior of the car.

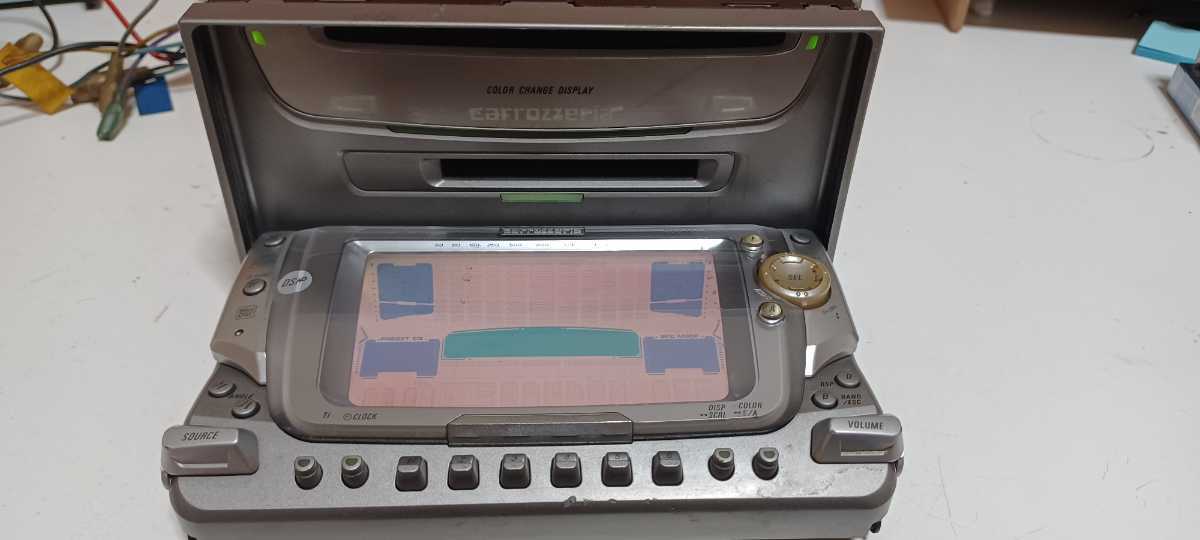

Electric slide down flap mechanism that can adjust the angle in 12 steps Built-in DSP with octaver function to create bass in a source lacking bass Digital high-bit tune technology that reproduces high-quality sound with digital direct

CD player section

  • Frequency characteristics 5 to 20,000Hz (± 1dB)
  • S/N 94dB (1kHz) (IHF-A network
  • dynamic range 92dB (1kHz))

MD player part

  • Frequency characteristics 20-20,000Hz (± 1dB)
  • S/N 90dB (1kHz) (IHF-A network)
  • Dynamic range 90dB (1kHz)

Equalizer part 13 band equalizer frequency

  • 50,80,160,250,500,800Hz,
  • 1.2k, 2.5k, 4k, 8k, 12.5kHz
  • Adjustment width ± 12dB

High pass filter

  • Crossover frequency 50,80,125Hz
  • Crossover slope -12dB / oct.

Subwoofer

  • Crossover frequency 50,80,125Hz
  • Crossover slope -18dB / oct.
  • Adjustment range ± 6dB

Content adapted from: Pioneer Press Release

Manuals

Pioneer FH-P66MD User Manual JP

Repair

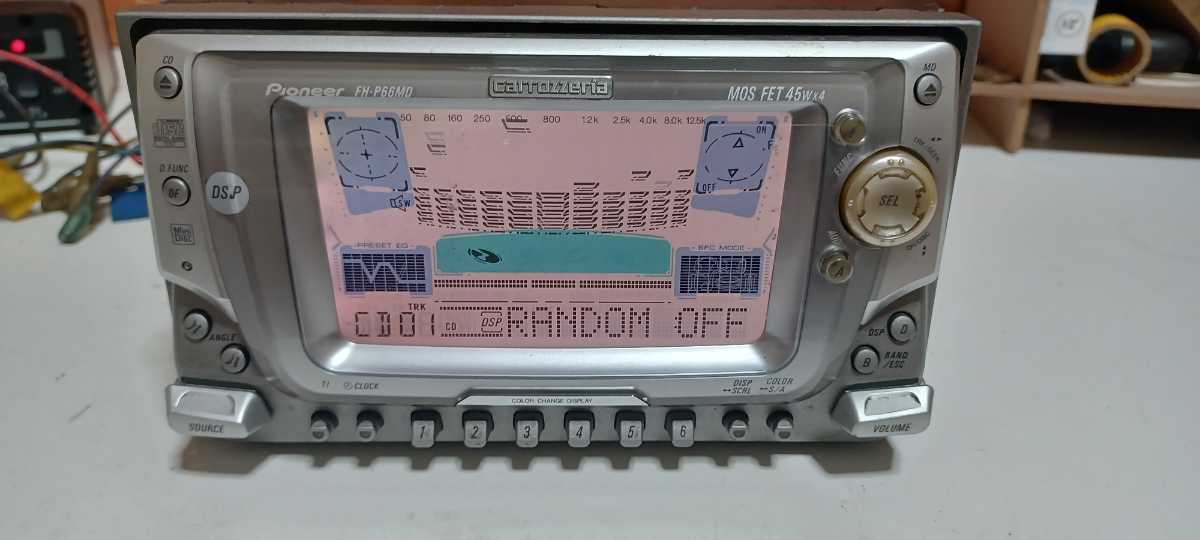

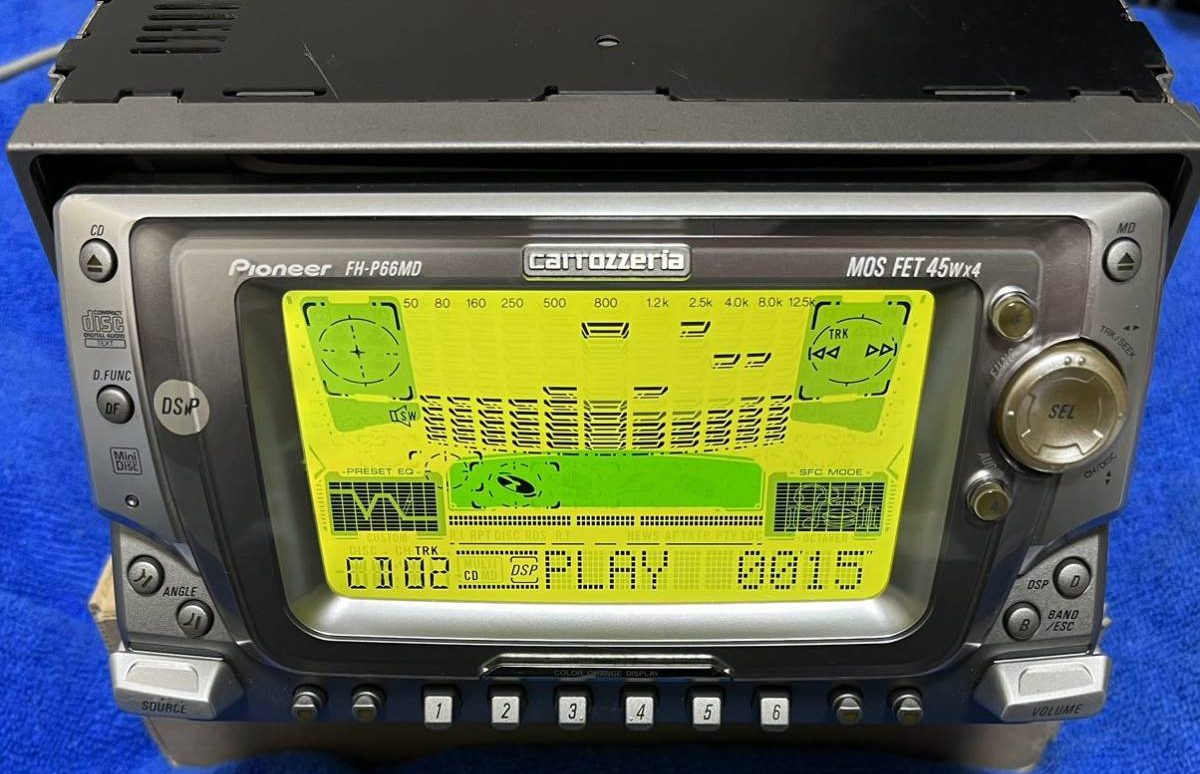

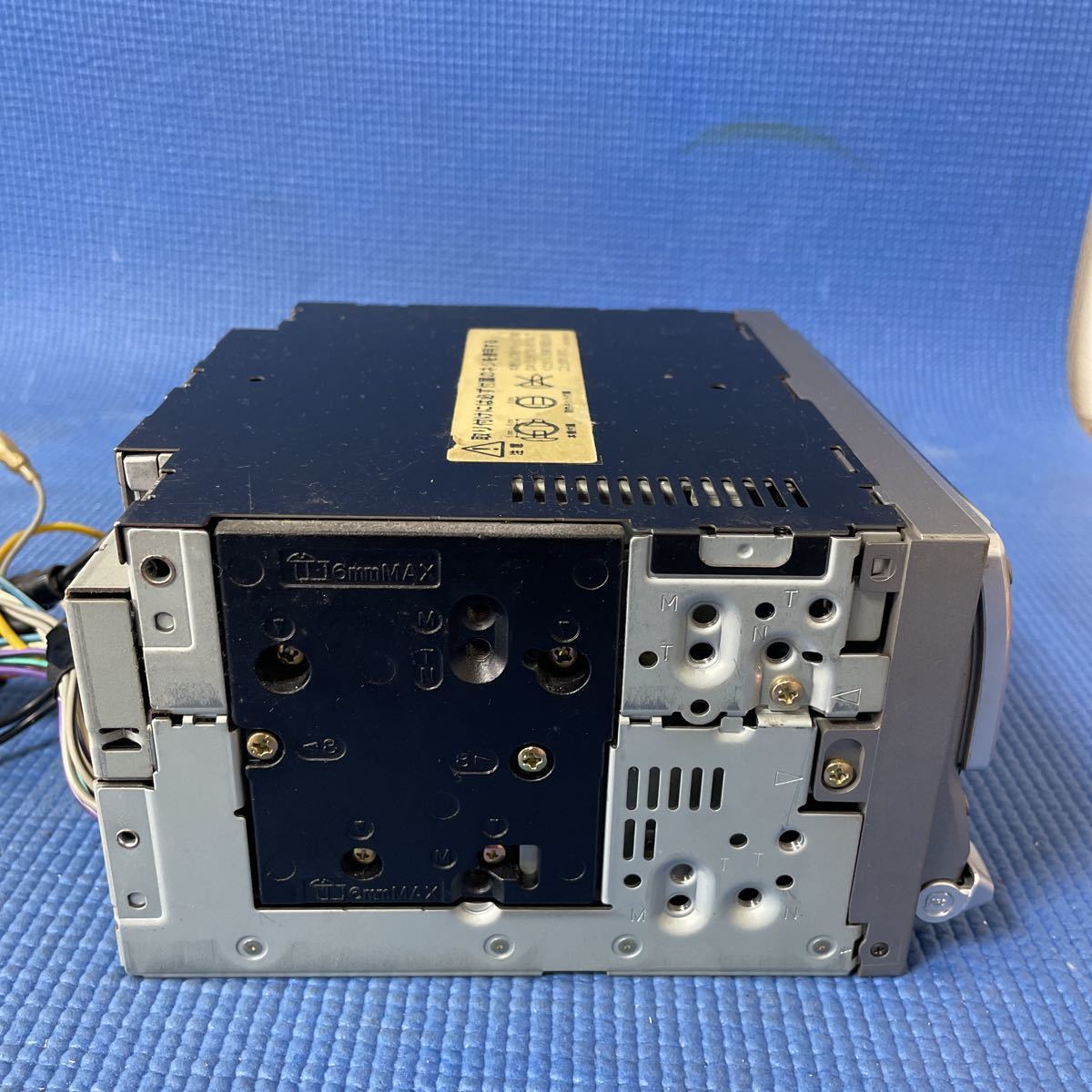

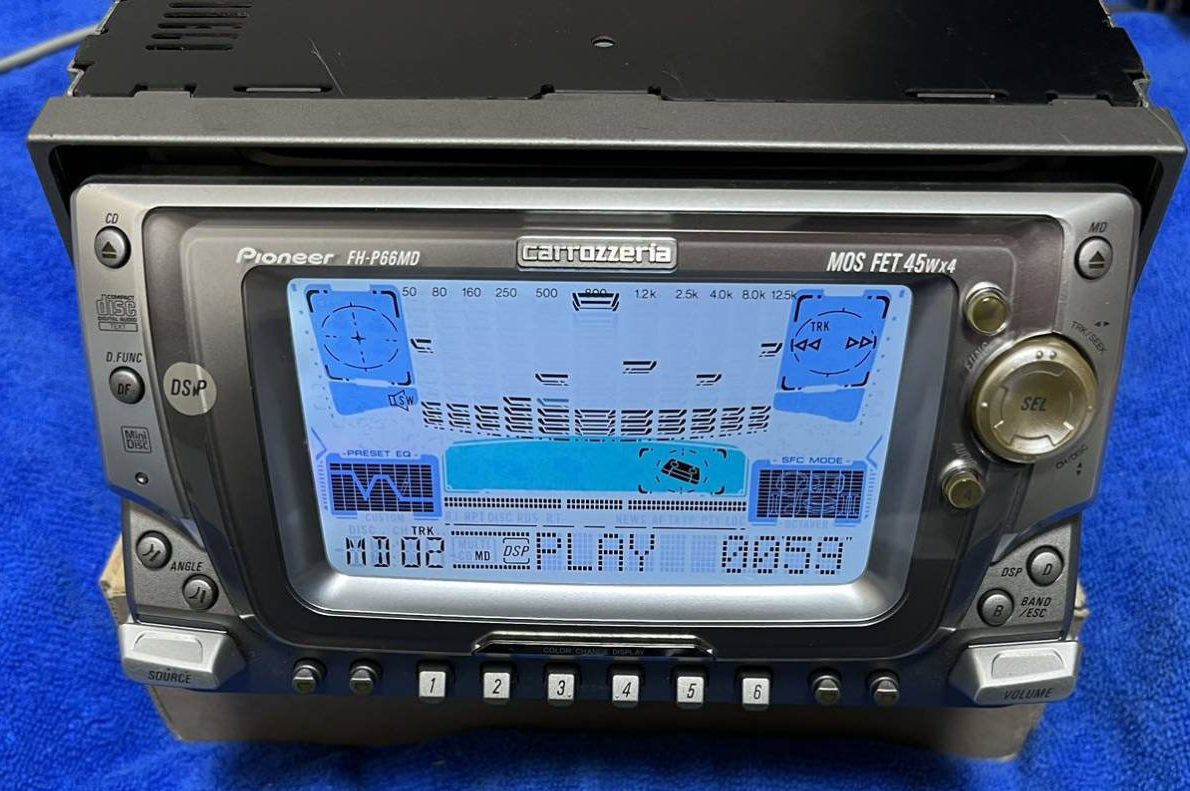

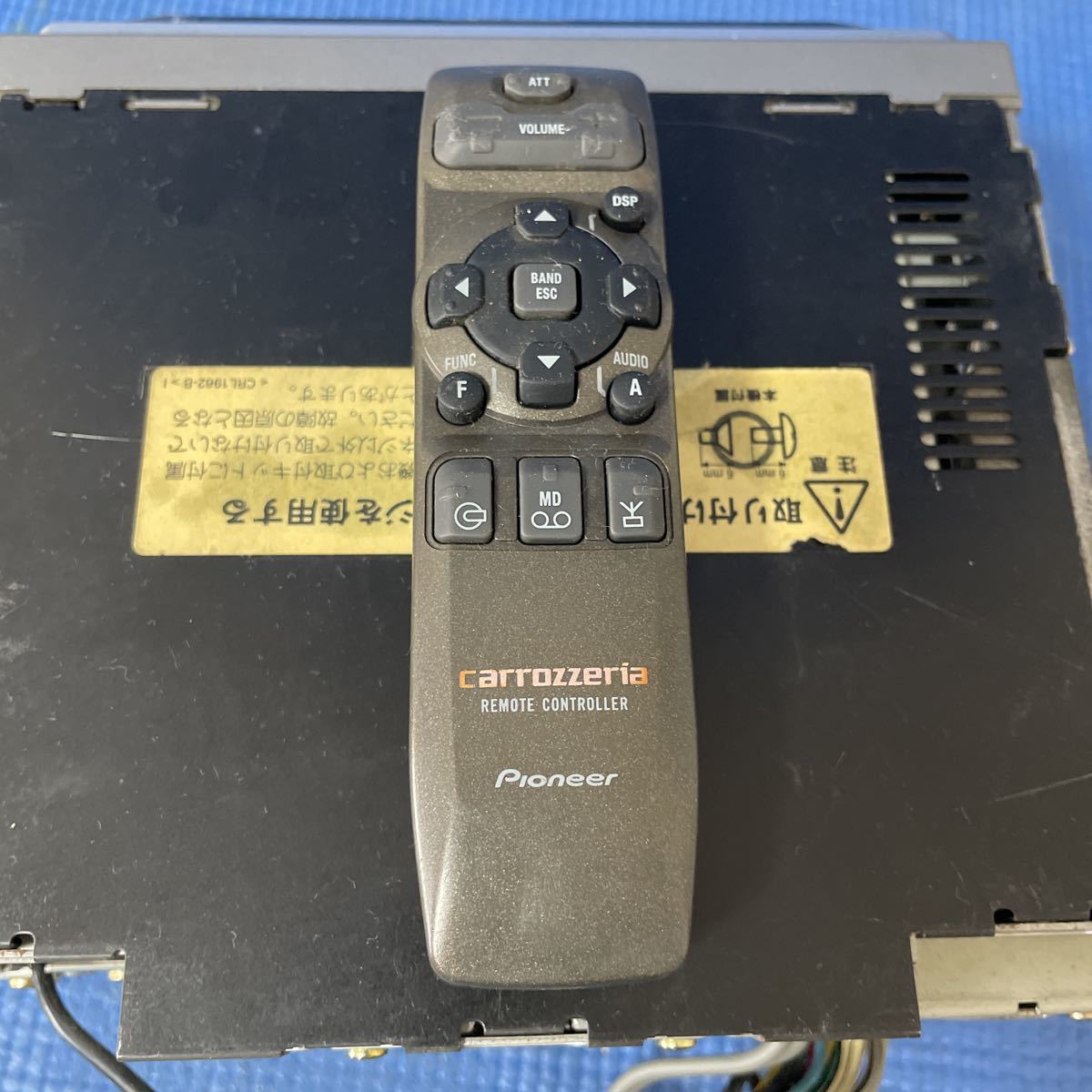

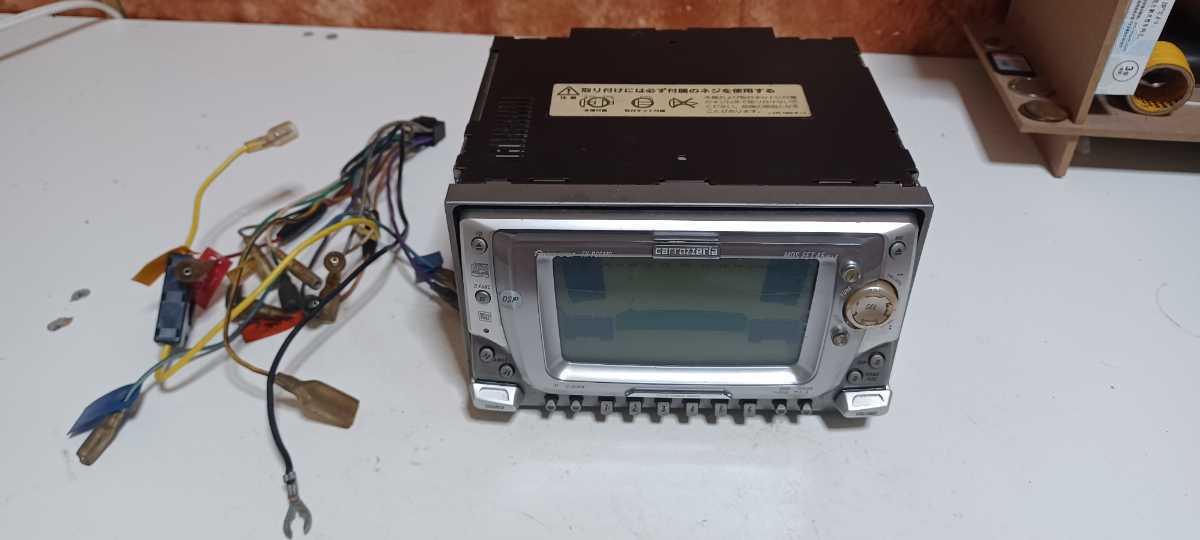

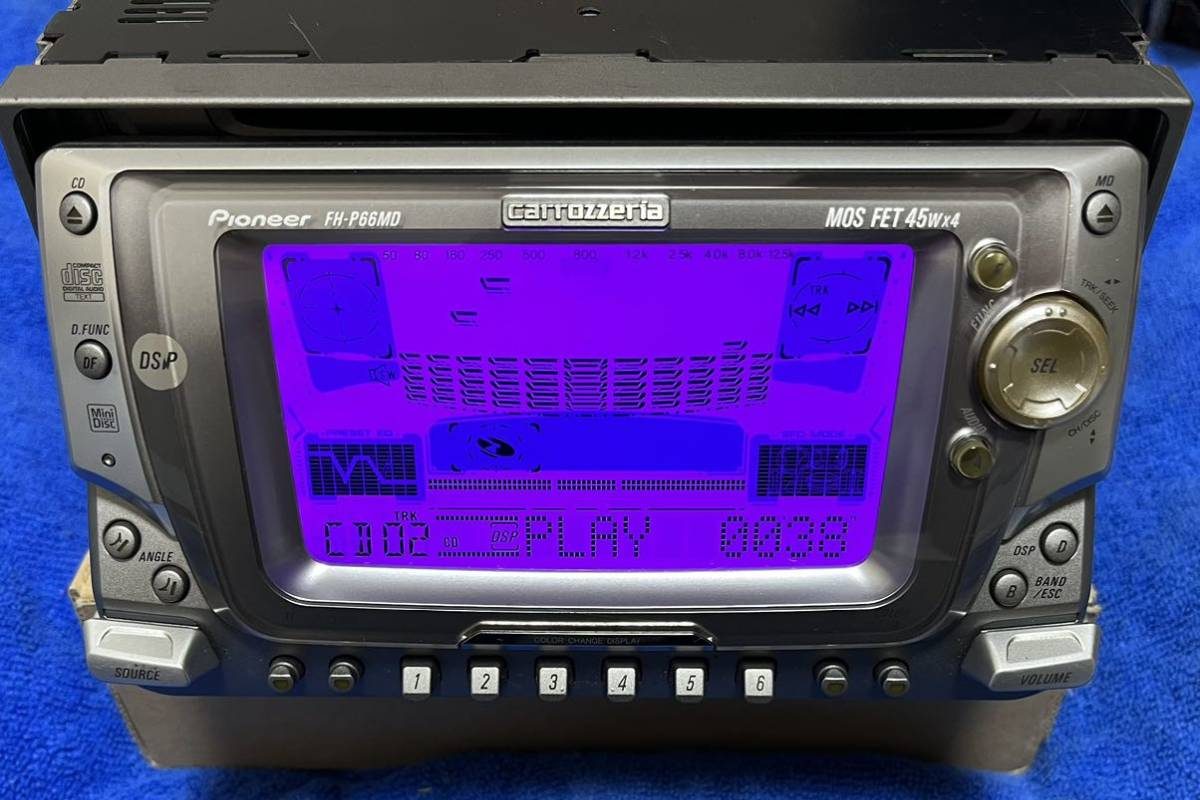

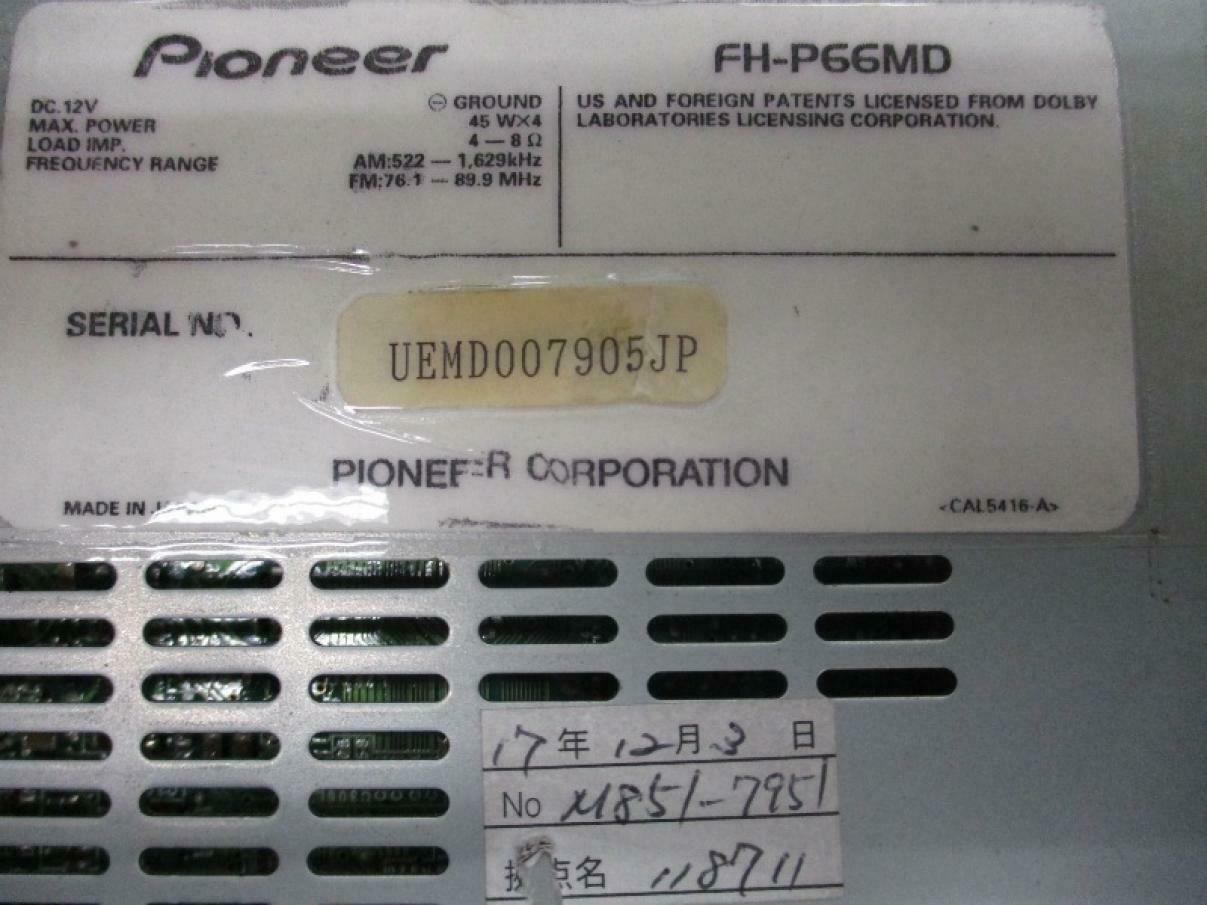

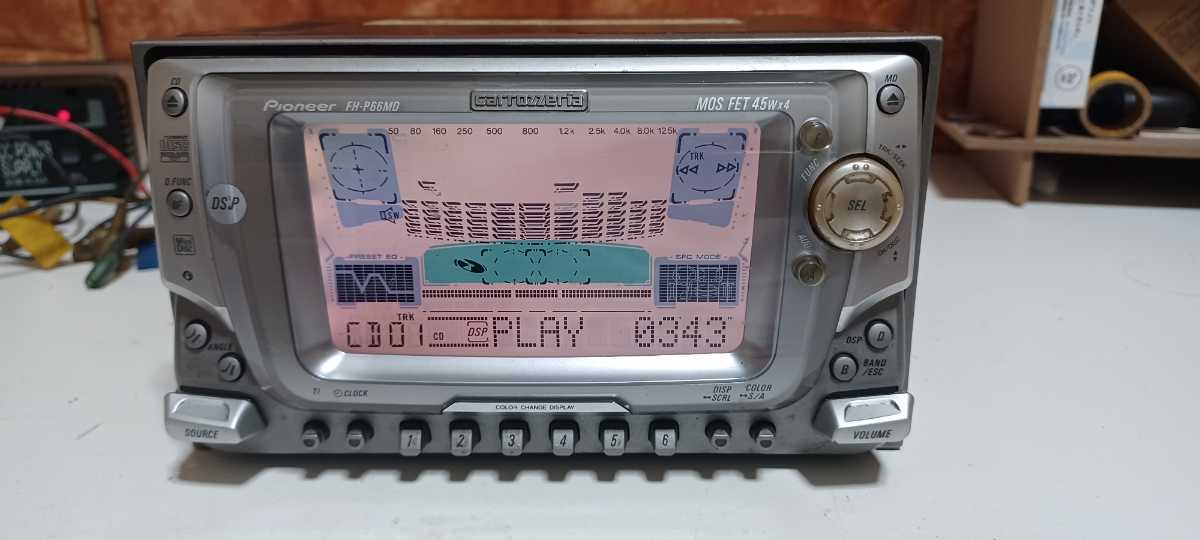

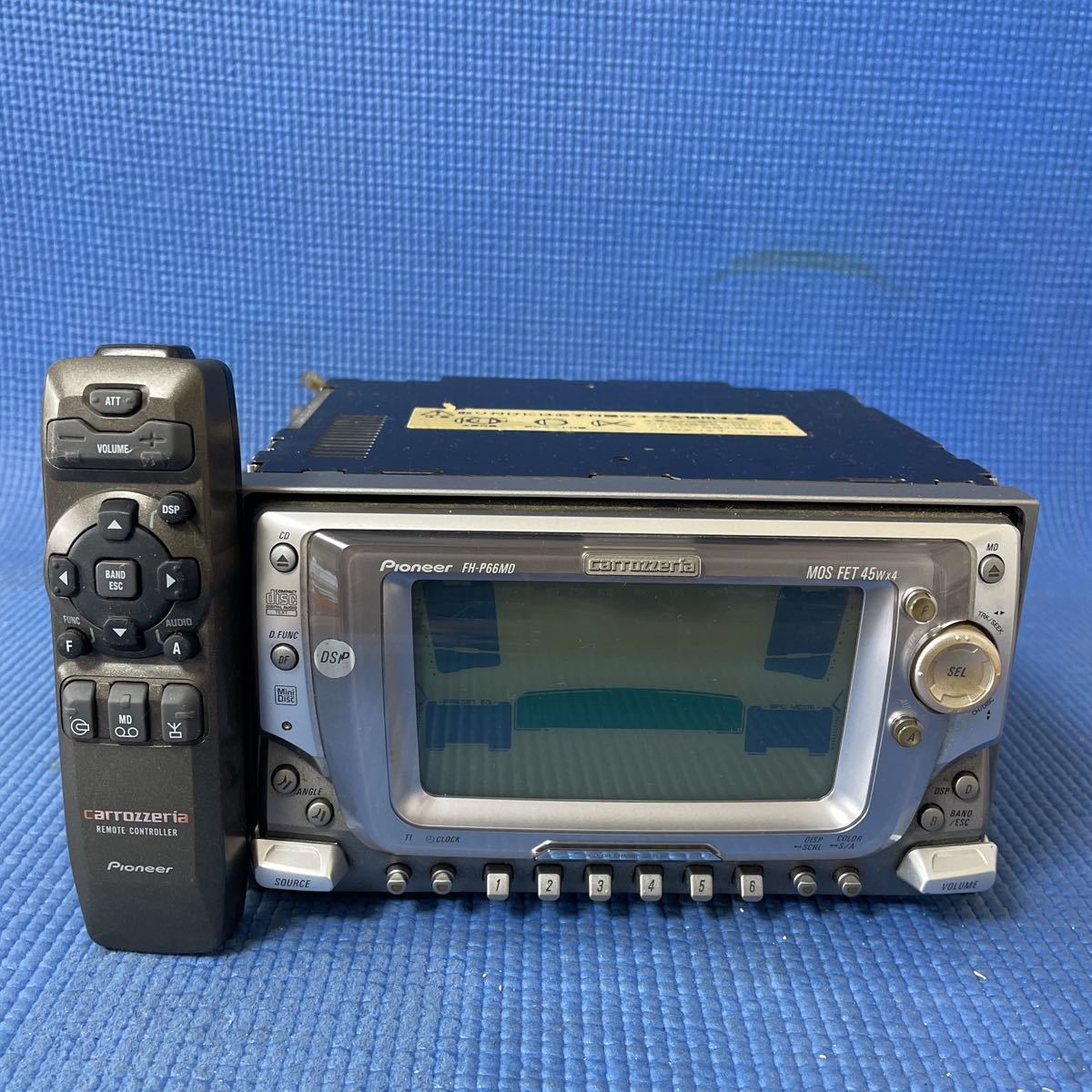

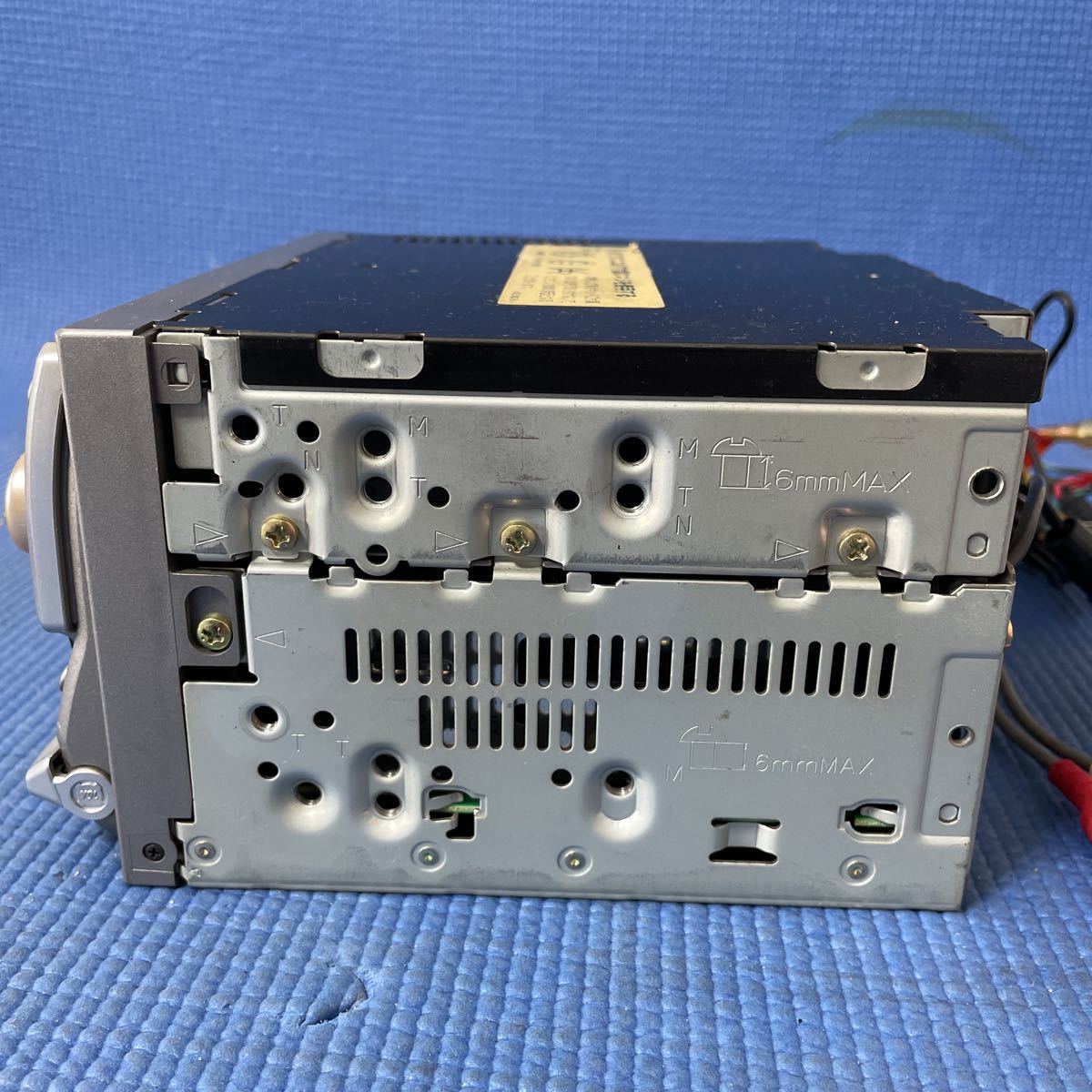

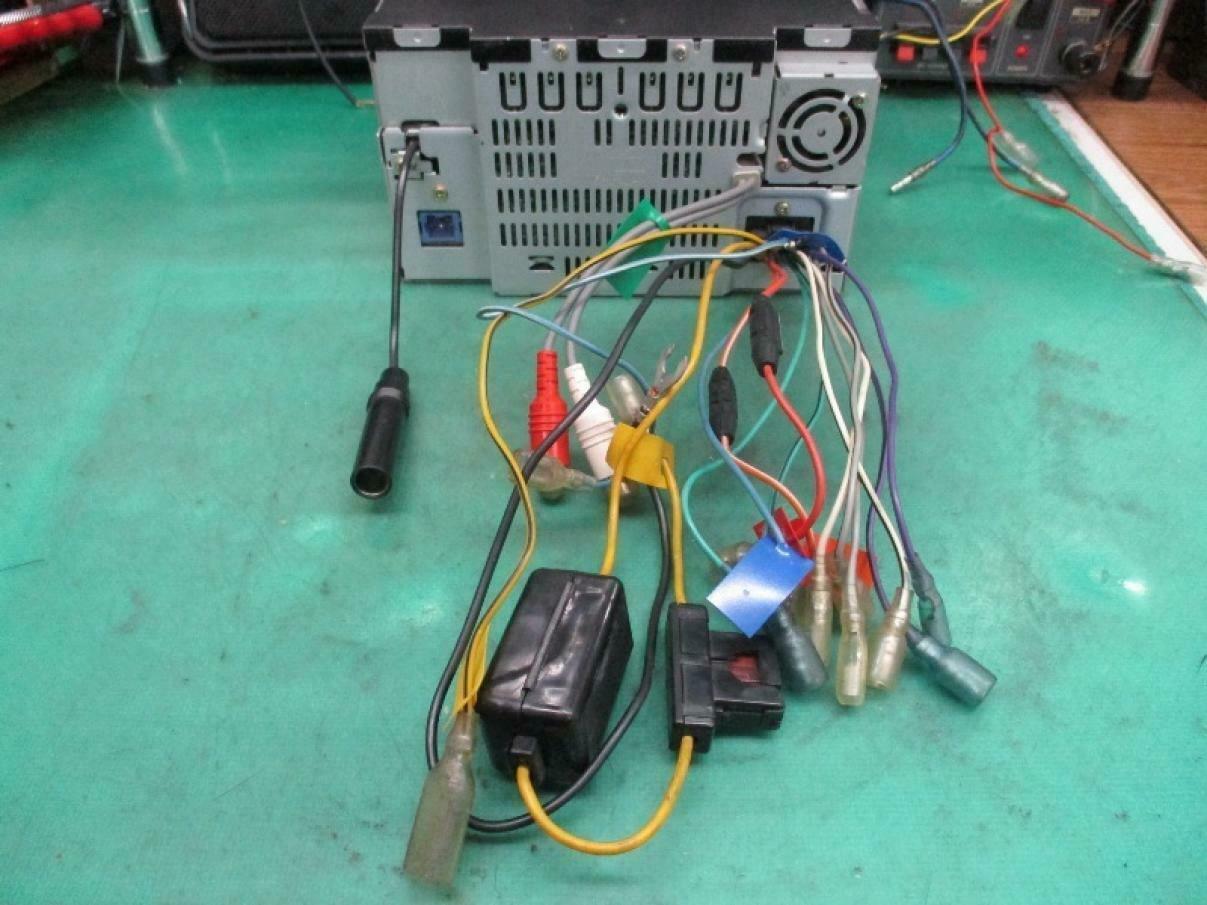

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
