Pioneer FH-P710MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-06-16

Manufacturer
Pioneer
Model / source grouping
FH-P710MD
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P710MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P710MD
Manufacturer Pioneer
Released 2006/02
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 mm x 100 mm x 161 mm
Weight 2400
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥68 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

"Auto Time Alignment & Auto Equalizer" that automatically tunes the music playback space for each car, "CD Digital Direct Transmission" that more faithfully reproduces the original sound, "Bar Brown High Performance 24bit ΔΣ D / A Converter", "Power" "MOS FET 50W x 4ch", "Bit Metrics (CD)" and "BBE Digital" that improve the sound quality of compressed audio, "13 band digital equalizer", "Low pass (subwoofer control) & front / rear independent high pass filter" , "F special correction type real-time ASL", etc. are installed.

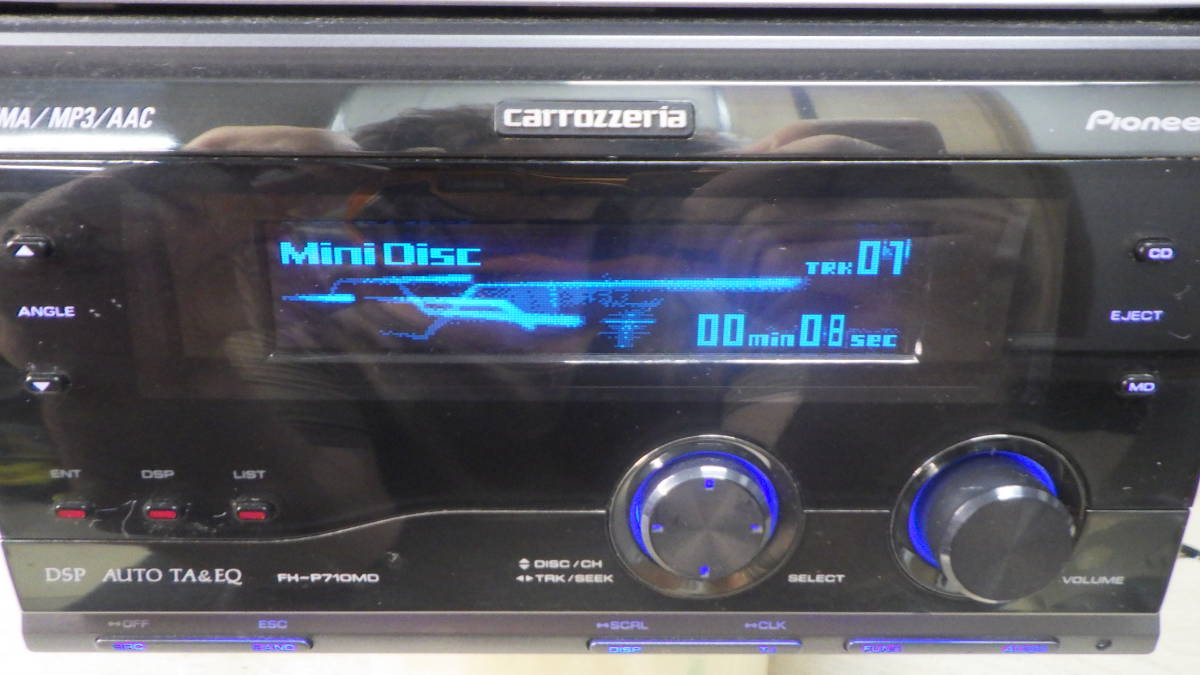

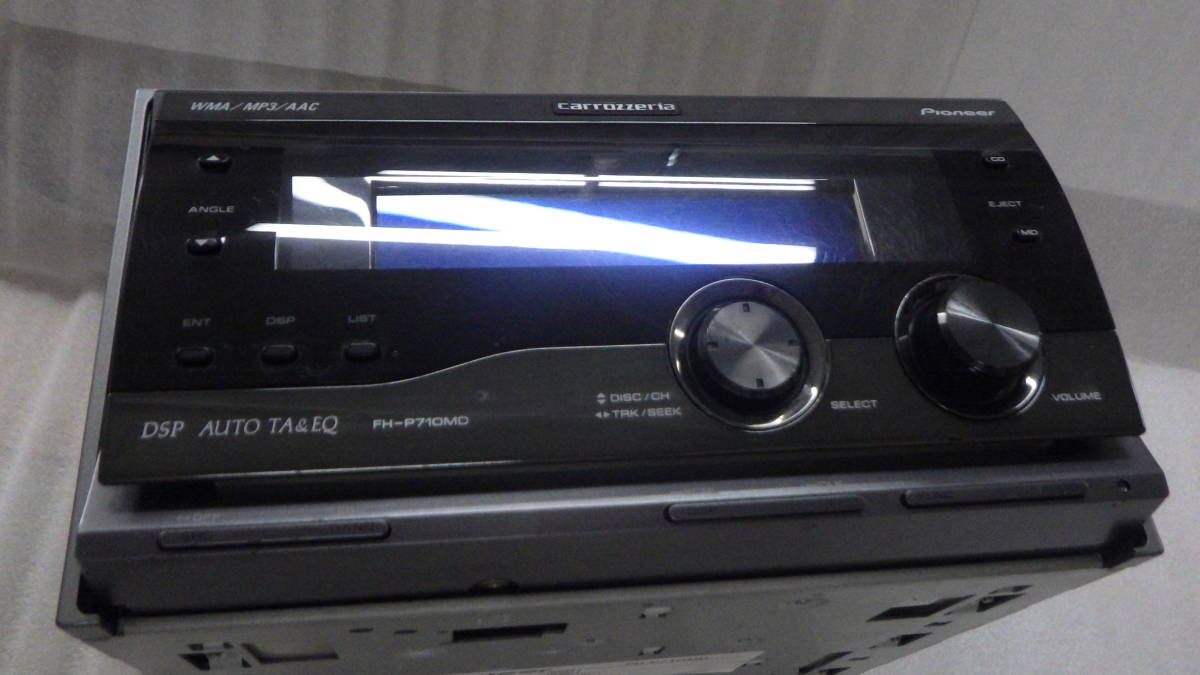

Uses an "organic EL display" with high brightness and excellent viewing angle.

It supports the increase in the capacity of music data by compressed audio, and can display a list of track titles in 3 lines in Chinese characters, and it is possible to quickly and easily search for the song you want to listen to on the display screen linked with the operation.

CD player section

  • MP3 decoding format MPEG-1 & 2 AUDIO LAYER-3
  • WMA decoding format Ver.7, 7.1, 8, 9 & 10 (2ch AUDIO) (Windows Media Player)
  • AAC decoding format MPEG-4 AAC (iTunes-encoded only) <FH-P710MD only>
  • WAV signal format Linear-PCM, MS ADPCM

The display also supports CD text and Chinese character display of the connected "iPod" by organic EL.

Content adapted from: Pioneer Press Release Pioneer Press Release (MiniDisc Wiki mirror) Pioneer Product Page response.jp av.watch

Manuals

Pioneer FH-P710MD Manual

Repair

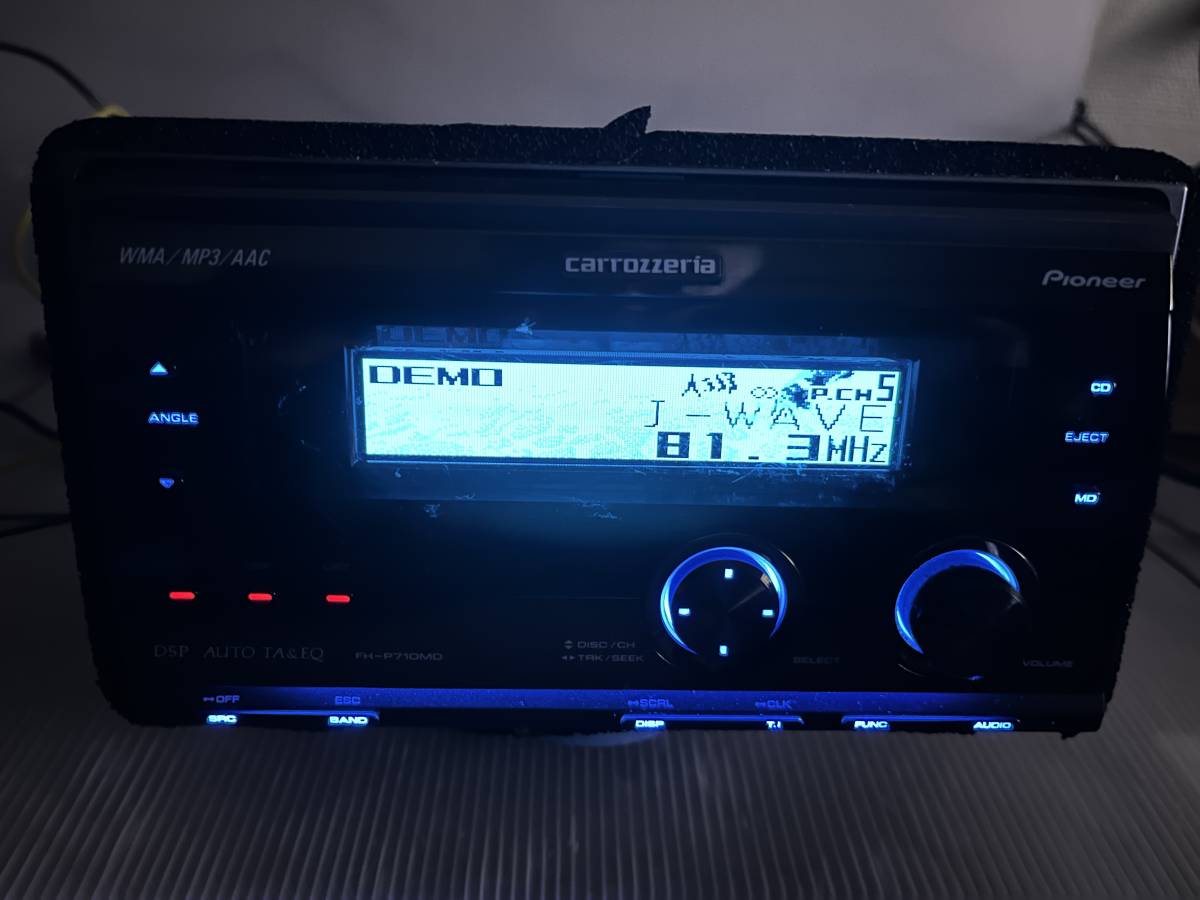

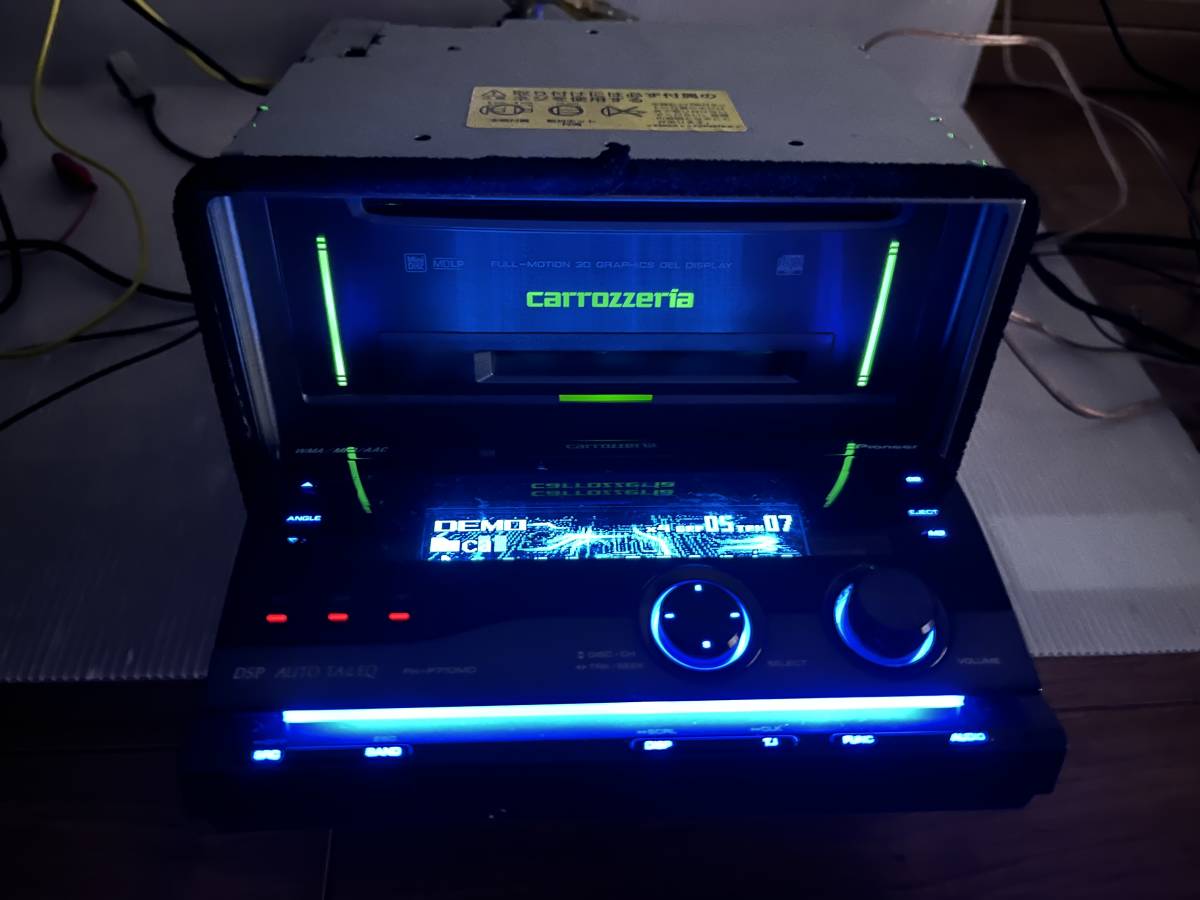

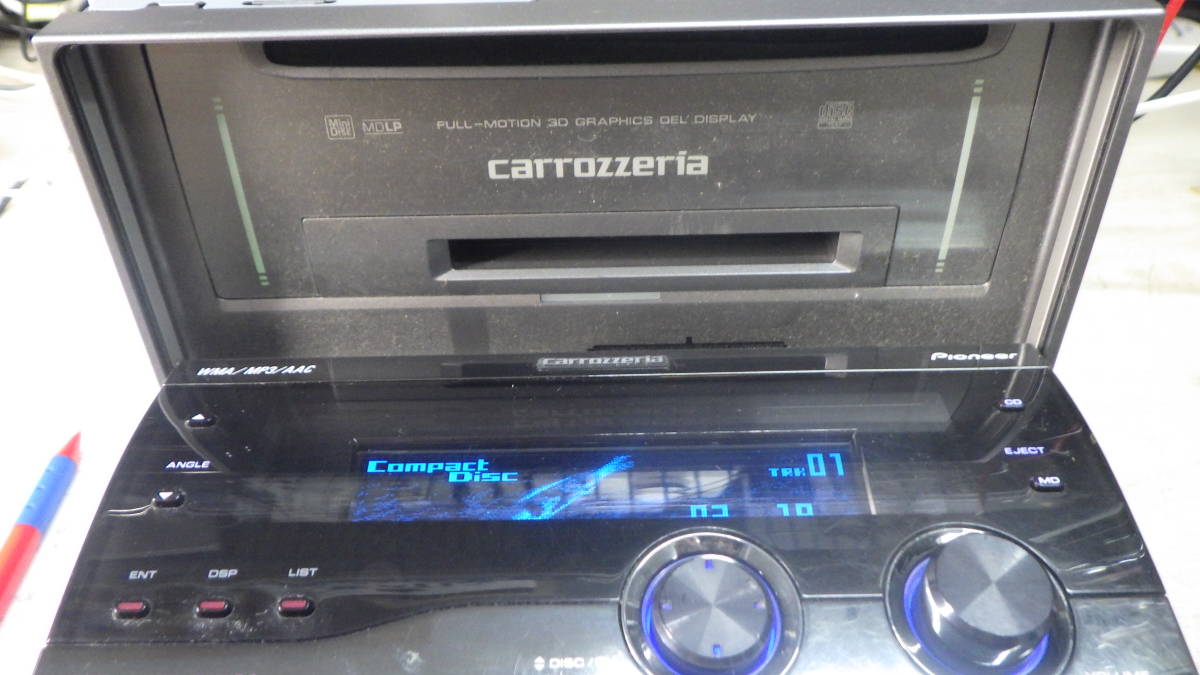

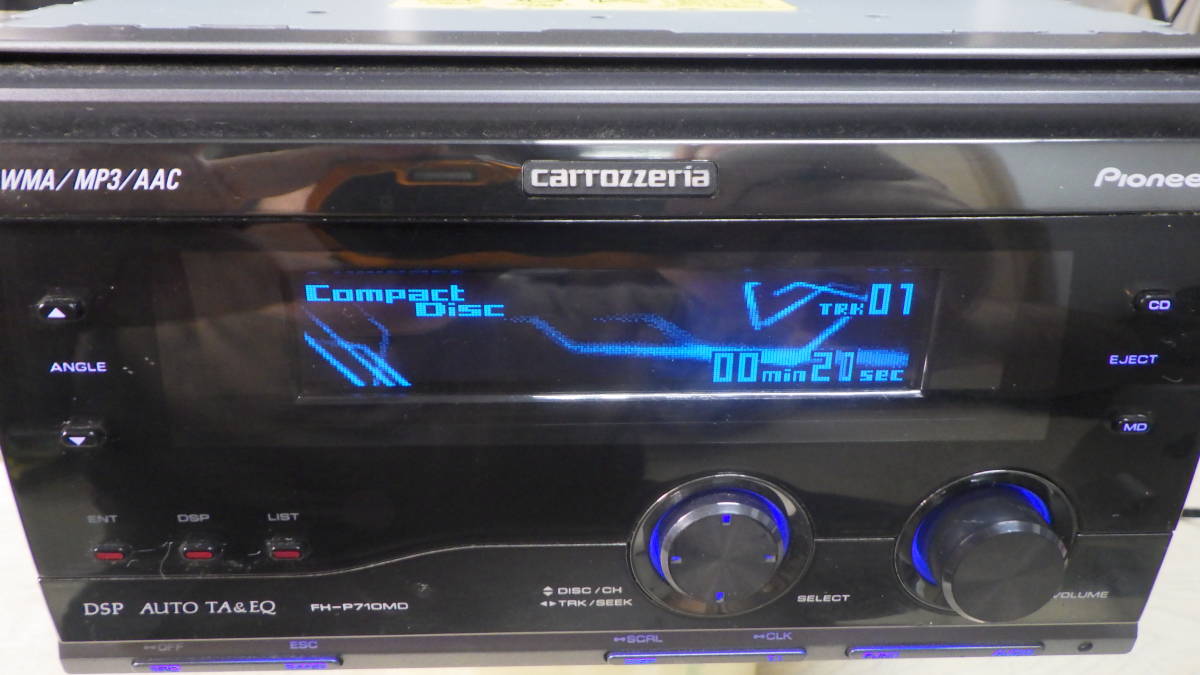

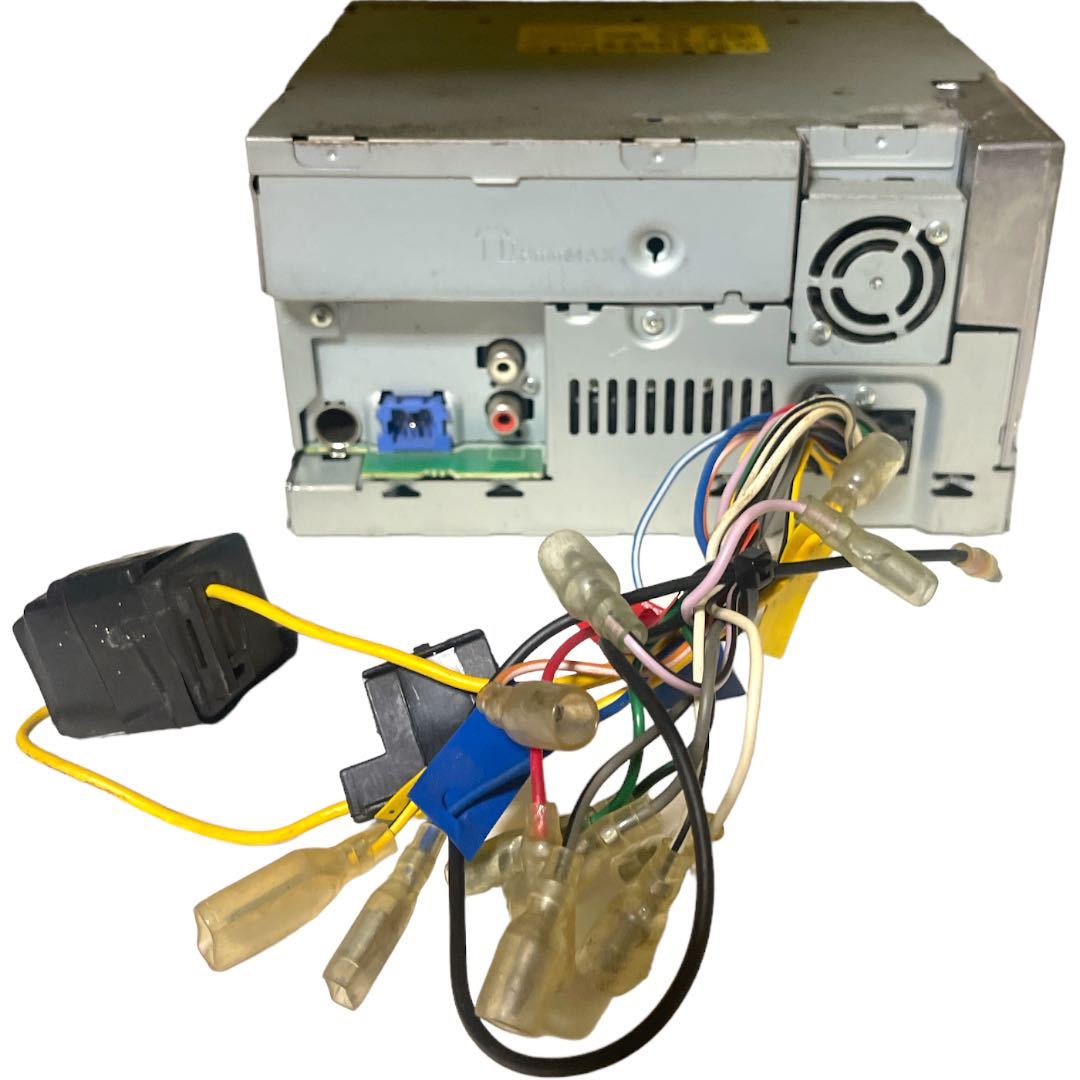

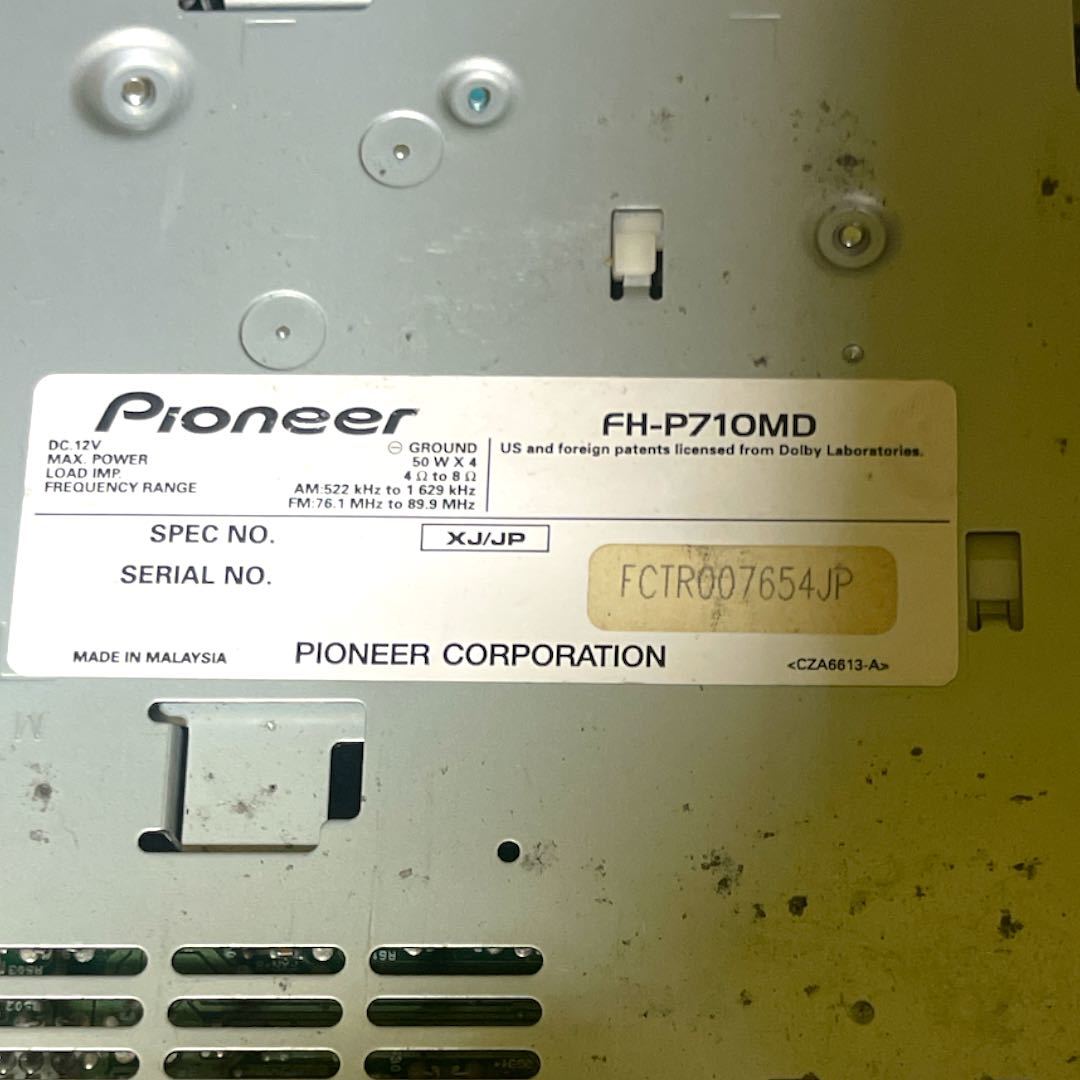

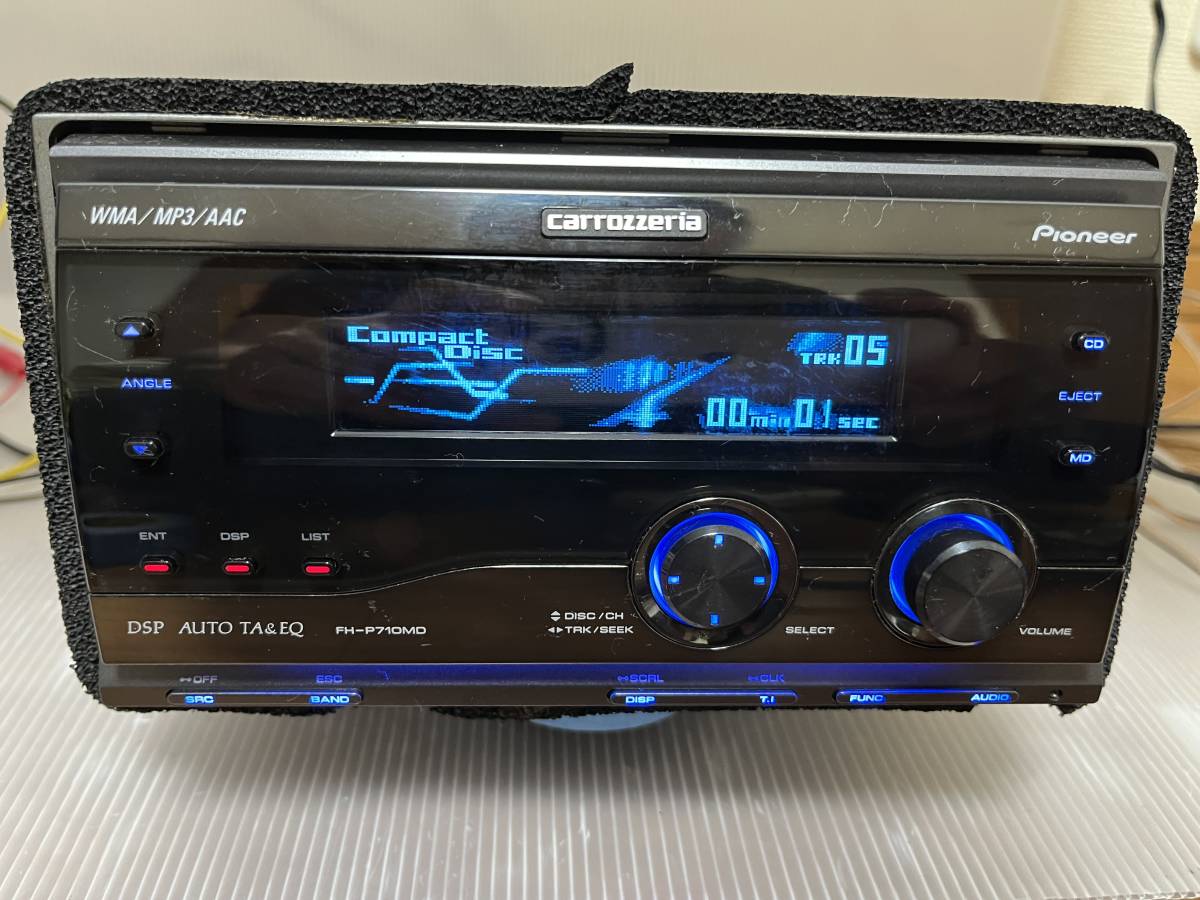

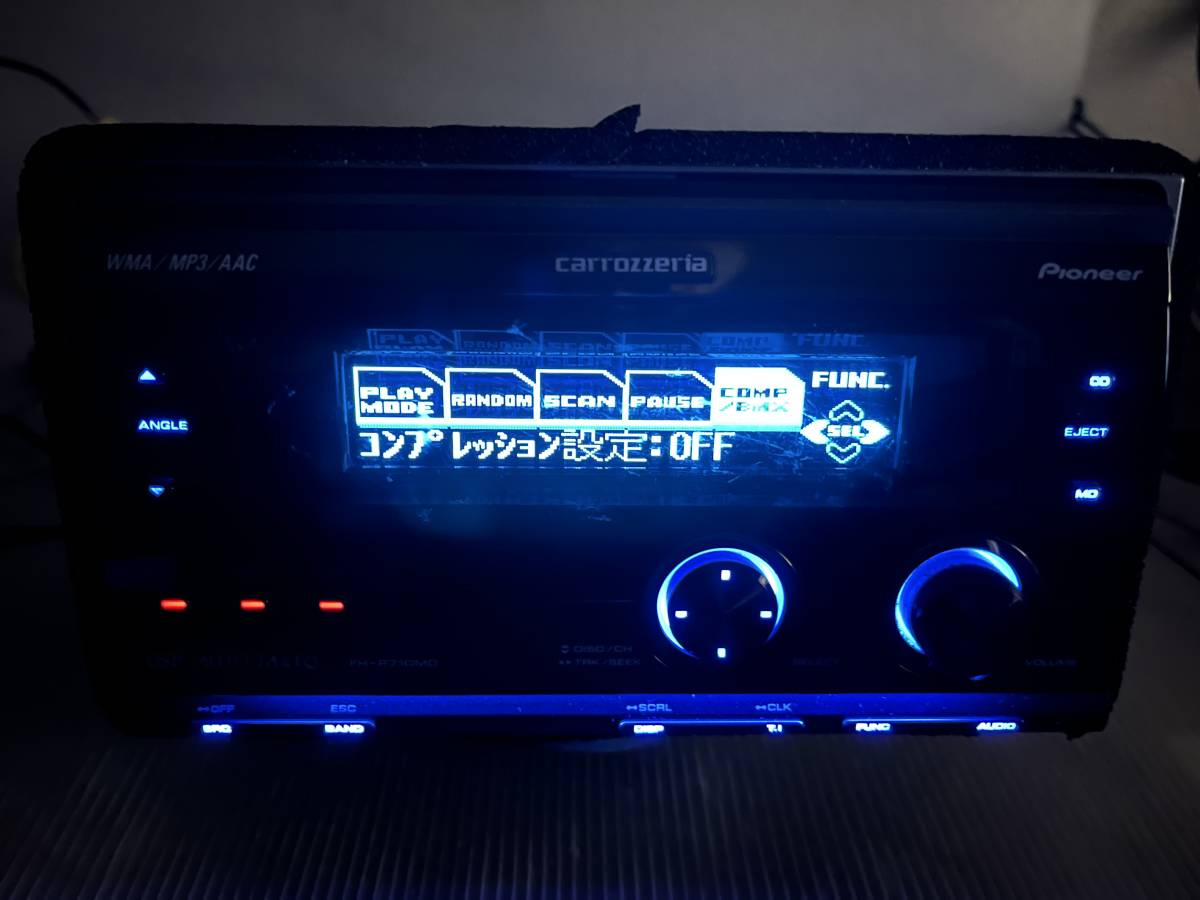

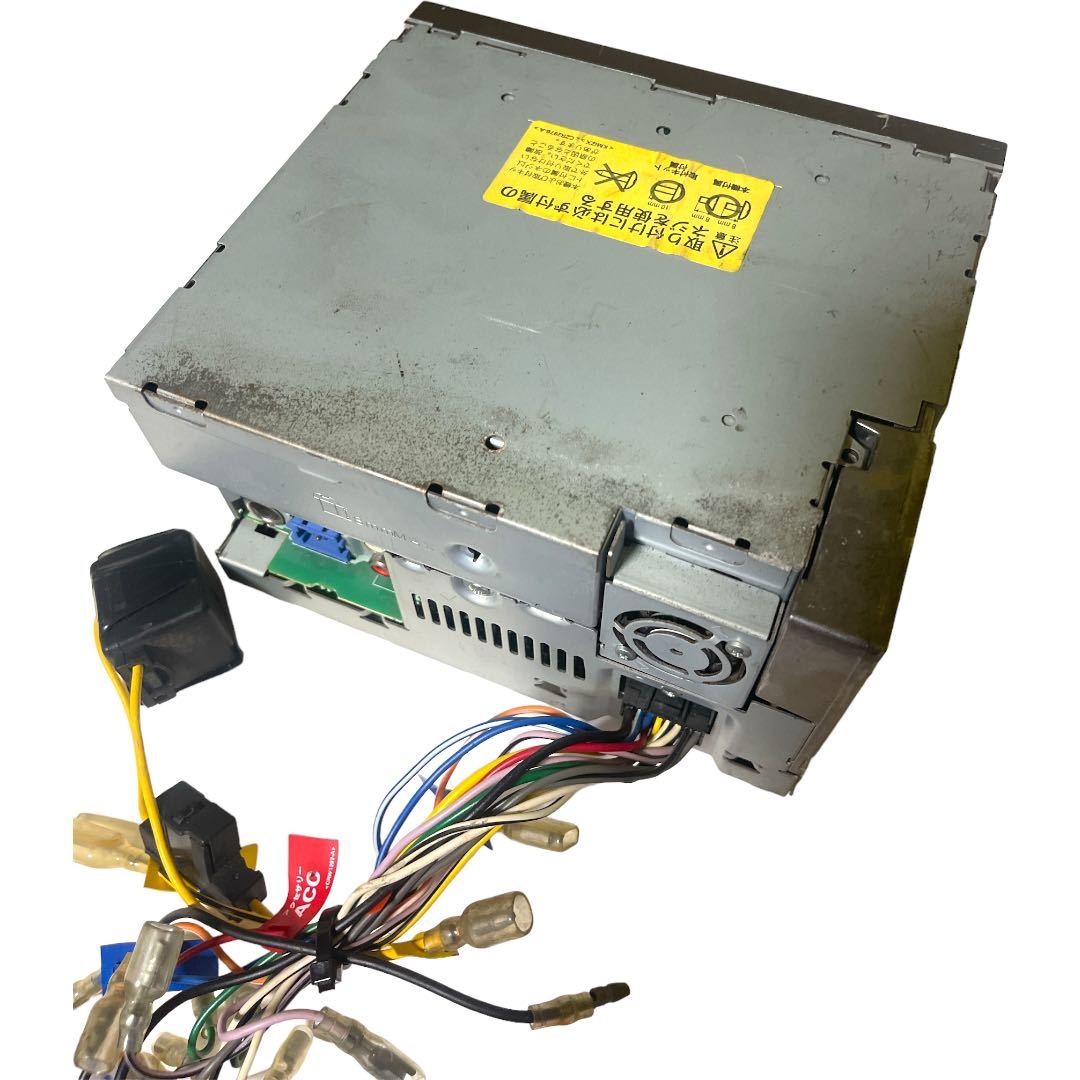

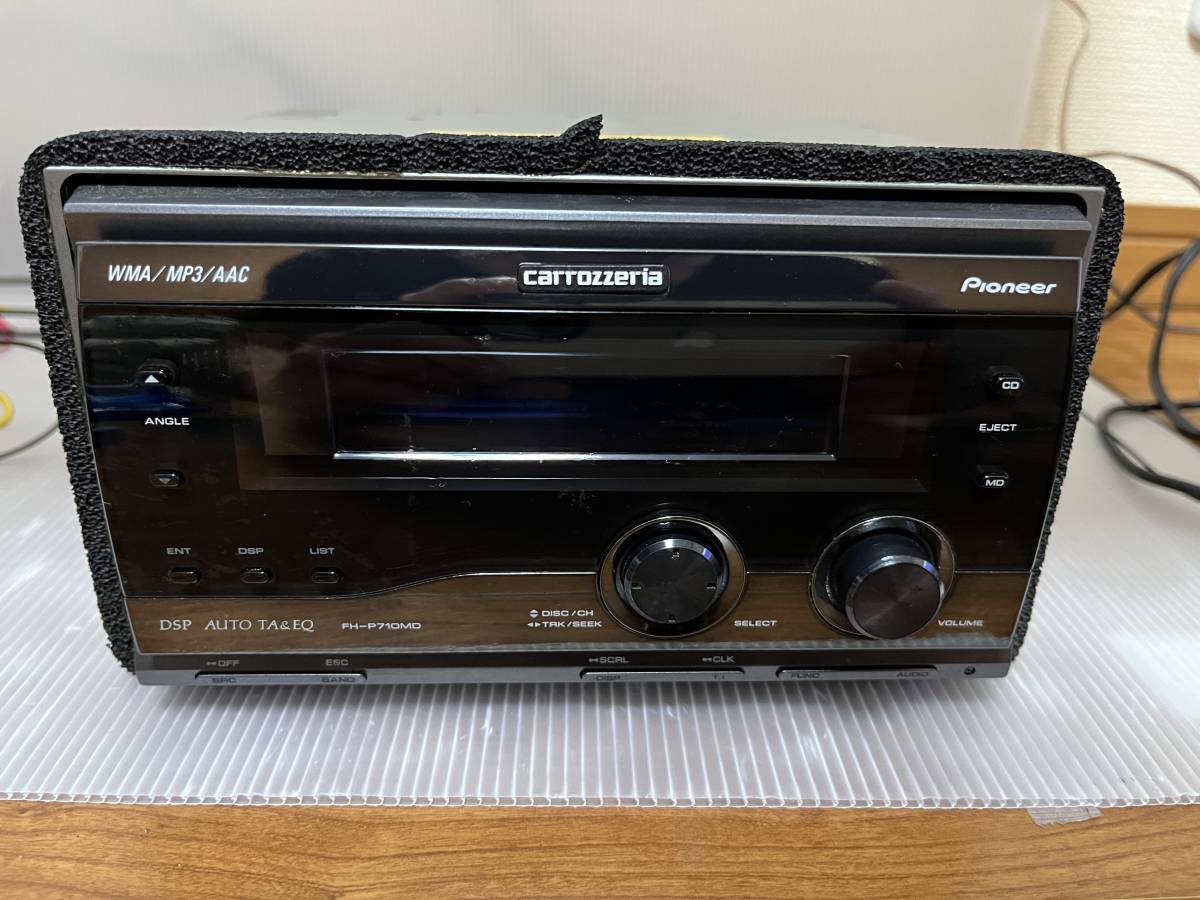

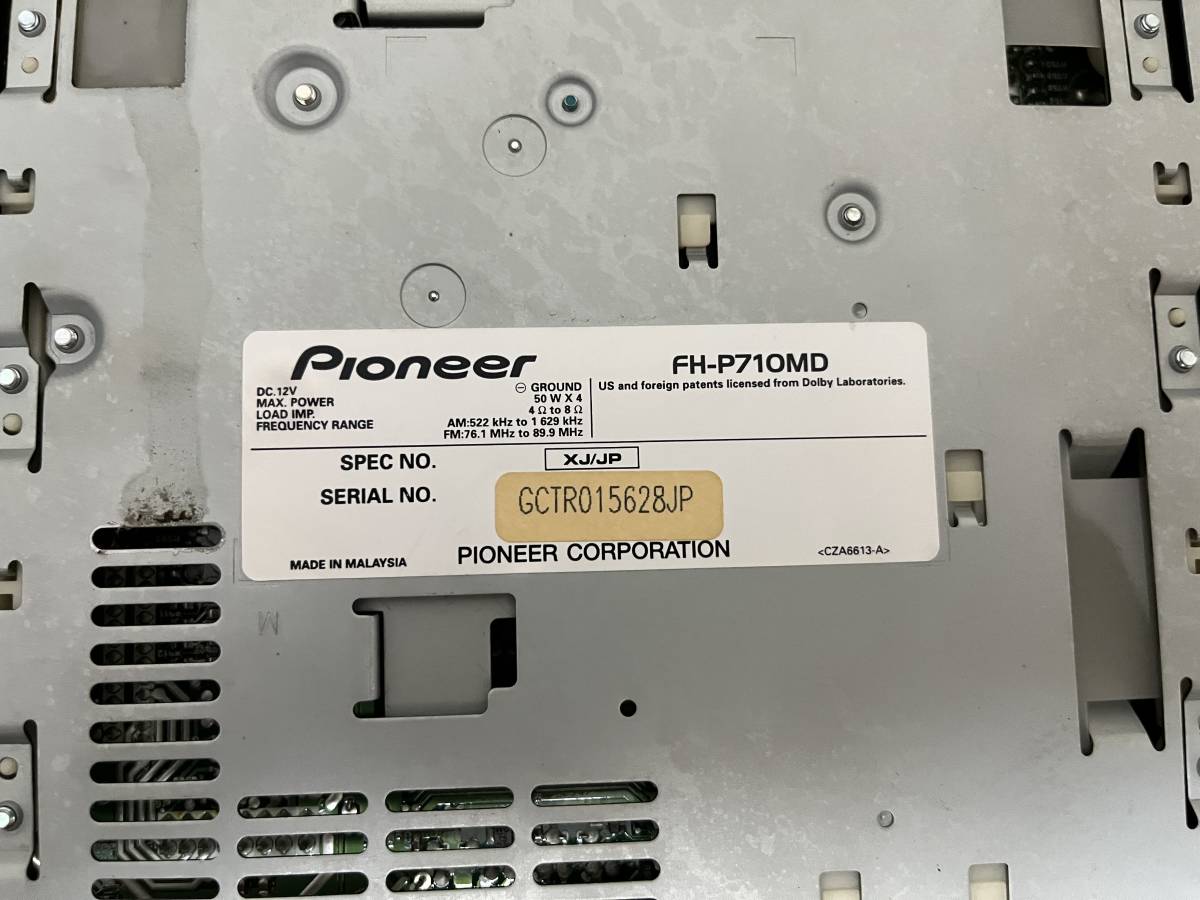

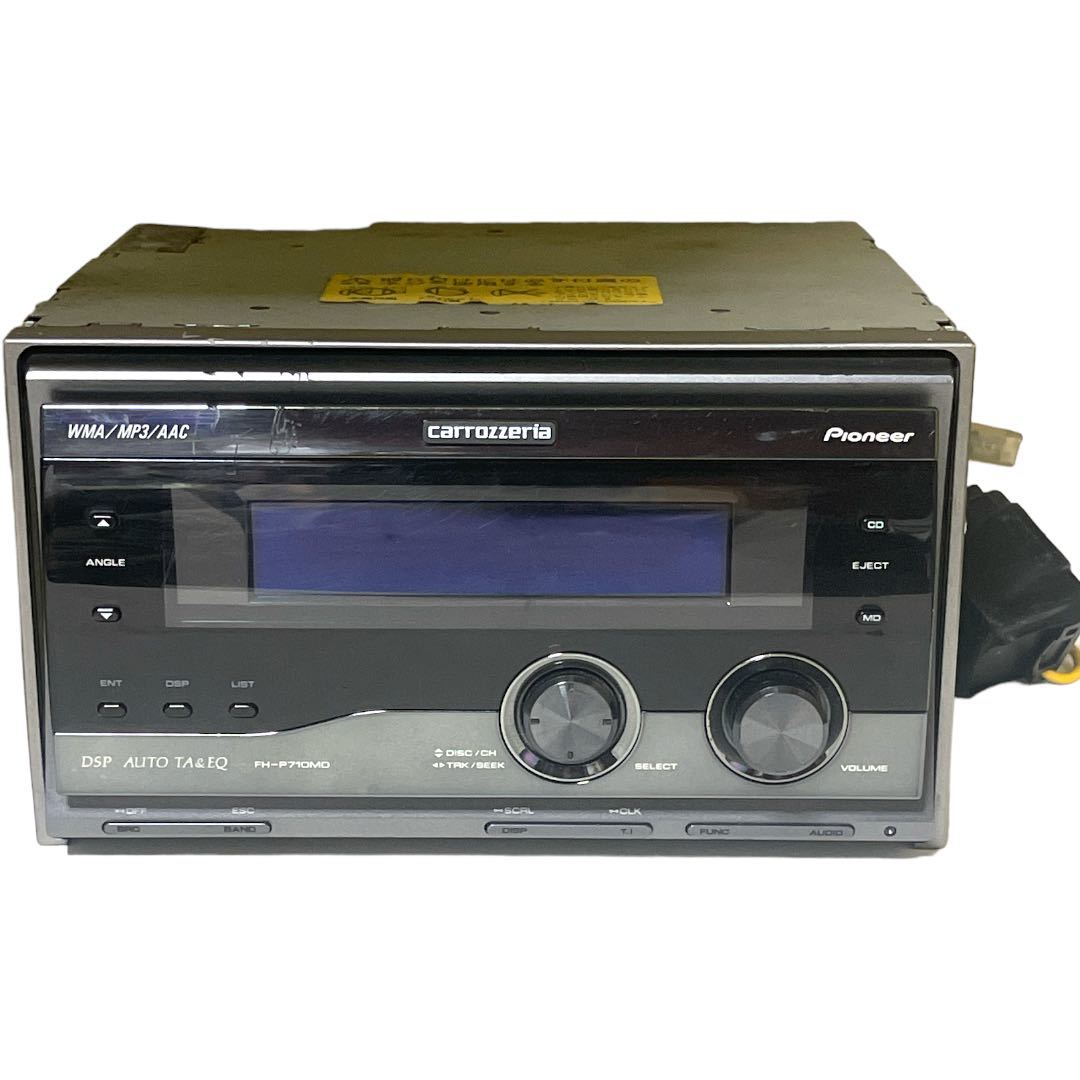

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ManualUser manual
RegionJapan
