Device

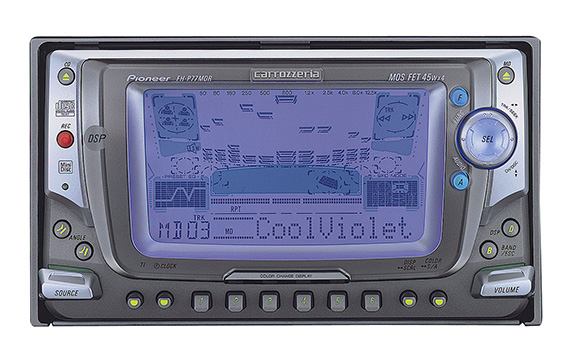

Pioneer FH-P77MDR

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-11-30

Manufacturer
Pioneer
Model / source grouping
FH-P77MDR
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P77MDR”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P77MDR
Manufacturer Pioneer
Released 2000/05
Device type auto
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 160 (D) mm
Weight 3000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥100 000
-
Inputs CD
Outputs RCA out, Speaker amplifier
Control Not recorded

MD recording function that allows you to create your favorite MD in the car. Supports CD-Text.

Equipped with the industry's first color change function that changes the color of the display to 10 colors using the RGB LED backlight. You can select the color you like and the color that matches the interior of the car.

Electric slide down flap mechanism that can adjust the angle in 12 steps
Built-in DSP with octaver function to create bass in a source lacking bass
Digital high-bit tune technology that reproduces high-quality sound with digital direct

MD titles can be displayed in Kanji and Kana with alphanumeric numbers supported.

Content adapted from: Pioneer Press Release Pioneer Product Page 1 Pioneer Product Page 2 Pioneer Product Page 2 (MiniDisc Wiki mirror)

Manuals

Pioneer FH-P77MDR User Manual JP

Pioneer FH-P77MDR Installation Guide JP

Pioneer FH-P77MDR Installation Guide ENG (auto translated)

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ManualUser manual
RegionJapan
