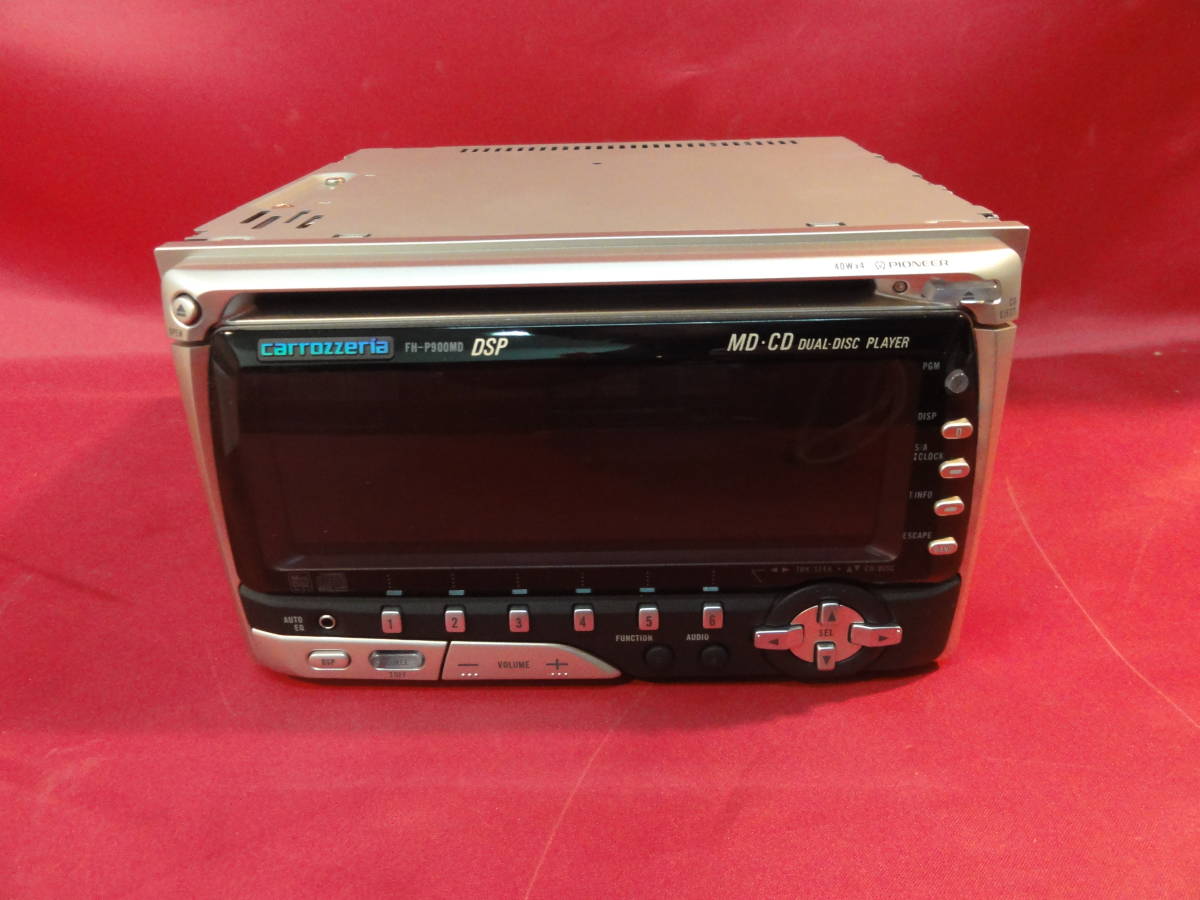

Pioneer FH-P900MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-02-13

Manufacturer
Pioneer
Model / source grouping
FH-P900MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P900MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P900MD
Manufacturer Pioneer
Released 1997/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-DIN
Weight Not recorded
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥126 000
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

40W x 4ch high-power amplifier and DSP are installed in a 2D integrated body.

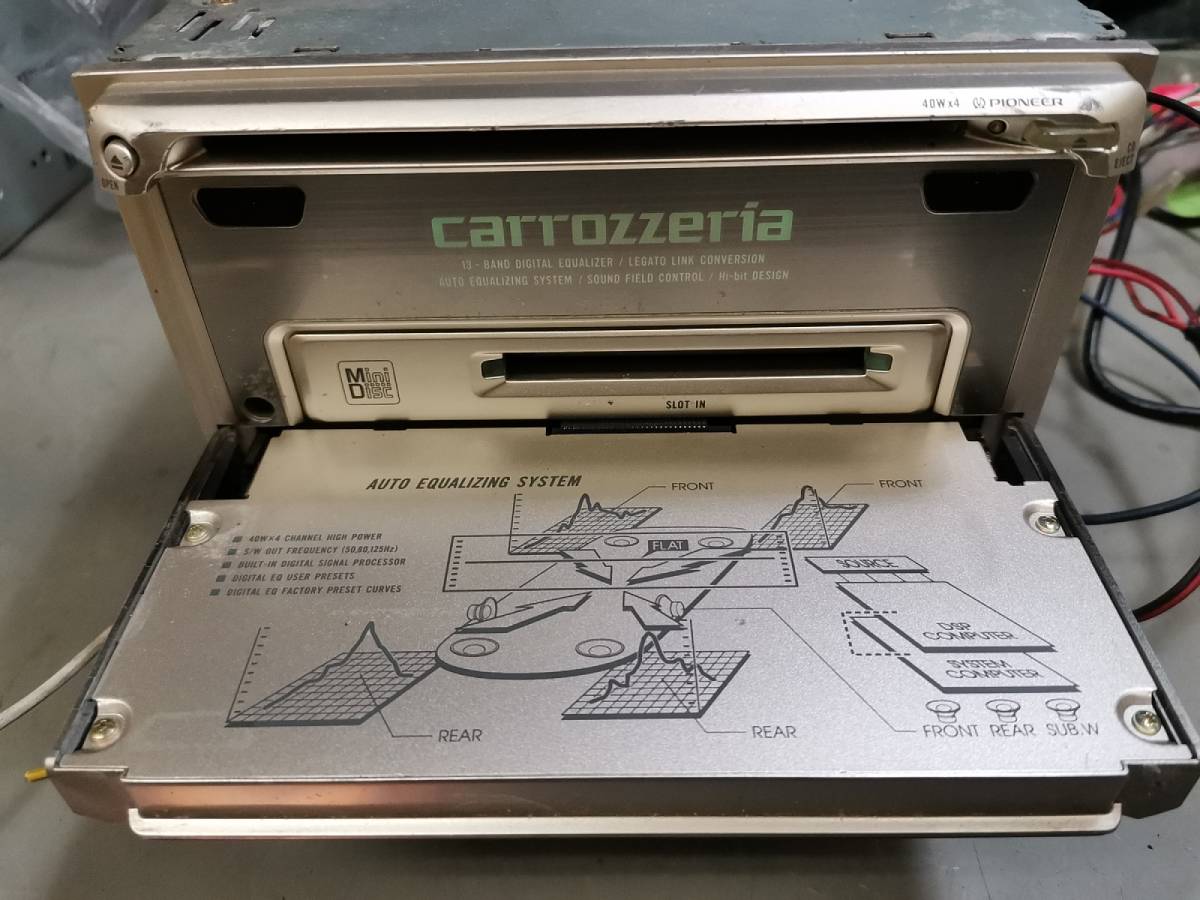

Equipped with an auto equalizer function that automatically corrects the optimum in-vehicle sound field characteristics (with a dedicated microphone)

Equipped with high-performance DSP such as 13-band equalizer that can correct sound quality to your liking and SFC (Sound Field Control) that reproduces the sound field

Equipped with digital direct transmission, high-bit transmission and high-quality audio circuit that prevent deterioration of music signals during transmission and realize high-quality sound

Equipped with "legato link conversion" that generates ultra-wide area components of 20kHz or more and pursues reproduction of the original sound

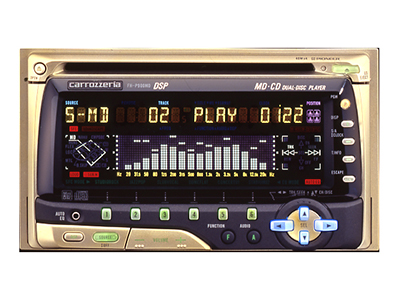

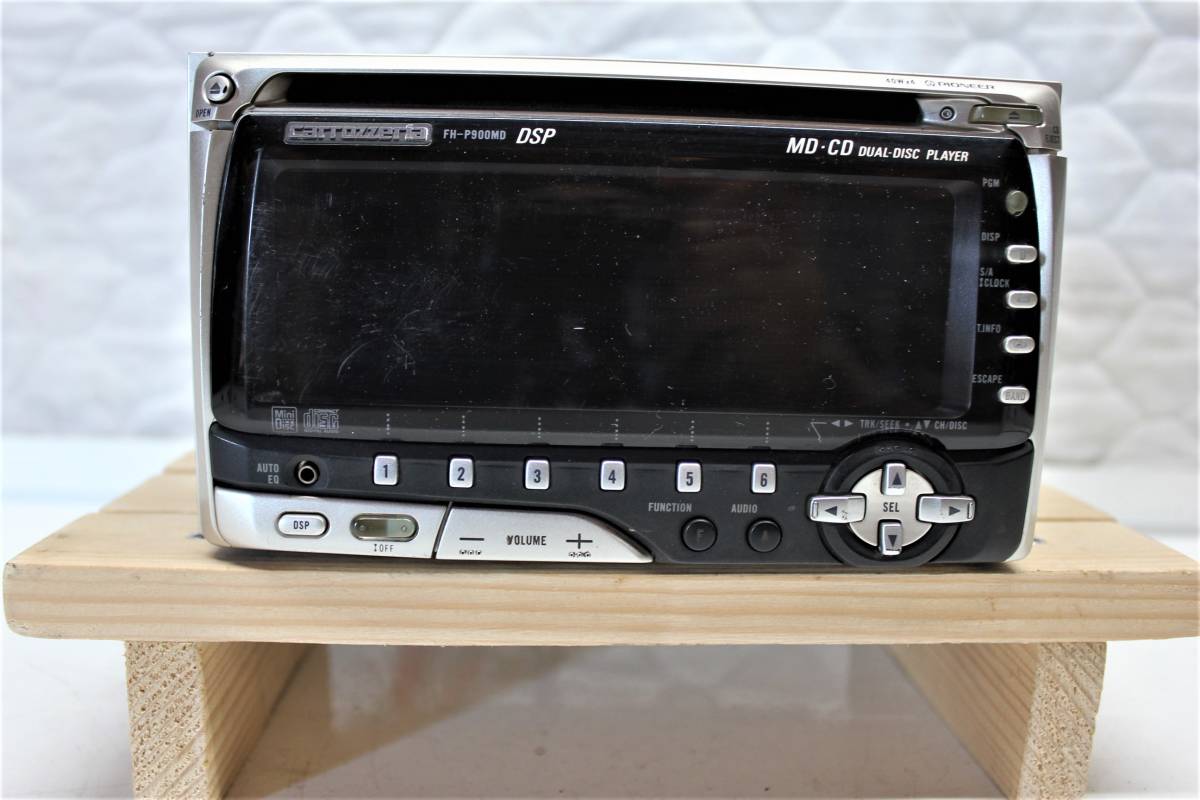

Equipped with a large multi-color display that displays each function in an easy-to-read manner and an electric operation flap

In addition to "Cyber ​​Sign" that guides operations, it is equipped with an operation guide function that displays each function in katakana in an easy-to-understand manner.

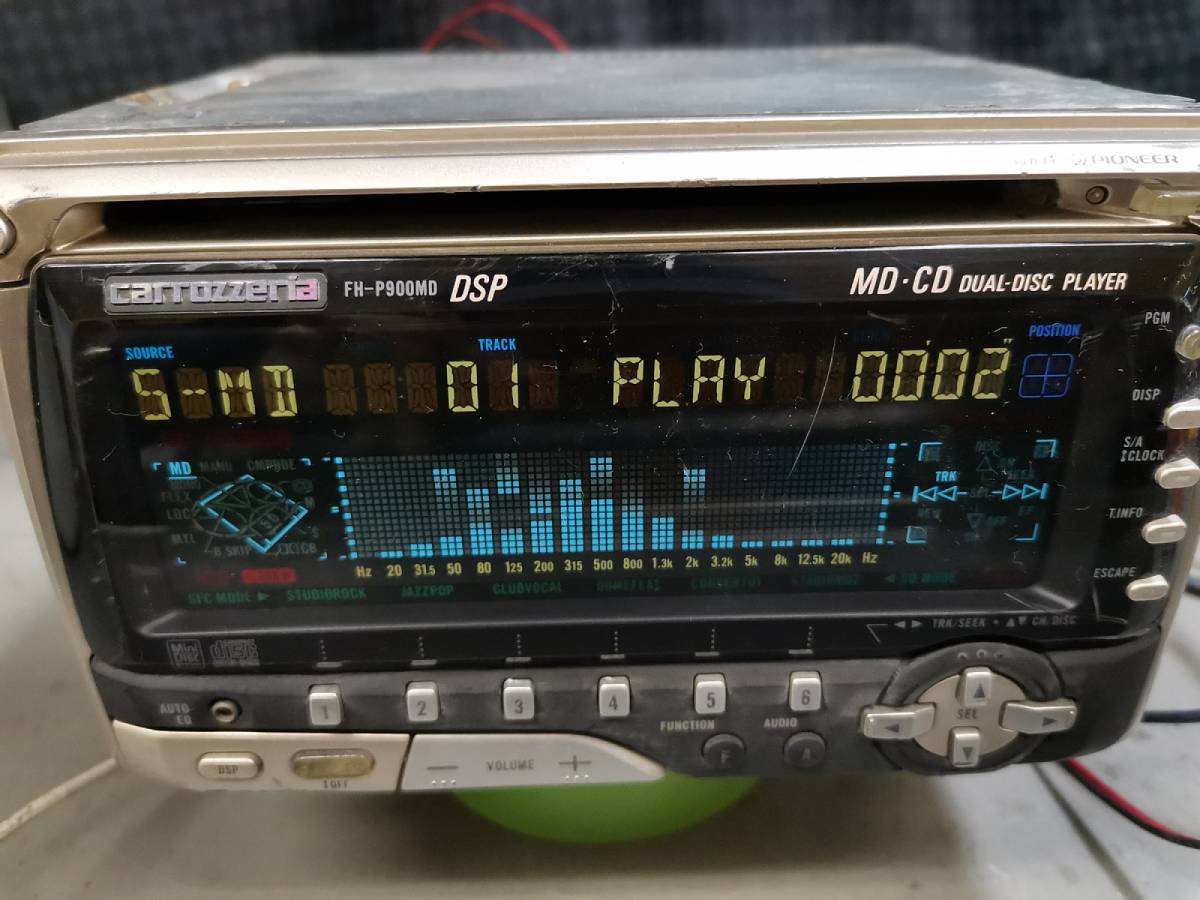

In addition to the calendar display and battery display, a 16-band 11-mode spectrum analyzer display that makes the console gorgeous.

Title display registered in MD (12 characters x 2 lines) and scroll function installed

Includes a main controller that allows 3way control of placing, standing, and gripping. Blind control is possible with a shape that takes tactile operation into consideration, improving safety and operability.

Content adapted from: Pioneer Press Release Press Release 2 Press Release 2 (MiniDisc Wiki mirror)

Manuals

Repair

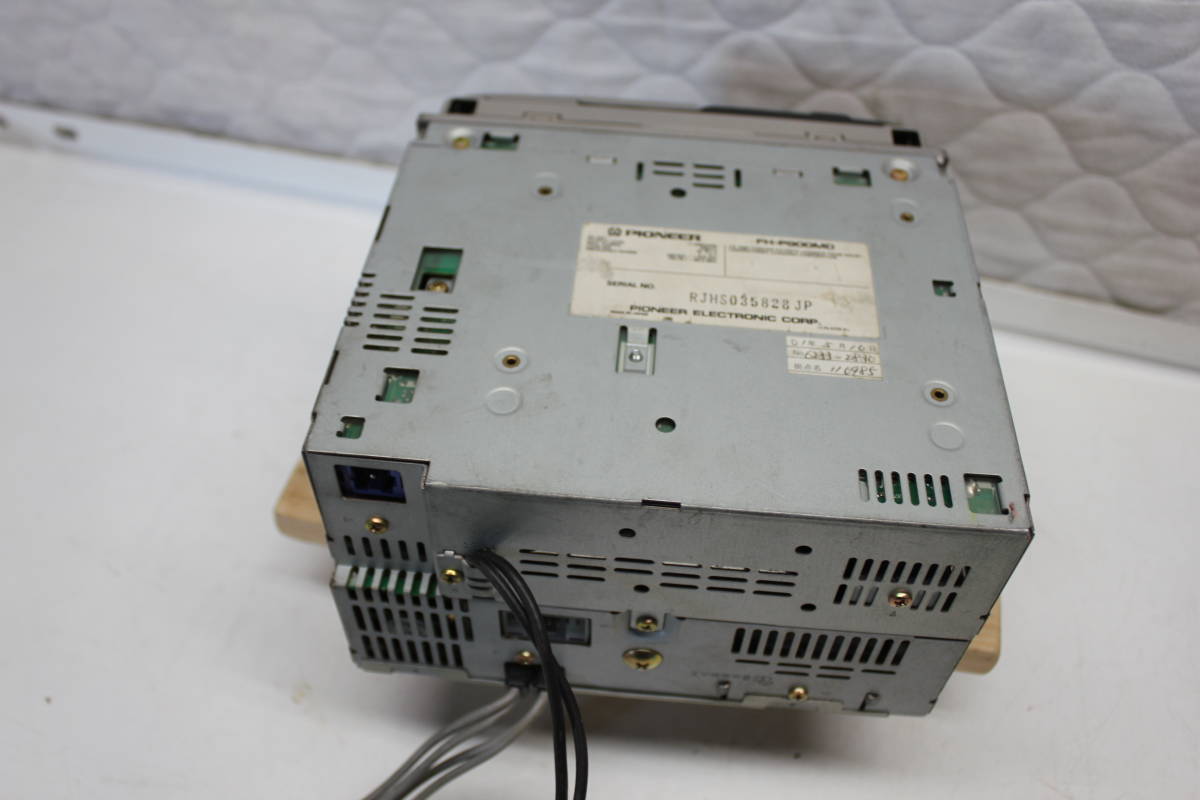

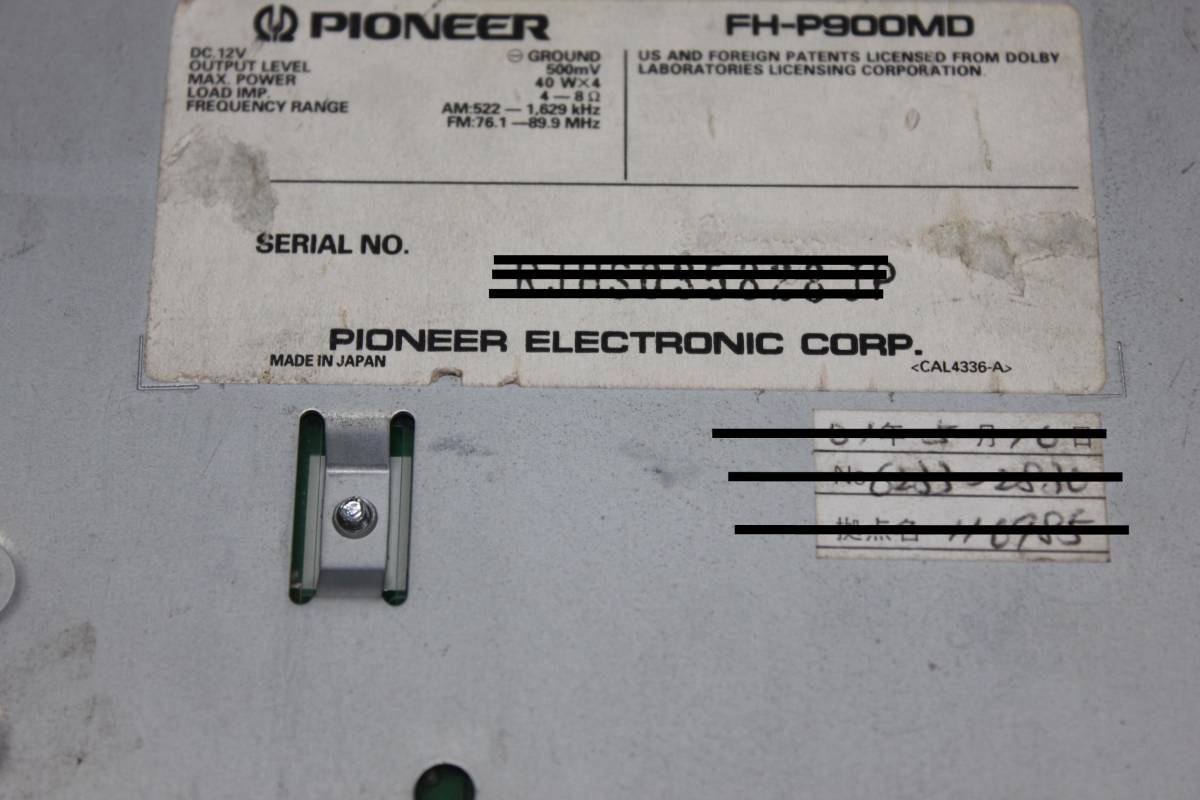

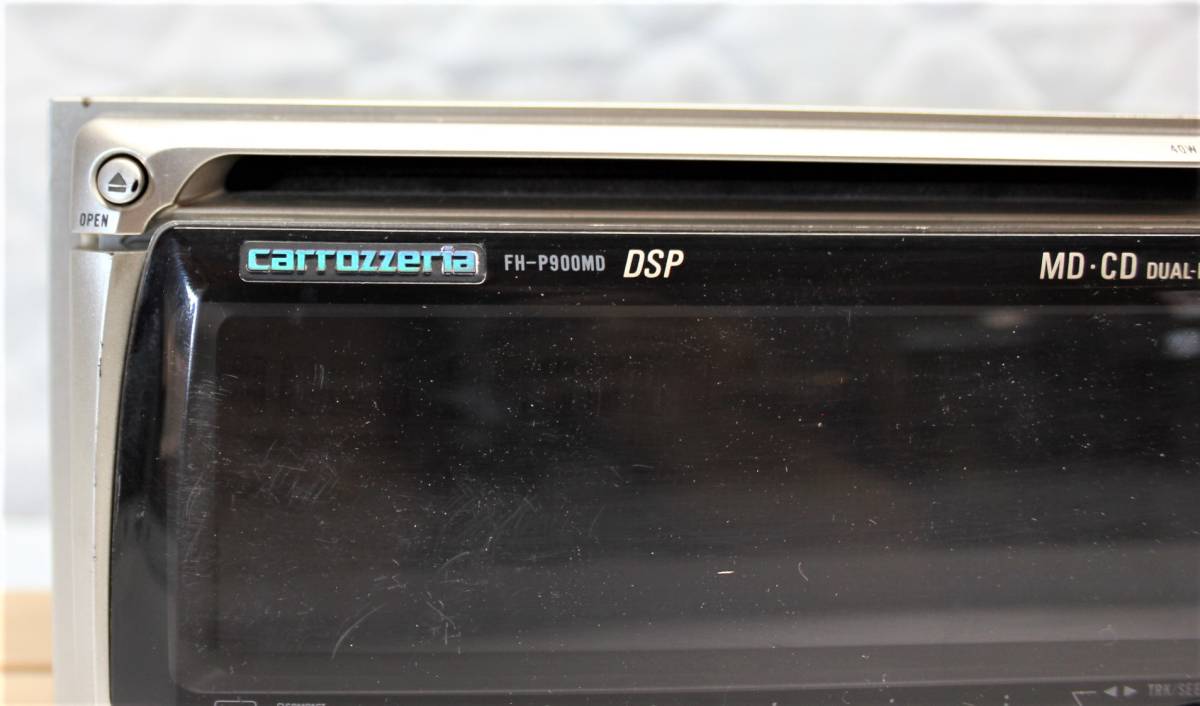

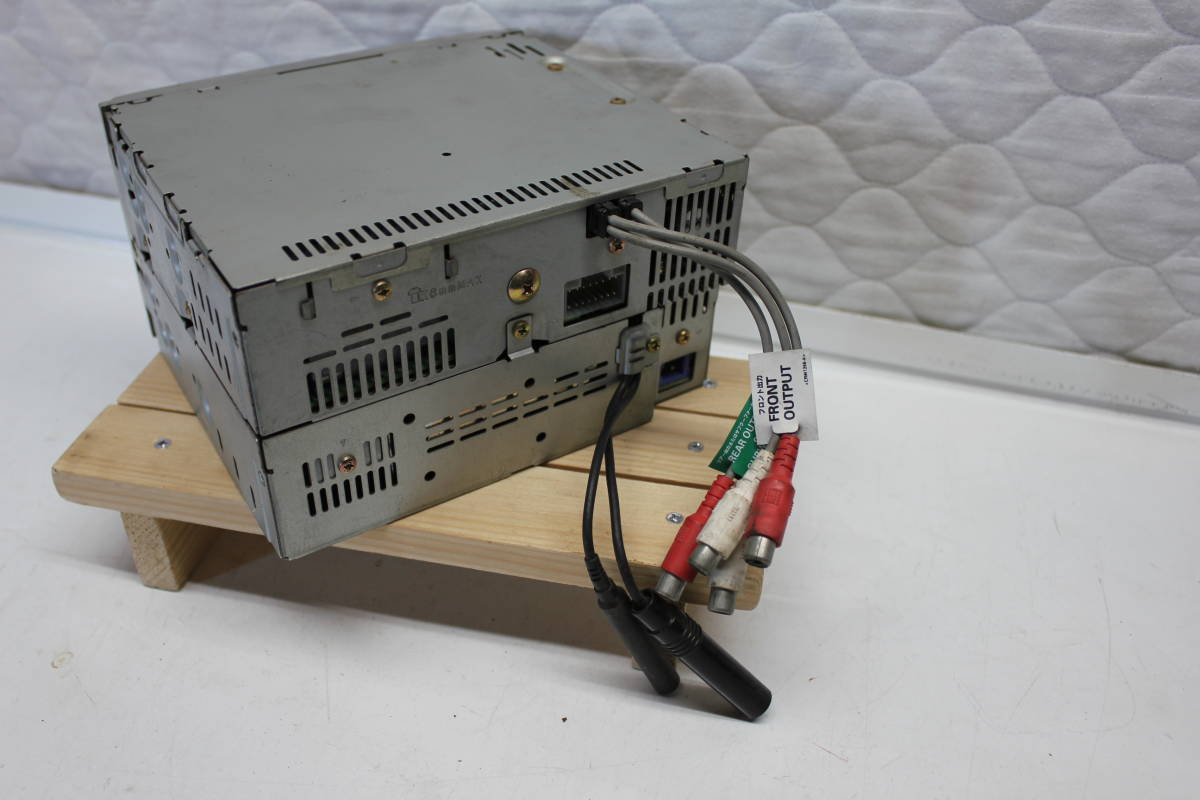

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Manual
RegionJapan
