Pioneer FH-P909MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-03

Manufacturer
Pioneer
Model / source grouping
FH-P909MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P909MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name FH-P909MD
Manufacturer Pioneer
Released 1998/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 160 (D) mm
Weight 3000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥136 000
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

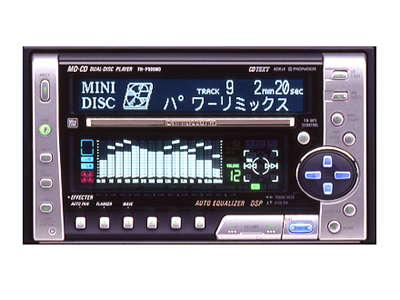

"FH-P909MD" (Multi-CD / MD control DSP tuner CD / MD amplifier with built-in FM teletext)

It has a built-in FM teletext tuner and can display FM broadcast contents.
Equipped with a voice guide function that guides the main operations with natural voice.
Equipped with an auto equalizer function that automatically corrects the optimum in-vehicle sound field characteristics.
Equipped with high-performance DSP such as 13-band equalizer that can correct the sound quality to your liking, SFC (sound field control) that reproduces the live sound field, and sound effector.
Equipped with digital direct transmission and high-bit transmission high-quality audio circuit that prevent deterioration of music signals during transmission and realize high-quality sound.
Equipped with legato link conversion that reproduces the original sound by generating ultra-high frequency components of 20kHz or higher.
Various data can be displayed by supporting CD TEXT.

Content adapted from: Pioneer Press Release Pioneer Product Page Pioneer Product Page (MiniDisc Wiki mirror)

Manuals

Video

Watch the referenced video on YouTube

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
