Pioneer FH-P99MDR

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-12-21

Manufacturer
Pioneer
Model / source grouping
FH-P99MDR
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer FH-P99MDR”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

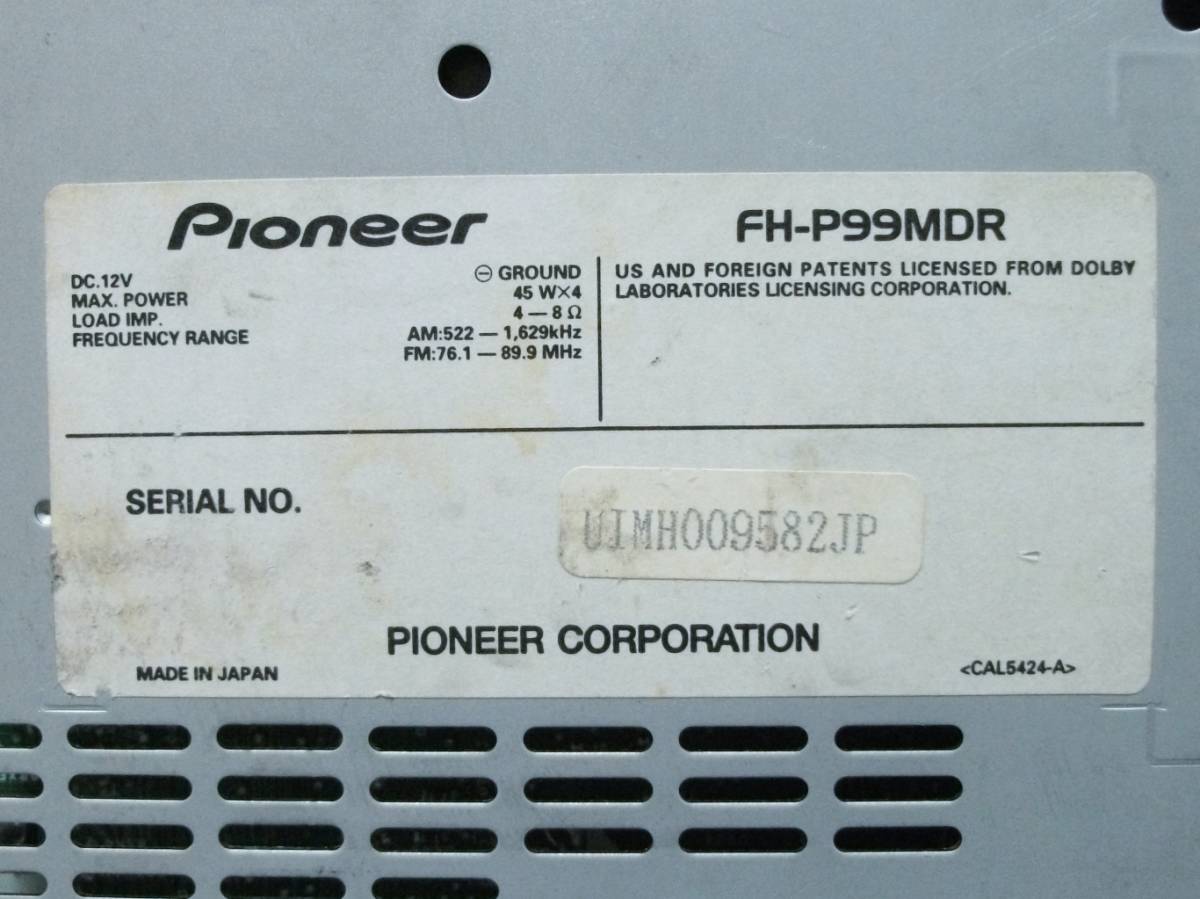

Name FH-P99MDR
Manufacturer Pioneer
Released 2000/05
Device type auto
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 160 (D) mm
Weight 3200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥140 000
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

FH-P99MDR (MD recordable / CD / tuner, built-in FM teletext, DSP main unit)

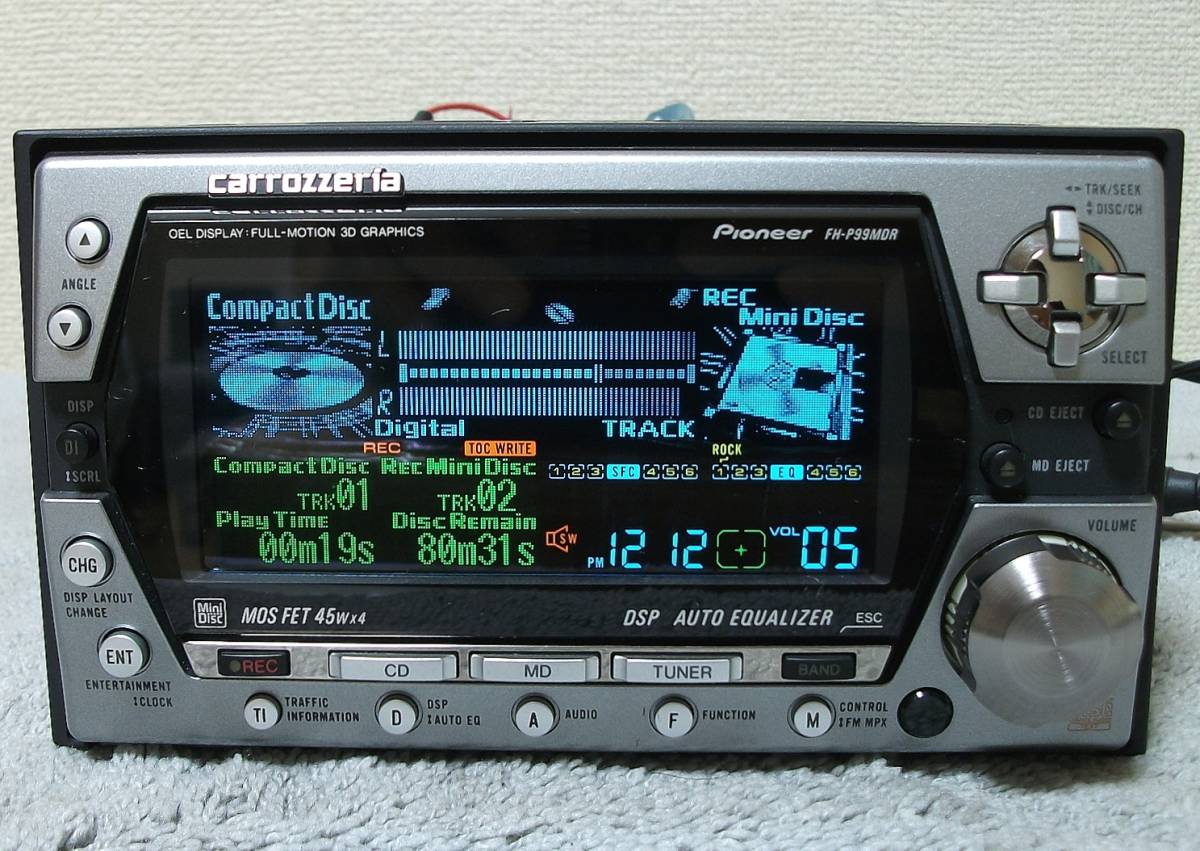

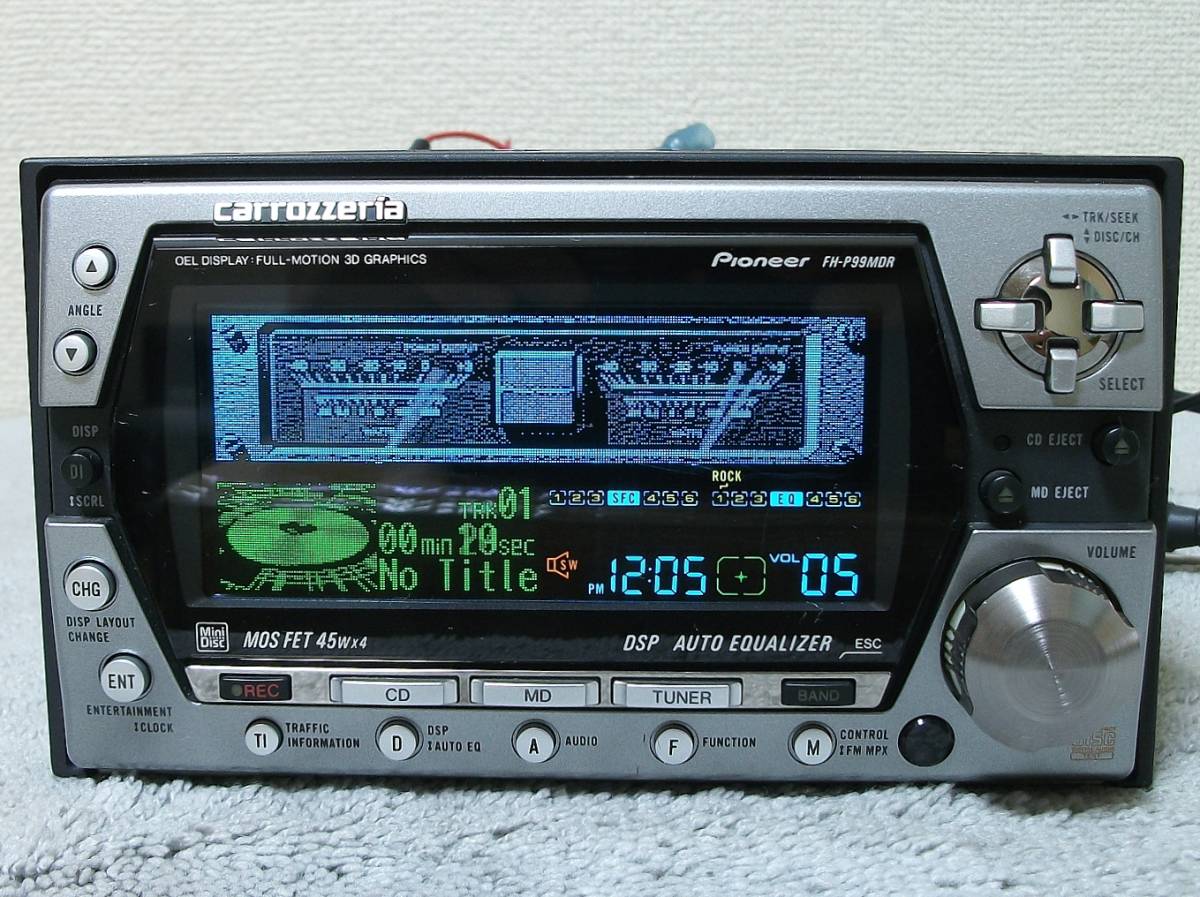

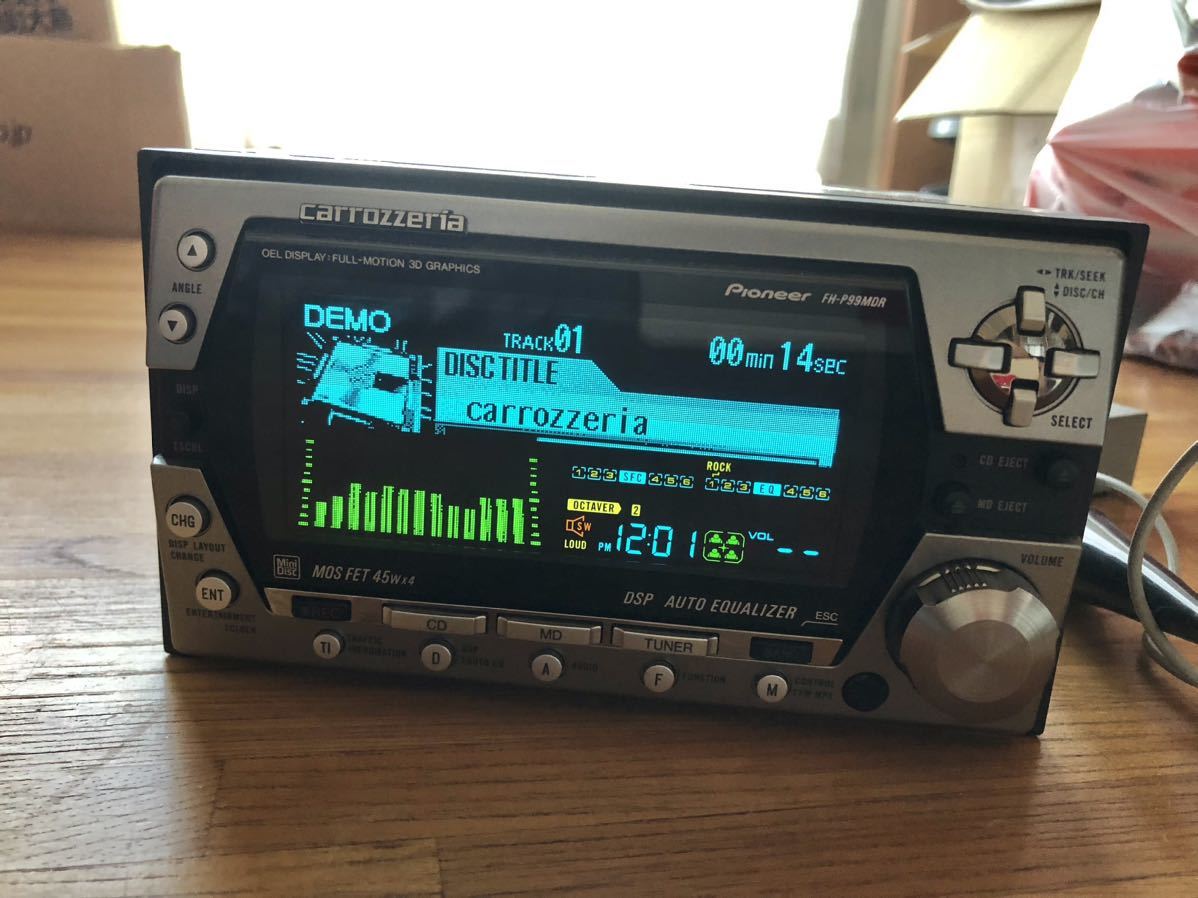

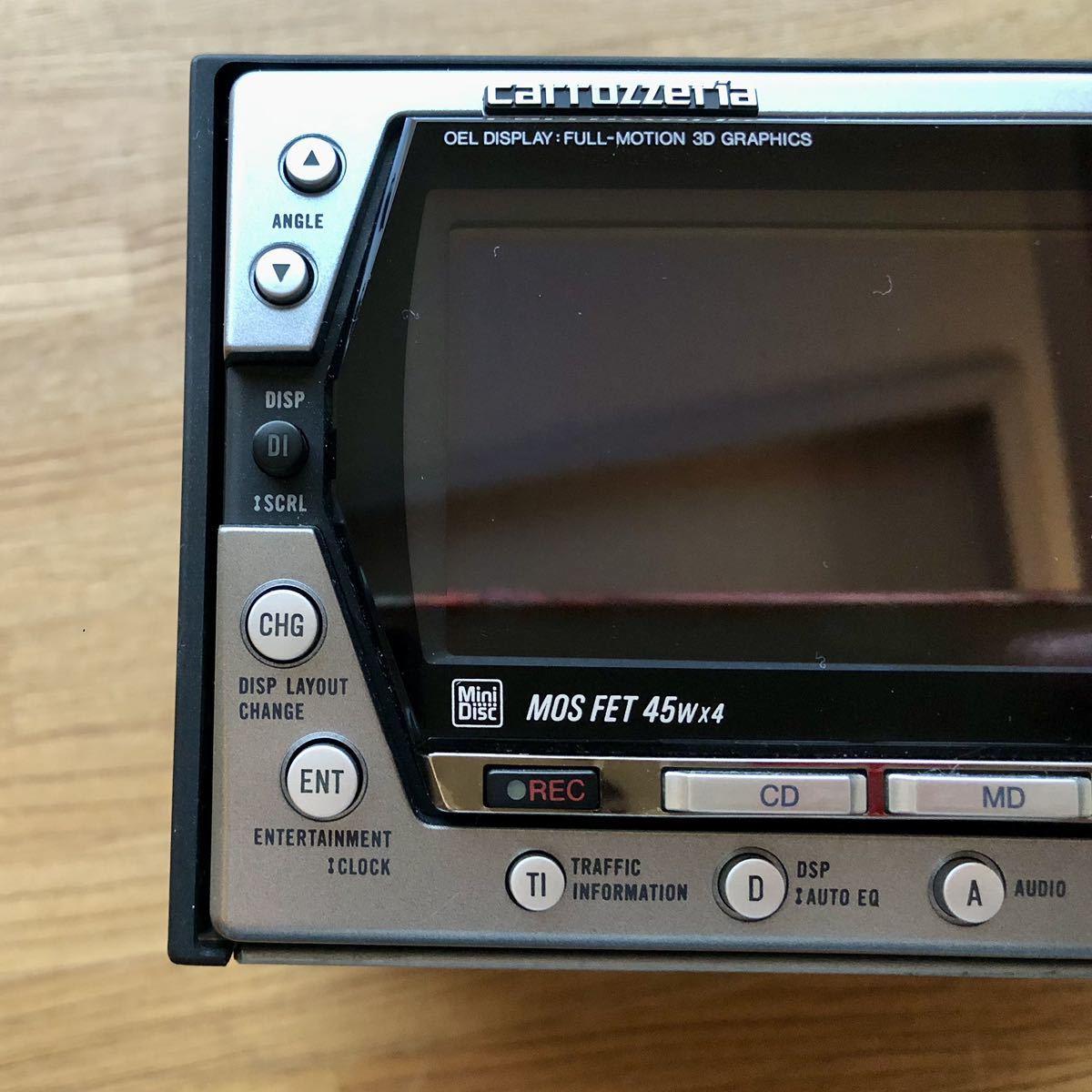

Equipped with a large "organic EL multi-color display" exclusively for 2D integrated machines, realizing an innovative display.

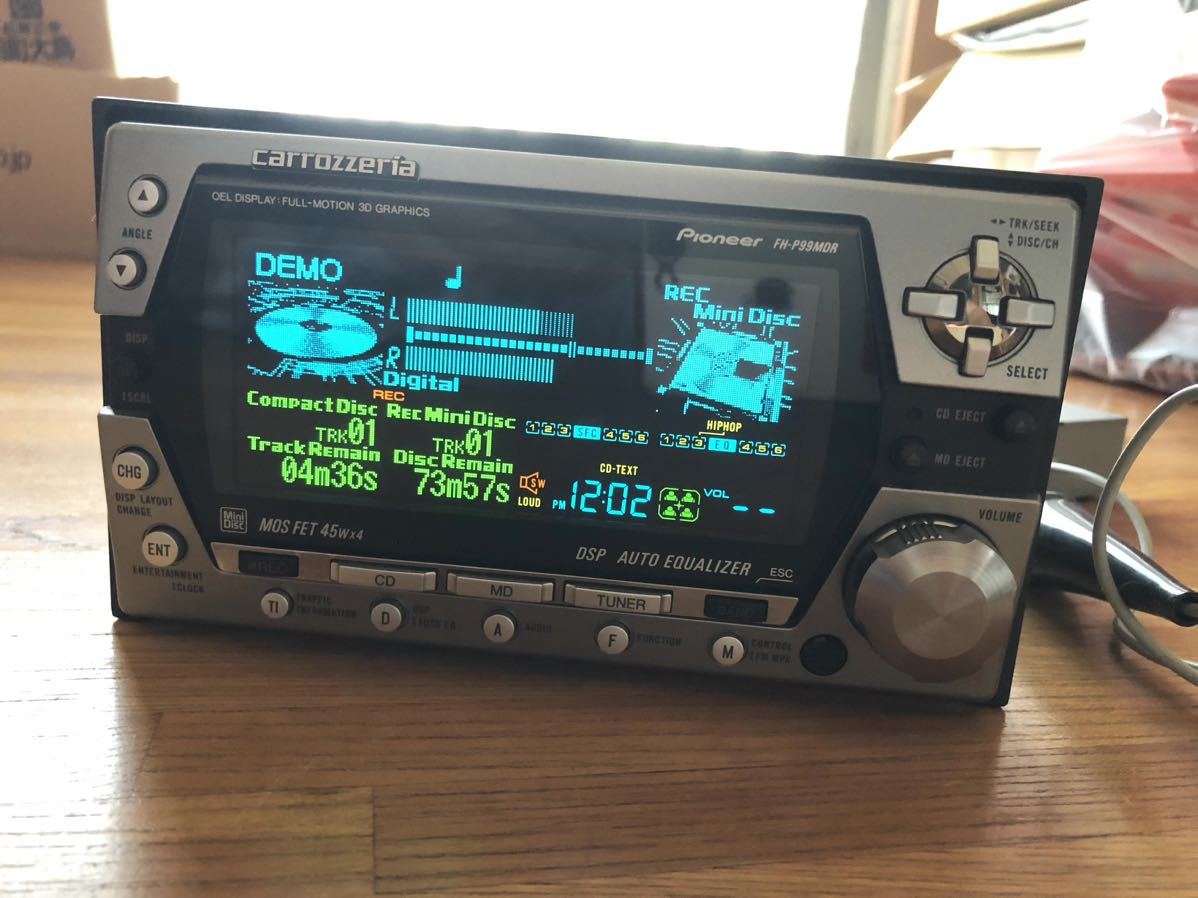

  1. "Full motion 3D graphics display" full of entertainment is realized by the display response speed (about 1000 times that of liquid crystal display) and gradation expression unique to OLED.
  2. Using full dots, it is possible to display kanji expressions and disc title lists.
  3. High brightness and wide viewing angle realize excellent visibility regardless of day and night or viewing angle.

MD recording function (FH-P99MDR) that allows you to create your favorite MD in the car You can create an original MD while driving, so you can make effective use of your time while traveling. You can also use it as a voice memo using the included auto equalizer microphone.

Adopting advanced digital technology, realizes high-quality sound and rich audio functions.

  1. Equipped with a "digital direct transmission high-quality audio circuit" that prevents deterioration of music signals during transmission and realizes high-quality sound.
  2. Equipped with an "auto equalizer function" that automatically corrects the optimum in-vehicle sound field characteristics.
  3. Equipped with "f special correction type real-time ASL function" that naturally corrects the sound that is erased by road noise during driving with the volume and equalizer.
  4. "Octave function" that creates and adds bass to music sources that lack bass.

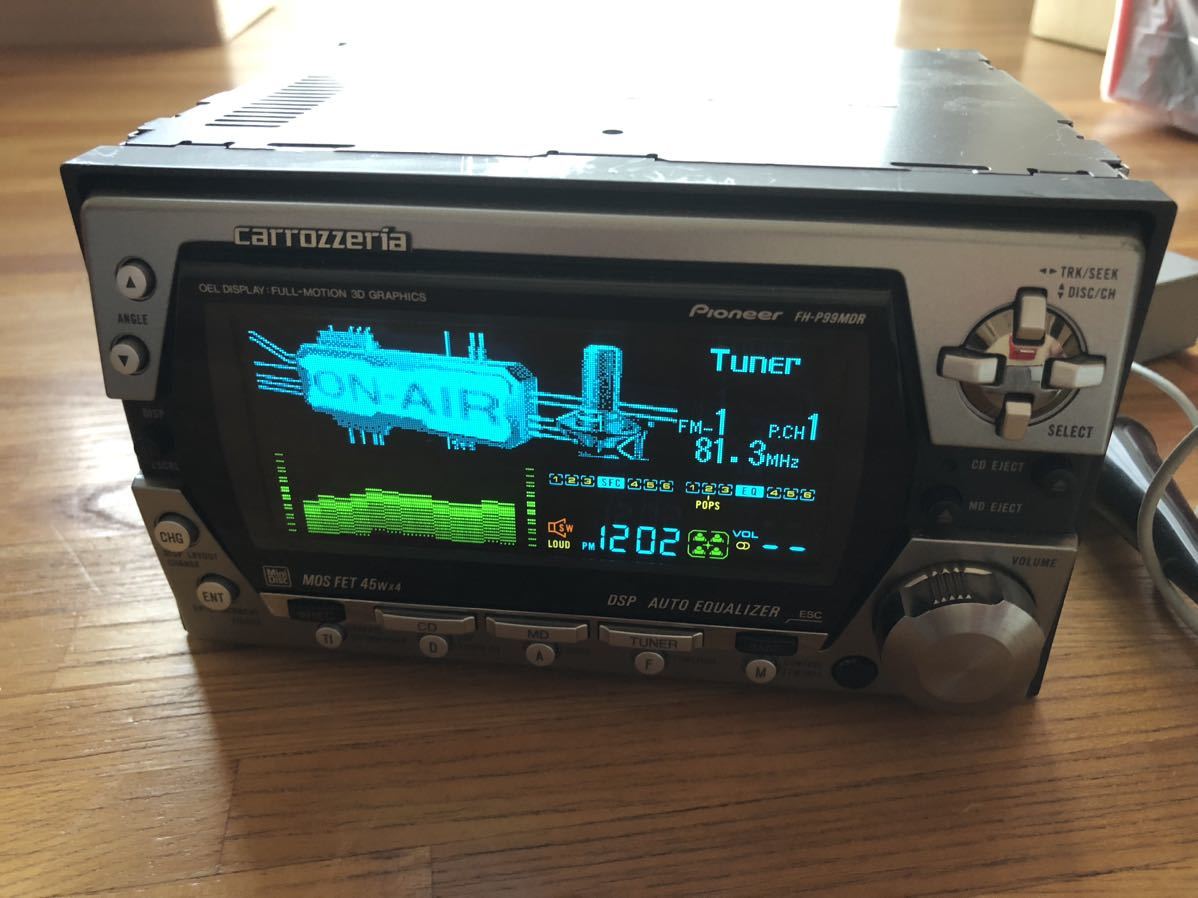

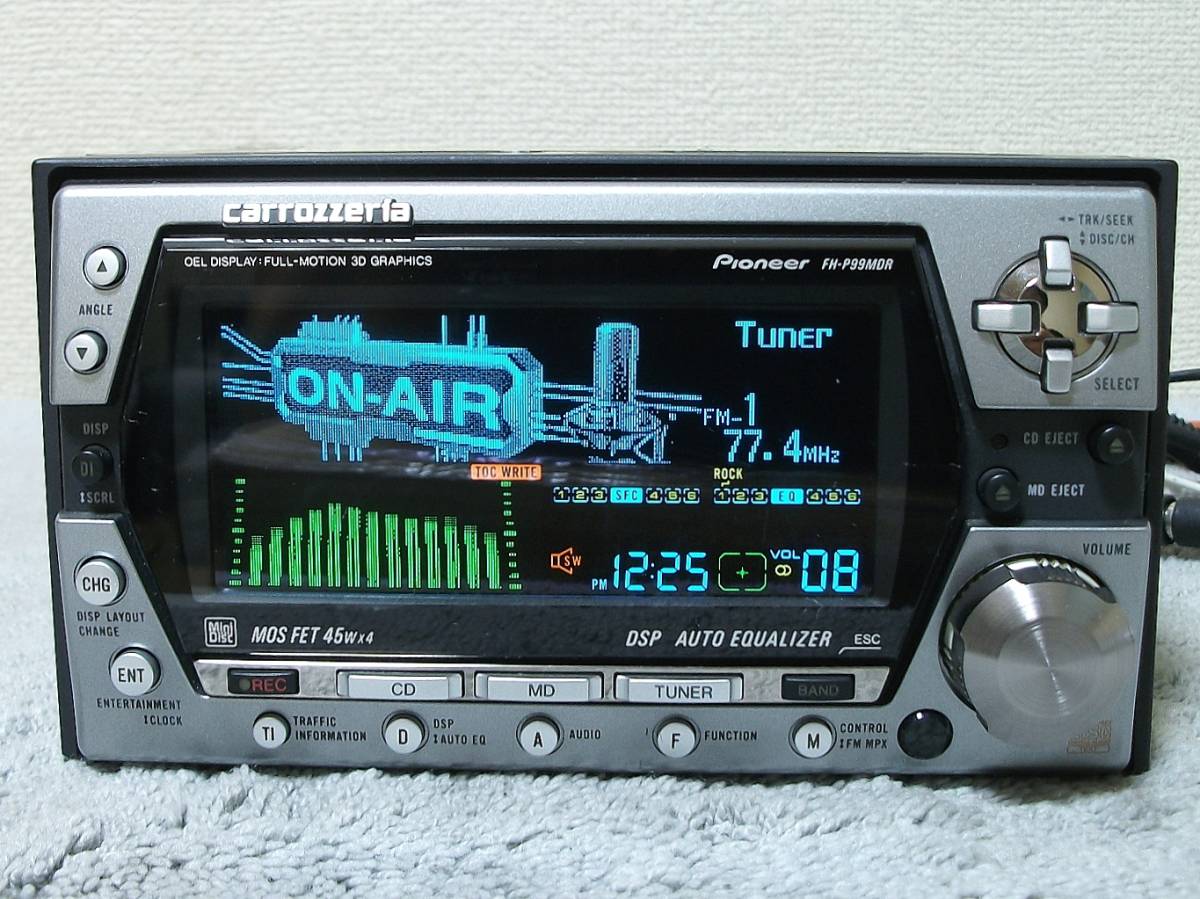

Built-in FM character multiplex tuner - Character information such as FM broadcast contents, traffic information, and weather forecast can be displayed in real time. In addition, 2.5 lines can be displayed by the 256 x 64 full dot display.

Realizes mobile phone hands-free calling by connecting with an optional kit "CD-HF1".

Content adapted from: Pioneer Press Release Pioneer Product Page Pioneer Product Page (MiniDisc Wiki mirror)

Manuals

Pioneer FH-P99MDR User Manual JP

Installation Instructions

Repair

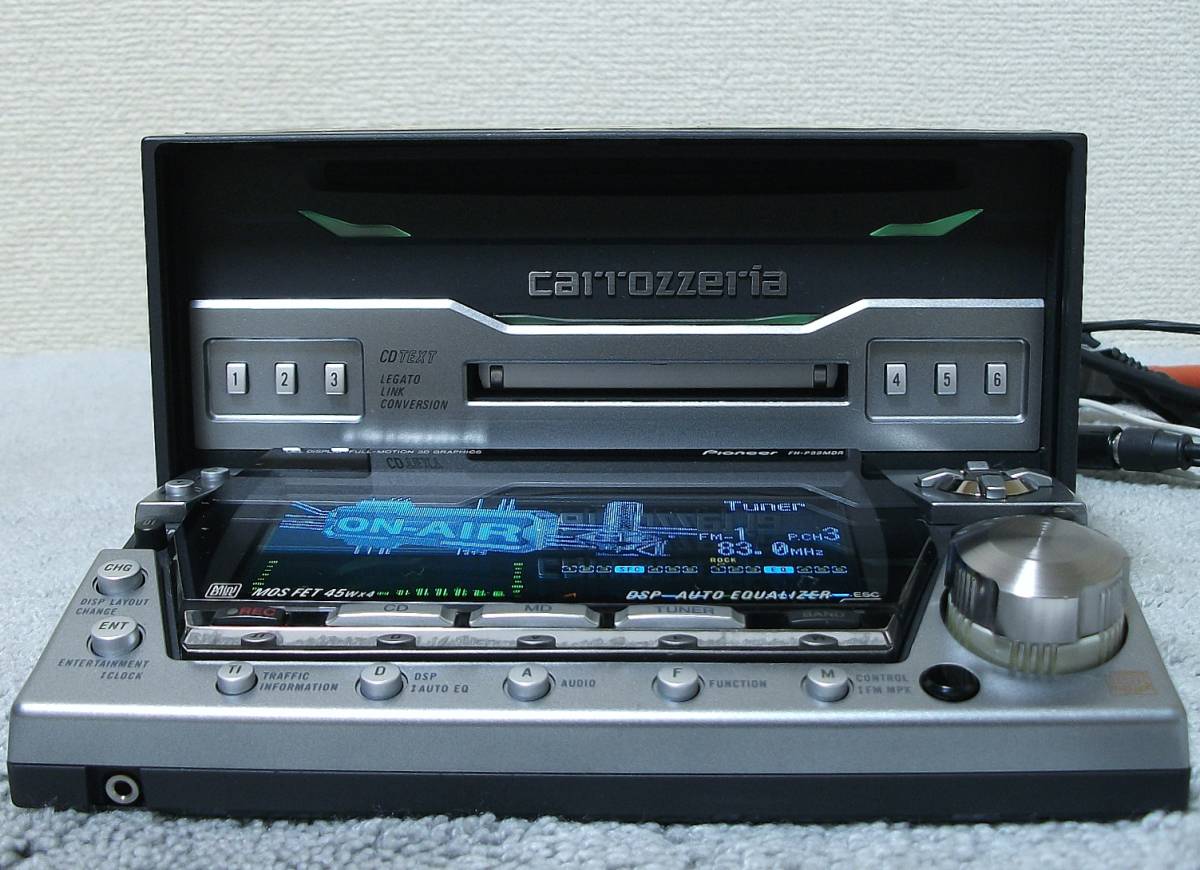

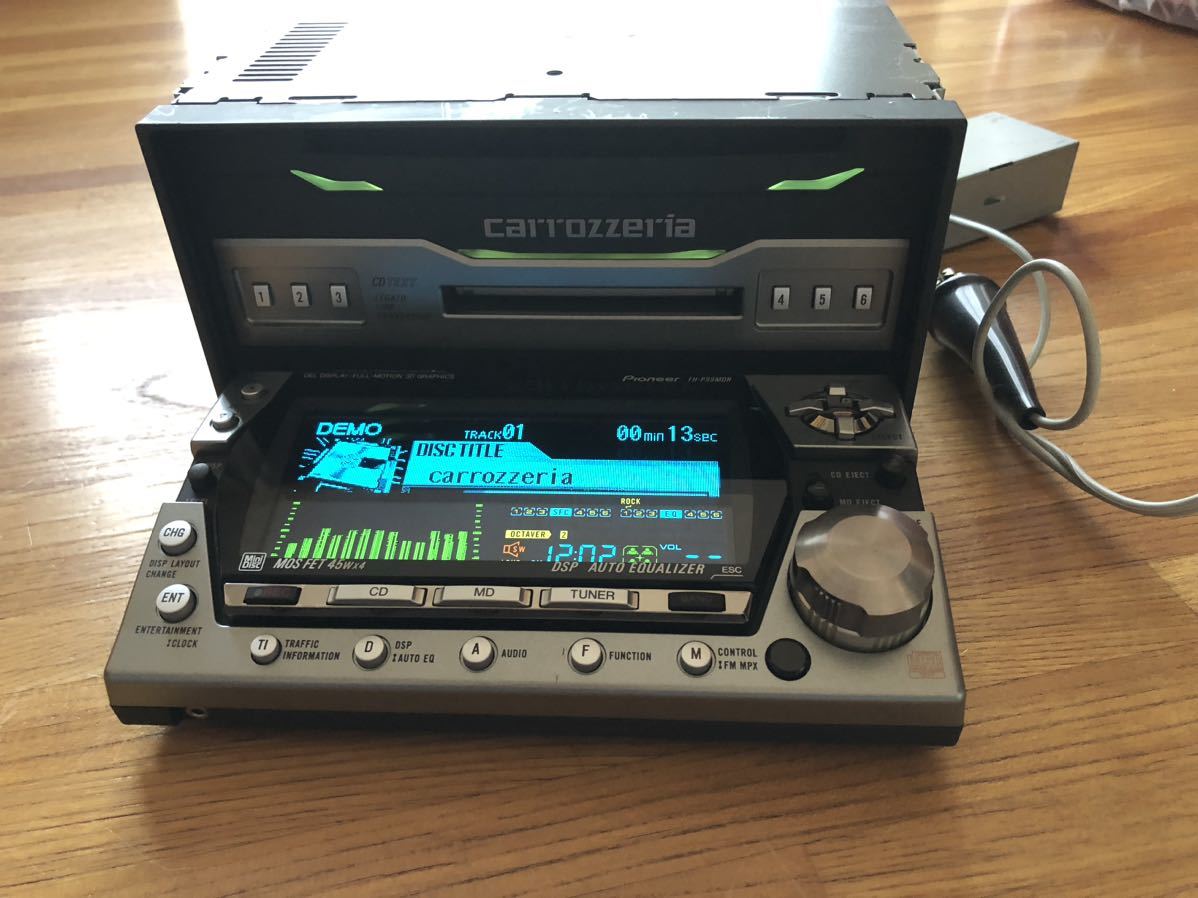

Repairing broken faceplate mechanism: Watch the referenced video on YouTube

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
