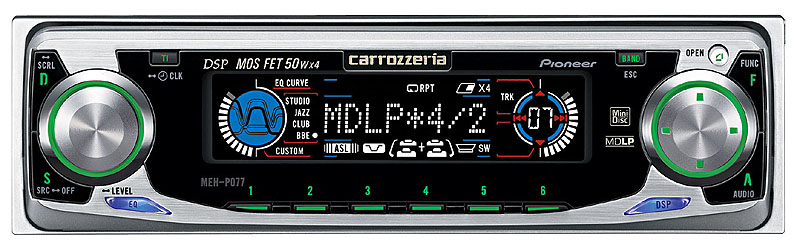

Pioneer MEH-P077

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-06

Manufacturer
Pioneer
Model / source grouping
MEH-P077
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P077”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P077
Manufacturer Pioneer
Released 2004/03
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 50 (H) x 162 (D) mm
Weight 1200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥44 100
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

"Power MOS FET 50W x 4ch amplifier" pursuing high sound quality and high power comparable to component amplifiers

"F special correction type real-time ASL (auto sound levelizer)" that keeps a certain listening comfort even while driving f Special correction type real-time ASL. External noise such as load noise deteriorates listening comfort while driving. It analyzes the ever-changing situation and automatically corrects the volume and sound quality immediately. Maintains a stable listening comfort even when driving at high speeds or in tunnels.

"9-band digital equalizer" that can easily adjust the tone

Equipped with 5 types of factory preset curves that allow you to easily select the tone according to the music and mood. It is also equipped with two user memories that allow you to adjust your own tone with simple settings.

* 5 types of factory preset curves: SUPER BASS / POWERFUL / NATURAL / VOCAL / FLAT

Content adapted from: Pioneer Press Release 1 Pioneer Press Release 2 Pioneer Press Release 2 (MiniDisc Wiki mirror) Av.watch

Manuals

Pioneer MEH-P077

Repair

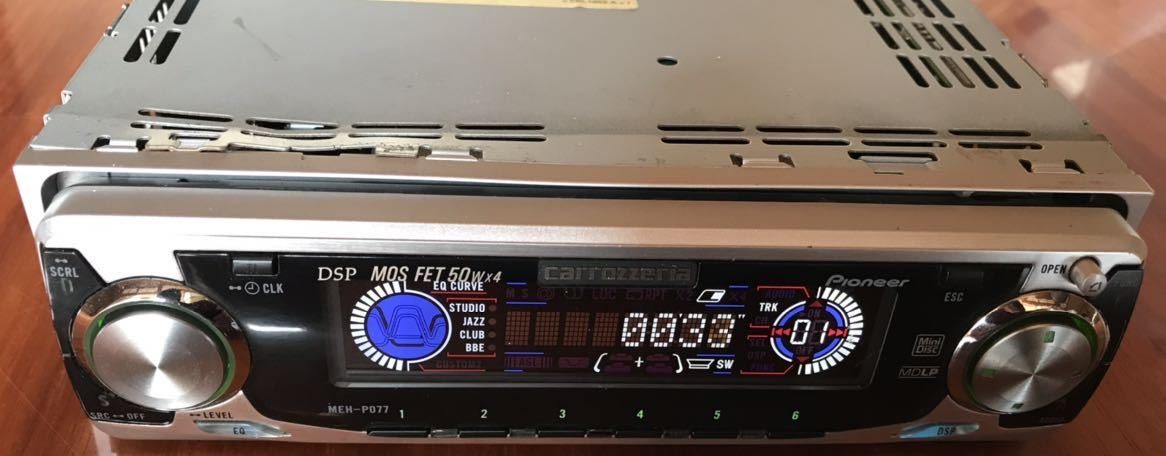

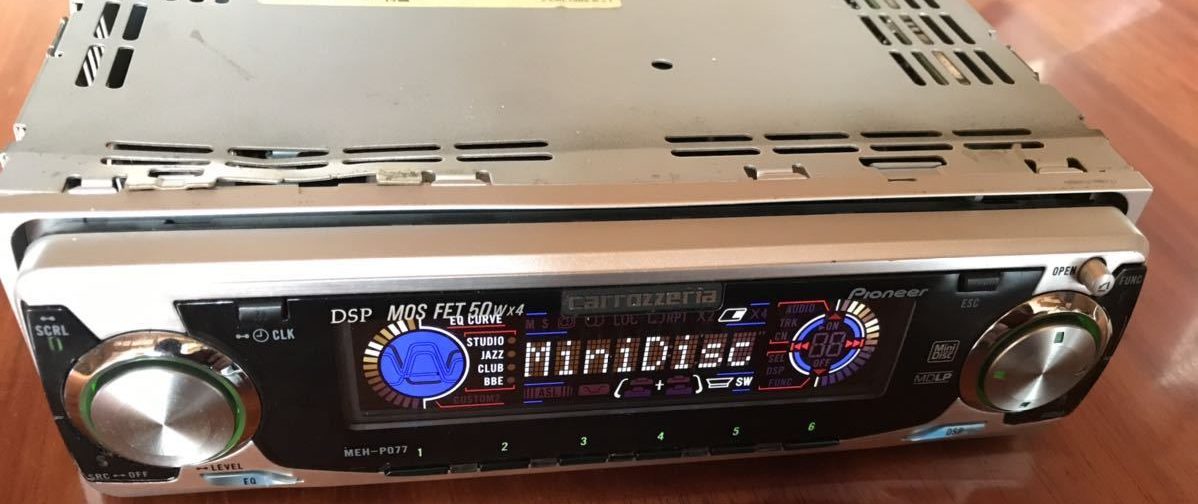

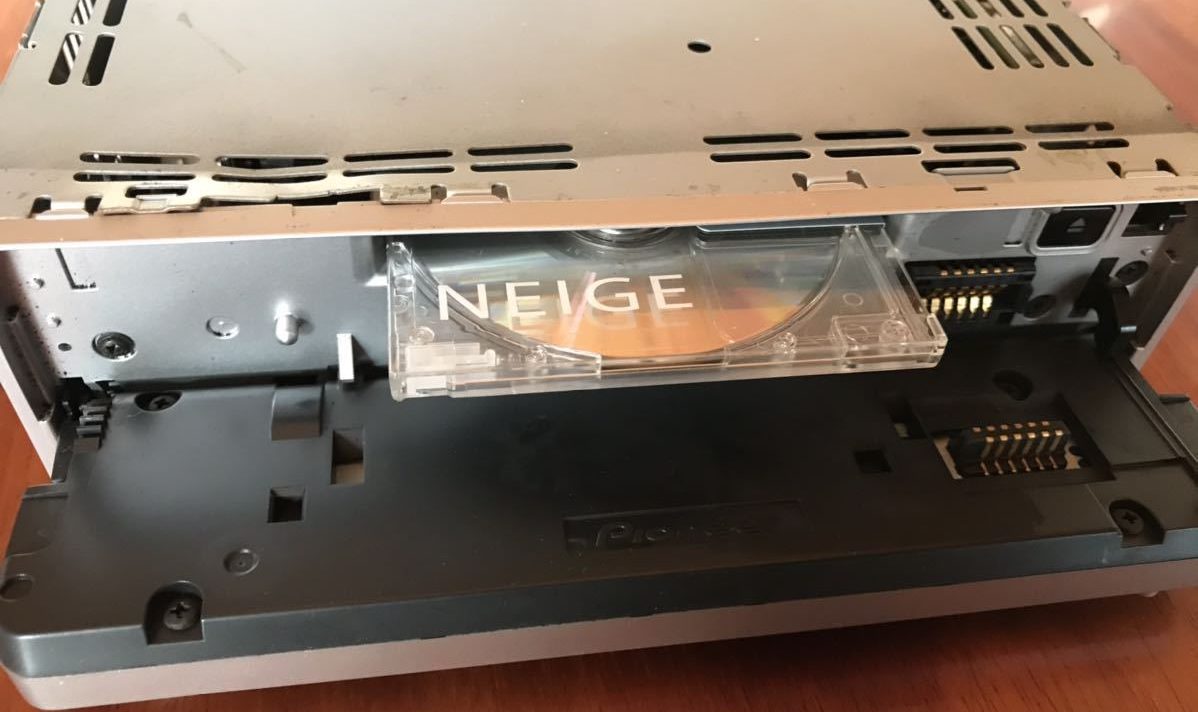

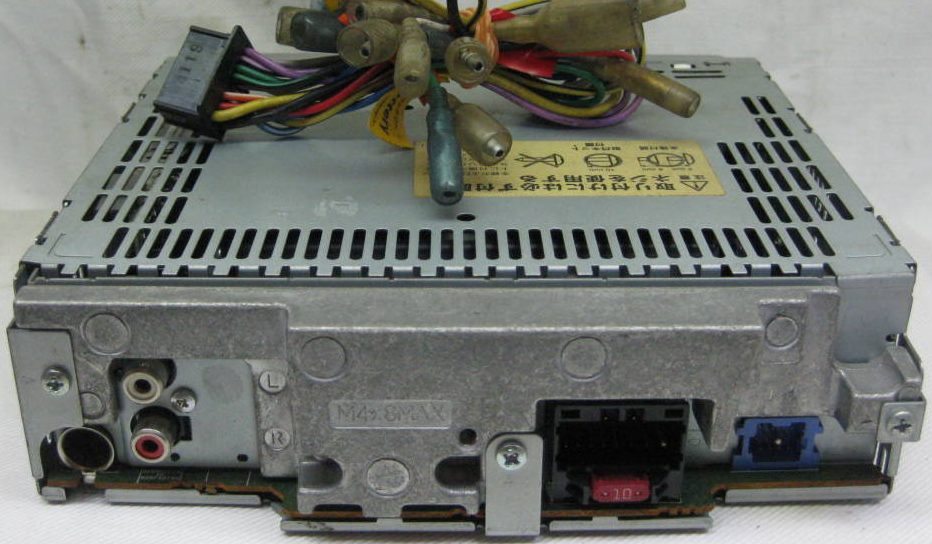

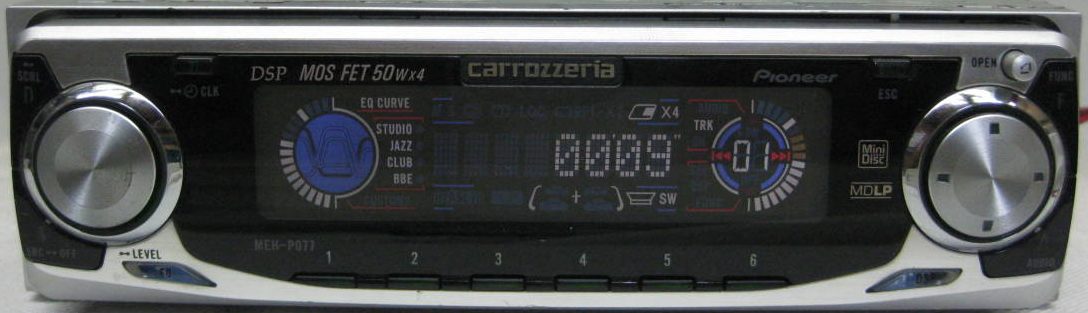

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
