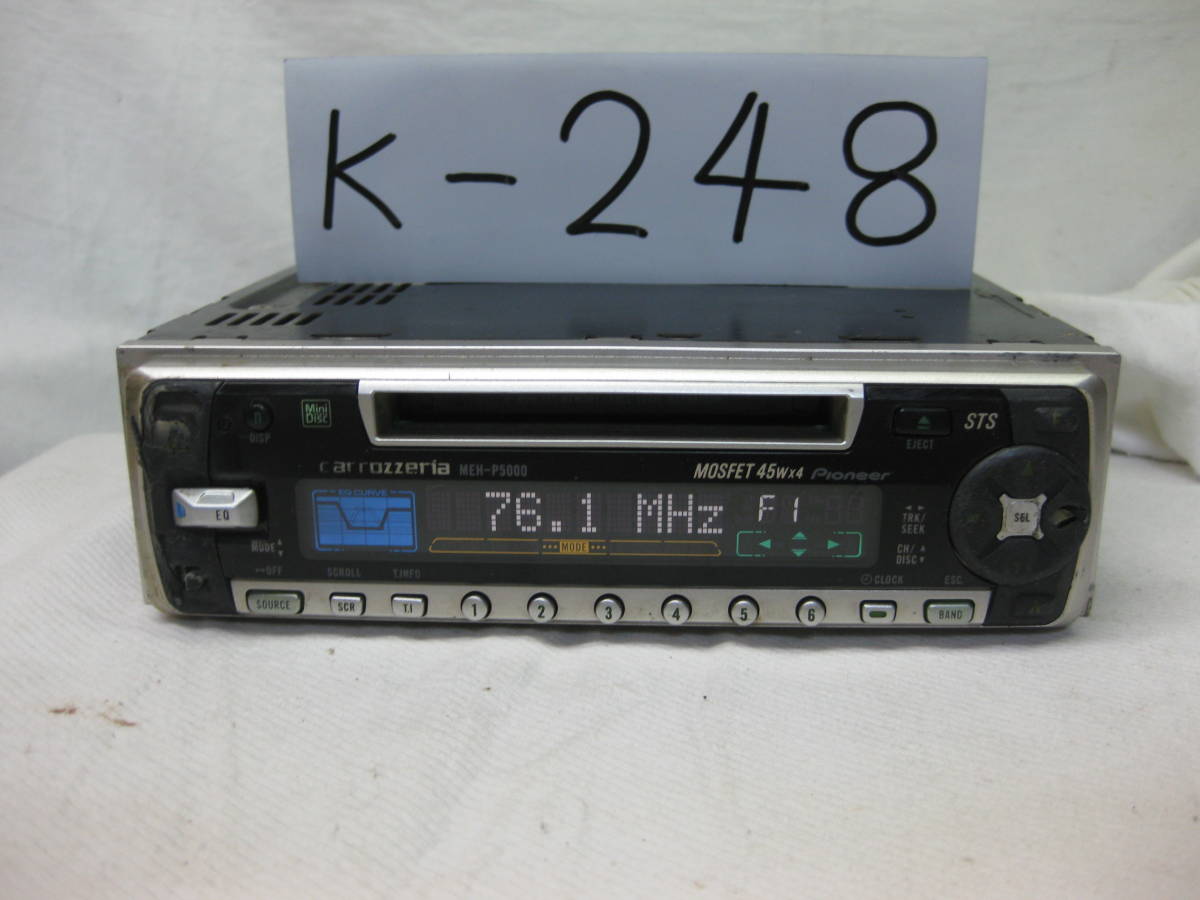

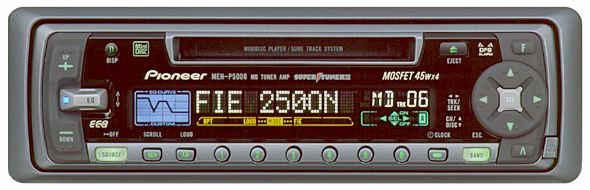

Pioneer MEH-P5000

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P5000”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	MEH-P5000
Manufacturer	Pioneer
Released	1999/05
Device type	auto
Recorder	Player
MDLP	No
NetMD	No
Hi-MD	No
Radio	Yes
Dimensions	178(W) x 50(H) x 155(D) mm
Weight	1300
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	12
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥49 800
-
Inputs	Not recorded

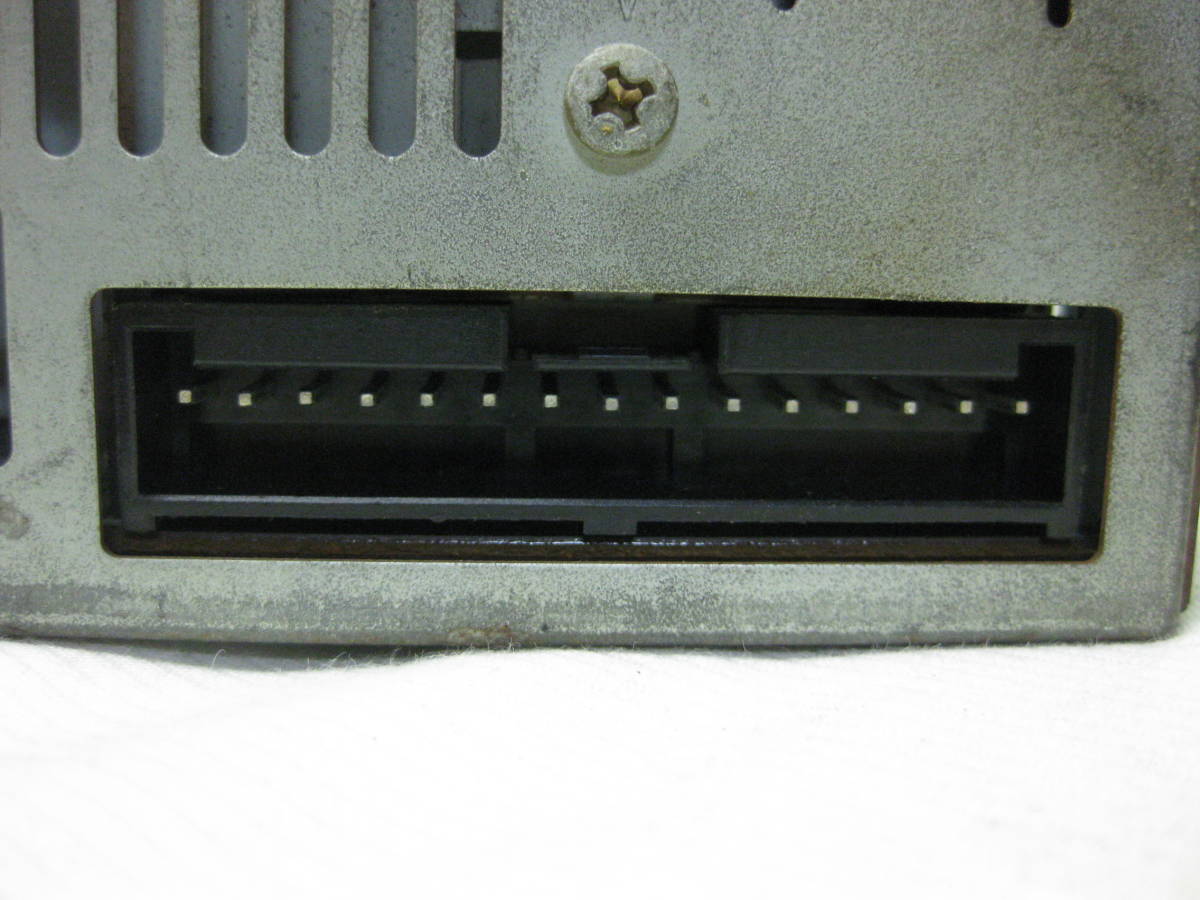

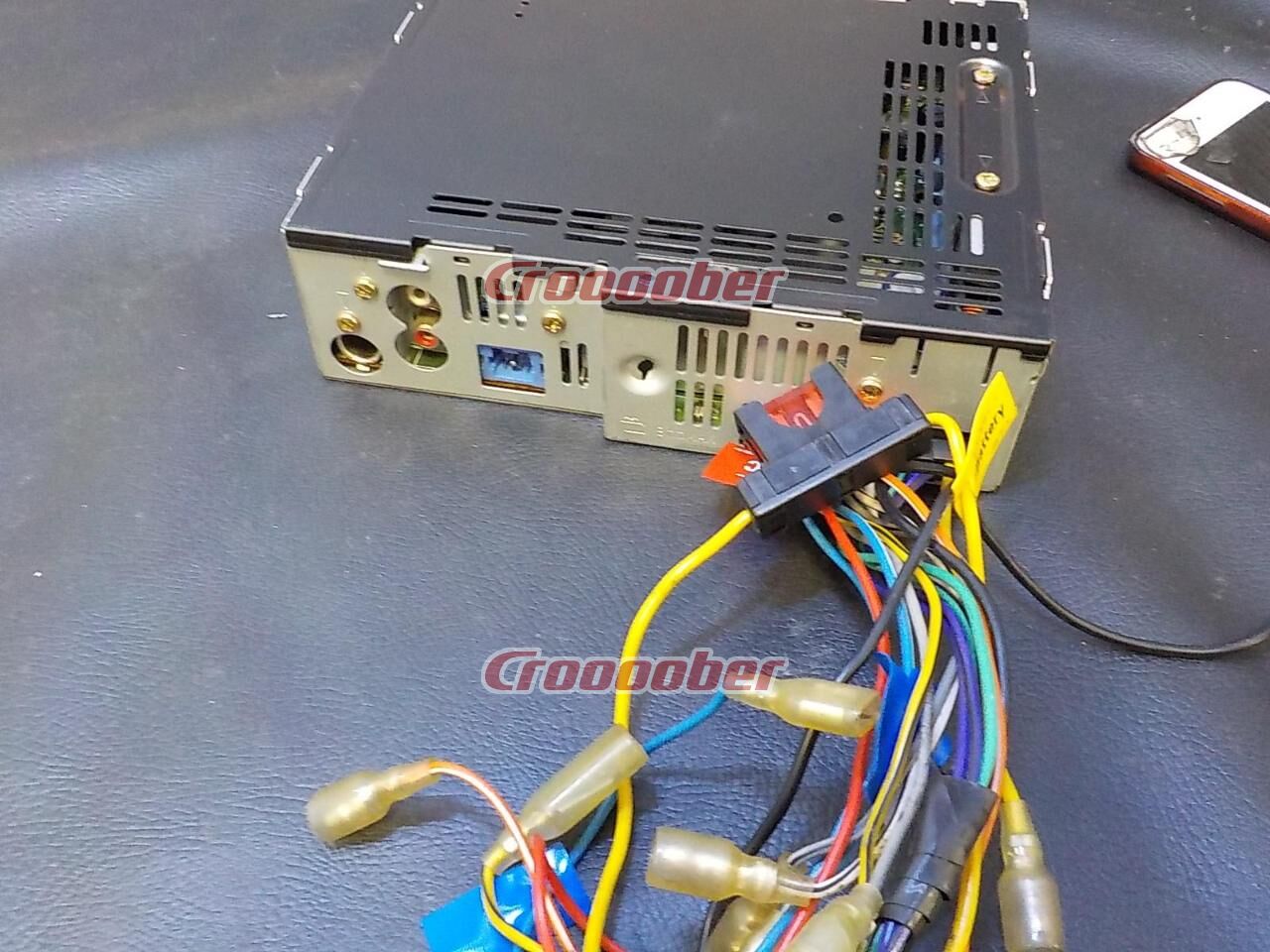

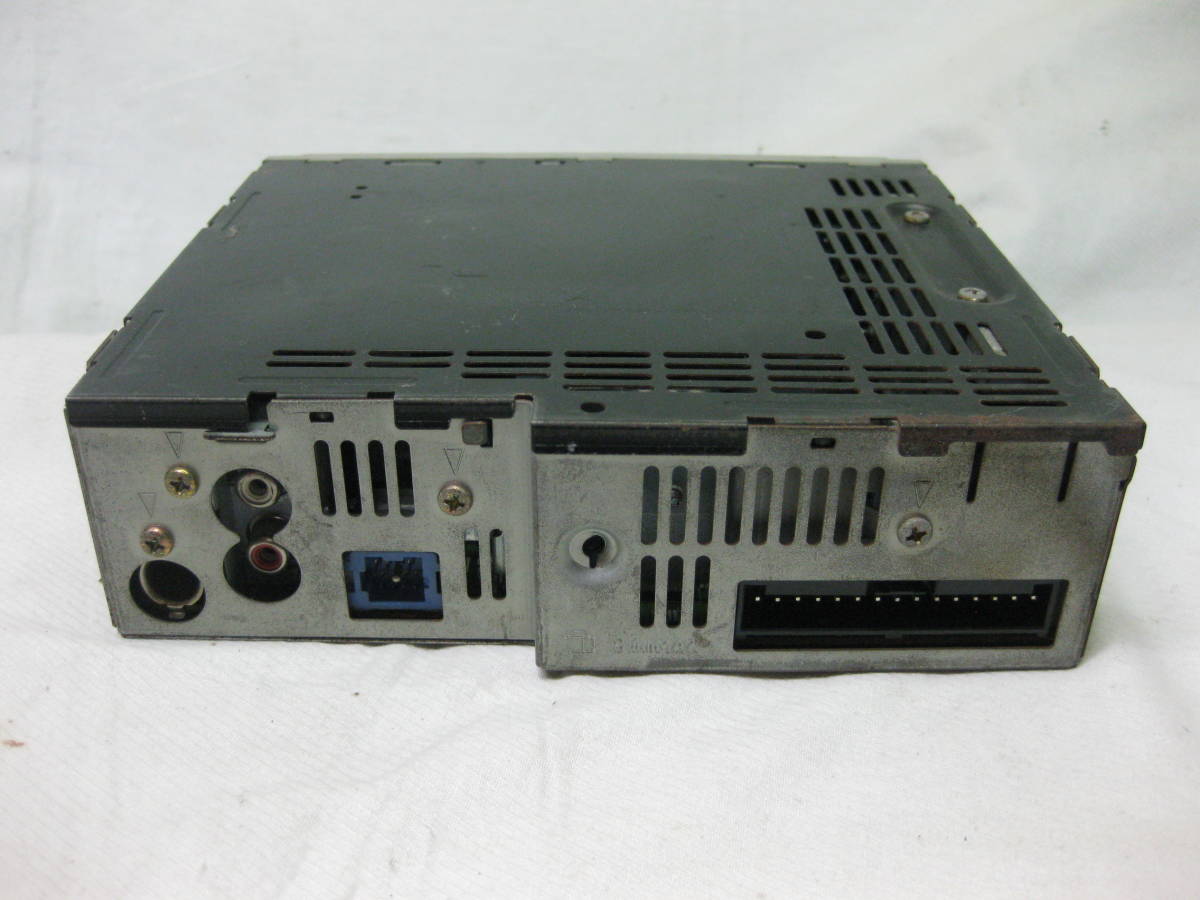

Outputs	RCA out, Speaker amplifier
Control	Not recorded

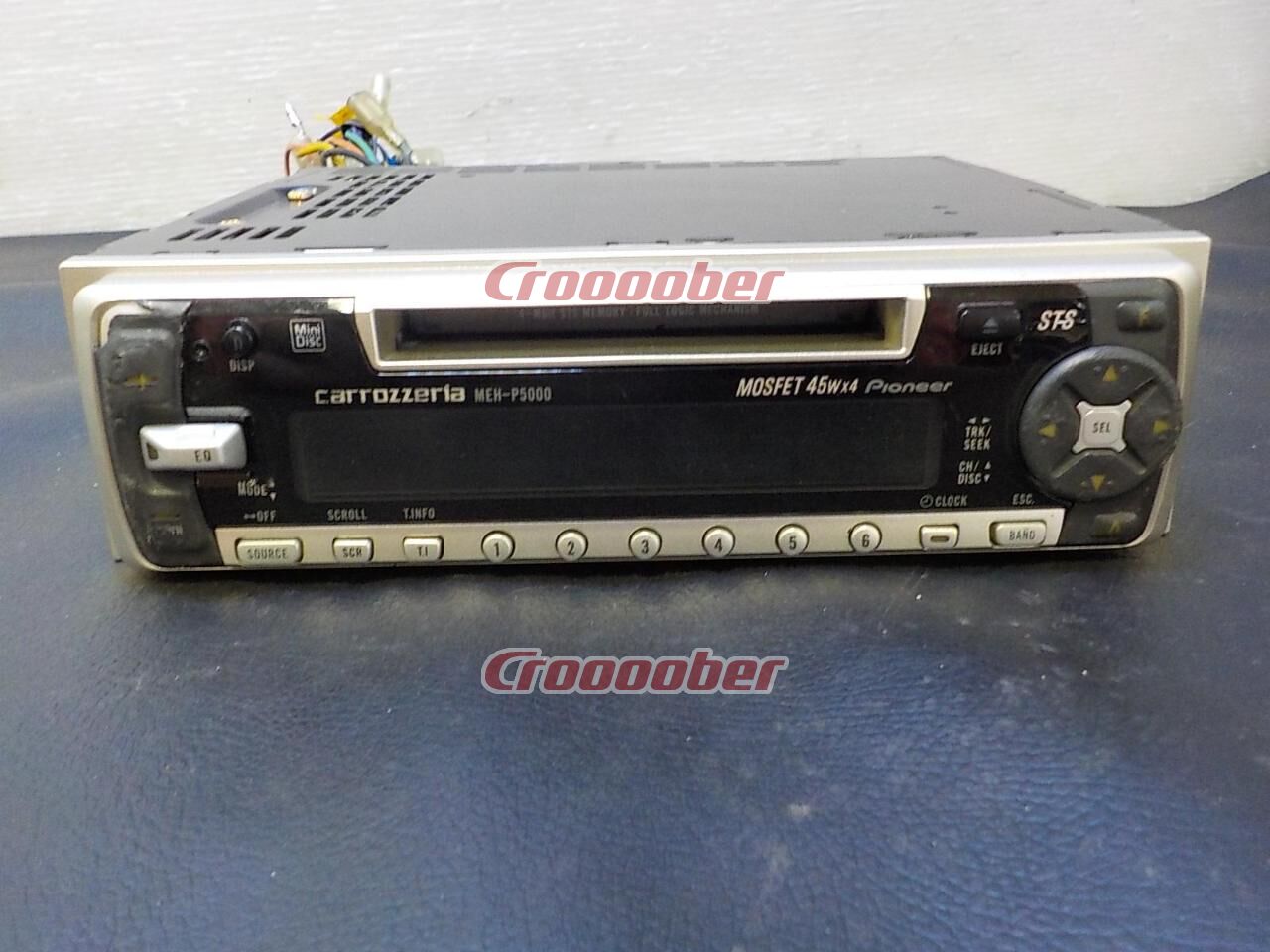

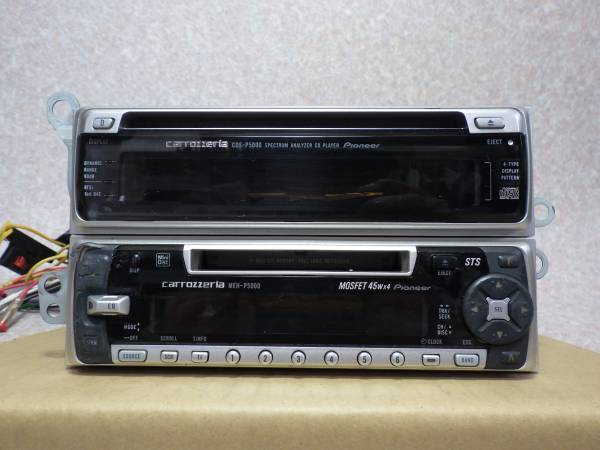

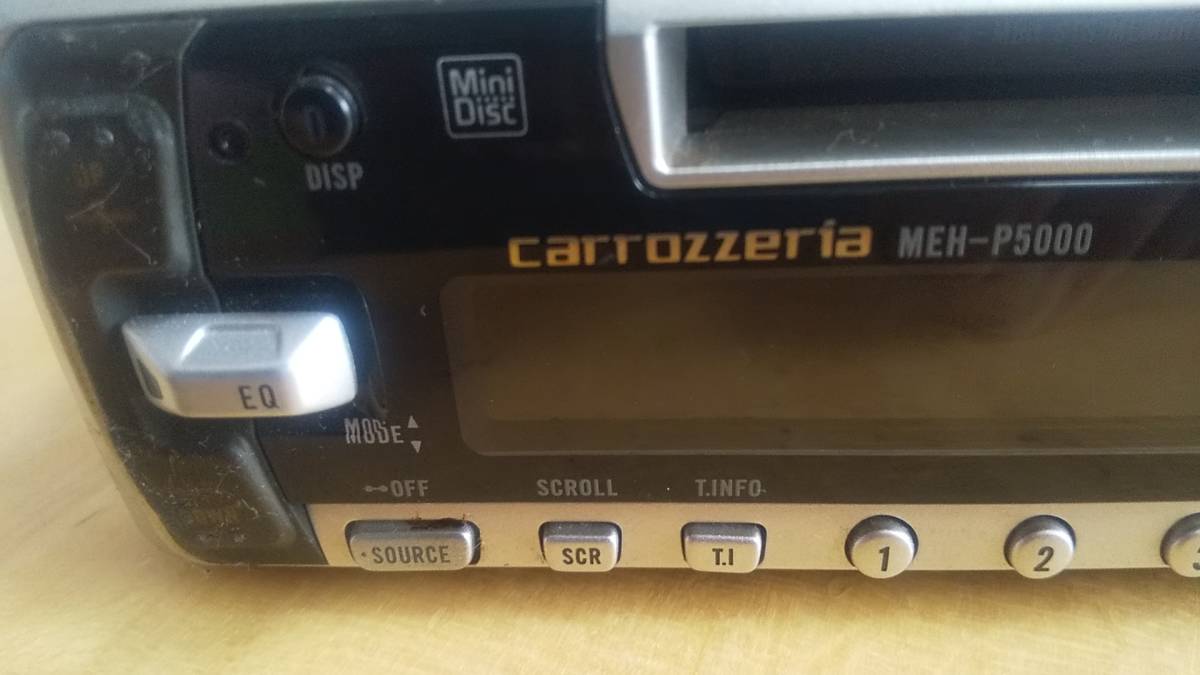

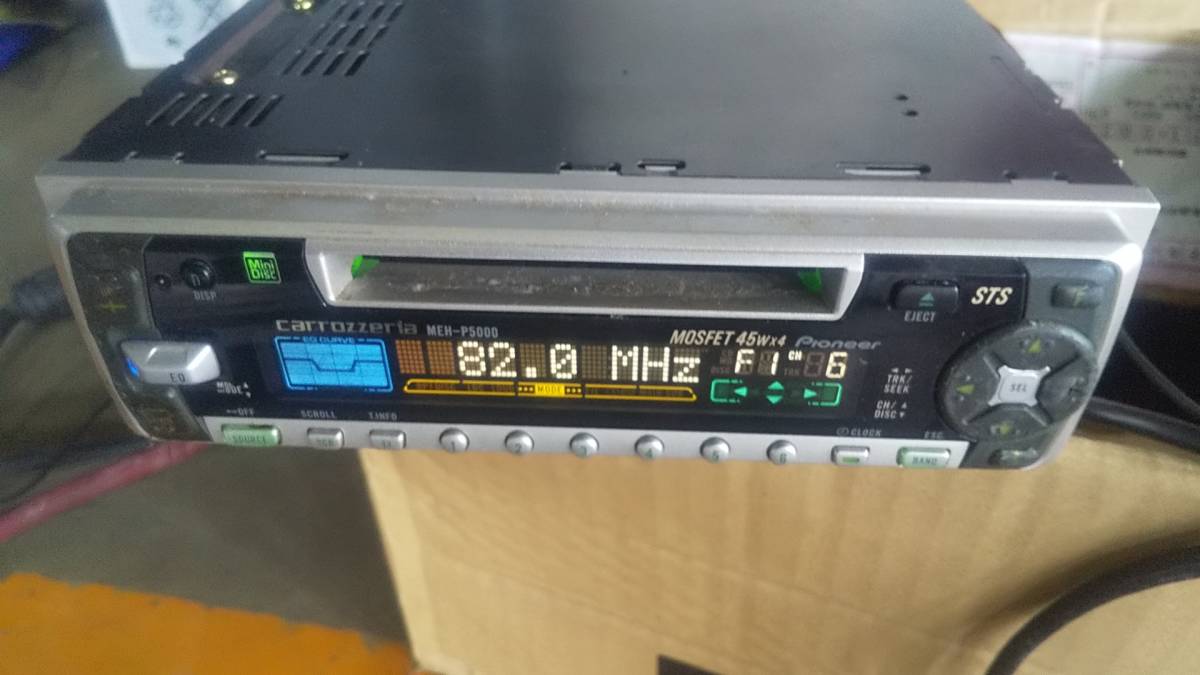

Pioneer Carrozzeria MEH-P5000

MD Player Part

Frequency Response: 20-20,000Hz (±1dB)
Signal-to-Noise Ratio: 94dB(1kHz) (IHF-A Network)
Dynamic Range: 93dB(1kHz)

rSupertuner III™
ATRAC 24-Bit Processing with 20-Bit DAC
IP(Interactive Pioneer)-Bus System Control
Voice Commander (CD-VC60)

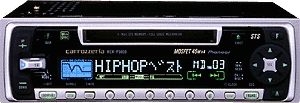

10-Character Display for Disc Title Memory, CD Text (SCD & MCD) & MD Title (with Scroll)
MOSFET45 (45Wx4-Channel High Power)
EEQ Performance Chip
3-Band Parametric Equalizer
Easy EQ (EEQ) switches 5 Factory, 1 User EQ Presets (Super Bass, Powerful, Natural, Vocal, Flat, Custom)
Selectable Loudness Control (Low/Mid/High/Off)
Selectable FIE (Front Image Enhancer) (Rear LPF 100/160/250Hz)
Detachable Face Security™ DFS™ Alarm

Wireless Full-Function Smart Remote Control (with Mounting Base) Cellular/Navigation Mute Interface (Cellular Mute requires optional CD-CM1 Cellular Mute)

Content adapted from: Pioneer Press Release Pioneer Press Release (JP) Pioneer Facebook post Pioneer Product Page Pioneer Product Page (MiniDisc Wiki mirror)
