| Name | MEH-P520 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2007/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W 178 mm × H 50 mm × D 162mm |
| Weight | 1100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥29 400 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |
Pioneer MEH-P520
A model that integrates an MD deck / tuner / amplifier. Supports connection of each adapter for iPod / USB / Bluetooth. It also has a rotary volume.
Equipped with "SFE (Sound Focus Enhancer)" that creates clear forward localization and the expansion of the sound field before and after, and "Harmonic Spice" that enhances the contrast of the sound. The output of the amplifier section is 50W x 4ch.
MD player
- frequency characteristics: 20 Hz to 20 000 Hz (± 1 dB)
- SN ratio: 94 dB (1 kHz ) ) (IHF-A network)
- Dynamic range: 92 dB (1 kHz)
Amplifier section
- maximum output: 50 W x 4 ■ Audio section
- Pre-out maximum output level: 2.2 V / 1 kΩ
Content adapted from: Pioneer Press Release MEH-P520 Press Release 2 Press Release 2 (MiniDisc Wiki mirror) av.watch
Manuals
Repair

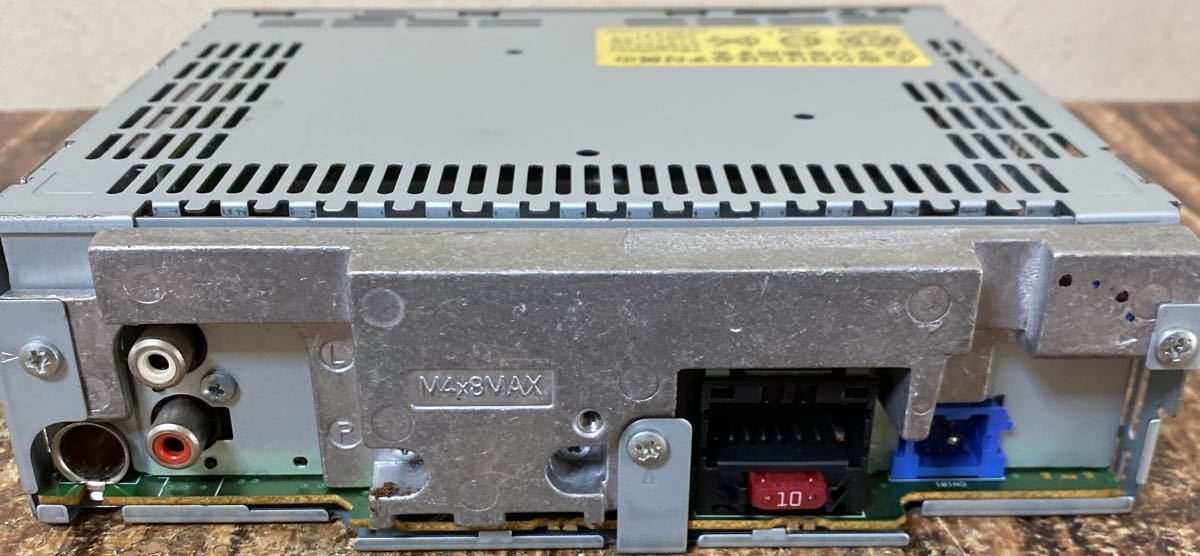

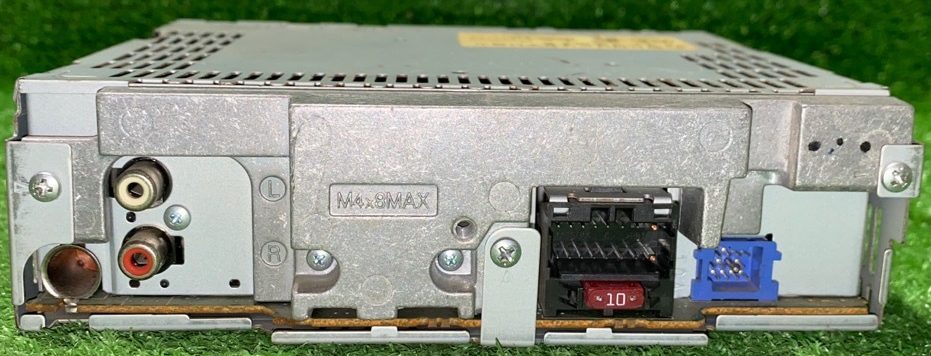

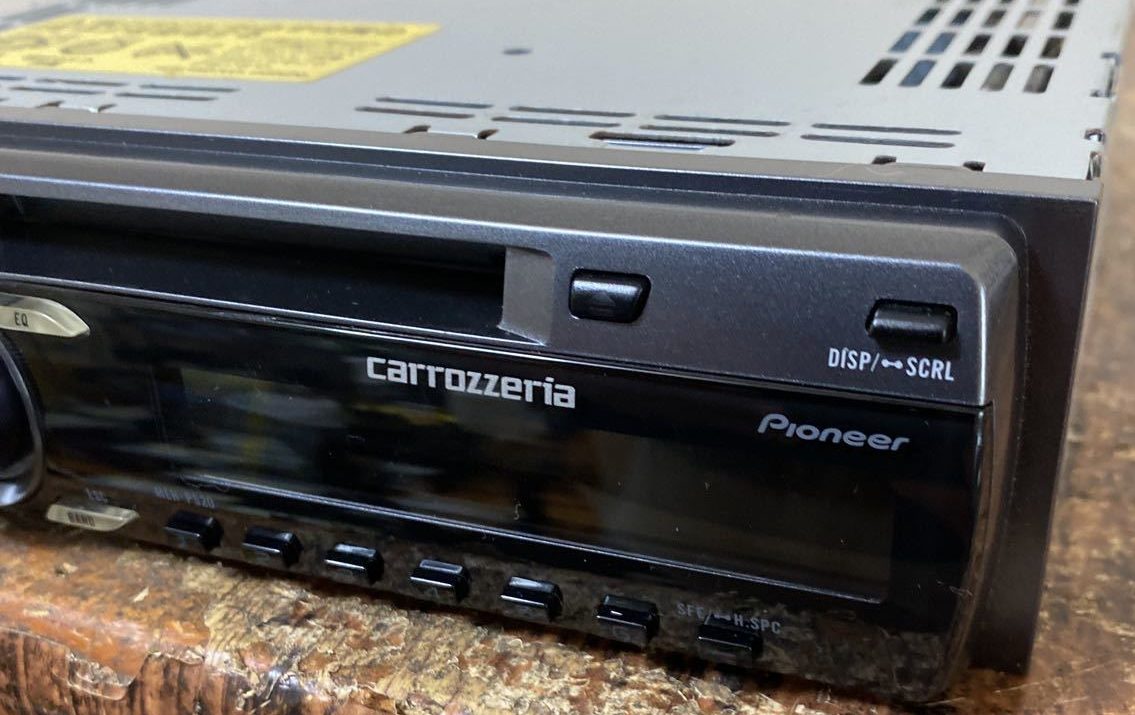

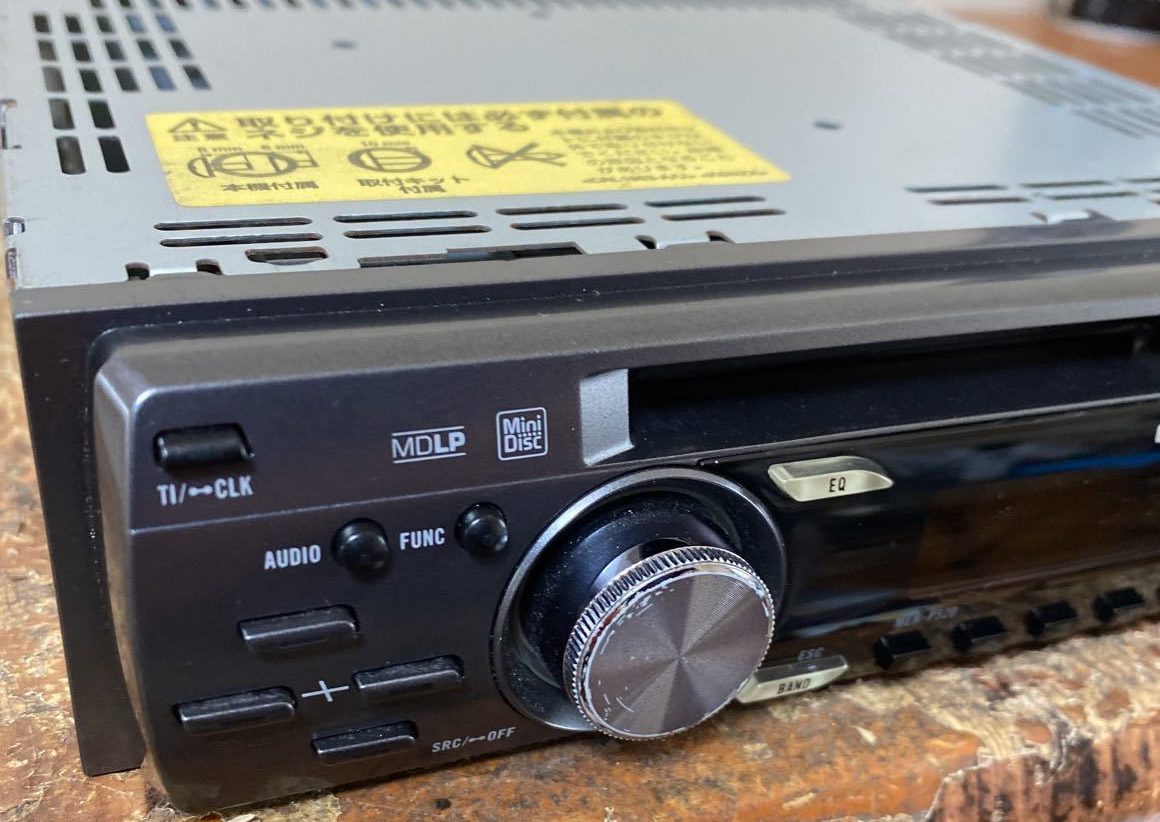

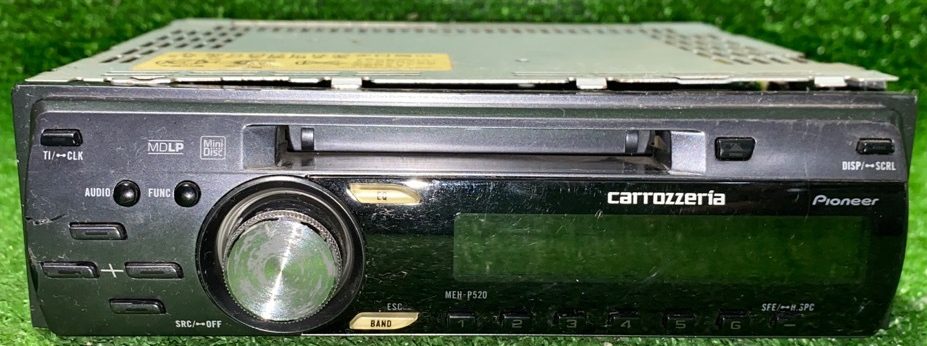

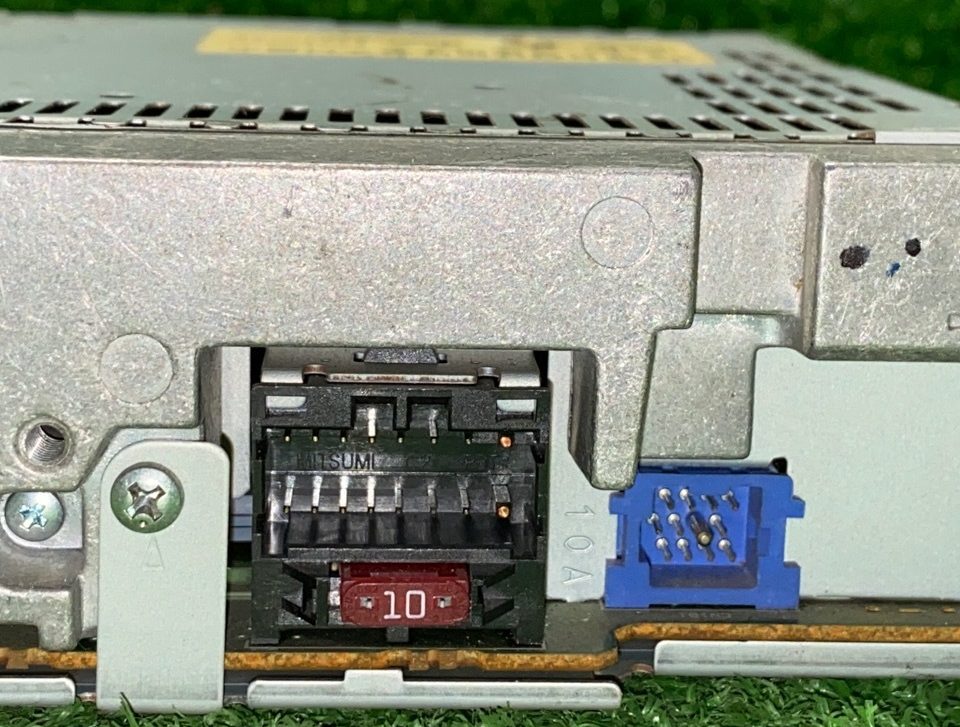

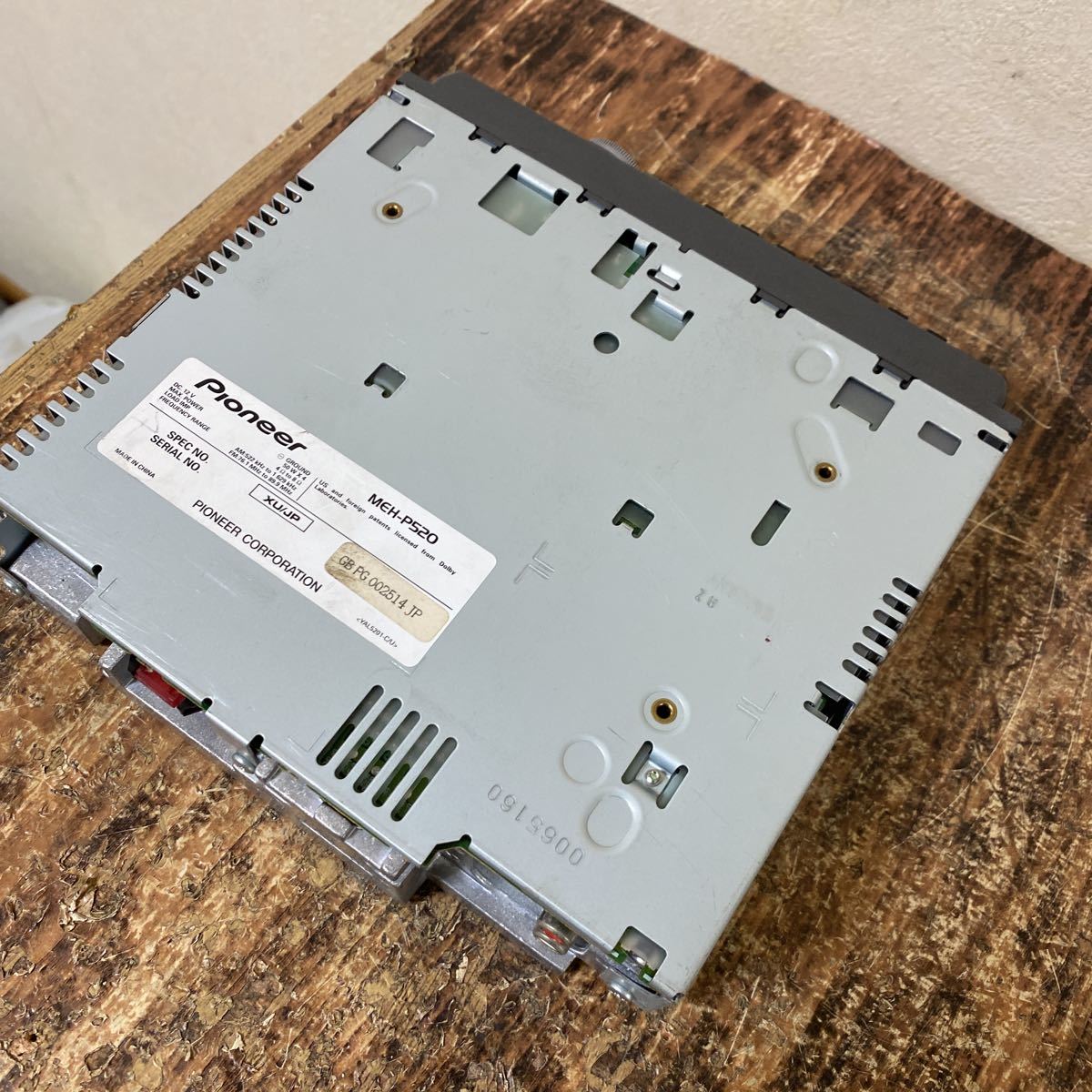

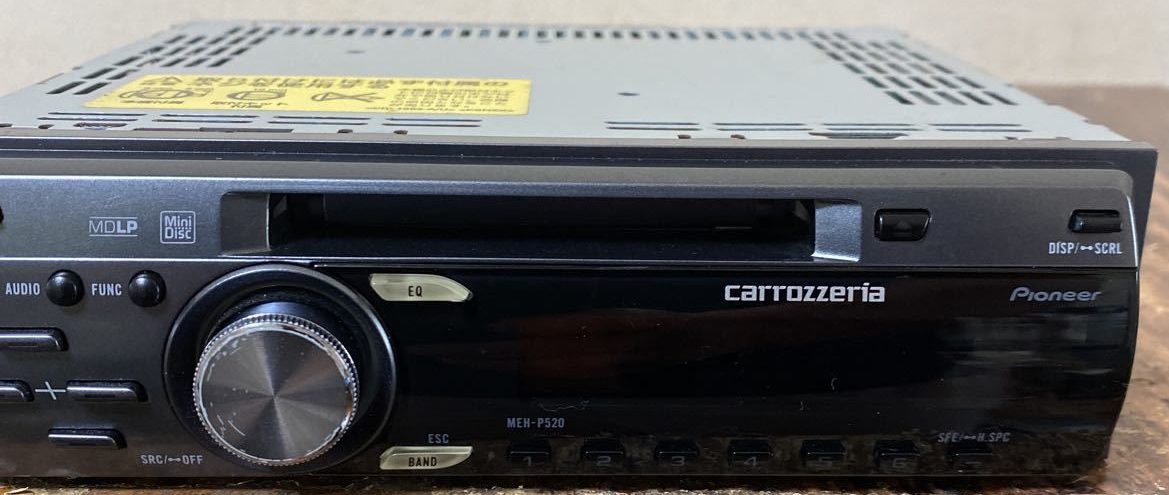

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
