Pioneer MEH-P717

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-07-01

Manufacturer
Pioneer
Model / source grouping
MEH-P717
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P717”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P717
Manufacturer Pioneer
Released 2002/03
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-DIN
Weight 1.5kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-
Inputs N/A
Outputs RCA out, Speaker amplifier
Control Not recorded
  • Auto-EQ sets equalization by measuring cabin acoustics with test signal and built-in microphone.
  • "MD-auto gain control" adjusts track volumes so that large differences do not occur between tracks.
  • "ASL" (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
  • "Time-alignment" feature uses digital delay line to compensate for driver position, ensuring that wave fronts from each speaker reach driver in synchrony.
  • 3-band parametric equalizer adjustable from -12dB to +12dB.
  • Selectable subwoofer cutoff frequencies (50, 80, 125Hz), slope fixed at -18dB/octave.
  • Graphic display front panel can display one of 2 repeating "adventure" video clips of 5 seconds duration.
  • Amp: 50Wx4, 70Wx1 (for subwoofer). SNR > 90dB, Dyn. Range > 90dB, FM: 76.1-89.9MHz

Content adapted from: Minidisc.org page Pioneer Press Release av.watch

Manuals

Pioneer MEH-P717 User Manual JP

Repair

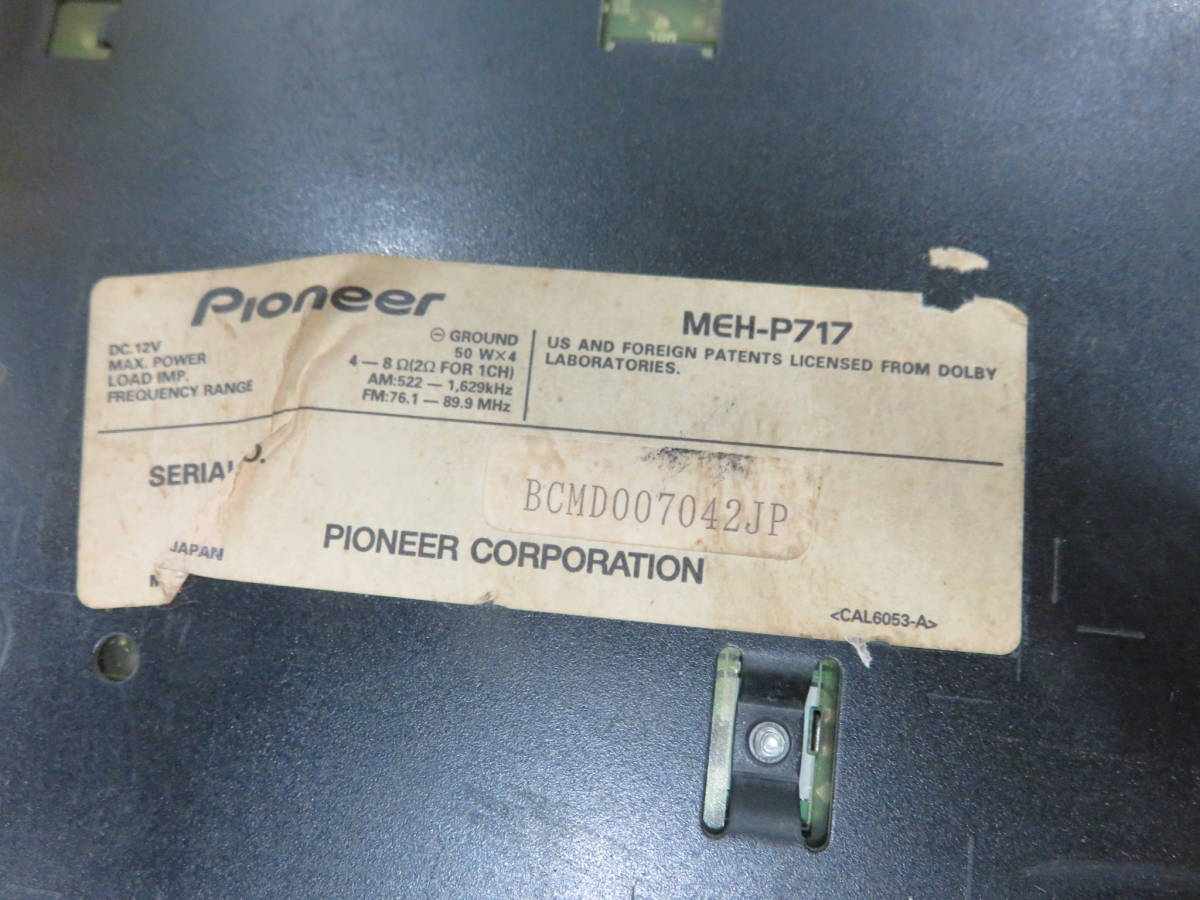

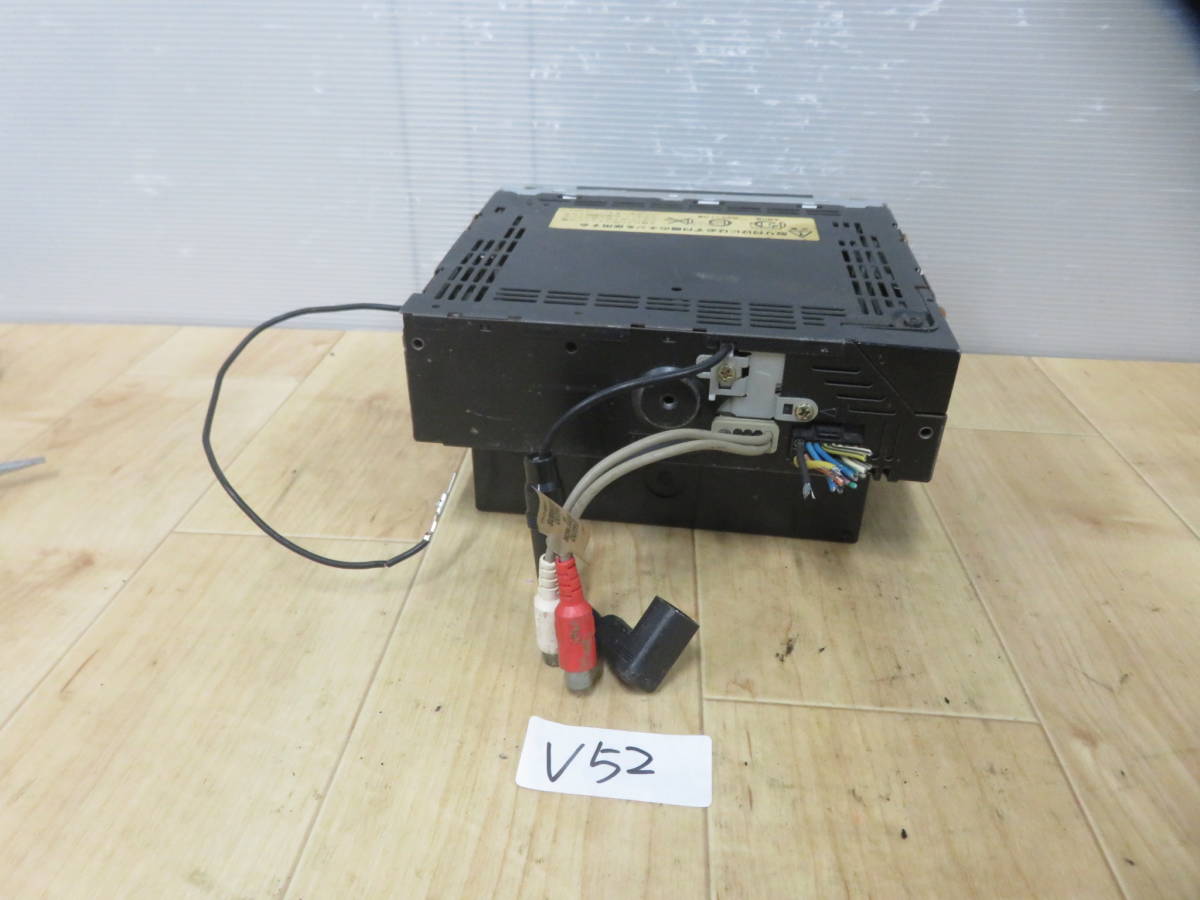

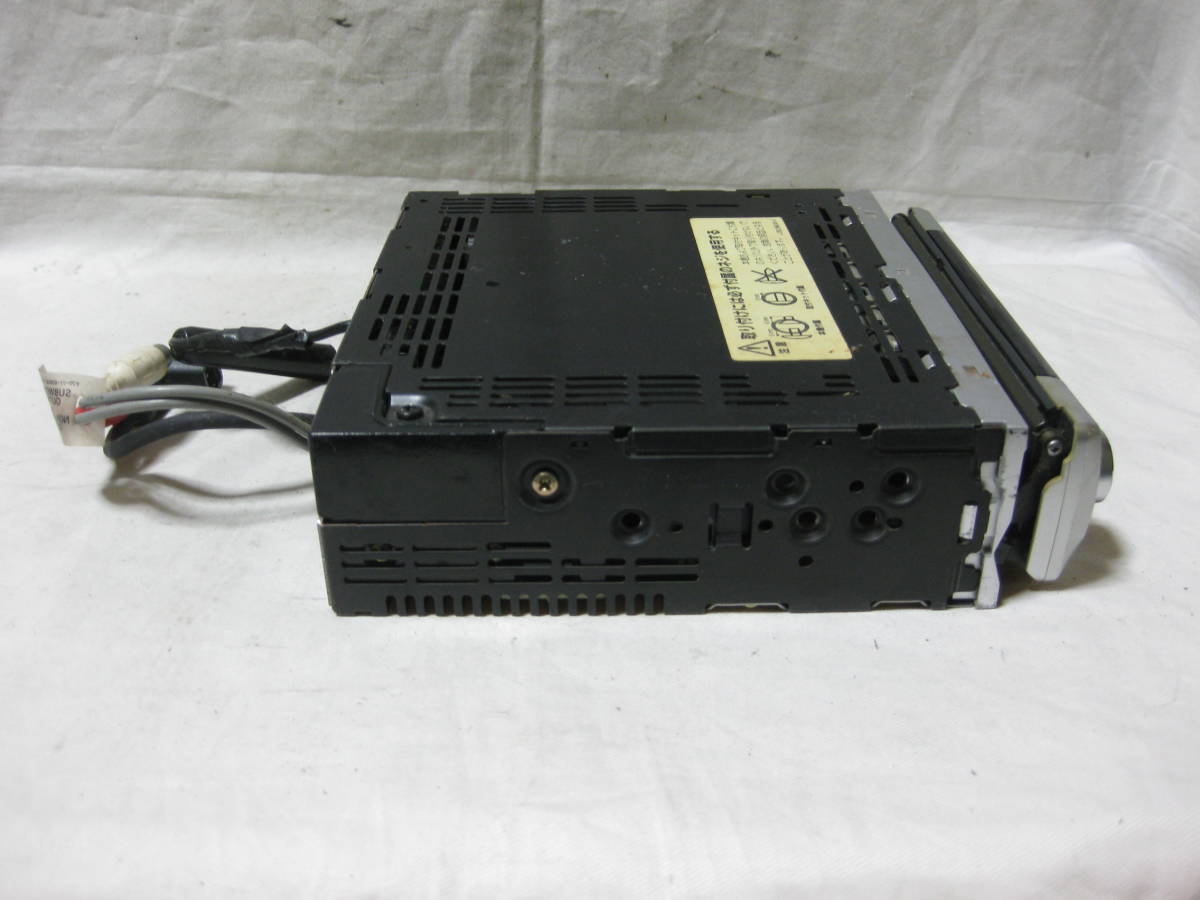

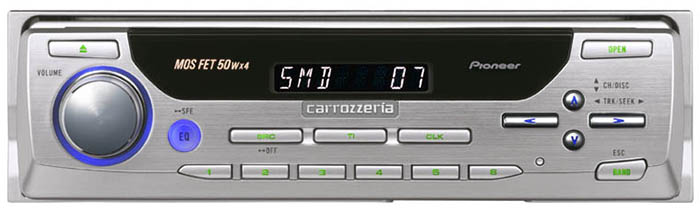

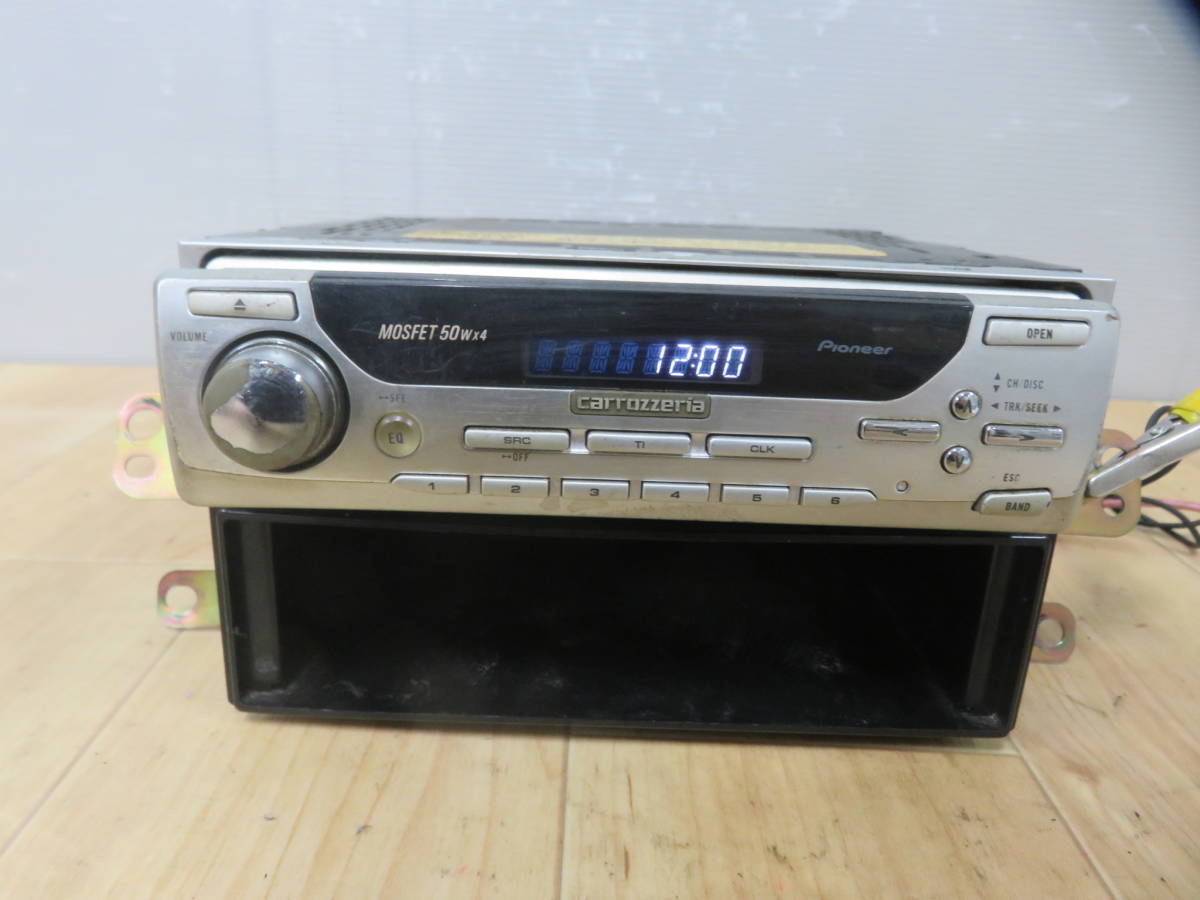

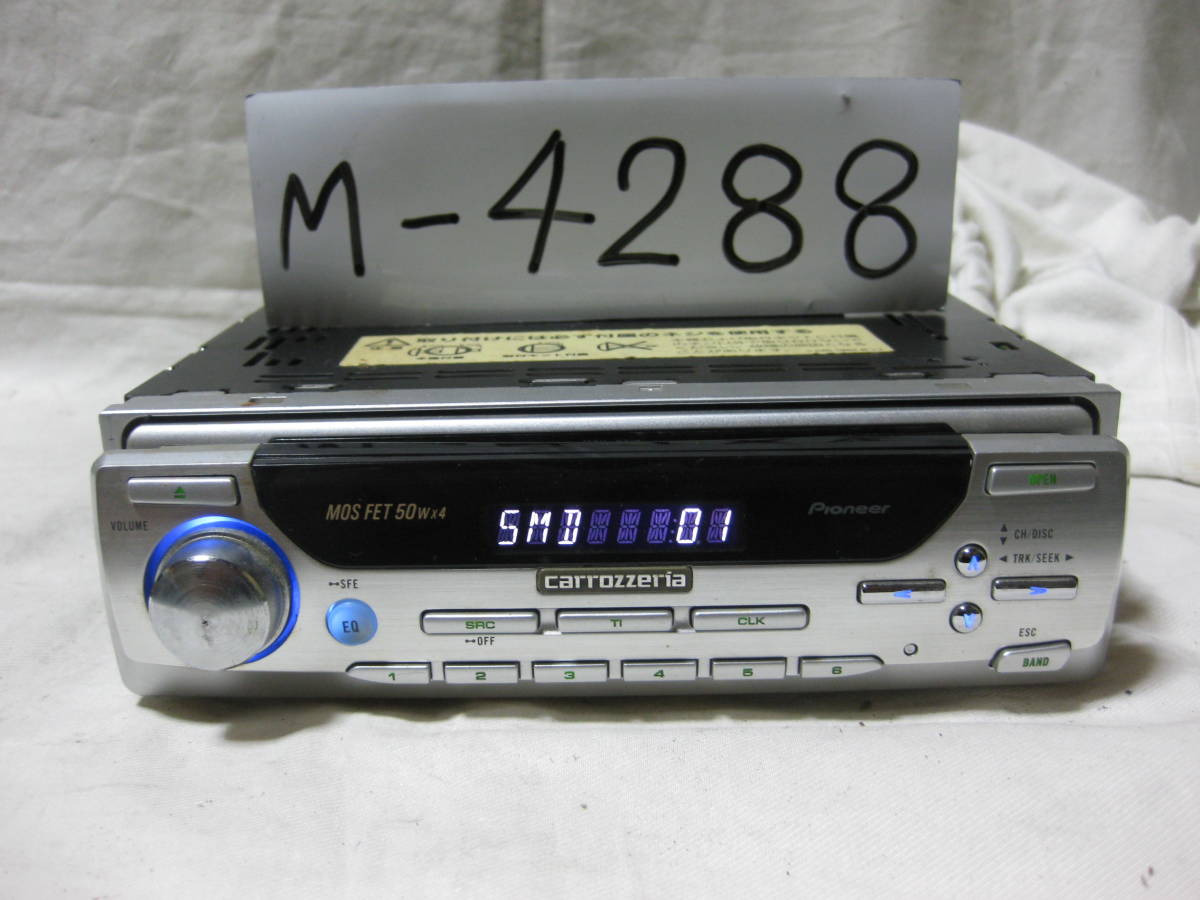

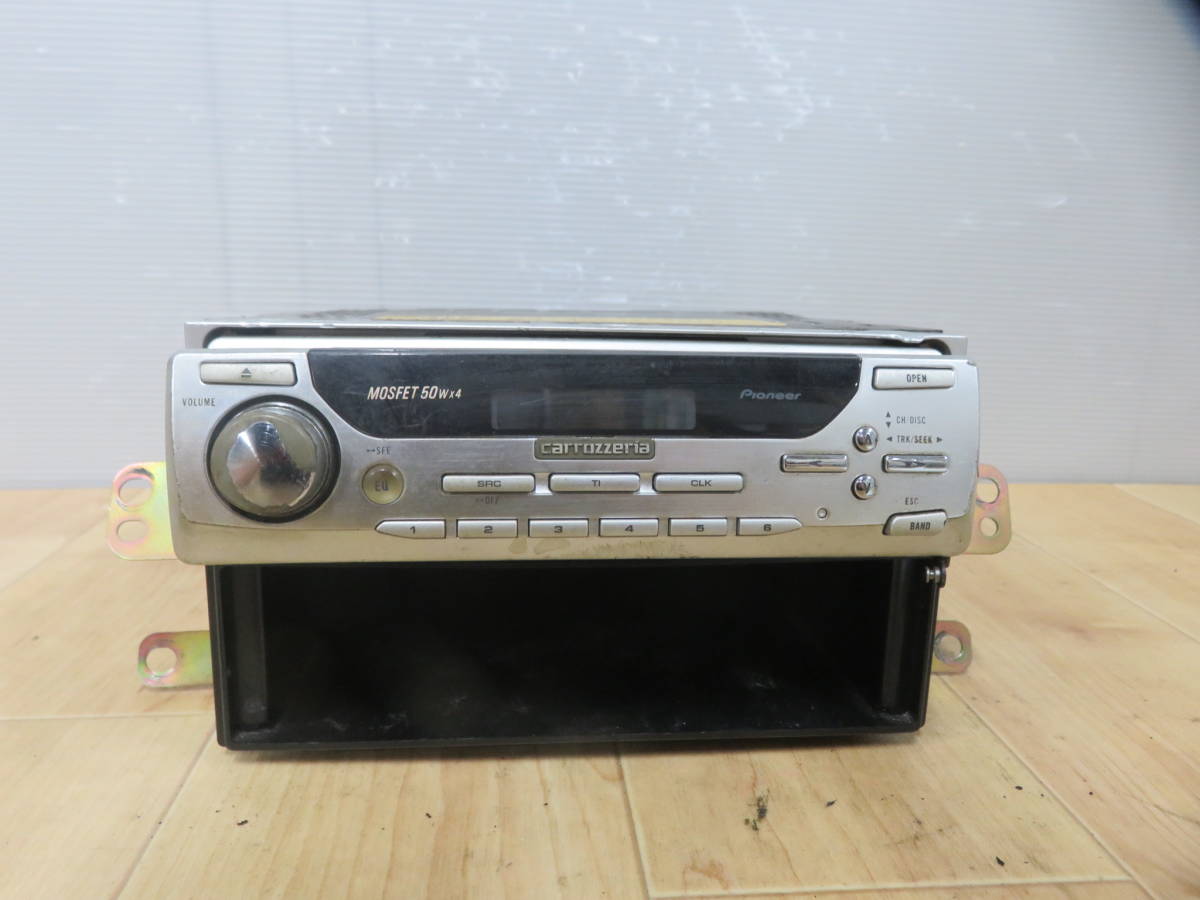

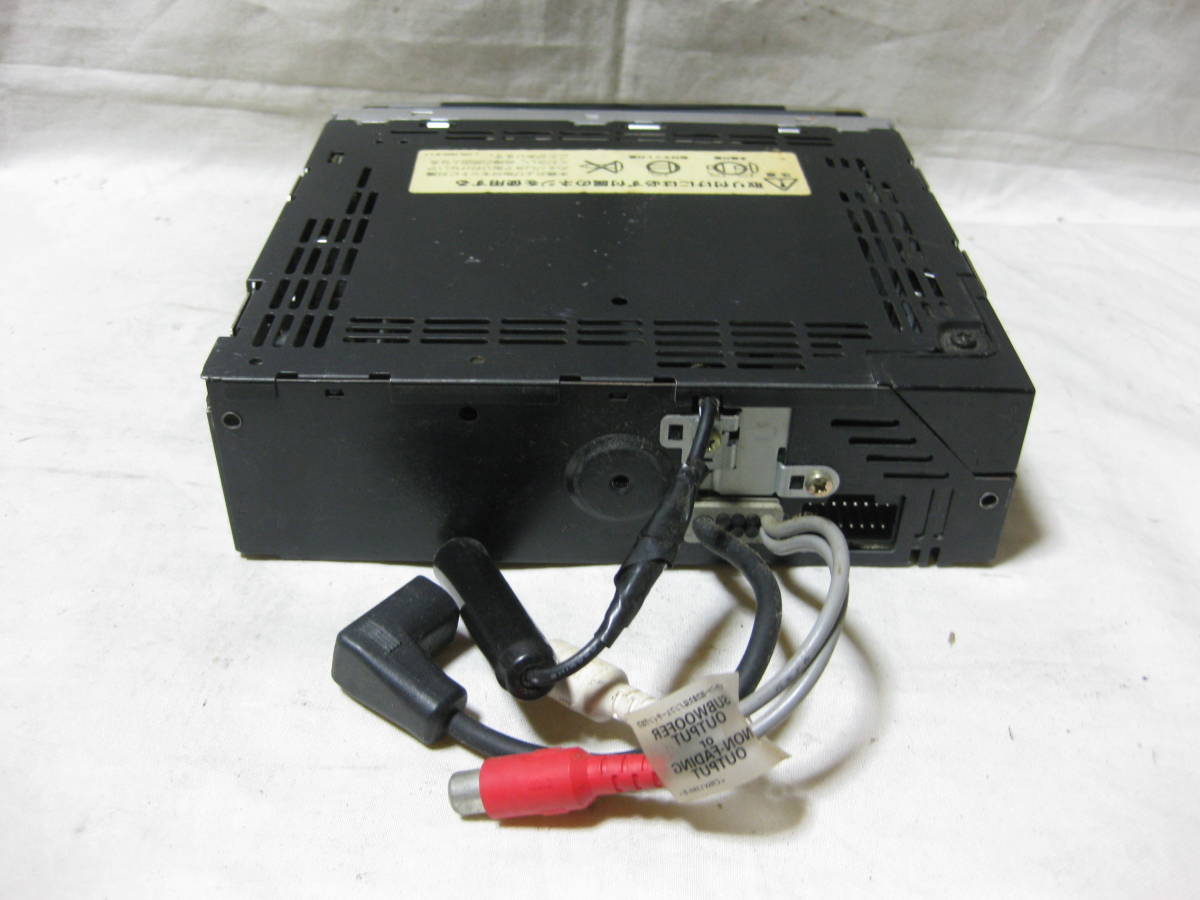

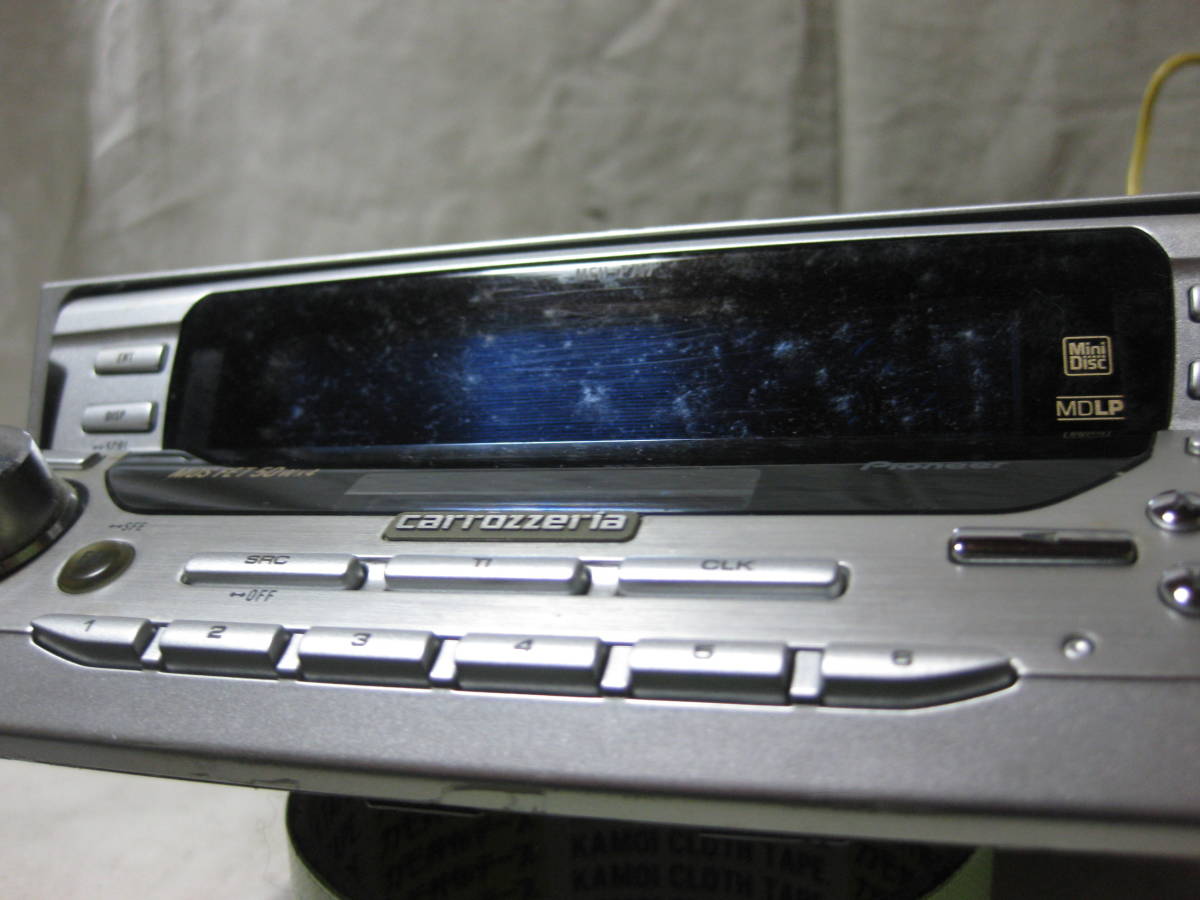

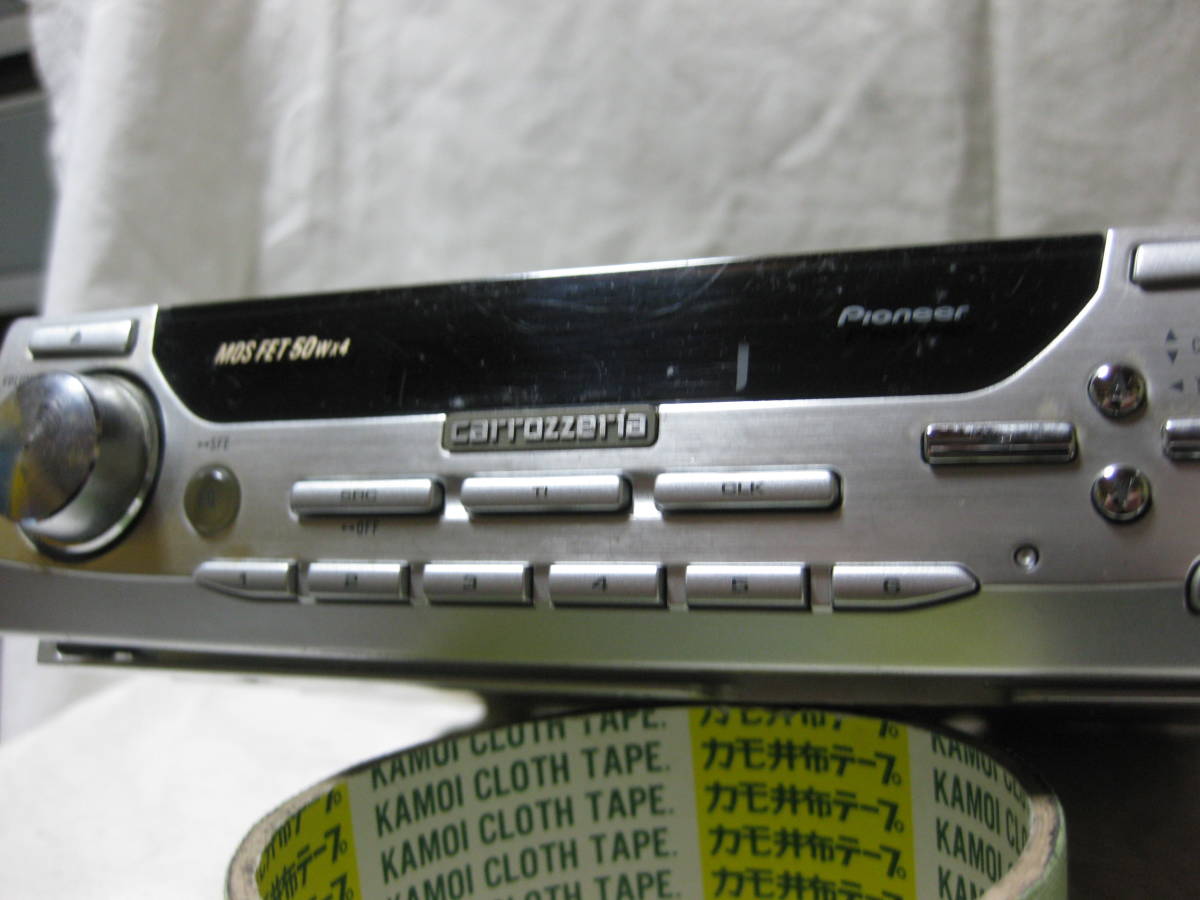

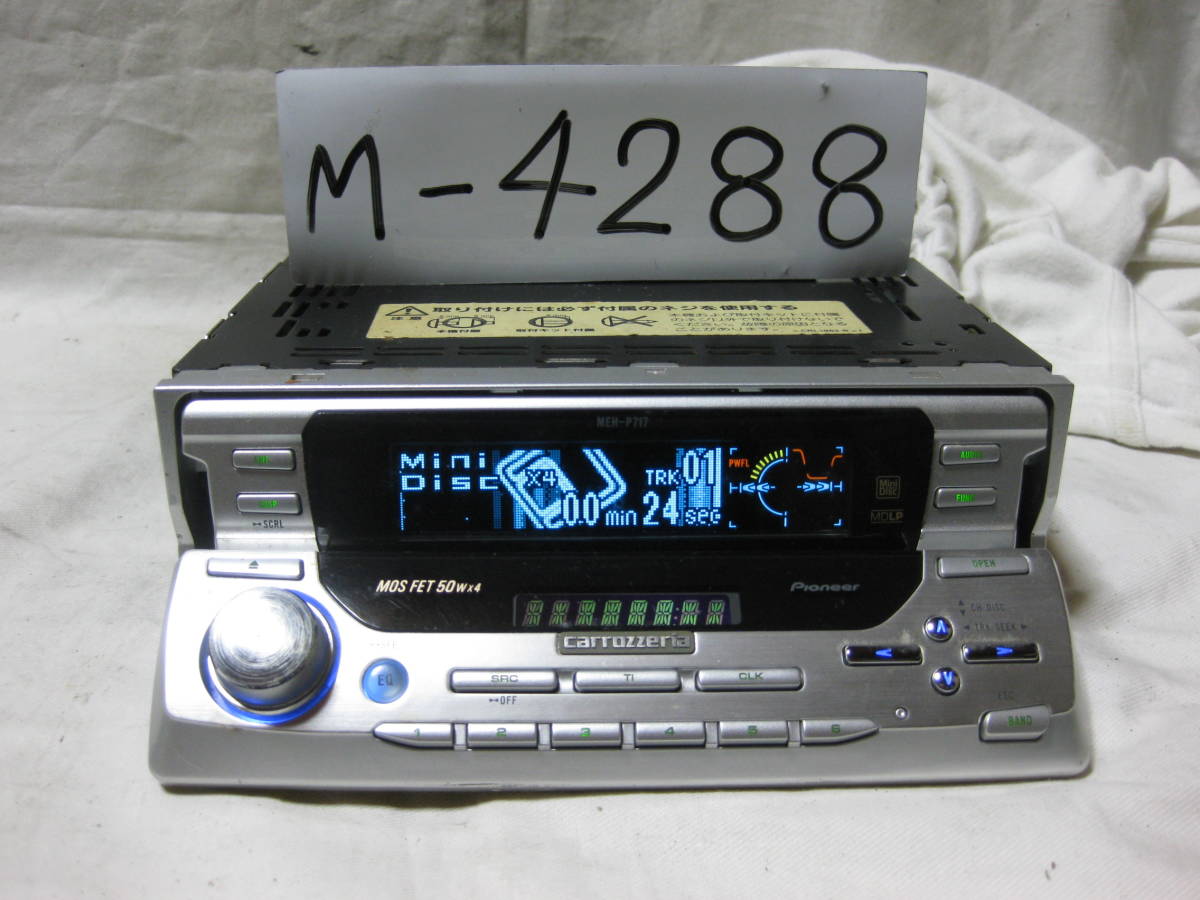

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ManualUser manual
RegionJapan
