Device

Pioneer MEH-P7700

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-12-19

Manufacturer
Pioneer
Model / source grouping
MEH-P7700
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P7700”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P7700
Manufacturer Pioneer
Released 2000/03
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x50 (H) x160 (D)mm
Weight 1400
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

Frequency characteristic

  • AMP 45Wx4 - SUB-WOOFER (70Wx1ch / 2Ω)
  • S/N (IHF-A network) 97dB (1kHz) 94dB (1kHz)
  • Dynamic range 94dB (1kHz) 92dB (1kHz)
  • 20-20,000Hz

Content adapted from: Pioneer Press Release

Manuals

Pioneer MEH-P7700 User Manual JP

Repair

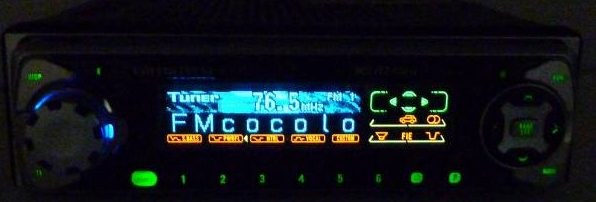

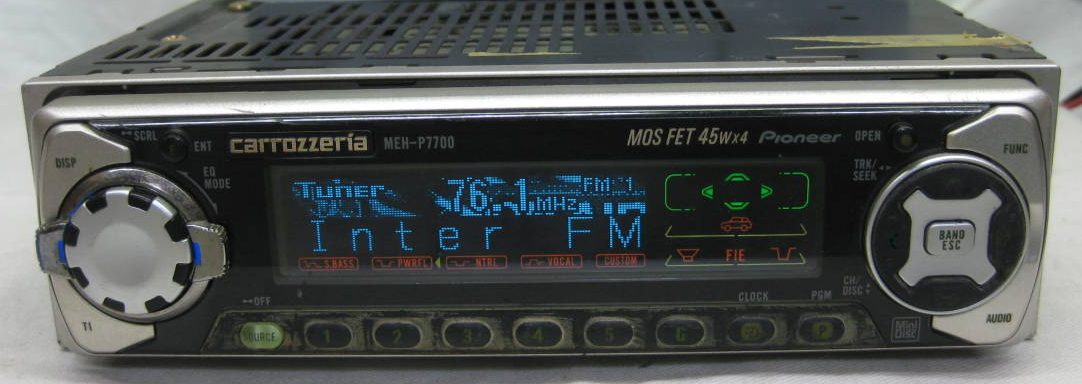

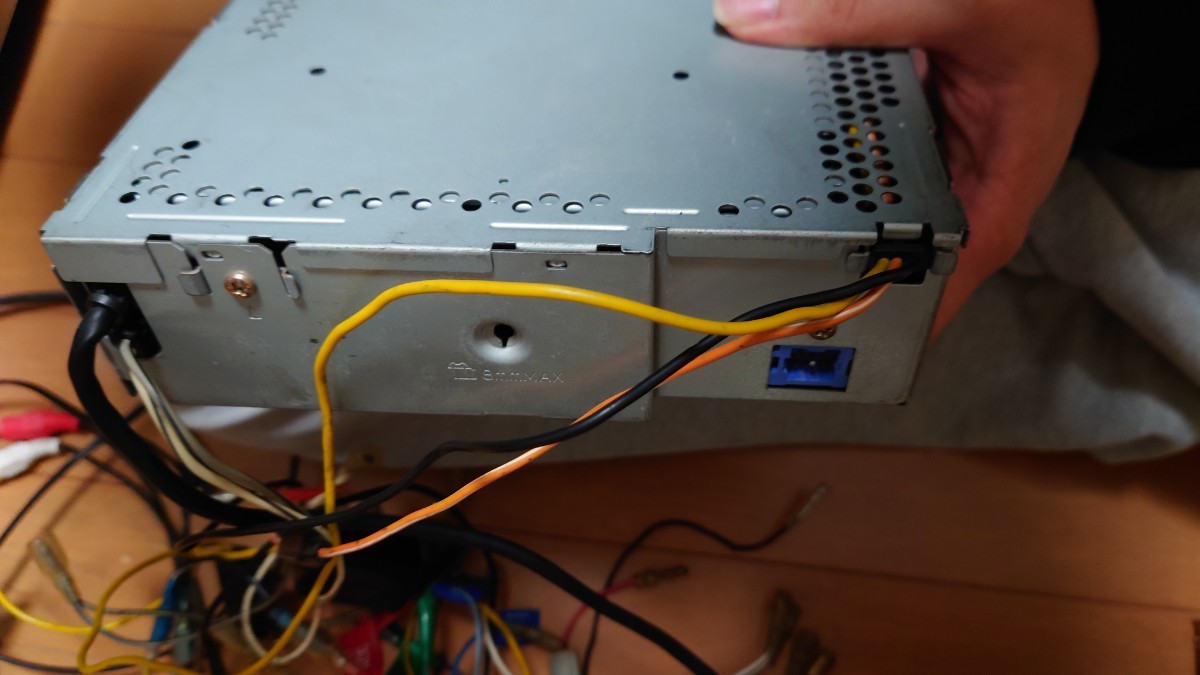

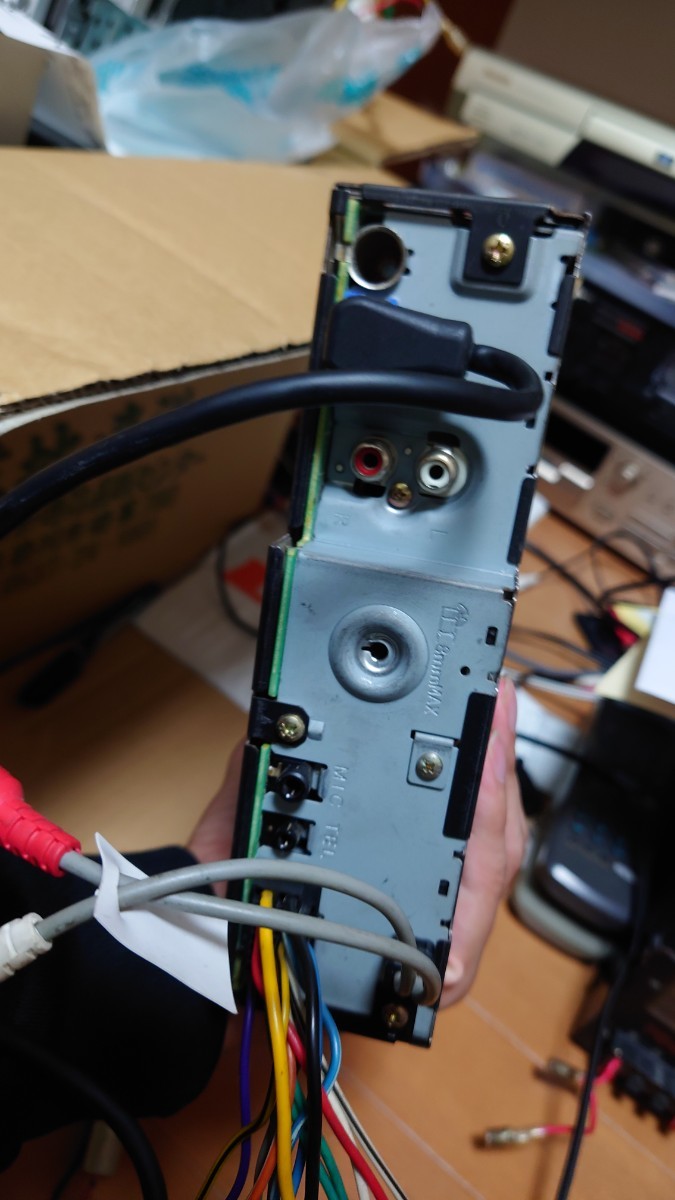

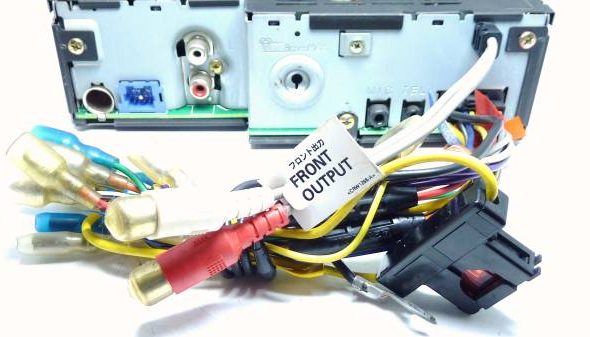

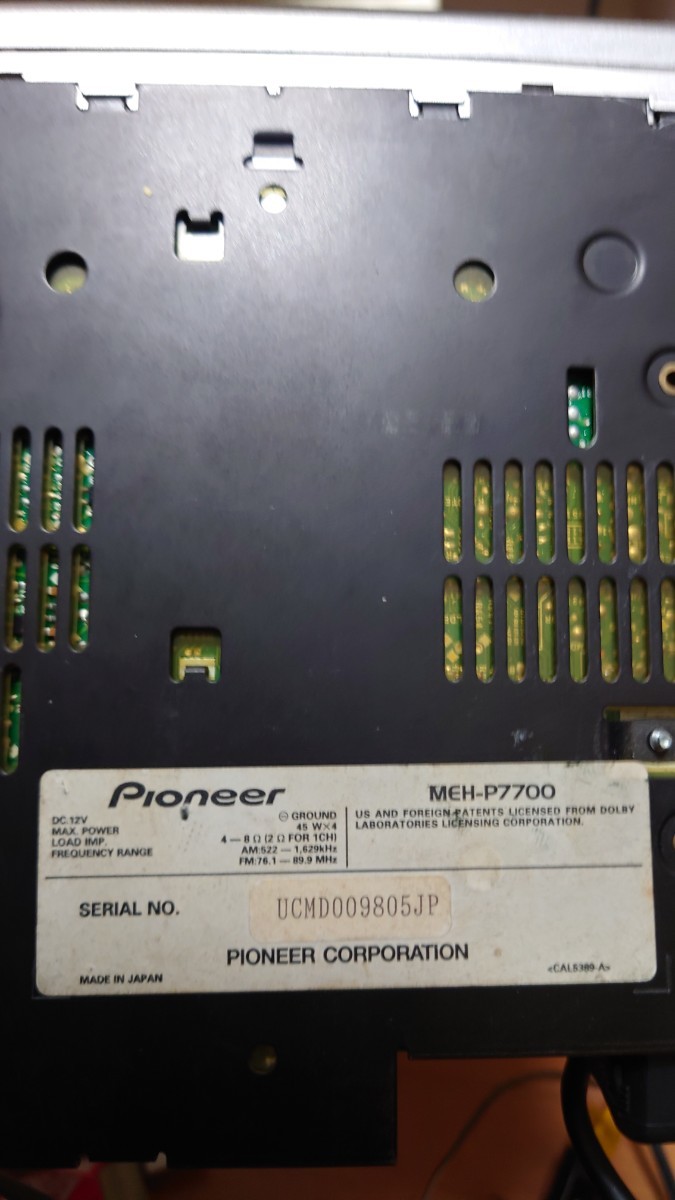

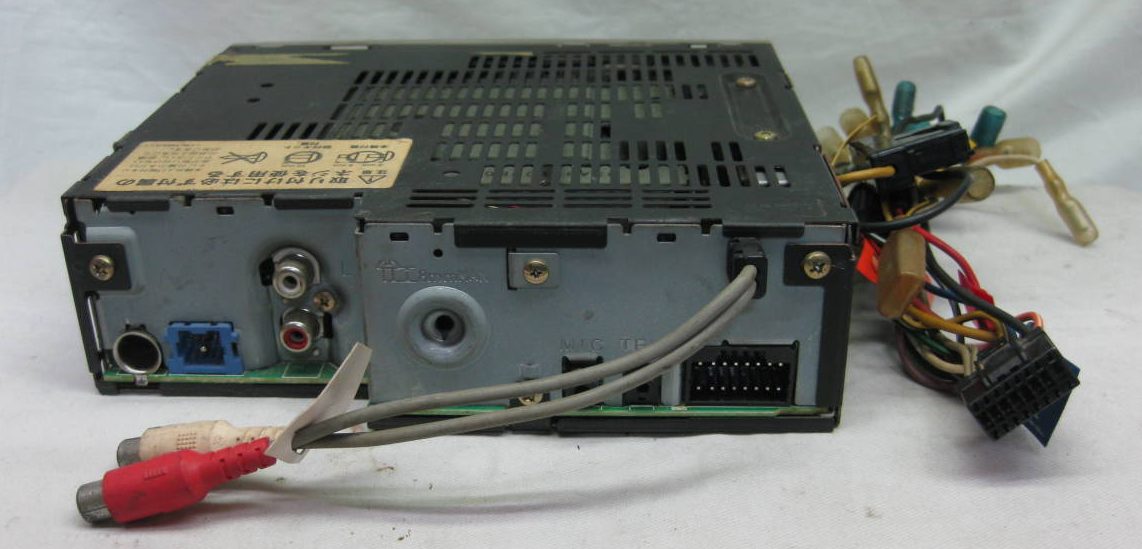

Photos

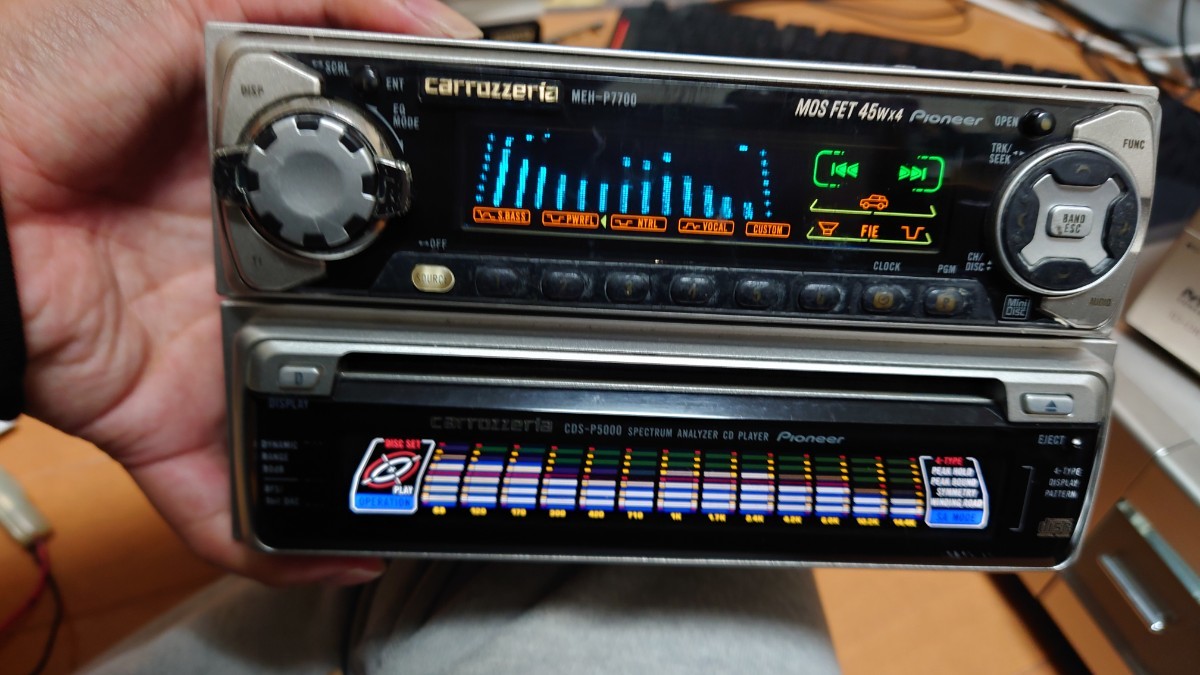

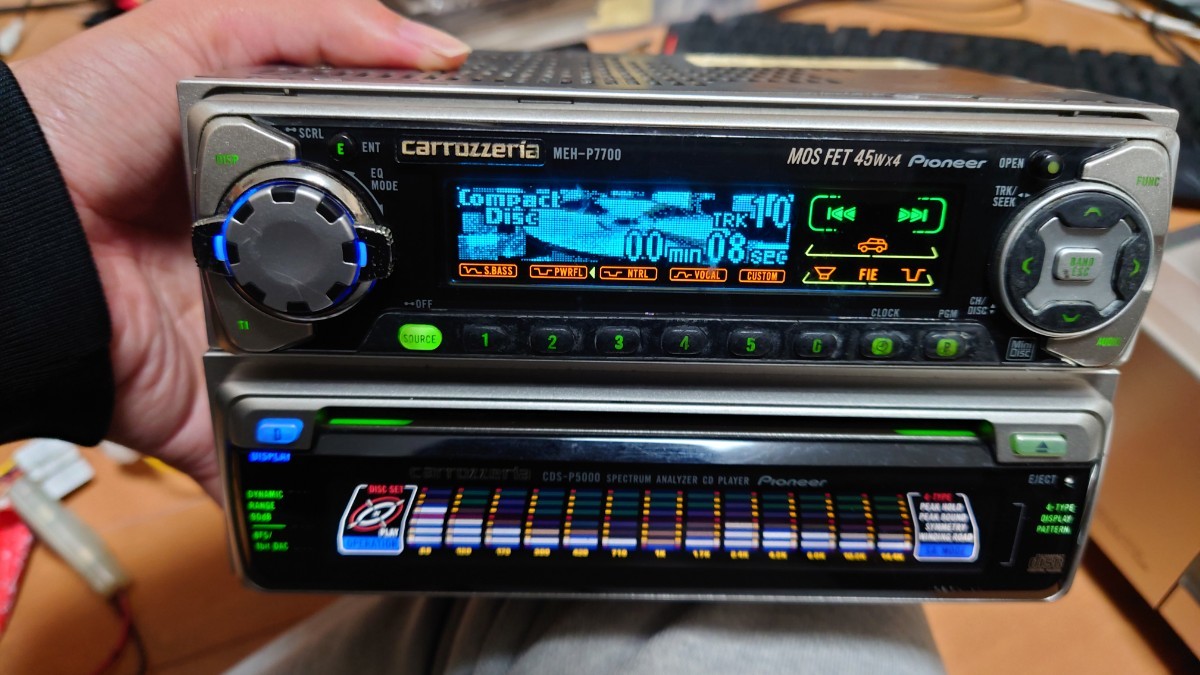

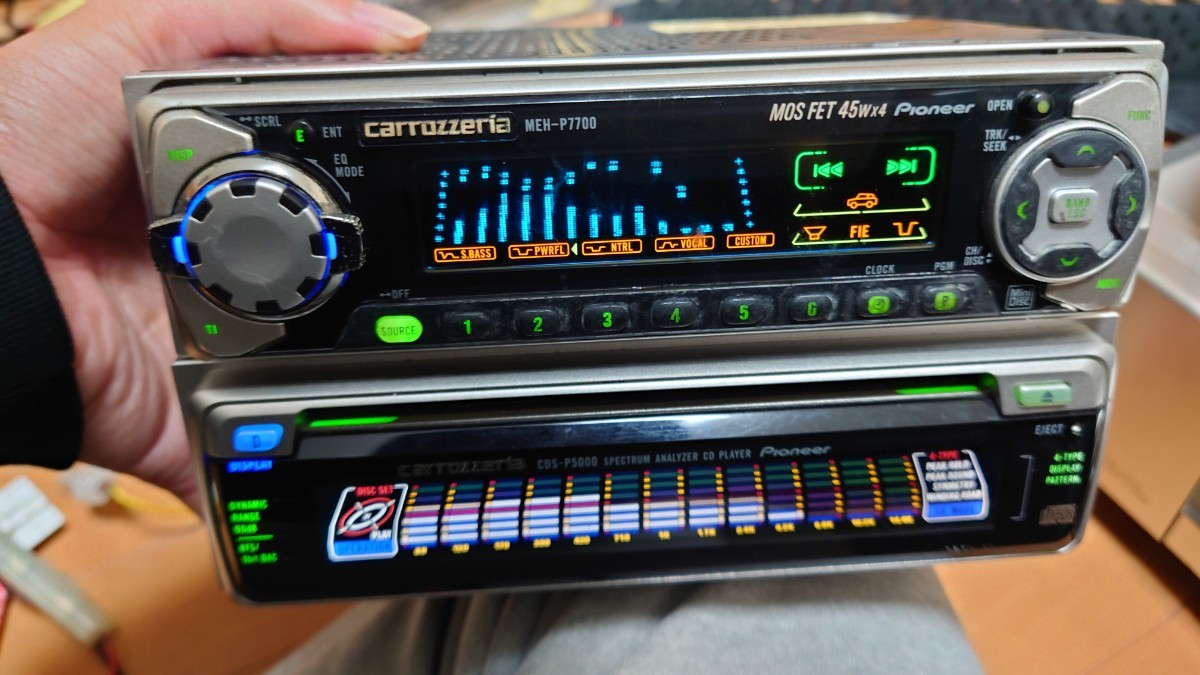

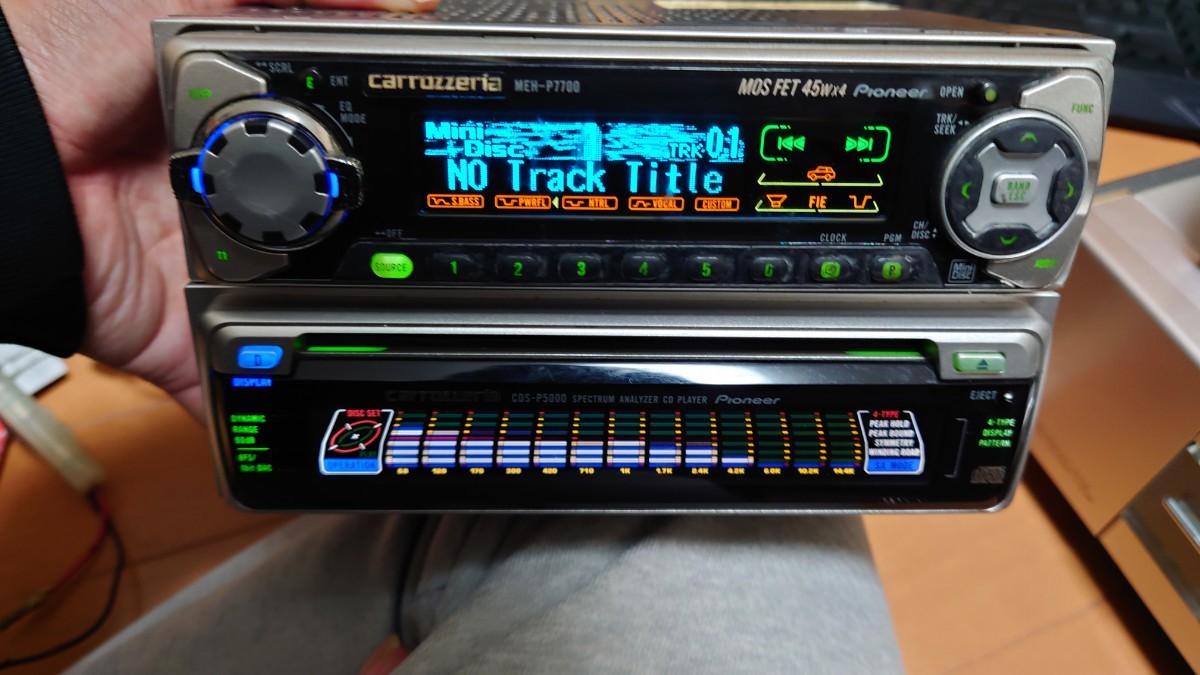

MEH-P7700 + CDS-P5000 Spectrum analyzer:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
