| Name | MEH-P777 |
|---|---|
| Manufacturer | Pioneer |
| Released | 2001/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-DIN 178 (W)×50 (H)×162 (D) mm |
| Weight | 1.2kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥57 800 | |
| - | |
| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

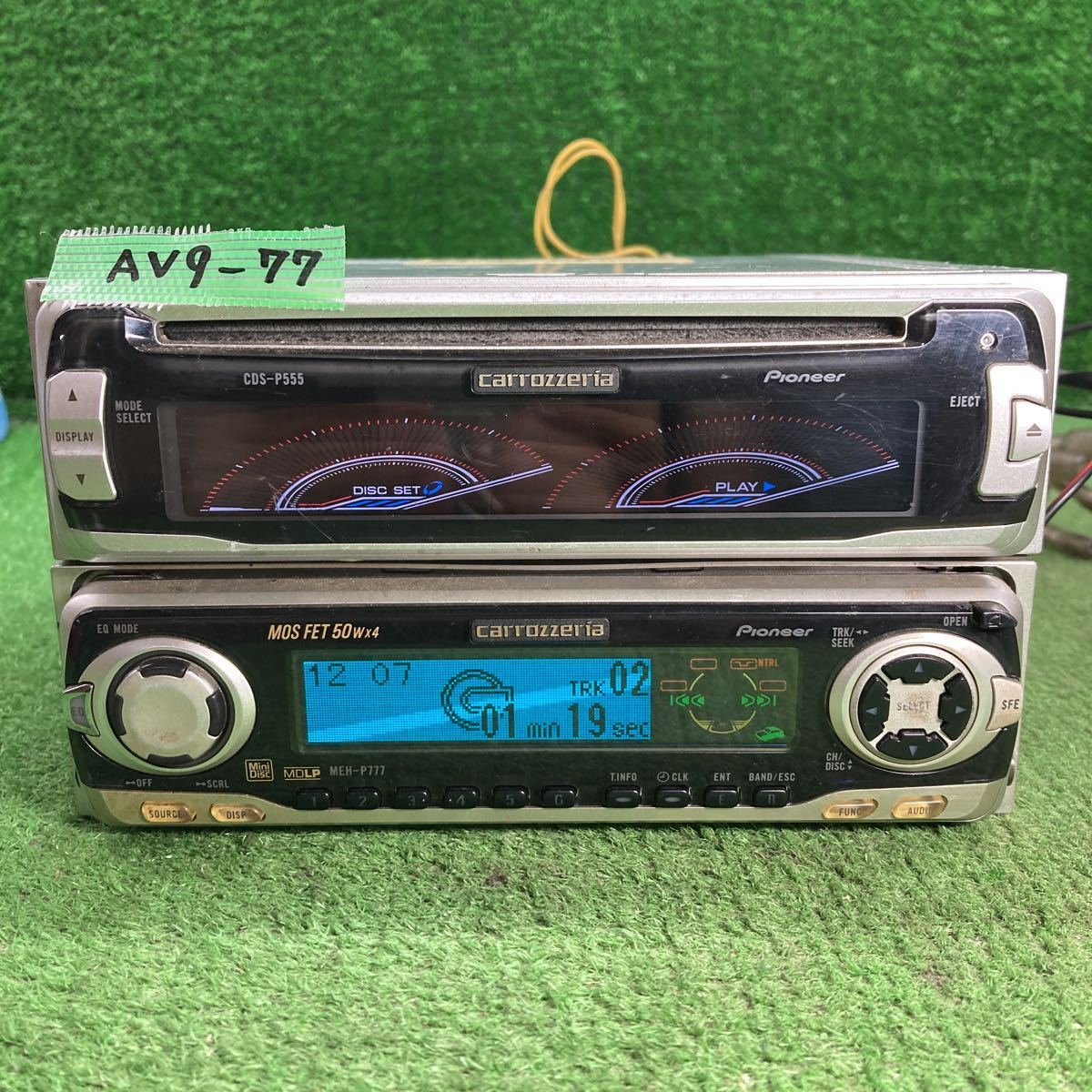

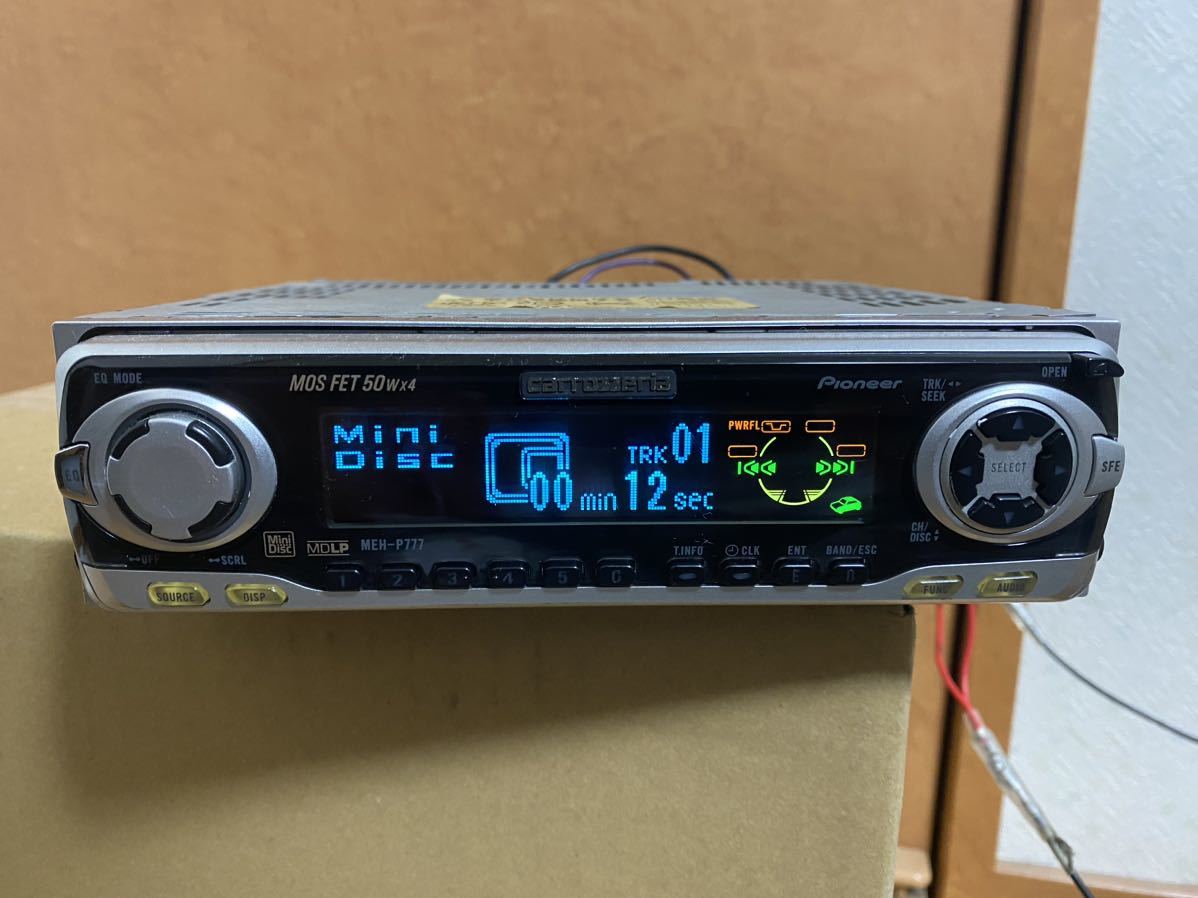

First MDLP compatible car head unit. New "organic EL" display allows a greater viewing angle, reacts 1000 times faster than traditional LCDs, and does not require backlighting. Full-motion 3D graphics in display. Equalizer has five presets (Bass, Powerful, Natural, Vocal, and Flat) as well as custom settings. ASL system automatically limits volume of audio to prevent distortion. Combinable with the Pioneer CDS-P555 in-dash CD player to create a 2DIN unit.
- Rated output: 22 W × 4 (50 ～ 15,000 Hz、5 % THD)
- Max power: 50W × 4 - 50W × 2ch/4Ω＋70W × 1ch/2Ω (for subwoofer)
- S/N: 94dB (1kHz) (IHF-A network) dynamic: 92 dB (1 kHz)
—- Content adapted from: Minidisc.org page Pioneer Press Release response.jp
Manuals
Repair

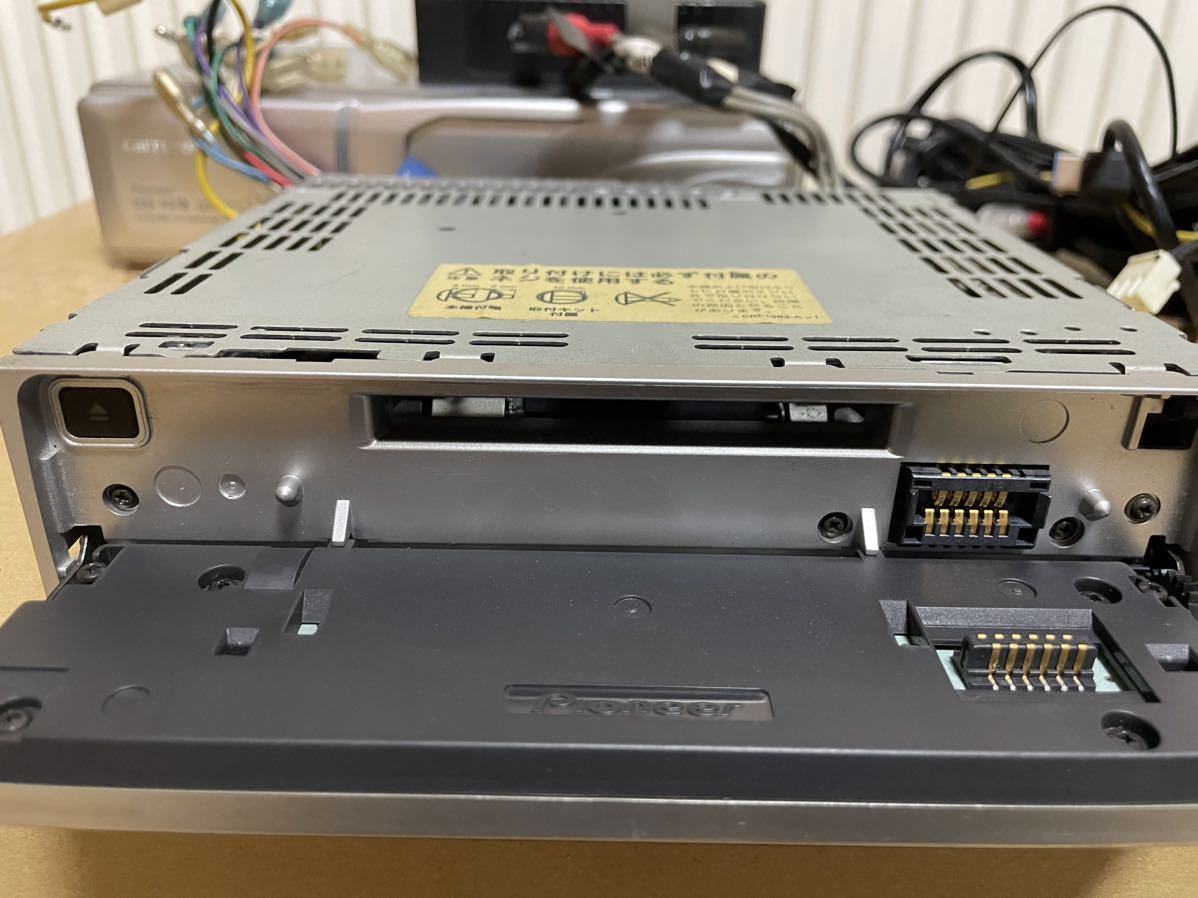

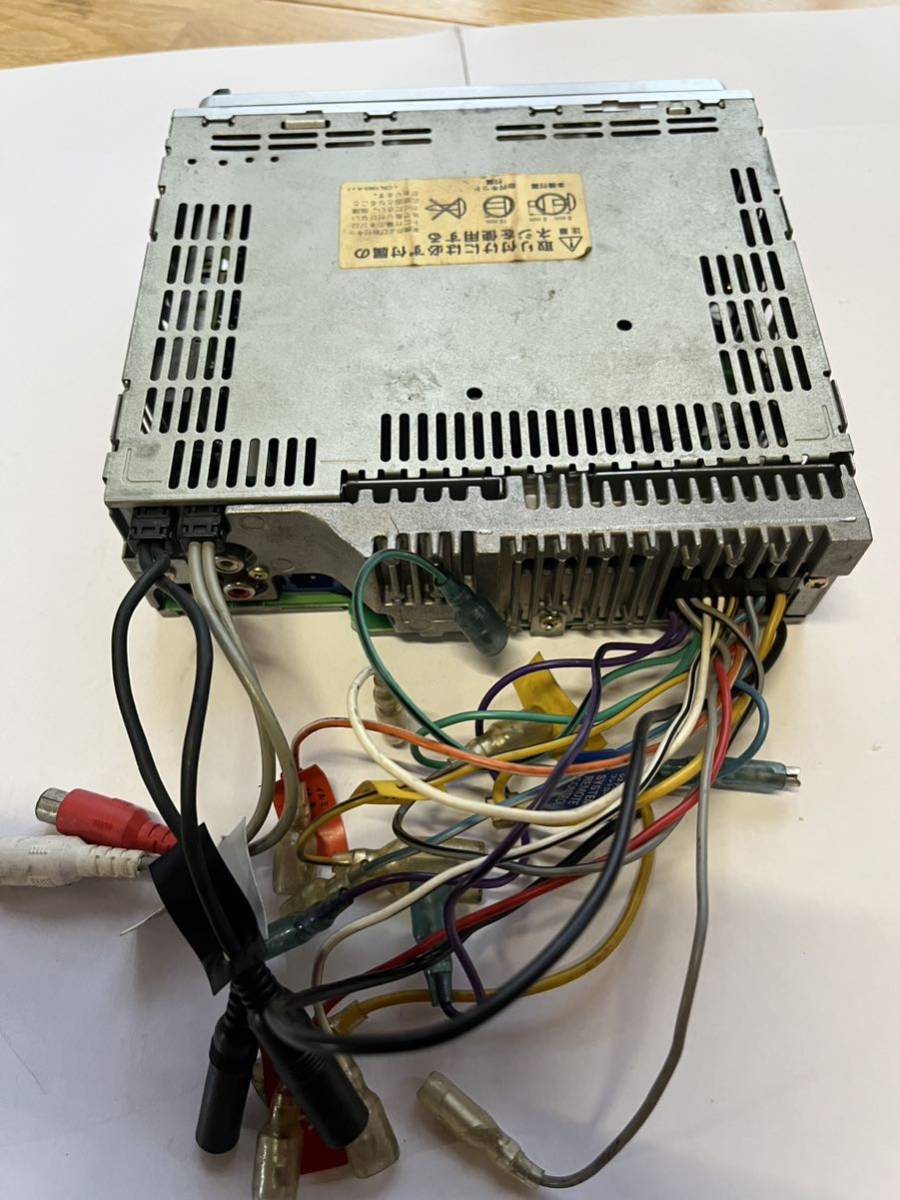

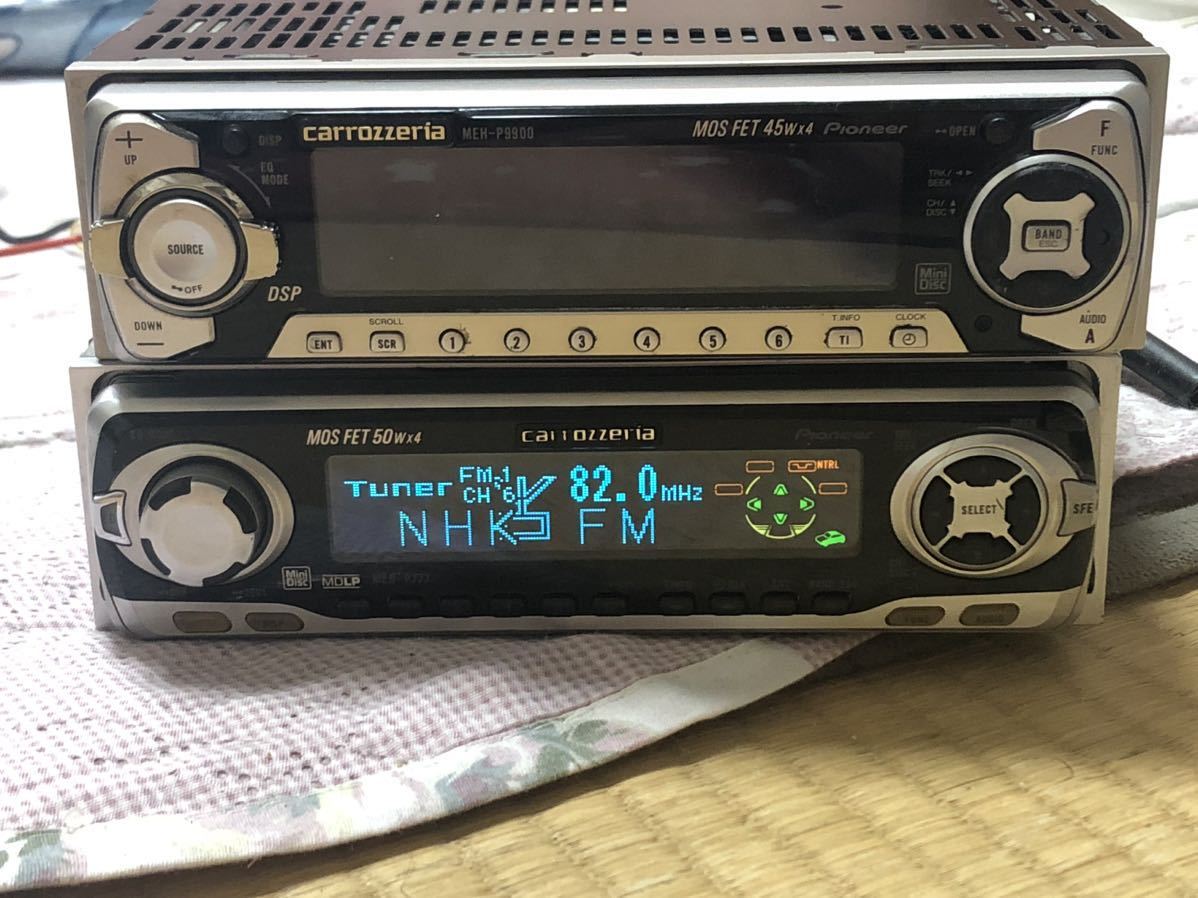

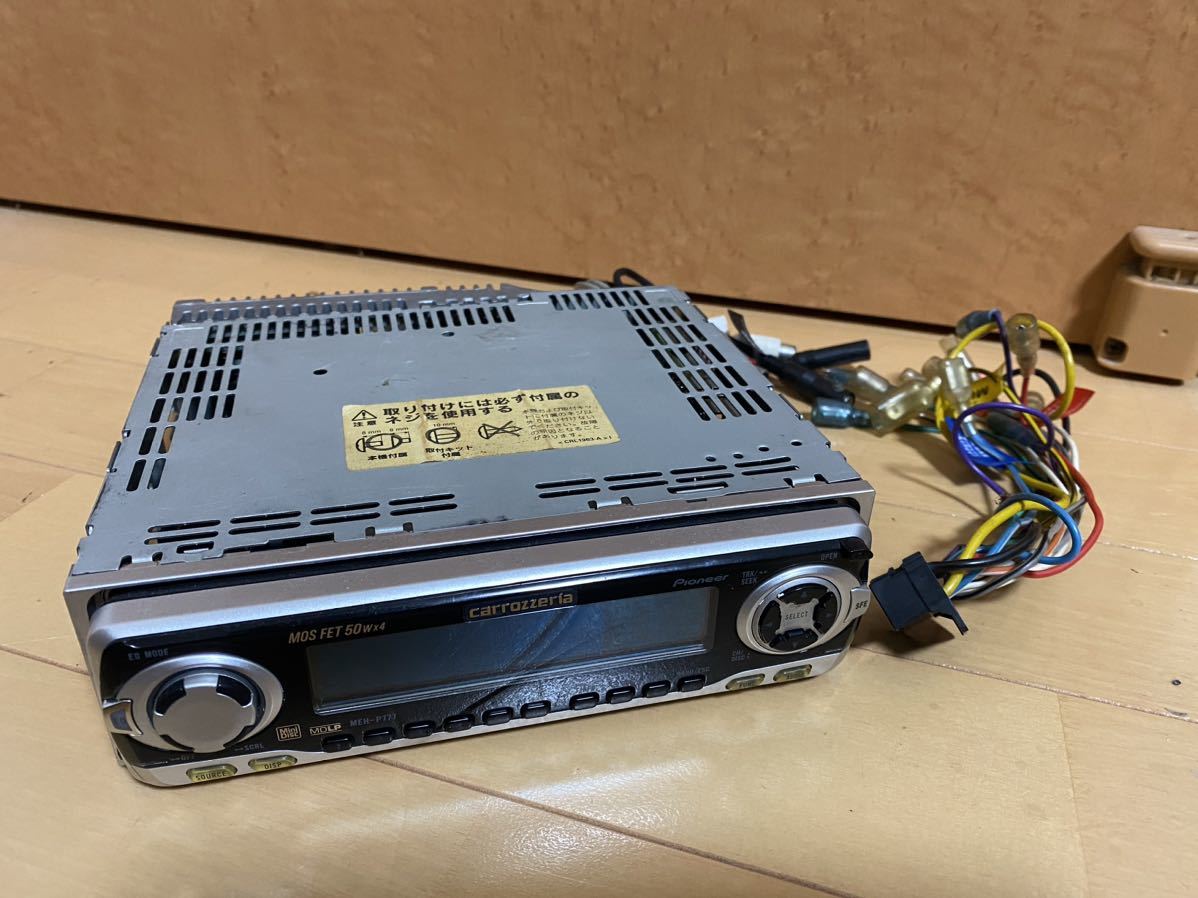

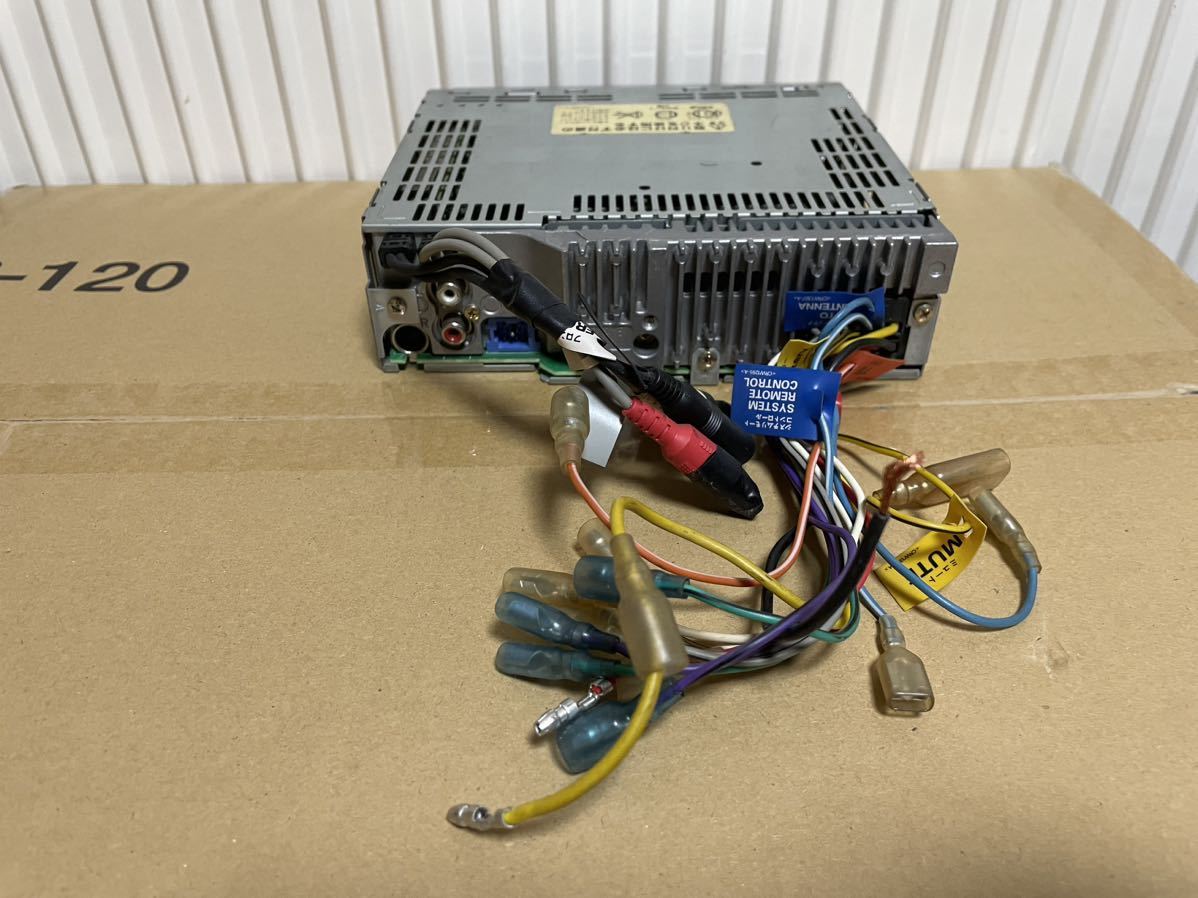

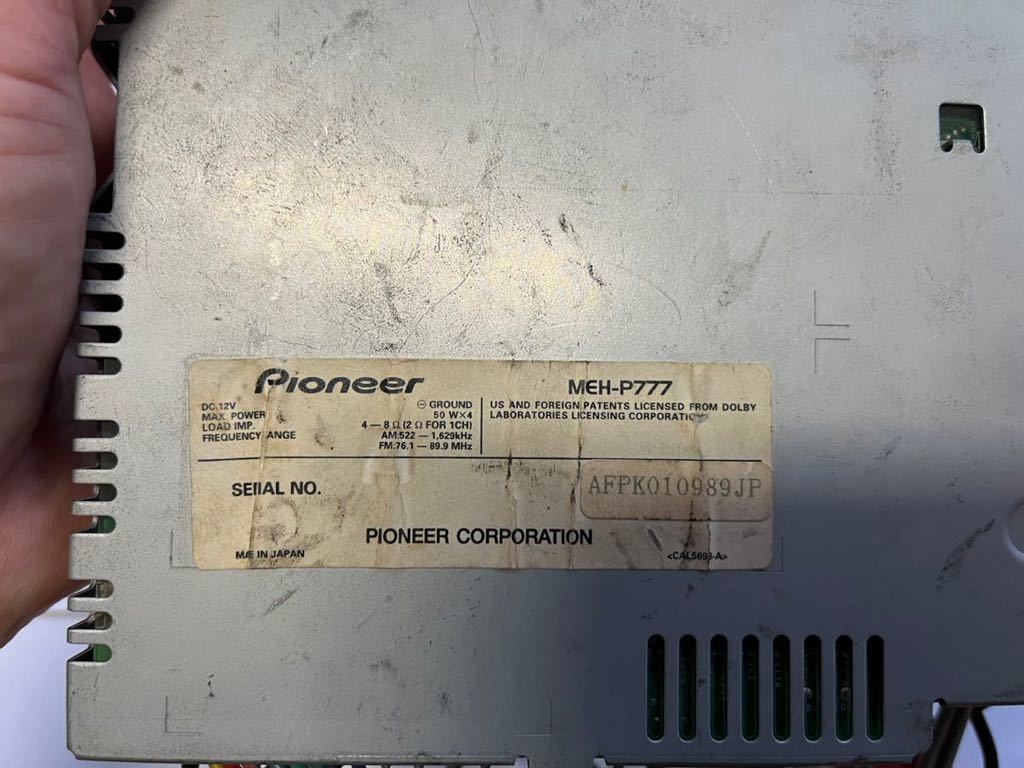

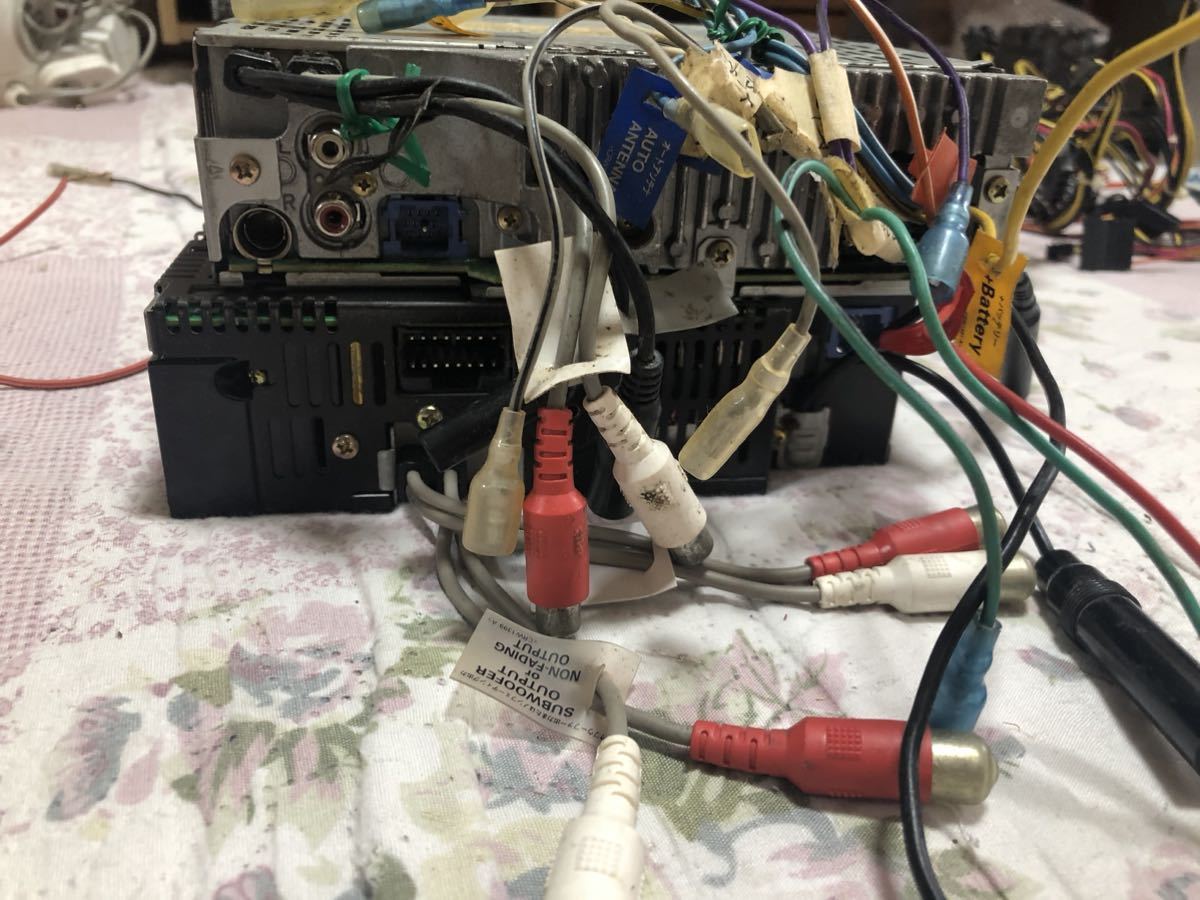

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
