| Name | MEH-P800 |
|---|---|
| Manufacturer | Pioneer |
| Released | 1997/11 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 1-DIN 178 (W) × 50 (H) × 155 (D) mm |
| Weight | 1500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

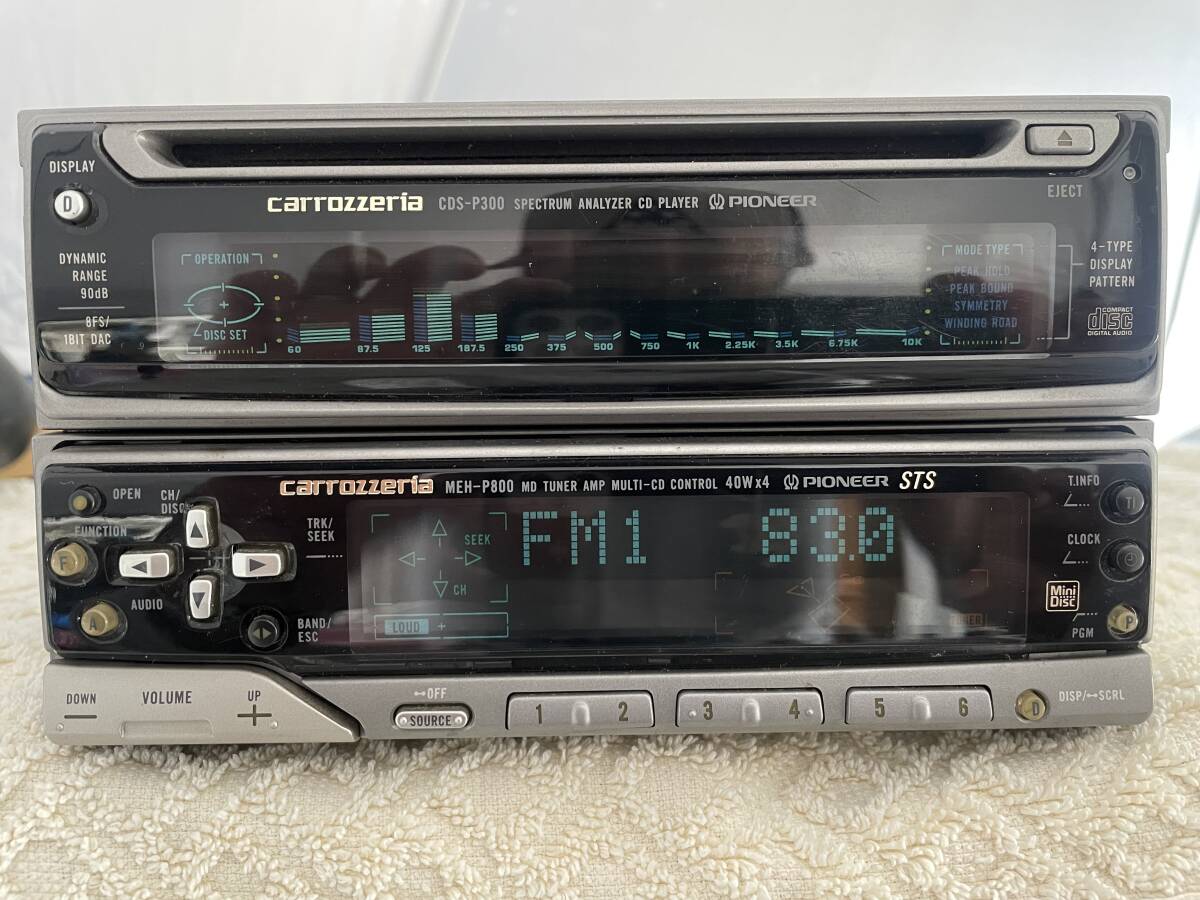

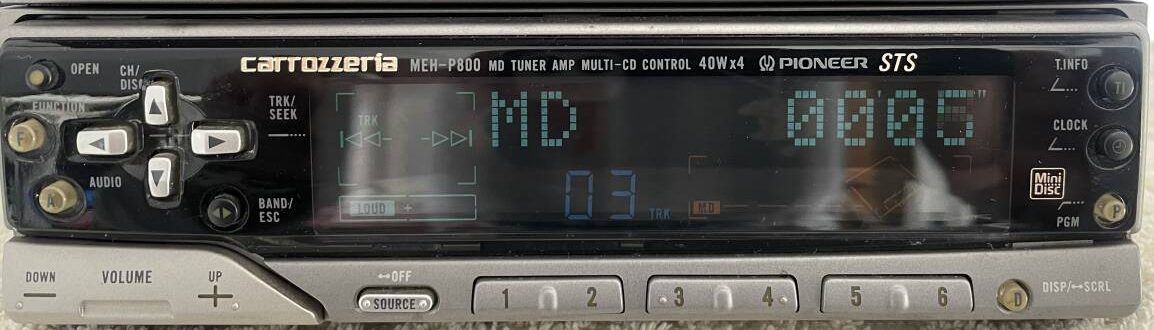

Pioneer Carrozzeria MEH-P800.

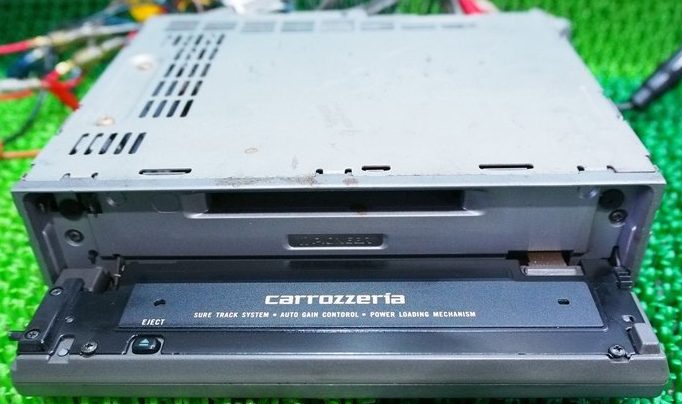

Equipped with AGC (Auto Gain Control Circuit), it realizes optimum signal reading for each disc with different recording conditions. Equipped with memory for about 10 seconds and equipped with SureTrack System to prevent skipping, highly reliable playback is possible.

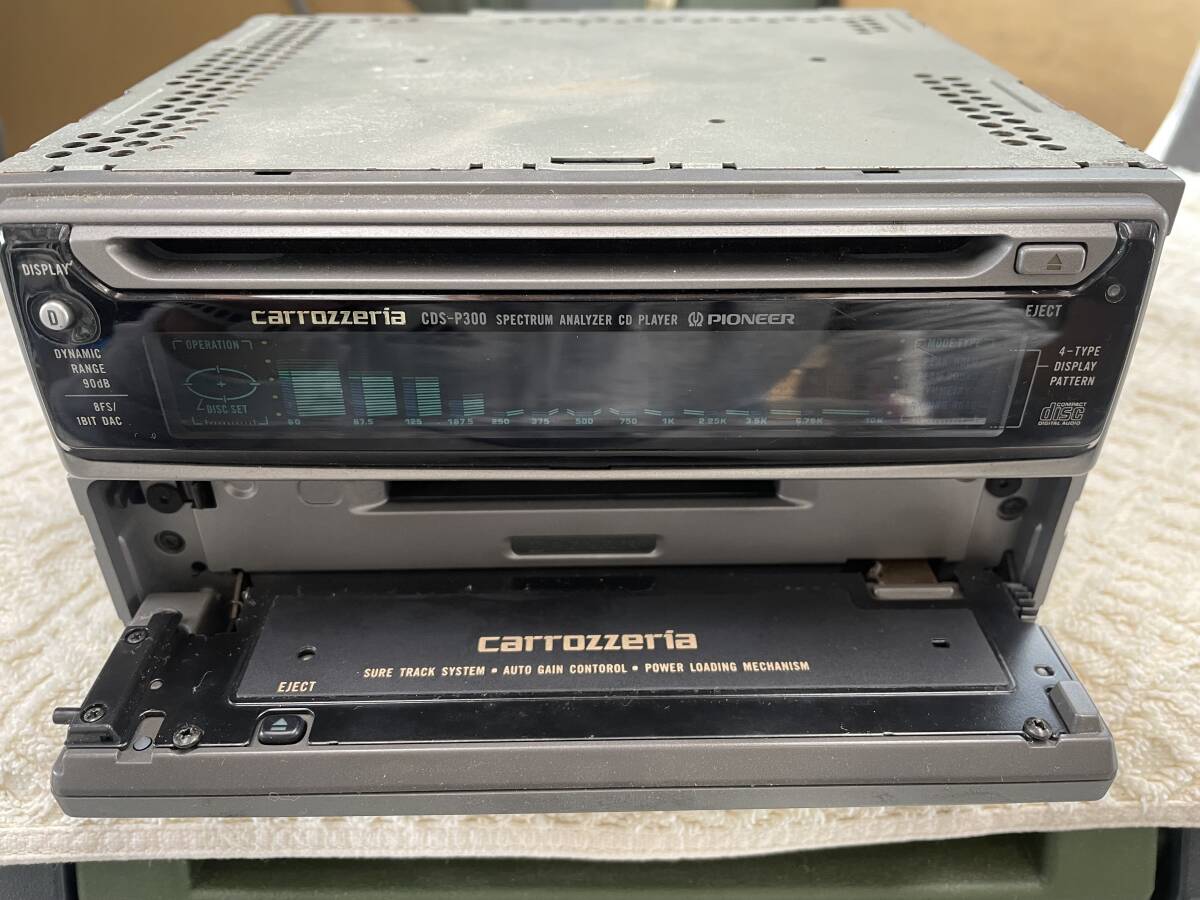

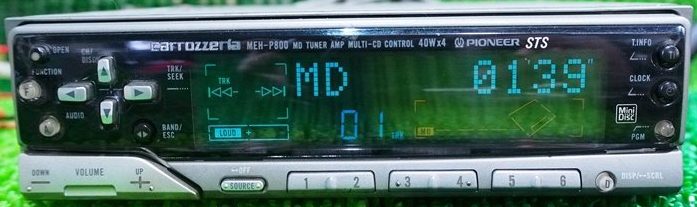

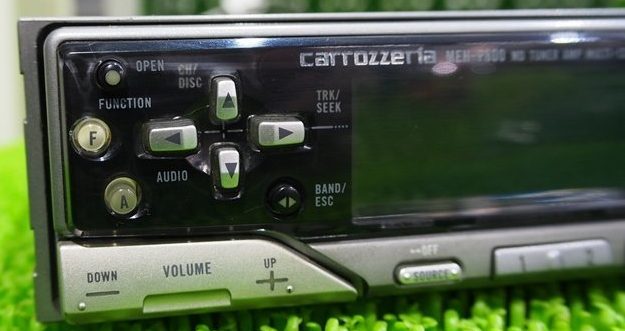

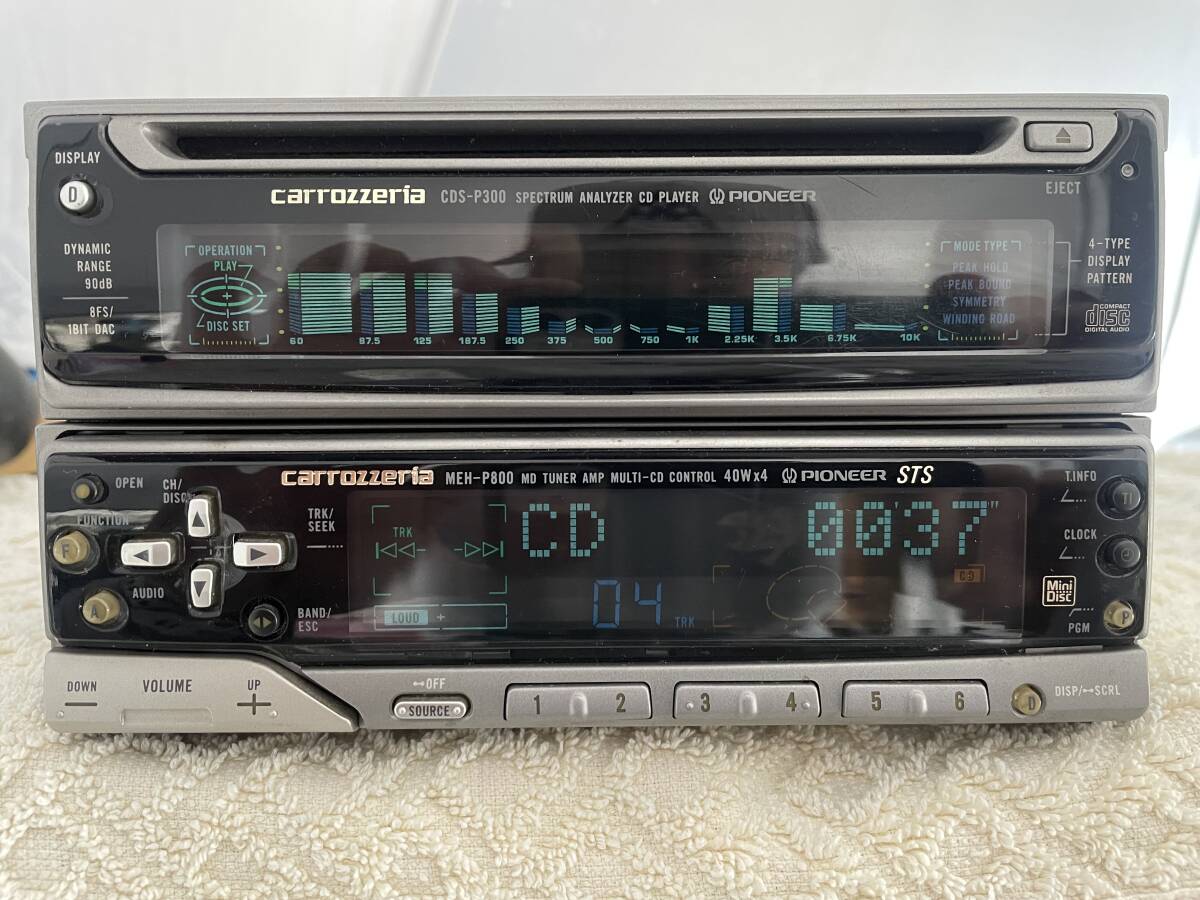

By adopting an operation flap, the size of the display has been increased. The 5 x 7 dot 10-digit display can also display MD kana characters.
MD player
- frequency characteristics 20 to 20.000Hz (± 1dB)
- S / N 92dB (1kHz) (IHF-A network)
- Dynamic range 91dB (1kHz)
FM tuner
- reception frequency band 76.1 to 89.9MHz
- Practical sensitivity 11dBf (1.0μV / 75Ω, mono, S / N 30dB)
AM tuner section
- reception frequency band 522 to 1,629kHz
- Practical sensitivity 18μV (S / N: 20dB)
amplifier, common section
- maximum output 40W x 4ch
Content adapted from: Pioneer Press Release List of compatible IP-Bus units
Manuals
Repair
Photos
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
