Pioneer MEH-P9000

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-03-15

Manufacturer
Pioneer
Model / source grouping
MEH-P9000
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P9000”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P9000
Manufacturer Pioneer
Released 1999/05
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 50 (H) x 160 (D) mm
Weight 1600
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥75 000
-
Inputs Not recorded
Outputs RCA out
Control Not recorded

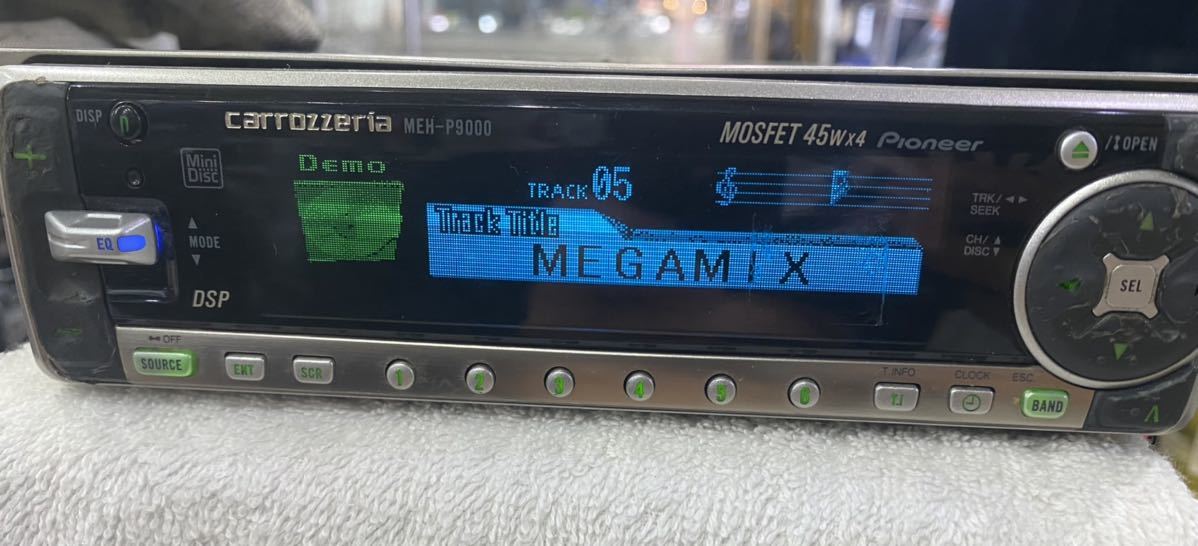

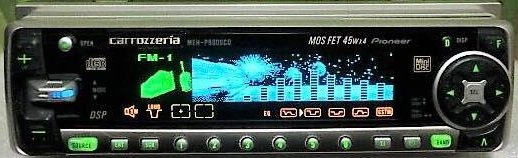

Equipped with the world's first "organic EL multi-color display" to realize an innovative display.

"Full motion 3D graphics display" full of entertainment is realized by the display response speed (about 1000 times that of liquid crystal display) and gradation expression unique to OLED. Using full dots, it is possible to display kanji expressions and disc title lists. High brightness and wide viewing angle realize excellent visibility regardless of day and night or viewing angle.

MD player section (MEH-P9000)

  • Frequency characteristics 20-20,000Hz (± 1dB)
  • S / N 97dB (1kHz) (IHF-A network)
  • Dynamic range 94dB (1kHz)

Equalizer part 13-band equalizer frequency

  • 　50,80,125,200,315,500,800Hz,
  • 　1.3k, 2k, 3.2k, 5k, 8k, 12.5kHz

Adjustment width ± 12dB High pass filter

  • 　Crossover frequency 50Hz, 80Hz, 125Hz
  • 　Crossover slope -12dB / oct.

Subwoofer

  • 　crossover frequency 50Hz, 80Hz, 125Hz
  • 　Crossover slope -18dB / oct. Adjustment width ± 12dB

Content adapted from: Pioneer Press Release

Manuals

Pioneer MEH-P9000

Repair

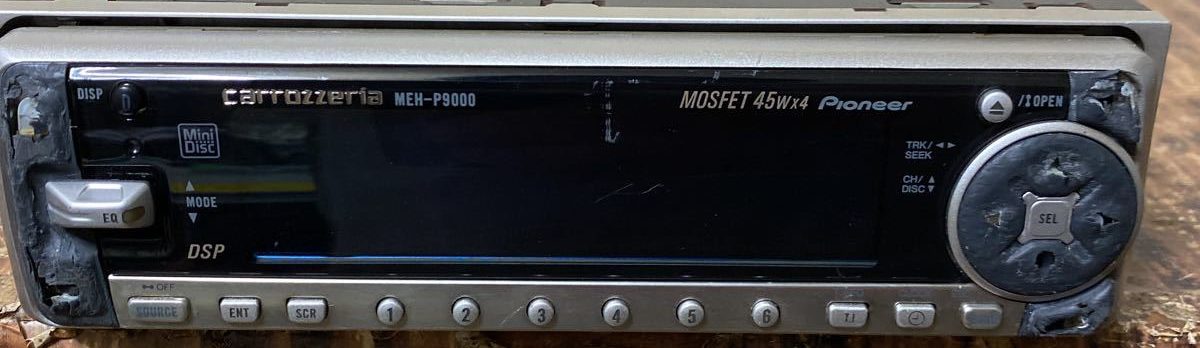

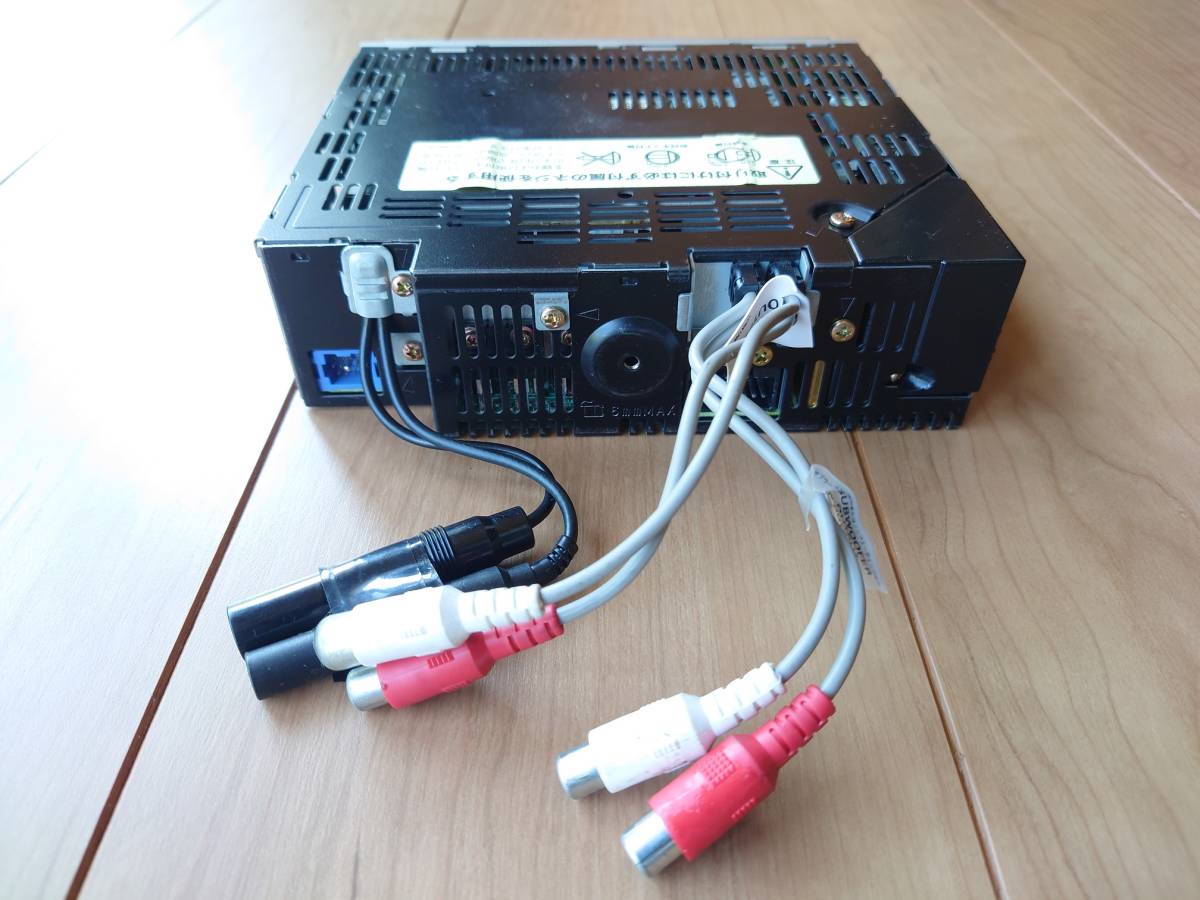

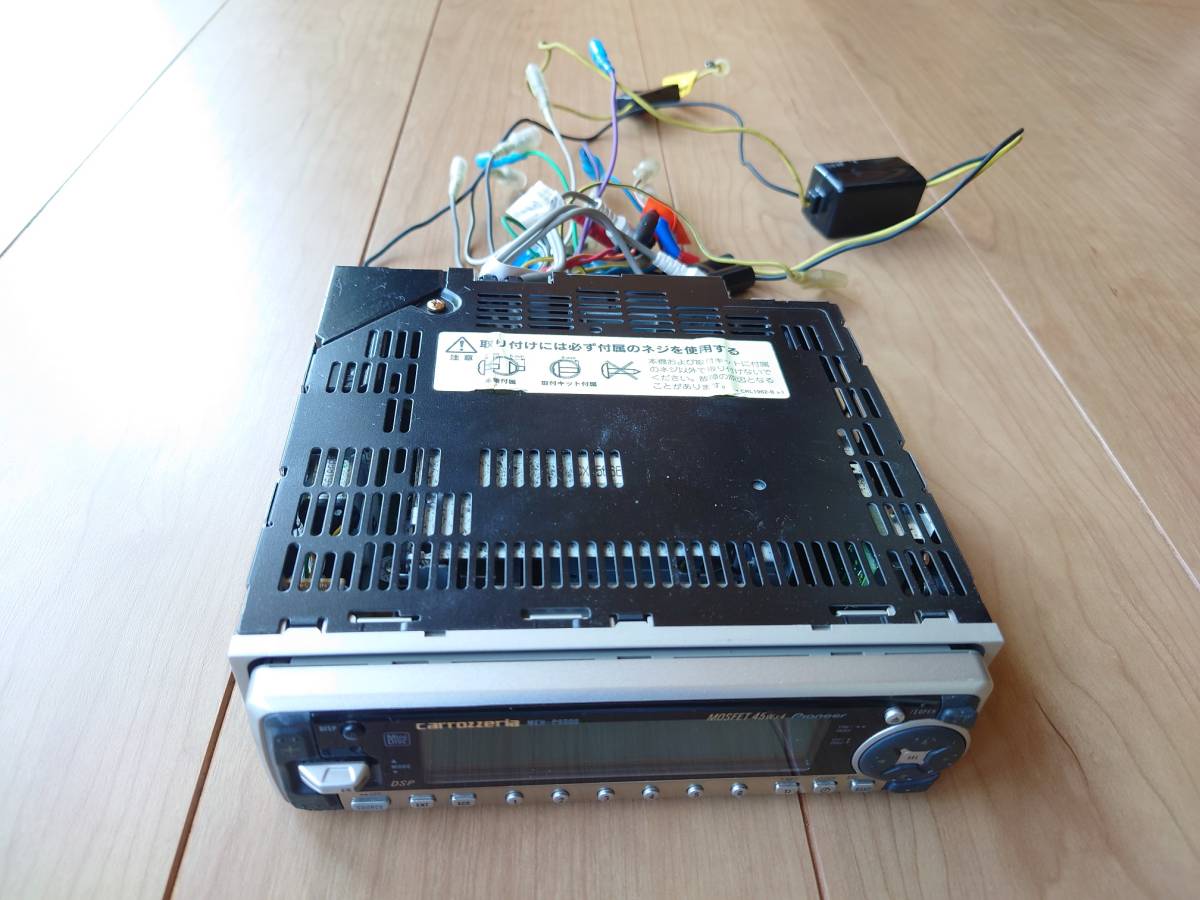

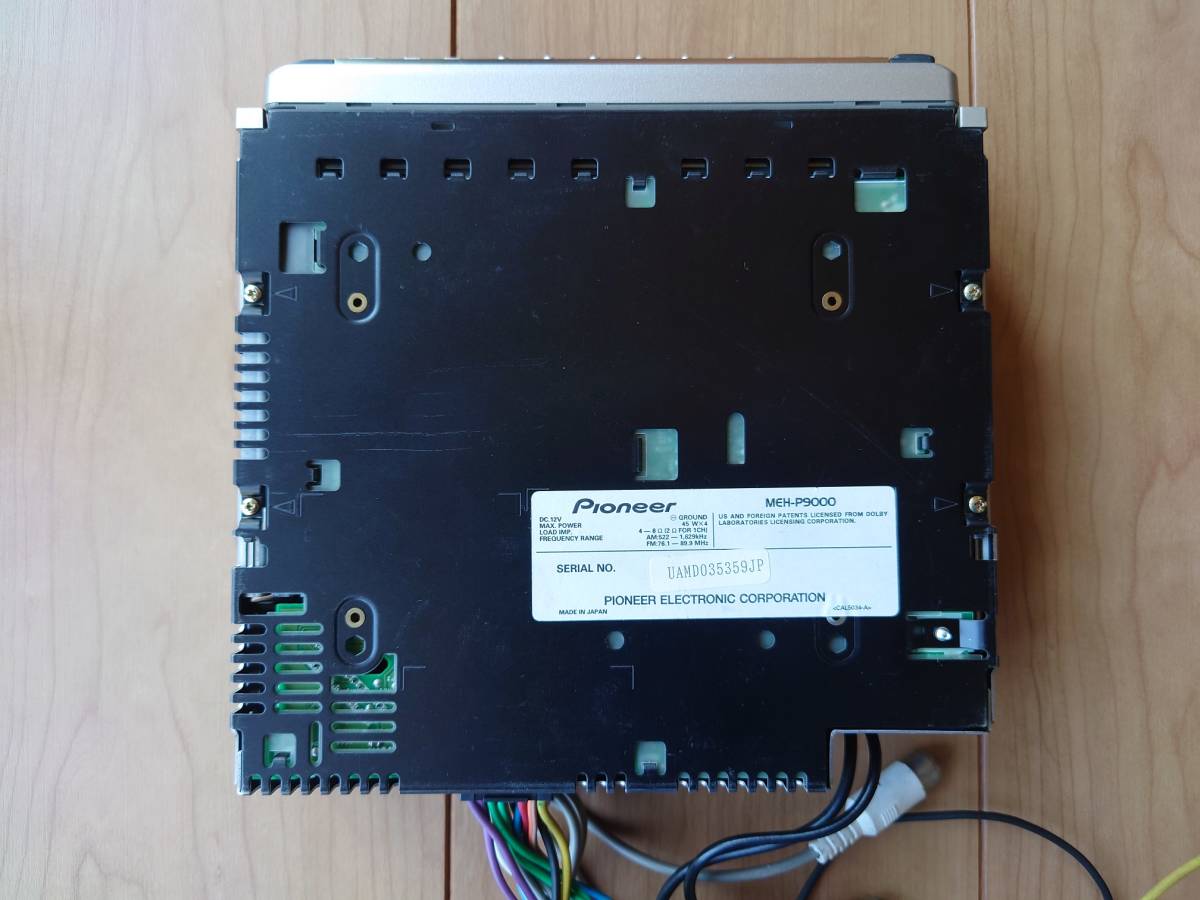

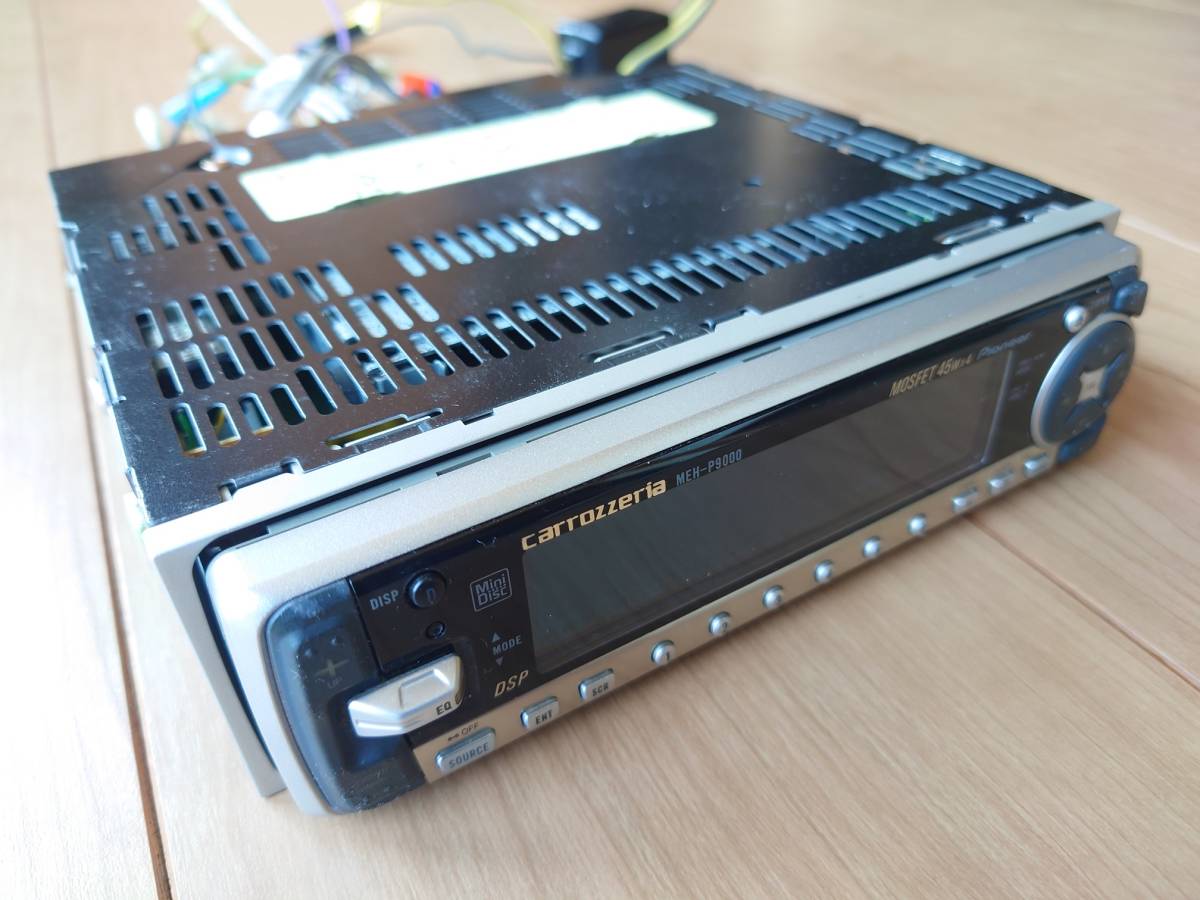

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
