Pioneer MEH-P9000CD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2023-07-21

Manufacturer
Pioneer
Model / source grouping
MEH-P9000CD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P9000CD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P9000CD
Manufacturer Pioneer
Released 1999/11
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 50 (H) x 162 (D) mm
Weight 2000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥105 000
-
Inputs CD
Outputs RCA out
Control Not recorded

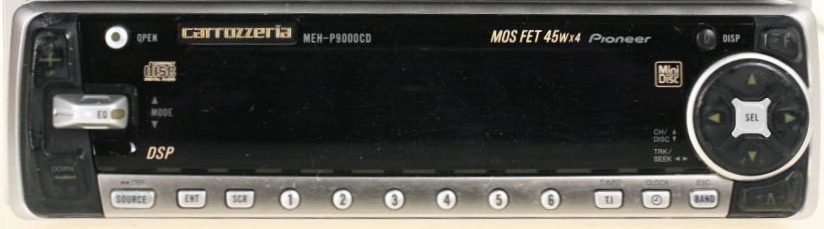

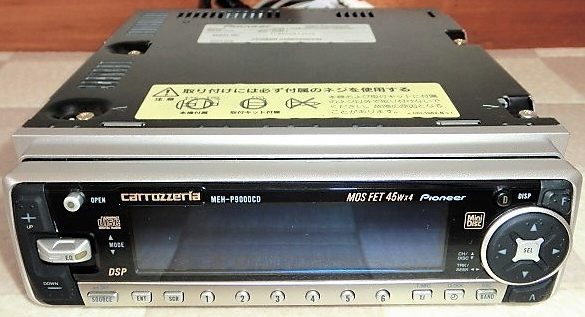

MEH-P9000CD (DSP tuner MD / CD amplifier)

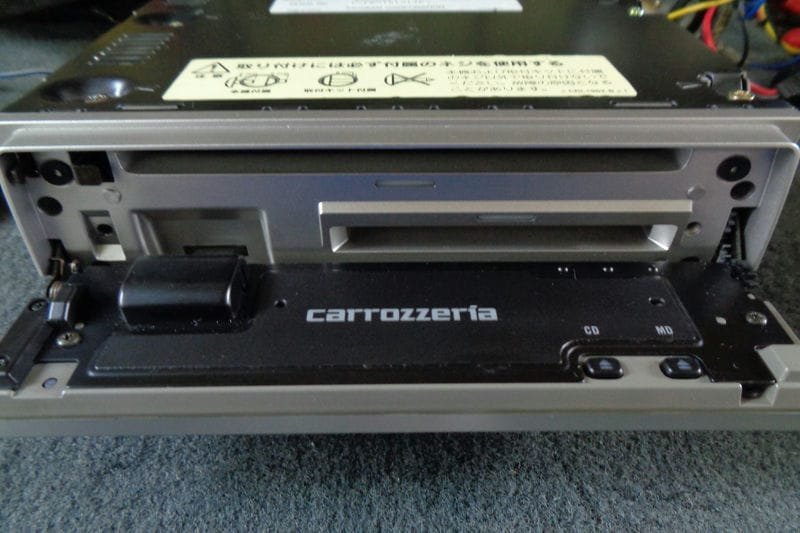

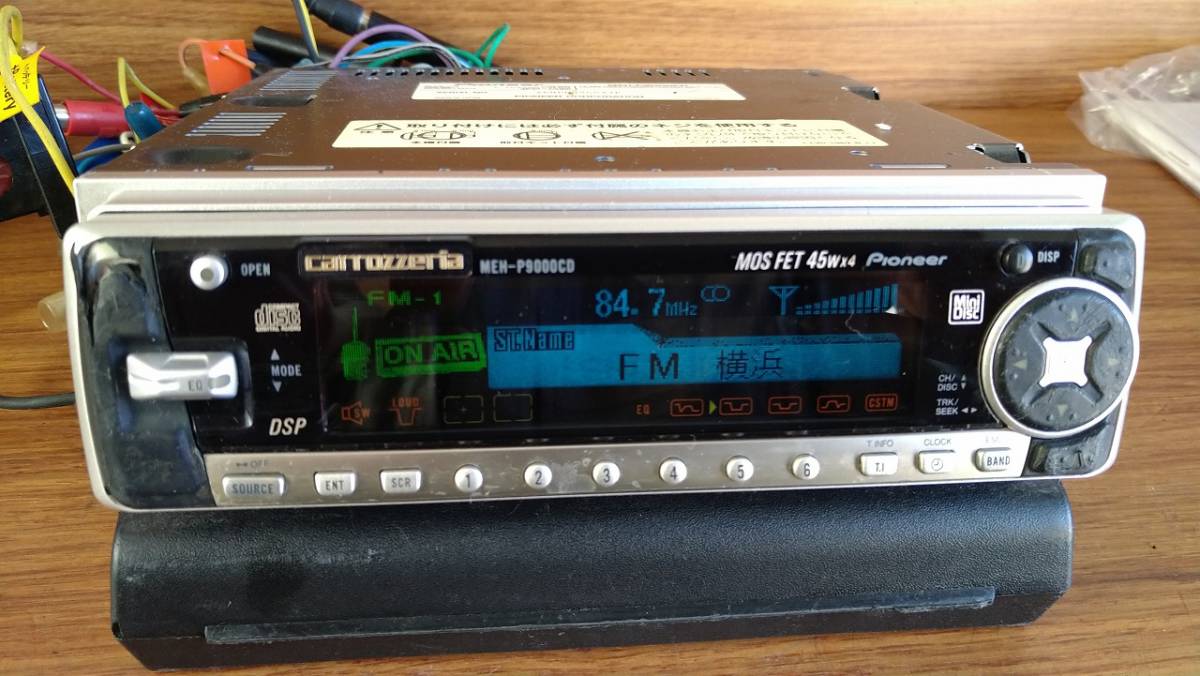

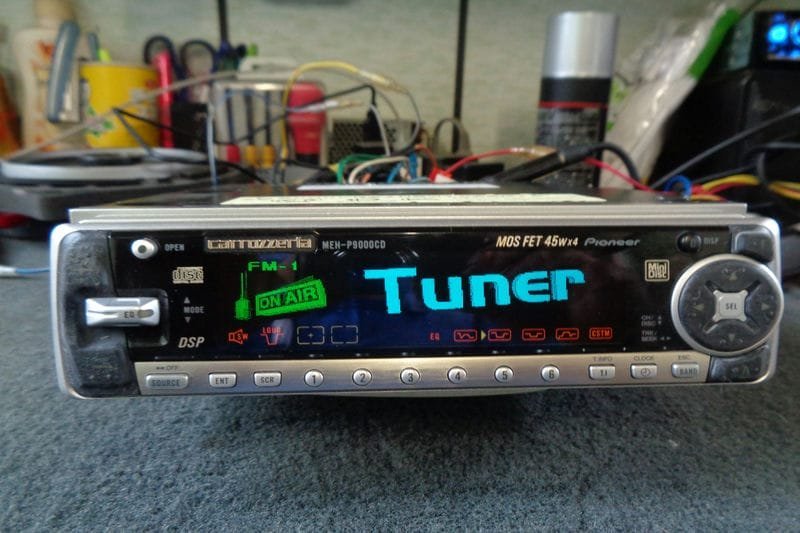

Condensing 3 sources of MD, CD, FM / AM tuner to 1D size Even in a car with limited installation space, you can enjoy high sound quality of both MD and CD as long as you have 1D size installation space. In addition, for cars with 2D size mounting space, it is possible to build a full source system for MD / CD / TV by combining it with an in-dash TV.

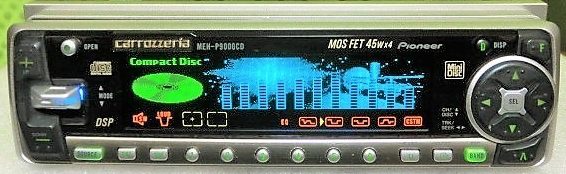

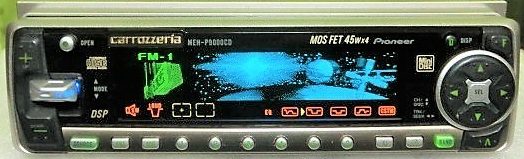

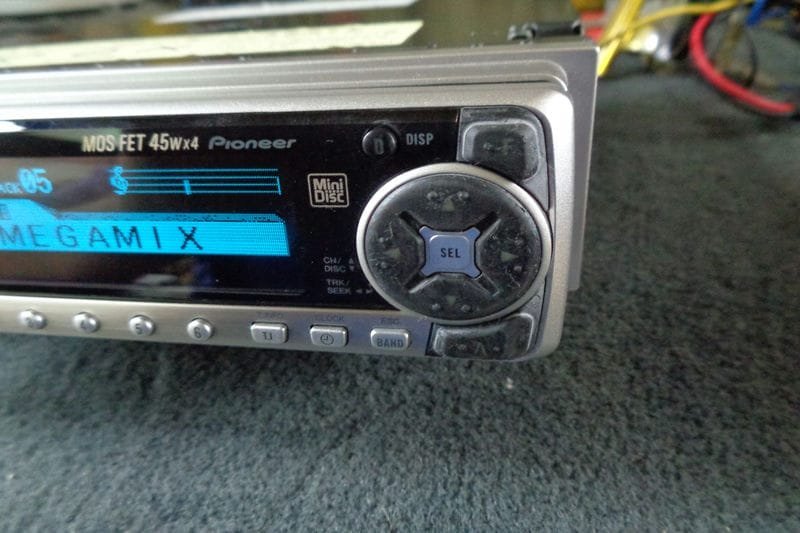

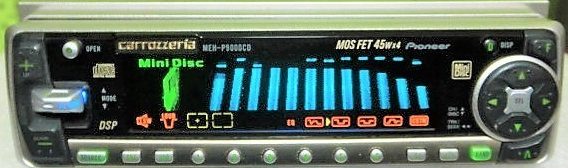

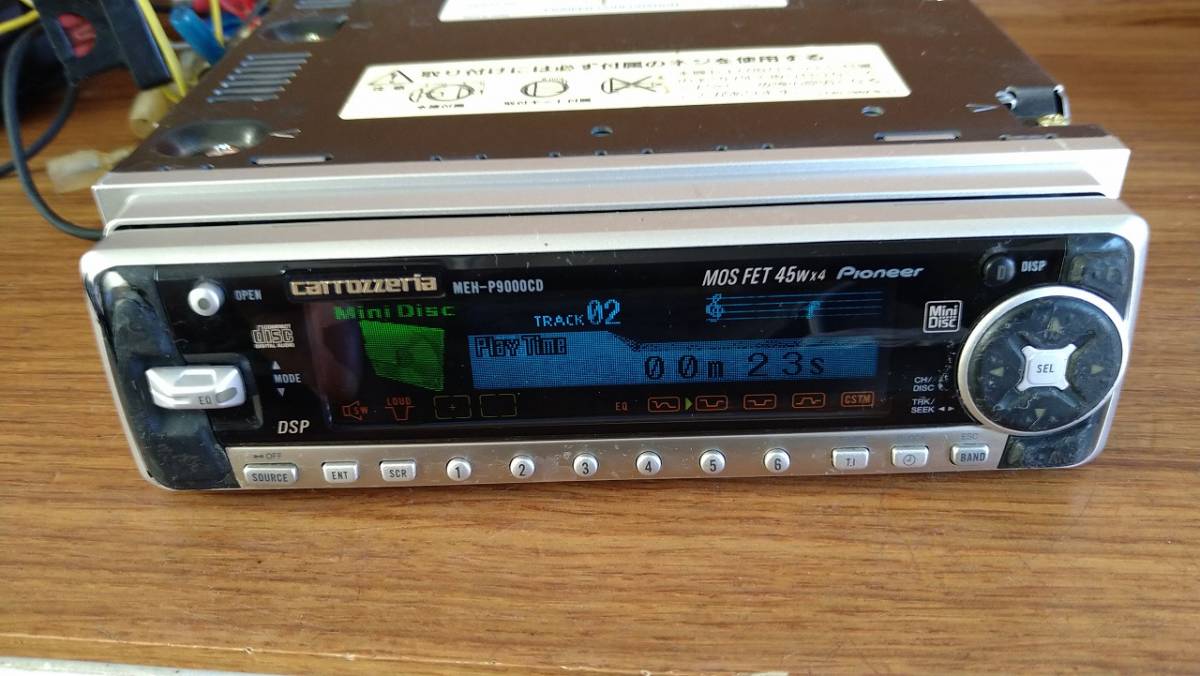

Equipped with an organic EL display that realizes realistic and beautiful drawing The self-luminous type that does not require a backlight ensures a wide viewing angle and achieves high visibility day and night. In addition to the colorful four-color display of green, yellow, orange, and blue, the high display response speed realizes high-definition drawing without bleeding. 3D graphics that use gradation expression that expresses shades of color create a splendid interior of the car with unprecedented three-dimensional video expression that is full of entertainment.

Built-in our original Power MOS FET 45W x 4ch high power amplifier

Equipped with a high-performance DSP, an auto equalizer function that corrects the optimum sound quality according to the vehicle interior

Content adapted from: Pioneer Press Release

Manuals

Pioneer MEH-P9000CD

Repair

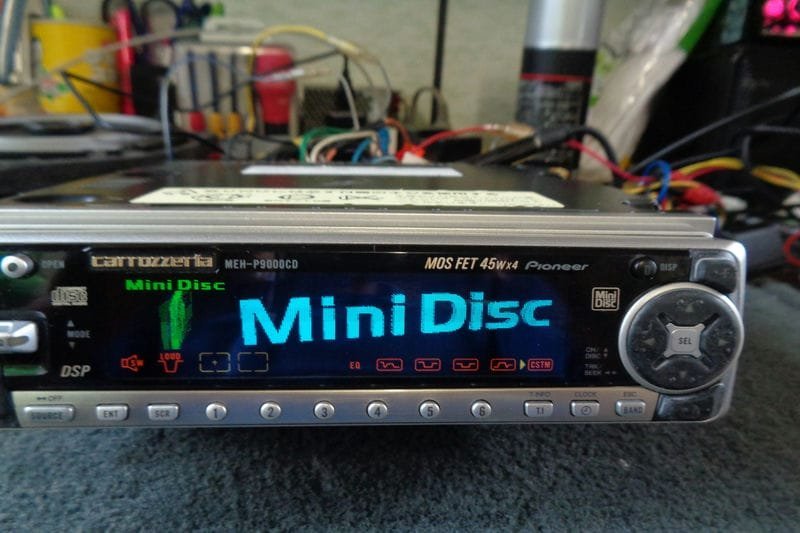

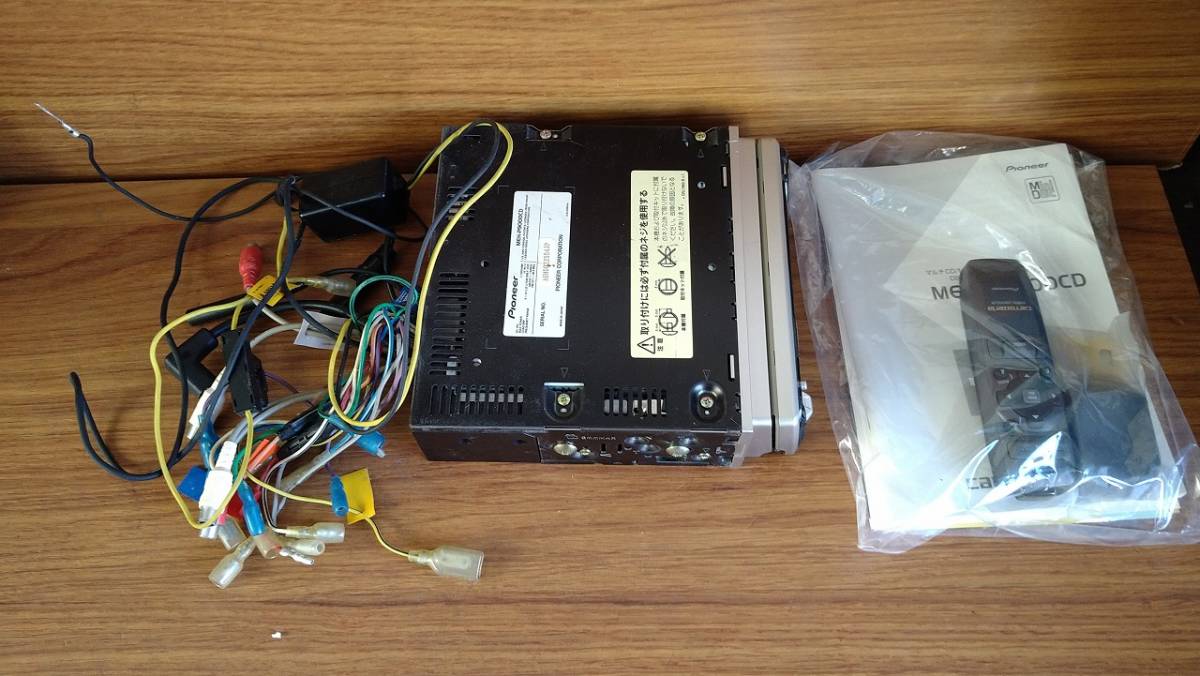

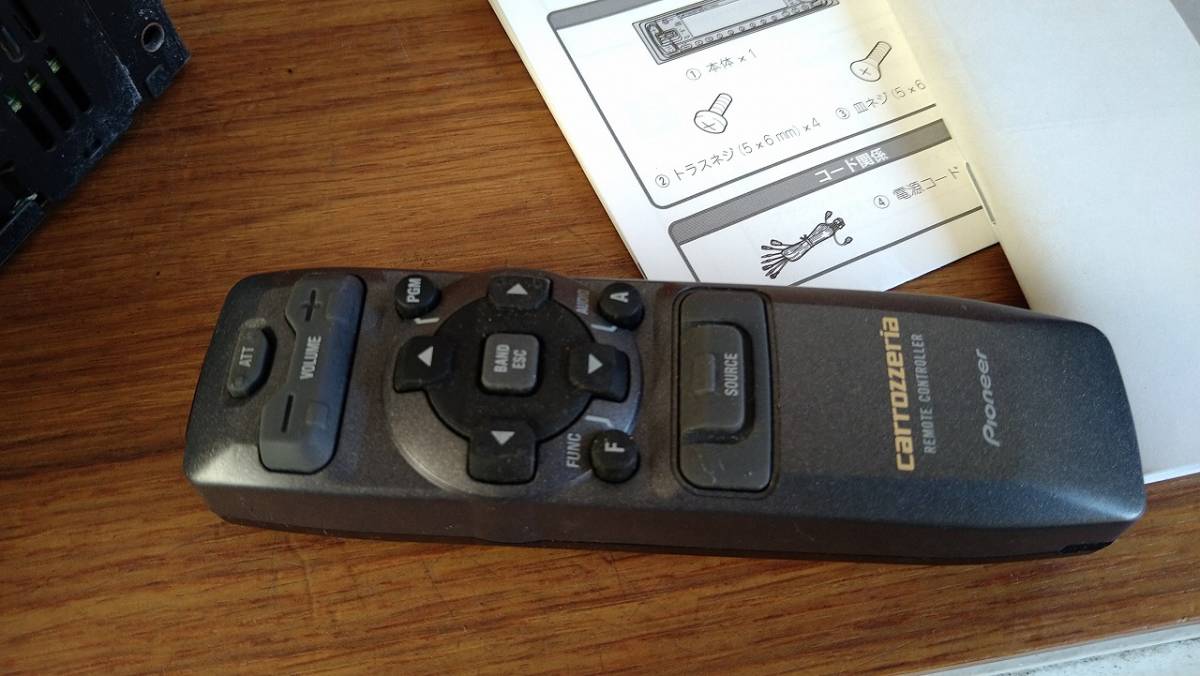

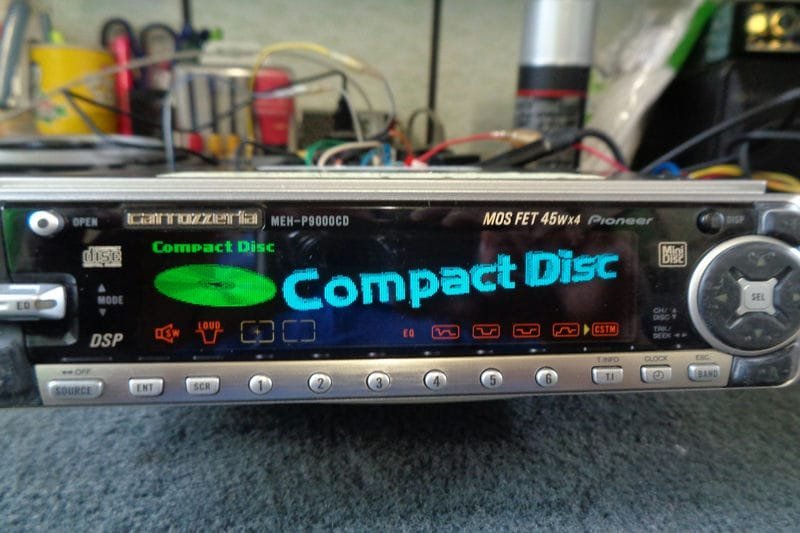

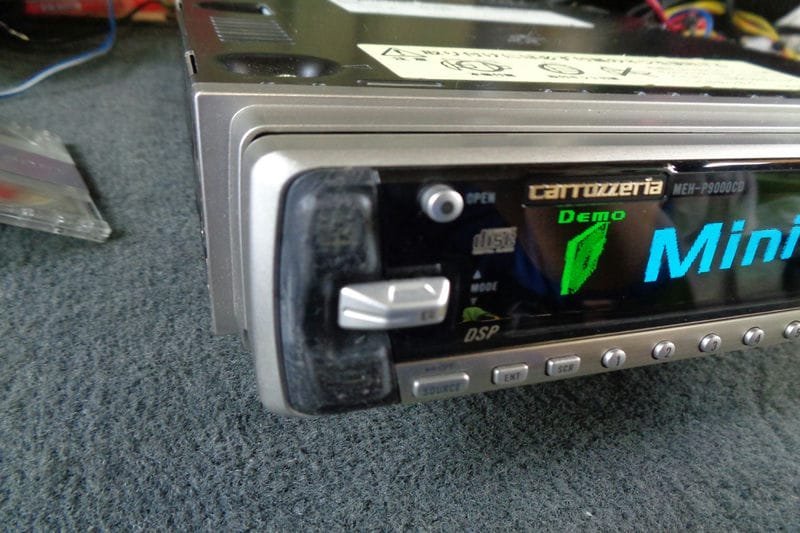

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
