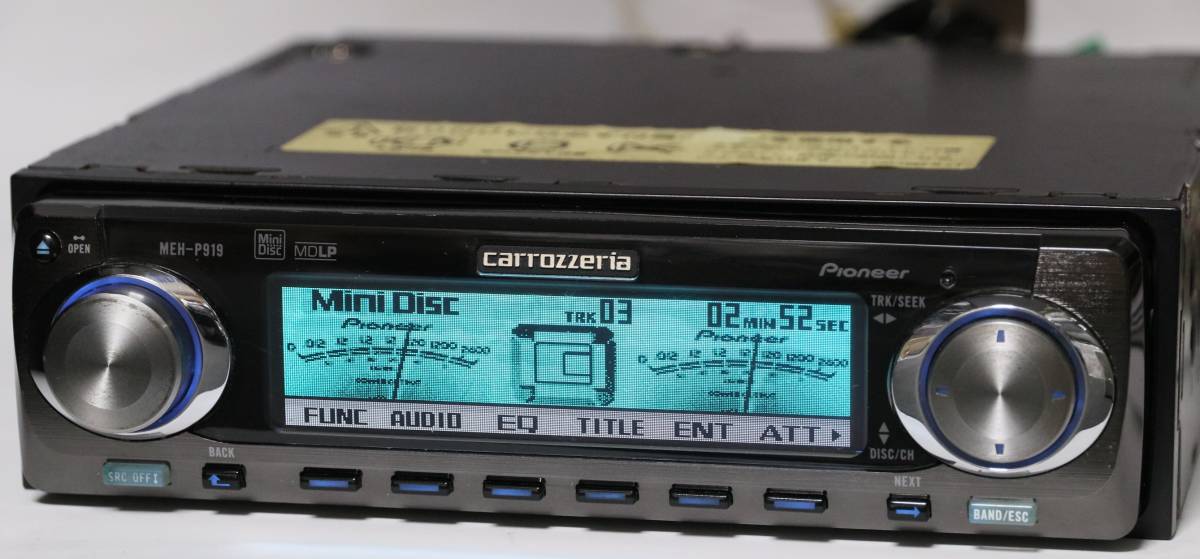

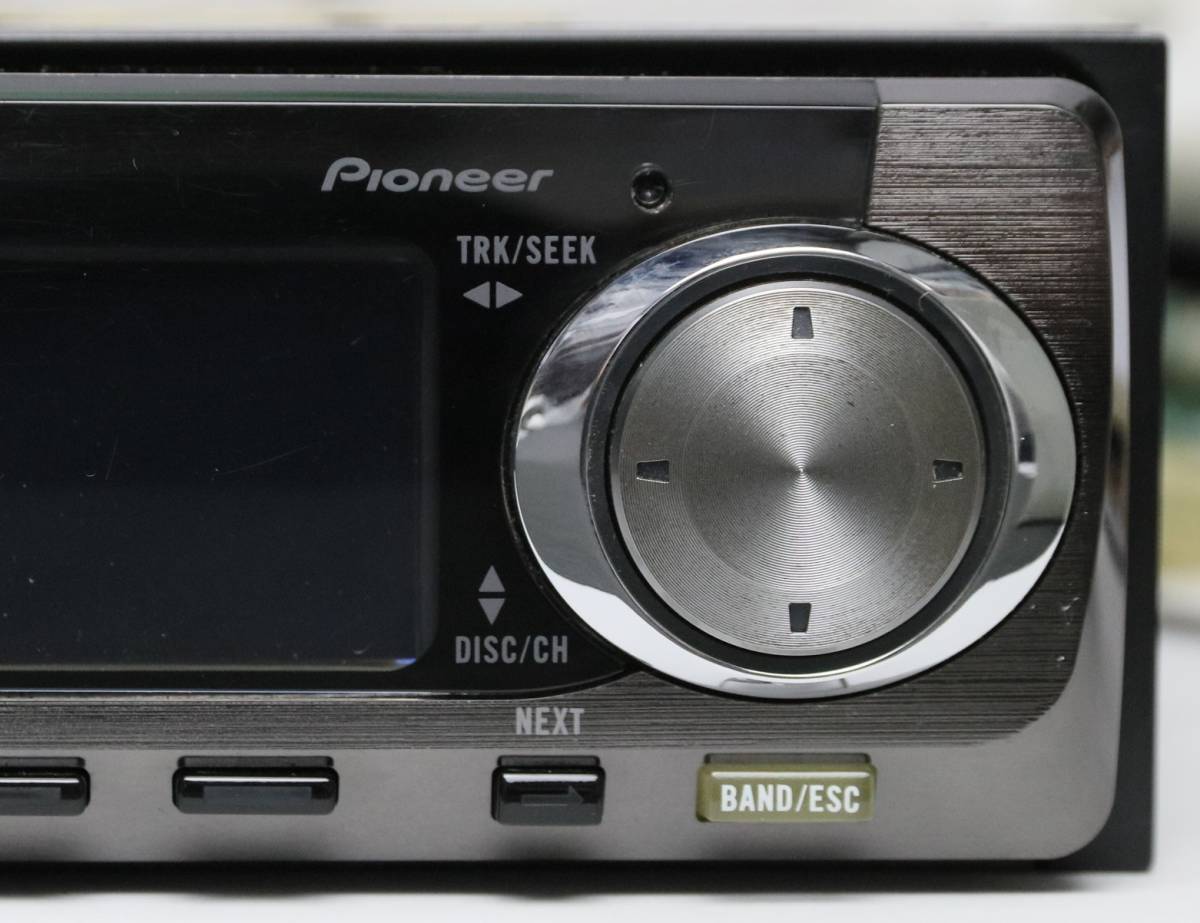

Pioneer MEH-P919

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-07-29

Manufacturer
Pioneer
Model / source grouping
MEH-P919
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P919”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MEH-P919
Manufacturer Pioneer
Released 2002/04
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-DIN 178 x 50 x 162
Weight 1700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs Not recorded

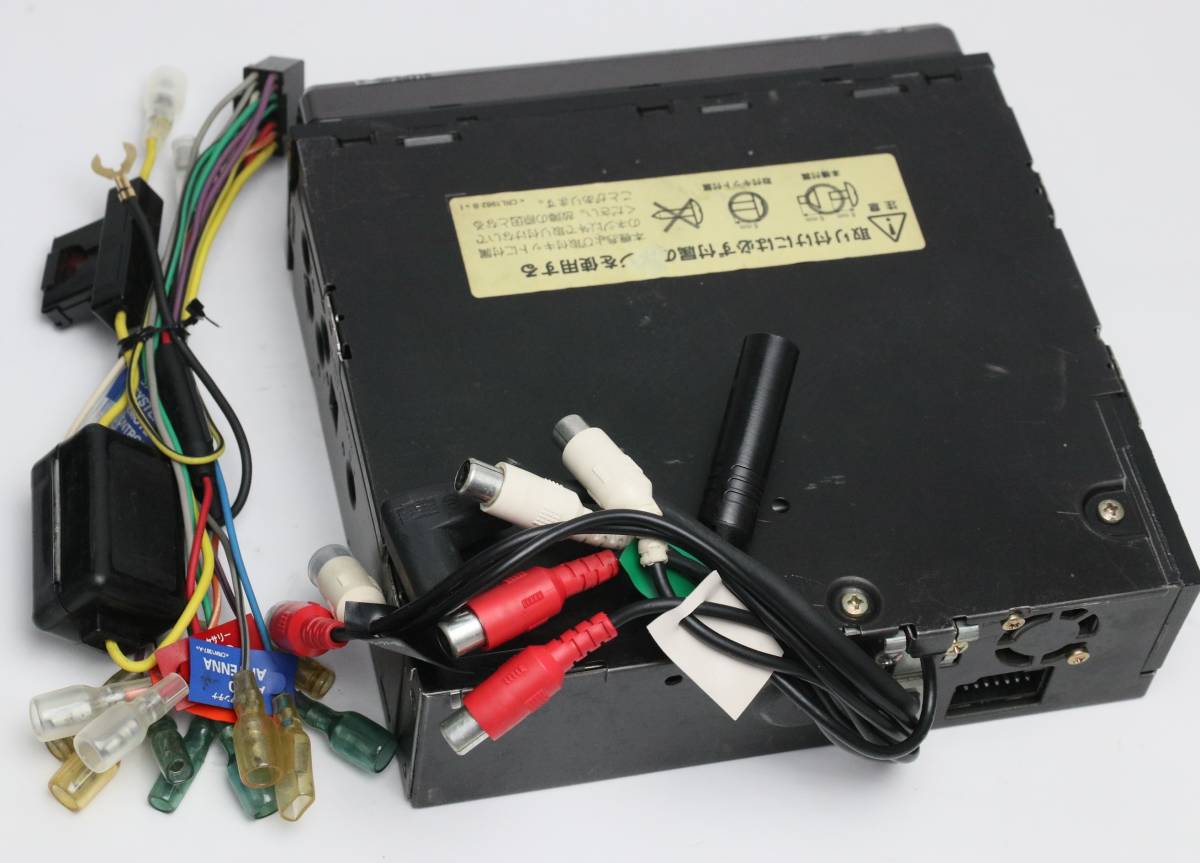

Outputs RCA out, Speaker amplifier
Control Not recorded
  • Auto-EQ sets equalization by measuring cabin acoustics with test signal and built-in microphone.
  • "ASL" (auto-sound-levelizer) detects and compensates for changes in external noise levels, adjusting volume and tone controls in response to the nature of the external noise (tunnel, rain, road surface changes).
  • "MD-auto gain control" adjusts track volumes so that large differences do not occur between tracks.
  • "Time-alignment" feature uses digital delay line to compensate for driver position, ensuring that wave fronts from each speaker reach driver in synchrony.
  • 9-band graphic equalizer (50, 100, 200, 400, 800, 1.7k, 3.15k, 6.3k, 12.5kHz) adjustable from -12dB to +12dB.
  • Can be configured to output high/mid/low frequency ranges for external tri-amplified system. High and low settings for the band-pass filters can be set separately for each band (high/mid/low). Low-Mid: 31.5, 40, 50, 63, 80, 100, 125, 160, 200Hz (-6, -12, -18dB/oct). Mid-High: 1.6k, 2k, 2.5k, 3.1k, 4k, 5k, 6.3k, 8k, 10k, 12.5k, 16k (-6, -12dB/oct).

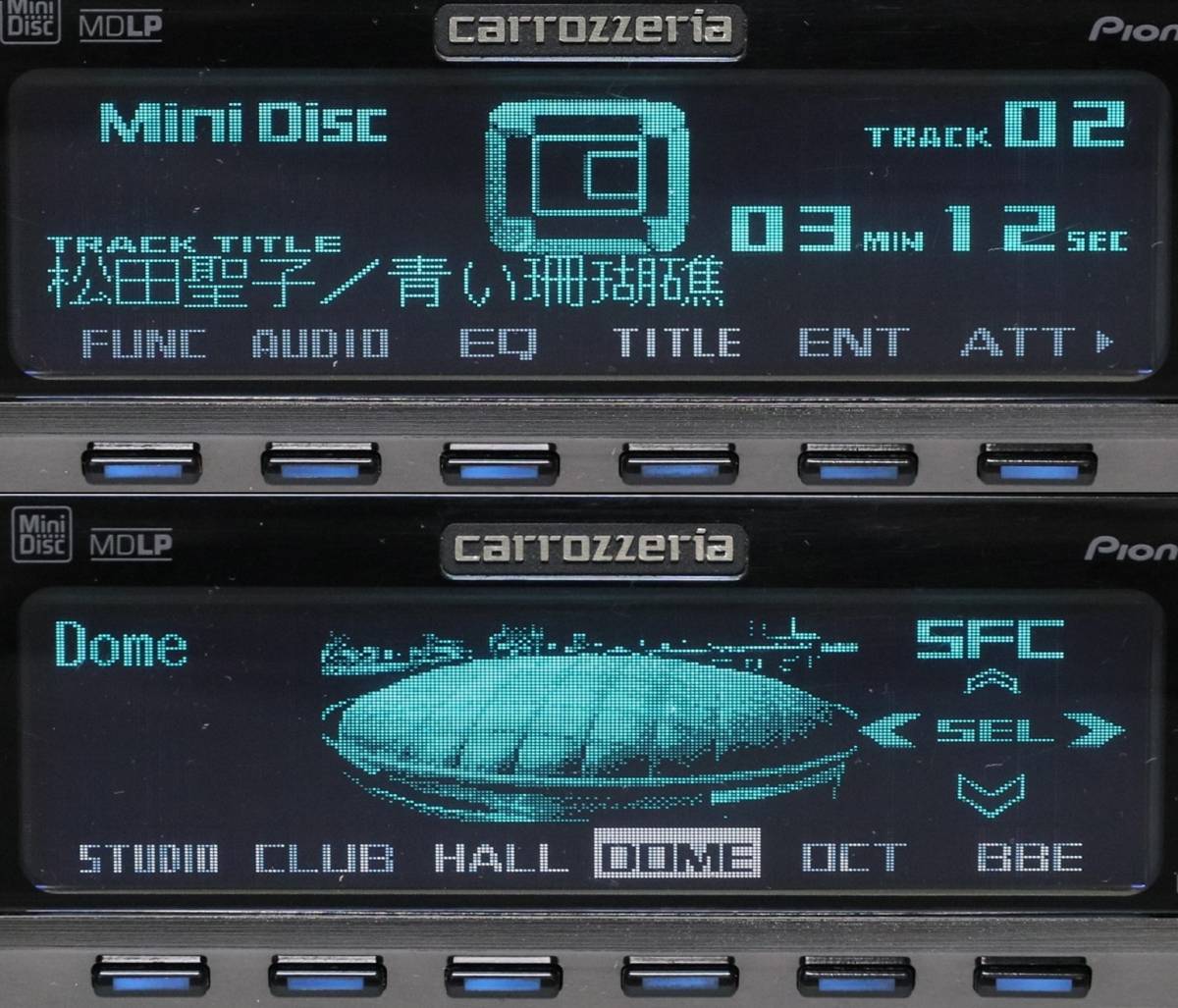

  • Graphic display front panel can display one of 4 repeating "adventure" video clips of 5 seconds duration (certain to entertain all who have spent less than 5 minutes in your vehicle).
  • Separately available Display customizing PC-Link kit (CD-PC1 - ¥15,000) allows user to download videos into unit's flash memory.
  • Amp: 50W x4

Content adapted from: Minidisc.org page Pioneer Press Release

Manuals

Pioneer MEH-P919

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
