Pioneer MEH-P9900

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-03

Manufacturer
Pioneer
Model / source grouping
MEH-P9900
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MEH-P9900”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name MEH-P9900
Manufacturer Pioneer
Released 2000/03
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x50 (H) x160 (D) mm
Weight 1500
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥75 000
-
Inputs Not recorded
Outputs Speaker amplifier
Control Not recorded

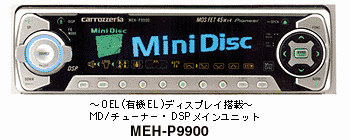

Pioneer Carrozzeria MEH-P9900. Equipped with an "organic EL multi-color display" to realize an innovative display.

The four new main units are equipped with the "organic EL multi-color display," which has been well-received for its innovative display capabilities. The "MEH-P7700 / DEH-P7700" is equipped with a newly developed organic EL panel to achieve a low price. The graphics display also uses the new full-motion 3D graphics.

[Features of organic EL display]

High brightness and high viewing angle realize excellent visibility regardless of day and night or viewing angle. Achieves "full-motion 3D graphics display" full of entertainment using display response speed (about 1,000 times that of liquid crystal display) and gradation expression. Utilizing full dots, it is possible to display kanji expressions and disc title lists.

MD player section

  • Frequency characteristic 20-20,000Hz
  • S / N (IHF-A network) 97dB (1kHz) 94dB (1kHz)
  • Dynamic range 94dB (1kHz) 92dB (1kHz)

Content adapted from: Pioneer Press Release

Manuals

Pioneer MEH-P9900 manual

Repair

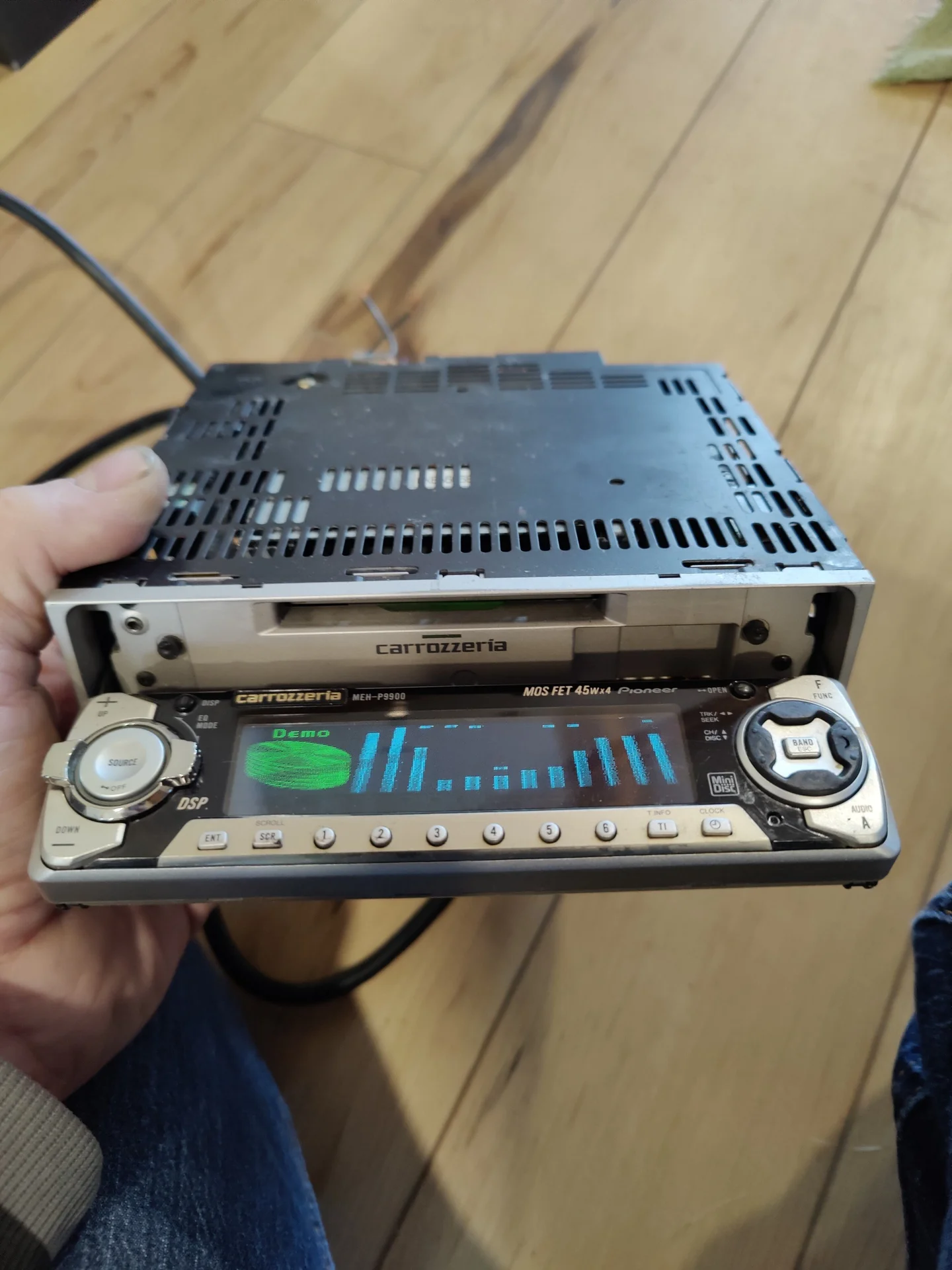

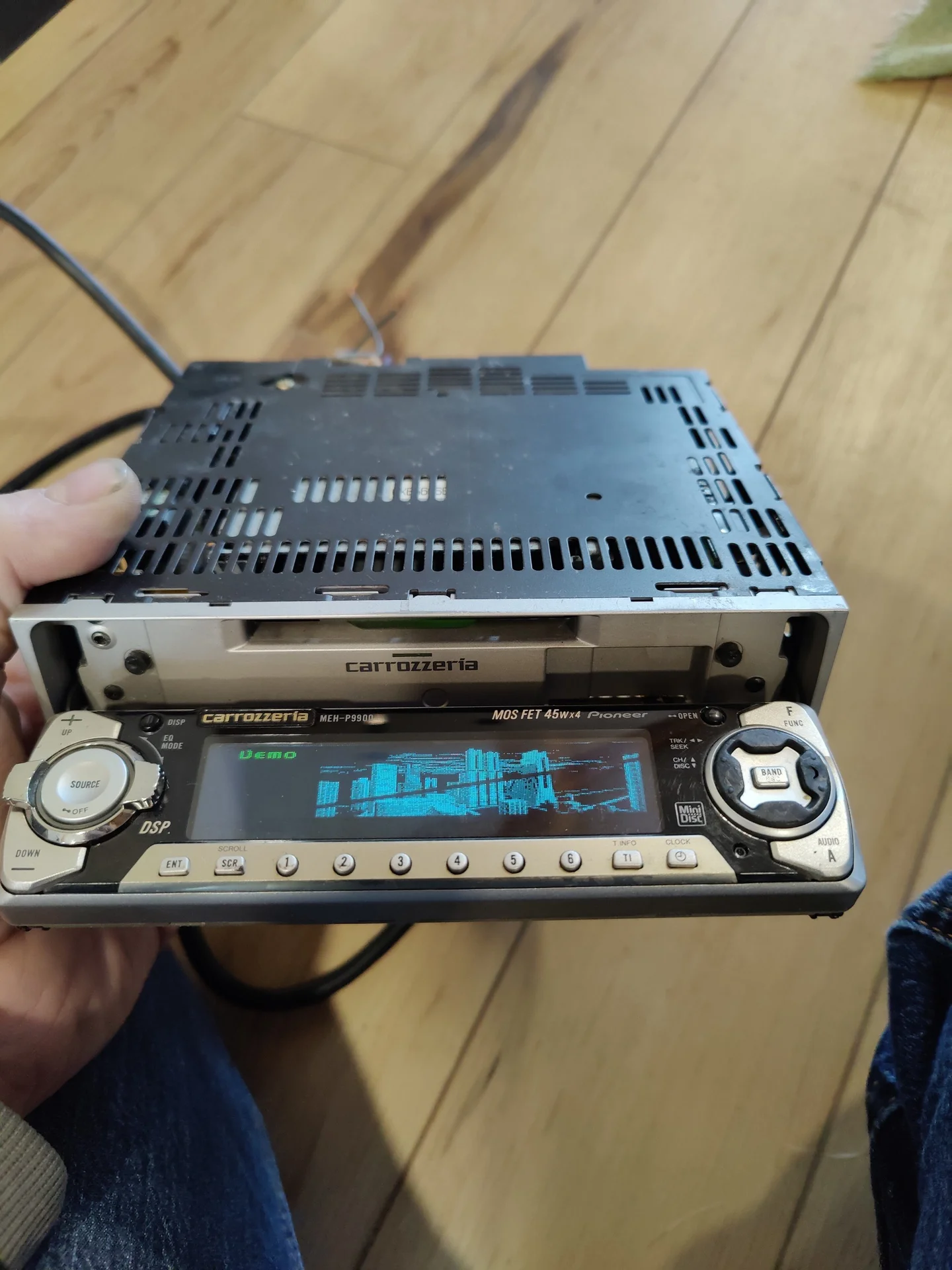

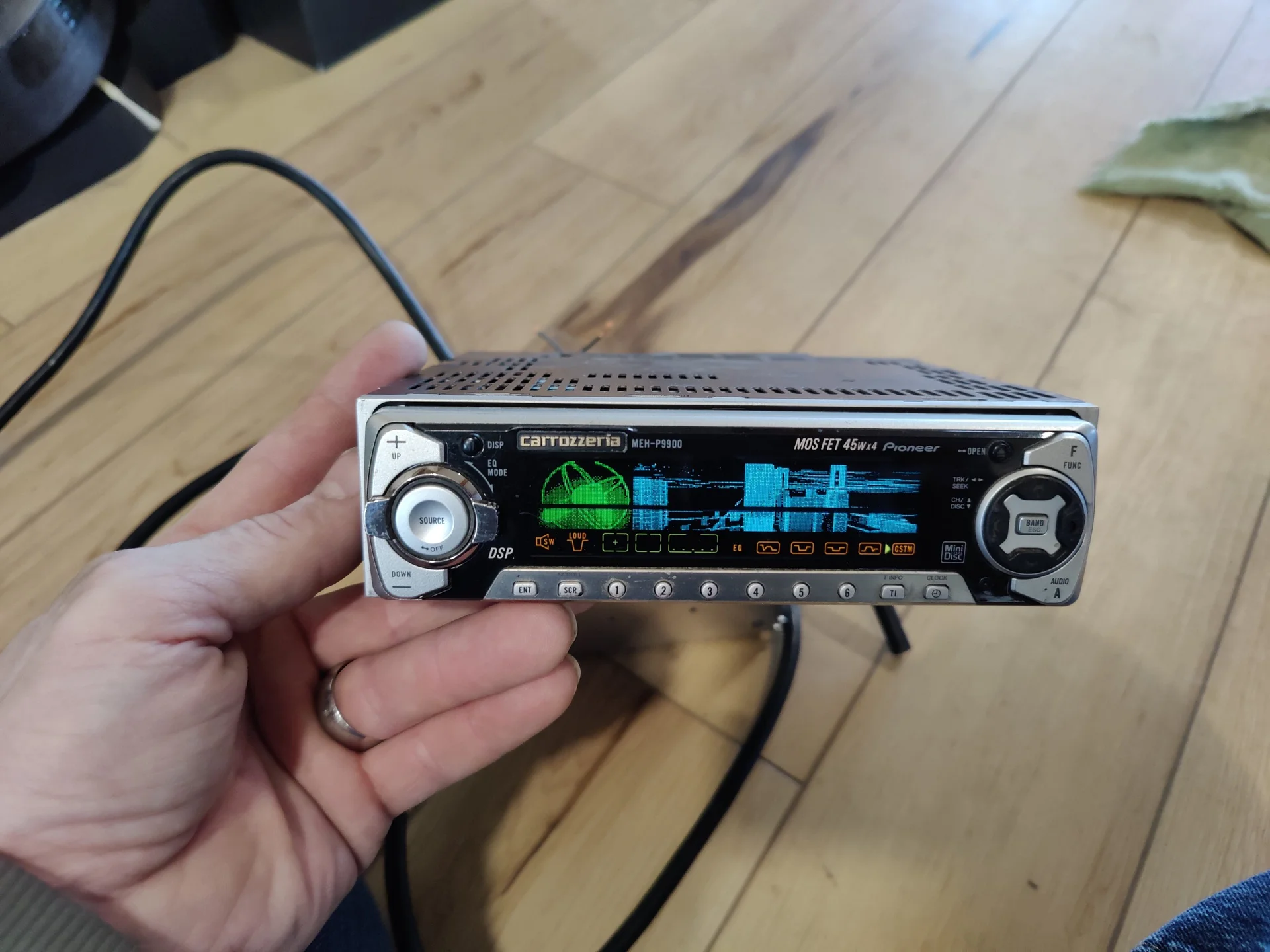

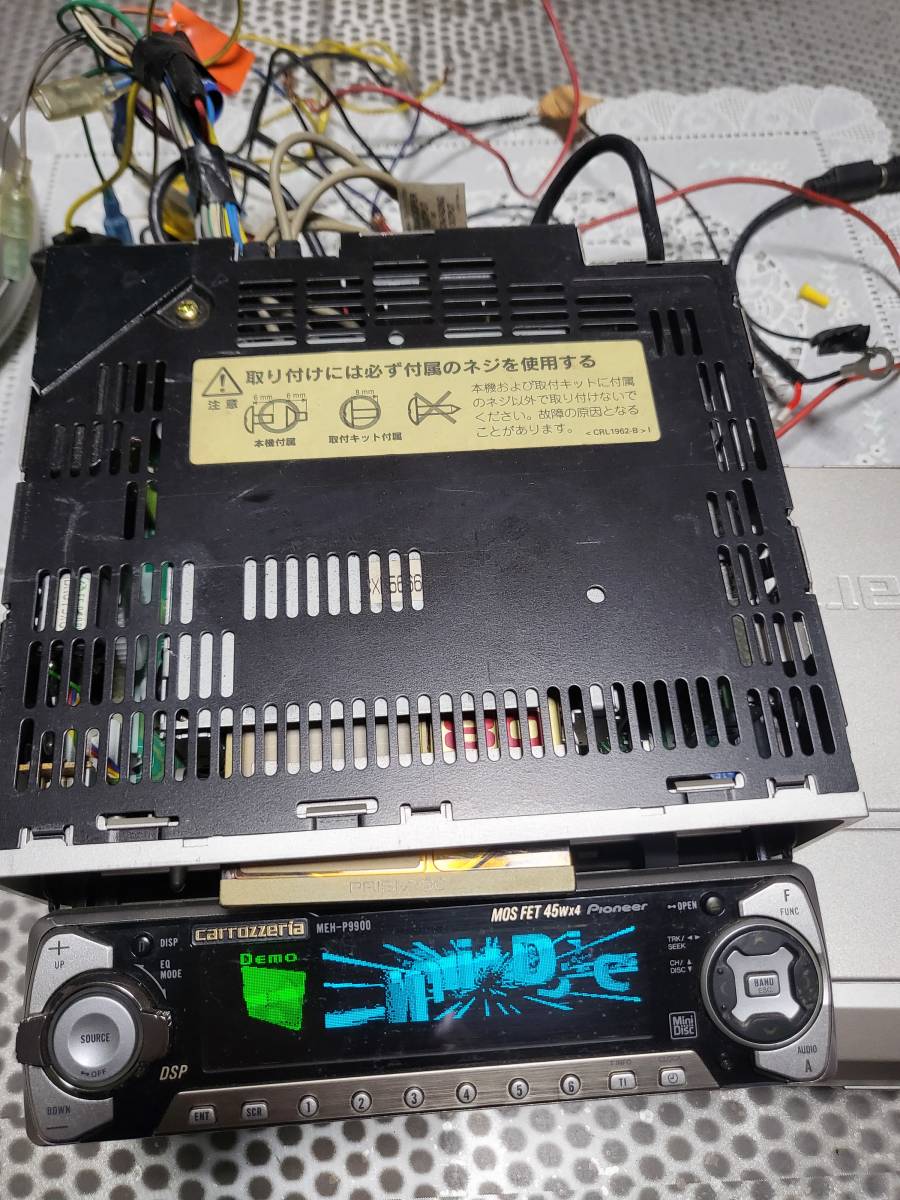

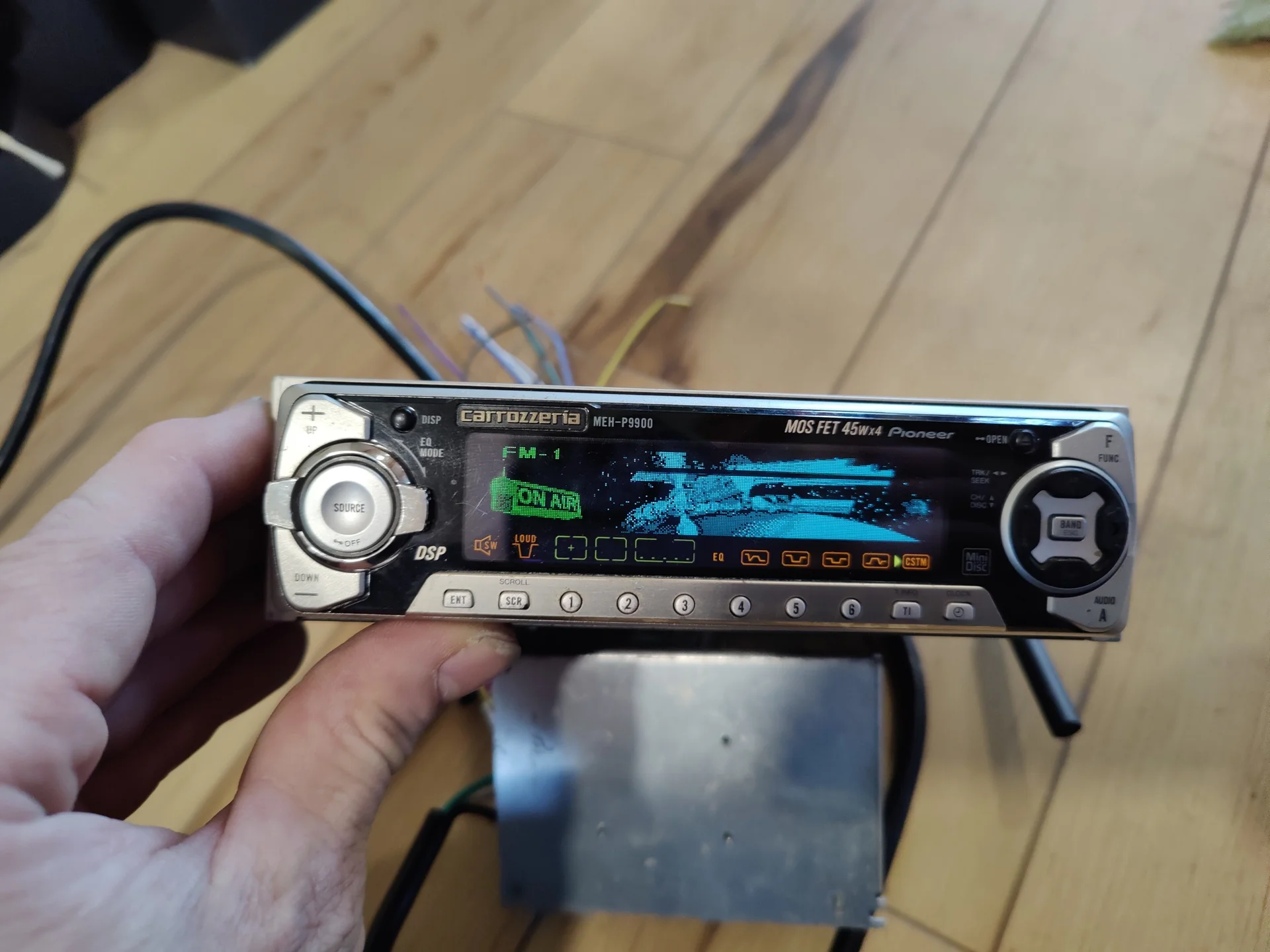

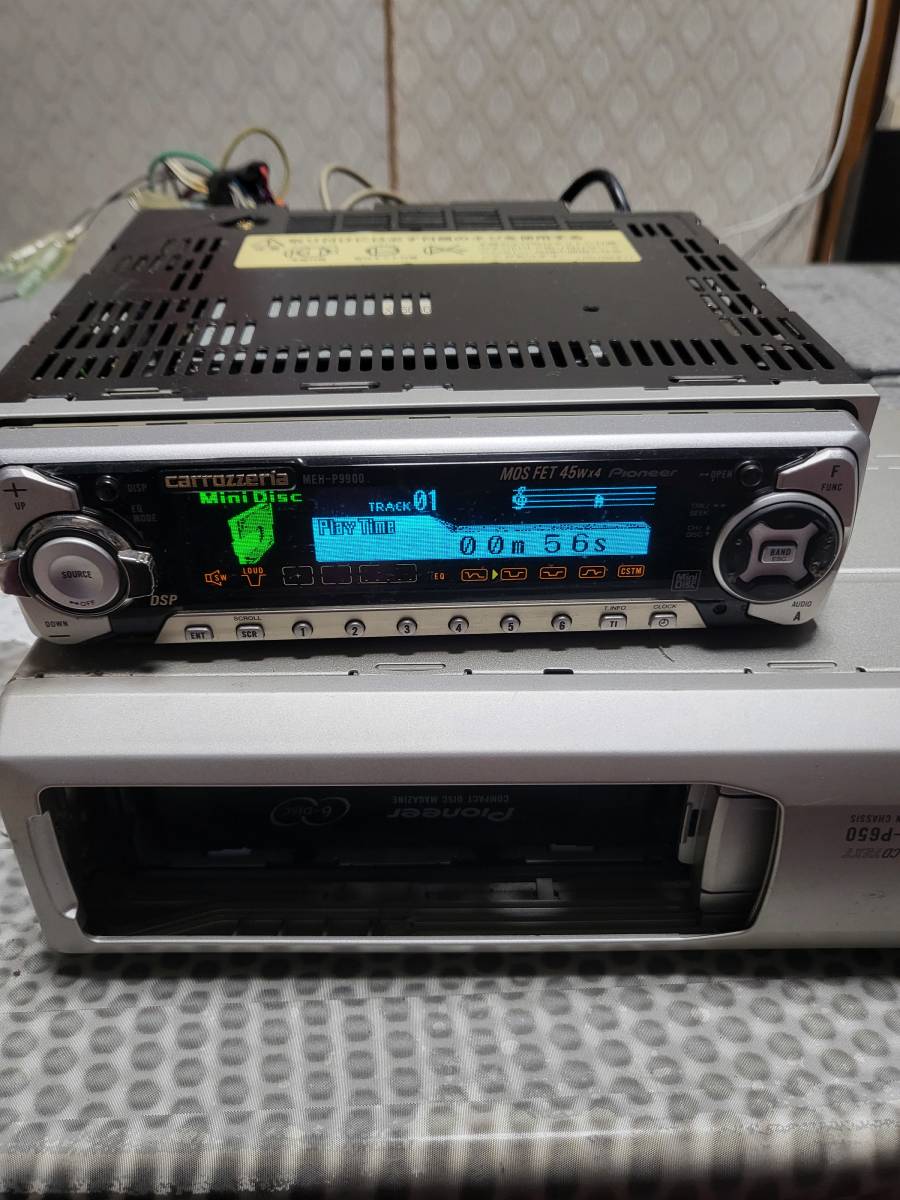

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ManualUser manual
RegionJapan
