Pioneer MJ-NS1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-02-27

Manufacturer
Pioneer
Model / source grouping
MJ-NS1
Device type
bookshelf
MDLP modes
Unknown
NetMD interface
Unknown
Hi-MD support
Unknown

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer MJ-NS1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MJ-NS1
Manufacturer Pioneer
Released 2000/01
Device type bookshelf
Recorder Recorder
MDLP Not recorded
NetMD Not recorded
Hi-MD Not recorded
Radio Not recorded
Dimensions Not recorded
Weight Not recorded
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

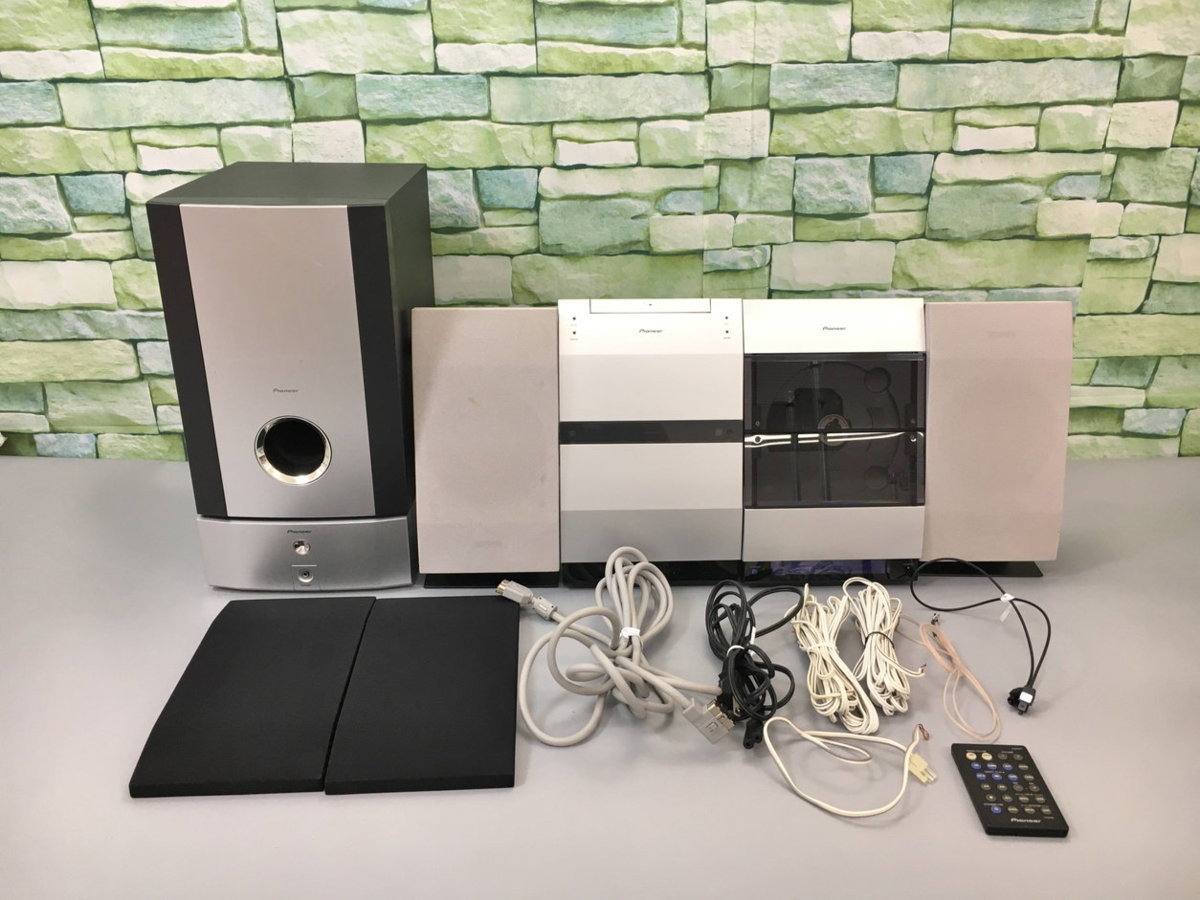

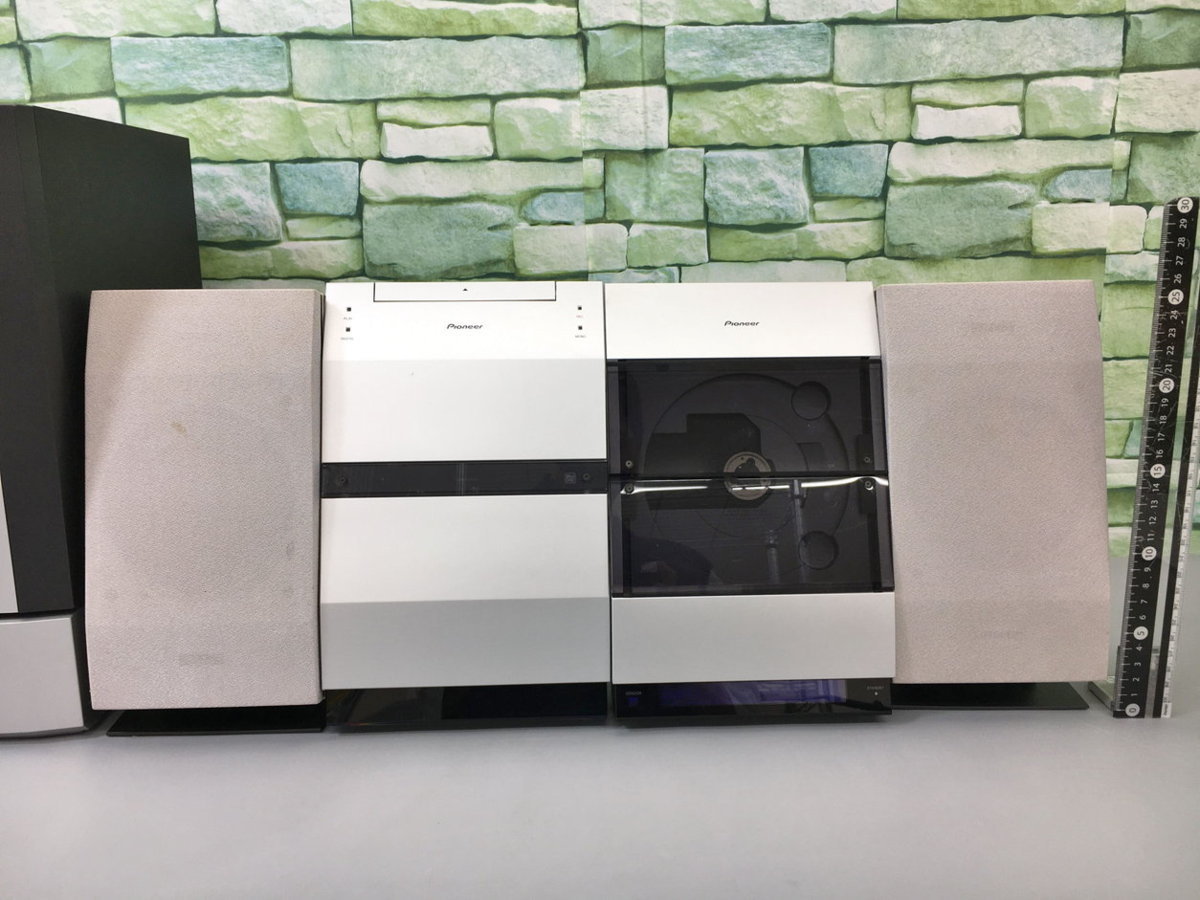

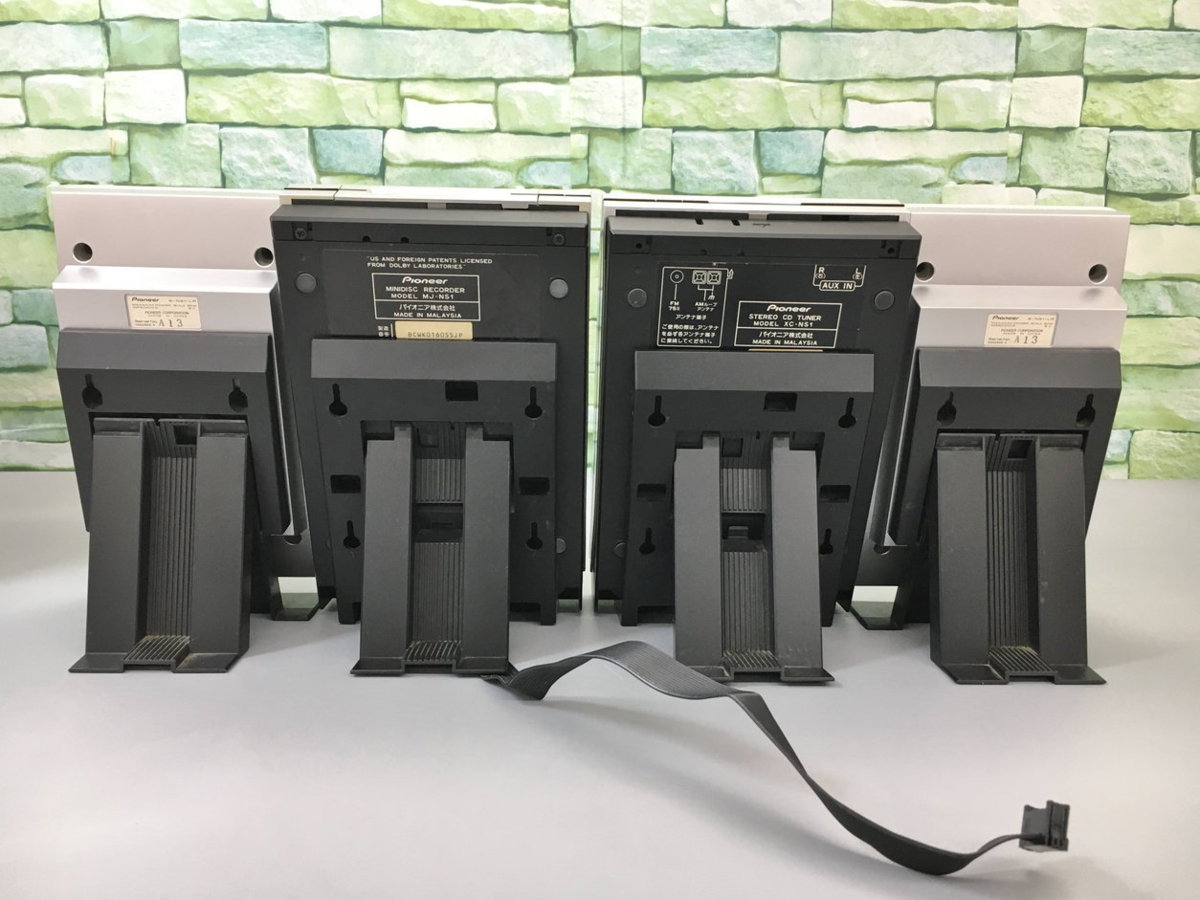

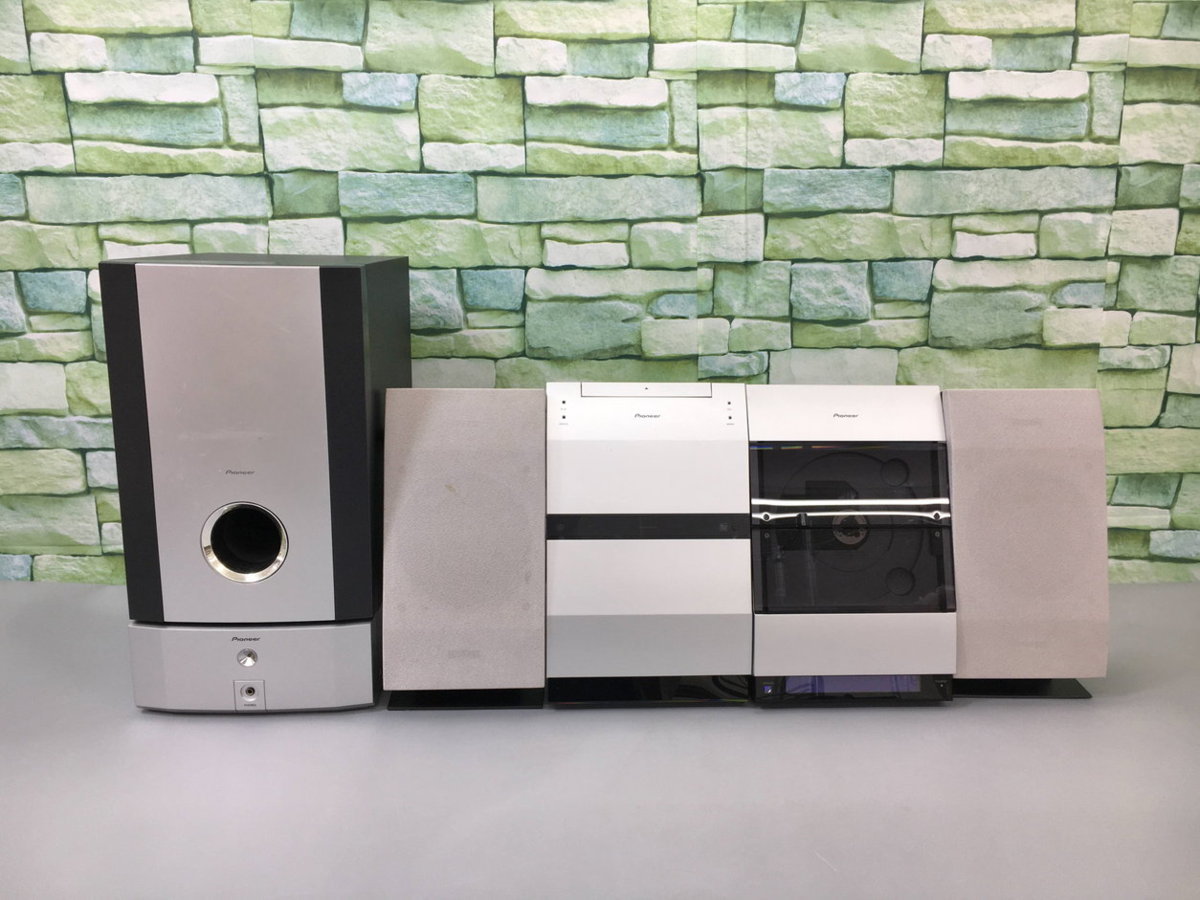

Part of the Pioneer X-NS1 component system

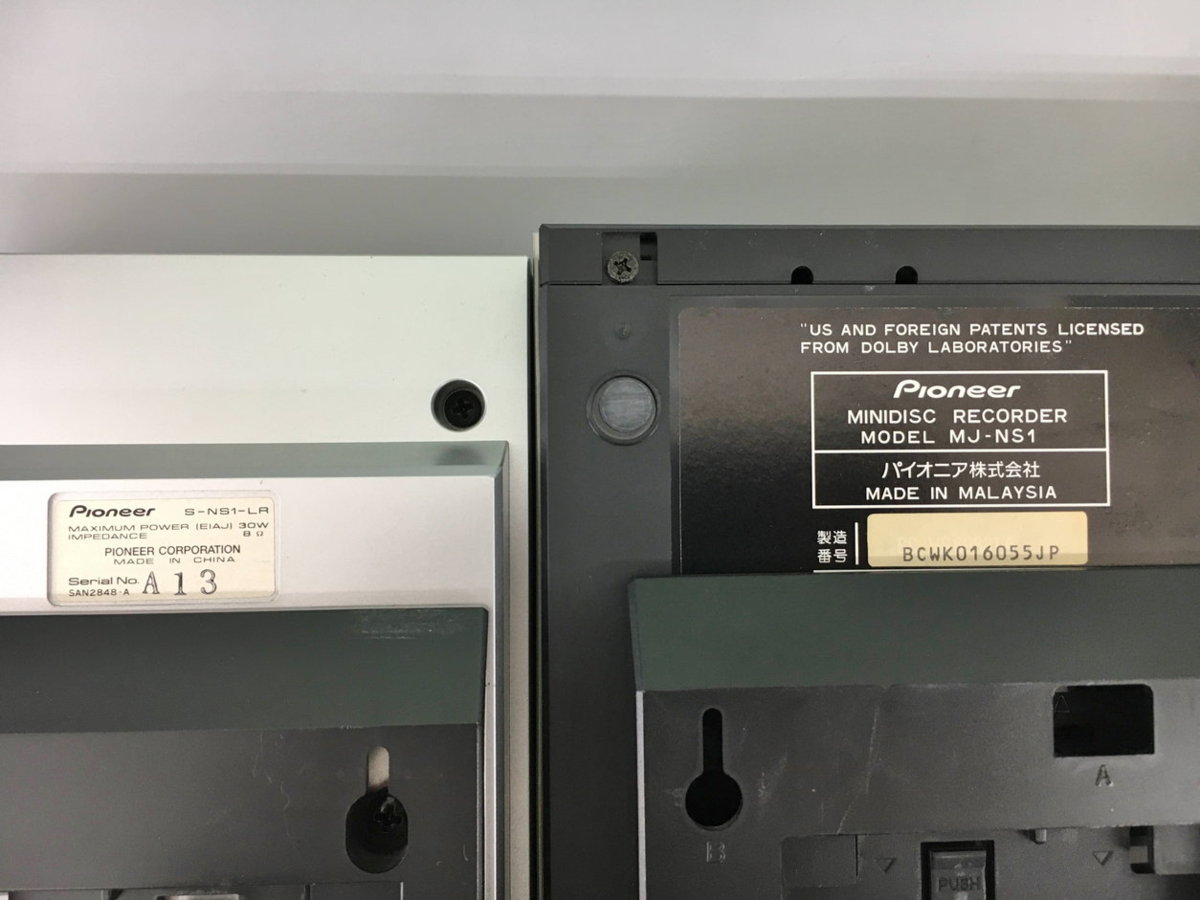

MJ-NS1 - MD recorder

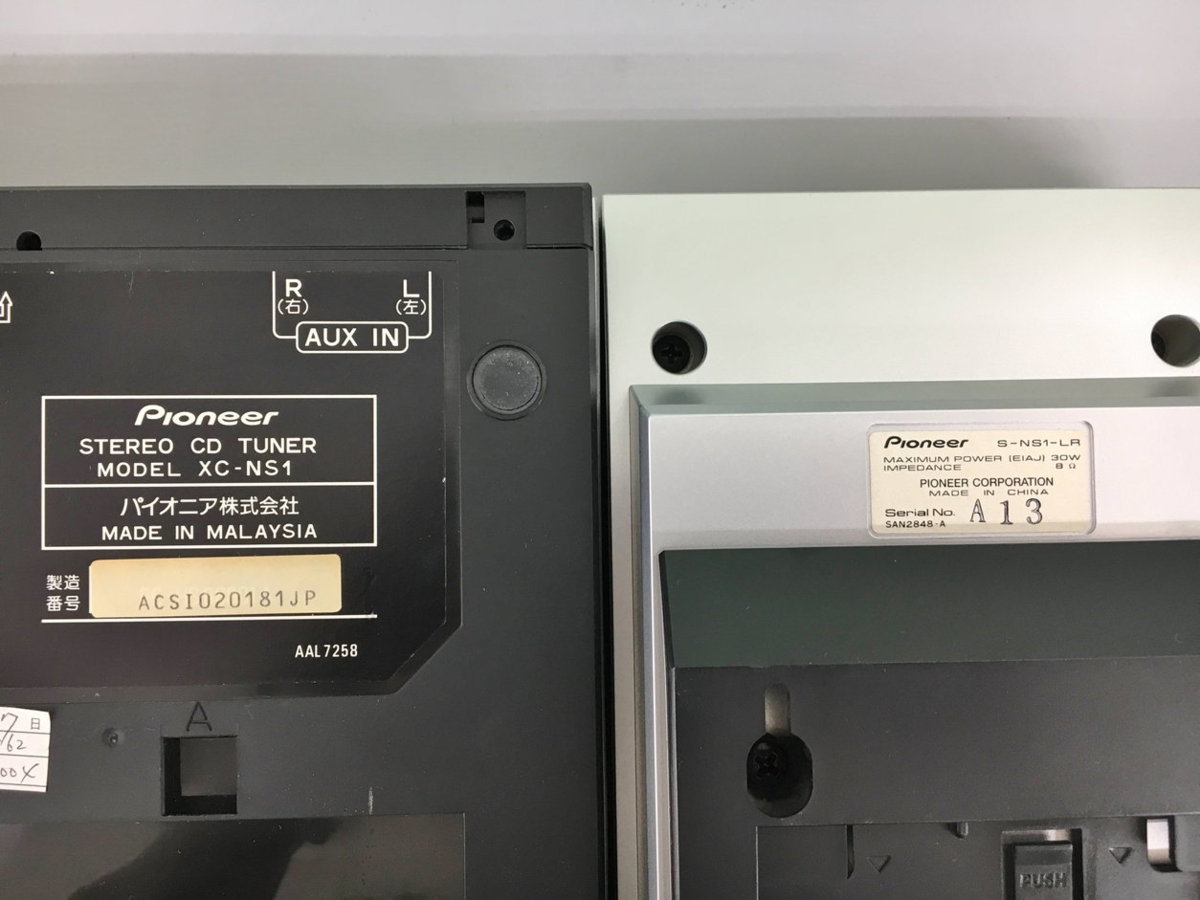

XC-NS1 - Stereo CD Tuner
CT-NS1 - Stereo cassette deck

M-NS1 - Stereo power amplifier

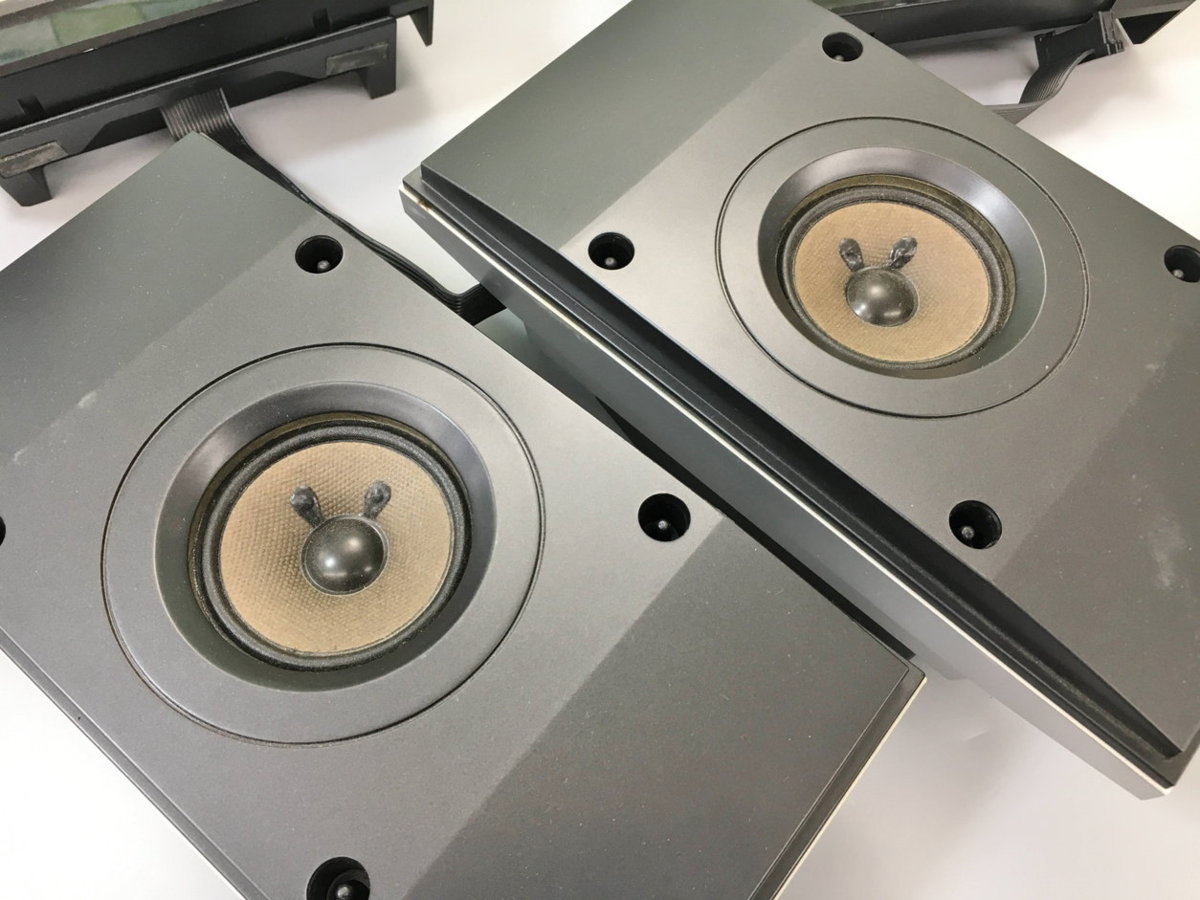

S-NS1-LR - Satellite speaker

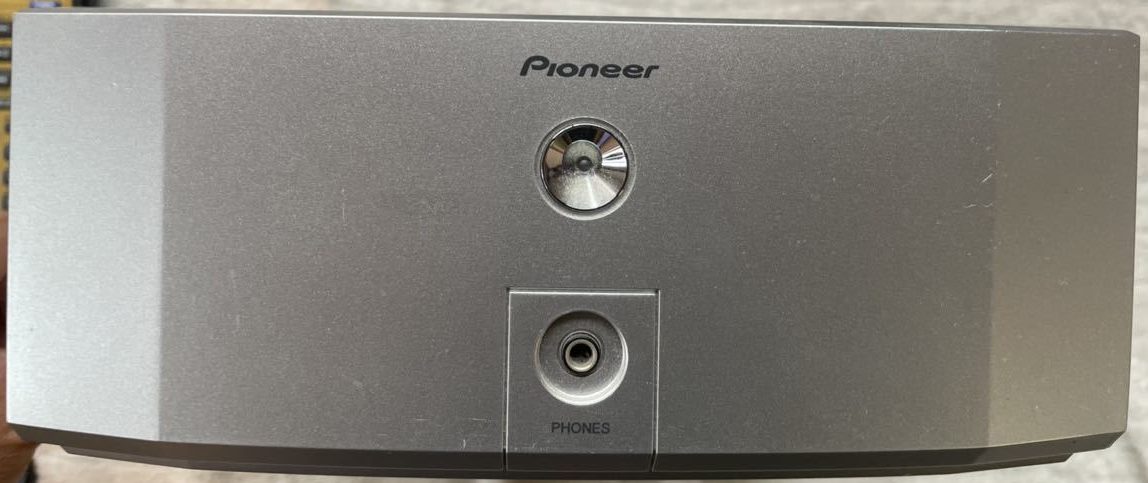

S-NS1-W - Subwoofer

Stereo CD tuner: XC-NS1

  • Number of compact disc channels 2-channel (stereo)
  • frequency characteristics - 4Hz-20kHz
  • SN ratio - 110dB (EIAJ)
  • External dimensions (with the stand removed and the CD door window closed) - 170 (width) x 268 (height) x 66 (depth) mm
  • Mass - 1.5kg
  • FM tuner section reception frequency - 76.0 ~ 108MHz
  • antenna - 75Ω unbalanced type
  • AM tuner reception frequency - 522kHz ~ 1,629kHz (9kHz step)
  • 530kHz ~ 1,700kHz (10kHz step) antenna Loop antenna (included)

Stereo cassette deck: CT-NS1

  • Track method - 4-track 2-channel stereo
  • frequency characteristics
    1. TYPE I (normal) tape - * 20Hz ~ 16,000Hz ± 6dB (-20dB recording)
    2. TAPE II (HIGH / Chrome) Tape - * 20Hz ~ 16,000 Hz ± 6dB (-20dB recording)
  • SN ratio - * 56dB (EIAJ / peak recording level, audibility correction)
  • DOLBY B type NR ON - 10dB improvement at 5kHz
  • Wow flutter - 0.07% WRMS (JIS)
  • outer shape Dimensions (with stand removed) - 170 (width) x 268 (height) x 66 (depth) ) Mm
  • mass - 1.5kg

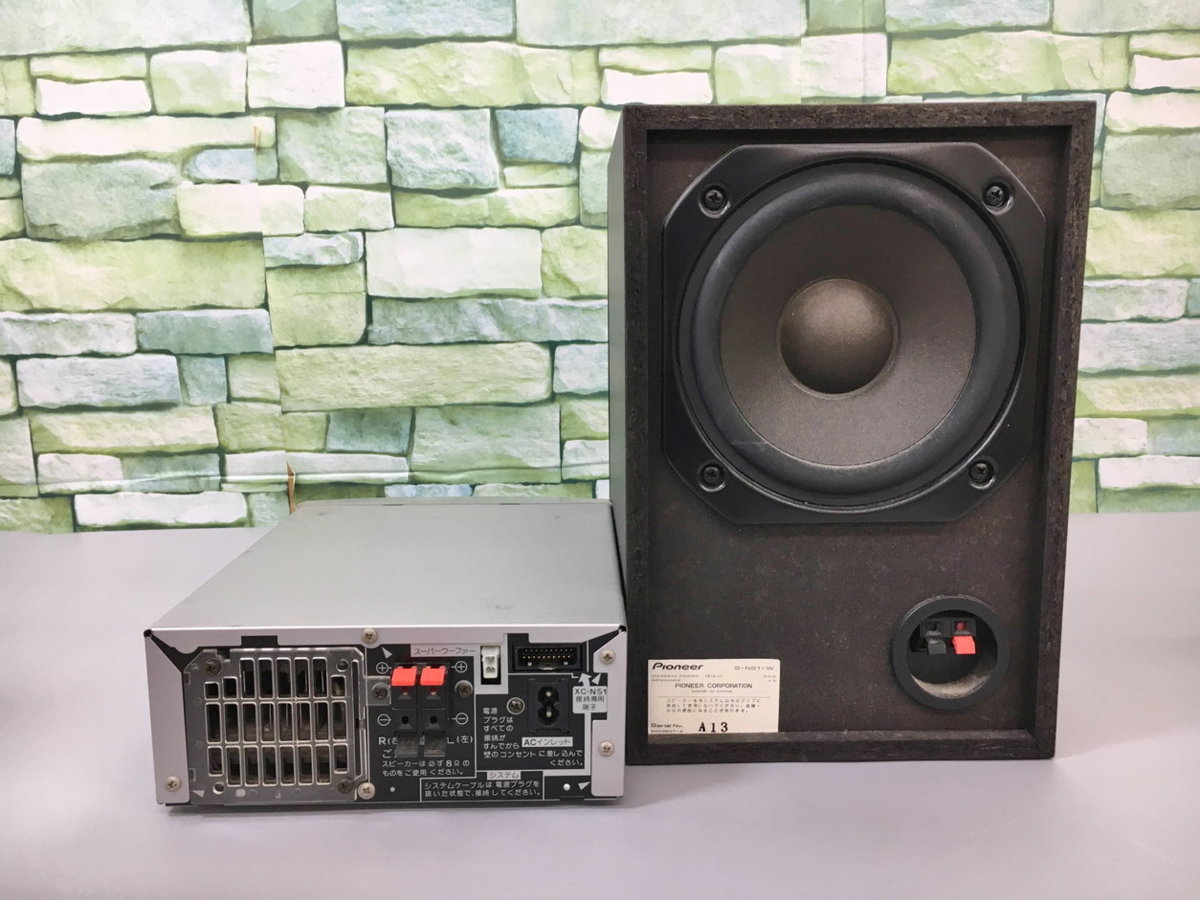

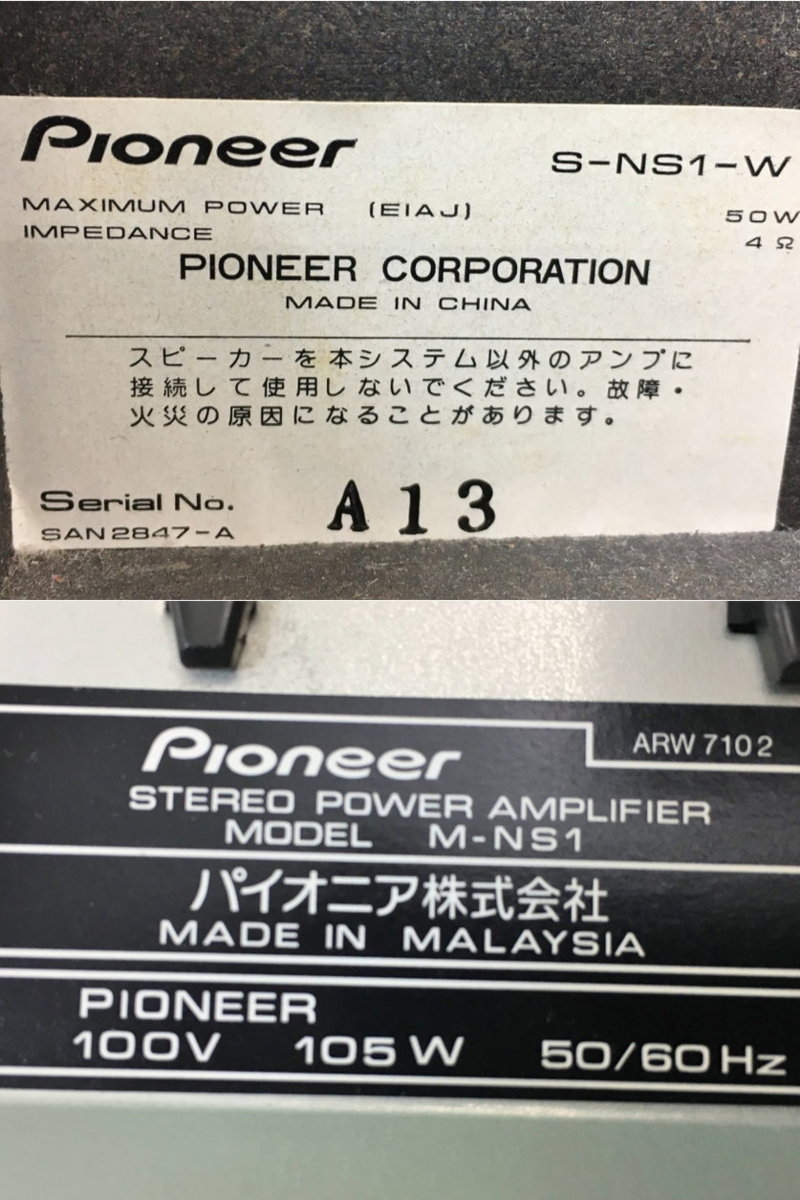

M-NS1 - Stereo power amplifier:

  • Practical maximum output (EIAJ) Satellite ….. 30W + 30W (3kHz, 10%, 8Ω)
  • Subwoofer 50W (70Hz, 10%) , 4Ω)
  • Power supply voltage AC100V, 50 / 60Hz
  • Power consumption (Electrical Equipment Control Law) 105W
  • Standby power consumption 0.9W
  • external dimensions 190 (width) x 80 (height) x 267 (depth) mm
  • Mass 4.0kg

Content adapted from: @@Source title@@

Manuals

Pioneer X-NS1 Manual

Pioneer MJ-NS1 Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
