Device

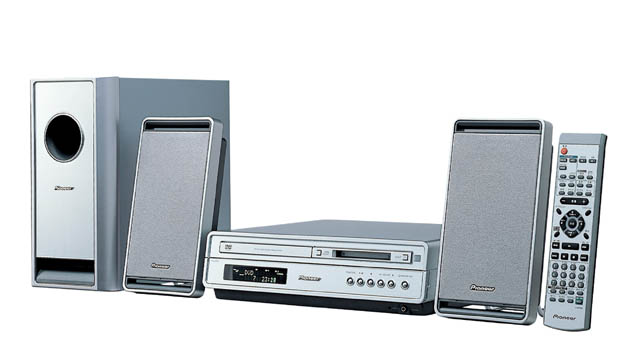

Pioneer X-FS7DV

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-06

Manufacturer
Pioneer
Model / source grouping
X-FS7DV
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-FS7DV”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name X-FS7DV
Manufacturer Pioneer
Released 2004/06
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 320W x 86H x 275Dmm
Weight 3500
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs Digital optical (TOSLINK), CD
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded
  • Double speed recording from CD to MD is possible easily with one touch.
  • Sound mode (MOVIE / MUSIC / LIVE / HALL / DRAMA) that can be selected according to the content.
  • Equipped with MDLP (LP2 / LP4) function. With the "group function", you can quickly select a large number of songs.
  • "Manner mode" that suppresses sudden sound effects and prevents sound leakage to the surroundings while maintaining the volume of lines and vocals.
  • Equipped with "BGM mode" that can play DVD images and JPEG format images at the same time as MD music. You can enjoy discs with only images taken with a digital camera, etc., along with your favorite music.
  • Achieves powerful surround playback and has a high power total output of 50W.

Content adapted from: Pioneer Press Release Rakuten item page av.watch

Manuals

Pioneer X-FS7DV Manual

Repair

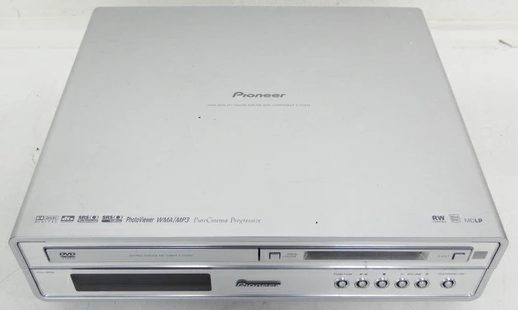

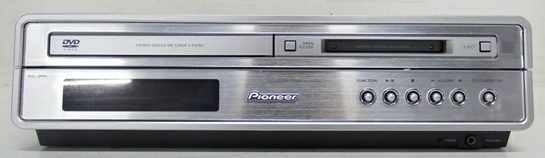

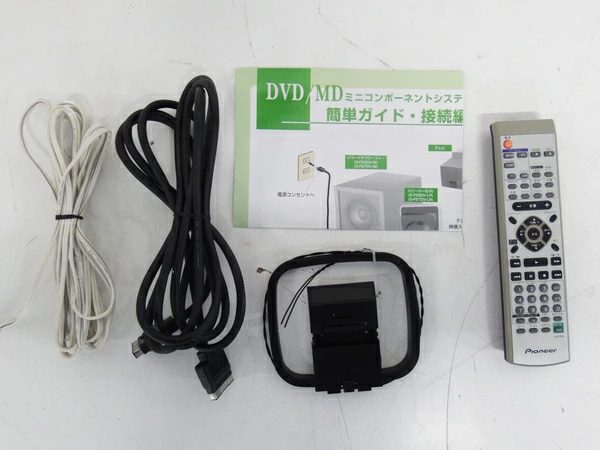

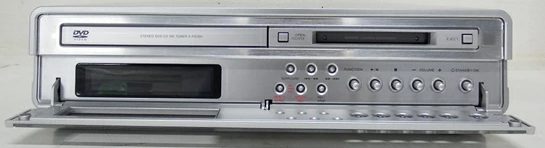

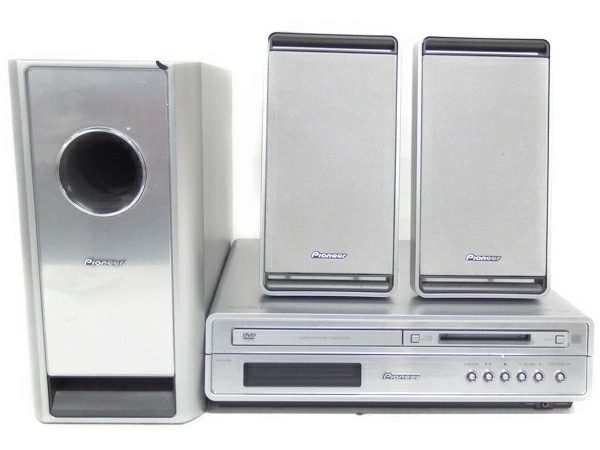

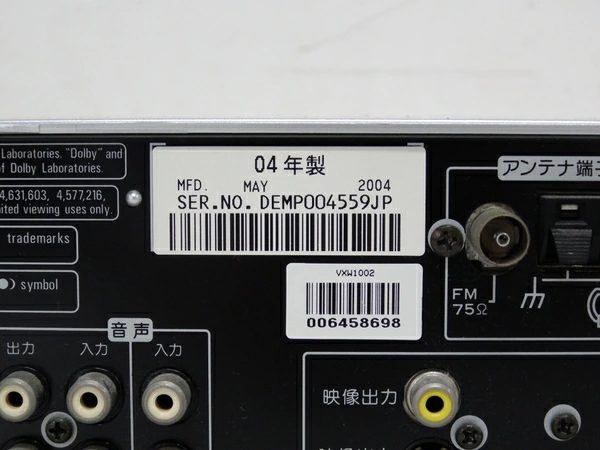

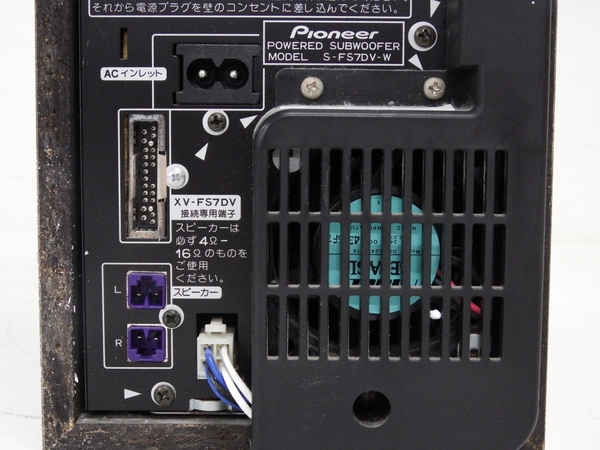

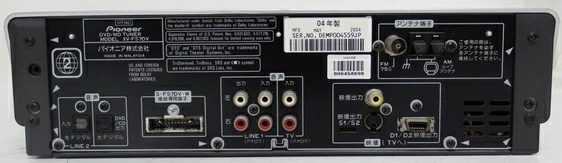

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
