Device

Pioneer X-FS9DV

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2022-12-06

Manufacturer
Pioneer
Model / source grouping
X-FS9DV
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Pioneer X-FS9DV”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

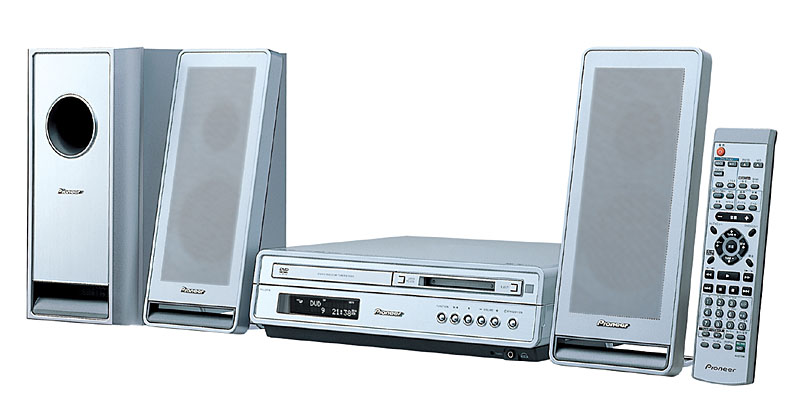

Name X-FS9DV
Manufacturer Pioneer
Released 2004/06
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 320x86x275 mm
Weight 3500
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥69 800
-
Inputs N/A, RCA in, Digital optical (TOSLINK), CD
Outputs RCA out, Digital optical (TOSLINK)
Control Not recorded

The X-FS9DV is equipped with a "Dolby Virtual Speaker" (DVS) circuit that reproduces 5.1ch surround with a 2.1ch speaker by calculating indirect sound in real time and canceling crosstalk. In addition, it also supports "Dolby Headphones" that perform surround playback with headphones.

Equipped with a "manner mode" that prevents sound effects and other sounds from leaking to the surroundings while maintaining the volume of dialogue and vocals. The equalizer can be selected from 5 types, "MOVIE", "MUSIC", "LIVE", "HALL", and "DRAMA", according to the content.

  • Double speed recording from CD to MD is possible easily with one touch.
  • Sound mode (MOVIE / MUSIC / LIVE / HALL / DRAMA) that can be selected according to the content.
  • Equipped with MDLP (LP2 / LP4) function. With the "group function", you can quickly select a large number of songs.
  • "Manner mode" that suppresses sudden sound effects and prevents sound leakage to the surroundings while maintaining the volume of lines and vocals.
  • Achieves powerful surround playback and has a high power total output of 50W.
  • The energy-saving design achieves industry-leading standby power consumption of 0.065W.

Content adapted from: Pioneer Press Release av.watch

Manuals

Pioneer X-FS9DV

Repair

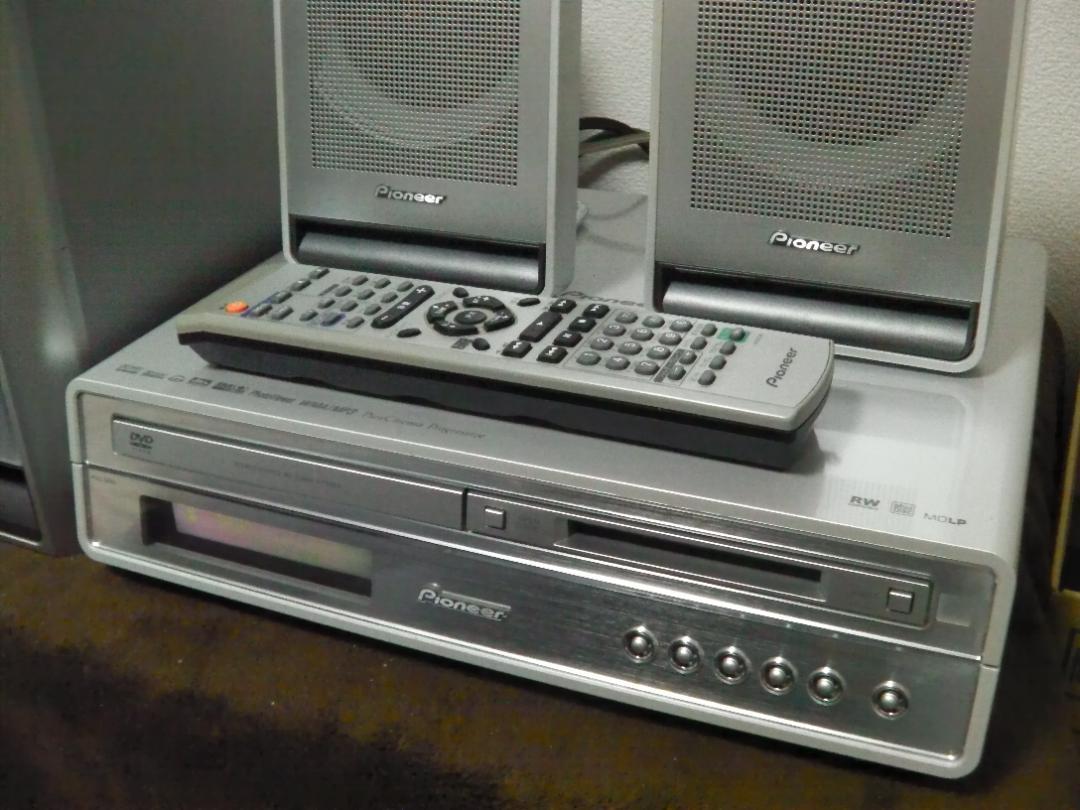

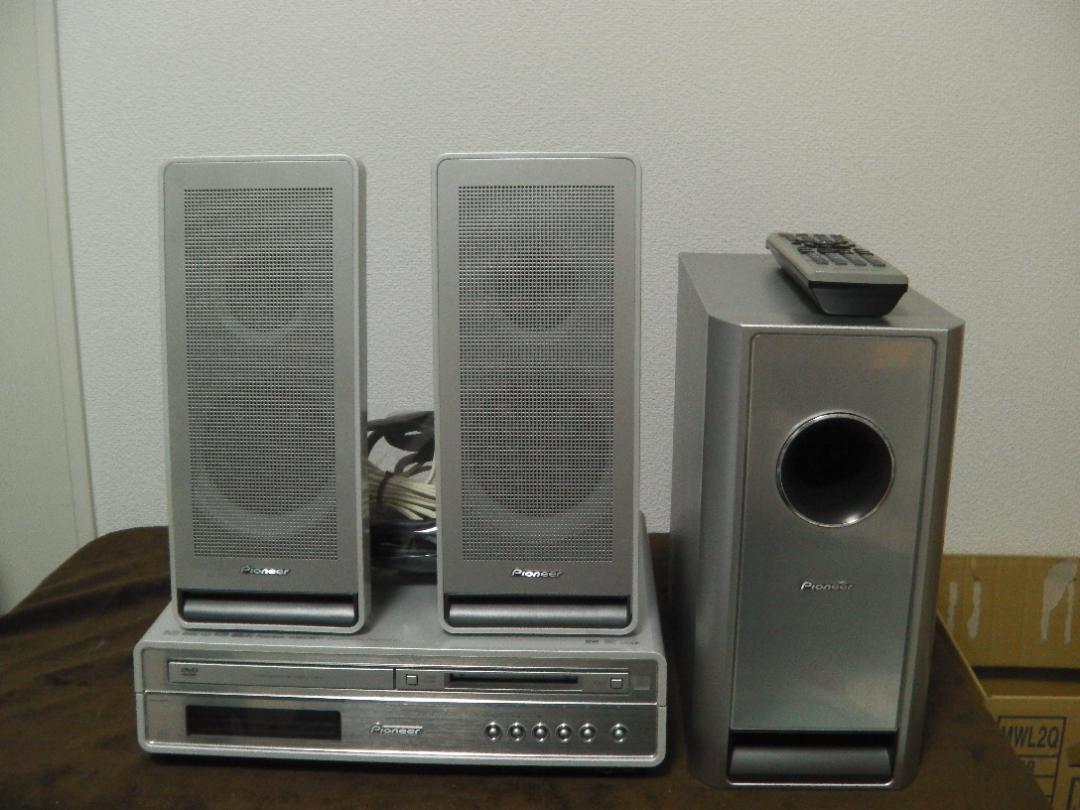

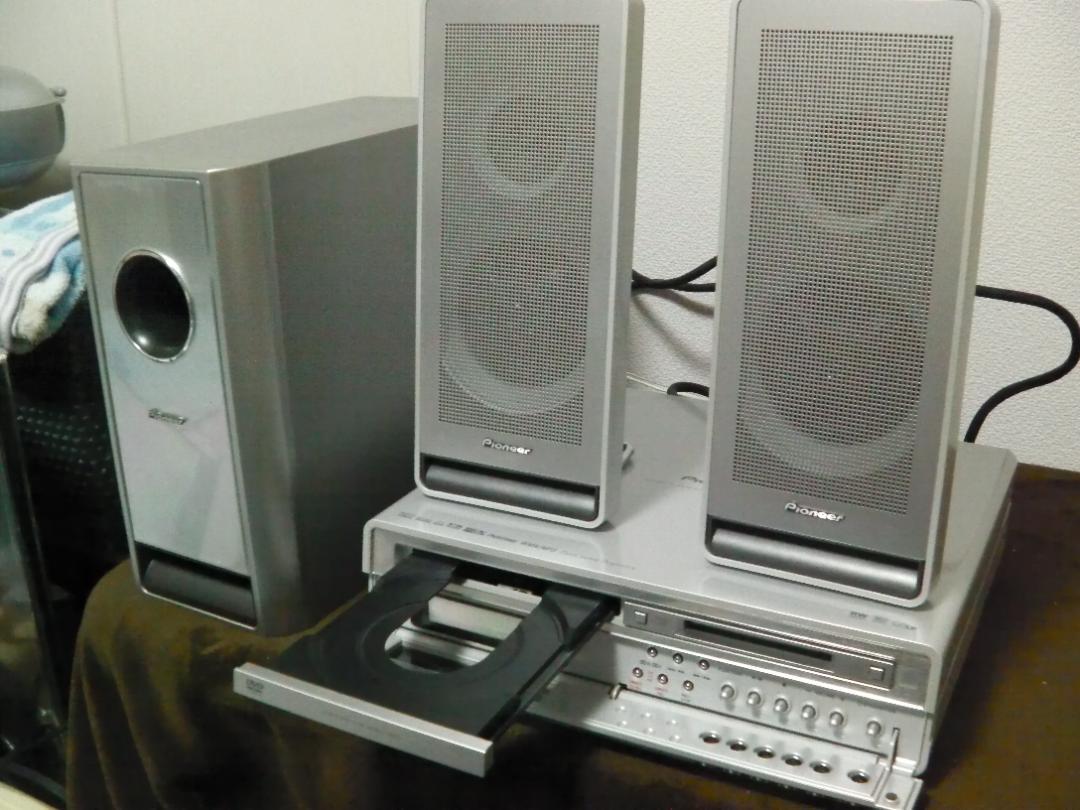

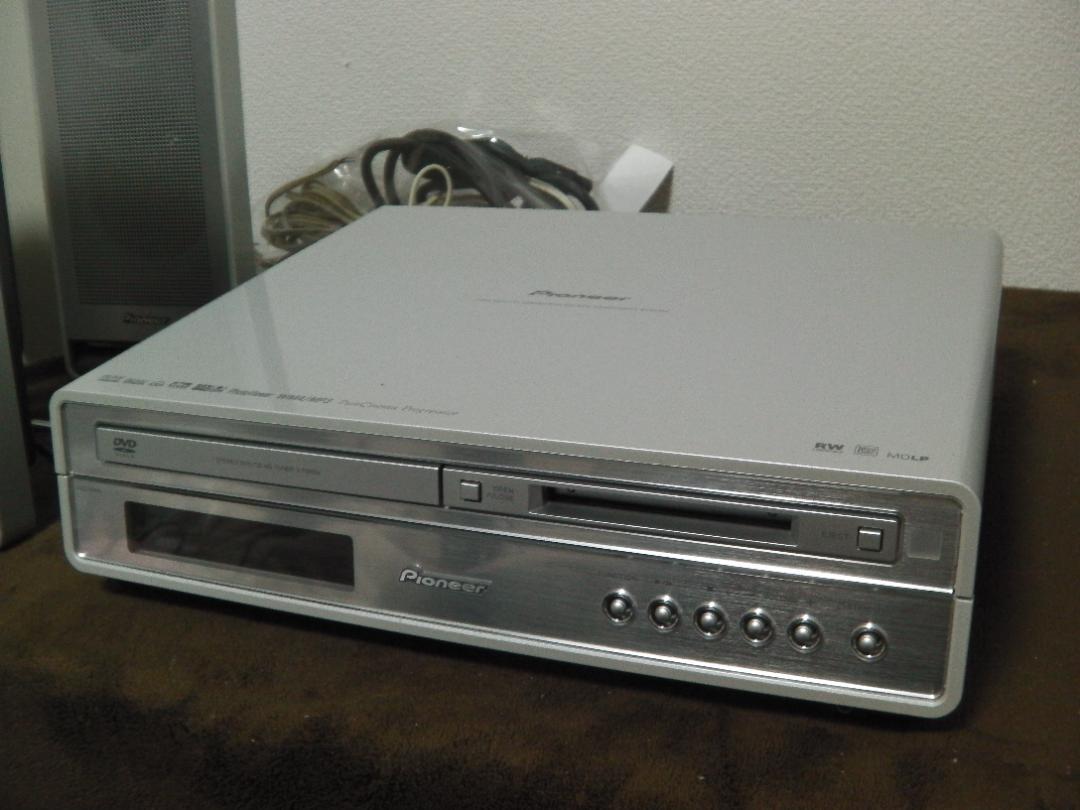

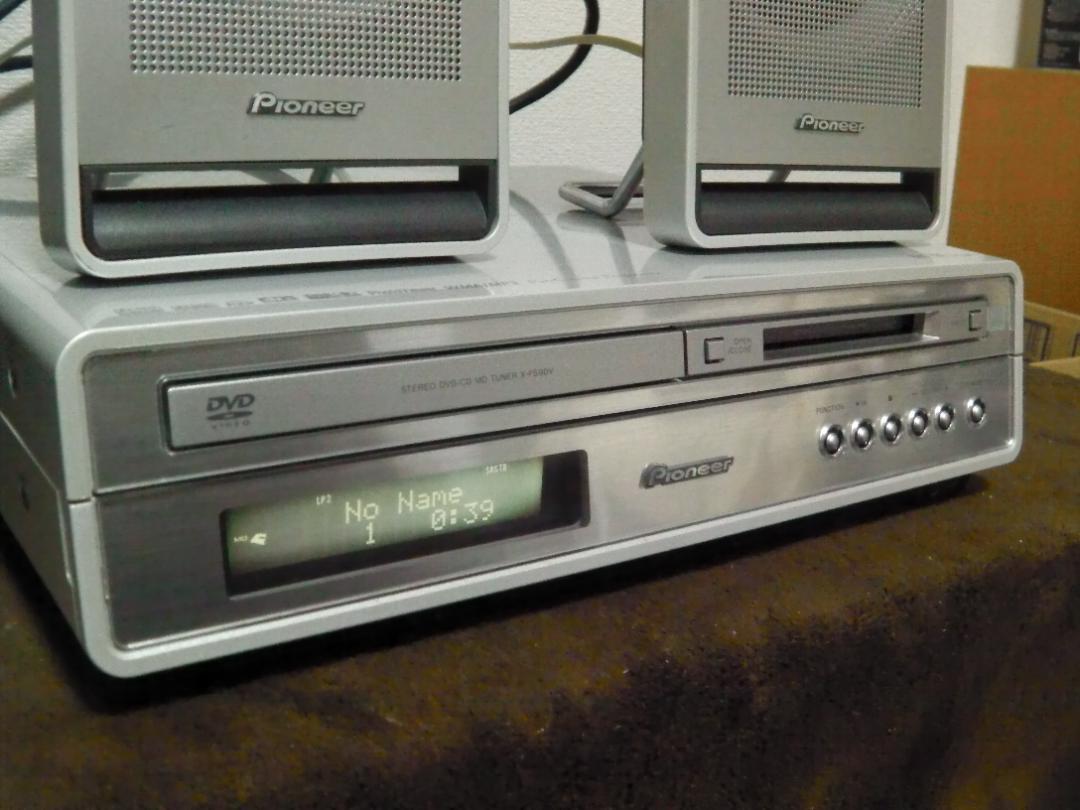

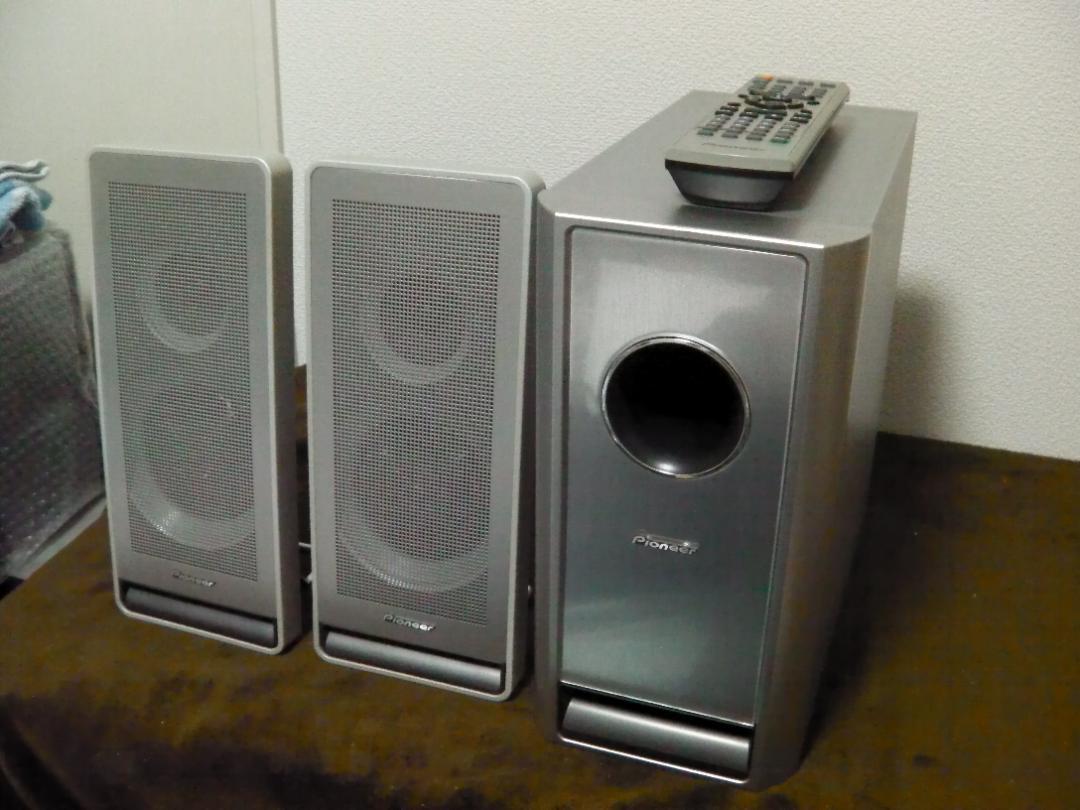

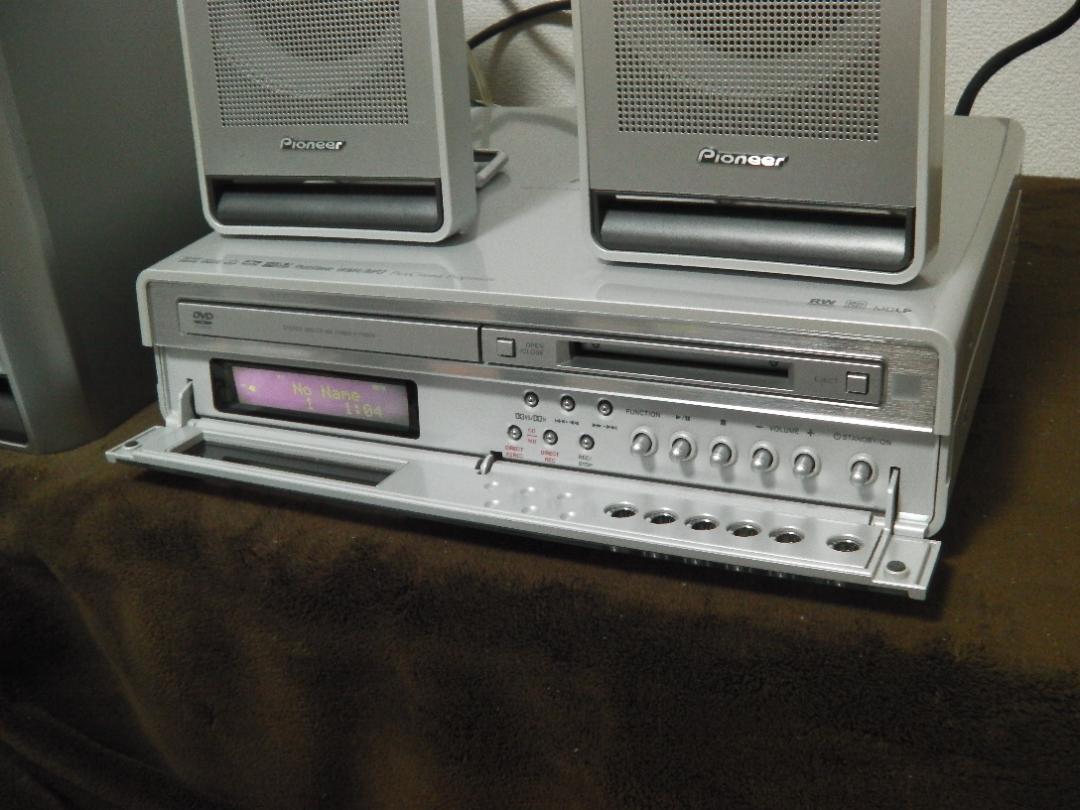

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ManualUser manual
RegionJapan
